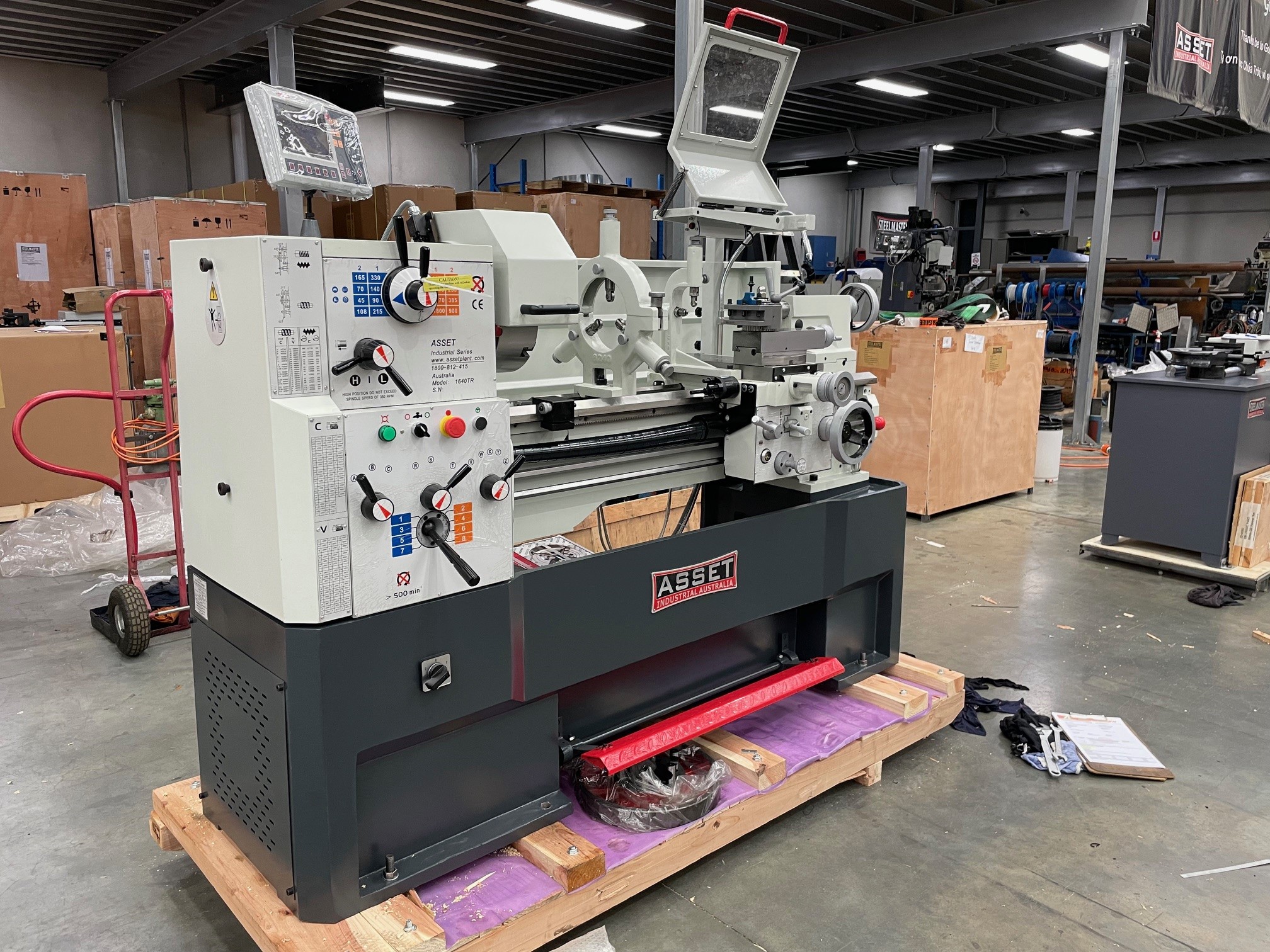

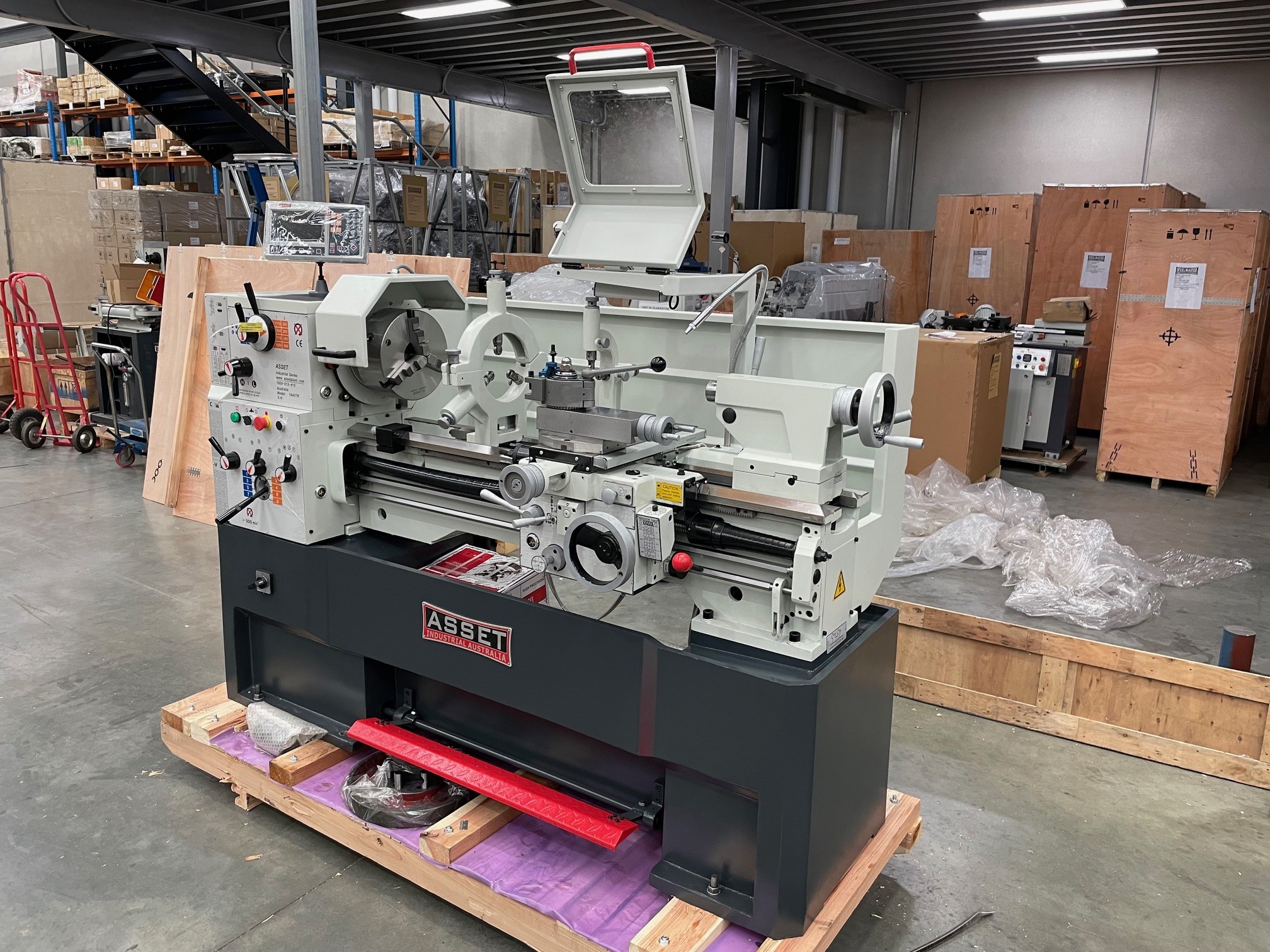

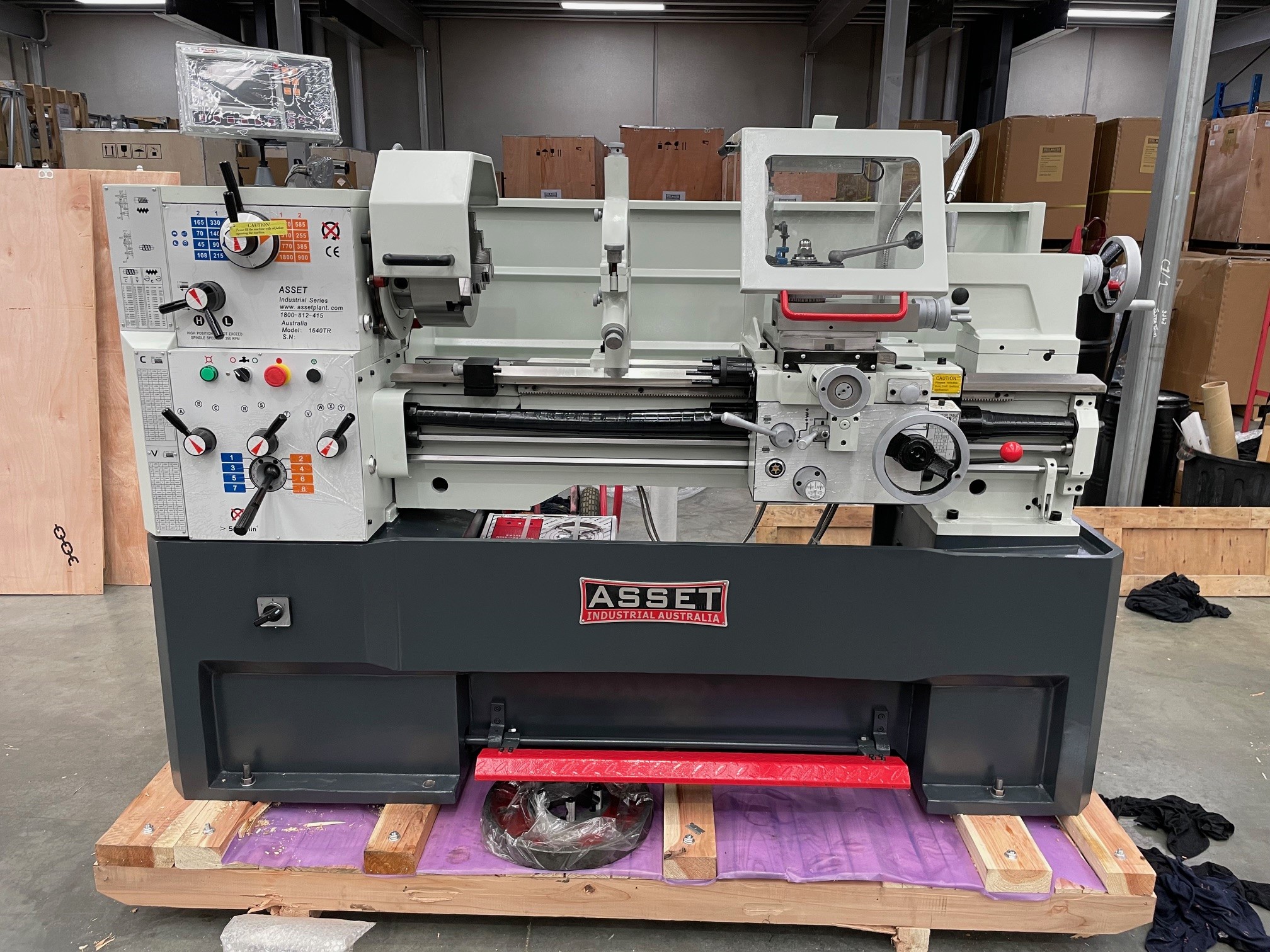

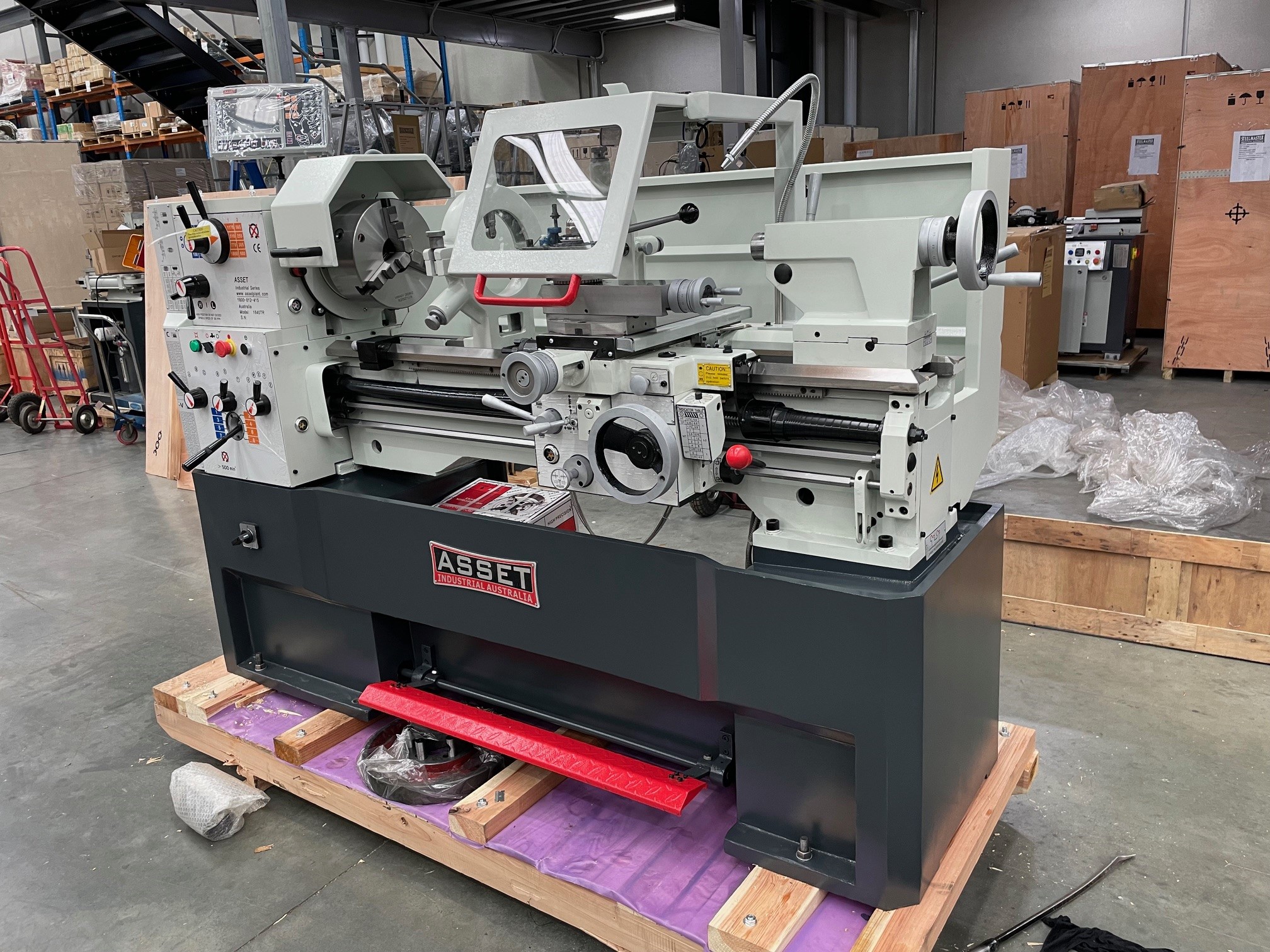

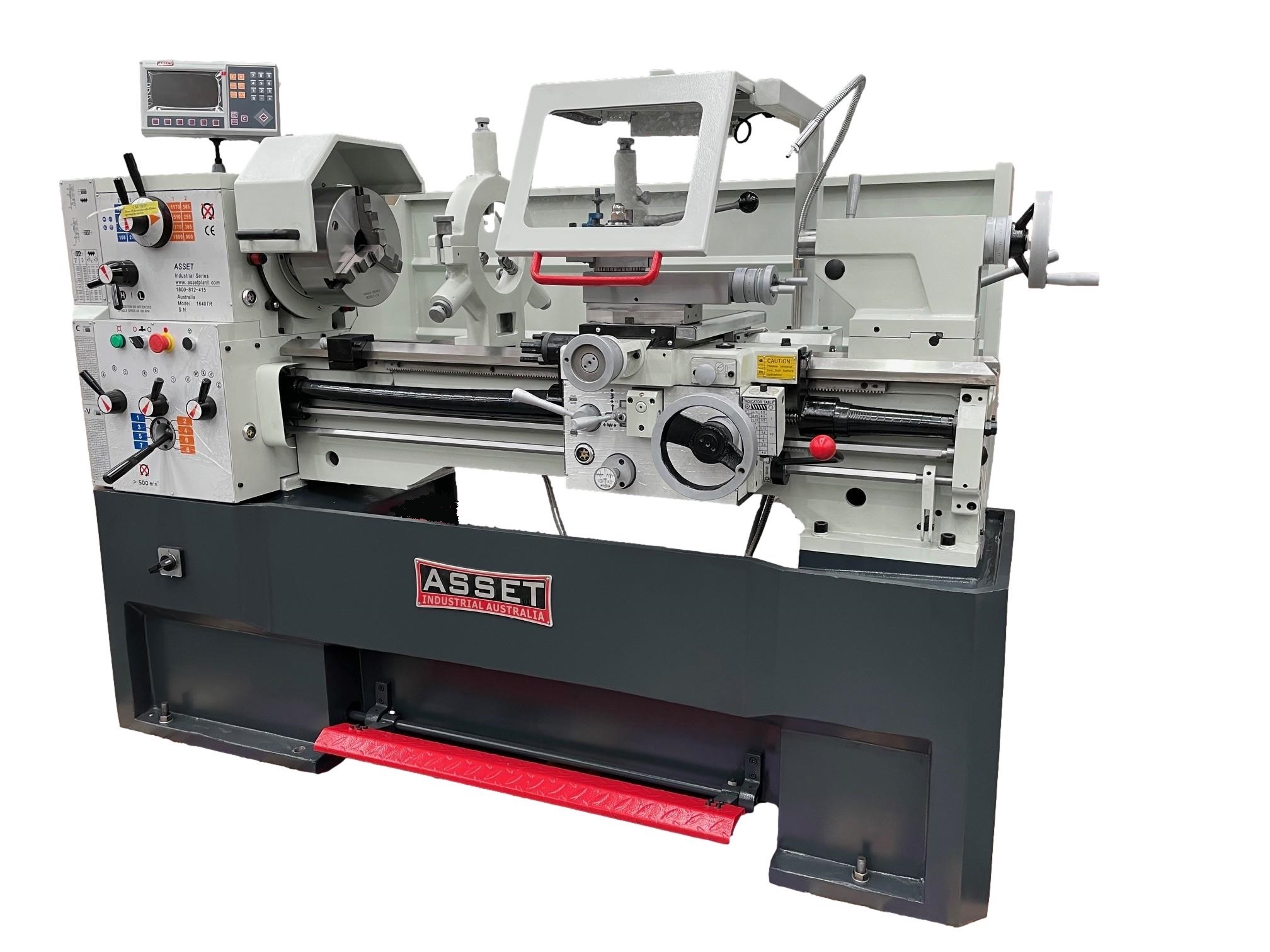

ASSET 1640TR – EURO Toolroom Precision Lathe. 1000mm Centres, 410mm Swing, 52mm Bore, 2 Axis DRO

Original price was: $15,850.00.Current price is: $14,850.00.


sku 12-0120N
distance between centres 1000 mm
centre height  205mm
swing over bed 410 mm
swing in gap 590 mm
swing over cross-slide 240 mm
bed width 250 mm
bed height 900 mm
spindle bore 52 mm
camlock system D1 ~ 6 mm
spindle speeds 45 ~ 1800 / 16 mm
cross-slide travel 210 mm
compound slide travel 140 mm
3 jaw chuck size Ø 250 mm
4 jaw chuck size Ø 250 mm
metric threads 0.2 ~ 14 / 39 mm
imperial threads 2 ~ 72 / 45 imp
cross feed 0.025 ~ 0.95 mm/r
tailstock quill taper 4 mt
headstock morse taper 6 mt
tools to suit 20 mm & 25 mm
motor power 3.0 / 415 kw/V
dimensions (l x w x h) 2020 x 900 x 1650 mm
weight (nt) 1600 kg


Our New Euro model offering full length cast body, 410mm swing & 1000mm bed is a favoured size of machine shops around the country!
This fine quality tool room model is an excellent high precision machine that will become an indispensable part of your shop.

❚ Practical control panel with ergonomic layout of selection levers
❚ New Euro Designed Induction-hardened and ground cast iron bed and slide ways
❚ New Euro type retractable chuck guard cover, tool post cover with LED workshop
❚ Spindle holding camlock system
❚ Main spindle running in oil bath, hardened and ground with two adjustable precision taper roller bearings ensures accuracy
❚ Maximum accuracy and quiet operation, even at high speeds
❚ Transversal adjustment of tailstock for taper cutting applications
❚ 2 axis dro fitted as standard
❚ Safety covered lead screw
❚ Safety interlocks on chuck guard, gear box and foot brake
❚ 415v 3ph
❚ CE compliant

Technical Data Snap-Shot
❚410mm swing over bed
❚580mm swing in gap
❚255mm swing over cross-slide
❚1000mm between centres
❚52mm spindle bore
❚210mm – cross slide travel
❚140mm – top slide travel
❚120mm – tailstock travel
❚55mm – tailstock diameter
❚250mm – bed width
❚250mm 3 jaw chuck
❚250mm 4 jaw chuck
❚20mm or 25mm cutting tool used
❚faceplate supplied
❚fixed & travelling steadies
❚euro Haas type quick change post with 3 x holders
❚2 axis digital read out fitted
❚shipping dimensions – 1950mm x 830mm x 1400mm
❚crate dimensions – 2050mm x 830mm x 1650mm
❚power – 2 speed 415V 3.0Kw
❚approx weight: 1650kg


2 axis DRO, 3 & 4 jaw chuck, quick change tool
post with 3 holders, face plate & centres, fixed steady &
1 x travelling steady, full length splash guard up to 1000mm,
covered leadscrew, interlocked chuck guard, headstock cover.

Shipping Dims: 2050mmx 830mm x 1650mm @ 1600kg
