Specifications
MODEL NUMBER: 19-0355-CNC

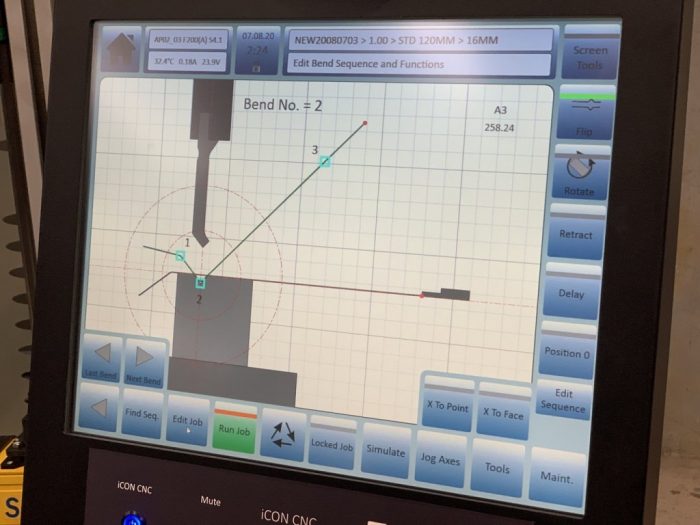

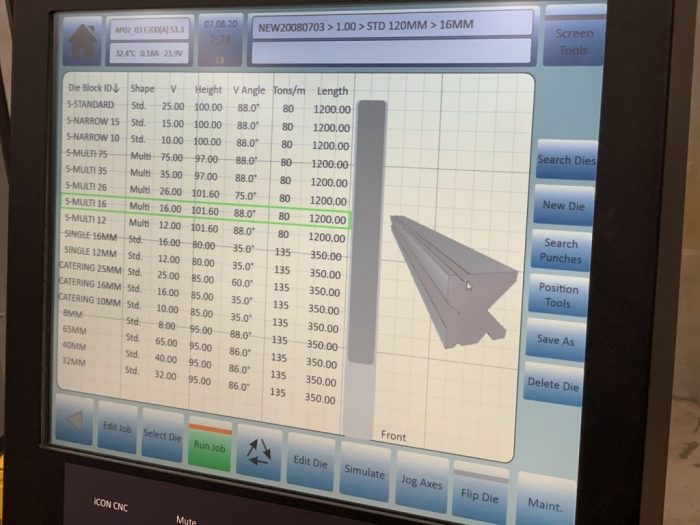

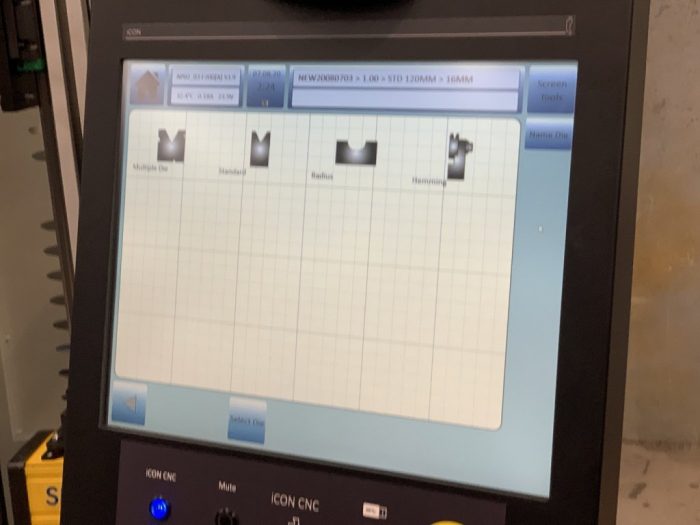

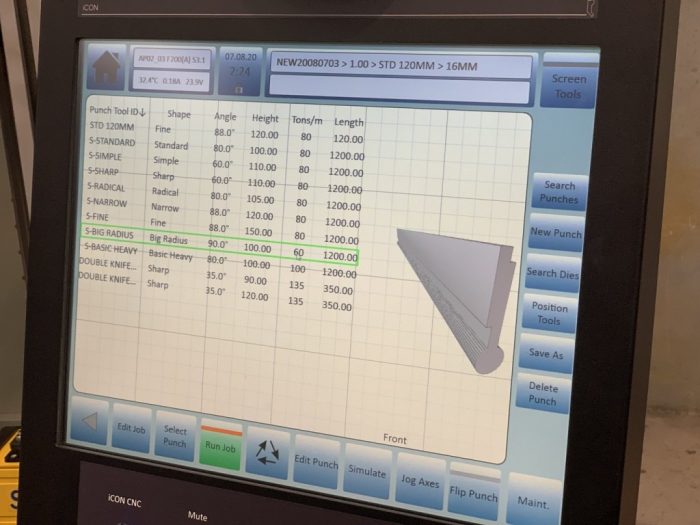

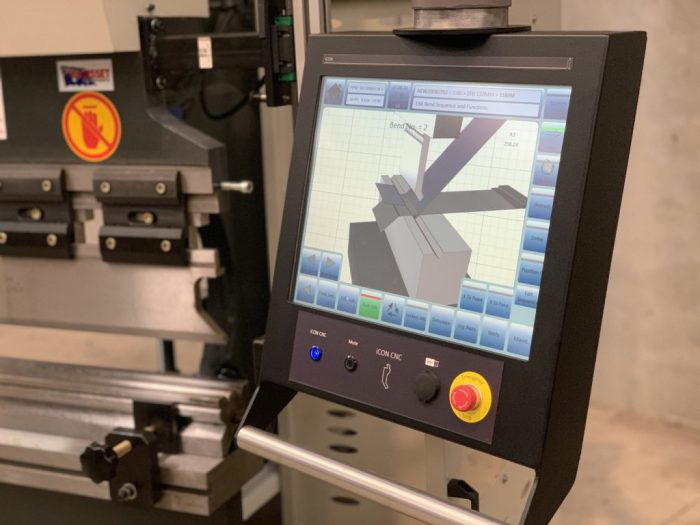

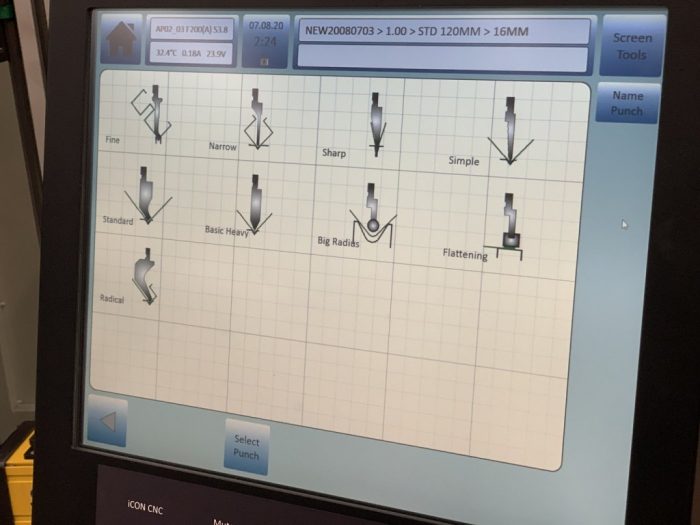

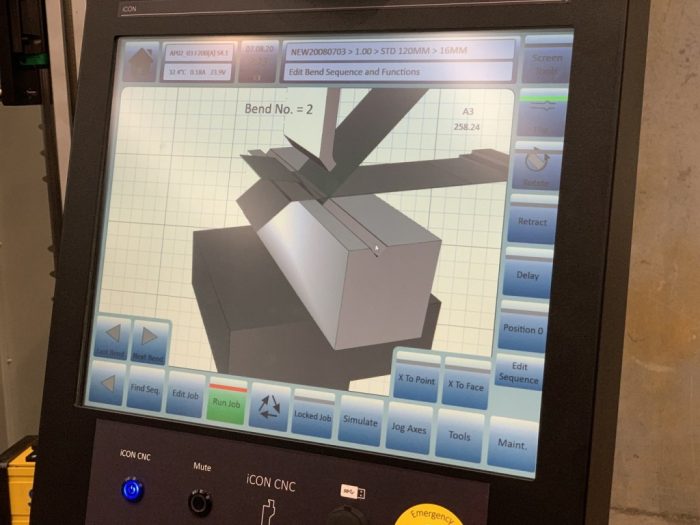

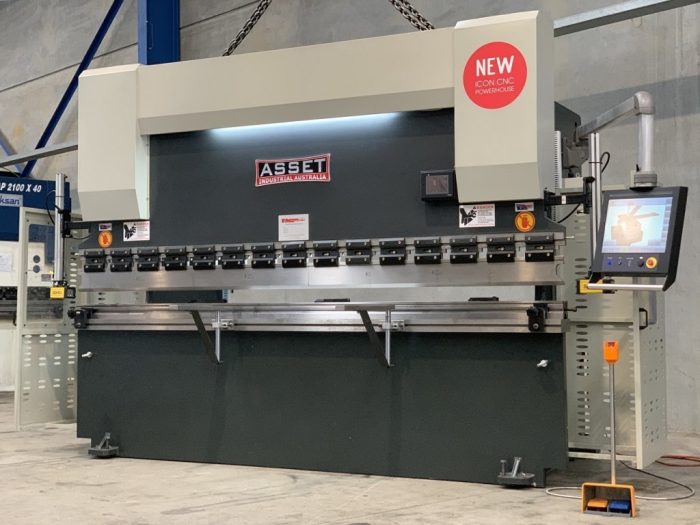

Our new ASSET Industrial Pressbrake offers the astute buyer an incredible user experience with our Australian Made Graphical Display ICON CNC operating System
We continue to offer the Best Range of Industrial Metalworking Machinery Parts & Accessories at B2B Trade Direct Best Pricing
Features
❚hydraulic synchronised positive stop design, electronically controlled by Estun NC programmable controller assuring accurate repeatability and ease of use.
❚deep side throats and wider distances between the vertical frames offering you more application scope.
❚segmented heavy duty 86° offset top tool, segmented for return bend clearance.
❚full length Multi Vee bottom block with a smart selection of openings also including safety edge vee (‘V’) for over bending.
❚power operated back gauge with quality support fingers also with vertical adjustment
❚front sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height.
❚conveniently mounted control box on pendant for quick swivel and adjustments.

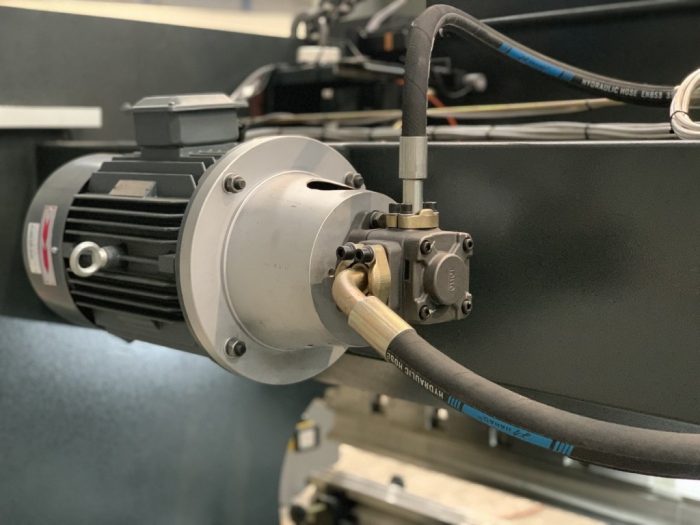

❚integrated hydraulic system allowing rapid approach switching automatically to slow bend.
❚modern designed pendant foot pedal operation with stainless braided cable.
❚variable hydraulic pressure control valving fitted standard
❚safety and material selection bending charts mounted on front beam for easy access.
❚supplied pre commissioned prior to delivery
❚pre commissioned prior to delivery
❚CE compliant
iCon Service Assist Feature
❚Support is a simple as pairing the iCon controller to phone.
Selects ‘Assist’ and all data is uploaded to cloud.
Our techs can assess any issues you have on their computer, make any changes and re-send.
Customer then ‘Accepts’ the file and controller is updated.
The whole process takes less than 5 minutes.
Technical Data Snap-Shot
❚4000mm bending length
❚220 Ton Bending Capacity
❚2 x Axis Etsun E21 NC Controller for Depth & Back Gauge

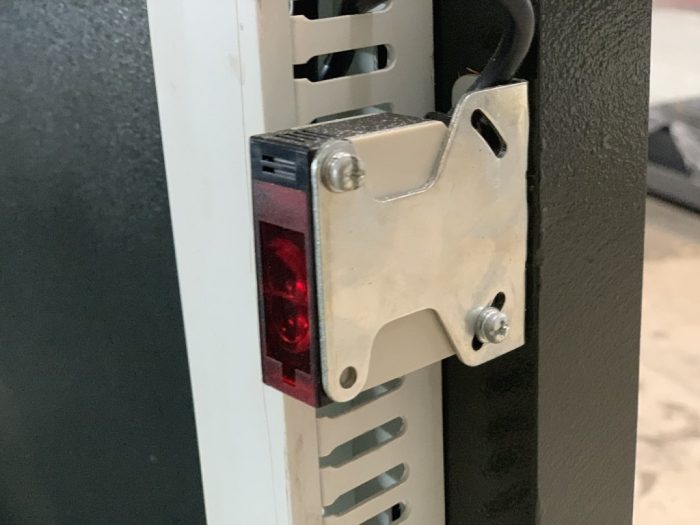

❚Front OH&S Laser Guards Included in Offer

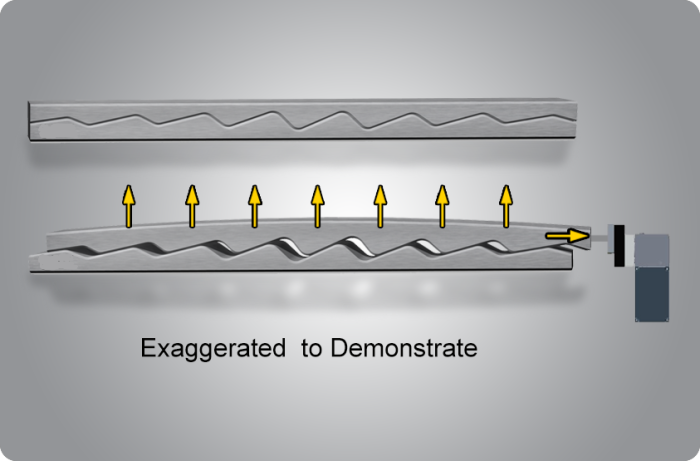

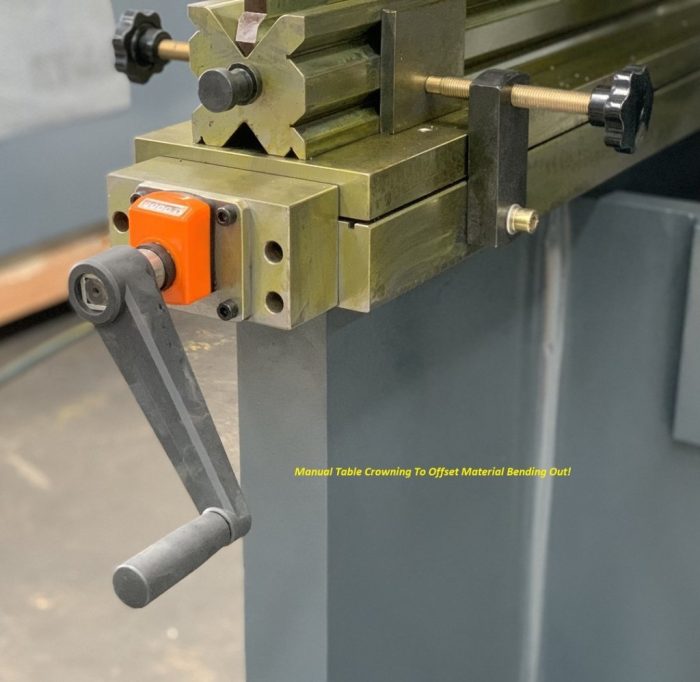

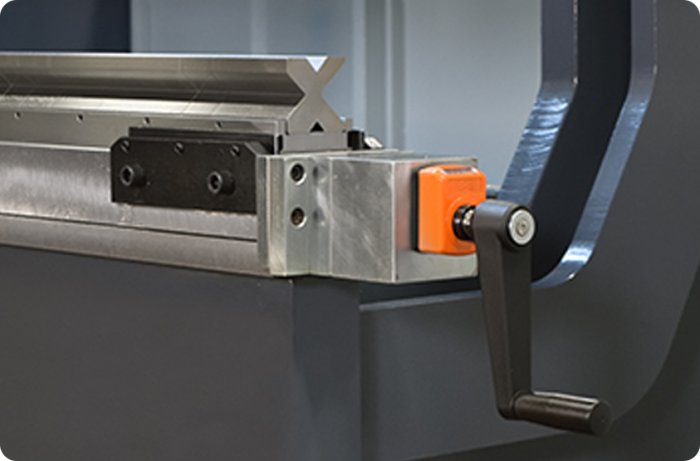

❚Hand operated table crowning included
❚precision ball screw Backgauge
❚tee slotted front beam
❚4000mm Bending Length
❚3200mm Distance Between Frames
❚420mm Side Throat Depth
❚200mm Ram Stroke
❚470mm Open Height
❚600mm Back Gauge Travel
❚15Kw / 415V Motor Power
❚4700mm x 2200mm x 2950mm Footprint
❚15800Kg Weight
Standard Tooling Supplied
❚120mm x 120mm x 4000mm Multi Vee Bottom Vee Block
❚Segmented Gooseneck Tooling
Optional Items To Be Added
❚Front OH&S Laser Guards Included in Offer (Included on This Offer)
❚Manual Table Crowning (Included on This Offer)

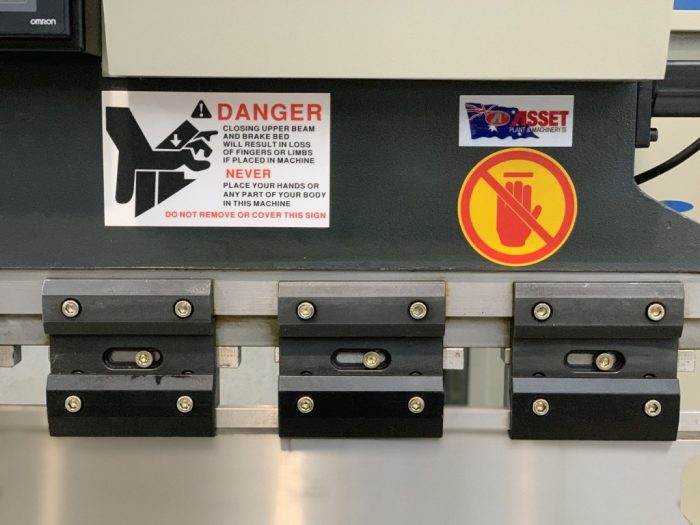

❚Quick Release Tool Clamps
Recommended Add On Accessories
❚19#0660 – STEELMASTER Plastic Die Cover Protective Folding Film – Sold Per Metre – Improves Bend Quality Finish
❚19+0127 – Pressbrake Bottom Dieblock, Catering Profile 4000mm – Excluding Holder
❚19+0240 – STEELMASTER Bottom Single 16mm Vee Tooling – US 20.416/35° V=16 R2,0 L.MM.835
❚19+0268 – STEELMASTER Fold & Crush Dutch Tooling – US 300/26° V=12 R2,0 L.MM.500
❚19+0114 – Single Edge Knife Top Punch – Pressbrake Tooling – 4000mm Long x 15º Profile – Type 2
❚19+0139 – Double Edge Knife Top Punch – Pressbrake Tooling – 4000mm Long x 35º Profile – Type 2
❚19+0238 – STEELMASTER US 152/88 Degree, Radius 0.8mm Press Brake Tooling – 835mm Long
❚50+0200 – Digital Thickness Gauge – 0mm ~ 15mm
❚50+0156 – Dial Protractor With Bevelled Blade – Metric Calibrations.
❚50+0112 – Digital LCD Vernier Calliper – 150mm Length.
❚50+0159 – Digital Micrometers – 0-25mm Range, Dual Reading, Metric & Imperial.
