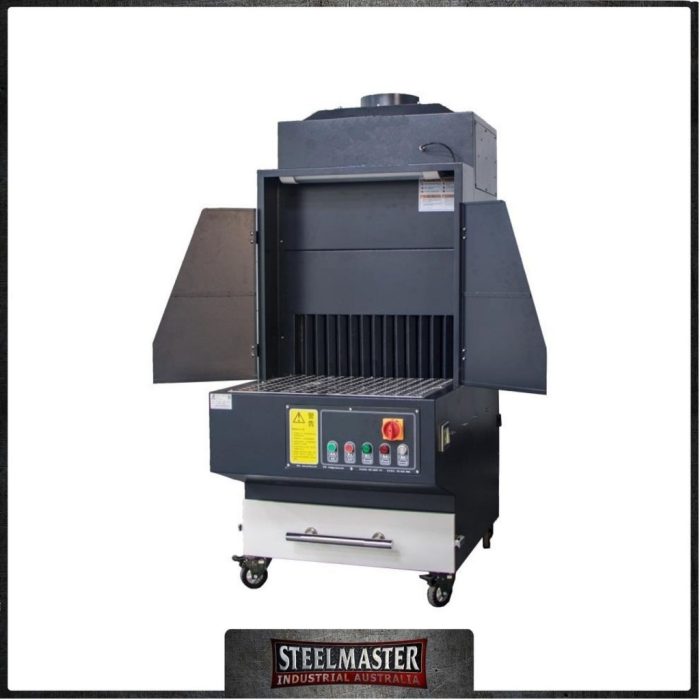

CLEARMASTER SM-SHF-30 Parts Spark, Fume, Extraction System, 3600m/Hr. Anti-Spark Arrestor

Description

CLEARMASTER SM-SHF-30 Parts Spark, Fume, Extraction System, 3600m/Hr. Anti-Spark Arrestor

A workplace must for all small parts grinding, polishing, welding, reworking both metal and non-metal parts
Simply power up and connect your ducting for a cleaner, safer workplace.
Fitted off with spark arrestors and providing a clean, safe, healthy work environment.

FEATURES
❚Stainless steel grinding table, easy to access with rear pull out waste draw
❚SIEMENS motor, Schneider electrical control.
❚Auto pulse back flushing, filter easily with high effect.
❚Top mounted Exhaust
❚LED lamp, 240Volt power point with added usb point
❚Powder coated frame
❚lockable castor wheels

TECHNICAL DATA SNAP SHOT
❚Model: SM-SHF-30
❚Extraction Type – Spark, Small Parts, Grinding, Polishing, Welding, Smoke, Fume, Dust
❚Air Volume – 3600m3/Hr
❚Max. Pressure (Pa) – 2400Pa
❚Work Table Size: 800mm x 670mm (Other sizes available – 1550mm & 2100mm Wide)
❚Filter Material – PTFE Coated Folded Cartridge
❚Filter Installation – Vertical
❚Filter Area – 22m3
❚Filter Efficiency – 99.9%
❚Compressed Air – 0.5 ~ 0.6Mpa
❚Solenoid Valves – 2 off
❚Extra replaceable Vertical Filters & Spark Arrestors – Available
❚Dimensions – 800mm x 1100mm x 1900mm x 280Kg
❚Power – 3Kw – 415V
❚Stock Ordering Code – 21-0807

AFTERSALES FILTERS
❚ STEELMASTER SM-SHF-30 Fume Extraction System Vertical Filters – Sole Each – Ordering Code 21#0817
