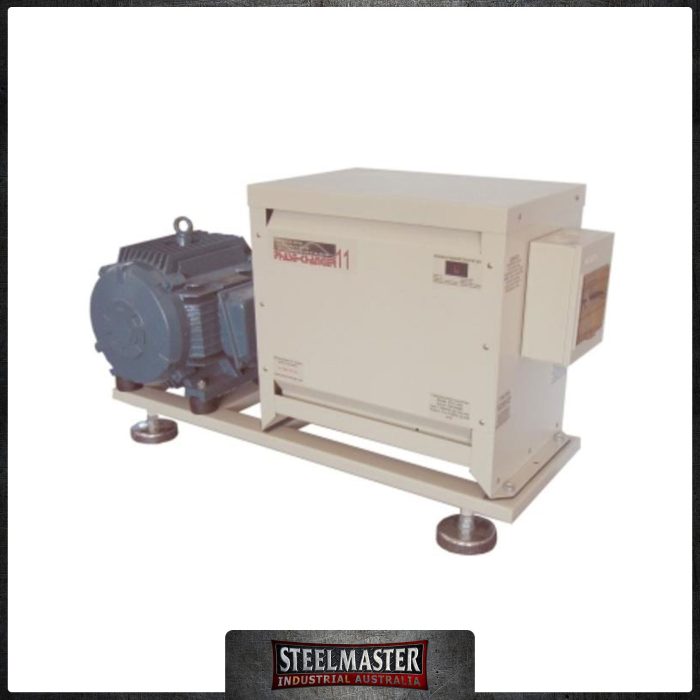

PC-11 – 11Kw / 15HP – Phase Changer Convertor Run 415Volt Machine from 240Volt Power.

$10,595.00

Specifications
MODEL NUMBER: PC-11

Click to Call Now 1800 511508 Compare

Description

PC-11 – 11Kw / 15HP – Phase Changer Convertor Run 415Volt Machine from 240Volt Power.

At last!!! Run your 415Volt machine on 240Volt Power.
11 Kw and larger are to be hard wired in.
After this you get 3 phase 415V immediately on the 3 phase outlet that you can plug your machine in to. It’s as simple as that!
Our smaller 2Kw & 3Kw Phase-Changers are offered as a “plug-in to socket-out” design, meaning you simply plug the converter in to a standard 10A or 15A single phase outlet.

Features
❚ Model: PC11, 11Kw Power Capacity, 40 amps @ 240Volt required.
❚ Convert your 240v or 480v single phase supply into 3 phase 415v
❚ High 95% efficiency
❚ New Industrial Micro-Processor Controlled Technology, Custom Designed in Australia For the World Market
❚ Micro-Controlled 9 Stage Automatic Output Voltage & Balance Control For Stable Voltages Over the Full Load Range
❚ Designed to Not Increase Your Power Bill
❚ True 3 Phase 415V Output
❚ Australian engineered and supported
❚ Automatic balancing for stable voltage over the full load range
❚ Run all your guillotines, press brakes, mills, drills, lathes & workshop equipment from 1 phase supply
❚ Low Cost (when compared to a utility 3 phase connection)

Technical Snapshot
❚ Model: PC11
❚ 11Kw – 15HP Total Power Output
❚ Hardwire 54 Amp Connection Required.
❚ 20 Amp / 415Volt Outlet Optional
❚ 11Kw Max. Starting & Running Load
❚ 32 Amp Circuit Breaker Fitted @ 480V
❚ 63 Amp Circuit Breaker Fitted @ 240V
❚ Freight Dimensions: 750mm x 460mm x 700mm x 205Kg

Additional information

Weight210 kg
