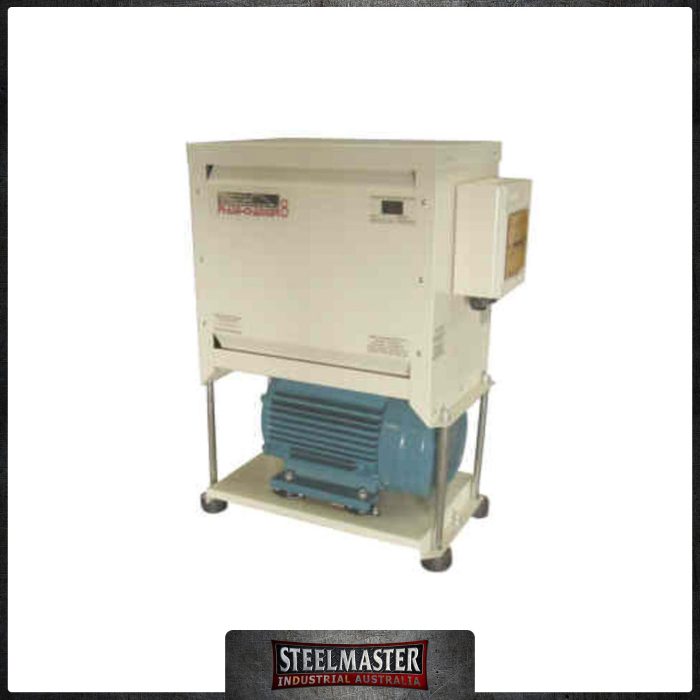

PC-8 – 8Kw / 10HP – Phase Changer Convertor Run 415Volt Machine from 240Volt Power.

PC-8 – 8Kw / 10HP – Phase Changer Convertor Run 415Volt Machine from 240Volt Power.

At last!!! Run your 415Volt machine on 240Volt Power.
8 Kw and larger are to be hard wired in.
After this you get 3 phase 415V immediately on the 3 phase outlet that you can plug your machine in to. It’s as simple as that!
Our smaller 2Kw & 3Kw Phase-Changers are offered as a “plug-in to socket-out” design, meaning you simply plug the converter in to a standard 10A or 15A single phase outlet.

Features
❚ Model: PC8, 8Kw Power Capacity, 30 amps @ 240Volt required.
❚ Convert your 240v or 480v single phase supply into 3 phase 415v
❚ High 95% efficiency
❚ New Industrial Micro-Processor Controlled Technology, Custom Designed in Australia For the World Market
❚ Micro-Controlled 9 Stage Automatic Output Voltage & Balance Control For Stable Voltages Over the Full Load Range
❚ Designed to Not Increase Your Power Bill
❚ True 3 Phase 415V Output
❚ Australian engineered and supported
❚ Automatic balancing for stable voltage over the full load range
❚ Run all your guillotines, press brakes, mills, drills, lathes & workshop equipment from 1 phase supply
❚ Low Cost (when compared to a utility 3 phase connection)

Technical Snapshot
❚ Model: PC8
❚ 8Kw – 10HP Total Power Output
❚ Hardwire 40 Amp Connection Required.
❚ 20 Amp / 415Volt Outlet Supplied
❚ 8Kw Max. Starting & Running Load
❚ 20 Amp Circuit Breaker Fitted @ 480V
❚ 40 Amp Circuit Breaker Fitted @ 240V
❚ Freight Dimensions: 750mm x 460mm x 700mm x 165Kg
