MODEL NUMBER: 19+0283
Pressbrake Bending Attachment – 600mm Long x 120mm Vee Opening, Spring Return
Ex GST: $990.00
Inc GST: $1,089.00
Price Including GST: $1,089.00
Description
Pressbrake Bending Attachment – 600mm Long x 120mm Vee Opening, Spring Return

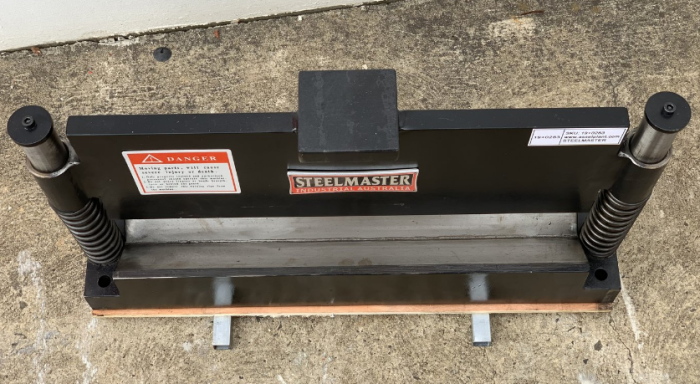

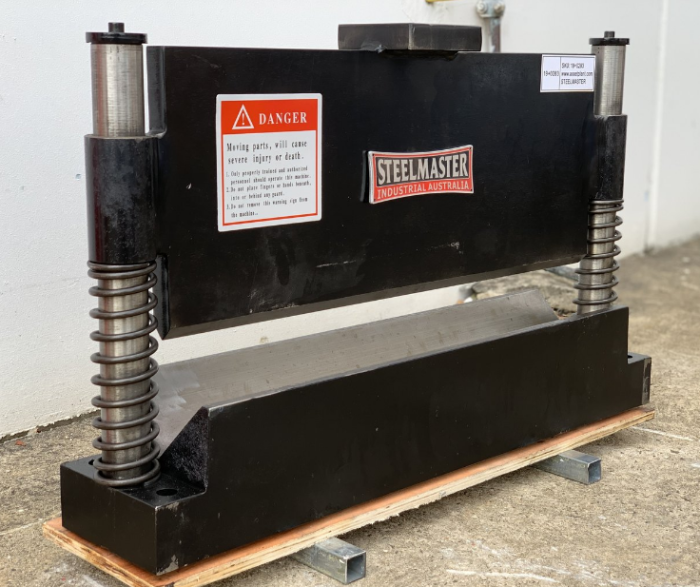

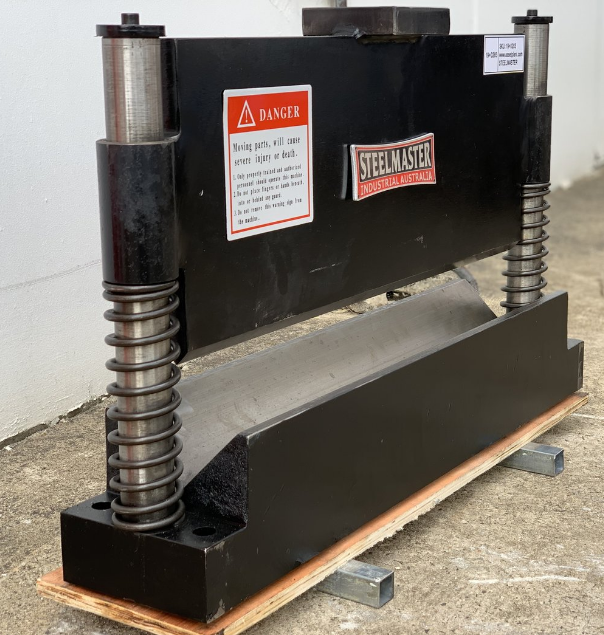

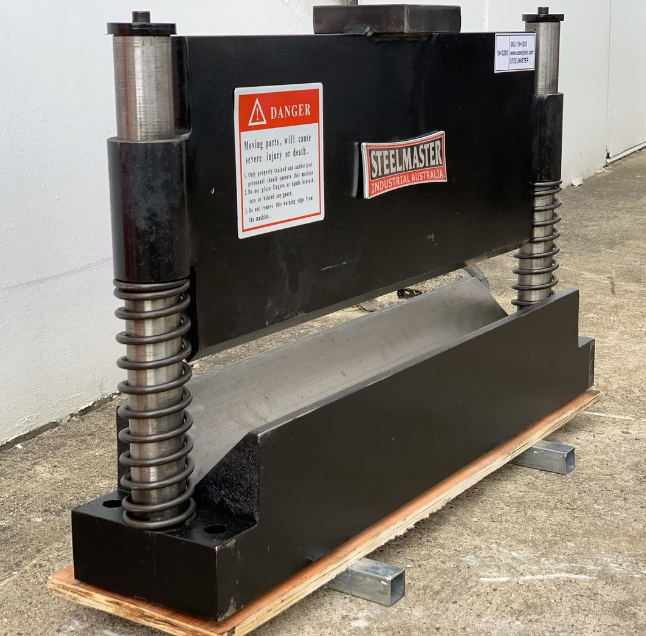

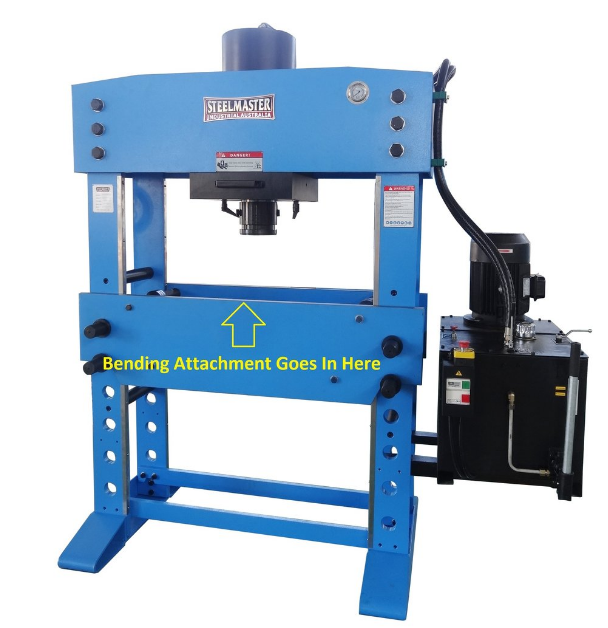

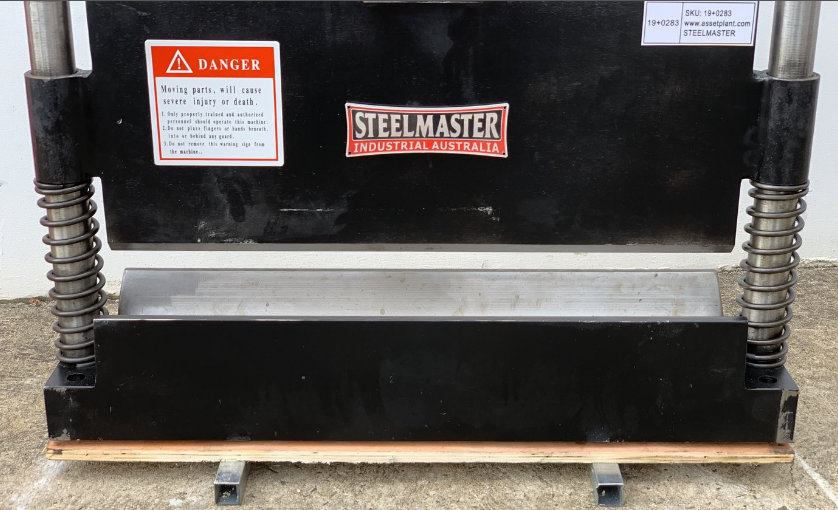

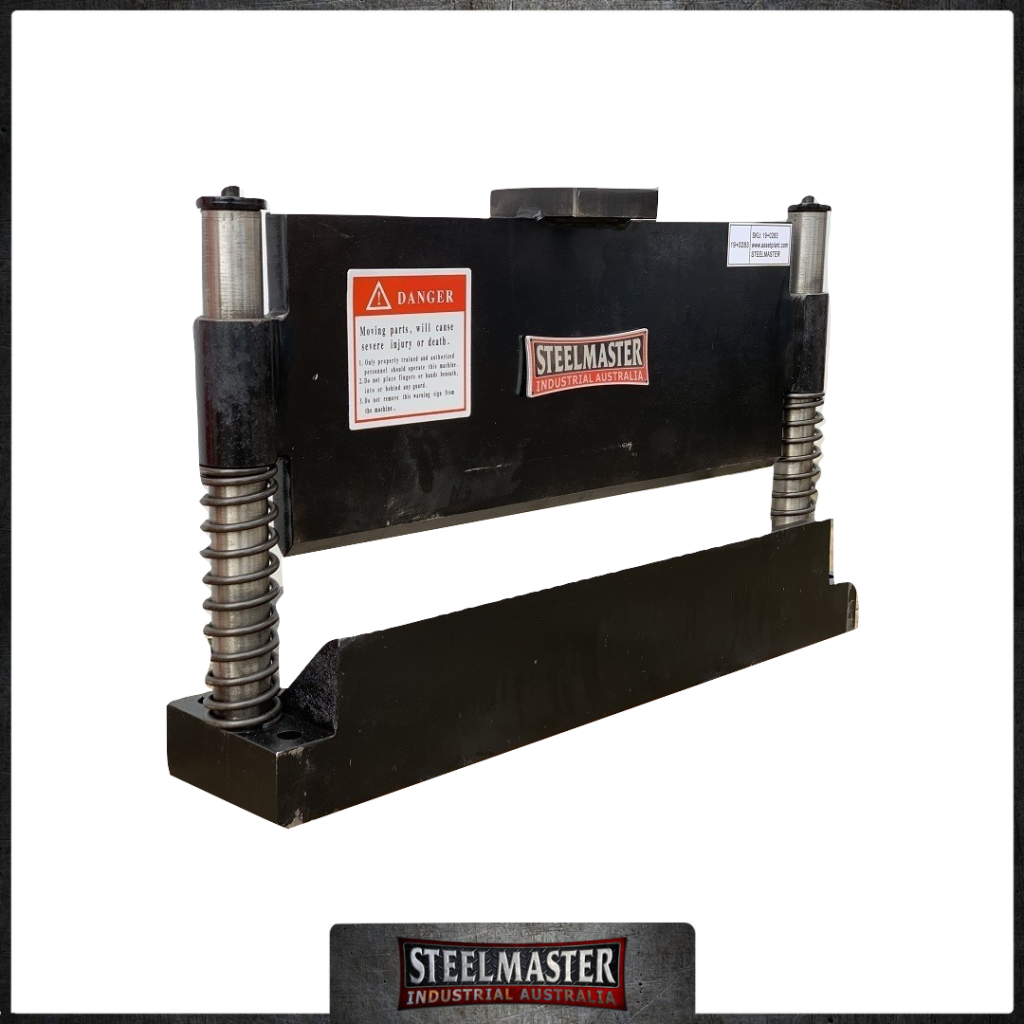

Our Pressbrake bending attachment is designed to bend sheet metal or plate steel using a standard hydraulic press.

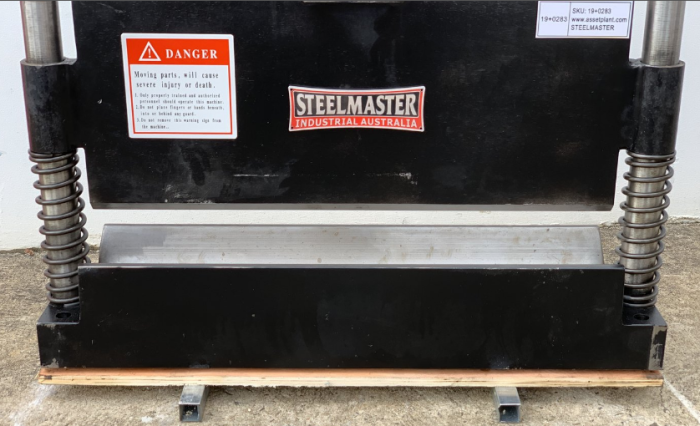

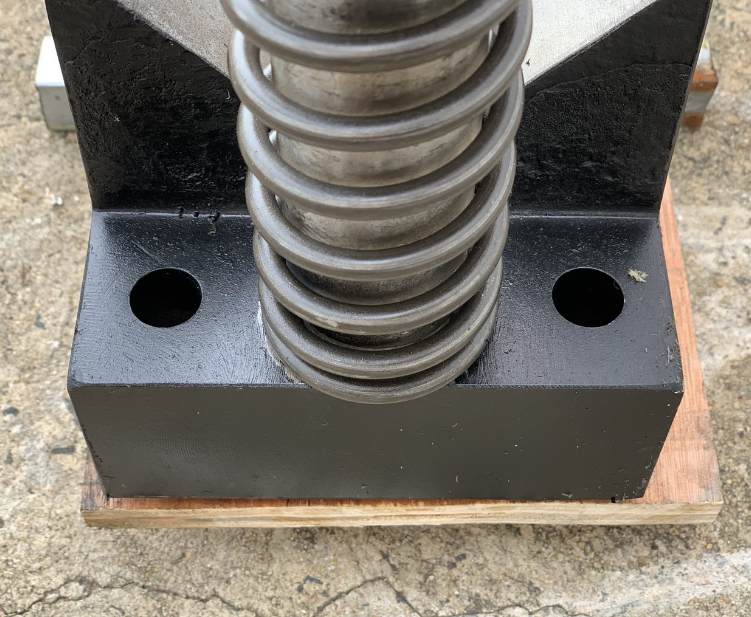

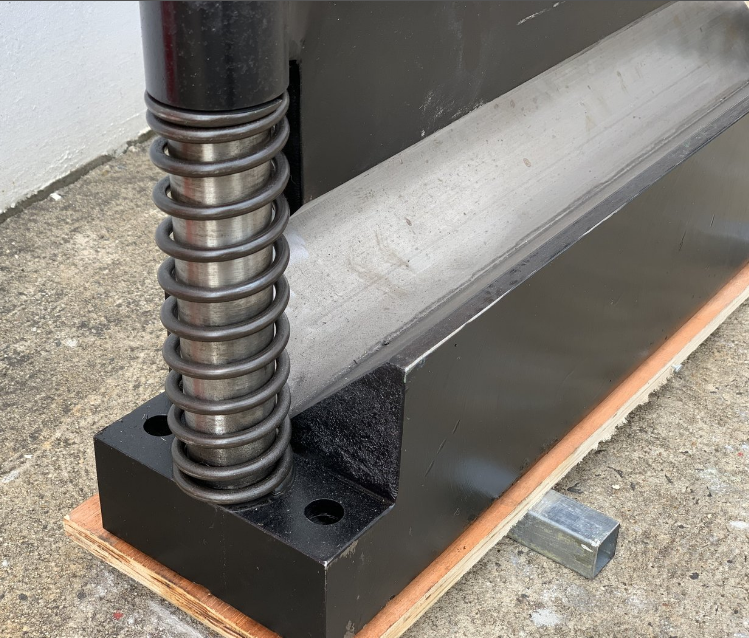

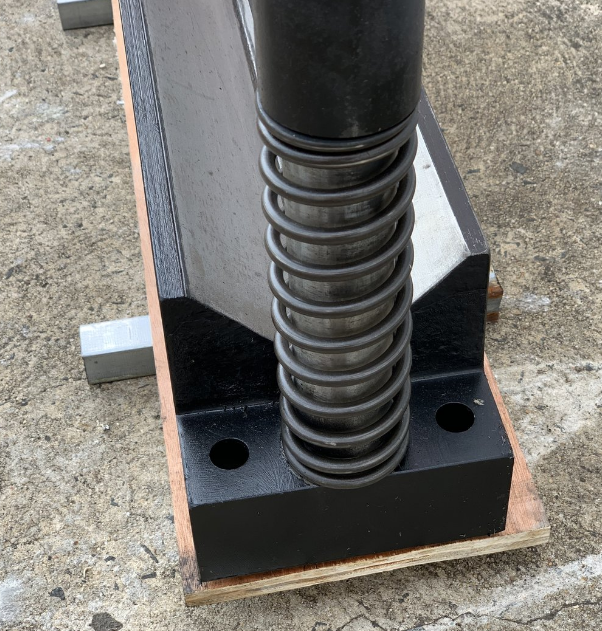

The top die is spring loaded and supported by two guide rods, and will automatically open the tool back to top position once you have released the hydraulic pressure.
Our Pressbrake bending attachment is designed to bend sheet metal or plate steel using a standard hydraulic press.
The top die is spring loaded and supported by two guide rods, and will automatically open the tool back to top position once you have released the hydraulic pressure.
Features
❚ Fabricated steel construction
❚ Spring loaded self-return system
Technical Data
❚ 600mm x Long x 120mm Vee Opening
❚ Bending capacity on Materials 10 – 12 mm Mild Steel
❚ Dimensions (L x W x H) 720mm x 140mm x 420mm
❚ Hole centres 495mm x 90mm x 12mm diameter
❚ Weight: 45Kg

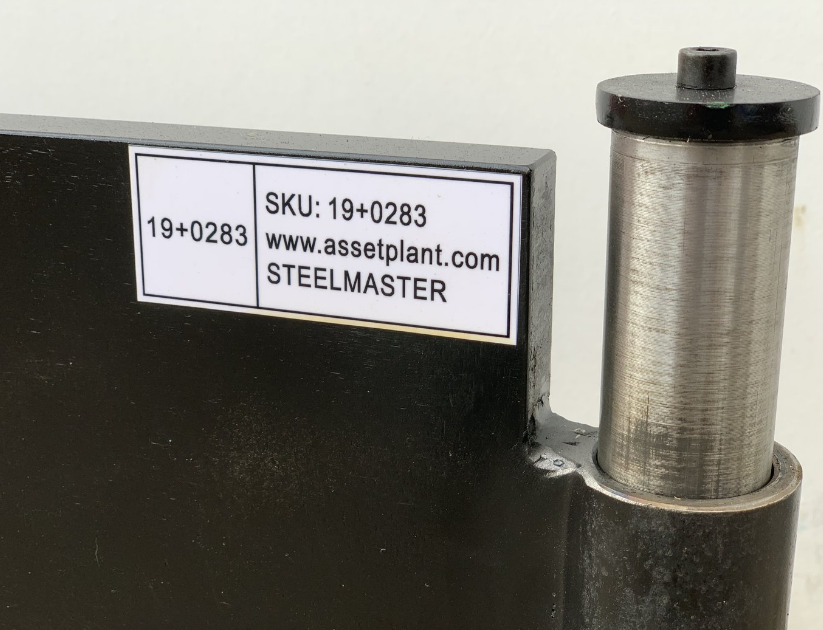

❚ Product ordering code: 19+0283
Additional information
| Weight | 45 kg |
|---|---|
| Dimensions | 72 × 15 × 44 cm |
