MODEL NUMBER: 13+0063

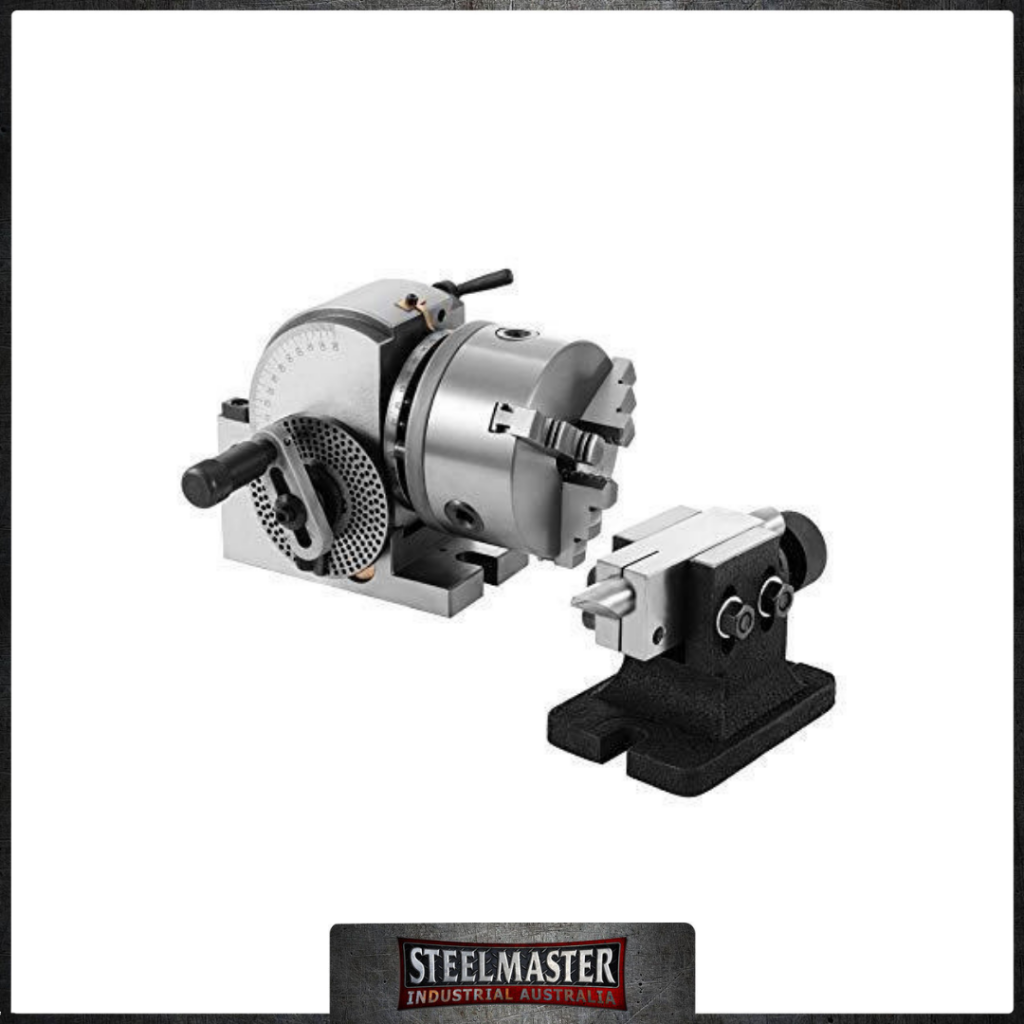

Semi Universal Dividing Head, Comes With 6″ with 160mm 3 jaw Chuck
Ex GST: $799.00
Inc GST: $878.90
Price Including GST: $878.90
Description
Semi Universal Dividing Head, Comes With 6″ with 160mm 3 jaw Chuck
Description:
Dividing Head is a tool that is used to divide a circle into equal spacers.
The most common use is in the accurate manufacture of splines, gears and key-ways that are required to be at a specific angle to each other.
Description:
Dividing Head is a tool that is used to divide a circle into equal spacers.
The most common use is in the accurate manufacture of splines, gears and key-ways that are required to be at a specific angle to each other.
Feature packed with the following accessories
❚ 3 Jaw Chuck 160 mm
❚ Spare jaws
❚ Tail stock
❚ chuck key
❚ 2 x dividing plates
❚ Dead centre
❚ Drive dog
FEATURES :
❚ Hardened and ground spindle rigidly held between taper roller bearings
❚ Improved design for a more accurate chuck mount
❚ The head can be swivelled from 10º below horizontal to 90º vertical
❚ Designed to carry out all types of gear cutting, precision dividing
❚ Slotted base on dividing head & tailstock for use with key steel to align quickly on machine
Specifications:
Dividing head:
❚ Taper 3mt
❚ Bore 20mm
❚ Overall length 293 mm
❚ Overall width 156mm
❚ Height 220mm
Tailstock
❚ Top length of tailstock 191mm
❚ Bottom of tailstock 150mm
❚ height to pin 128mm
❚ Overall height 137mm
❚ Top Width 88mm
❚ Bottom width 108mm
❚ Overall weight 38kg
❚product ordering code: 13+0063
