SM-EMS1270-3.5. Guillotine Electro Shear. 1270mm x 3.5mm Capacity, Power Operated Back Gauge



sku 17-0201pwr
thickness of material 3.2 mm
width of material 1270 mm
back gauge depth 0 ~ 650 mm
shear angle 1˚ 30 deg
throat depth N/A
strokes per minute 47
motor power 5.5 / 415 kw/V
dimensions (l x w x h) 1860 mm x 1100 mm x 1180 mm
weight) 1600 kg

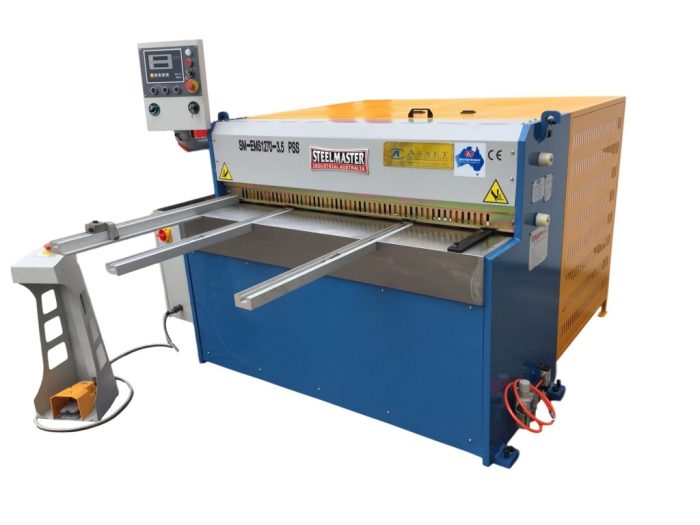

SM-EMS1270-3.5. Guillotine Electro Shear

Our Tru-Cut range offers a fast, efficient & affordable guillotine for use both in jobbing and production. Features a heavy fabricated body with foot control,
precision ground blade, spring activated hold down, flat working table with calibrated front guides & squaring arm.
Power operated back gauge is added to this model. Control panel located at front to ensure minimal operator time wasted.
Front extension arms for those longer jobs, stainless foot pedal cable and all saftey cut offs to ensure a safe work place.

❚heavy steel weldment construction for maximum stability
❚quiet operation with brake motor, all components run on maintenance free bearings
❚parallel blade guides ensure high cutting precision
❚hardened and ground high quality HSS blades fitted
❚calibrated squaring arm with front sheet supports
❚hold-down system with slip-resistant rubber coating and front safety guard
❚quick action blade-gap setting
❚slotted top cover offering clear visual to cutting area
❚roving foot-pedal operation
❚Rear safety light guarding
❚heavy duty power operated backgauge
❚CE compliant

Technical Snap Shot
❚1270mm x 3.5mm cutting capacity
❚0 ~ 650 power operated backgauge range
❚47 strokes per minute in auto mode
❚shipping dimensions – 1860mm x 1100mm x 1180mm
❚weight – 1600Kg
❚power – 415V 5.5Kw

NOTE:This particular model shown is the 135/3200mm Model S Series – This video is for reference only.
