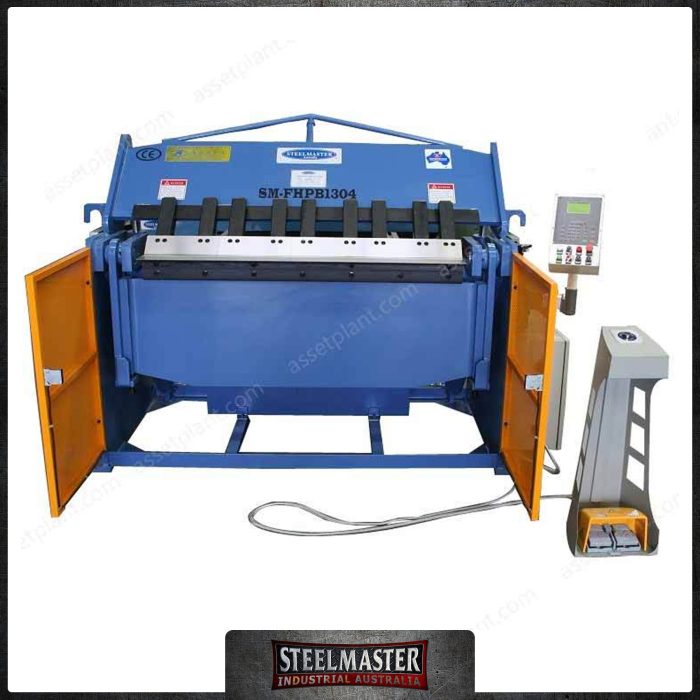

SM-FHPB1304NC1. Panbrake Folder. Full Hydraulic. 1300mm x 4mm with NC1 Programmable Angle Controller

SM-FHPB1304NC1. Panbrake Folder. Full Hydraulic. 1300mm x 4mm with NC1 Programmable Angle Controller

Our Australian designed & engineered Full hydraulic Panbrake wuill blow the competition away.
Quality and ease of operation, our NC1 machine offers a smart 99 station programmable angle setting for quick and accurate folding of all applications.
This can be used both in the single “enter angle and fold” mode, or used in a multi fold programmable folding sequence.
Produced exclusively for Asset by Australian Engineers.
Structural & Operating Features
❚hydraulically operated bending and clamping beam for efficient heavy duty operation
❚high structural rigidity from heavy plate steel box construction with continuous welded seams
❚bending beam powered by dual hydraulic cylinders
❚fully integrated and enclosed electric / hydraulic system with large oil reservoir to maintain low oil temperature
❚high load capacity dual spherical plane bearings utilized at bending beam pivots and over-centre clamp bearings
❚precise electric / hydraulic controls with manual inching of bending beam
❚utilization of easy to set micro-switches provides accurate & infinitely adjustable angle control to the folding apron
❚comprehensive equipment protection from electric and hydraulic overload systemsHydraulic System
❚high quality componentry ensures reliable performance for years of continuous operation
❚powerful direct coupled hydraulic pump and motor provides efficient, rapid operation
❚unique electric / hydraulic control ensures safe and simple operation

Specifications
❚high bending angle of 0-125°
❚greatest depth of box bent 165 mm
❚powerful motor
❚200 mm of clamping beam
❚hydraulically operated bending and clamping beam for efficient heavy duty operation
❚24 volt control wiring
❚bending fingers made from hardened material, maximizing life

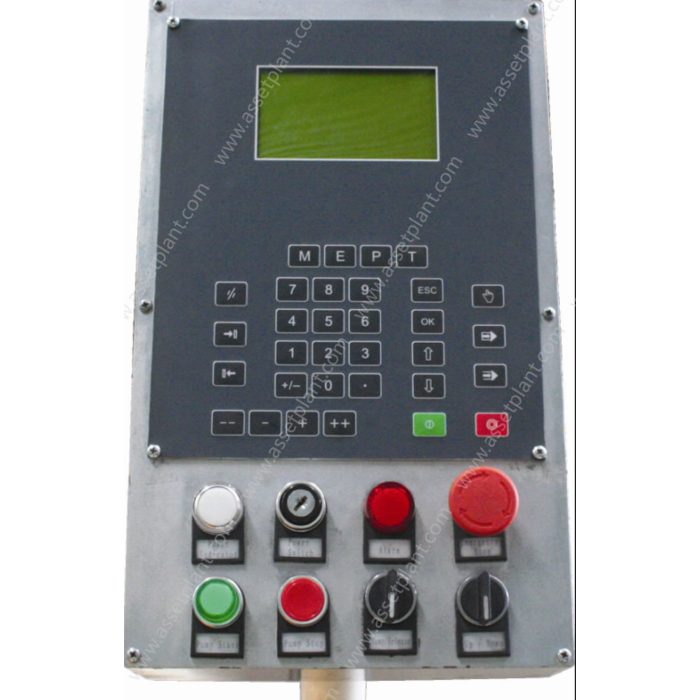

NC1 Programmable Controller
❚operation in manual, step program, automatic modes and repeat modes
❚99 station memory setting operating in, manual, automatic and repeat modes
❚designed to control a 4 ram folder with up, down, clamp and release functionality

Standard Angle Setting Option
❚1300mm x 4.0mm bending capacity
❚o ~ 125 bending range
❚shipping dimensions – 1700mm x 1250mm x 1650mm
❚power – 415V 5.5Kw
❚approx weight: 3850kg
