Specifications
MODEL NUMBER: 15-0395
| sku | 15-0395 | |
| cutting capacities ø (w x h x t) | ||
| 90° | 230 mm | |
| ○ | 60° | 100 mm |
| 45° | 160 mm | |
| 90° | 180 mm x 180 mm | |
| □ | 60° | 100 mm x 100 mm |
| 45° | 160 mm | |
| 90° | 245 mm x 180 mm | |
| ▯ | 60° | 100 mm x 100 mm |
| 45° | 160 mm x 160 mm | |
| ■● | 90° | 225 mm |
| beam return | spring type | |
| blade size (l x w x t) | 2480 mm x 27 mm x 0.9 mm | |
| speed range | 64 m/min | |
| table working height | 940 mm | |
| motor power | 1.5 / 240 kw/V | |
| dimensions (l x w x h) | 1400 mm x 620 mm x 1450 mm | |
| weight (nt) | 225 kg |
Description

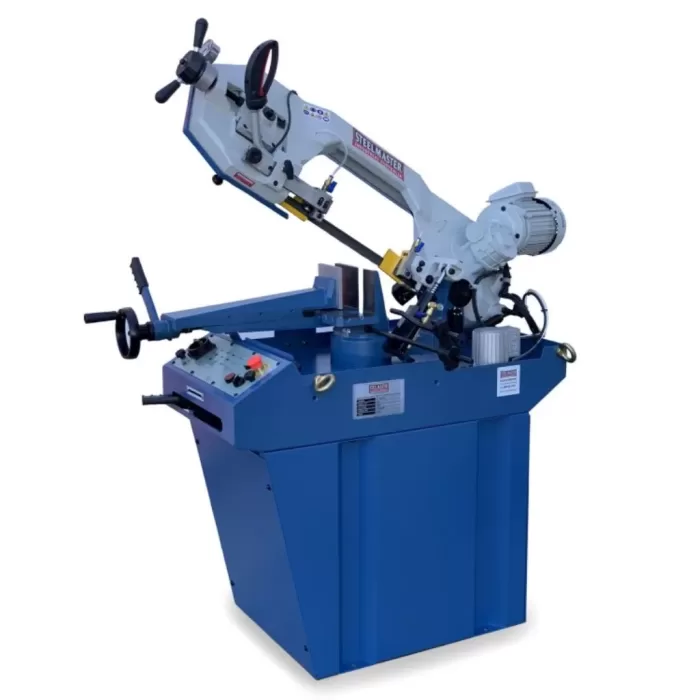

This saw is built for accuracy and production! Easy angle set-ups between 0 and 60 degrees means no wasted time between cuts. Lever controlled blade guide locks allow adjustments right up to the work piece for optimum support and the blade guides have fully adjustable ball bearings so you know you’re going to get straight cuts. And when you’re done, use the quick release lever and stock length stop to get on with the next cut. It’s fast and simple to use! We have included other features including carbide blade guides, blade pressure gauge, hydraulic down feed, trigger switch operation, to set this aside from other base machines.
Features
❚Quality Taiwanese Build Quality
❚variable hydraulic down feed system for the automatic continuous lowering of the saw frame
❚mitre cutting to 60˚
❚new operated friendly front control panel
❚deadman trigger switch
❚blade tension gauge
❚quick release vice
❚easy mitre adjustment
❚electronic coolant system
❚quality hydraulics
❚hydraulic variable down-feed control
❚carbide blade guides
❚complete with stand
❚CE compliant
Technical Data
❚230mm round capacity
❚245mm x 180mm rectangular capacity.
❚mitre cutting range – 0 ~ 60 degrees
❚speed range – 45 & 90 m/min
❚blade size: 2480mm x 27mm x 0.9mm
❚dimensions: 1400mm x 620mm x 1450mm
❚freight dimensions: 1400mm x 590mm x 890mm
❚weight: 225Kg
❚power: 1.5Kw 415V
Recommended Add On Accessories
❚15+0030 – 2480 x 27 x 5/8 Vari -Tooth Rontgen German Quality Bandsaw Blade.
❚15+0031 – Bandsaw Bimetal Blade 2480 x 27 x 0.9 6-10tpi Starrett Quality Blades
❚15+0032 – Bandsaw Bimetal Blade 2480 x 27 x 0.9 10-14tpi Starrett Quality Blades
❚15+0290 – Roller Stands.52mm x 400mm Adjustable Height. 650 – 1080 High 200kg load capacity
❚15+0291 – Roller Stands. Heavy Duty 52mm x 125mm V – Type Adjustable Height 580 – 970 high 200kg capacity
❚15+0268 – Roller Conveyor 3000mm Long x 290mm Wide.60 mm Rollers, Legs Sold Separate.
❚15+0269 – Roller Conveyor Legs. To Suit 290mm Wide x 715mm ~ 1050mm Adjustable Height.
❚15+0199 – SM-HBS Bandsaw – Conveyor 90 Degree Mounting Bracket – Adjustable Length & Height Slots
❚15+0191 – Calibrated Length Stop Roller Conveyor Kit, 360mm x 3000mm Linear Measuring System & Flip Up Length
❚11+0707 – Alfra Rotabest – Magnetic Swarf Remover
❚15+0187 – Coolant Mineral Based XDP-1000 5Lt Drum Metalium – Soluble – 20:1 Mix
