MODEL NUMBER: 27-0287

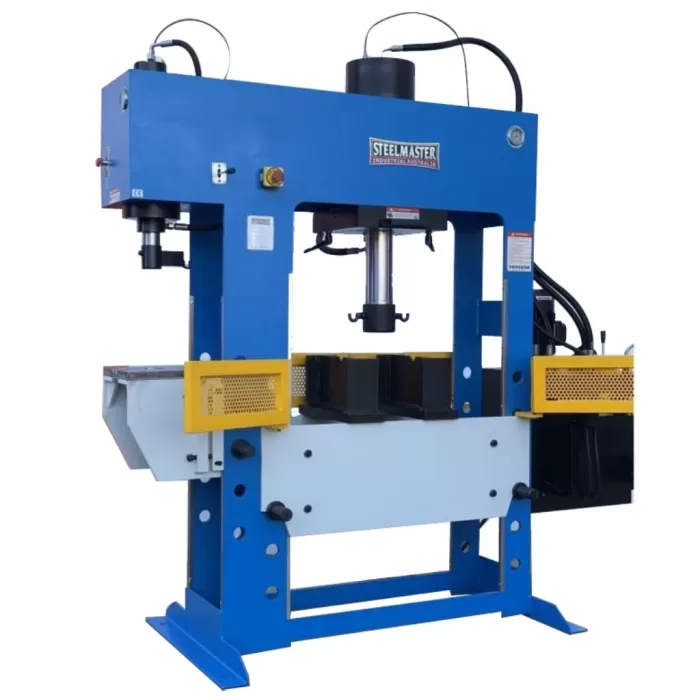

SM-HC200/20 Hydraulic Combination Sliding Head Workshop Press. 200Ton Main Press, 120 on Broach Press
SM-HC200/20 Hydraulic Combination Sliding Head Workshop Press. 200Ton Main Press, 20Ton Broach Press
USA designed and engineered – this two in one press covers all your requirements.
Sliding head cylinder – left & right!
Side mounted ancillary presses – all with adjustable height tables!
All in One! For your toughest shop pressing needs, these Motorized Hydraulic Presses do it all.
❚ Main 200 ton ram force / 20ton side mounted press capacity.
❚ fixed central position or sliding left or right positioning.
❚ offering more flexibility to your pressing applications
❚ twin speed control with manual adjustment
❚ for the removal and press-fit of bearings and bushings
❚ extremely torsion proof steel welded frame
❚ hydraulic pressure gauge fitted
❚quick fit work plate with vee blocks supplied.
❚ lifting chains included
❚ offered in 60/100/150/200 & 300ton models
❚capacity – 200Ton main press capacity
❚capacity – 20Ton side broach press capacity
❚overall frame width distance – 1500mm
❚stroke length – 400mm
❚max. pressure – 263 bar
❚frame width – 1500mm
❚cylinder – fixed & sliding
❚working speed – 3.6 (main) & 18 (side) mm / sec
❚approach speed – 7.3 (main) & 67 (side) mm / sec
❚return speed – 10 (main) & 105 (side) mm / sec
❚oil tank capacity – 50 litres
❚power – 5.5Kw / 415Volt
❚dimensions – 2450mm x 1000mm x 2350mm x 1750kg
Technical Diagram Info
❚A = 2250mm
❚B = 2300mm
❚C = 900mm
❚D = 1100mm
❚E = 350mm
❚F = 750mm
❚G = 600mm
