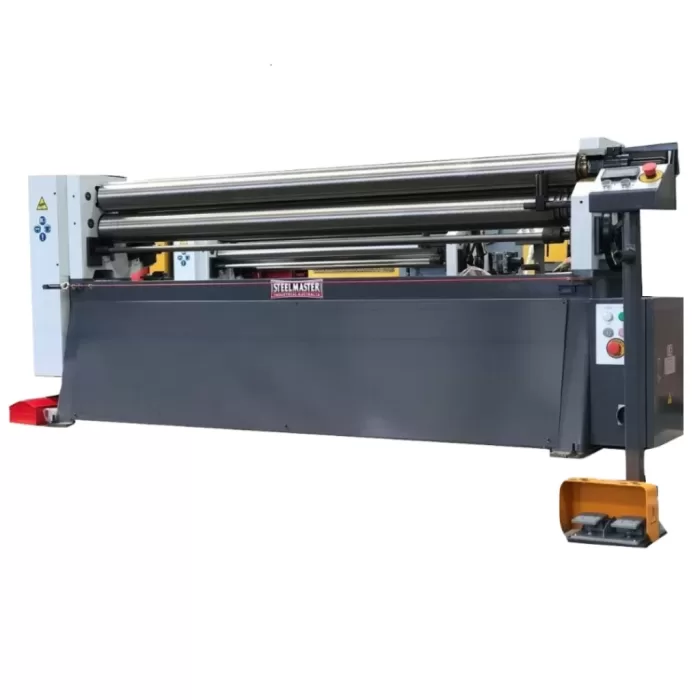

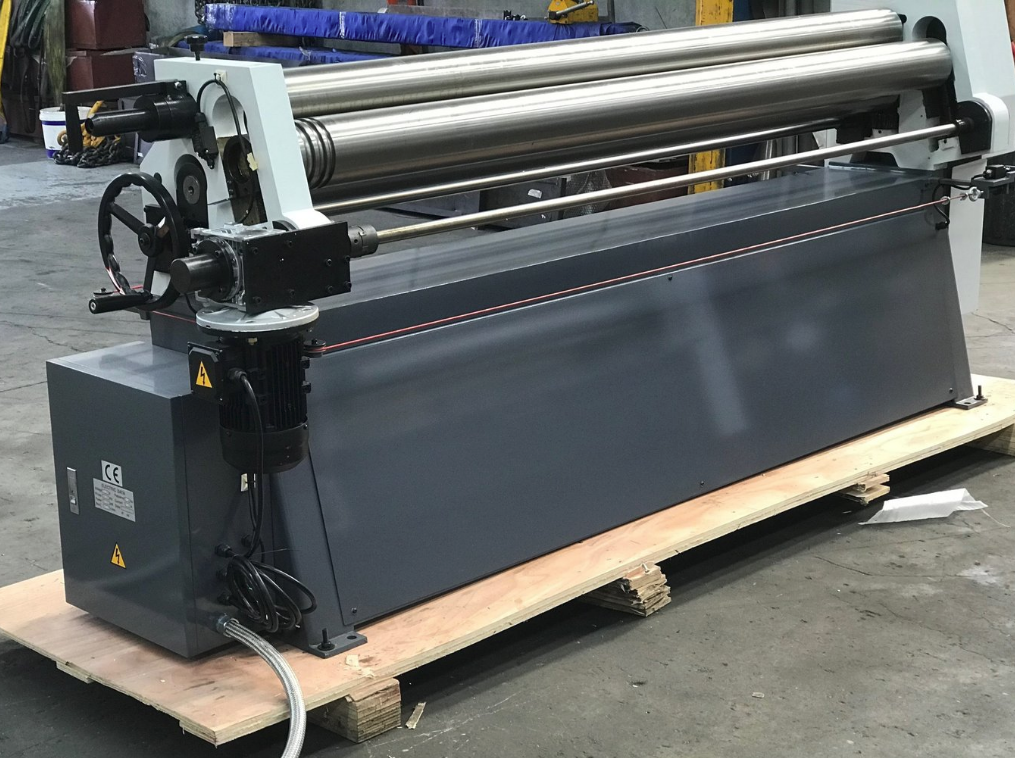

SM-RM2003 Plate-Curving Rollers. Steelmaster 2070mm x 3.5mm Capacity. Digital Top Roll Positioner

SM-RM2003 Plate-Curving Rollers. Steelmaster 2070mm x 3.5mm Capacity. Digital Top Roll Positioner

These rollers offer great value all round, not to mention the additional cone rolling feature.
Pinch roller profile also ensures minimal material waste. Digital top roll readout also ensures exacting positioning for repeat rolling.
2070mm x 3.5mm capacity, adjustable pinch roller, foot pedal operation & more. They will solve the majority of your rolling problems without breaking the bank.

Features
❚ initial pinch asymmetrical roller
❚ high tensile steel rolls
❚ cast iron mainframe
❚ cone rolling feature

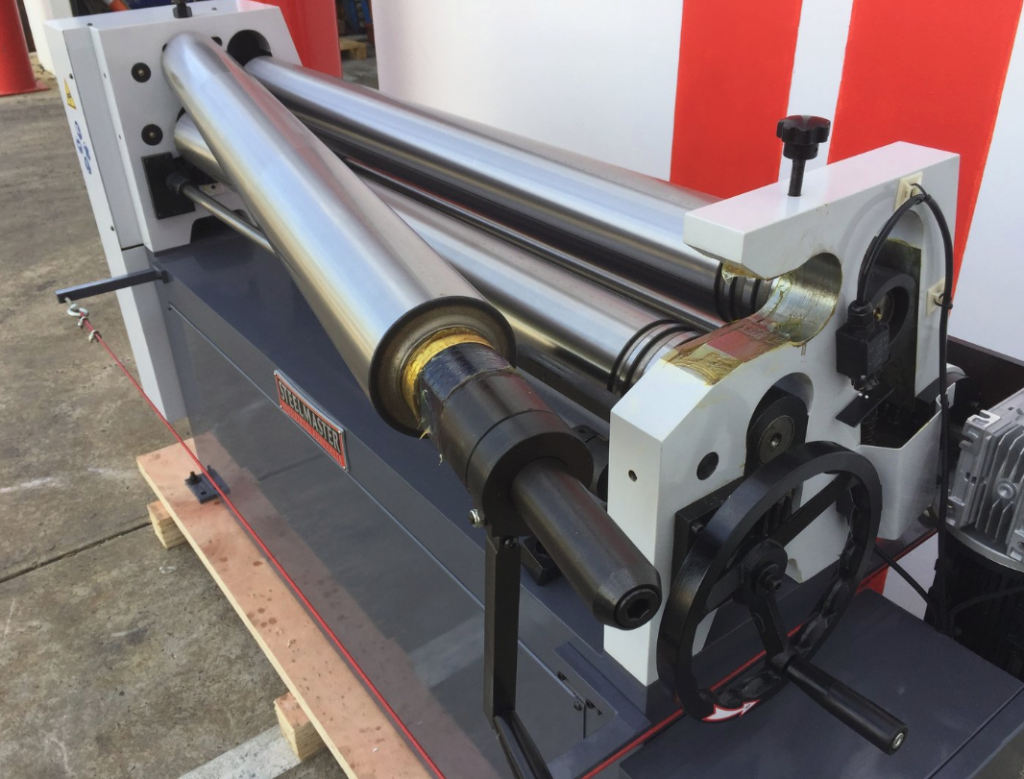

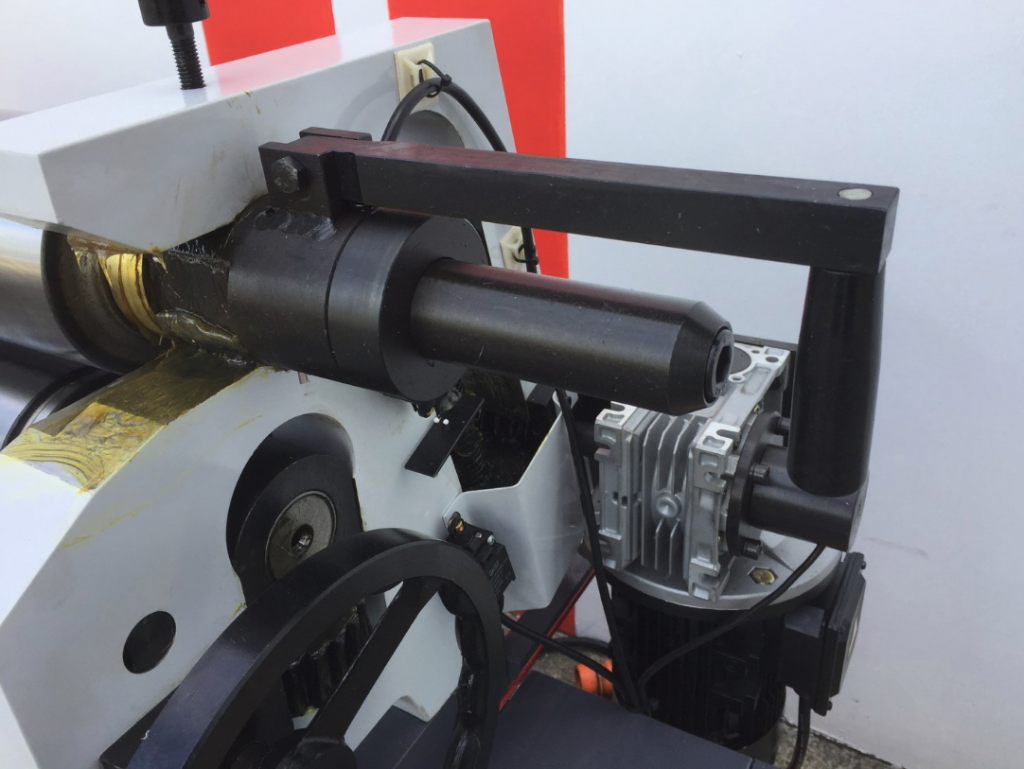

❚ swing away top roll

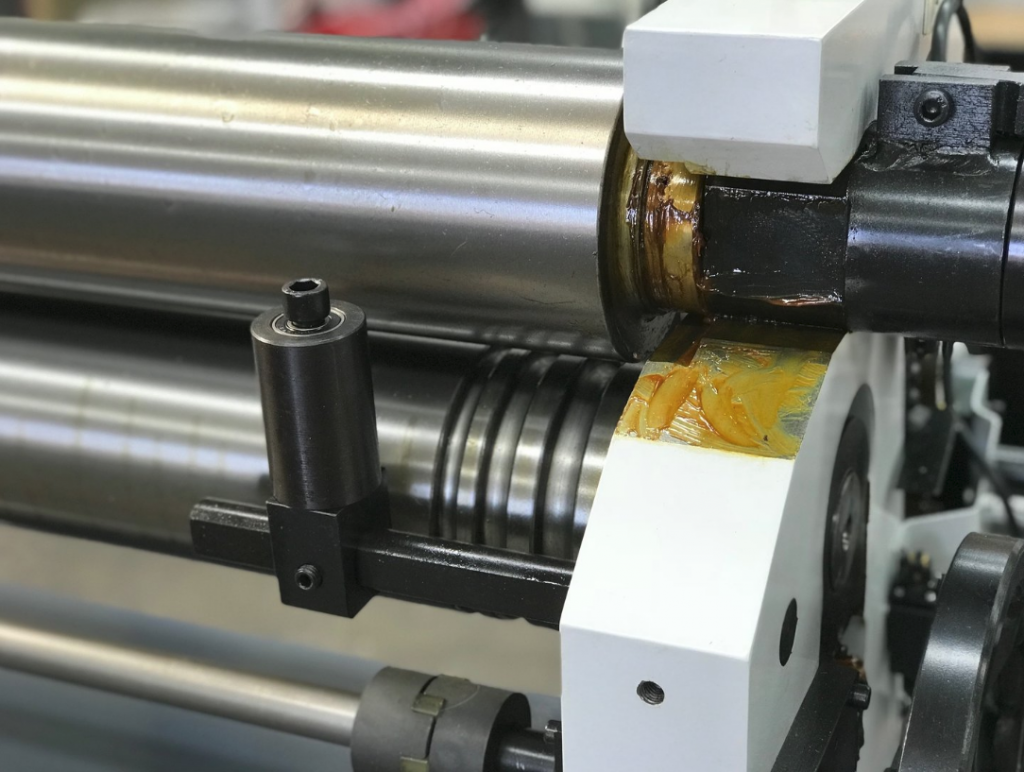

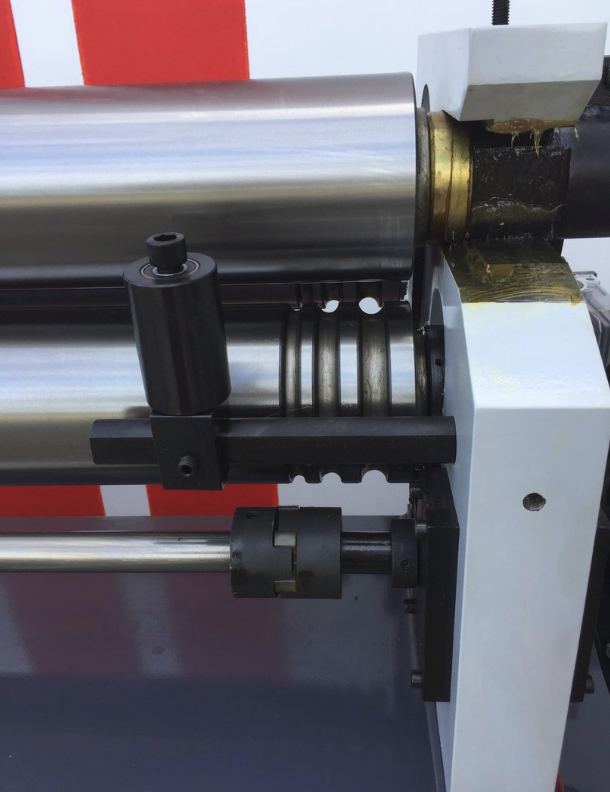

❚ wire grooves

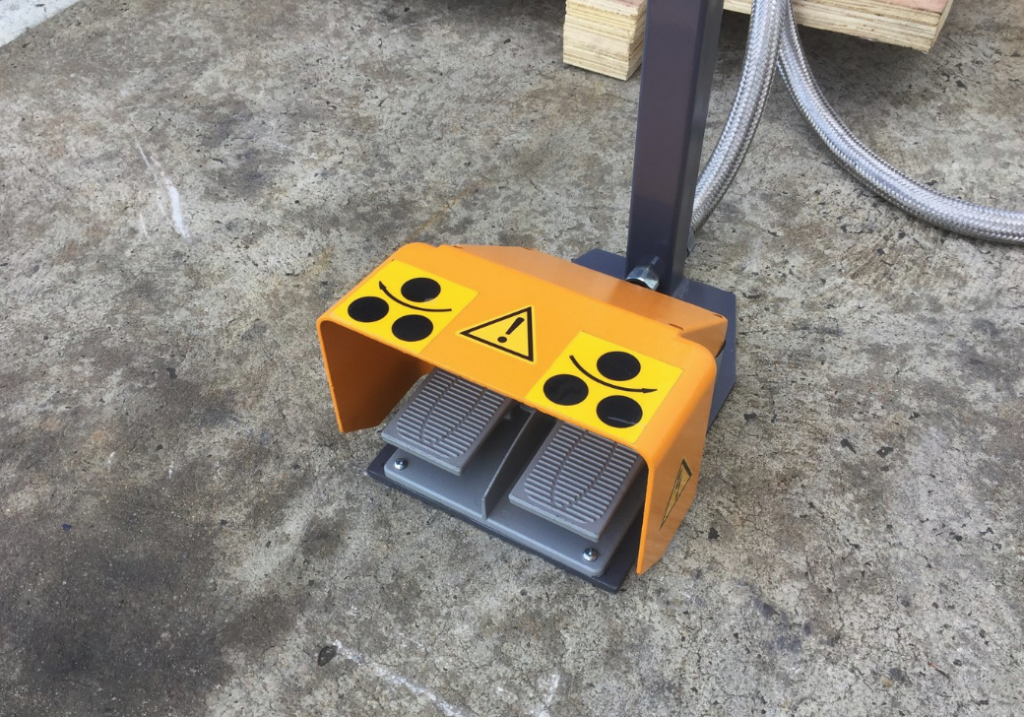

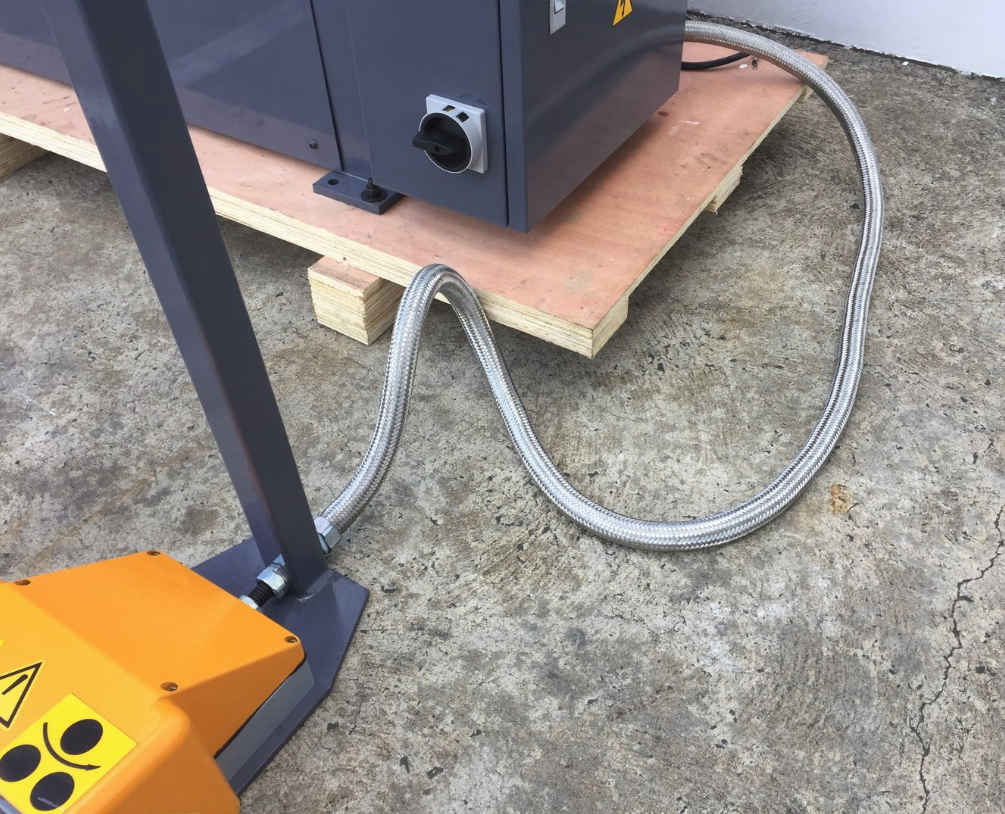

❚ roving foot pedal operation
❚ manufactured to CE standard

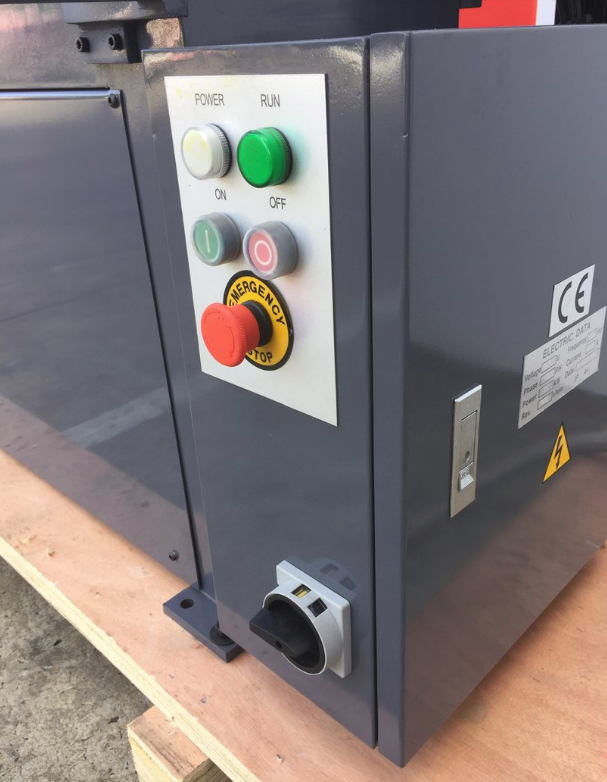

❚ 415V, 3Phase Operation

Technical Data
❚ capacity – 2070mm x 3.5mm mild steel

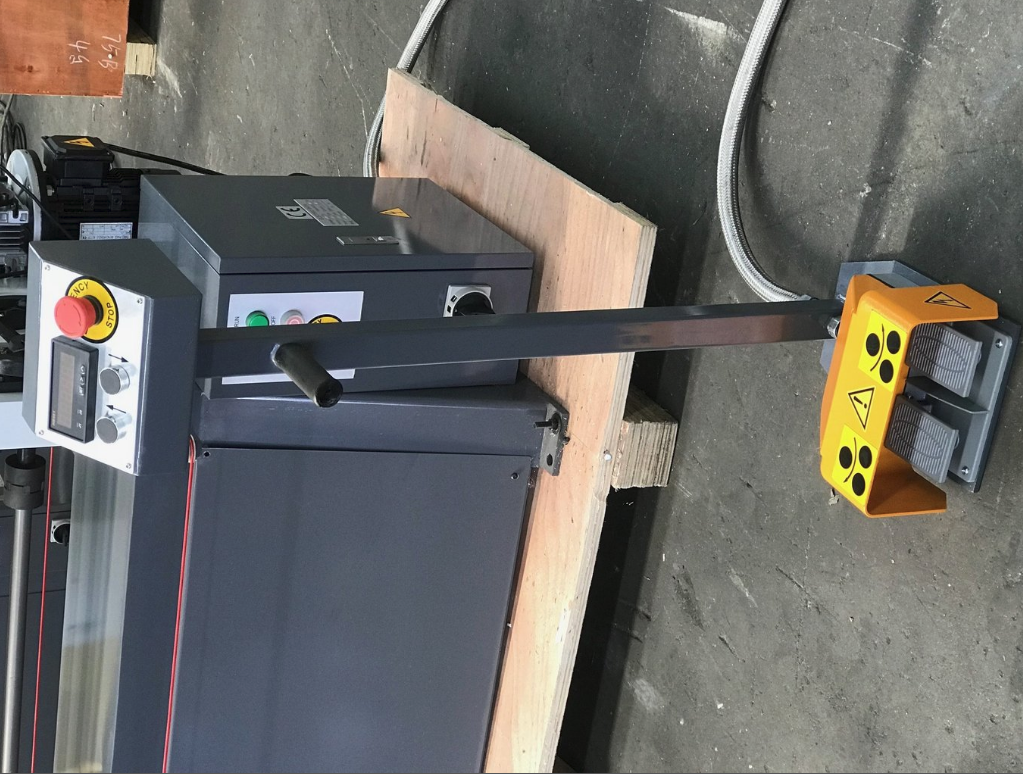

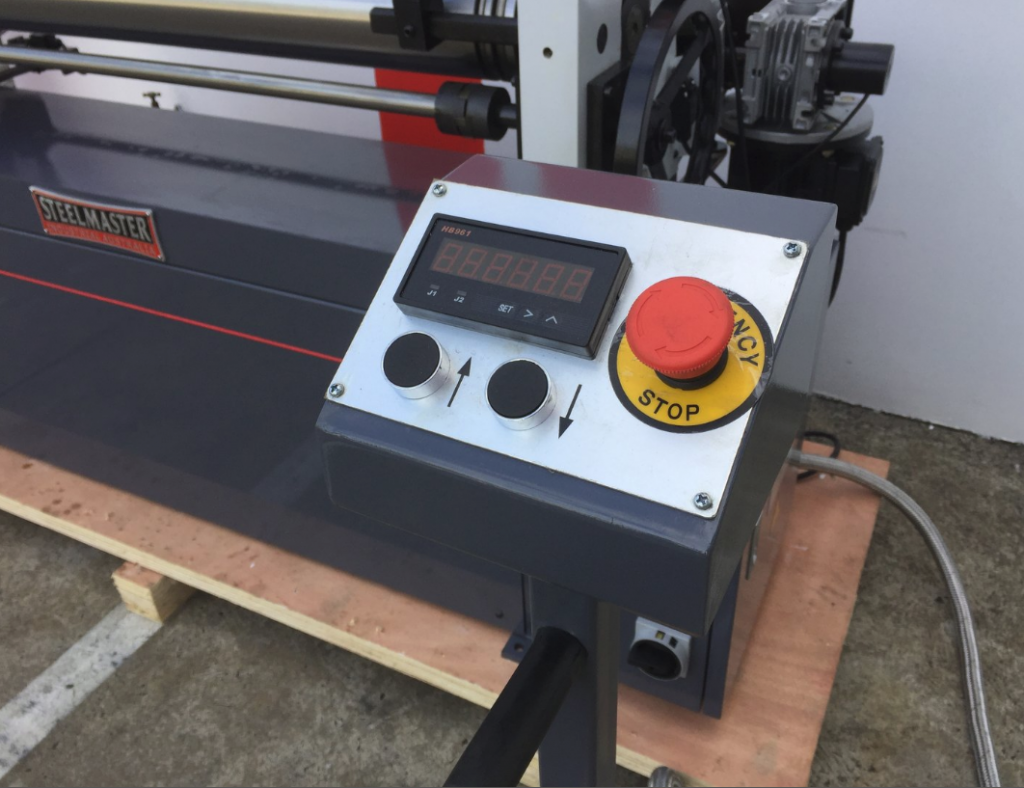

❚ digital top roll display
❚ top roller diameter – 127mm

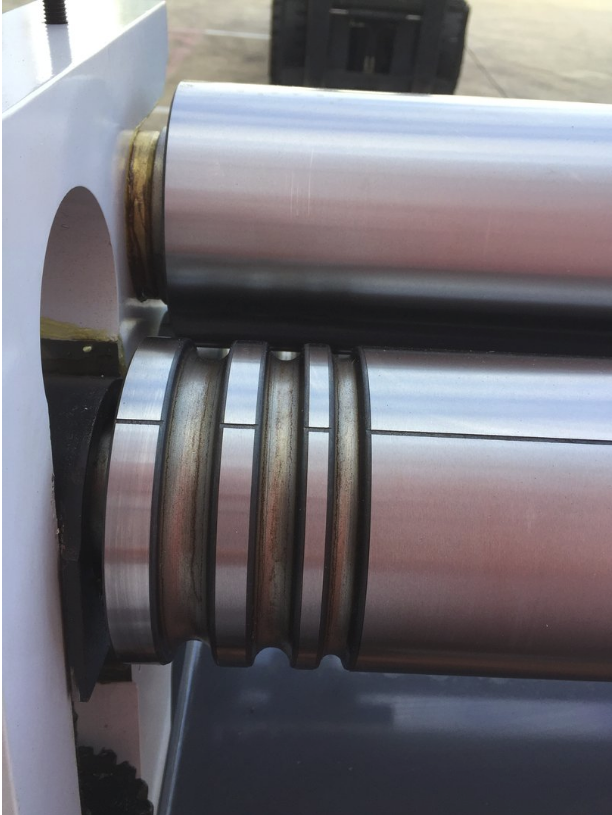

❚ wire grooves – 3 off, 16mm, 13mm, 10mm
❚ 2.5kw – 415 volt
❚ dimensions – 2820mm x 1000mm x 1450mm
❚ weight – 1300kg
