Description

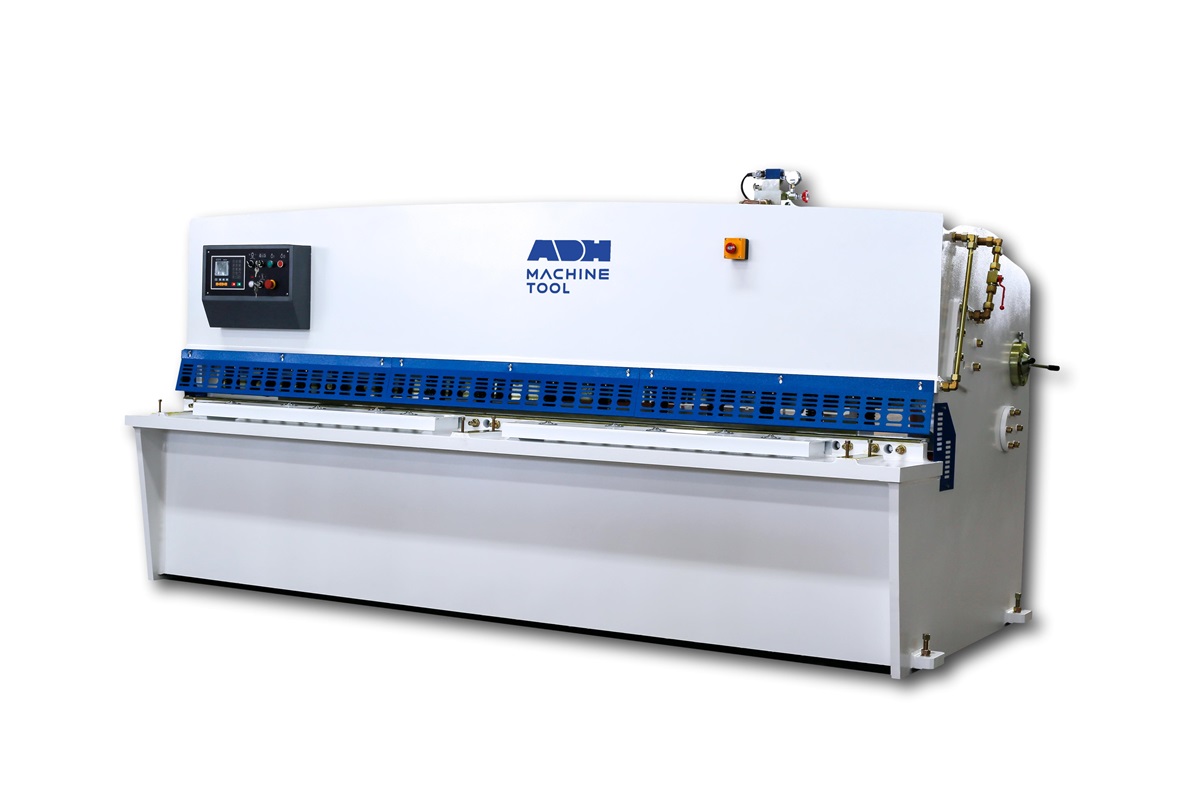

STEELMASTER INDUSTRIAL, ADH Series Swing Beam hydraulic guillotines are built to a heavy duty industrial quality.

Designed and constructed to provide excellent shearing of material with clean, square edges, and to exacting tolerance.

SBHS Series hydraulic shears are equipped with the productive features and safety devices for optimum, accurate cutting performance usually only found on more expensive units.

Feature for feature, they are a smart, user friendly and reliable choice for cutting plate.



Features

❚precision ballscrew motorised back gauge to 650 mm range

❚e21 NC Digital Controller with programmable backgauge positioning



❚unique front angle gauge with calibrated setting.

❚shadow line displaying operator cutting line

❚multi edge quality cutting blades

❚heavy duty ‘ball transfers’ fitted as standard

❚heavy duty squaring arm with stainless steel scales

❚rear safety fencing with ‘safety cut-off’ guards

❚open side throat for long length slitting

❚sturdy remote operation foot-pedal with ’emergency stop’ fitted

❚CE compliant



Technical Data Snap-Shot

❚2500mm x 6.0mm cutting capacity (Mild Steel)

❚Etsun E21 NC Controller

❚100mm standard side throat depth

❚20 ~ 650mm back gauge range

❚2.0 degrees rake setting

❚shipping dimensions – 3050 x 1650 x 1900mm H

❚weight – 5500Kg

❚power – 415V 7.5Kw
