STEELMASTER Fold & Crush Dutch Tooling – US 300/26° V=12 R2,0 L.MM.500

Features.
❚Designed by our own engineers to ensure strength & full utilization.
❚one over bending vee and a selection of vee’s to suit all folding applications.
❚hardened and ground finish

Technical data
❚ Fold & crush tooling – spring return
❚ 12mm Vee suitable up to 1.6mm material
❚ Sold in 500mm sections
❚ To 1.5mm rated
❚ Wide Tee Base, 135mm Overall Height. 15mm Opening, Spring Return.
❚ long
Packing Information
❚ Dimensions (L x W x H)
❚ 500mm x 135mm x 60mm
❚ Weight: 25Kg

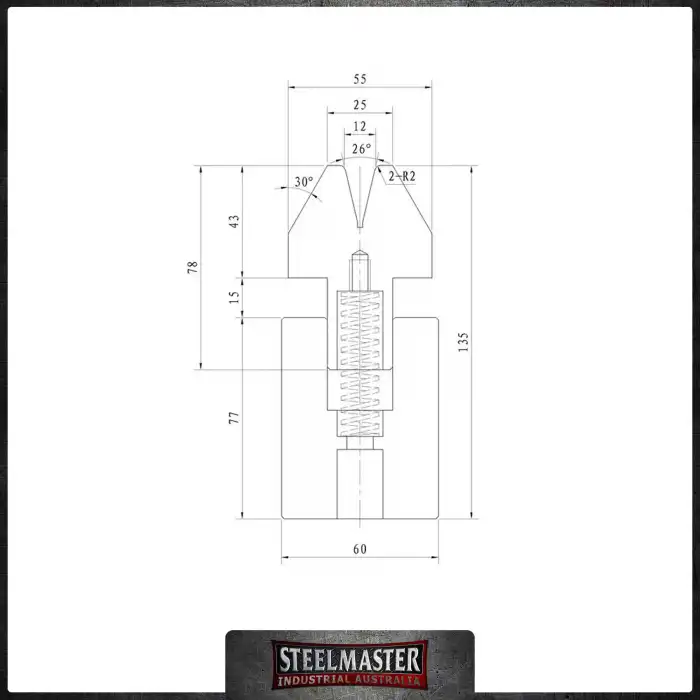

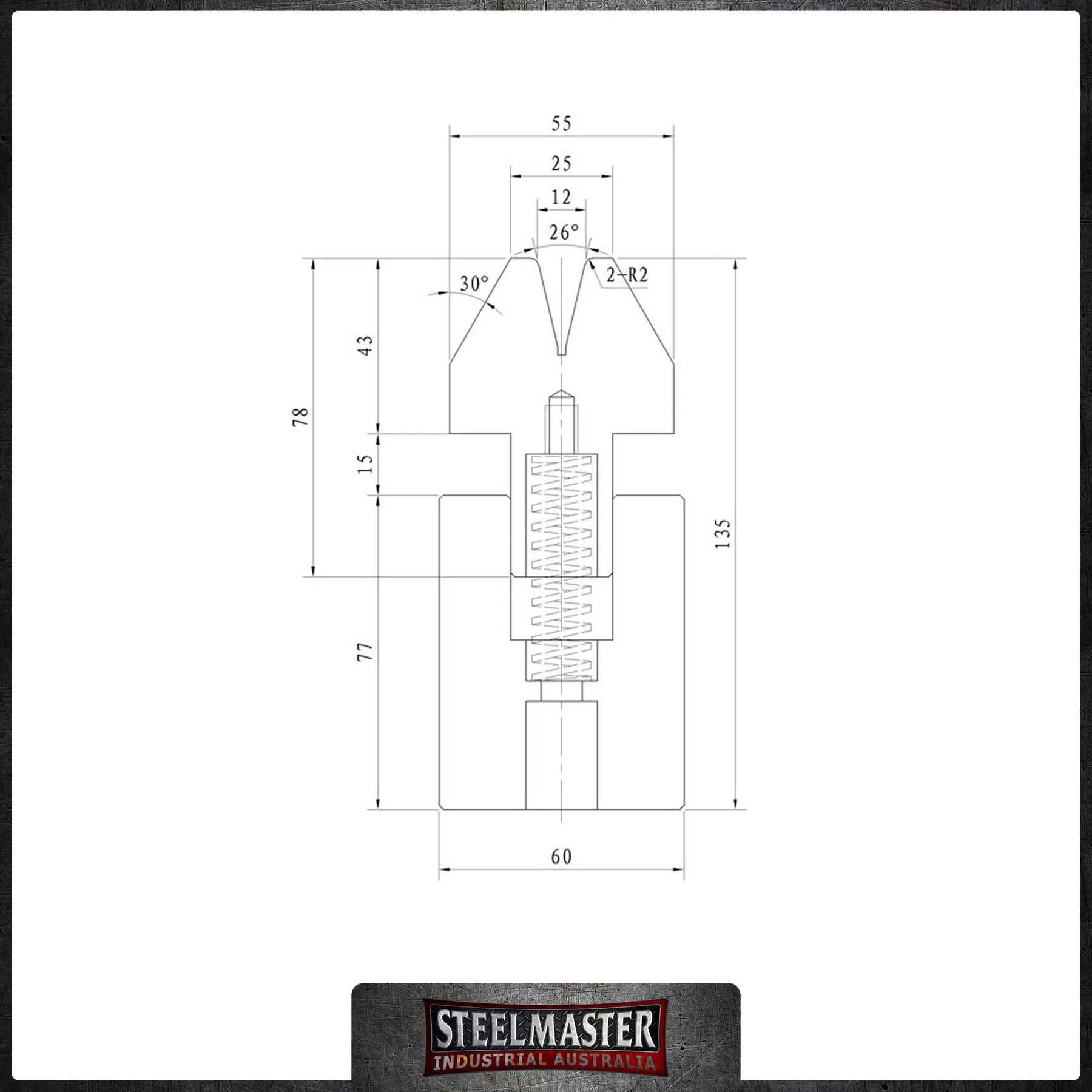

❚ Profile attached
❚ Product ordering code: 19+0268
