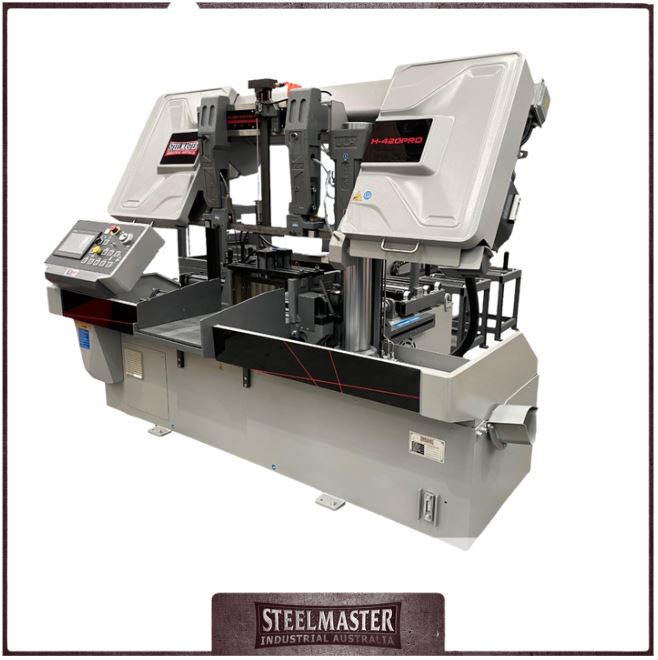

Steelmaster H-420PRO – Fully Automatic Column Bandsaw. 420mm Round & Square Capacity, Euro Model

Ex GST: $38,850.00
Inc GST: $42,735.00
Price Including GST: $42,735.00
Machinery: Pickup is scheduled within 48-72 hours after order confirmation, subject to precommissioning.
Tools, Parts & Accessories: Next-Day Pickup
Store Hours: Monday–Friday, 8:00 a.m. – 5:00 p.m.

For machinery delivery rates, click REQUEST QUOTE
For Tools, Parts & Accessories delivery CONTINUE TO CHECK OUT

Specifications
MODEL NUMBER: 15-0359

sku15-0359
cutting capacities ø (w x h x t)
90°400 mm
○60°N/A
45°N/A
90°420 mm x 400
□60°N/A
45°N/A
90°420 mm x 400 mm
▯60°N/A
45°N/A
■●90°400 mm
beam returnauto type
blade size (l x w x t)5150 mm x 41 mm x 1.3 mm
speed range10 ~ 80 m/min
positioning accuracy±0.2 mm
max. length feed500 mm
max. setting feeding9999
table working height645 mm
motor power4 / 415 kw/V
dimensions (l x w x h)2630 mm x 2250 mm x 1900 mm
weight (nt)2500 kg
Click to Call Now 1800 511508 Compare
SKU: 15-0359Categories: , , , , , , , ,

Description

Steelmaster H-420PRO – Fully Automatic Column Bandsaw. 420mm Round & Square Capacity, Euro Model

Our automatic and semi automatic dual – column bandsaws are widely used for the cutting and processing of both ferrous and non ferrous materials. Offering a compact design, reliable performance and high precision.
Perfect for medium quantity and also processing application.
This is your partner in machinery.
Features
❚ large precision ground column for additional support
❚ NC programmable control
❚ Precision feed length measuring system.
❚ power assisted in feed table
❚ hydraulic blade tensioner
❚ hydraulic vice clamping
❚ variable hydraulic down feed & auto return
❚ automatic chip conveyor
❚ carbide & bearing blade guides
❚ breakage sensor
❚ powered brush cleaner
❚ centralized control panel
❚ powered in feed roller table with additional 1200mm roller conveyor
❚ coolant
❚ halogen work light
❚ one piece bi metal blade fitted
❚ CE compliance
❚ tool kit
Technical Data Snap-Shot
❚ Touch Screen NC programmable control
❚ Hydraulic bundle clamping fitted
❚ 420mm x 400mm cutting capacity
❚ 420mm round cutting capacity
❚ 10 ~ 80 variable speed range
❚ 0.25 ~ 0.5mm positioning accuracy
❚ 5150mm x 41mm x 1.3mm blade dimensions
❚ 500mm x 9 max length one way feeding
❚ Hydraulic Oil Capacity – 70 Litres
❚ Cutting Oil Capacity – 120 Litres
❚ shipping dimensions – 2630mm x 2250mm x 1900mm
❚ power – 415V 4Kw
❚ approx weight: 2500 kg
Recommended Add On Accessories
❚15+1081 – 5150 x 41 x 1.3 x 3/4 Vari -Tooth Rontgen German Quality Bandsaw Blade.
❚15+1080 – 5150 x 41 x 1.3 x 4/6 Vari -Tooth Rontgen German Quality Bandsaw Blade.
❚15+1082 – 5150 x 41 x 1.3 x 5/8 Vari -Tooth Rontgen German Quality Bandsaw Blade.
❚15+1083 – 5150 x 41 x 1.3 x 6/10 Vari -Tooth Rontgen German Quality Bandsaw Blade..
❚15+0274 – Heavy Duty Roller Conveyor & Stands, 620mm Wide x 500mm Long.
❚15+0287 – Heavy Duty Roller Assembly 520mm Wide Complete with Bearing and Housing Assemblies – Sold Each
❚11+0707 – Alfra Rotabest – Magnetic Swarf Remover
❚15+0187 – Coolant Mineral Based XDP-1000 5Lt Drum Metalium – Soluble – 20:1 Mix
