Description

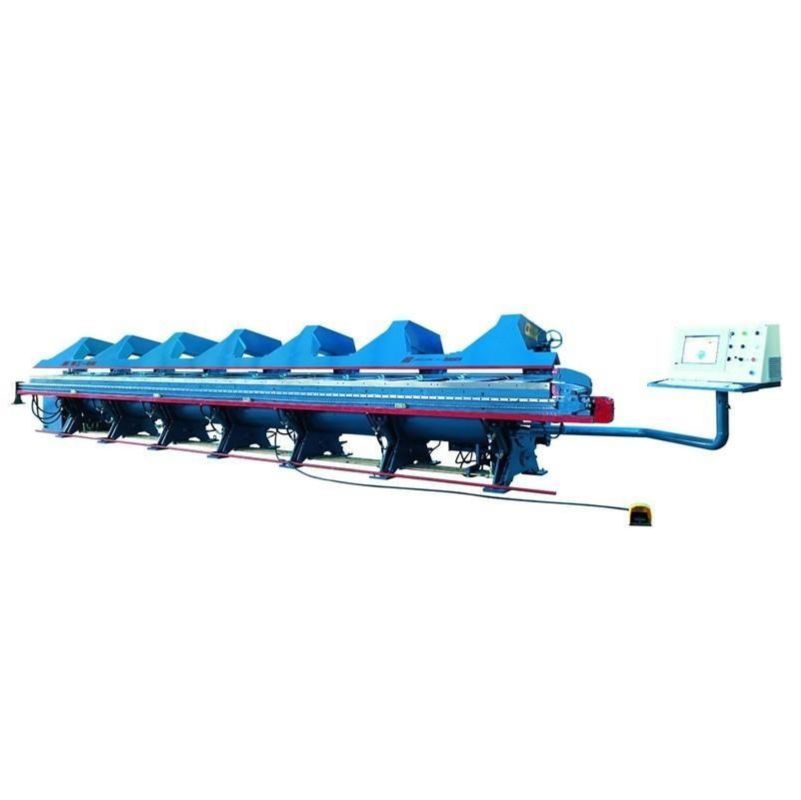

LFS-8012 multi-angle NC folding machine adopts advanced CNC control system, providing the operator with a man-machine dialogue interface. The digital-control folder & slitter is flexibly used to fold and slit work piece which is unsuitable for traditional pressing system. The machine mainly consists of machine body, clamp unit, folding equipment, digital-control backstop, slitting system, work piece supporting equipment, hydraulic system and PC control system, etc.



Features & Technical

❚ Type Long bed 8012 Apron Folder

❚ Working length 8000mm

❚ Number of Heads 9

❚ Fold Cylinders 9

❚ Clamp Cylinders 9

❚ Bending range 0 to 125 degrees

❚ Throat depth 800mm

❚Jaw face width 34mm

❚ Hinge 9 points Parallelogram linkage

❚ Apron operation Hydraulic double acting cylinder

❚ Cycle time approx. 12 seconds for maximum fold variable

❚ Gauging method Variable 0.40mm to 1.20mm by adjustment



Folding Capacity

❚ Material yield Strength 250mpa

❚ Thickness 1.2mm mild steel.

2.0mm aluminium

0.8mm stainless steel



Slitter Unit

❚ Type Overarm Mounted

❚Knife Diameter 80mm (rotary)

❚Material D2 Hardened and Ground to 60 – 62Rc

❚Drive System Electric motor and chain drive

❚Guiding System Large section linear guide

❚Cutting speed 0.8 m/s

❚Cycle time approx 12 seconds for full 6.5 meter slit

❚Bed Height 935mm



Control Feature

❚PC 300mm LCD

❚Automatic Functions Angle Range of 0 to 125 degrees

❚Safety Features E-stop circuit,

❚Full Length Kick rail

❚Electric interlock

❚Two stage clamping

❚Emergency stop



Power 11KW – 415v 50htz

Dimensions 9395 x 1742 x 1375mm H

Weight 6500kgs



Backgauge Systems

The Backgauge systems utilize fully integrated control components providing accurate material positioning, and eliminate the

requirement to mark the fold and slit positions on the material.
