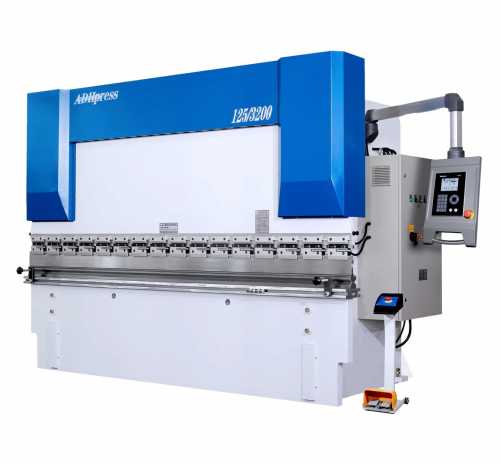

Description

  • New EU streamlined design
  • The whole frame of the press brake adopt integrated welding, and by tempering to eliminate the
  • internal stress
  • The press brake frame adopt shot blast to remove rust and sprayed with anti-rust treatment
  • The frame is formed by the imported CNC three-dimensional machining center in one process,
  • which ensures the parallelism and verticality of each mounting surface.
  • The controller can control the Y1 and Y2 axes (Y1 controls the left cylinder and Y2 controls the right
  • cylinder) to ensure the synchronous movement of the ram
  • Quiet speed waiting and fast down, (about 25 decibels), low noise during pressing and return (the
  • pressure in the hydraulic system is the closed loop control of the servo main motor)
  • The main oil pump does not apply work under the drive of the servo main motor, and the energy
  • consumption is 60% lower than that of the general CNC press brake machine
  • The machine oil temperature is stable, which extending the service life of various components of
  • the hydraulic system

Technical Specifications

  • Model Unit WAD-135T/3200
  • Bending Force KN 1350
  • Bending Length mm 3200
  • Upright Distance mm 2700
  • Throat Depth mm 400
  • Stroke mm 200
  • Open Height mm 490
  • Fast Speed mm 200
  • Working Speed mm 12
  • Return Speed mm 120
  • Slider repeat accuracy mm ≤±0.04
  • Slider positioning accuracy mm ≤±0.05
  • Repeat positioning accuracy of
  • backgauge mm ≤±0.05
  • Workpiece straightness mm/m 0.5
  • Bending angle error ° ＜±0.5
  • Grating Ruler Resolution mm 0.005
  • Hydraulic Oil Standard / #46 Antiwear hydraulic oil
  • Oil Tank L 200
  • Main Motor Kw 11
  • Weight Ton 9.5
  • Dimensions(L×W×H) mm 3800*1800*2700
  • Power supply / 380V/50HZ/3PH
