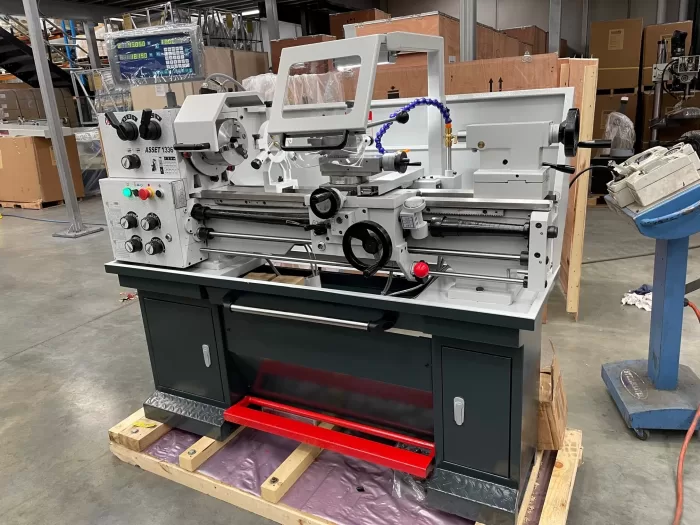

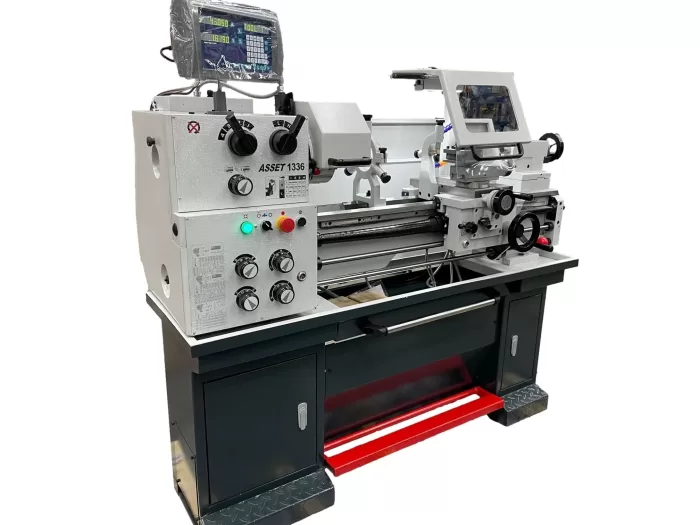

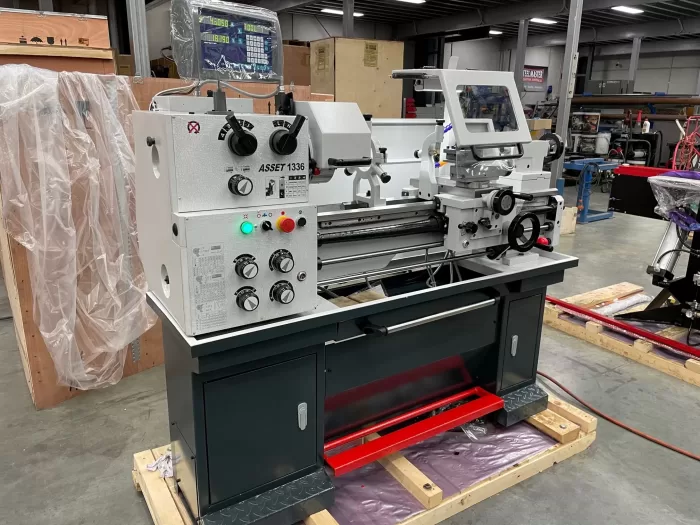

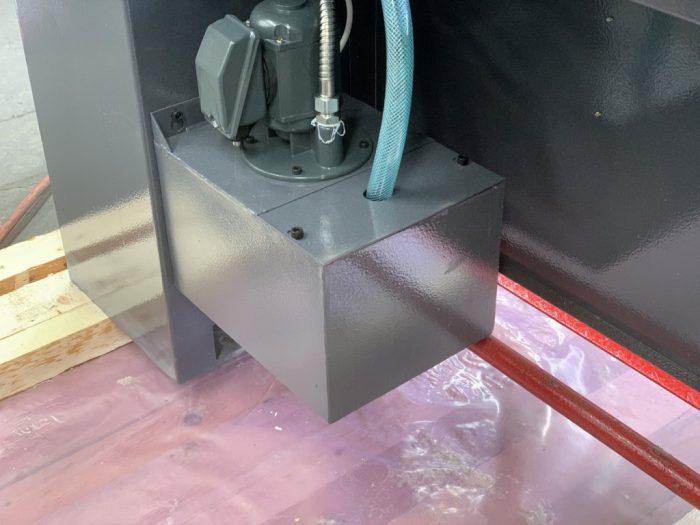

ASSET 1336 – EURO Precision Workshop Lathe. 925mm Centres, 330mm Swing, 38mm Bore, 2 Axis DRO,

$8,250.00

Specifications
MODEL NUMBER: 1336 EURO

sku 12-0188
Bed length 925 mm
center height  165mm
swing over bed 330 mm
swing over cross-slide 210 mm
bed width 200 mm
bed height 900 mm
spindle bore 38 mm
camlock system D1 ~ 4
spindle speeds 70 ~ 2000 / 8 mm
cross-slide travel 160 mm
compound slide travel 110 mm
3 jaw chuck size Ø 160 mm
4 jaw chuck size Ø 200 mm
metric threads 0.4 ~ 7 / 26 mm
imperial threads 4 ~ 56 / 32 imp
cross feed 0.014 ~ 1.39 mm/r
tailstock quill taper 3 mt
headstock morse taper 4 mt
tools to suit 16 mm & 20 mm
motor power 1.5 / 240 kw/V
dimensions (l x w x h) 1570 x 600 x 1280 mm
weight (nt) 610 kg
Compare

Description

Description
Our New Euro model offering a feature packed quality lathe which has rapidly become the favoured size of machine shops around the country!
This highly spec’d model is an excellent high precision machine that will become an indispensable part of your shop.

Features

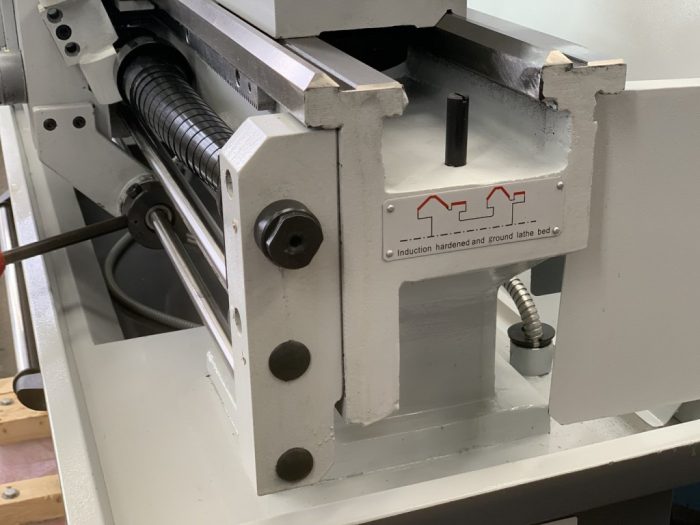

❚ induction-hardened and ground cast iron bed and slide ways

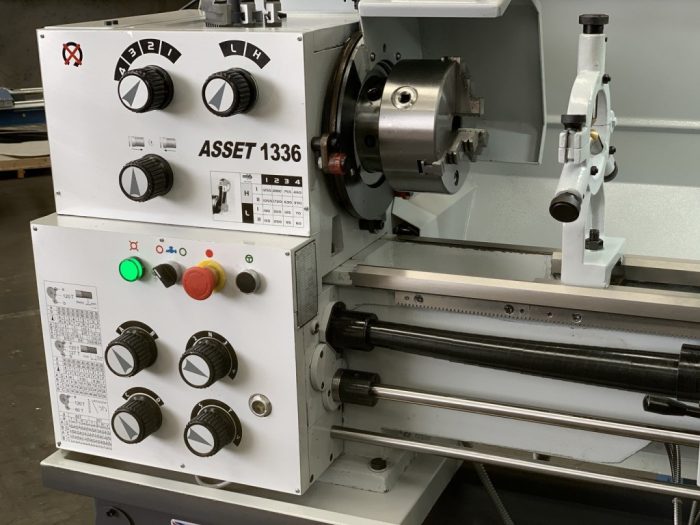

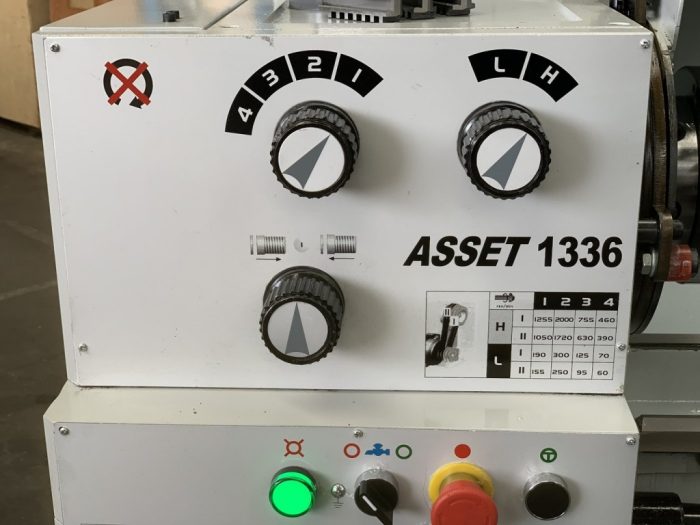

❚ spindle holding camlock system

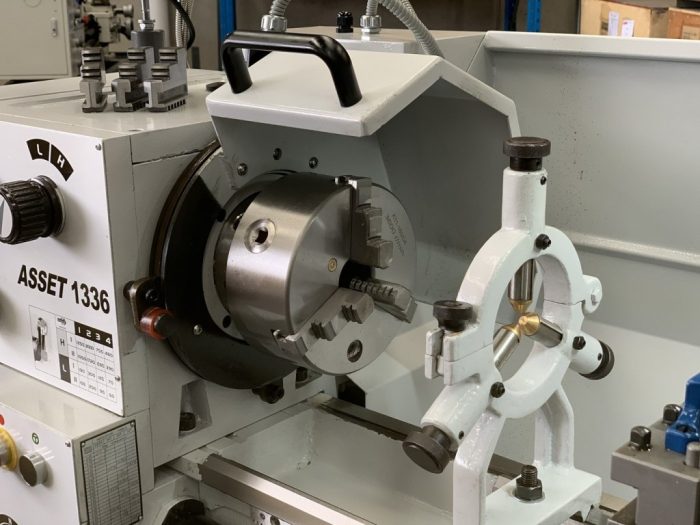

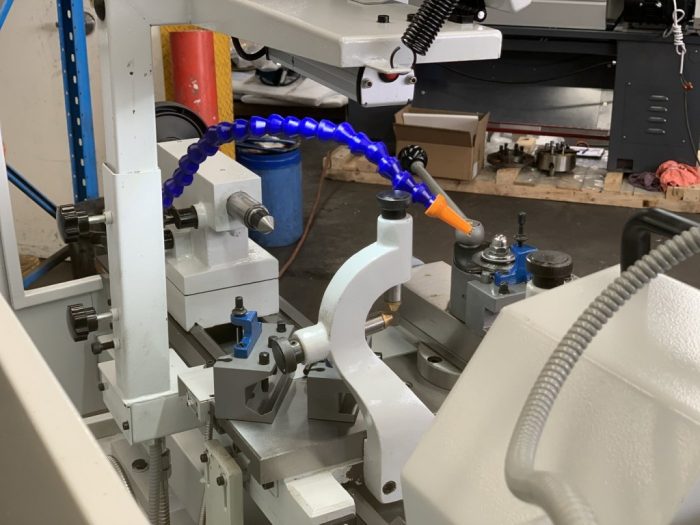

❚ 200mm 3 & 4 jaw chucks, faceplate, fixed & travelling steadies standard

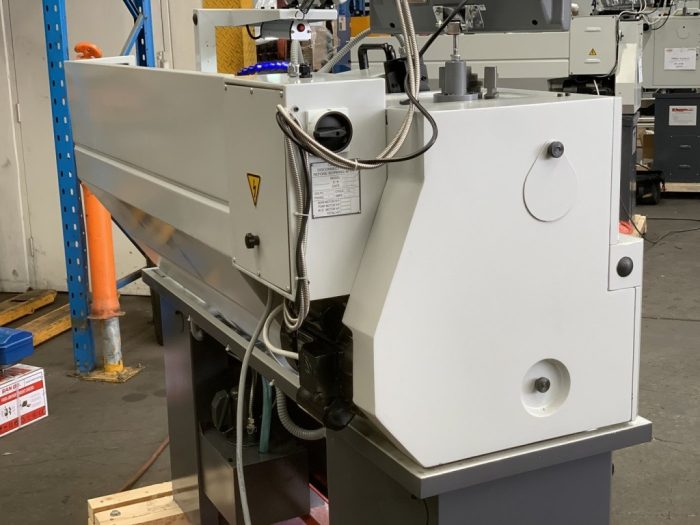

❚ main spindle running in oil bath, hardened and ground with two adjustable precision taper roller bearings ensures accuracy

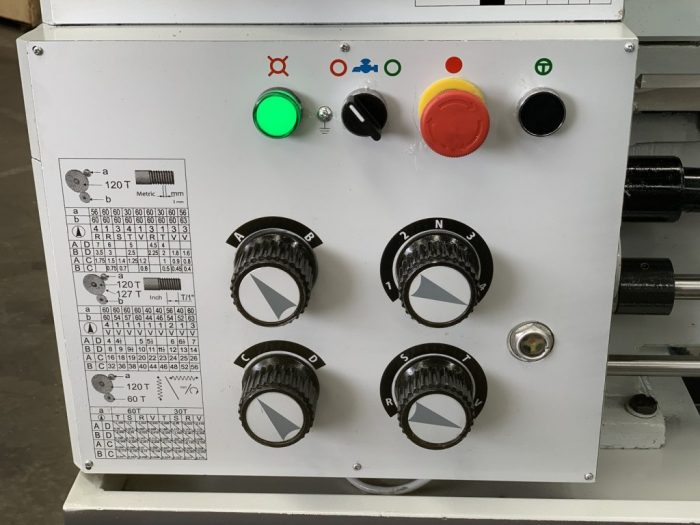

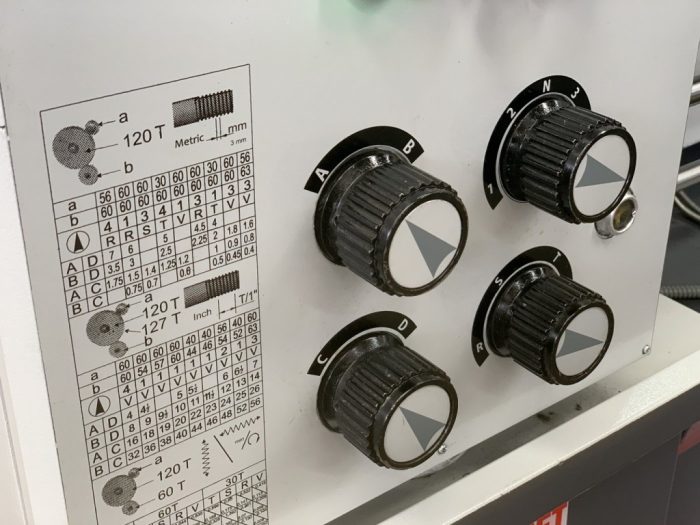

❚ huge thread cutting ranges – metric / imperial / DP & modular

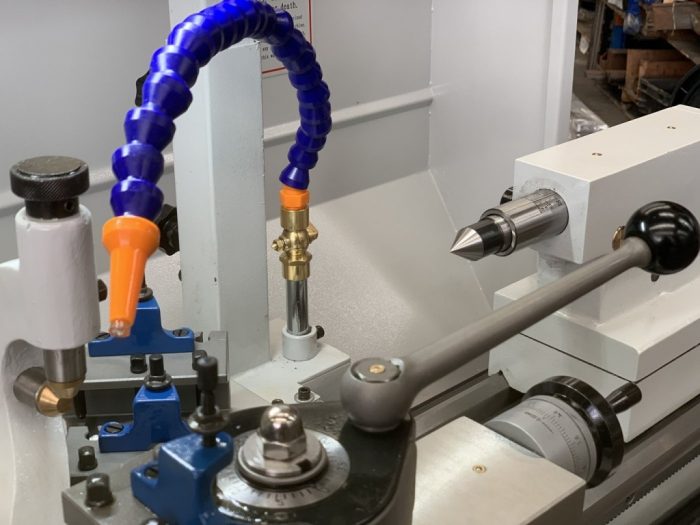

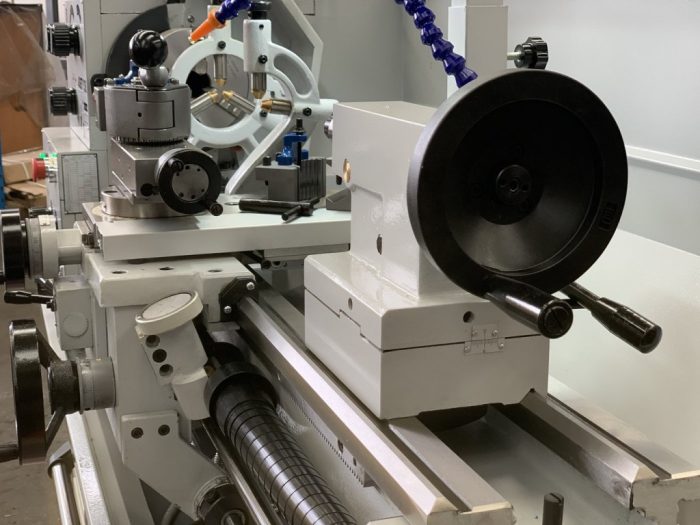

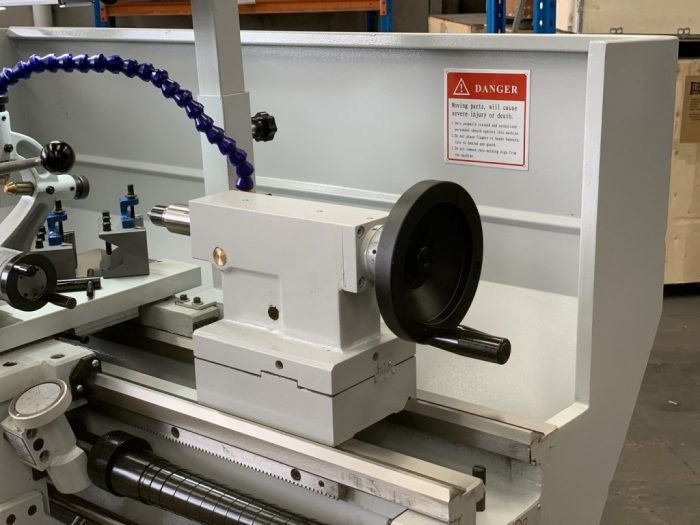

❚ transversal adjustment of tailstock for taper cutting applications

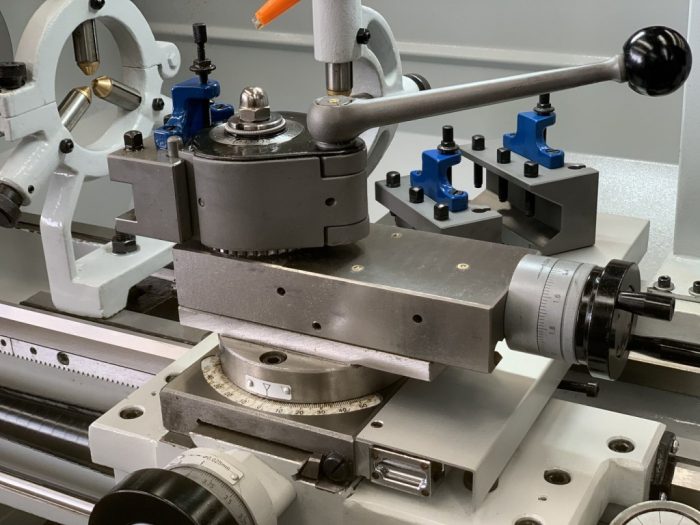

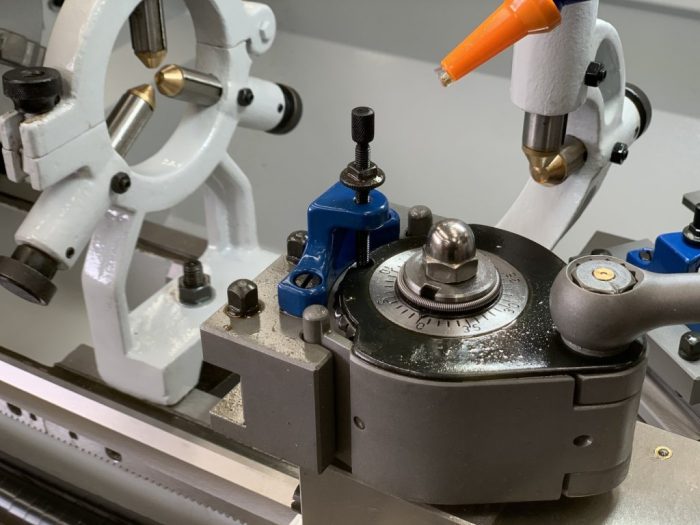

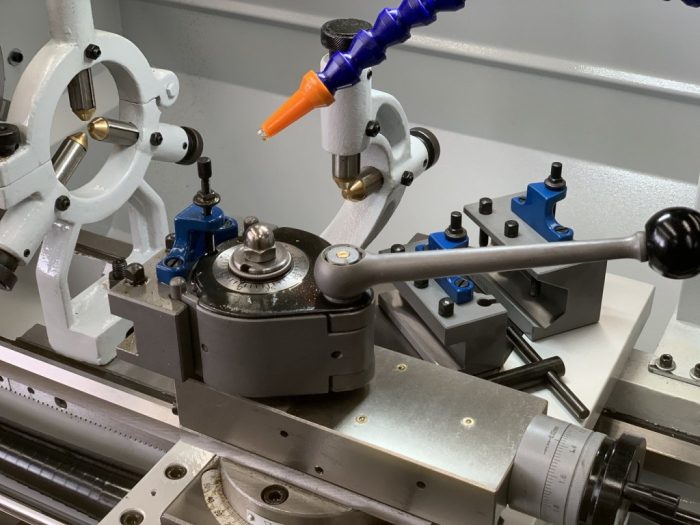

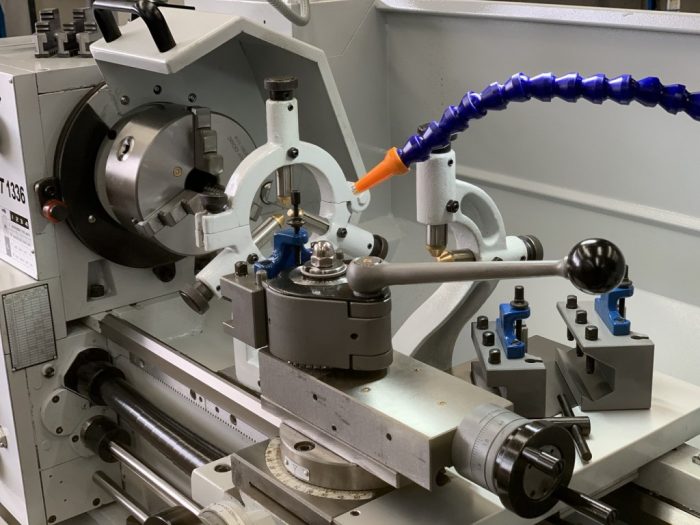

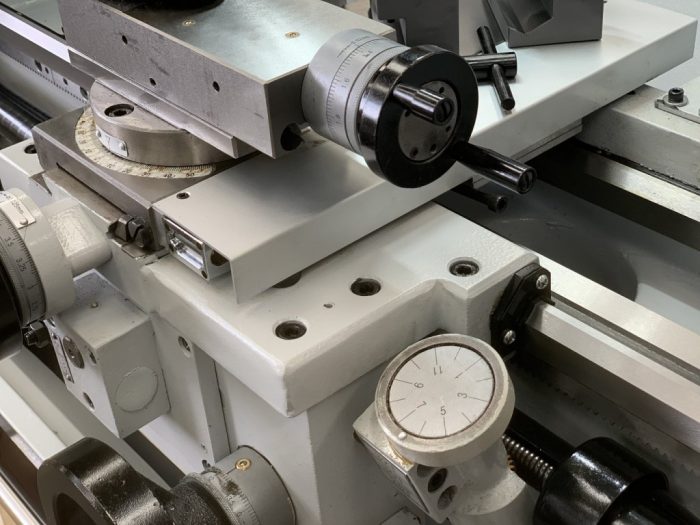

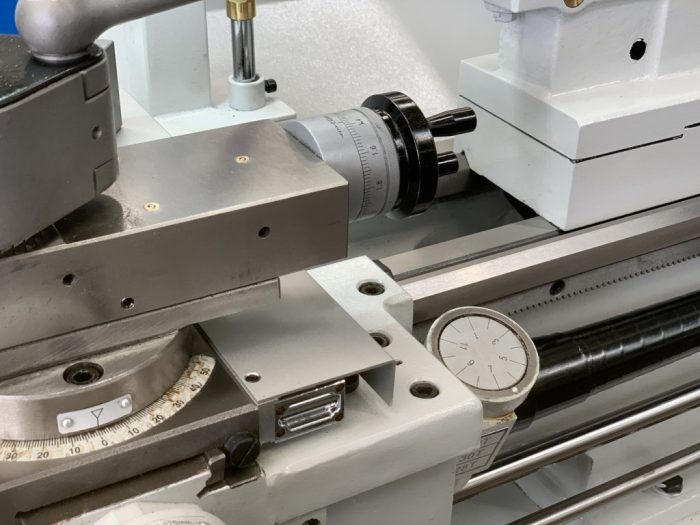

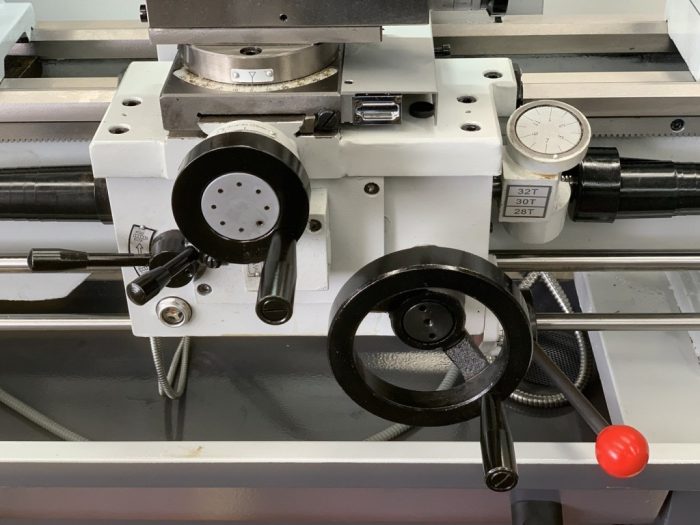

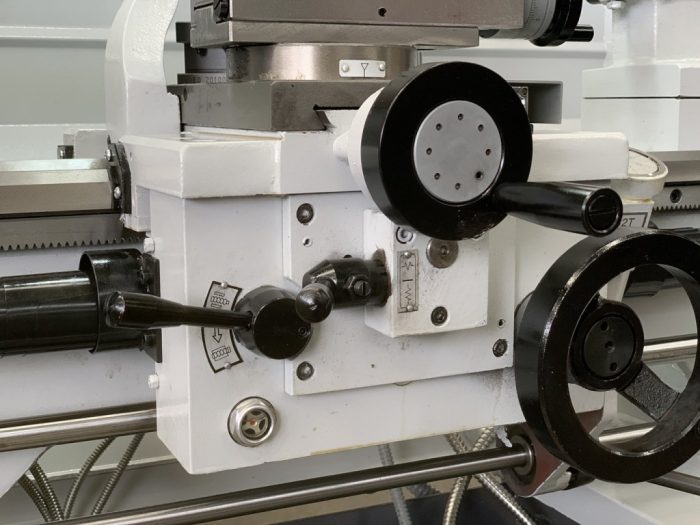

❚ Haase / Multifix type quick change post with 3 x holders offering full 360 degree positioning

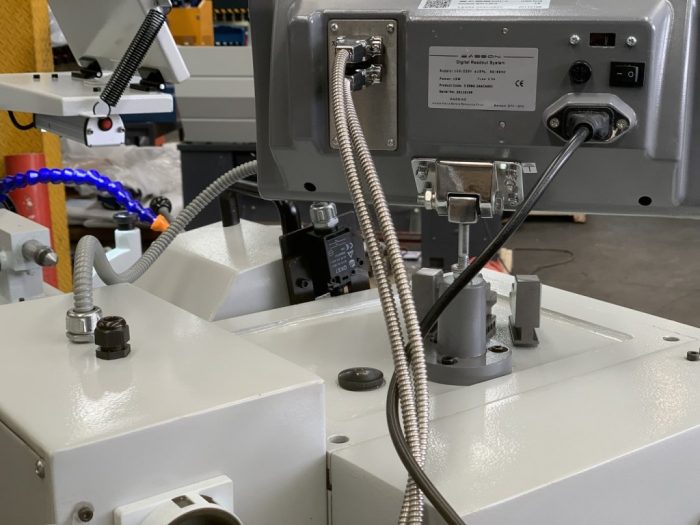

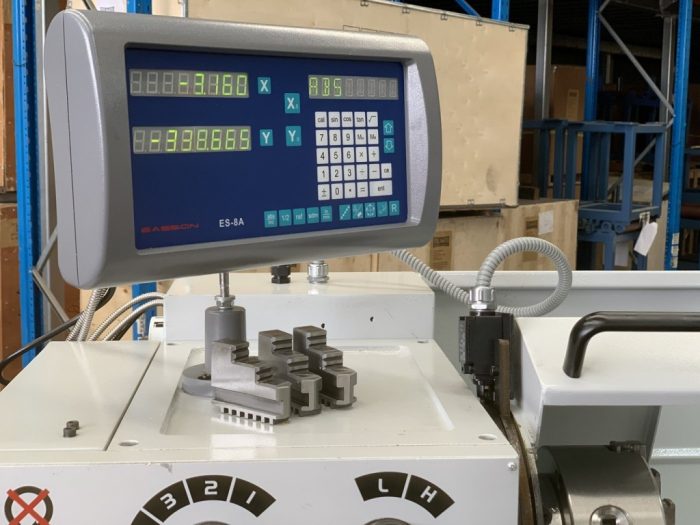

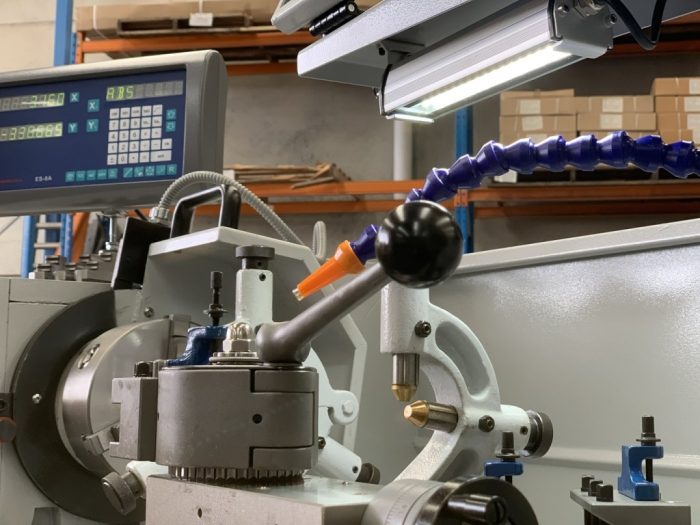

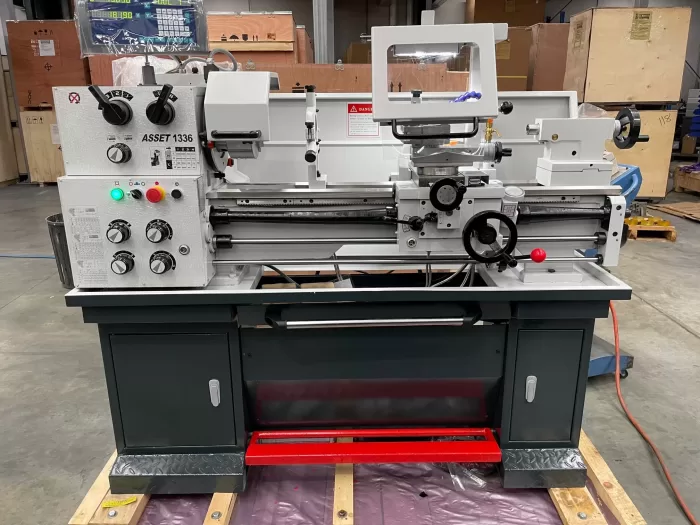

❚ 2 axis DRO fitted as standard

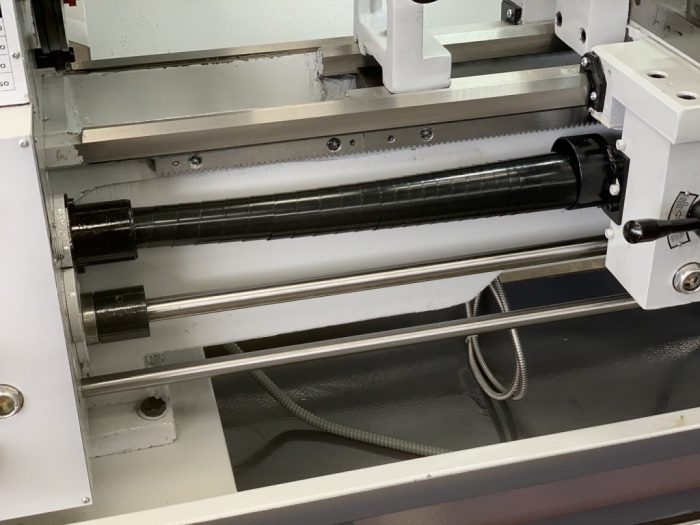

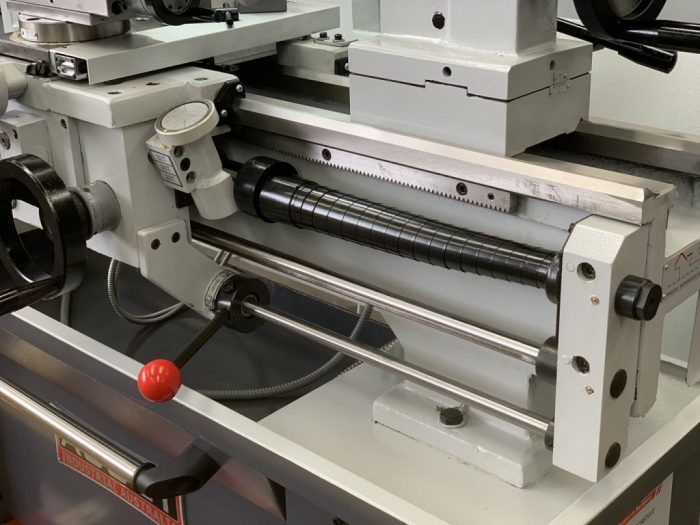

❚ safety covered lead screw

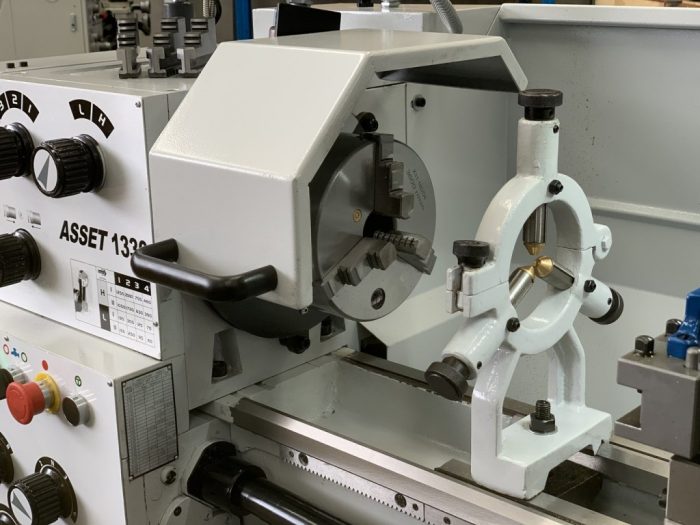

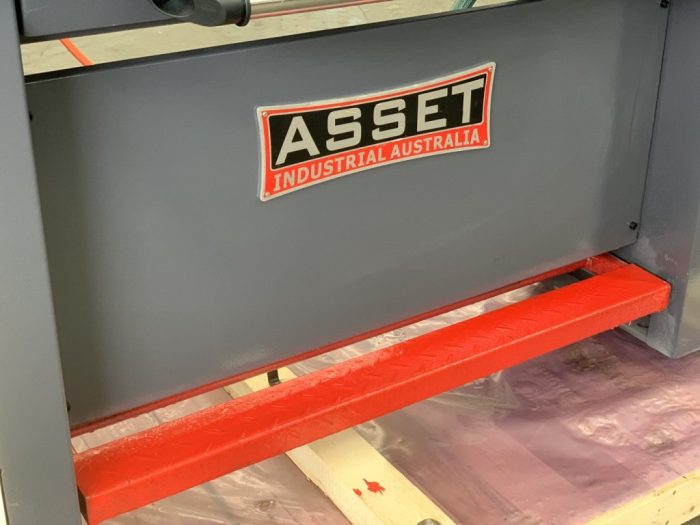

❚ safety interlocks on chuck guard, gear box and foot brake

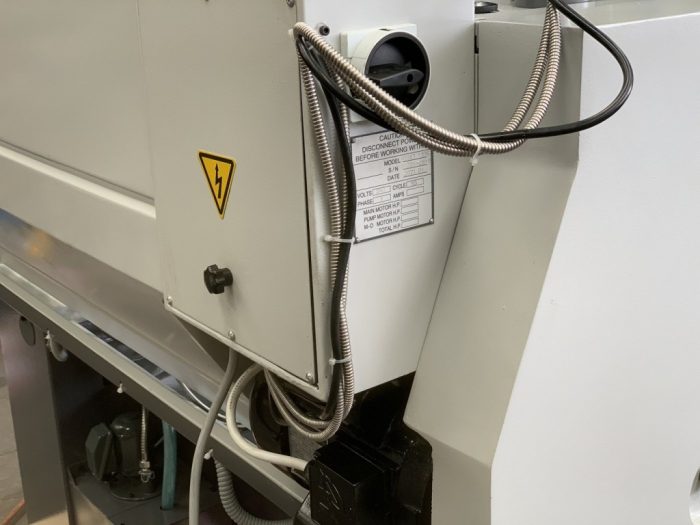

❚ 240V / 15Amp – 2HP
❚ CE compliant

Technical Data Snap-Shot
❚330mm swing over bed
❚925mm bed length
❚38mm spindle bore
❚speeds(8)-70/115/190/300/460/775/1255/2000
❚160mm – cross slide travel
❚88mm – top slide travel
❚110mm – tailstock travel
❚32mm – tailstock diameter
❚200mm – bed width
❚MT3 tailstock taper
❚Thread Cutting – Metric (mm) 0.4mm ~ 7.0mm – (26)
❚Thread Cutting – Imperial (Inch) 56tpi ~ 4tpi – (32)
❚ metric leadscrew fitted
❚160mm 3 jaw chuck
❚200mm 4 jaw chuck
❚250mm faceplate
❚D1-4 camlock
❚tools to suit – 16mm & 20mm
❚fixed & travelling steadies
❚Haase / Multifix type quick change post with 3 x holders offering full 360
degree positioning
❚2 axis digital read out fitted
❚machine dimensions – 1570mm x 600mm x 1270mm (to headstock top)
❚shipping dimensions – 1700mm x 740mm x 1410mm
❚power – 240V 1.5Kw – 15 amp
❚approx weight: 510kg

EQUIPMENT & ACCESSORIES SUPPLIED

Easson 2 axis DRO, 3 & 4 jaw chuck, multi set quick change tool
post with 3 holders, face plate & centres, fixed steadies &
1 x travelling steady, full length splash guard, covered leadscrew,
interlocked chuck guard, headstock cover.


Recommended Add On Accessories

❚12+0120 – Quick Change Holder: 200 Series. – Turning Tool.
❚12+0119 – Lathe Live Centre Set – Assorted – MT3
❚12+0733 – Part off block Kit, blade & 10 inserts to suit 16mm centre height. 3 x Tips Per Kit
❚12+0605 – Turning Tool – Right Hand Screw Type Positive 90 Deg/16mm
❚12+0611 – Turning Tool – Pin Type Negative 95 Deg/16mm
❚12+0616 – Boring Bar – Screw Type Positive 95 Deg/12mm Dia
❚12+3048 – 3 Piece Clamped Carbide Kit. 2 x 16mm Turning Tools & 1 x 12 mm Boring Bar.
❚12+0973 – Threading Tool Kit – 16mm. 1 External Threading Tool 10 tips
❚15+0187 – Coolant Mineral Based XDP-1000 5Lt Drum Metalium – Soluble – 20:1 Mix
❚30+0115 – PM-33 Pivoted Mounts. 120mm Diameter, M12 x 100mm Stud Size, 330Kg Per Unit Load Capacity.
