Specifications
MODEL NUMBER: 12-0216

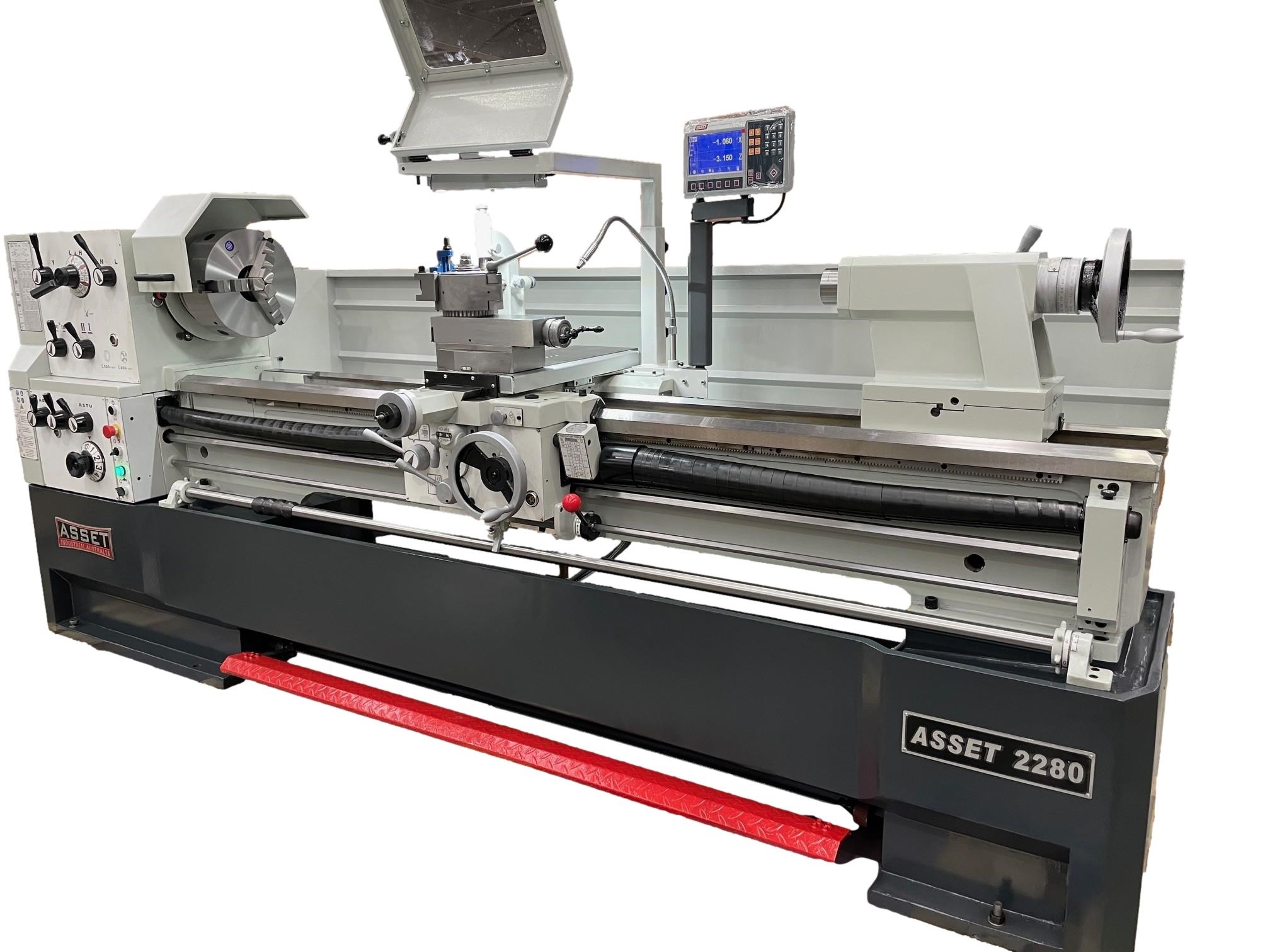

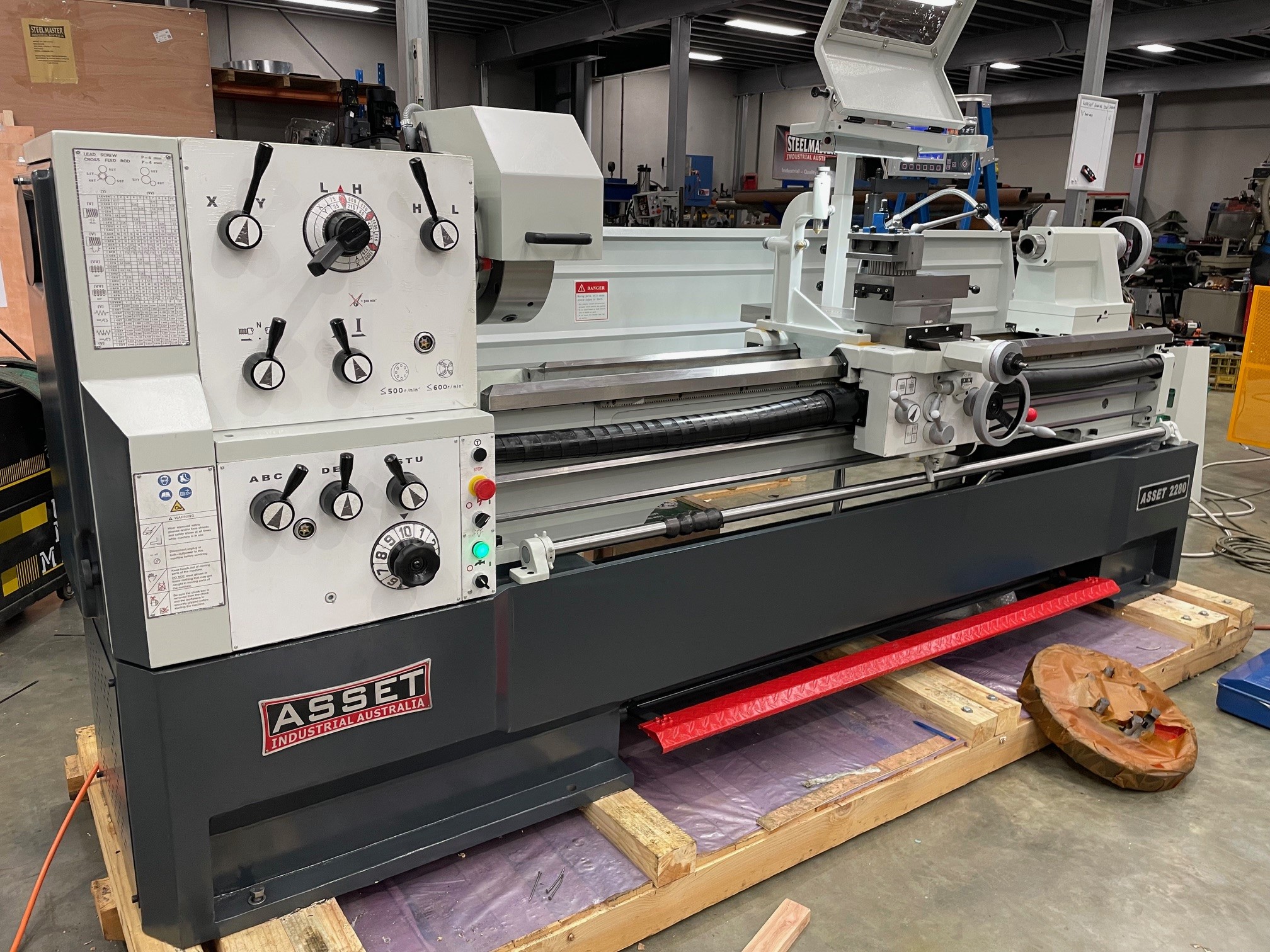

ASSET 2280 – EURO Big Bore Lathe. Duty, 2000mm Centres, 560mm Swing, 105mm Bore
This feature packed lathe should be the workhorse in your shop. We’ve combined the mass, power and precision needed for turning tough to machine materials and extra heavy work pieces to exacting dimensions and finishes.
Check out this spindle speed range from 25 – 1500 RPM! You’ll be able to spin that work piece up for fine finishing or slow that part down to a crawl, all the time with unparalleled power and rigidity. Aside from this we’ve included standard features like: auto carriage stop with indexable cams, interlocked apron controls, adjustable apron clutch, heavy-duty tailstock and more!
Take a close look at everything included with the package and you’ll agree that this is one great value you won’t want to miss out on.
Features
❚large 105 mm spindle bore
❚induction-hardened and ground cast iron bed and slide ways
❚triple precision headstock bearings fitted
❚spindle holding camlock system
❚main spindle running in oil bath, hardened and ground with two adjustable precision taper rollerbearings ensures accuracy
❚maximum accuracy and quiet operation, even at high speeds
❚capable of turning over 200 different types of threads with a low speed of 25 rpm
❚transversal adjustment of tailstock for taper cutting applications
❚quick change tool post standard
❚2 axis DRO fitted as standard

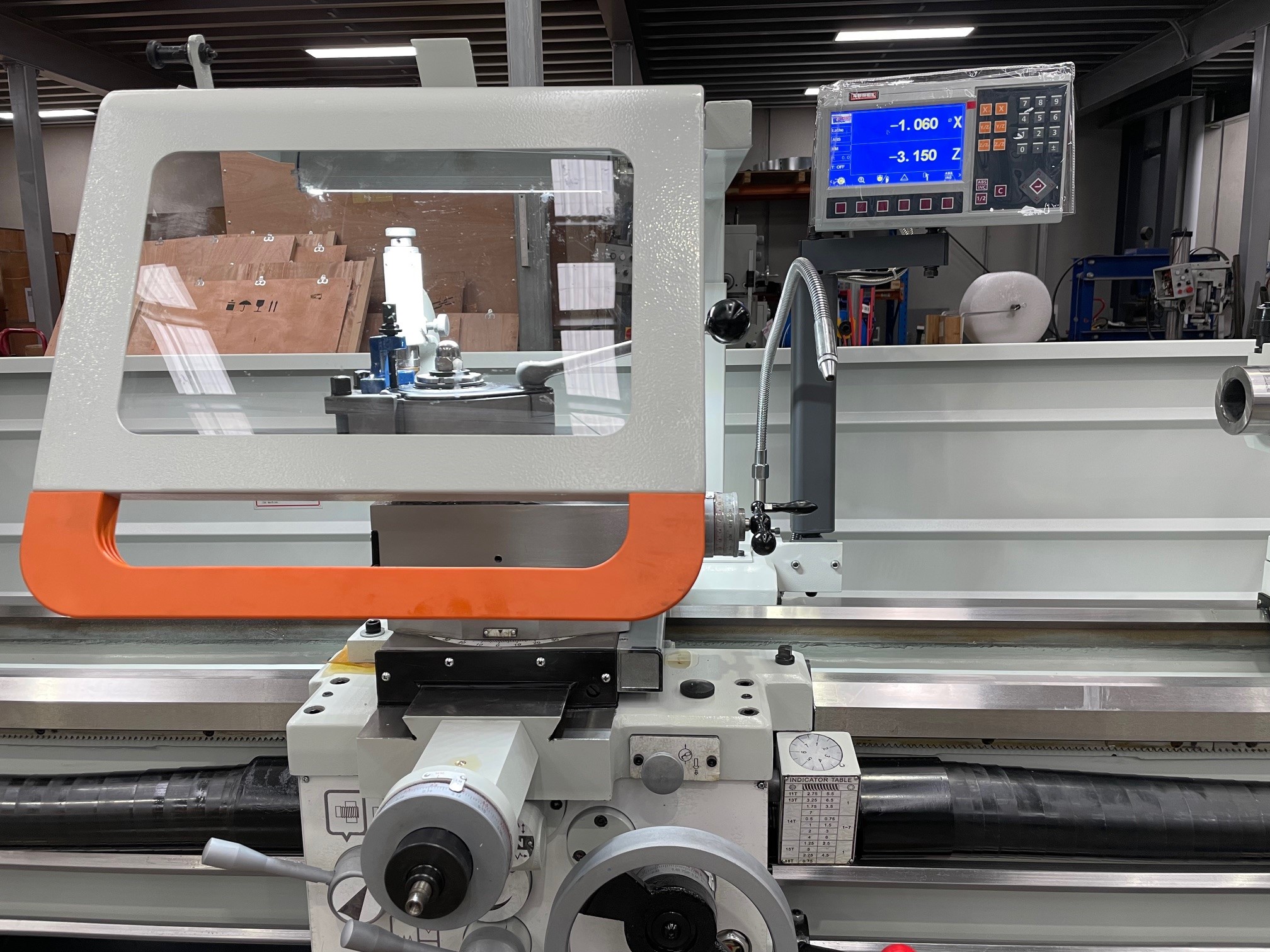

❚safety covered lead screw
❚safety interlocks on chuck guard, gear box and foot brake
❚415v 3ph, CE compliant
Technical Data Snap-Shot
❚560mm swing over bed
❚355mm swing cross slide
❚785mm swing in gap
❚2000mm between centres
❚105mm spindle bore
❚camlock – D1-8
❚headstock taper – No.7
❚320mm 3 jaw chuck
❚400mm 4 jaw chuck
❚speeds(12)-25/35/75/115/170/215/325/475/660/1000/1500
❚cross slide travel – 316mm
❚top slide travel – 130
❚metric threads – 0.2 ~ 14mm (47)
❚imperial threads – 2 ~ 112 tpi (60)
❚dp threads – 4 ~ 112dp (50)
❚modular threads – 0.1 ~ 7mp (34)
❚180mm – tailstock travel
❚75mm – tailstock diameter
❚350mm – bed width
❚faceplate supplied
❚fixed & travelling steadies
❚quick change post with 3 x holders
❚tools to suit – 25mm & 32mm (CD Tool Holders Fitted)

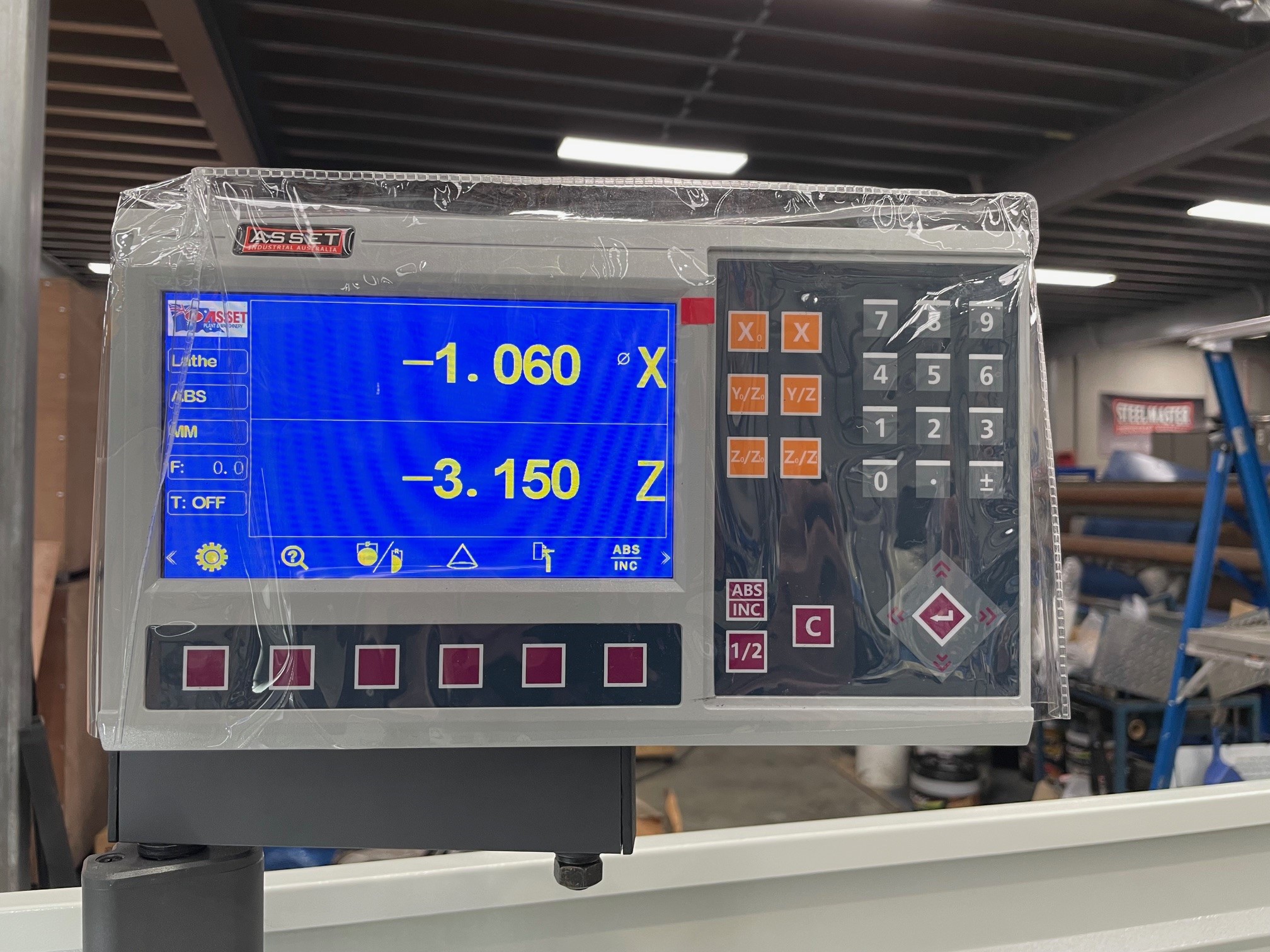

❚2 axis digital read out fitted
❚tailstock taper – 5MT
❚tailstock travel – 180mm
❚shipping dimensions – 3350mm x 1200mm x 1500mm
❚power – 415V 7.5Kw
❚approx weight: 3300kg
Equipment & Accessories Supplied
Easson 2 axis DRO, 3 & 4 jaw chuck, quick change tool
post with 3 holders, face plate & centres, fixed steadies &
1 travelling steady, full length splash guard up to 2000mm,
