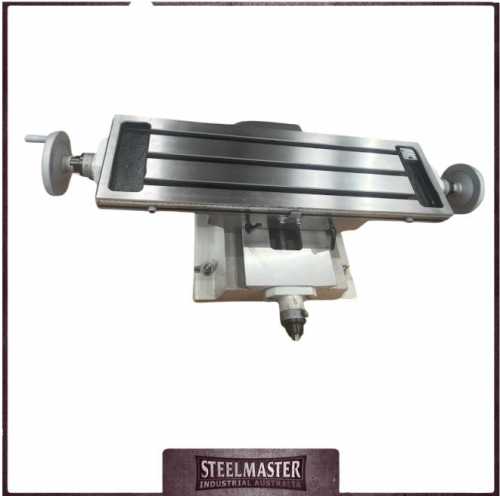

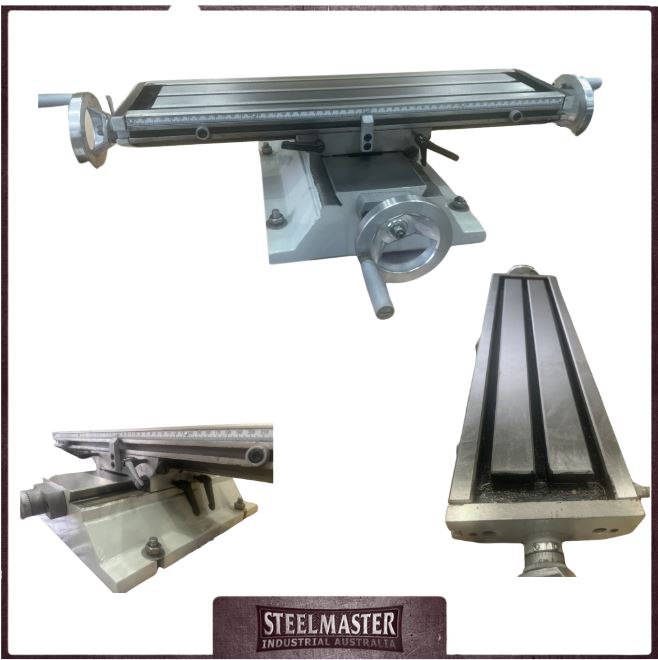

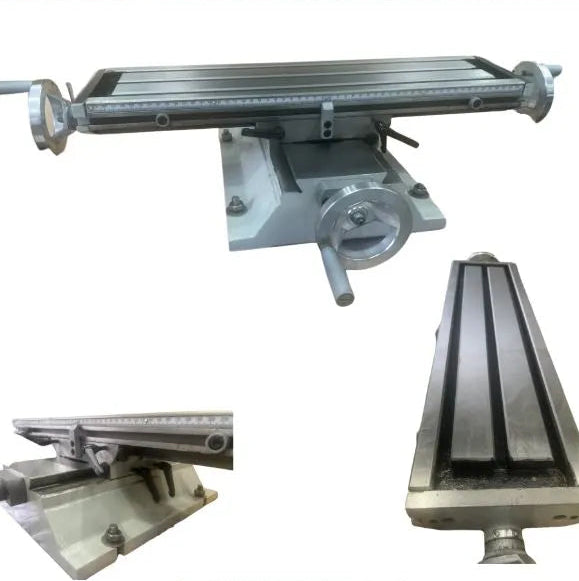

Compound Slide Table – Table Size 590mm X 150mm. Heavy Duty. Quality Ground Finish & Adjustable Dove Tail Guides.

Compound Slide Table – Table Size 590mm X 150mm. Heavy Duty.

Heavy-duty quality compound slide table features 280mm of longitudinal and 230mm of transverse travel for versatile milling and drilling. Features 590mm x 150mm table, 14mm slots, and adjustable gibs.
Features
❚ multi-purpose accessory for all drilling and milling applications

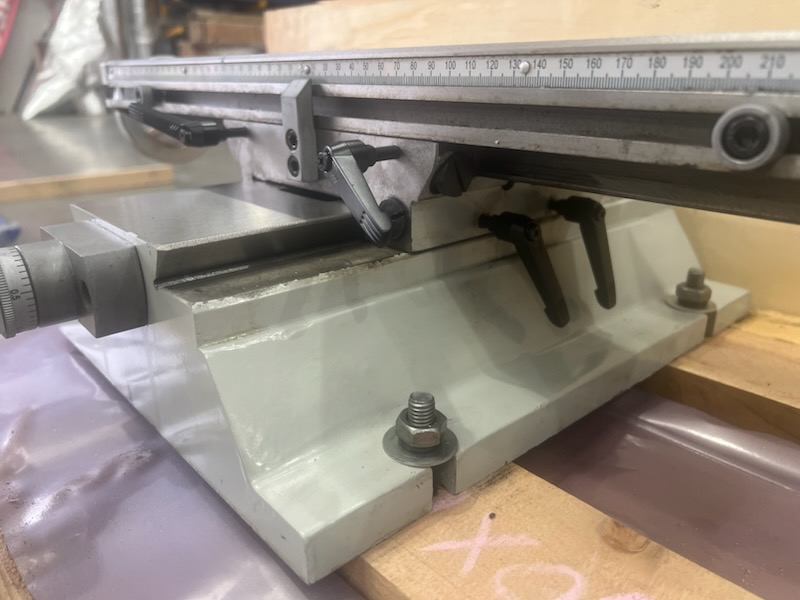

❚ scaled rules for accurate positioning in X & Y axis

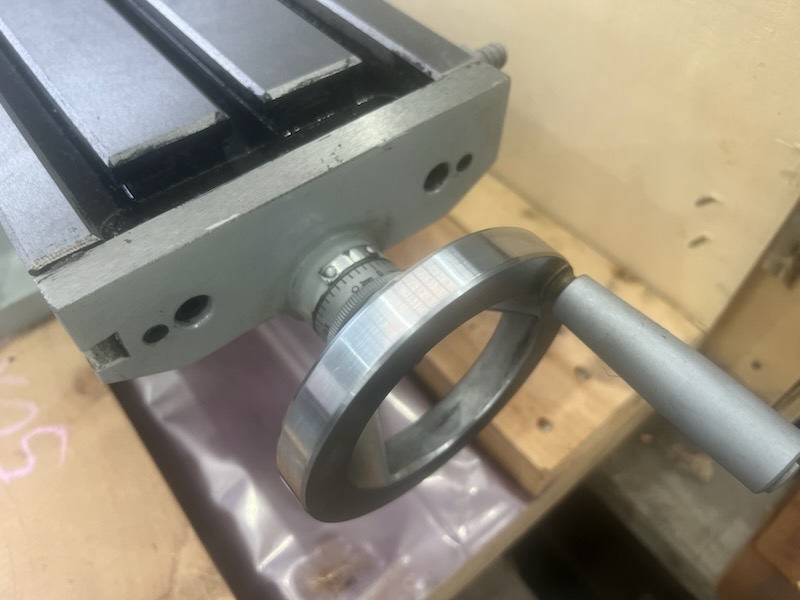

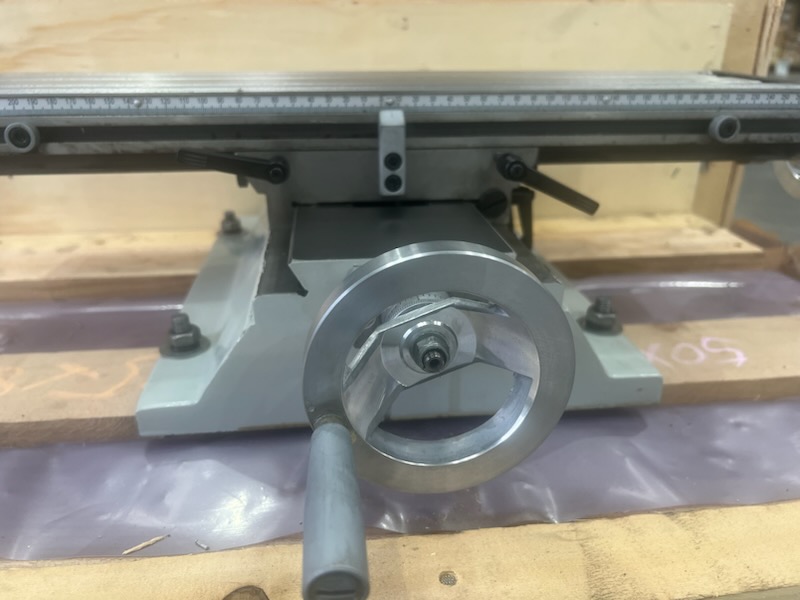

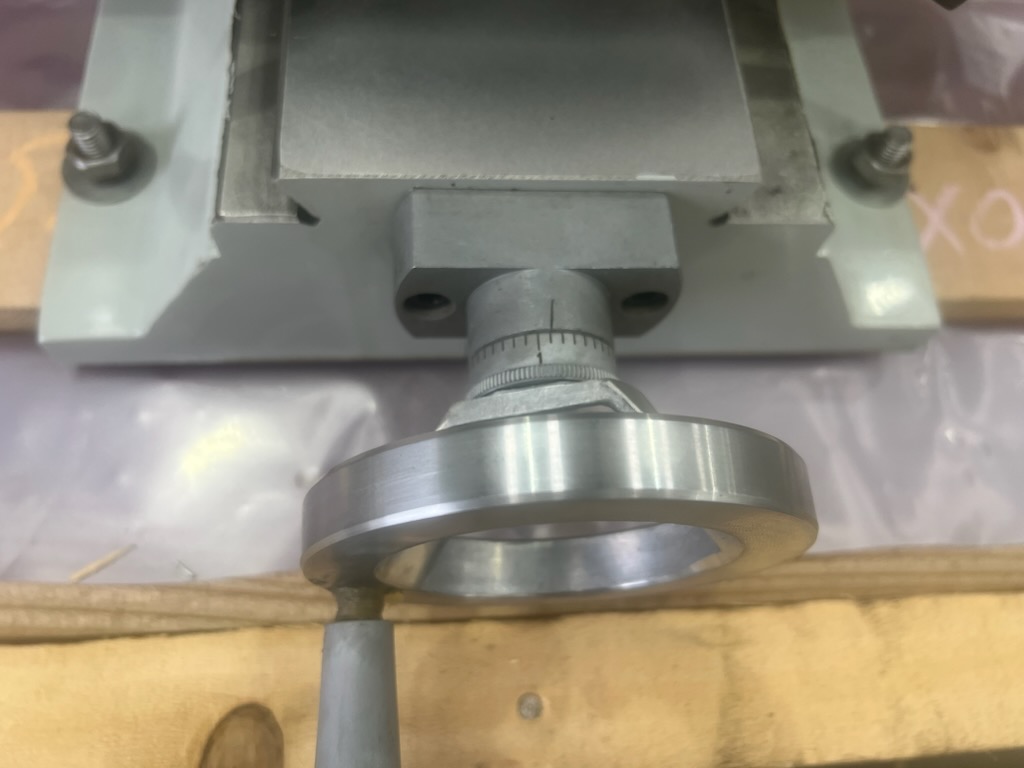

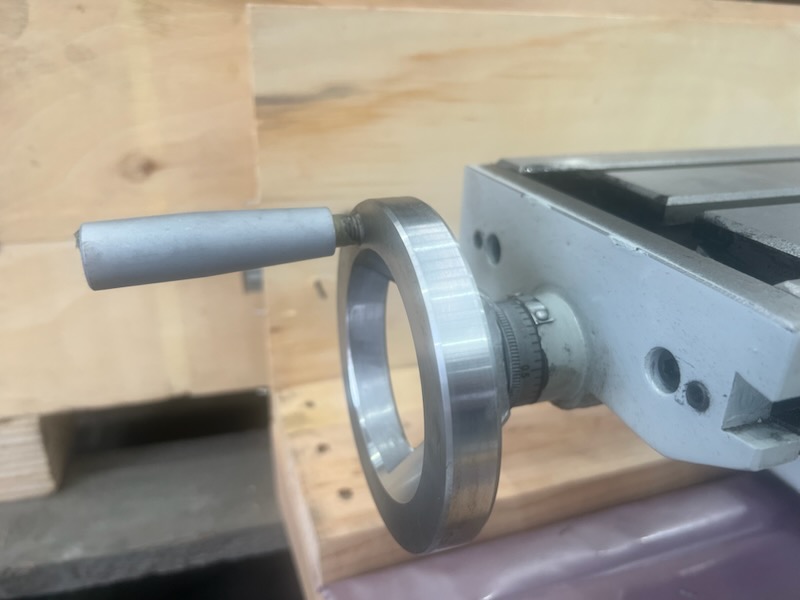

❚ calibrated hand wheels
❚ cast iron construction
❚ adjustable dove-tail guides

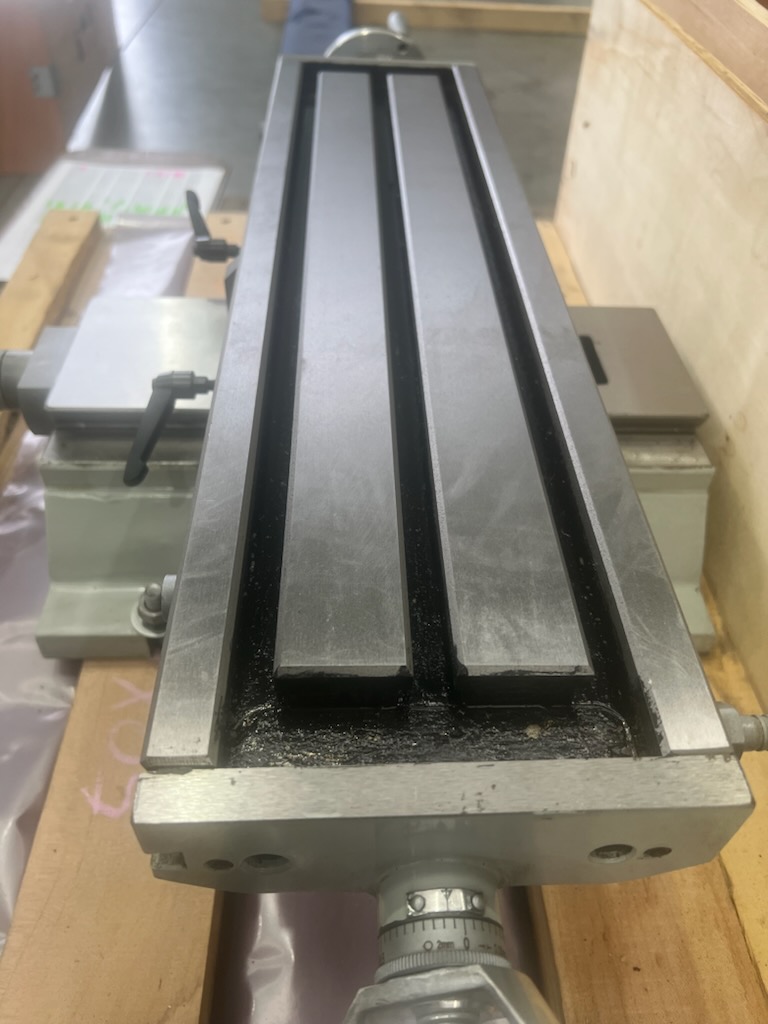

❚ t-slot / coolant grooves

Technical Data
❚ 590mm x 150mm
❚ Table height: 180mm
❚ Table travel (X,Y) 280mm x 230mm
❚ Tee slots: 3 off x 14mm
❚ Shipping dimensions: 860mm x 520mm x 170mm x 78Kg
❚ Product ordering code: 13+0404
