Steelmaster Industrial | SKU: 15-0349

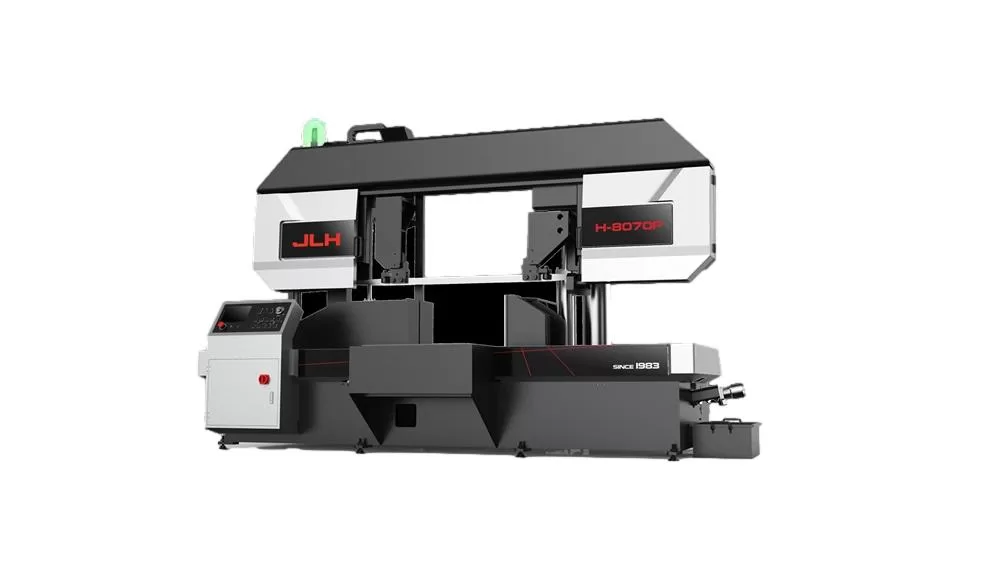

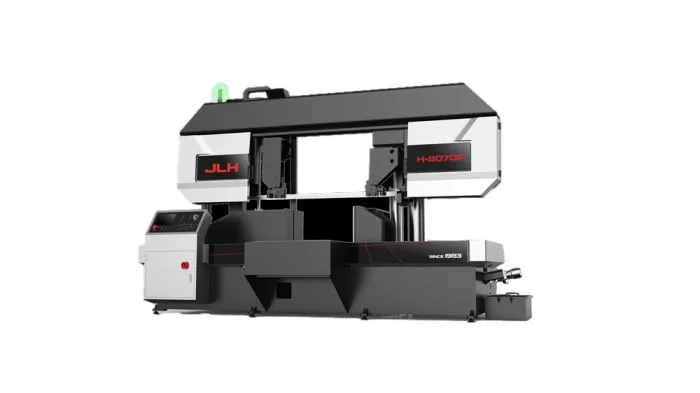

H-600 Double Column Bandsaw, 600mm Round & Square Capacity, Power 1000mm Infeed Table

Name: H-600 Double Column Bandsaw, 600mm Round & Square Capacity, Power 1000mm Infeed Table
Brand: Steelmaster Industrial
SKU: 15-0349
Availability: InStock

PRICE EX GST

$0.00

PRICE INC GST

$0.00

MODEL NUMBER: H-600-DOUBLE-COLUMN-BANDSAW-600MM

Pickup available at 118 Logis Boulevard

Usually ready in 24 hours

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PICK UP & DELIVERY INFORMATION

PICK UP:
For machineries, pick up is scheduled within 48-72 hours after order confirmation, subject to pre-commissioning.

For tools, parts & accessories, next day pick up is available.

Pick Up location: 118 Logis Boulevard, Dandenong South VIC 3175

DELIVERIES:
For machinery delivery rates, please request a quote or call 1800 511 508.

For Tools, Parts & Accessories, continue to check out.

DESCRIPTION

The H-600 Double Column Bandsaw features 600mm Round & Square capacity and a massive 1000mm Power Infeed Table, built for heavy-duty production. POA.

PRODUCT FEATURES

Large double columns precision ground for additional support
Power assisted work table
Hydraulic blade tensioner
Hydraulic vice clamping
Variable hydraulic down feed & auto return
Automatic chip conveyor
Carbide & bearing blade guides
Breakage sensor
Powered brush cleaner
Centralized control panel
Powered in feed roller table 1000mm in length
Laser guide
Coolant
Halogen work light
One piece bi metal blade fitted
CE compliance
Tool kit

SHIPPING CLASS

P.O.A - 15kg and up

TECHNICAL DATA

Cutting capacities ø (w x h x t)

60° - N/A
45° - N/A
90° - 600 mm x 600 mm
60° - N/A
45° - N/A
90° - 600 mm x 600 mm
60° - N/A
45° - N/A
90° - 600 mm
Beam return - Hydraulic type
Blade size (l x w x t) - 7000 mm x 41 mm x 1.1 mm
Speed range - 26 / 41 / 66 m/min
Table working height - 680 mm
Motor power - 7.5 / 4.5 kW/V
Dimensions (l x w x h) - 3500 mm x 1500 mm x 2200 mm
Weight (nt) - 4200 kg

H-600 Double Column Bandsaw, 600mm Round & Square Capacity, Power 1000mm Infeed Table
