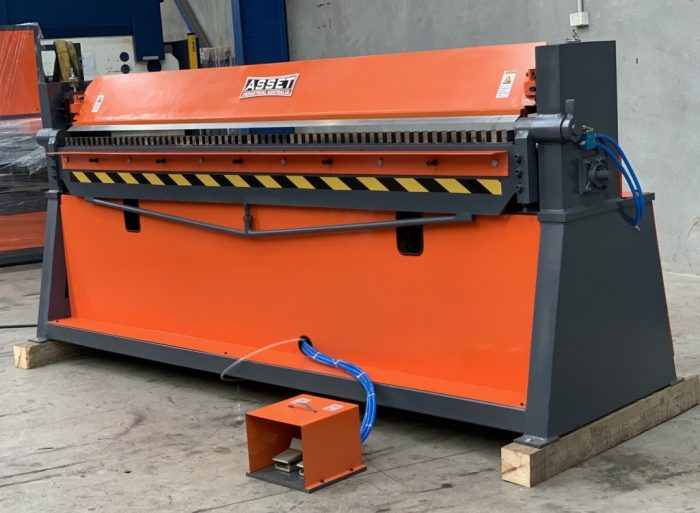

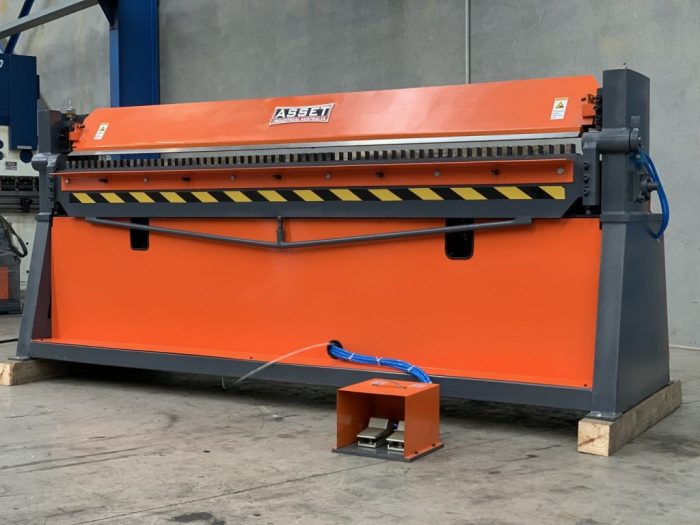

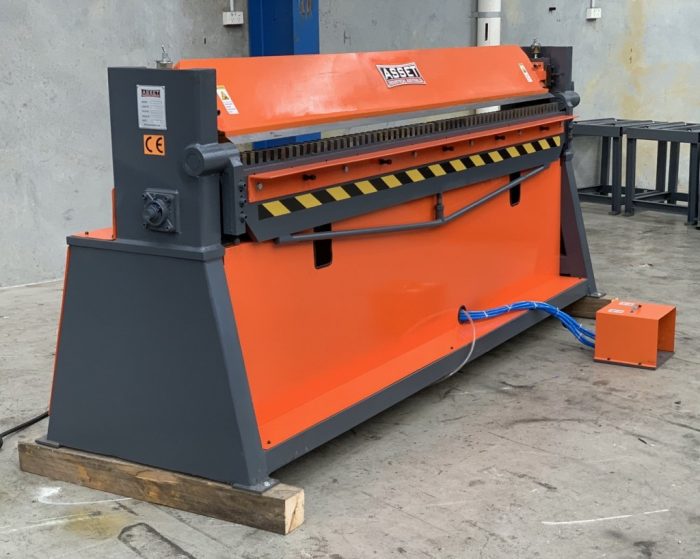

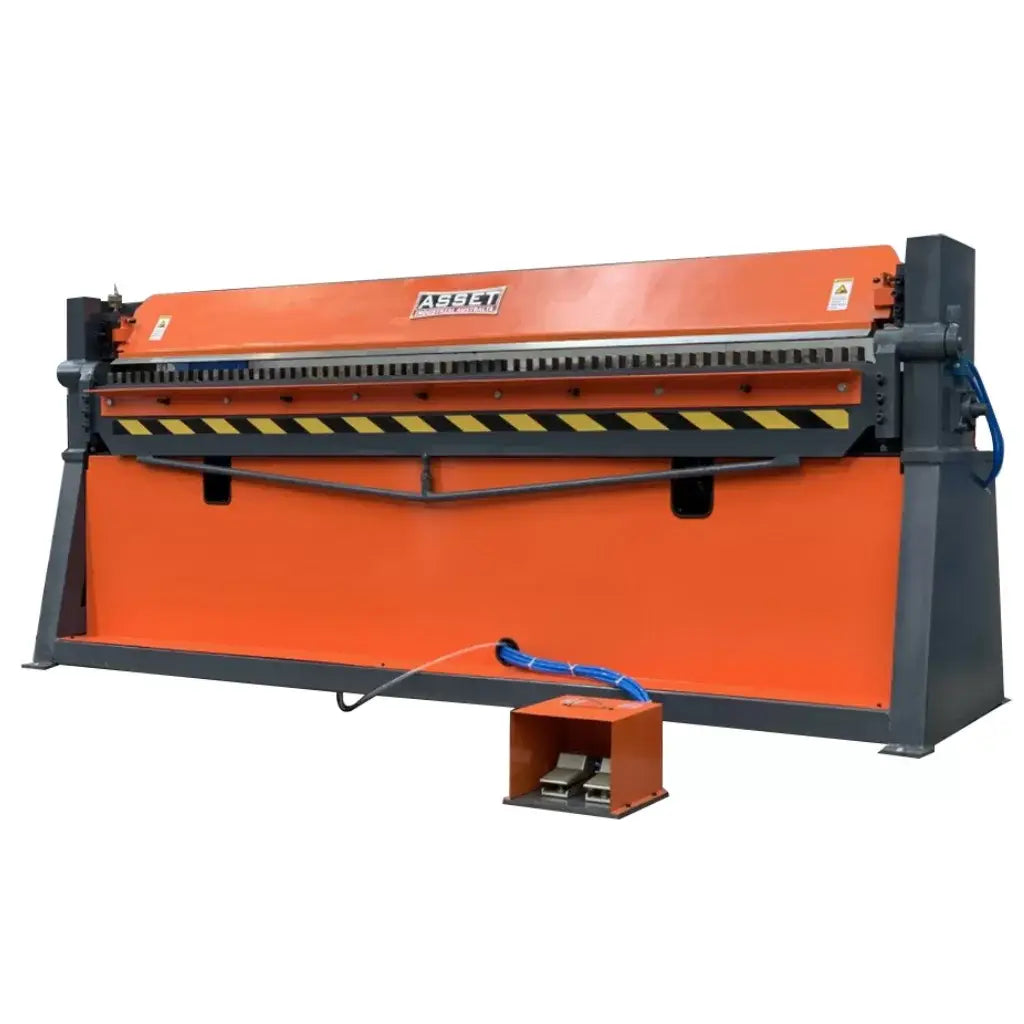

HVAC TDF Pneumatic Folder, Model: Ductmaster: CPF 2500-1.2 Air Operated 2500mm TDF Folder

HVAC TDF Pneumatic Folder, Model: Ductmaster: CPF 2500-1.2 Air Operated 2500mm TDF Folder

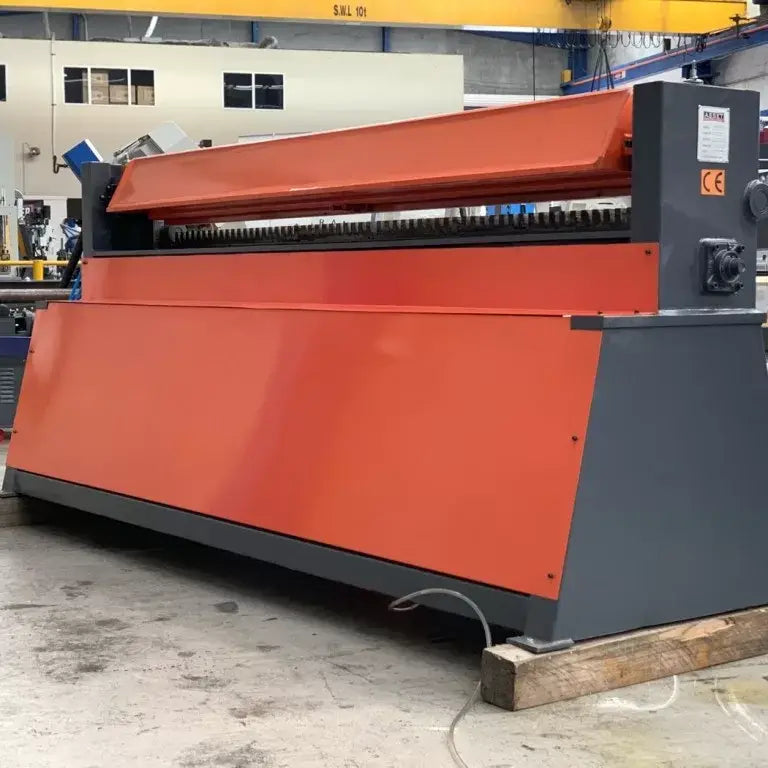

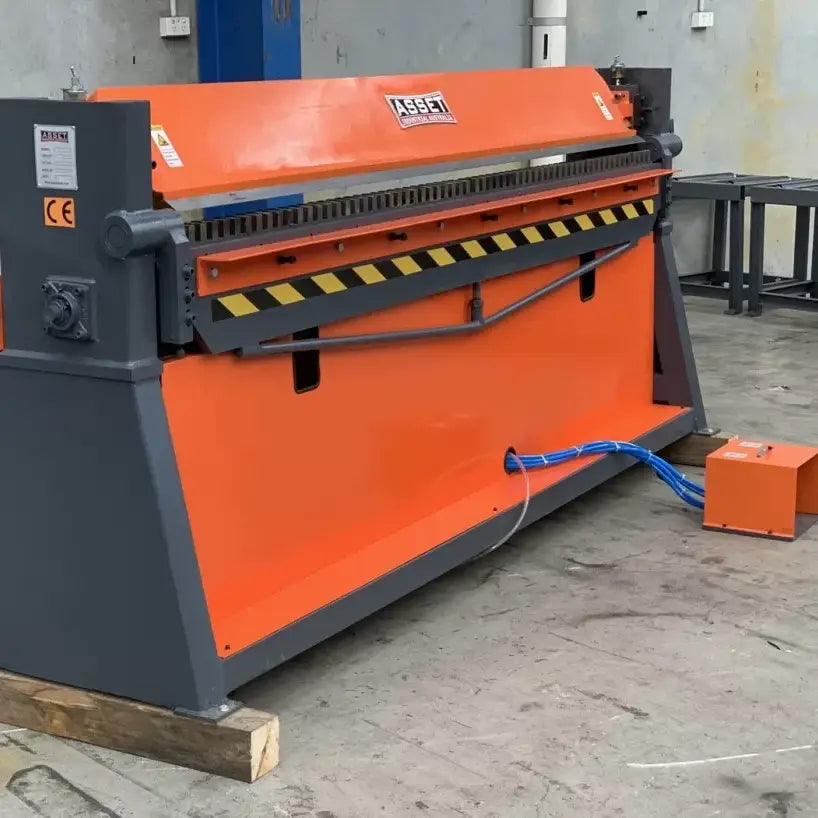

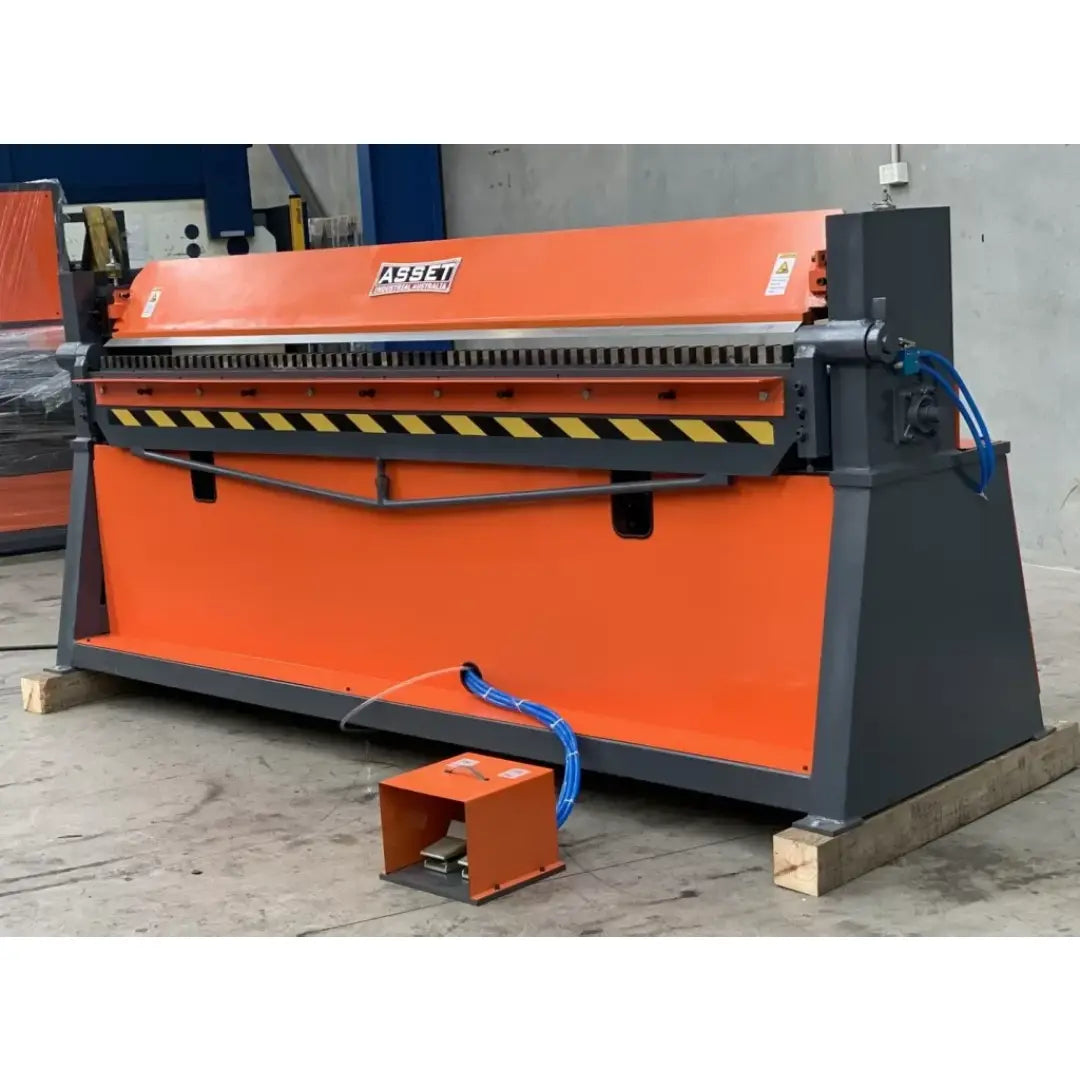

Our Ductmaster TDFC HVAC Folder is for the ideal solution for bending the 90 degree bends on rectangular HVAC duct work.

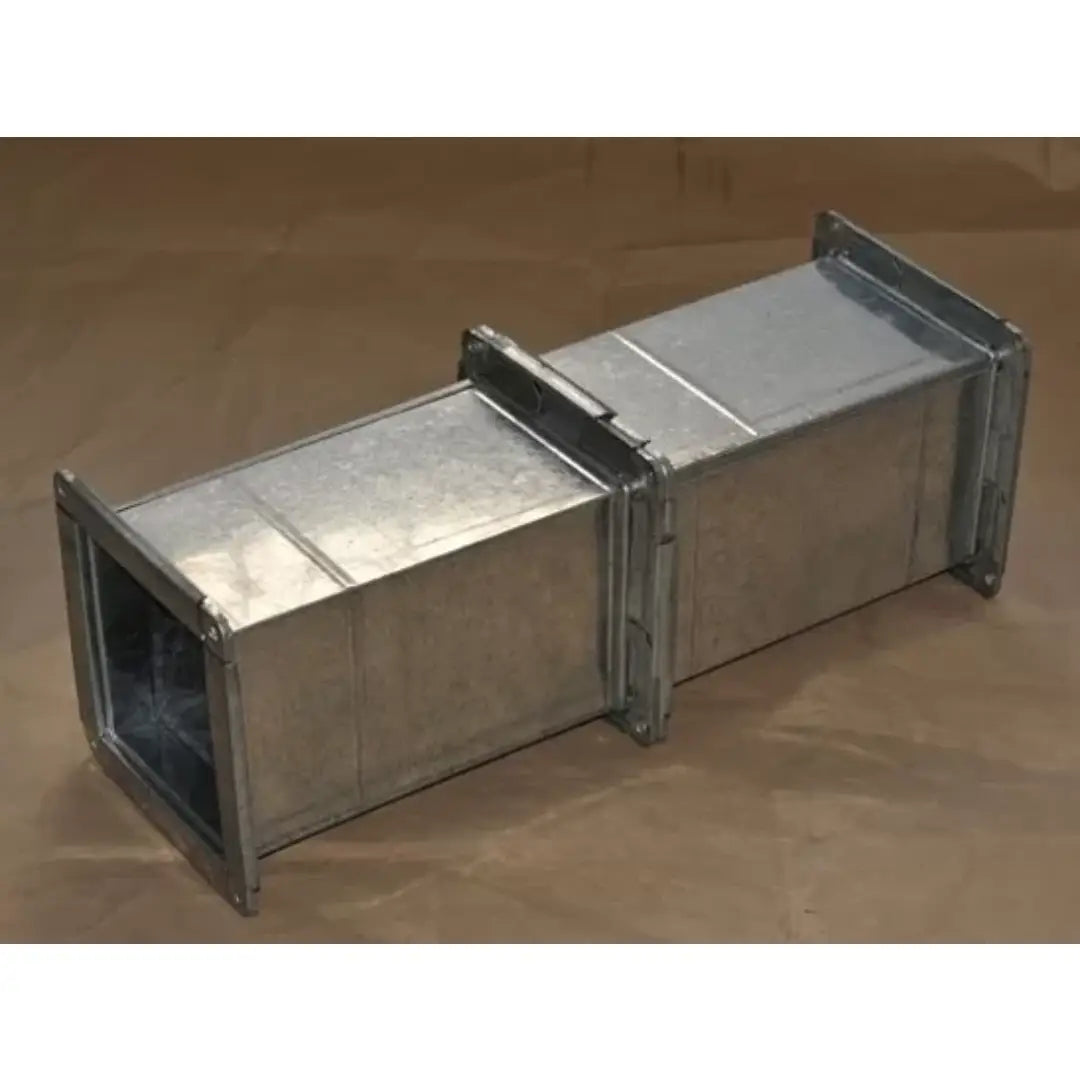

Efficient in operation offering a solution to bend straight duct joints and fittings with TDC type and TDF type flange connectors.

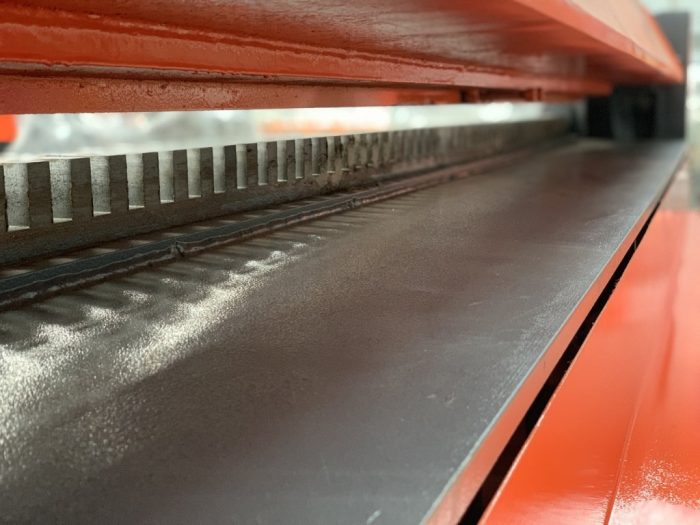

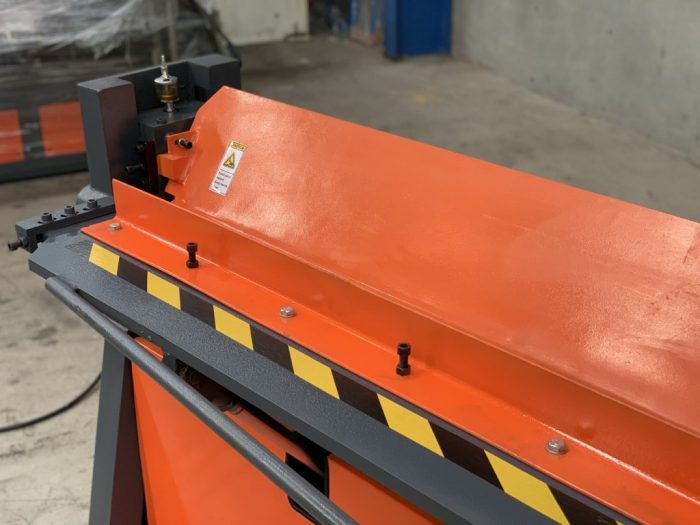

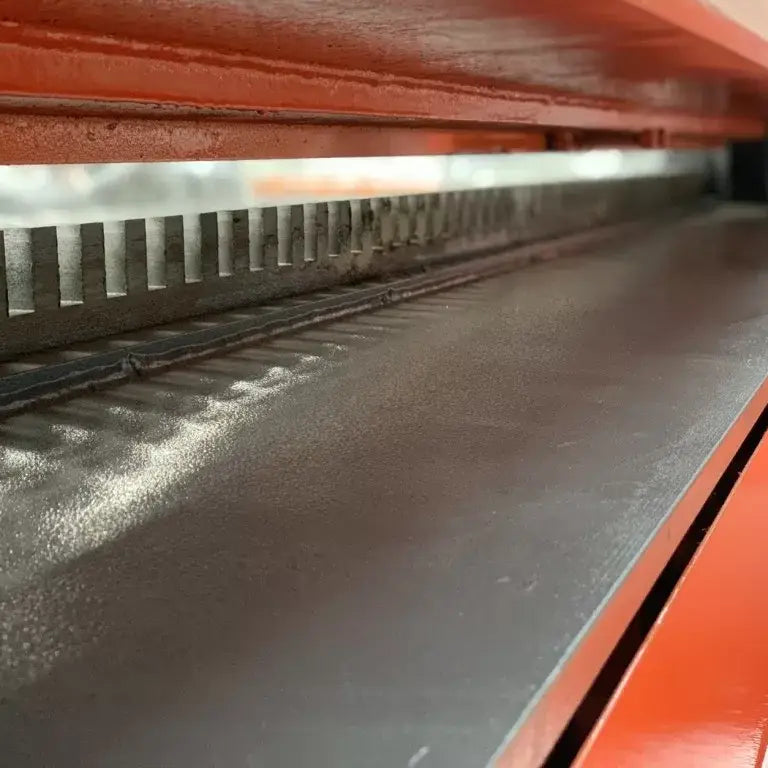

Designed so one operator can quickly slide a piece of sheet metal into the machine and align the notches in an instant on the alignment blade located at the bend line.
Other styles of ductwork such as Slips and Drives or straight duct can also be folded over or bent to 90°. The machine can also fold any angle less than 90 degrees.

Technical Snap Shot

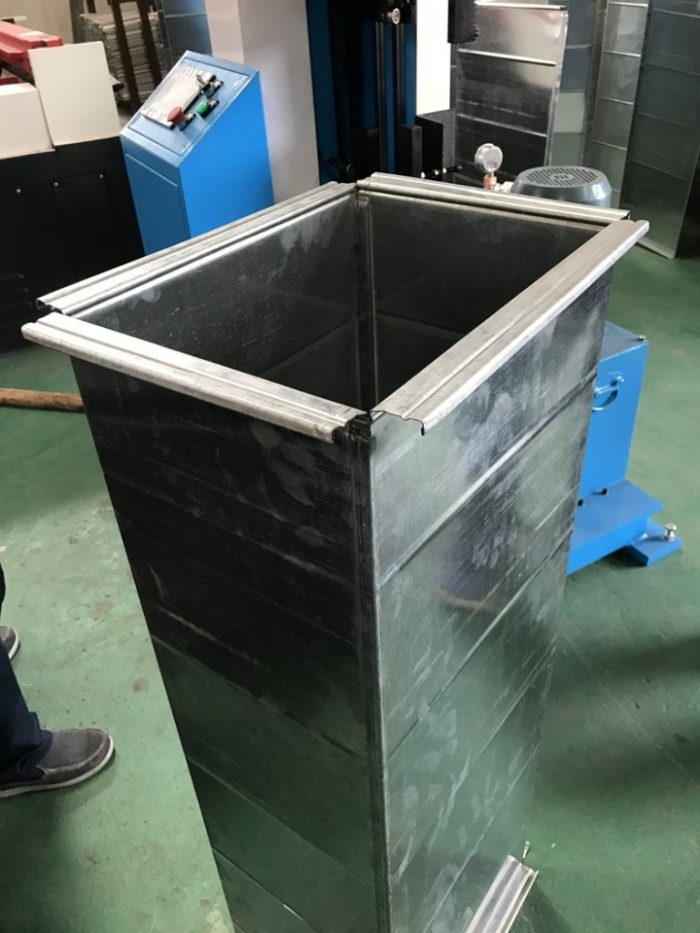

❚Forms TDFC duct and fittings
❚2500mm wide x 1.2mm material capacity
❚140mm x 140mm Minimum Fold Duct

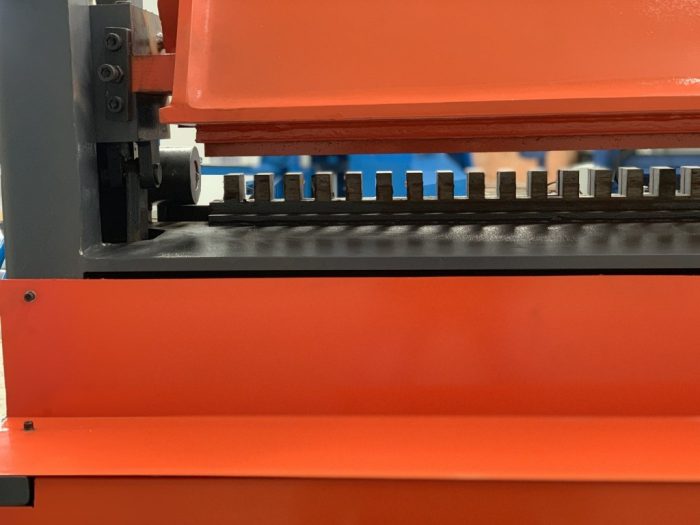

❚No segment or setup changeovers needed

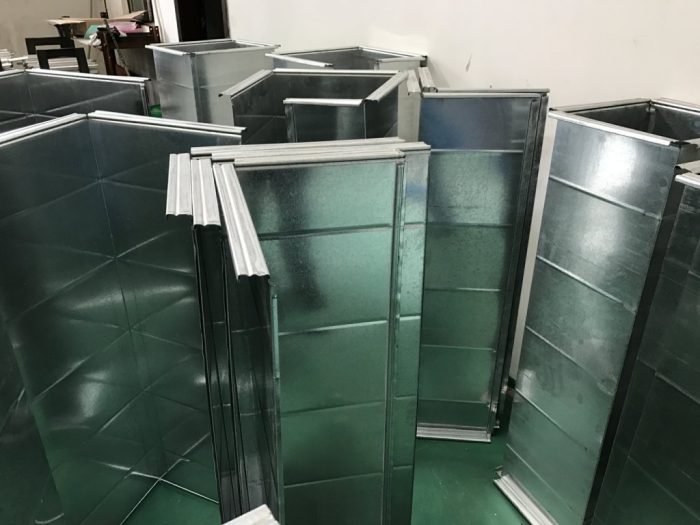

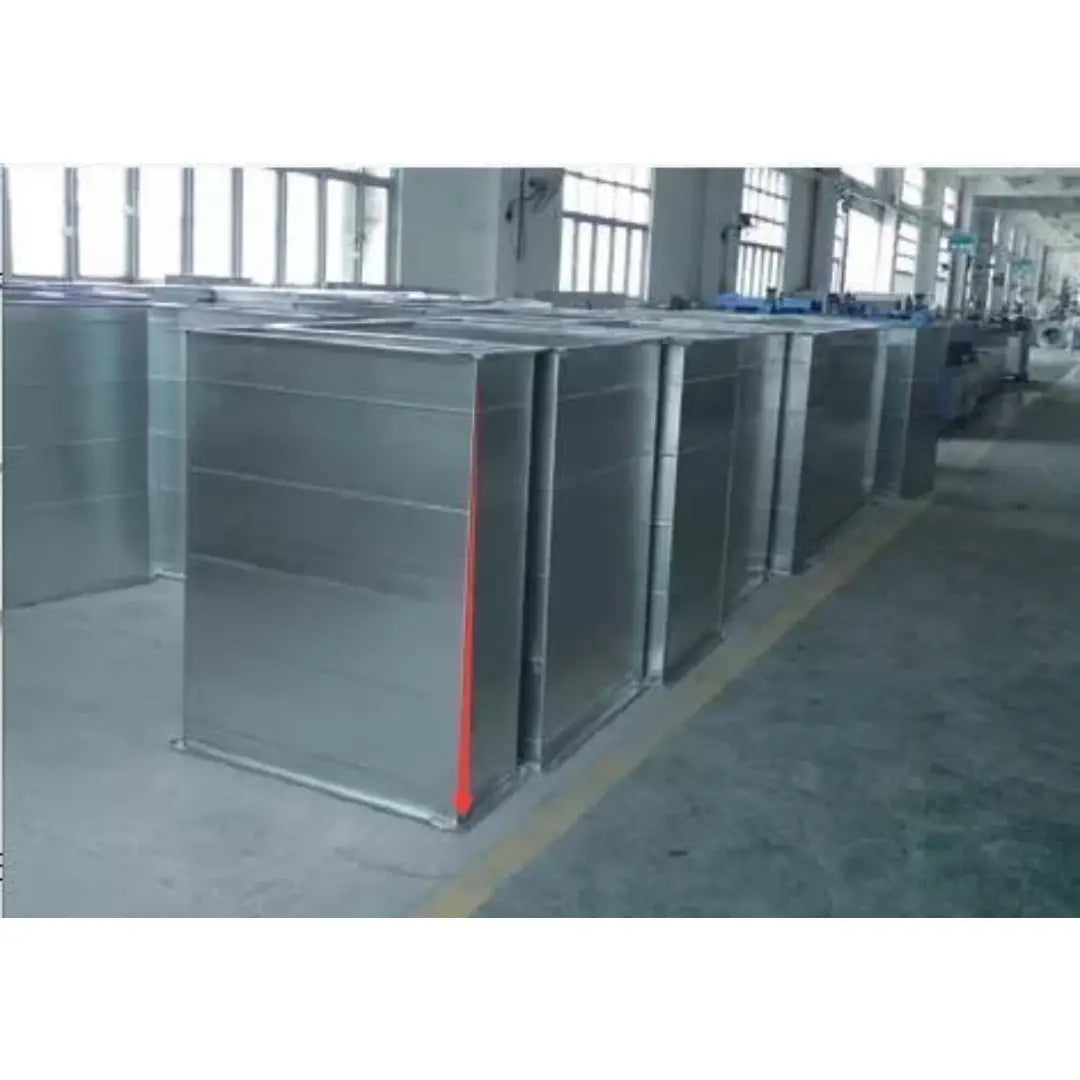

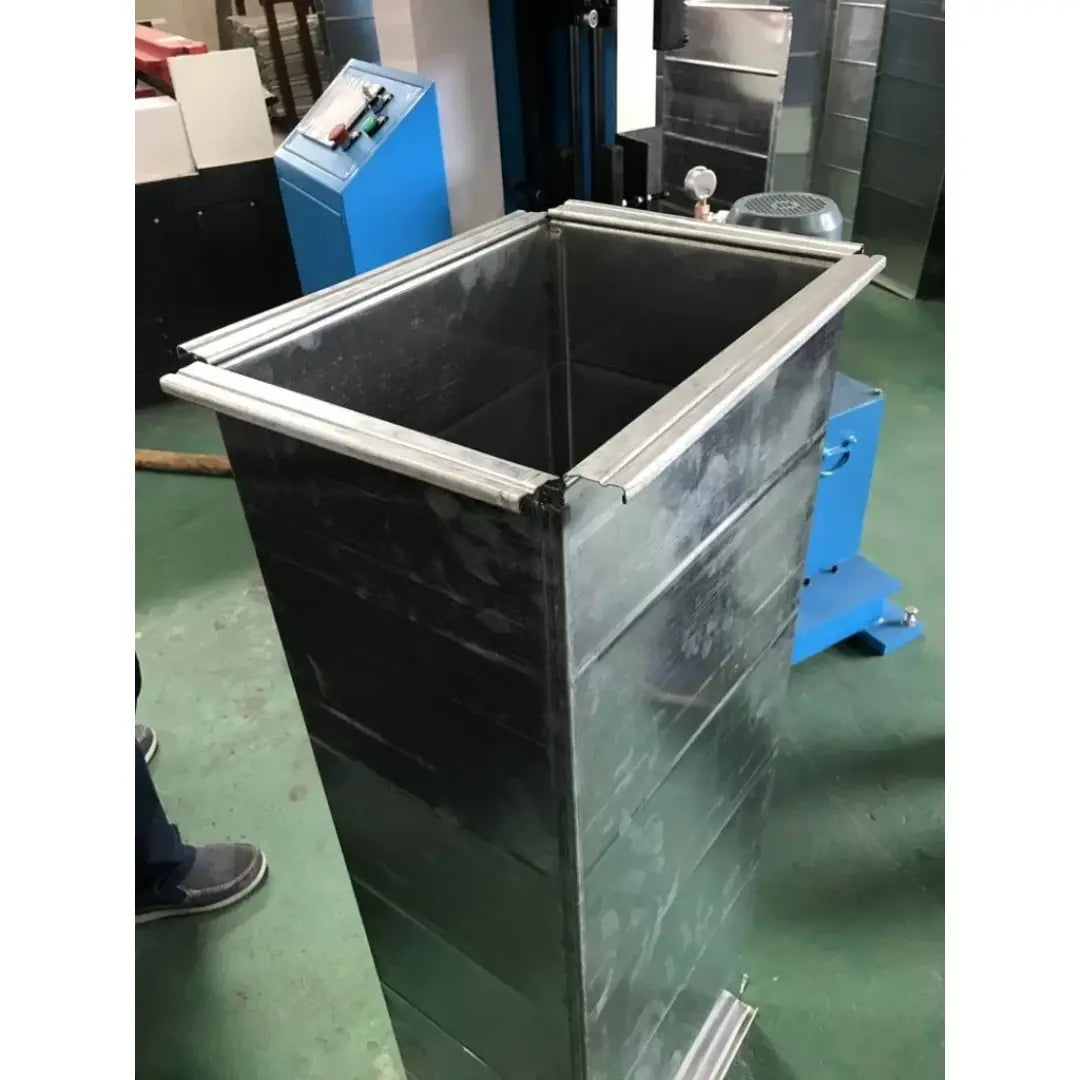

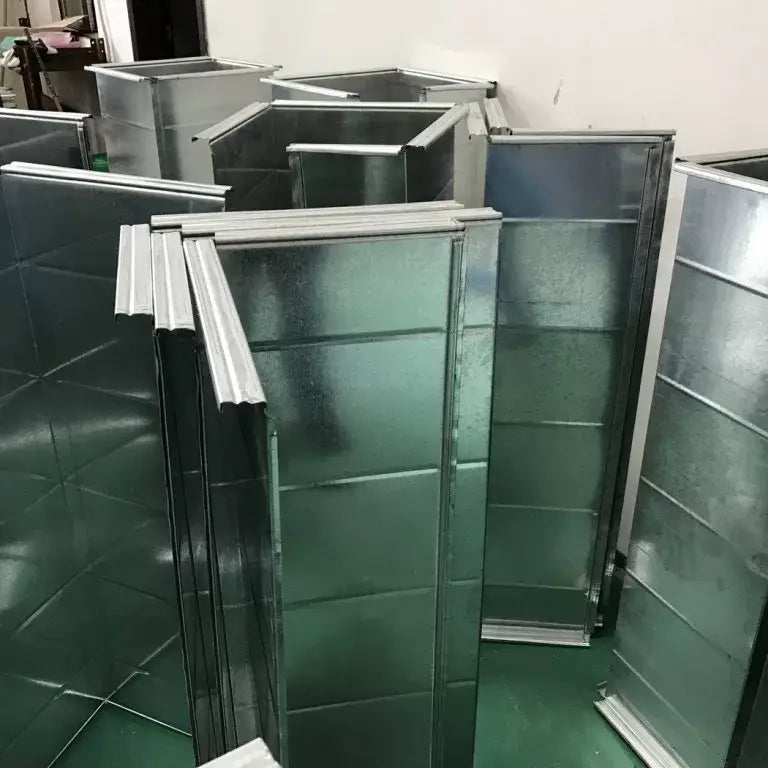

❚Forms two piece and full wrapper duct

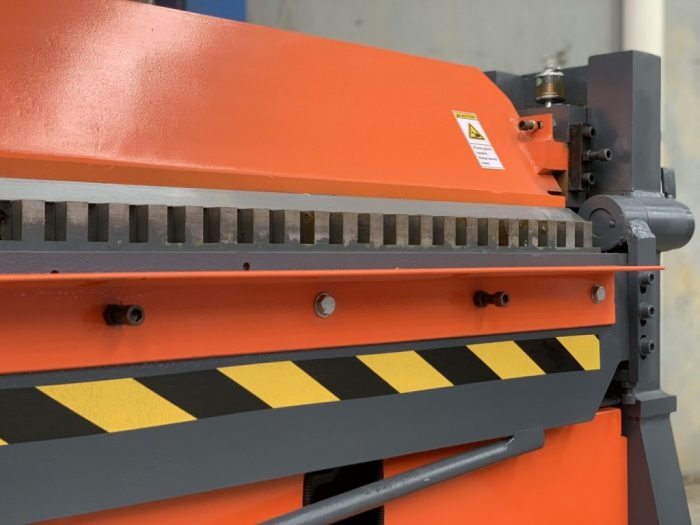

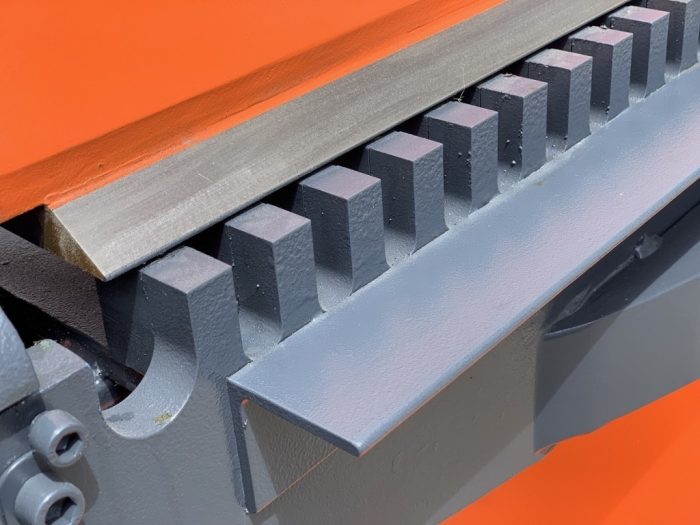

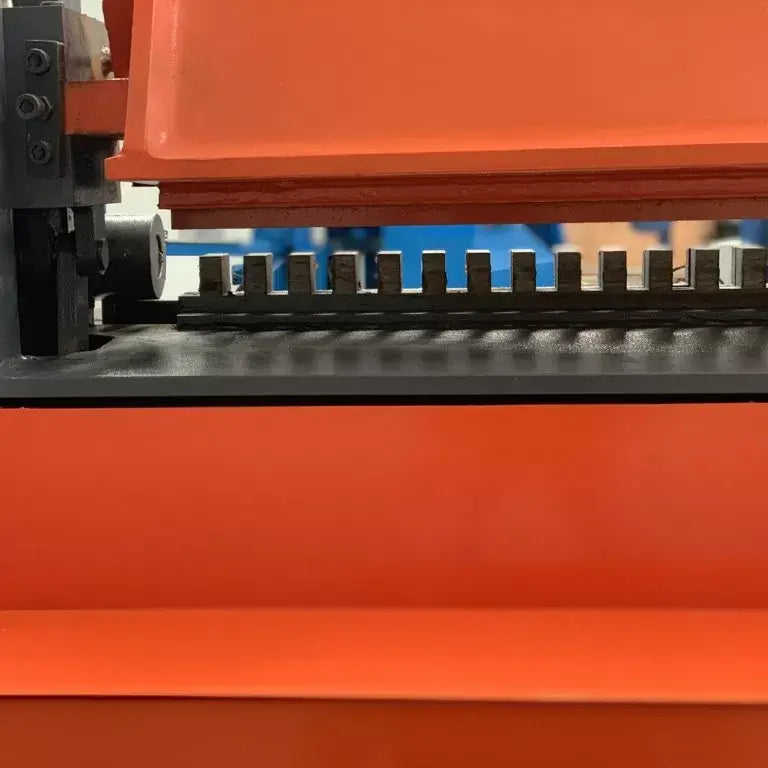

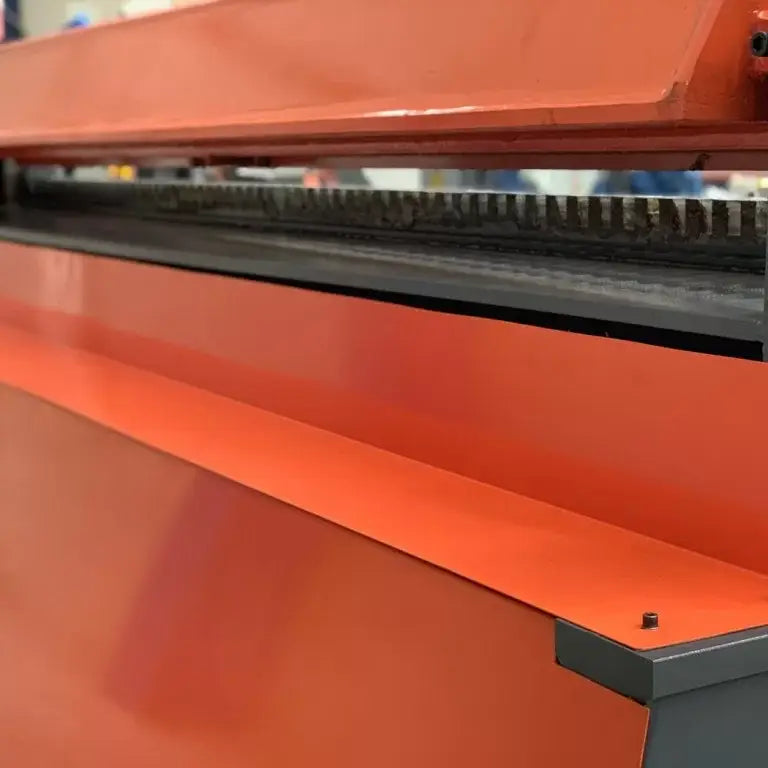

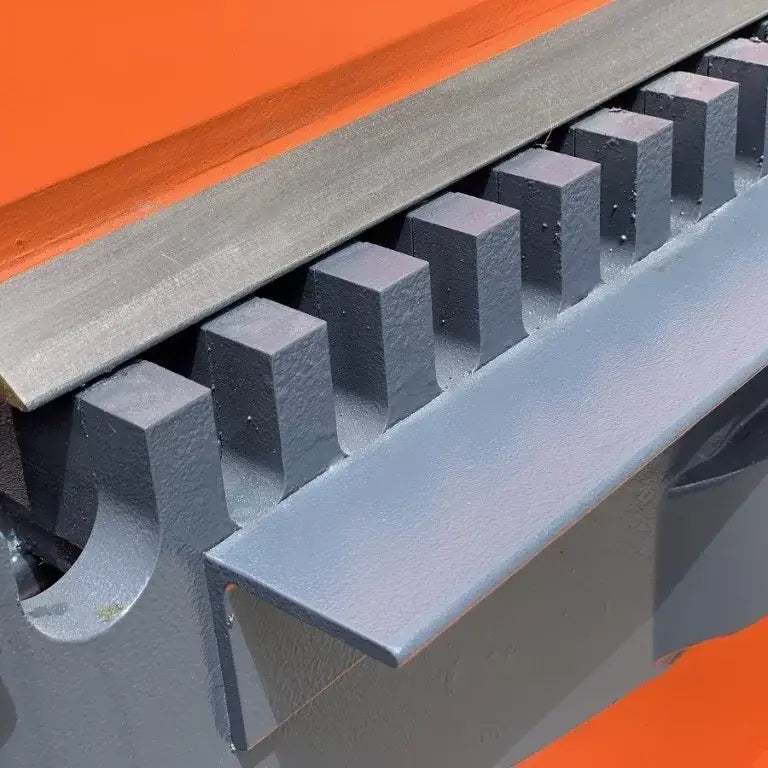

❚Built in notch guide for one man operation

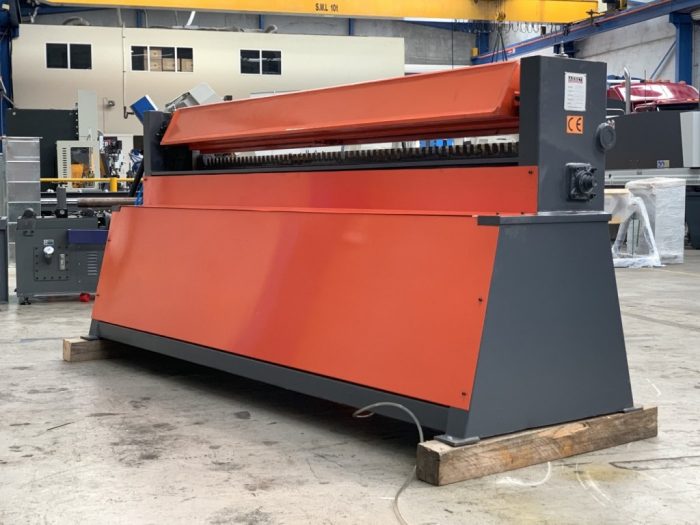

❚Heavy duty steel construction

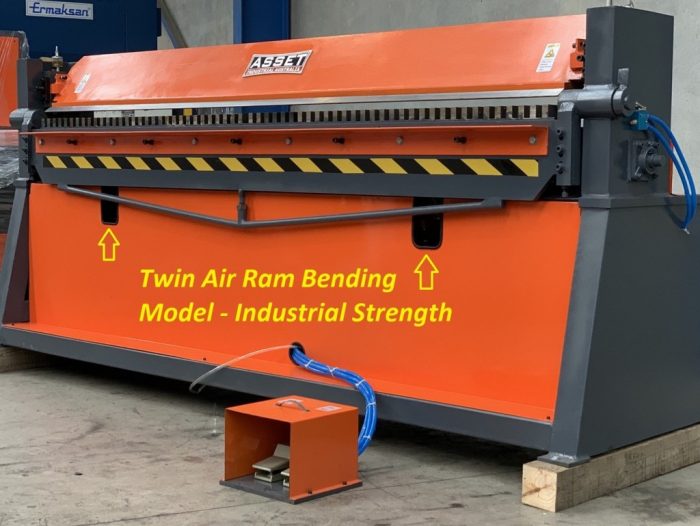

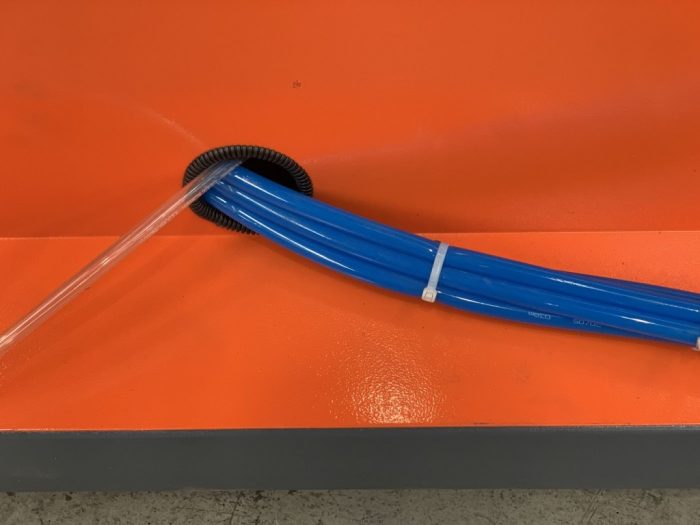

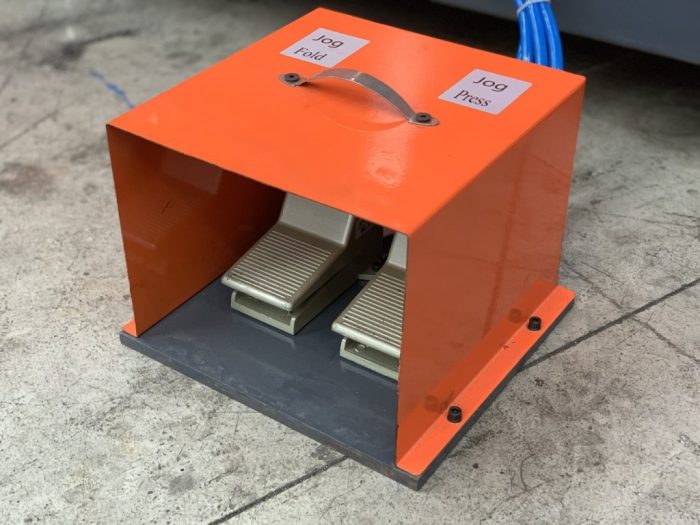

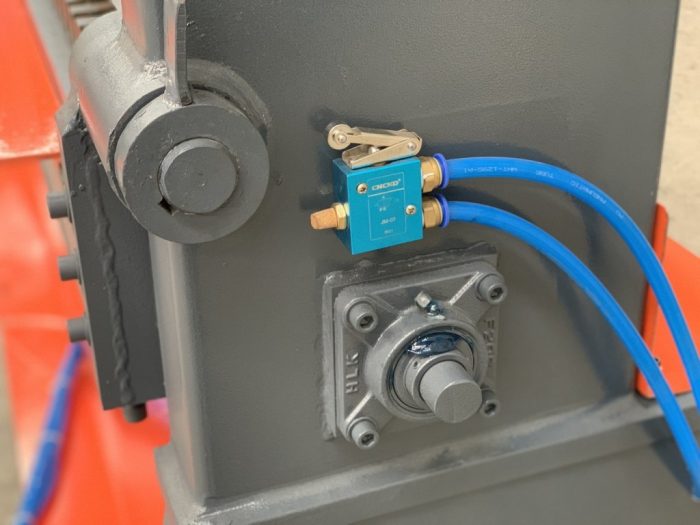

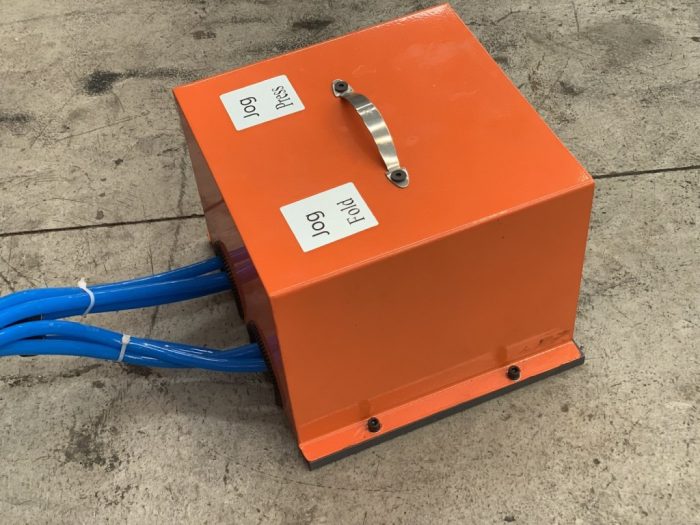

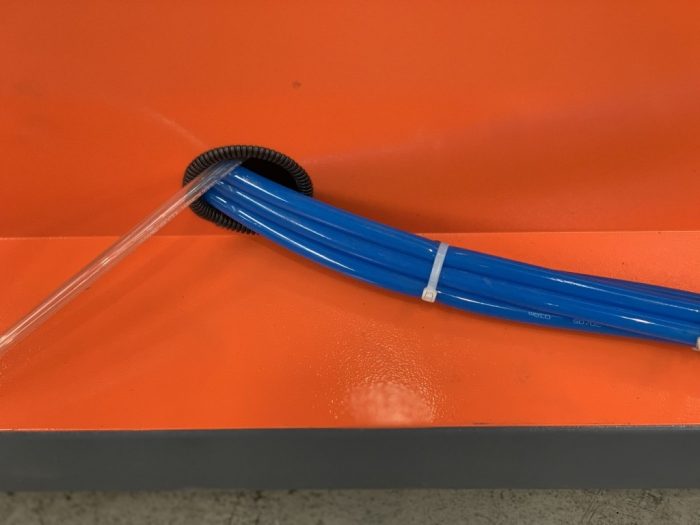

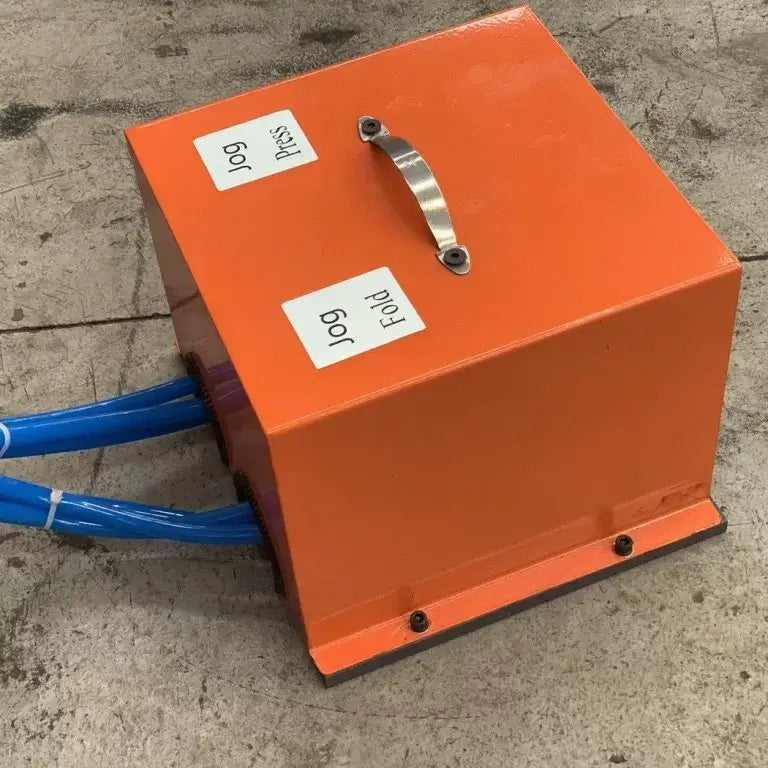

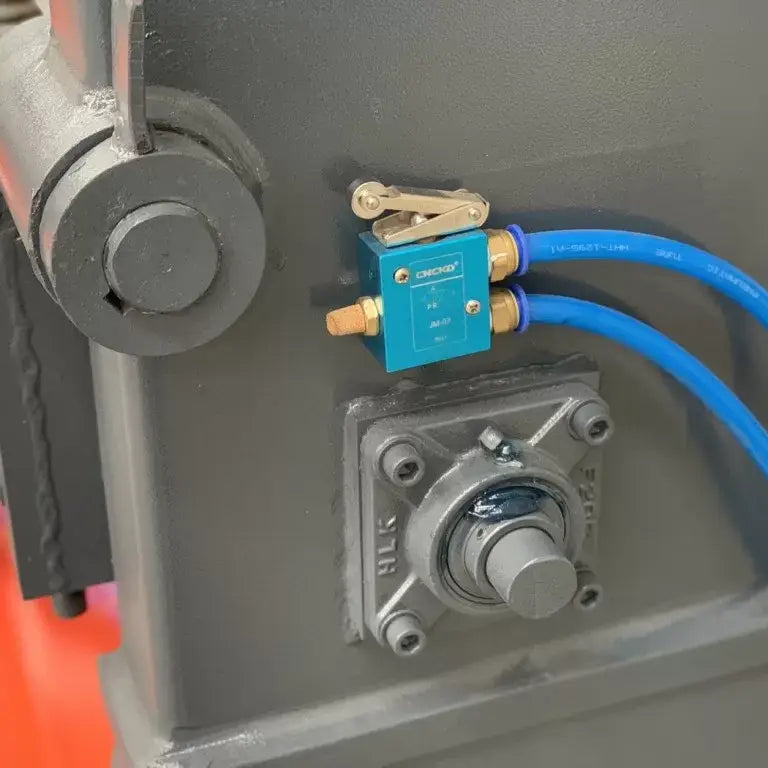

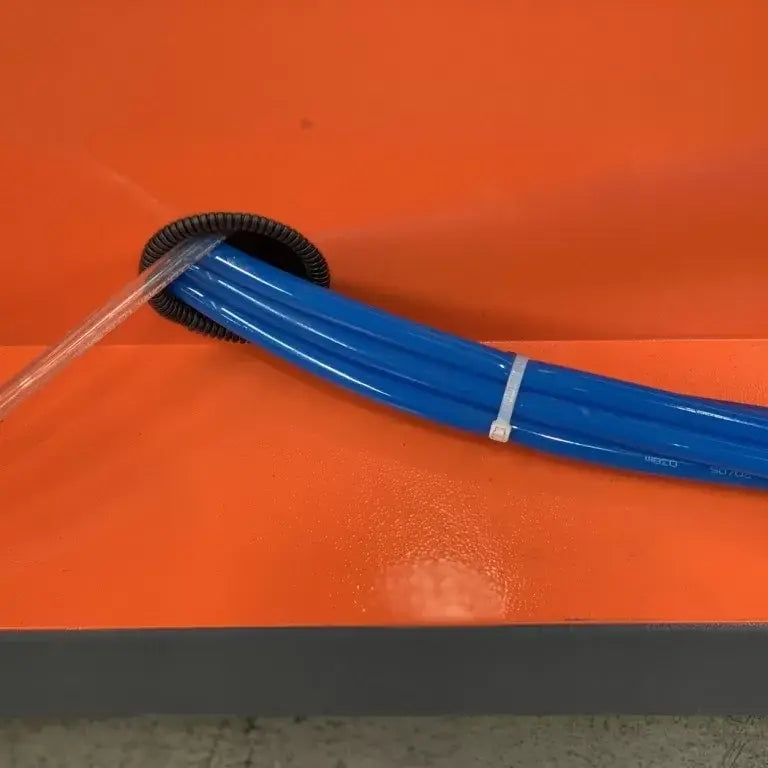

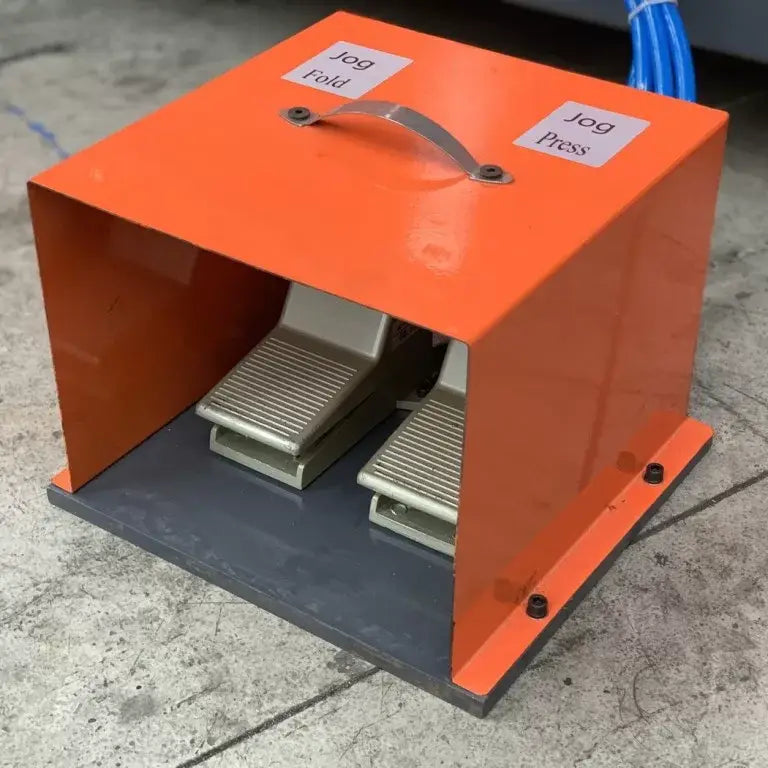

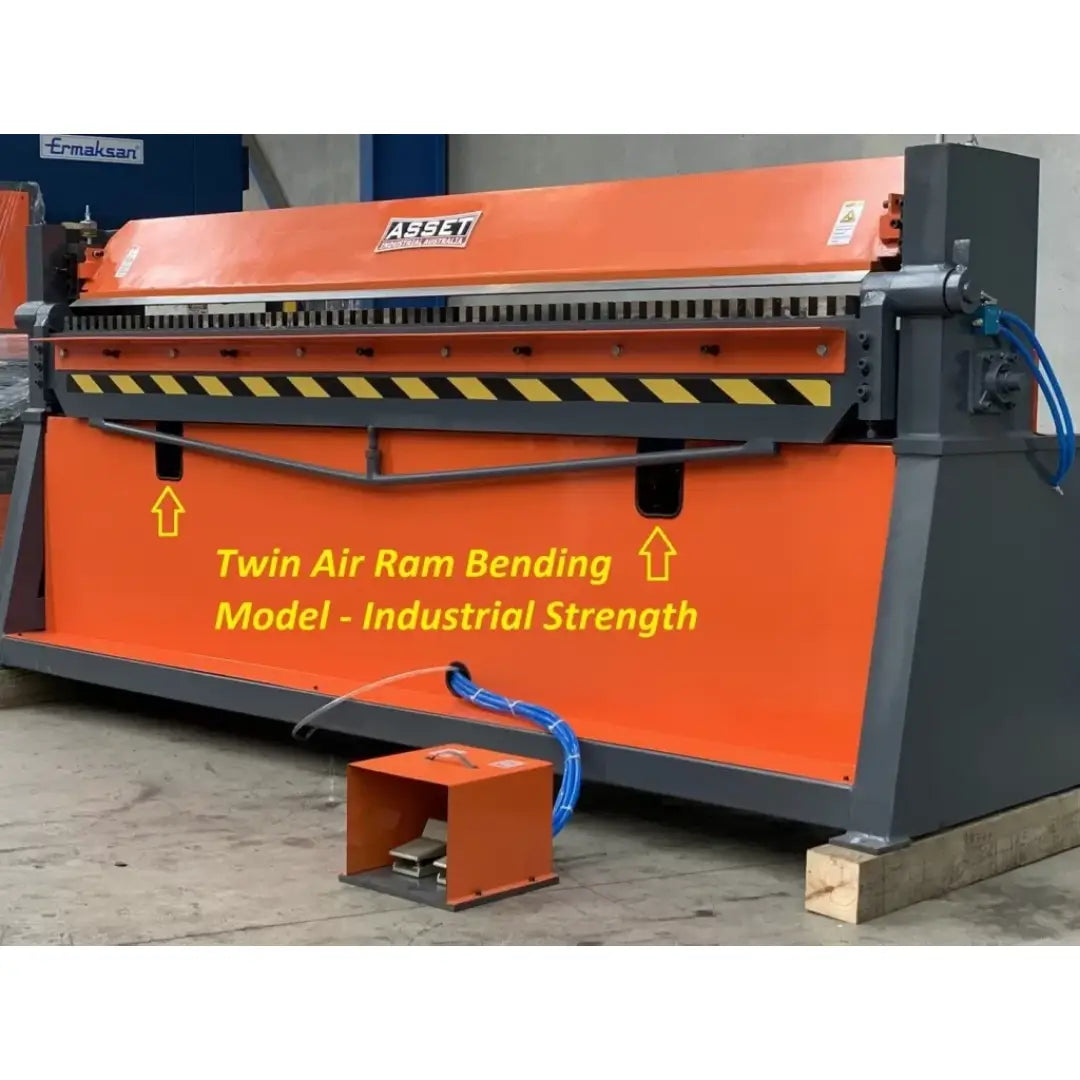

❚Pneumatic operation
❚Dimensions: 2800mm x 1100mm x 1400mm x 1100Kg
