Specifications
MODEL NUMBER: 13+0182
| sku | 13/0182 |
| table diameter | 160 mm |
| morse taper | 2 mt |
| ratio | 1:90 |
| degrees of rotation | 360˚ |
| no. of t-slots | 4 |
| t-slot size | 14 mm |
| degrees per revolution | 4 |
| set-up | Horizontal type |
| weight (nt) | 16.5 kg |

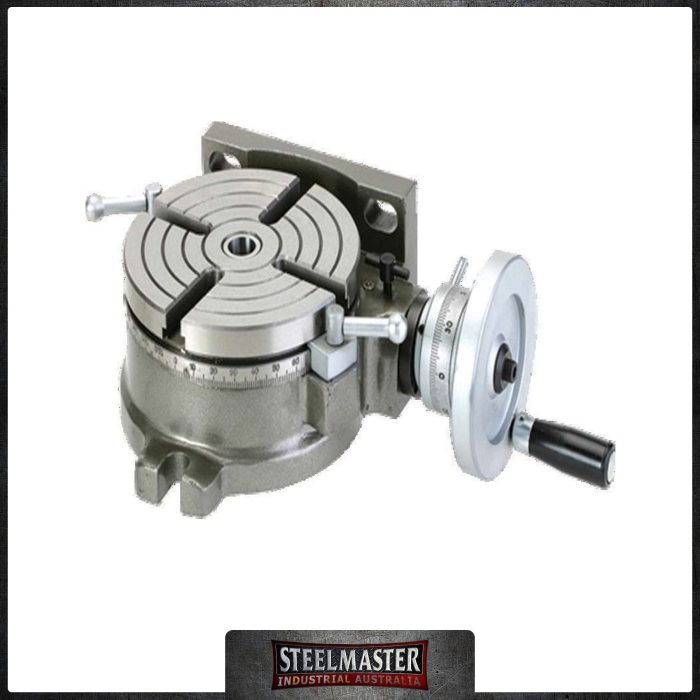

Rotary Table. 160mm Table Diameter. 2MT, Horizontal Set Up
Ex GST: $299.00
Inc GST: $328.90
Price Including GST: $328.90
Description
Rotary Table. 160mm Table Diameter. 2MT, Horizontal Set Up
This rugged, yet accurate rotary table will provide years of service. The versatility of horizontal and vertical setups offer incredible capability for those sometimes challenging machining operations. Features include: 10 second vernier calibration, oil immersed gears and positive dual action table locks. Weighs approx 16.5kg
This rugged, yet accurate rotary table will provide years of service. The versatility of horizontal and vertical setups offer incredible capability for those sometimes challenging machining operations. Features include: 10 second vernier calibration, oil immersed gears and positive dual action table locks. Weighs approx 16.5kg
Features
❚ 160mm Table Diameter, 4 T Slots, MT2 Centre Hole
❚ full horizontal & vertical set up (except 13/0182)
❚ universal rotary table with full 360 degree rotation
❚ setup table rotates on a large, ringshaped, oil-bath lubricated, roughened flat guideway
❚ the robust, very effective fixture pulls the setup table down straight vertical without any change of position or radial pressure and presses it against the guideway
❚ for quick manual turning, the worm can be disengaged from the worm gear by pushing down the hand-lever
❚ the zero-back lash of worm and worm gear is adjustable
