Original price was: $26,850.00.$24,850.00Current price is: $24,850.00.
Specifications
MODEL NUMBER: 18-0114
| sku | 18-0114 |
| folding length | 3200 mm |
| maximum thickness | 4 mm |
| maximum bending angle | 135 deg |
| largest depth of box | 185 mm |
| maximum lift of top beam | 200 mm |
| motor power | 4 / 415 kw/v |
| dimensions (l x w x h) | 3800 x 900 x 1550 |
| weight (nt) | 3950 kg |
SM-FHPB3204NC1. Panbrake Folder. Full Hydraulic. 3200mm x 4mm with NC Programmable Angle Controller
Our Australian designed & engineered Full hydraulic Panbrake wuill blow the competition away.
Quality and ease of operation, our NC1 machine offers a smart 99 station programmable angle setting for quick and accurate folding of all applications.
This can be used both in the single “enter angle and fold” mode, or used in a multi fold programmable folding sequence.
Produced exclusively for Asset by Australian Engineers.
Structural & Operating Features
❚hydraulically operated bending and clamping beam for efficient heavy duty operation
❚high structural rigidity from heavy plate steel box construction with continuous welded seams
❚bending beam powered by dual hydraulic cylinders
❚fully integrated and enclosed electric / hydraulic system with large oil reservoir to maintain low oil temperature
❚high load capacity dual spherical plane bearings utilized at bending beam pivots and over-centre clamp bearings

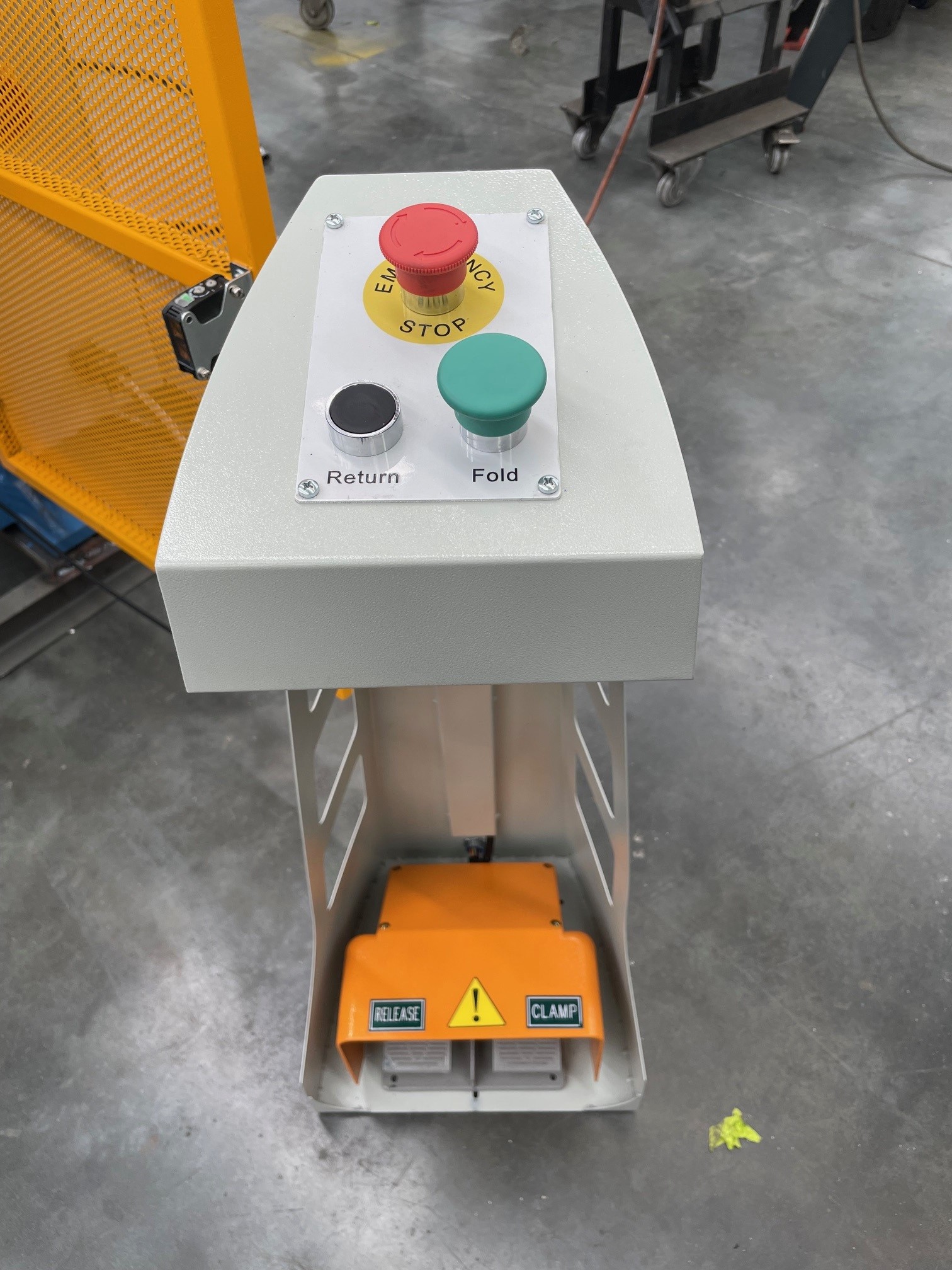

❚precise electric / hydraulic controls with manual inching of bending beam
❚utilization of easy to set micro-switches provides accurate & infinitely adjustable angle control to the folding apron
❚comprehensive equipment protection from electric and hydraulic overload systemsHydraulic System
❚high quality componentry ensures reliable performance for years of continuous operation
❚powerful direct coupled hydraulic pump and motor provides efficient, rapid operation
❚unique electric / hydraulic control ensures safe and simple operationSpecifications
❚3200mm x 4mm folding capacity
❚NEW rear calibrated backgauge.
❚high bending angle of 0-135°
❚greatest depth of box bent 185 mm
❚powerful motor
❚200 mm of clamping beam
❚hydraulically operated bending and clamping beam for efficient heavy duty operation
❚24 volt control wiring
❚bending fingers made from hardened material, maximizing life

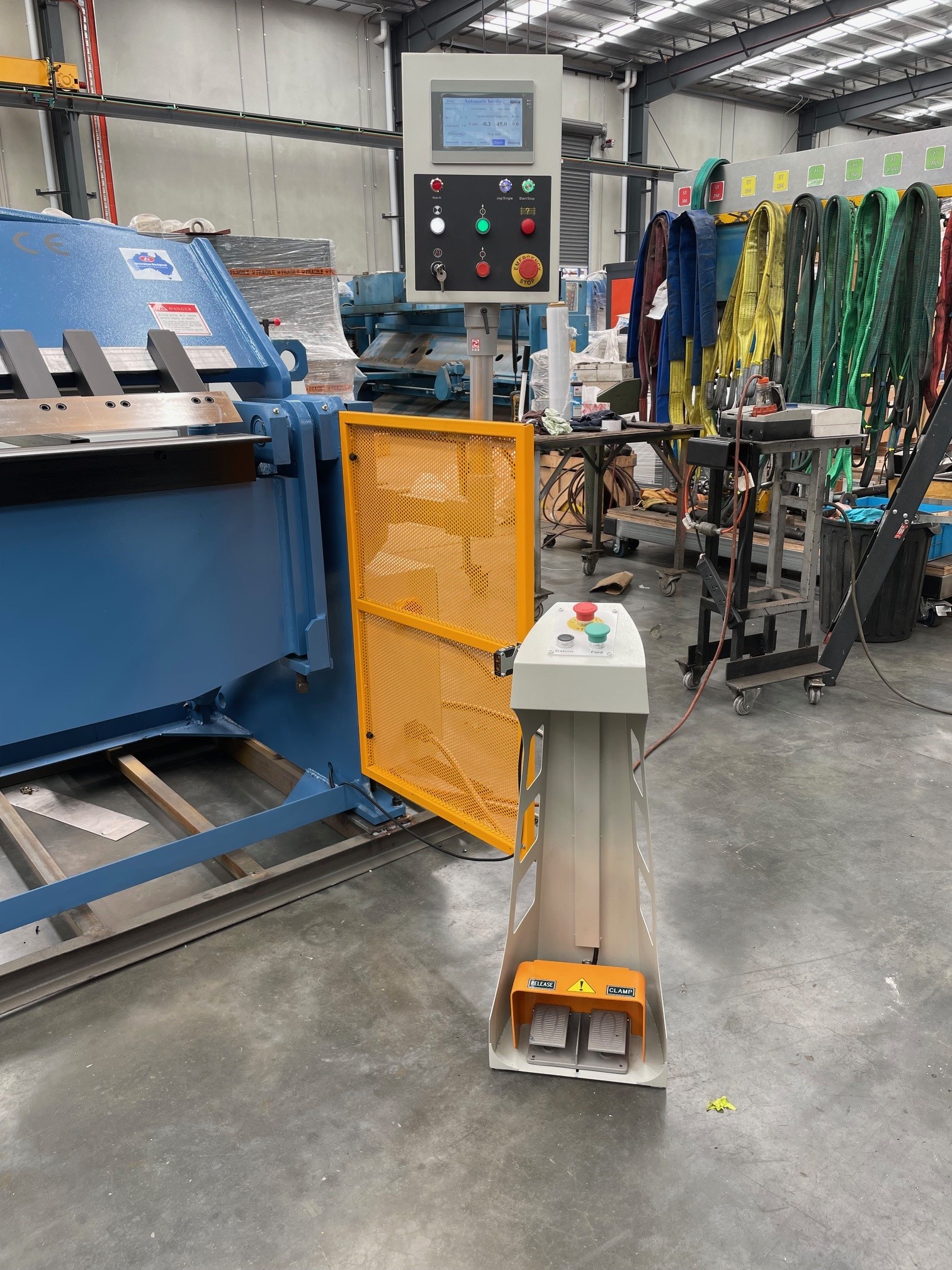

NC1 Programmable Controller
❚operation in manual, step program, automatic modes and repeat modes
❚99 station memory setting operating in, manual, automatic and repeat modes
❚designed to control a 4 ram folder with up, down, clamp and release functionality
NOTE: The below video is of a larger model, the specifications are different but the machine is the same
