NEW MODEL: Automatic NC Mitre Bandsaw, 620mm x 440mm RHS, 450mm Round Capacity, Bundle Clamp
Regular price
$37,950.00
Unit price
Unavailable

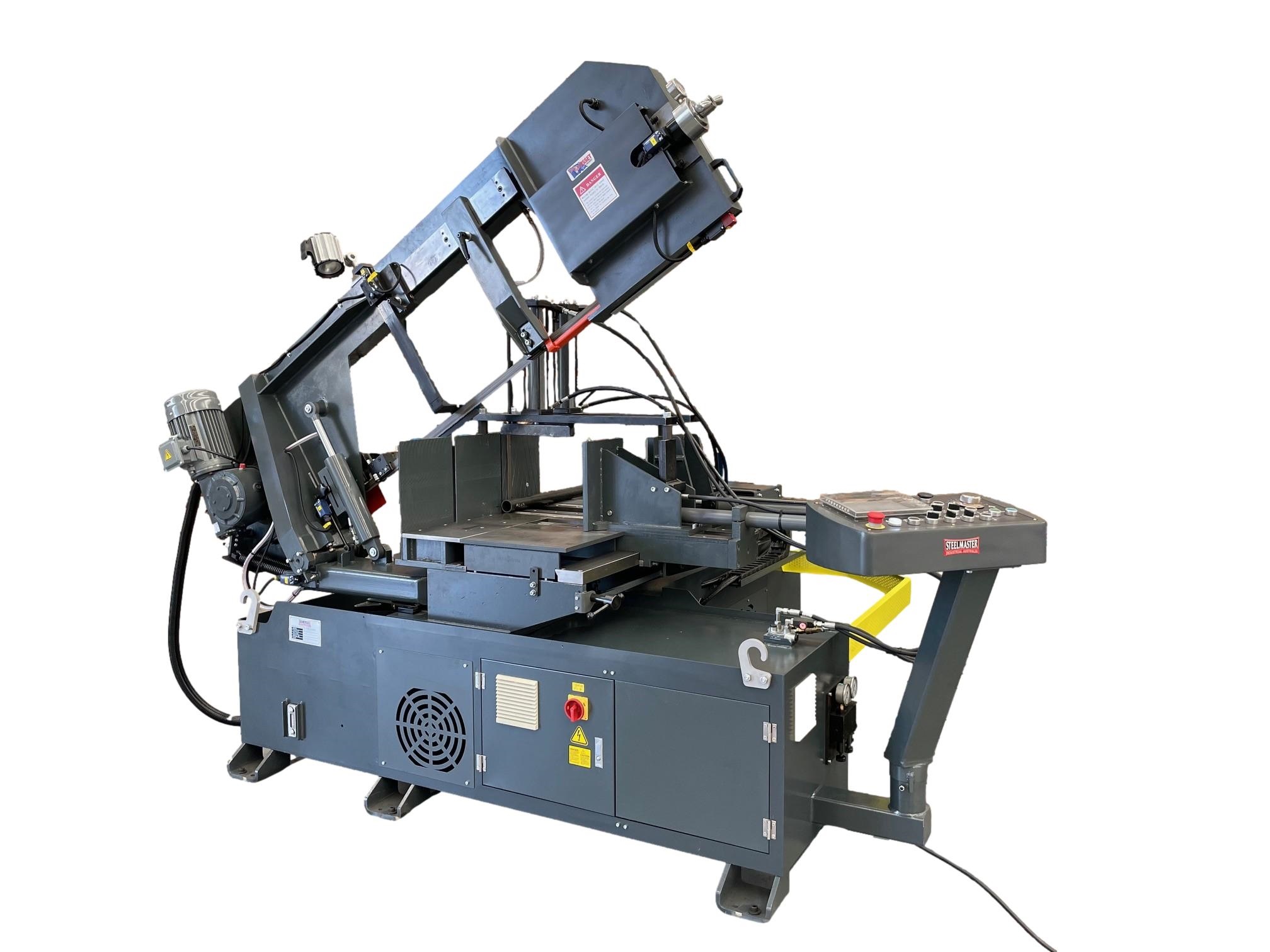

Introducing the NEW MODEL Automatic NC Mitre Bandsaw, offering 620mm x 440mm RHS and 450mm Round capacity, complete with an efficient Bundle Clamp system.
Technical Data
450mm round capacity
620mm x 450mm rectangular capacity.
Mitre cutting range – 0 ~ 60 degrees
Twin bundle clamp feature
Blade size: 5200mm x 34mm x 1.1mm
Speed range: 20 ~ 90m/min
Table work height – 930mm
Dimensions: 2500mm x 2000mm x 1500mm
Weight: 2100Kg
Power: 3.75Kw 415V
Product Features
Our STEELMASTER mitre cutting auto series offers you the all-in-one solution
Heavy duty capacity capable of processing all types of material including packs at full automatic speed
Mitre cutting from 0° ~ 60° provides the operator with total flexibility
Vice pressure regulator and variable speed blade control system
Twin bundle clamp feature
Quick connect hydraulic connectors
Twin hydraulic vice operation standard
Strong construction design
Heavy duty motors
Tungsten carbide blade guides
Coolant system for increased efficiency
Auto cut-off switch

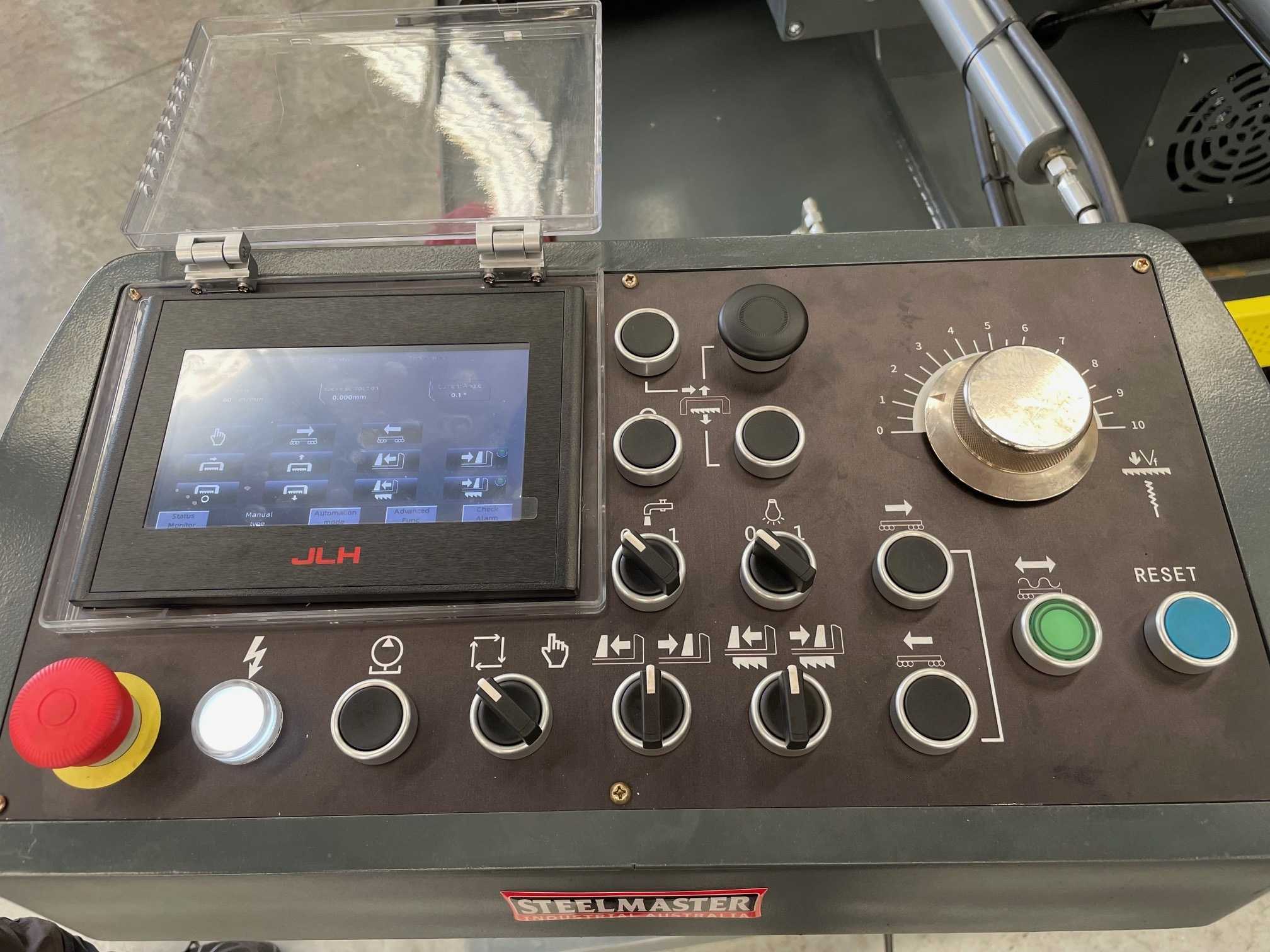

Centralised control panel
CE compliant
Services required to be provided by customer
Cutting Capacity
620mm x 440mm
