MODEL NUMBER: 27-0254

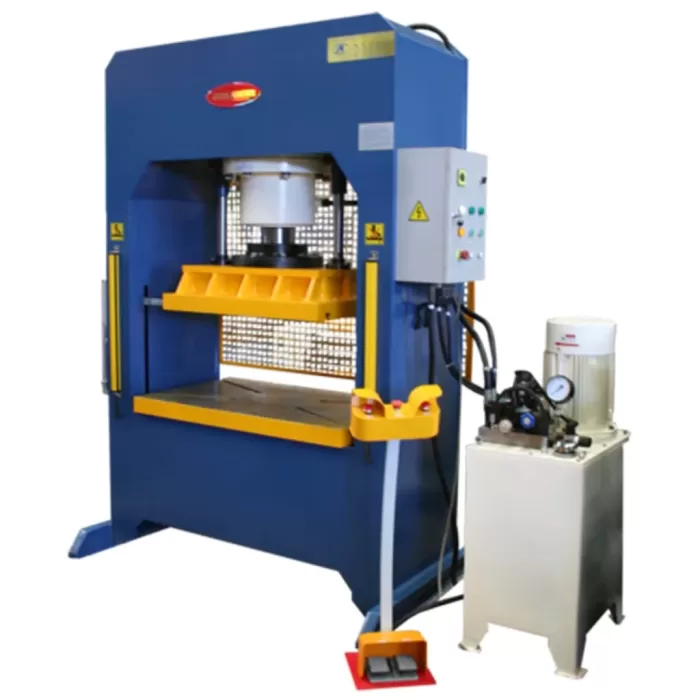

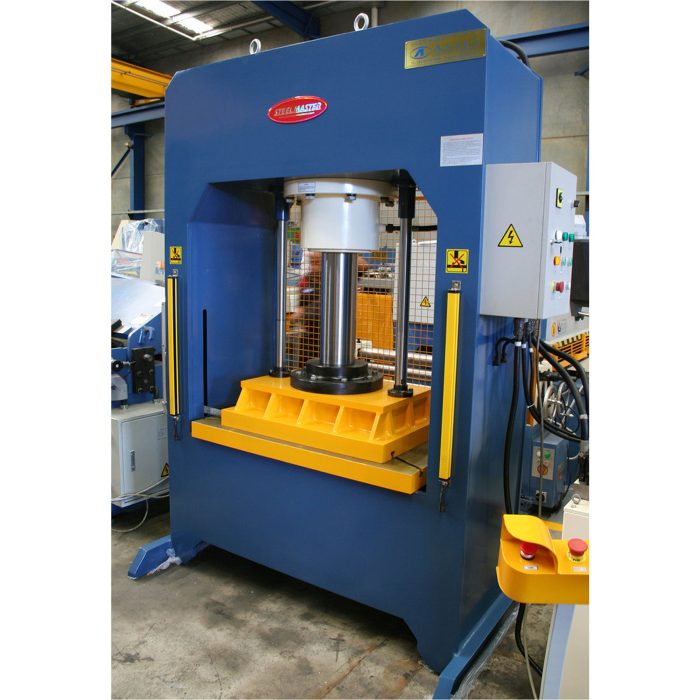

SM-KP310. Hydraulic Press. 310Ton Capacity Heavy Duty Industrial Hydraulic Type, Single Cylinder
Our NEW Steelmaster Industrial H Frame Presses offer Solutions for Pressing, Bending, Punching & Moulding.

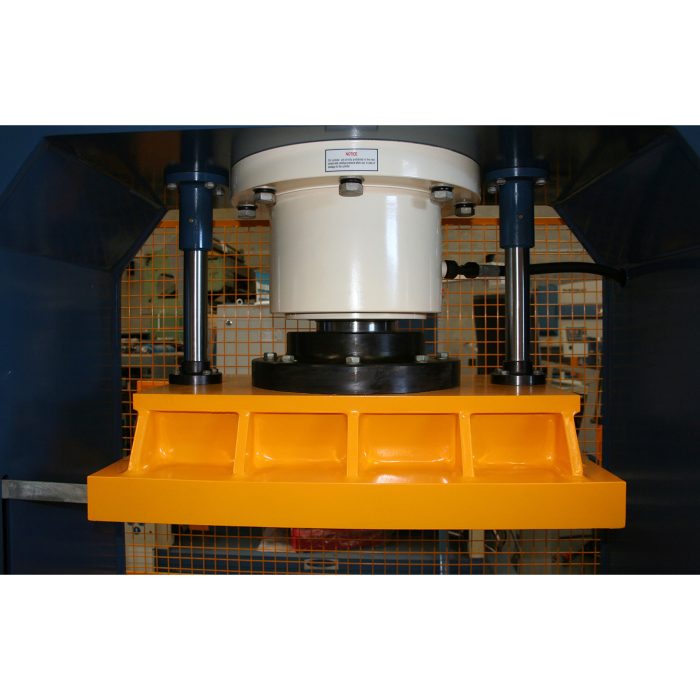

A Powerful Hydraulic Cylinder & Two Side Guides Ensure Precise & Uniform Feed of the Ram During Pressing Applications.

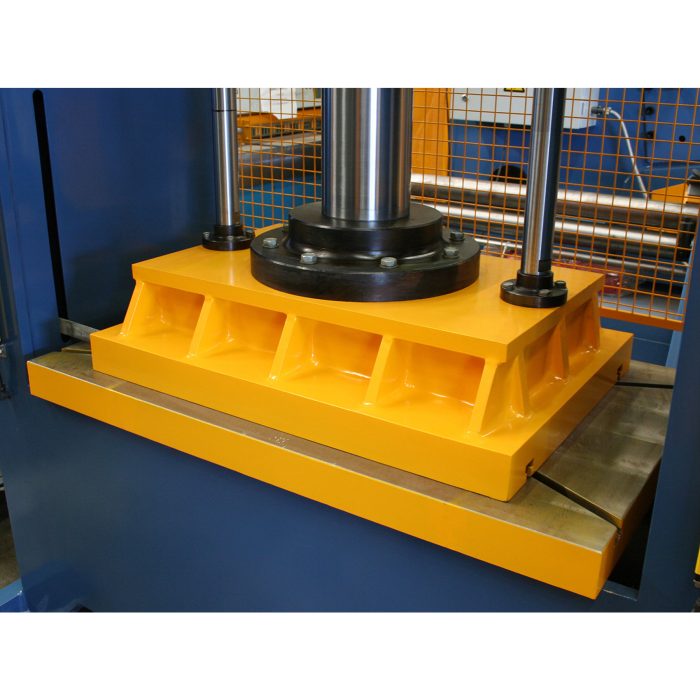

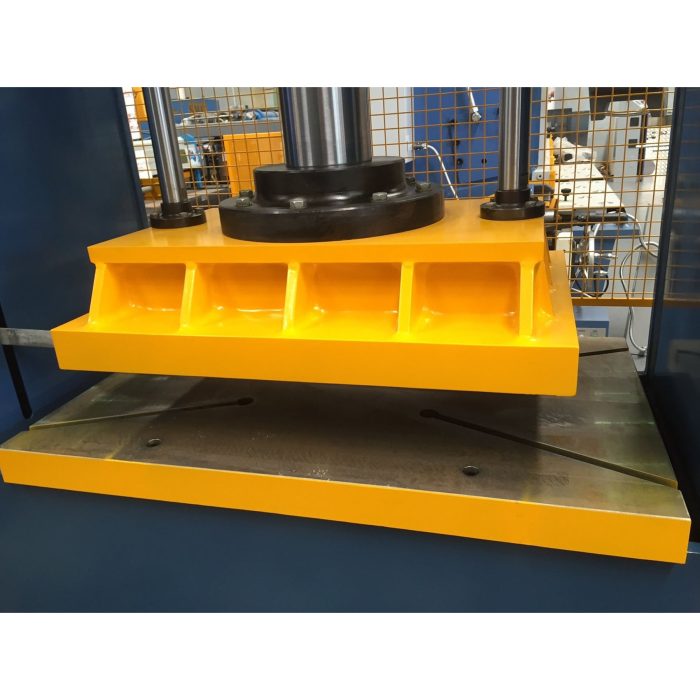

Top Ram Plate, Along with Large Fixed Bottom Worktable with T-Slots for tool Clamping.

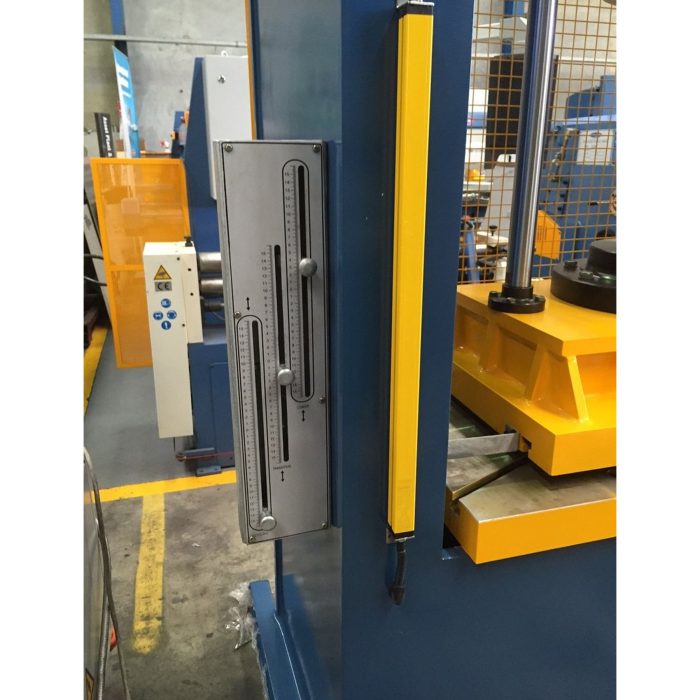

Fitted With Adjustable Limit Switches For Top and Bottom Settings.
❚ 70 ~ 500 ton force models available

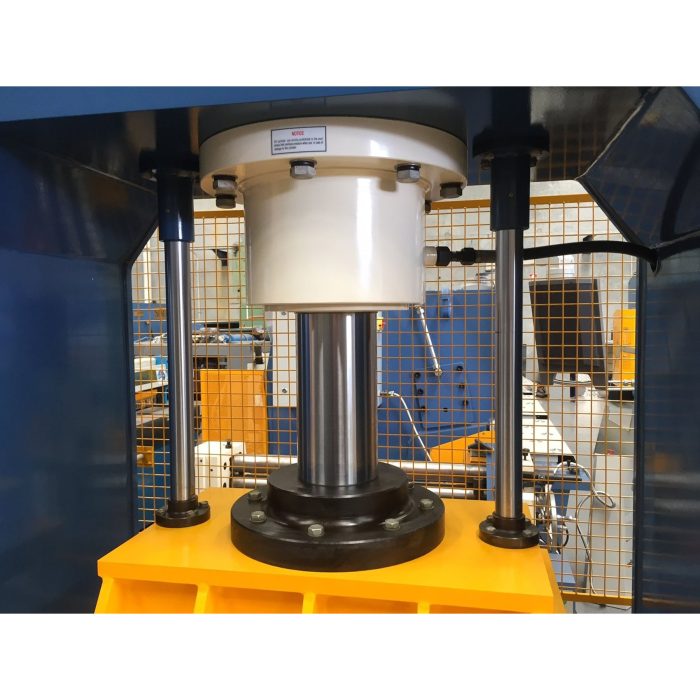

❚ strong hydraulic cylinder ensures uniform and precise pressing during operation

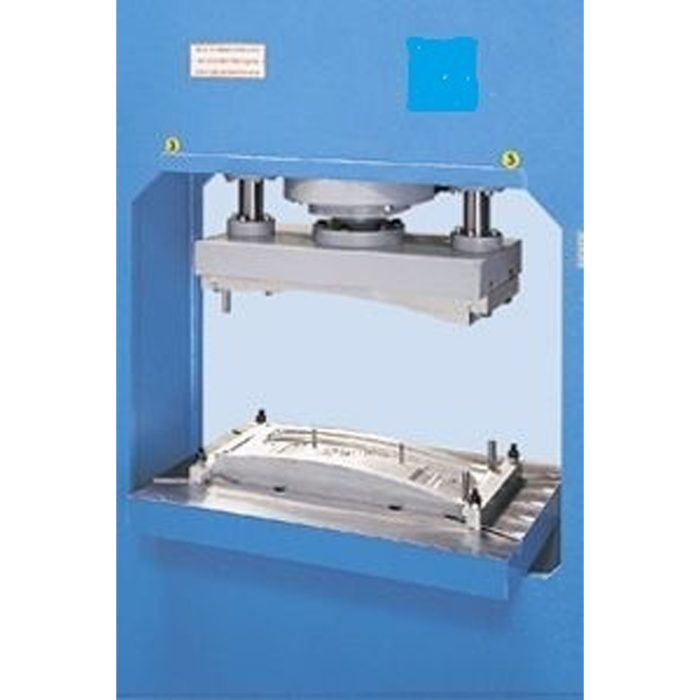

❚ ideal for pressing, bending, punching & moulding

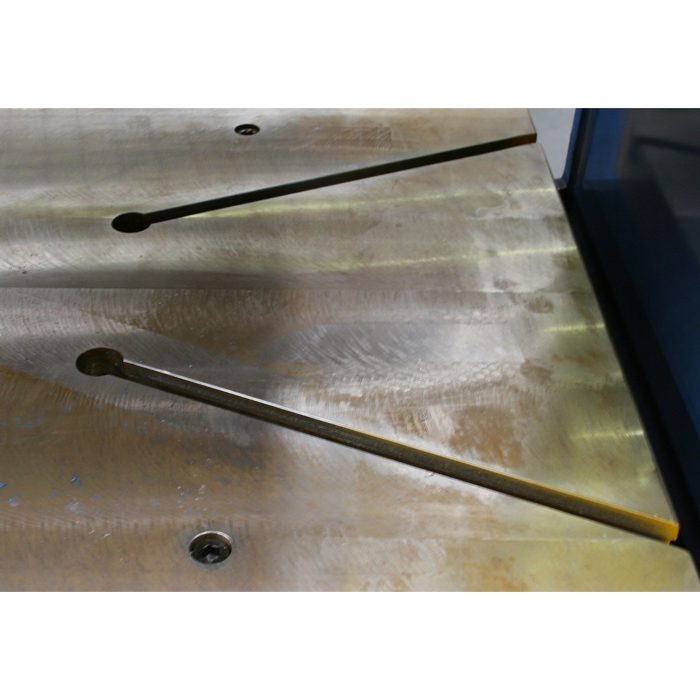

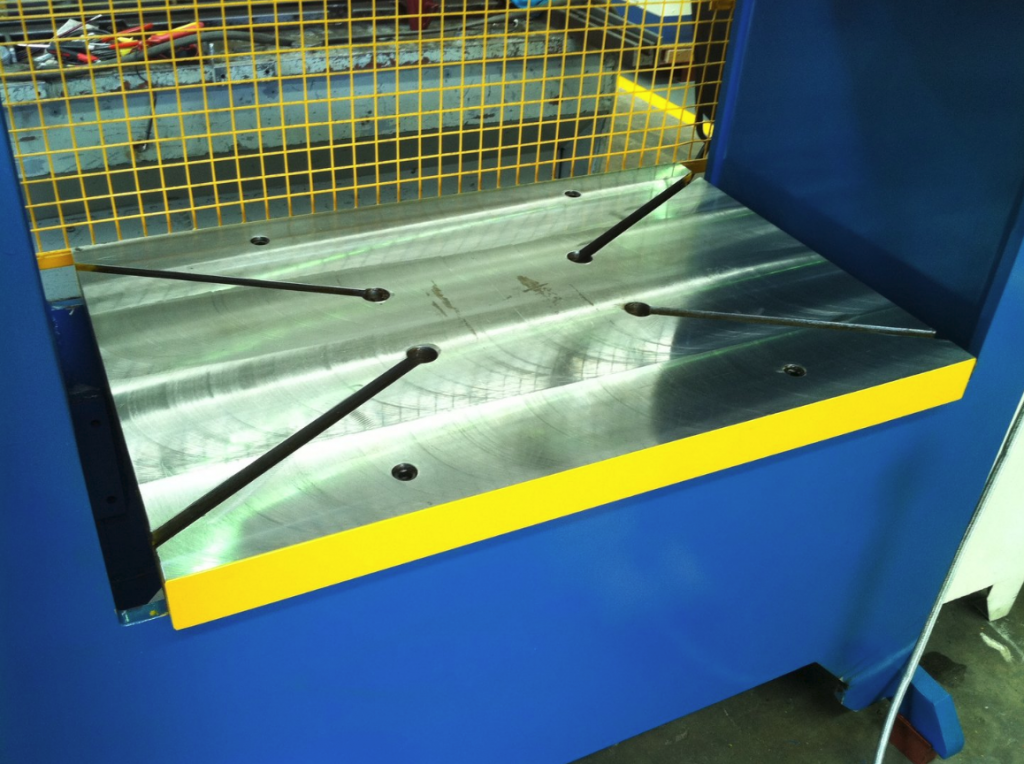

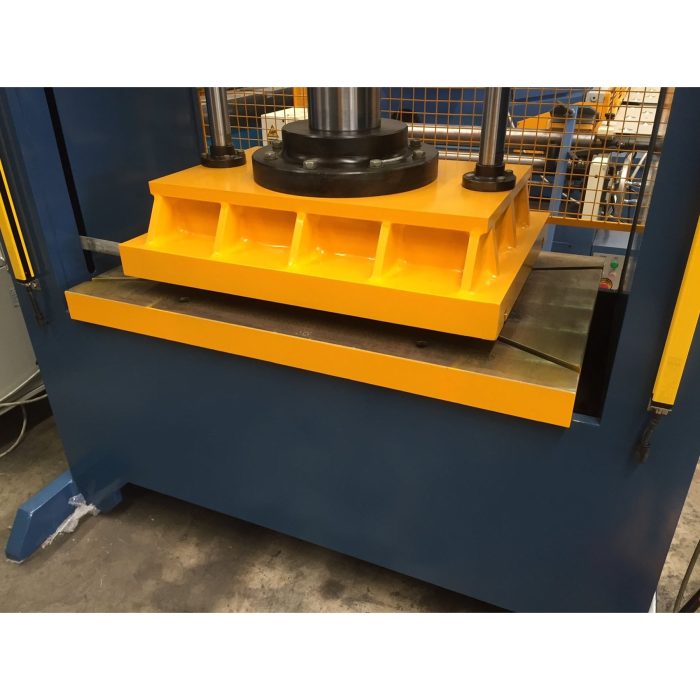

❚ fixed T-Slotted bottom bed for tool and job clamping
❚ two speed operation, rapid & working speed.
❚ extremely torsion proof steel welded frame

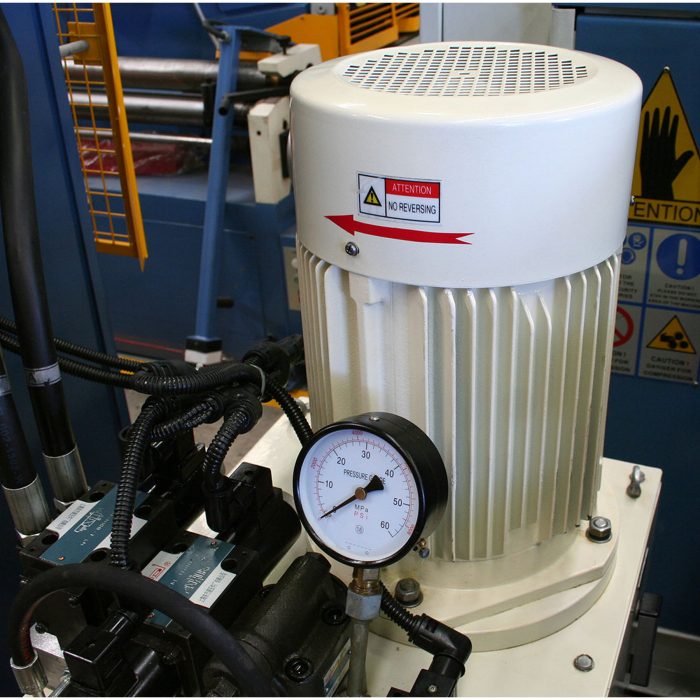

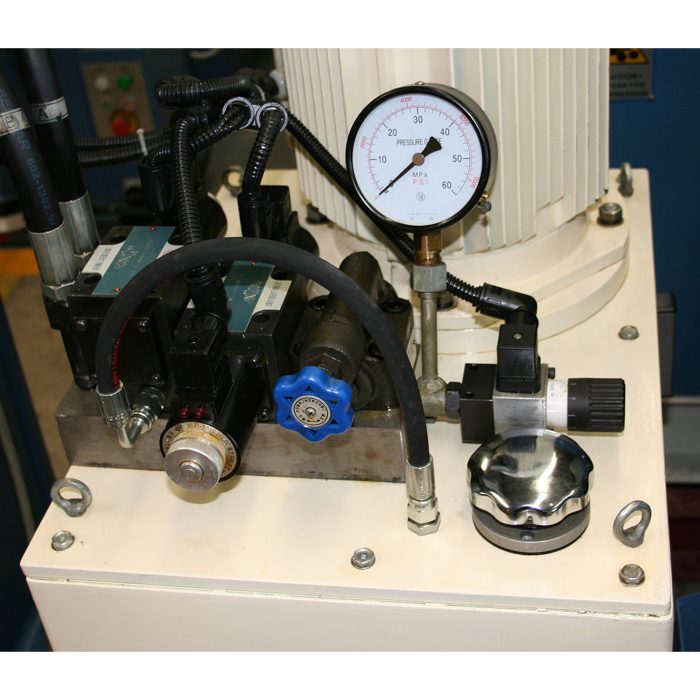

❚ hydraulic pressure gauge fitted
❚ foot pedal operation option.

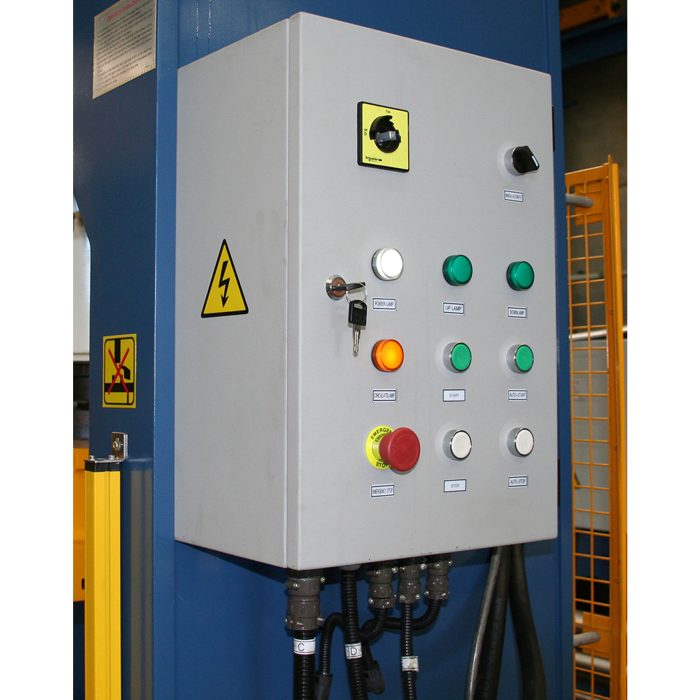

❚ CE standard and safety E stops and standard.
❚ capacity – 310Ton
❚ frame width distance – 1250mm
❚ stroke length – 500mm
❚ open height – 500mm
❚ bottom bolter – 1150mm x 750mm – tee slotted
❚ top bolster – 950mm x 580mm – tee slotted
❚ descending speed – 5.9 mm/sec.
❚ working speed – 1.5mm/sec.
❚ return speed – 8.5mm/sec.
❚ power – 7.5kw / 415Volt
❚ dimensions – 2650mm x 1050mm x 2500mm x 5600kg

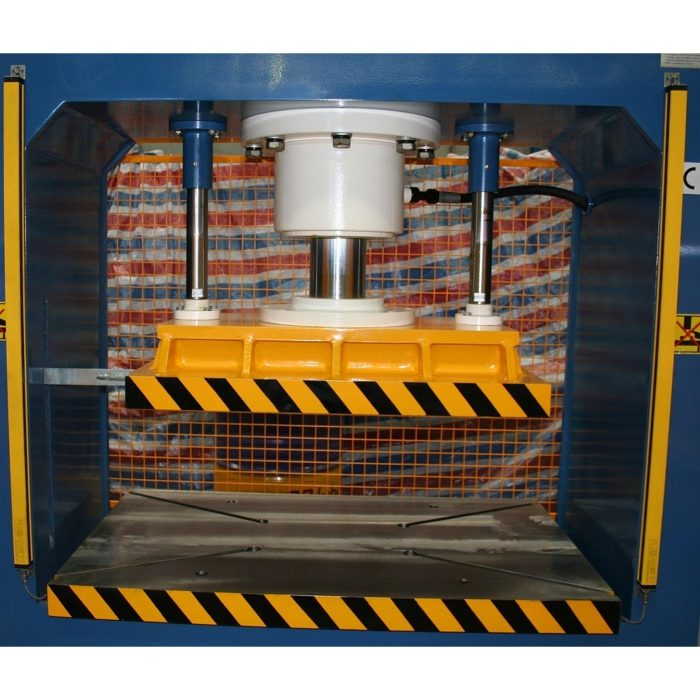

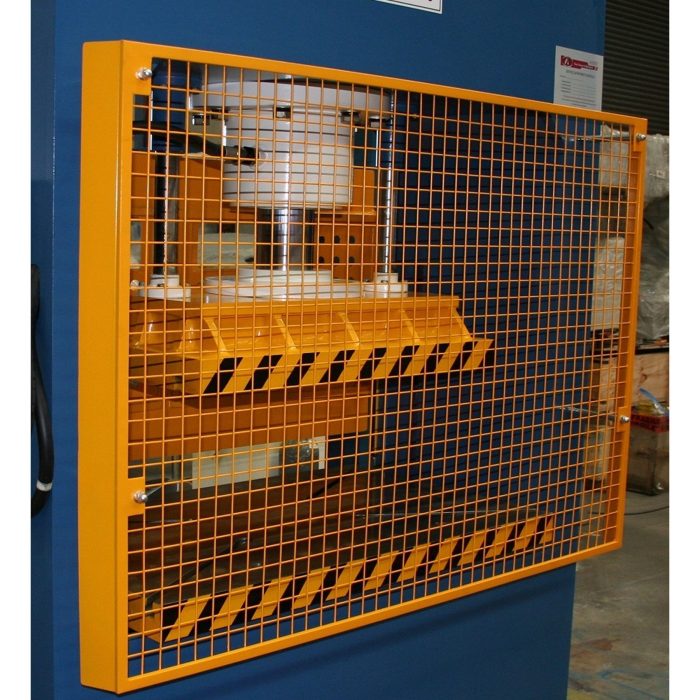

❚ We also offer OH&S Front Safety Lasert Guards as Pictured To Ensure Safe WorkplacePlease Quote Product Code: 27+0006
