Description

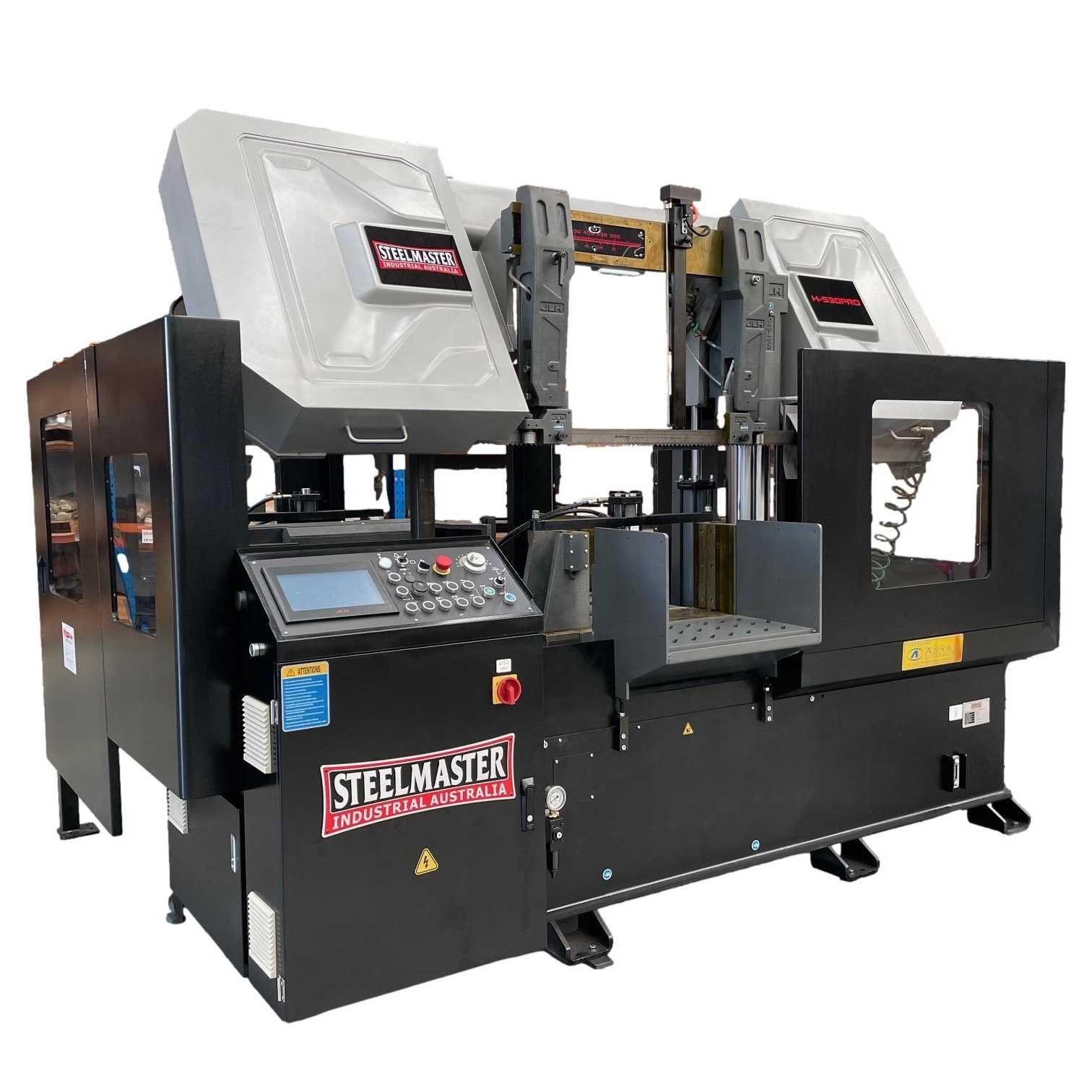

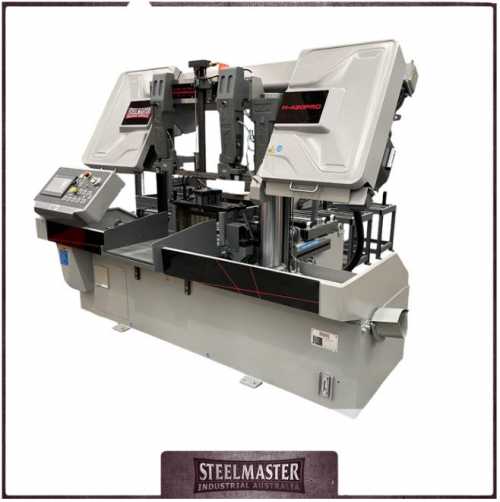

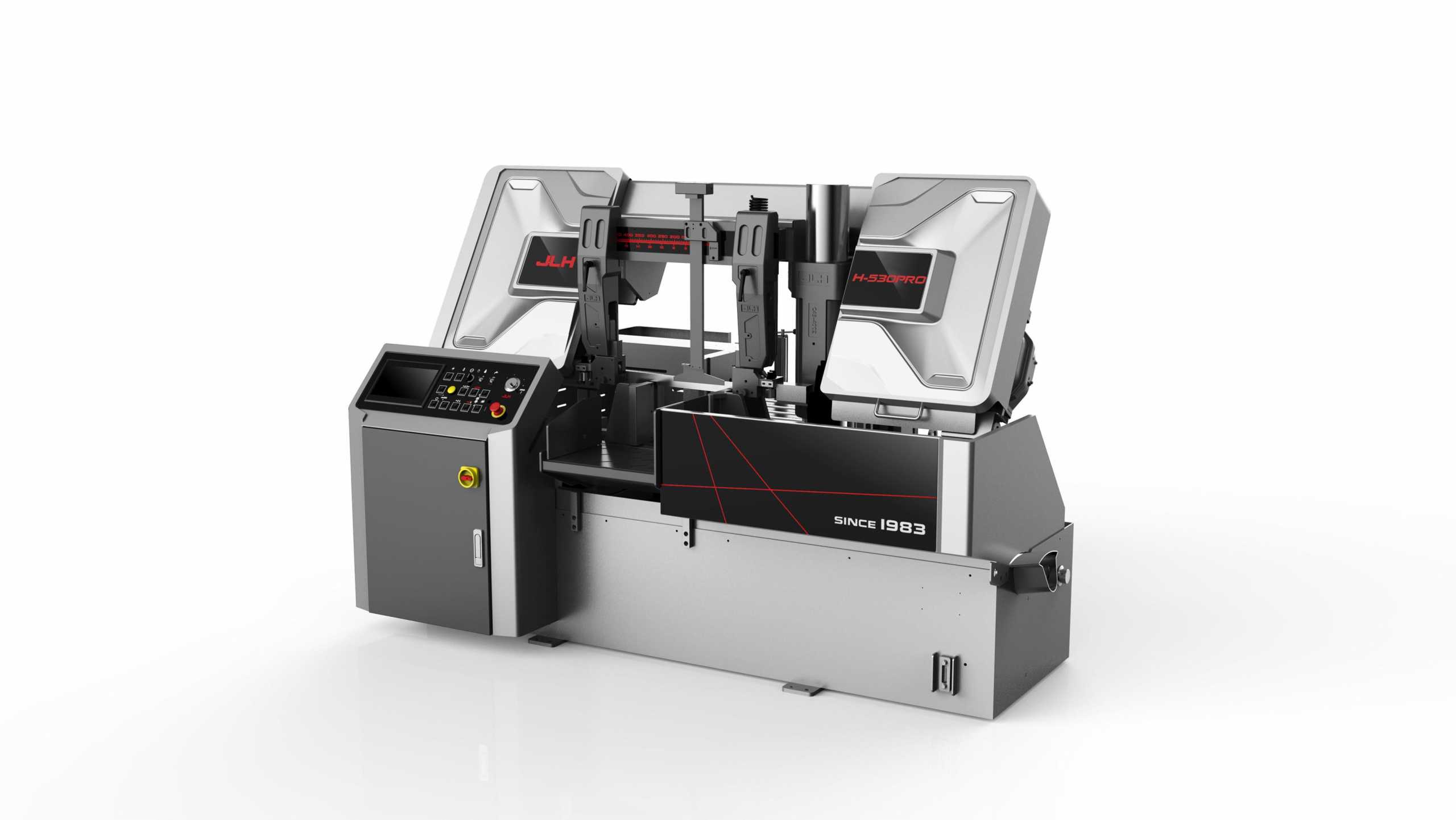

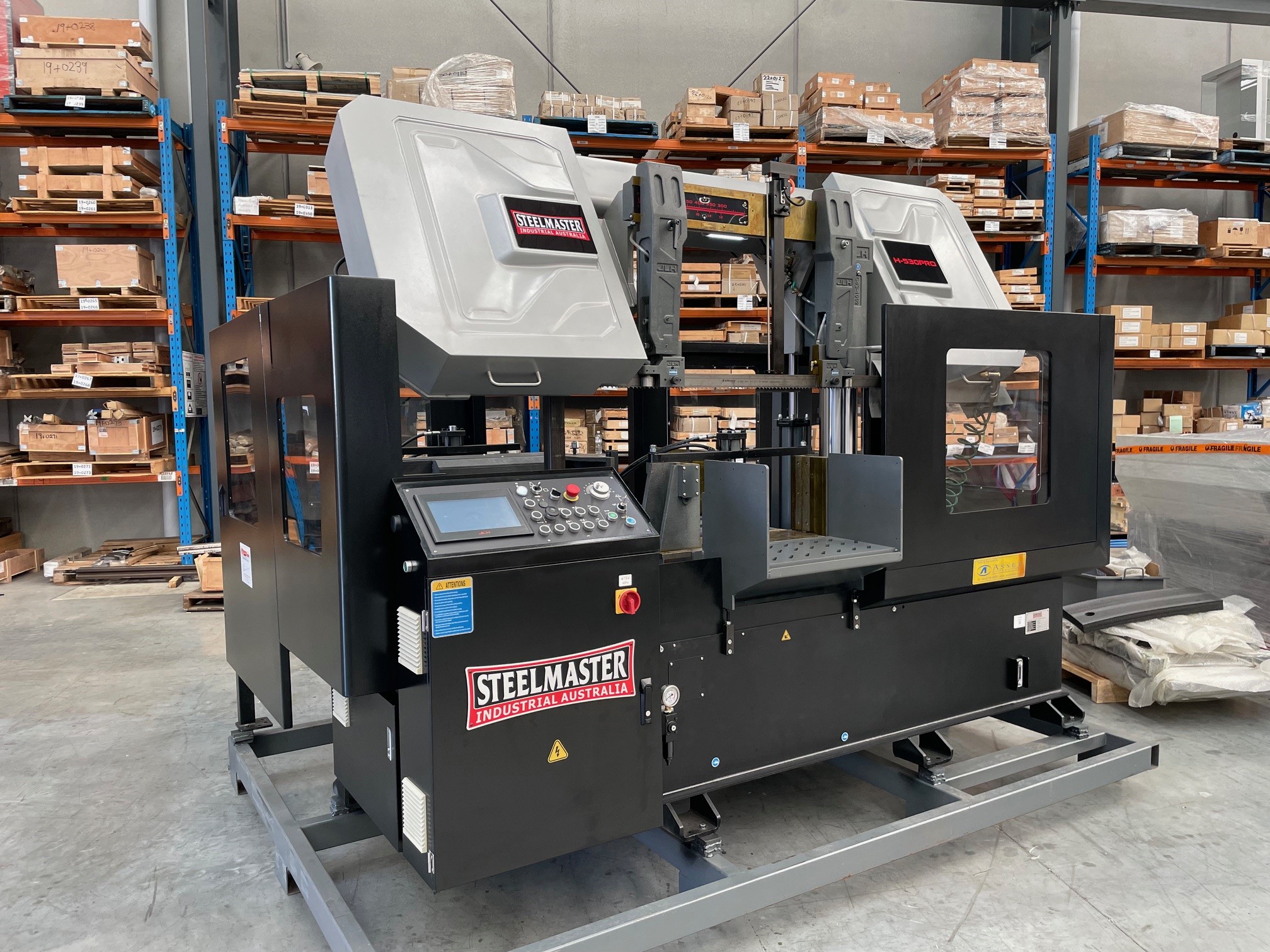

This Large Capacity Heavy Duty full featured automatic Column Bandsaw is so feature packed, we dont know where to start! Offering precision auto feed cutting capacity via linear guides, twin hydraulic vice, tungsten guides, NC controller, duarable 41mm blade, variable speed control and built-in coolant system. If you’re looking for something in this size range, you’ll have a tough time finding a better metal-cutting band saw with these features and at this price anywhere else.
Set and forget! Metalworking production shops should take a good look at this!

Features
Our STEELMASTER auto series offers you the all-in-one solution
auto material feeding and auto beam return.
variable pressure down feed – automatically adjusts down feed pressure based on material being cut
heavy duty capacity capable of processing all types of material including packs at full automatic speed

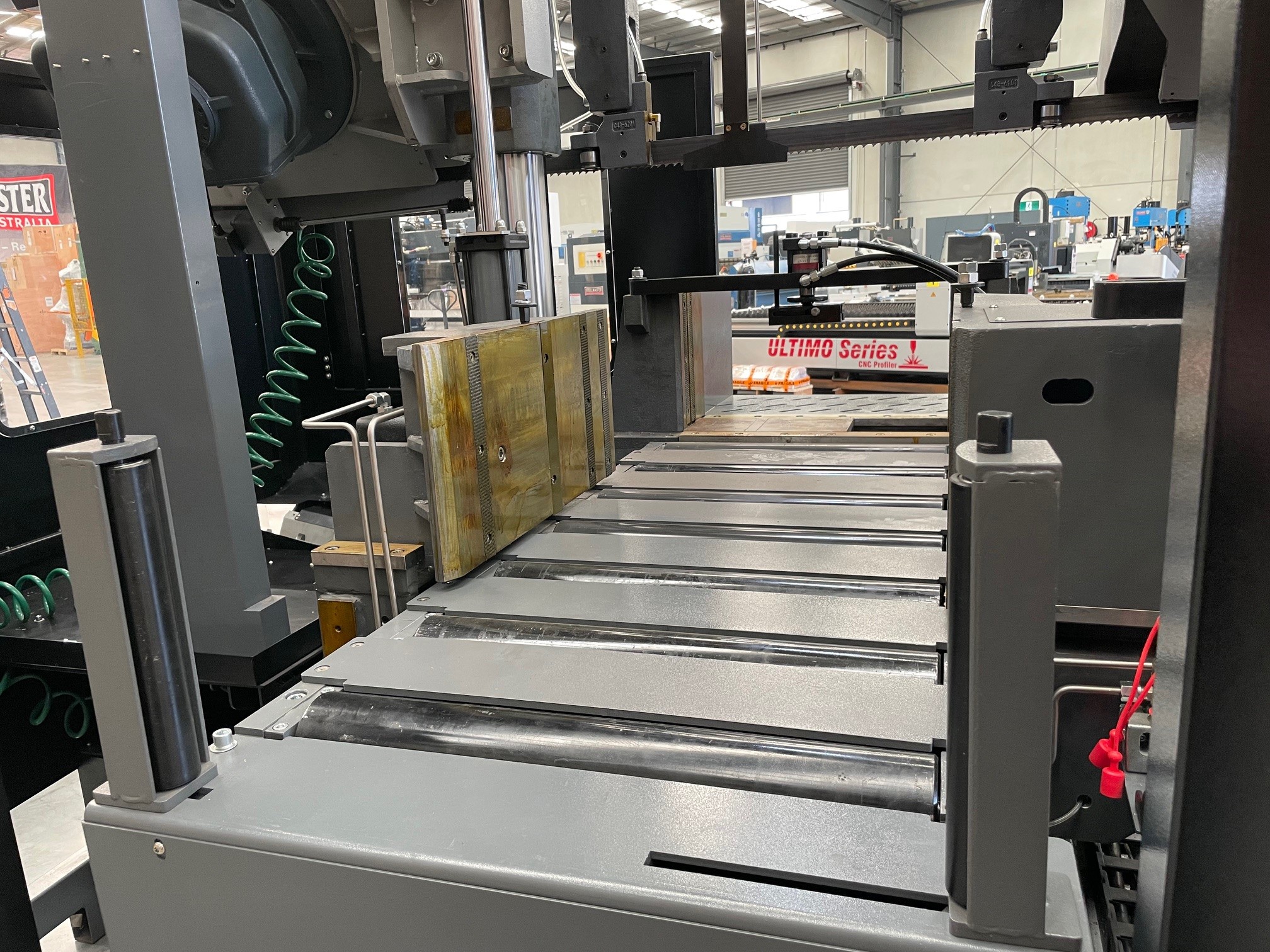

600mm auto rollerfeed table

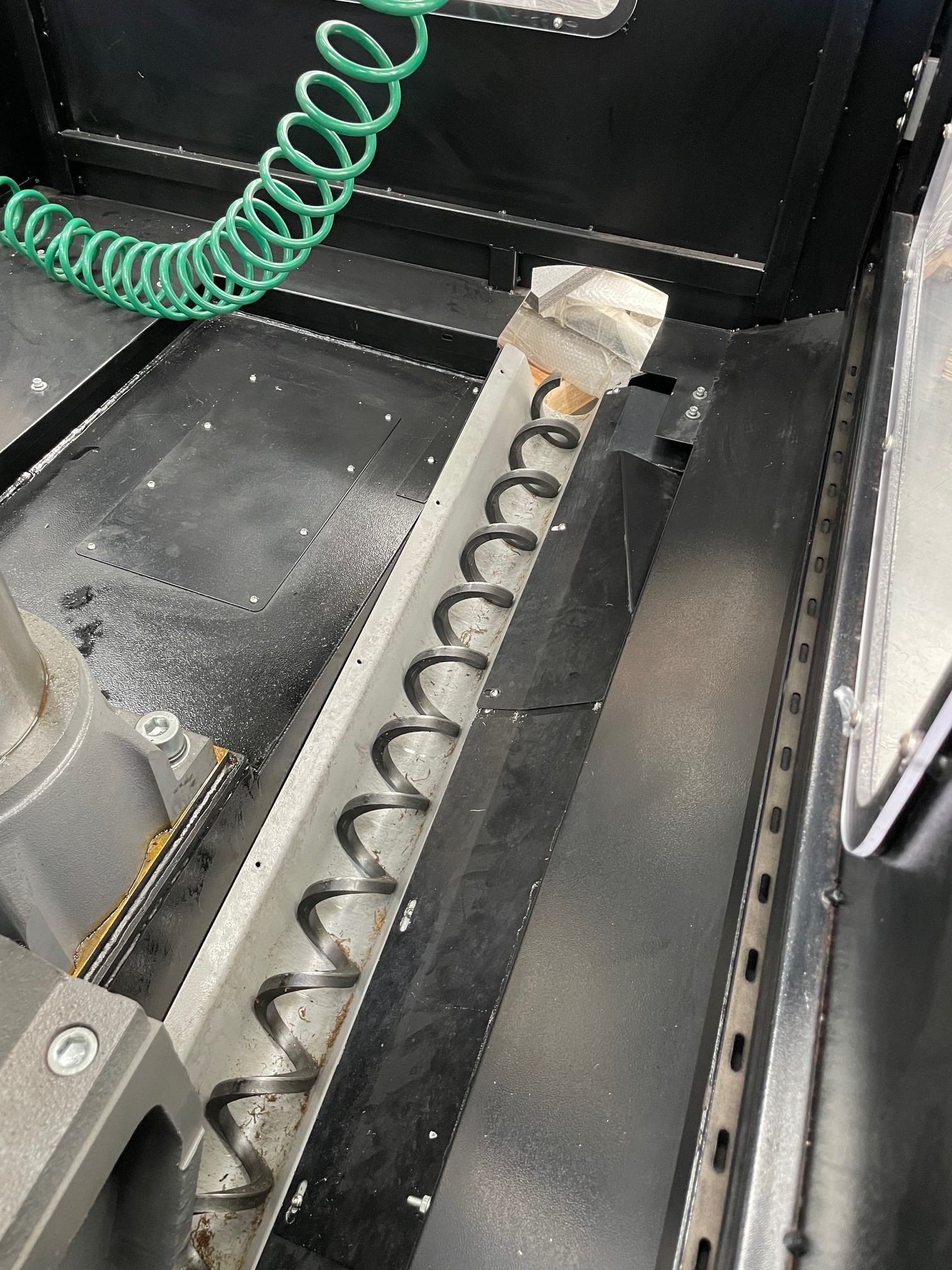

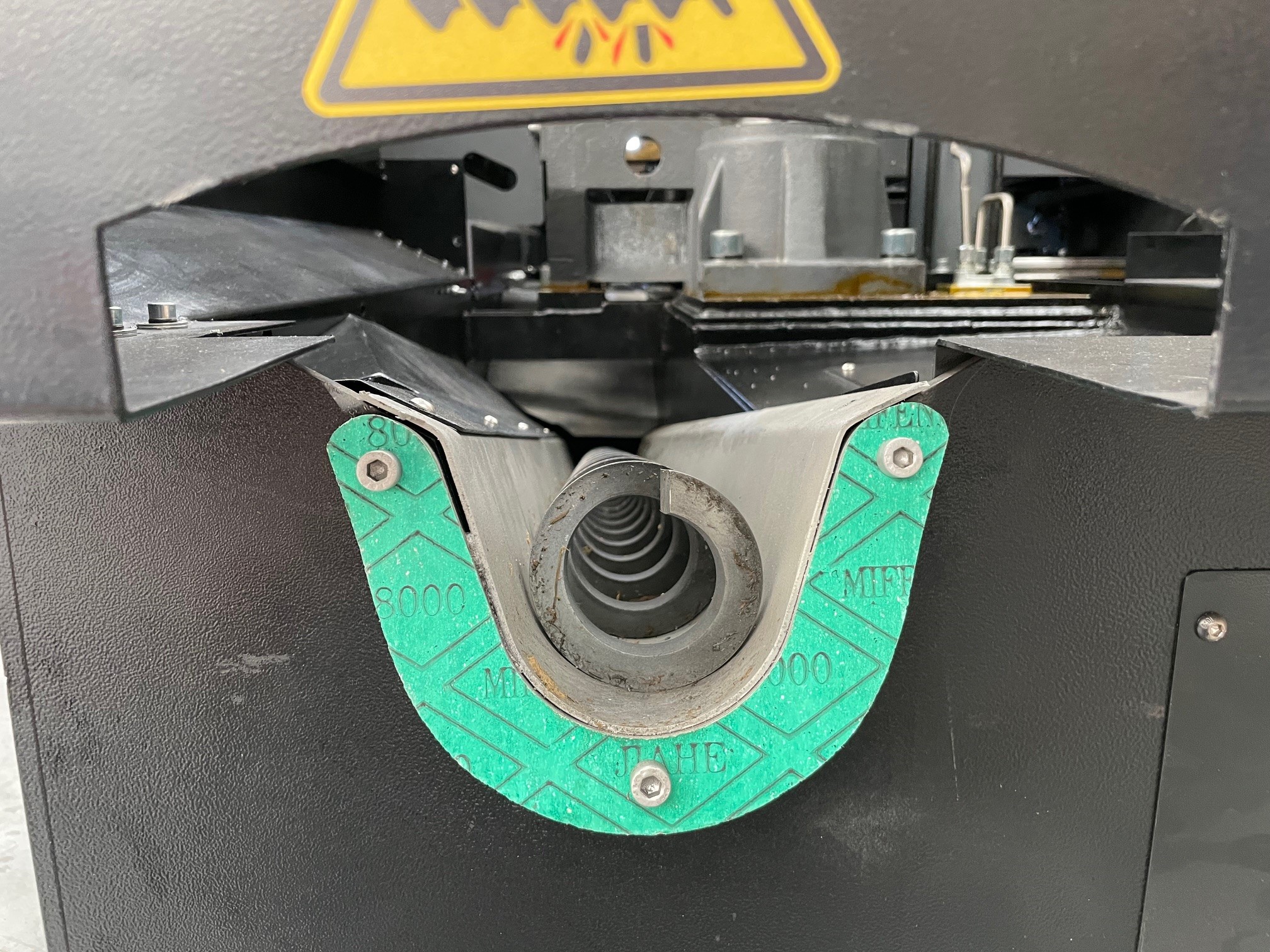

chip conveyor
vice pressure regulator and variable speed blade control system

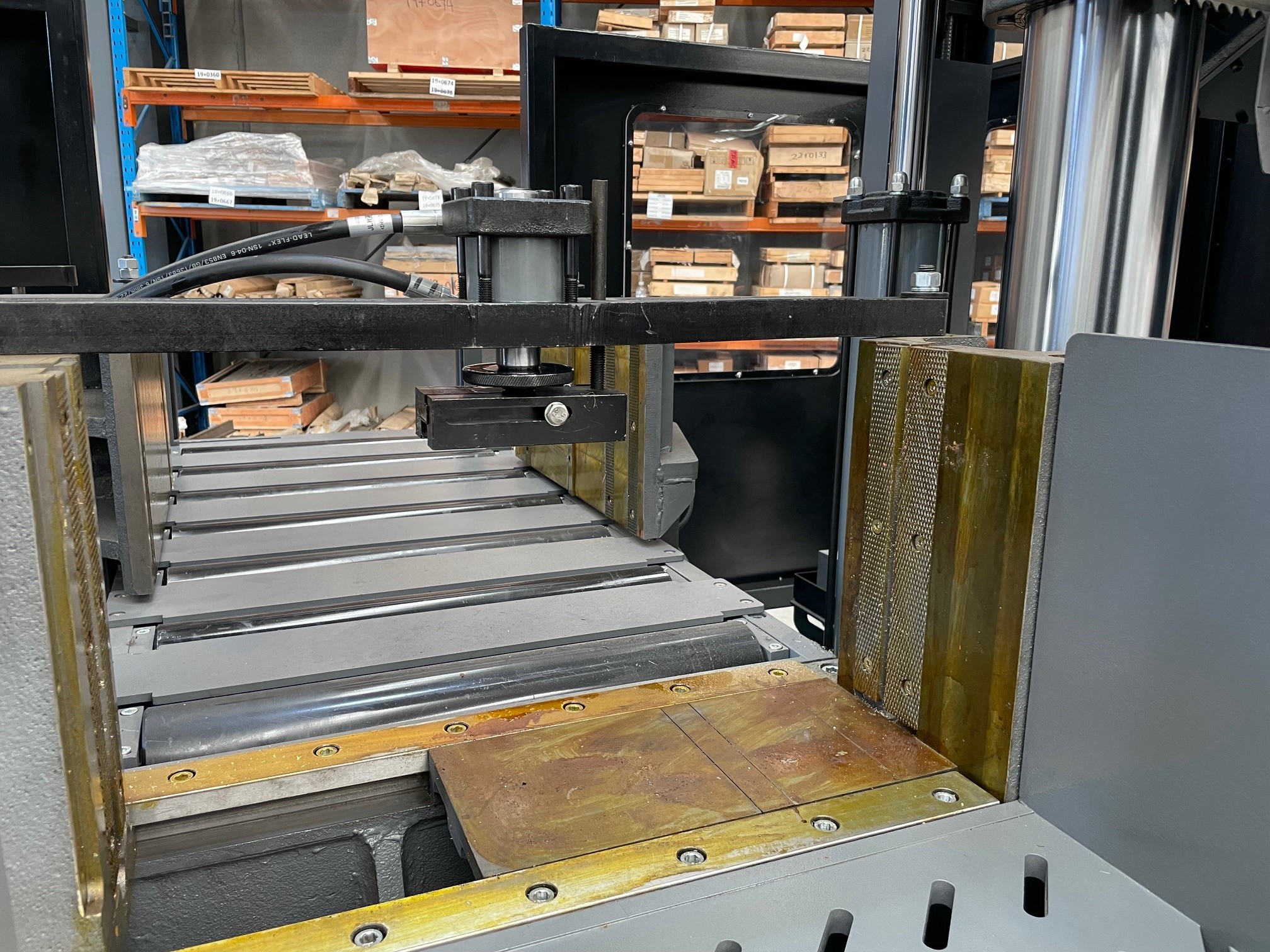

twin hydraulic vice operation standard
strong construction design
heavy duty motors

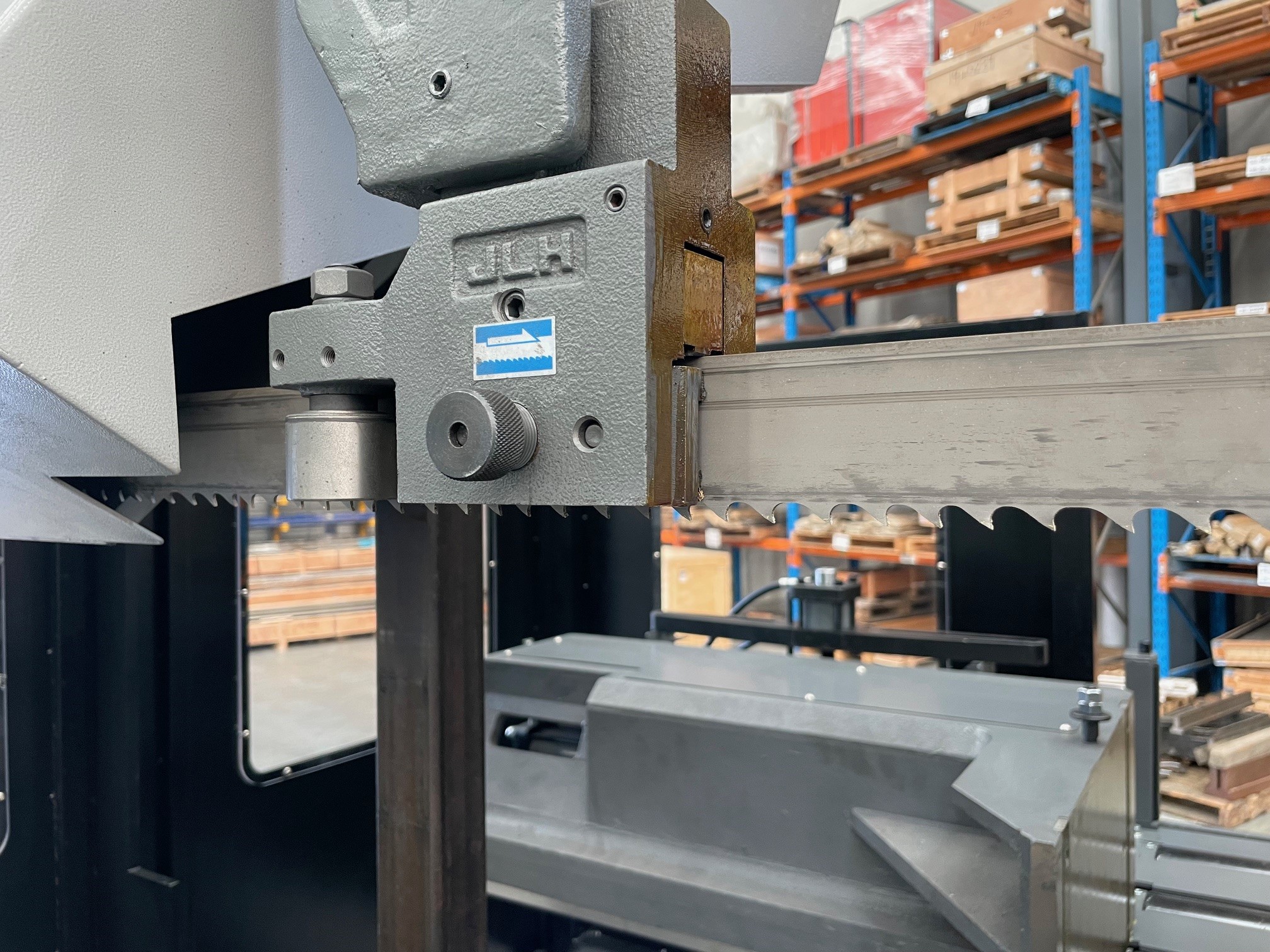

tungsten carbide blade guides
coolant system for increased efficiency
auto cut-off switch
on board trigger coolant hose

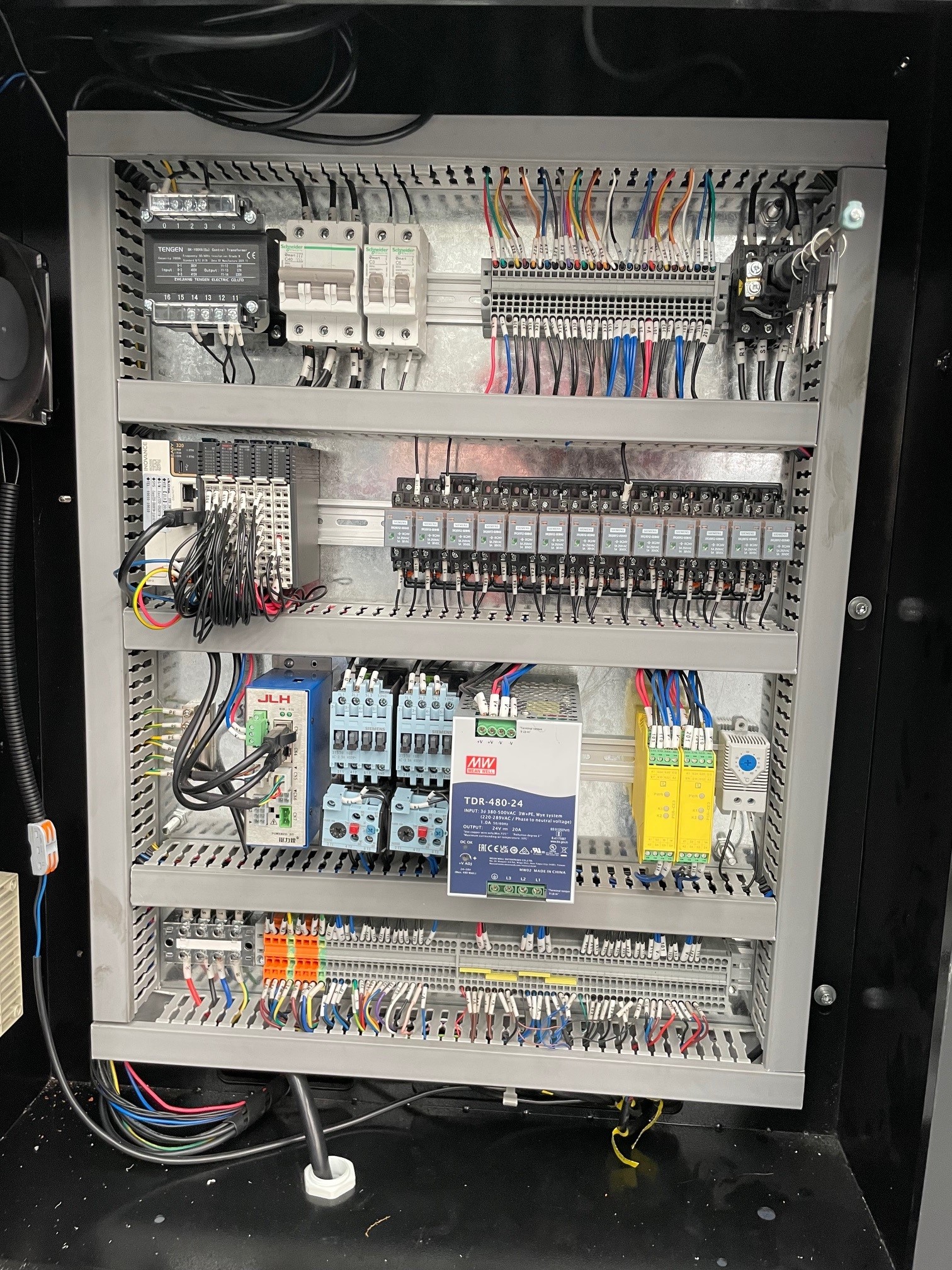

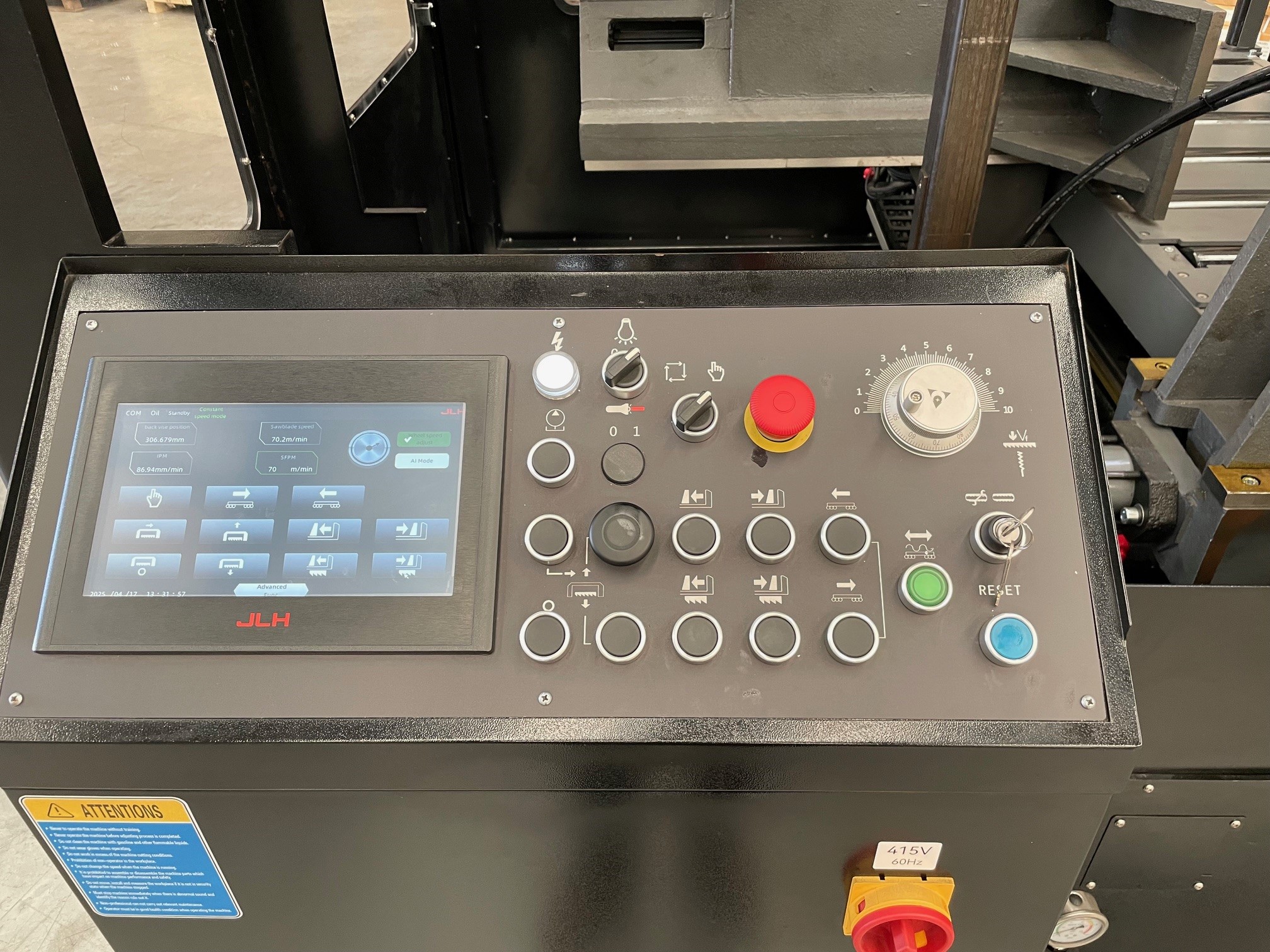

centralised control panel
CE compliant

Technical Data Snap-Shot
Touch Screen NC programmable control
530mm x 530mm cutting capacity
550mm maximum jaw opening.
20 ~ 80 variable speed range
6200mm x 41mm x 1.3mm blade dimensions
500mm NC feeding increments – Can pre set multiple for longer length cutting
575mm roller conveyor height
infeed roller working height – 770mm
Hydraulic Oil Capacity – 70 Litres
Cutting Oil Capacity – 140 Litres
shipping dimensions – 2250mm x 3100mm x 1950mm
power – 415V 7.5Kw
approx weight: 3300Kg
