Specifications
MODEL NUMBER: 13+0116
| sku | 13/0116 |
| table size (l x w) | 127 mm x 180 mm |
| t-slot | 12 mm |
| swivel angle | ±45˚ |
| weight (nt) | 15 kg |
Tilting Table – 127mm x 180mm Table Size, 45 Degree Set Ups
Ex GST: $220.00
Inc GST: $242.00
Price Including GST: $242.00
Description

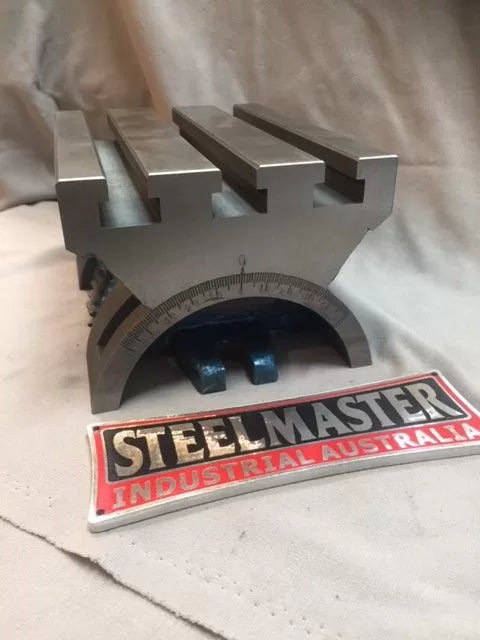

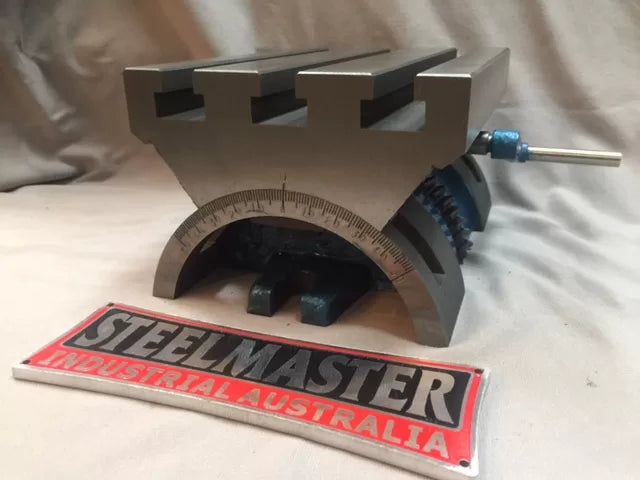

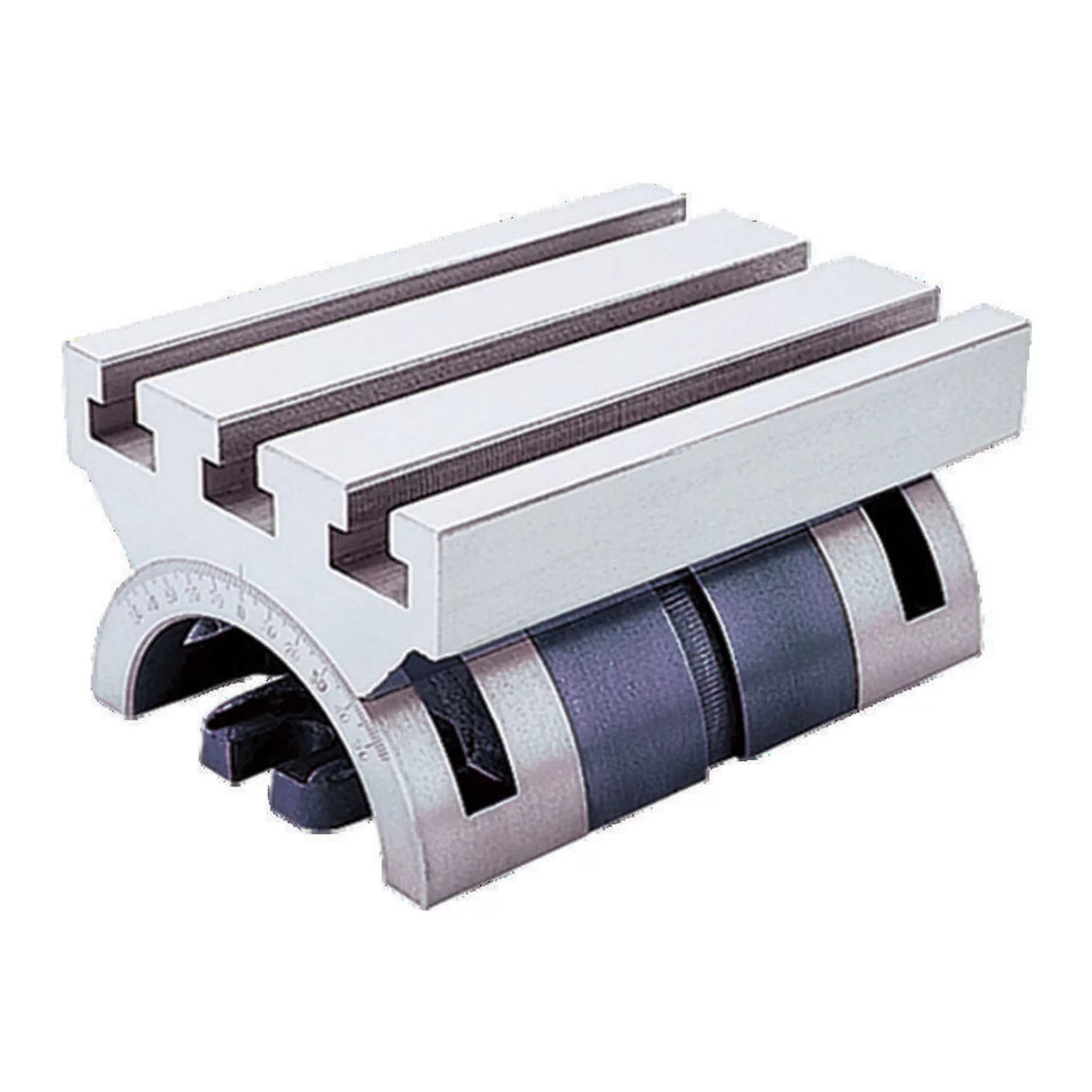

Tilting Table – 127mm x 180mm Table Size, 45 Degree Set Ups
Set your work at any angle with these sturdy tilt tables. Heavy-duty construction includes T-slots, two locking screws and precision base that allows the table to tilt from -45 Degrees to +45 Degrees. Table size: 125mm x 150mm.
Approx weight 15kg
Set your work at any angle with these sturdy tilt tables. Heavy-duty construction includes T-slots, two locking screws and precision base that allows the table to tilt from -45 Degrees to +45 Degrees. Table size: 125mm x 150mm.
Approx weight 15kg
Features
❚set your work at any angle from -45˚ to +45˚ with this sturdy tilt table
❚t-slots and calibrated angle setting to assist in easy set-up
Technical Snapshot
❚ 127mm x 180mm table area
❚ + – 45° table tilt
❚ 12mm tee slot
❚ weight: 15Kg
❚ product ordering code: 13+0116
Accessories and Related Items
Additional information
| Weight | 15 kg |
|---|---|
| Dimensions | 20 × 15 × 11 cm |
