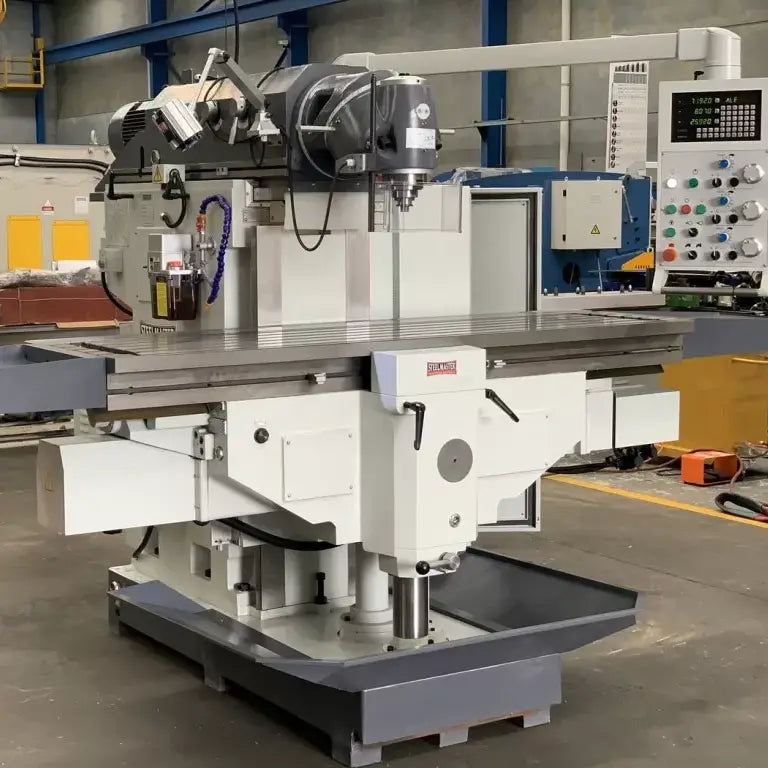

Universal Mill, 2000mm x 500mm Table, ISO 50 Vertical Spindle, 3 Axis DRO

Name: Universal Mill, 2000mm x 500mm Table, ISO 50 Vertical Spindle, 3 Axis DRO
Brand: Steelmaster Industrial
SKU: 13-0220
Price: 67850.00 AUD
Availability: InStock

PRICE EX GST

Reg: $69,850.00

Sale: $67,850.00

PRICE INC GST

Reg: $76,835.00

Sale: $74,635.00

MODEL NUMBER: STEELMASTER-SM-FU-500S-20-UNIVERSAL-MILL

Pickup available at 118 Logis Boulevard

Usually ready in 24 hours

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PICK UP & DELIVERY INFORMATION

PICK UP:
For machineries, pick up is scheduled within 48-72 hours after order confirmation, subject to pre-commissioning.

For tools, parts & accessories, next day pick up is available.

Pick Up location: 118 Logis Boulevard, Dandenong South VIC 3175

DELIVERIES:
For machinery delivery rates, please request a quote or call 1800 511 508.

For Tools, Parts & Accessories, continue to check out.

DESCRIPTION

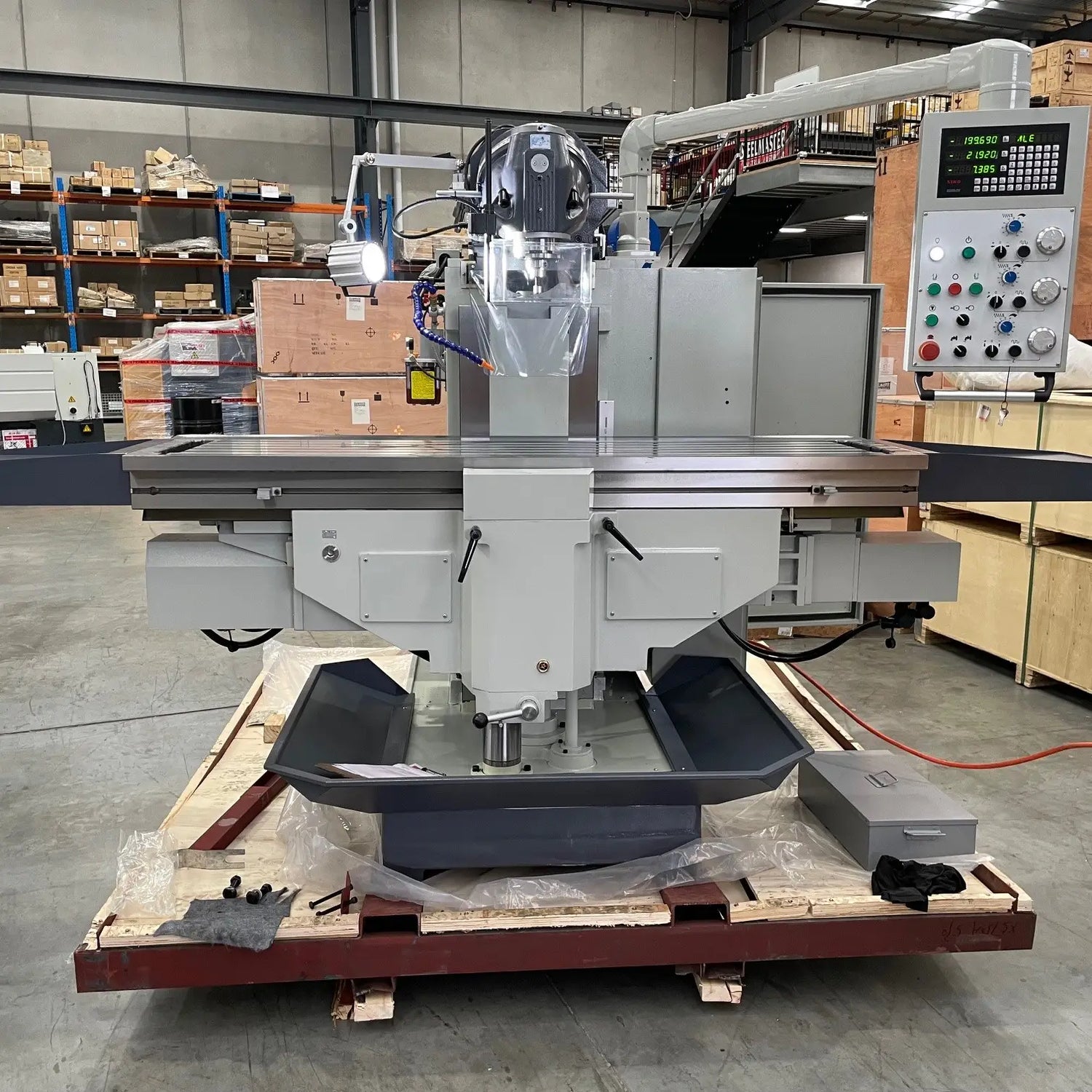

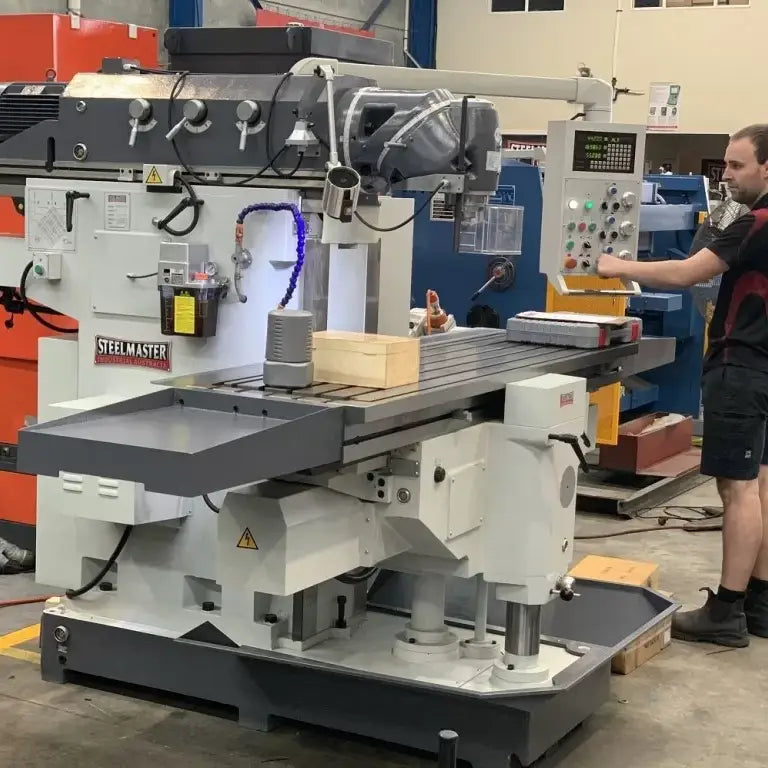

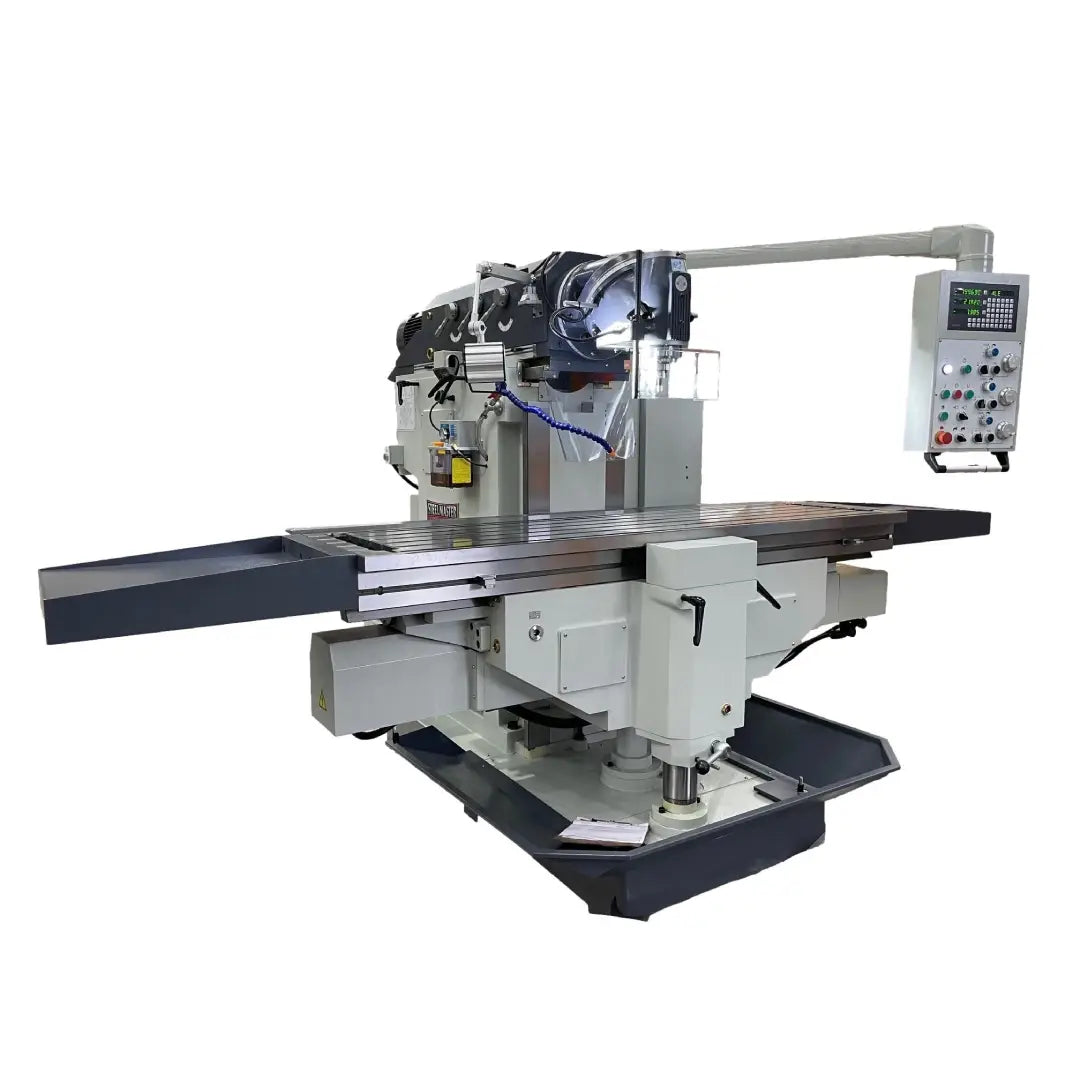

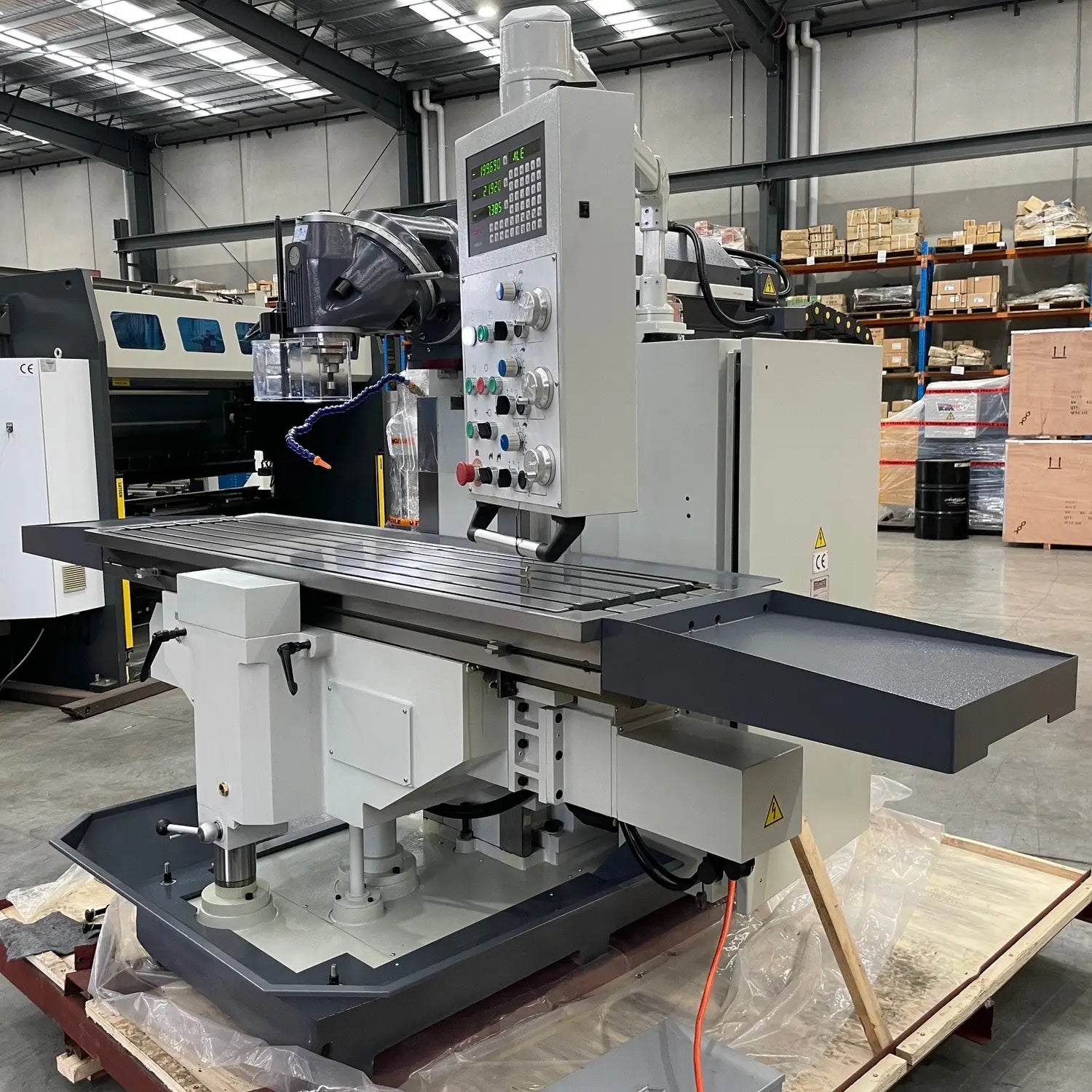

A large-capacity Steelmaster Universal Mill with a 2000x500mm table, ISO 50 vertical spindle, and 3-axis DRO. A premium milling machine.

INCLUDES

3 Axis digital readout system
Safety cutter guard
Swarf tray
Coolant system
Halogen lamp

PRODUCT FEATURES

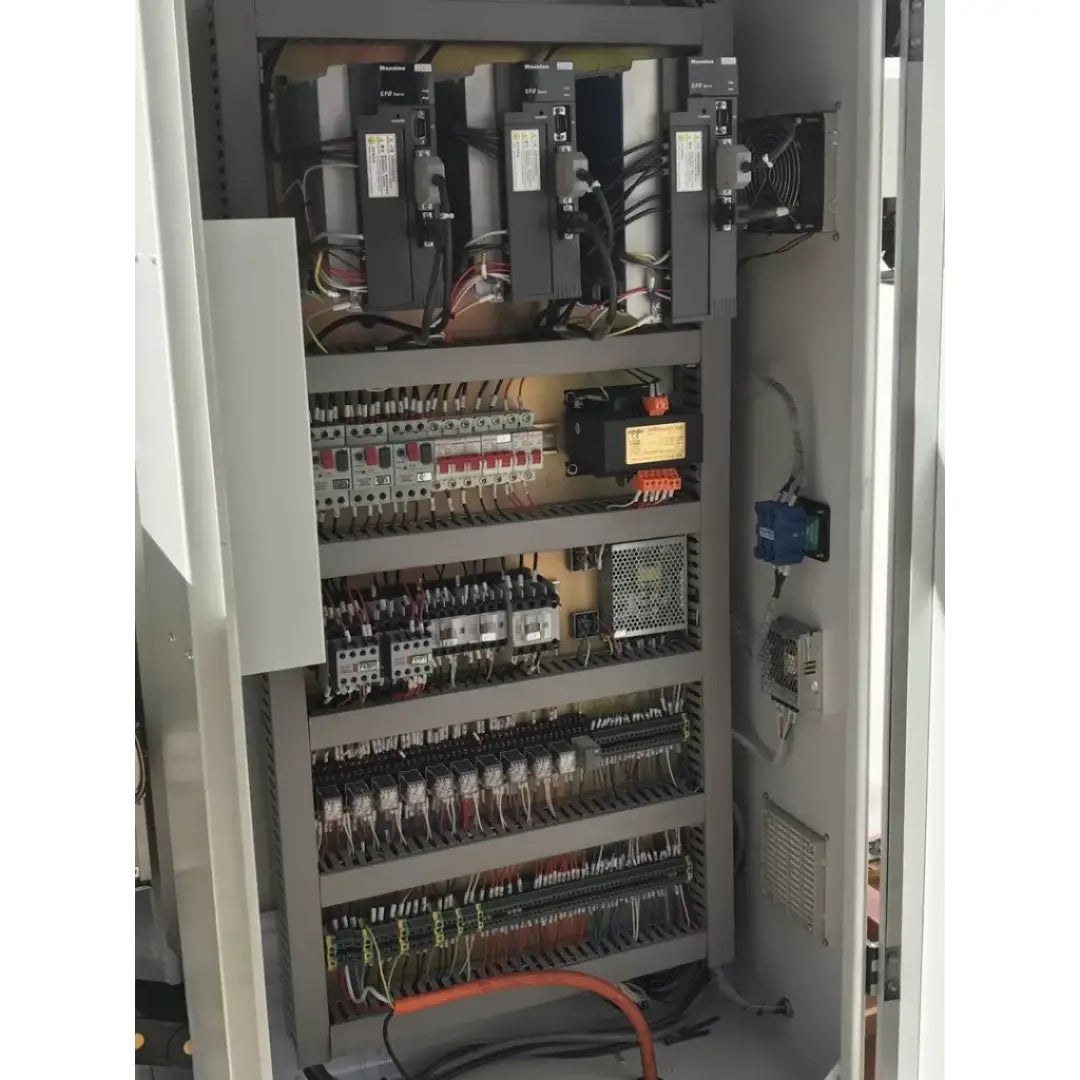

Infinitely variable feed speeds controlled via DC servo.
Rapid feed on all 3 axis
Precision ballscrew
Heavy duty ribbed machine frame ensures maximum rigidity
Rigid, torsion proof powered overarm

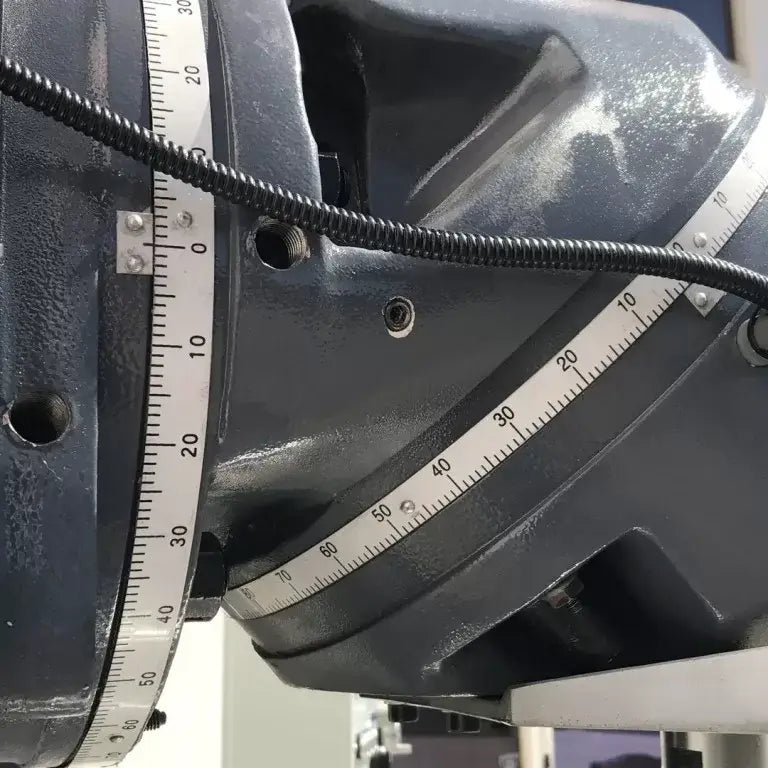

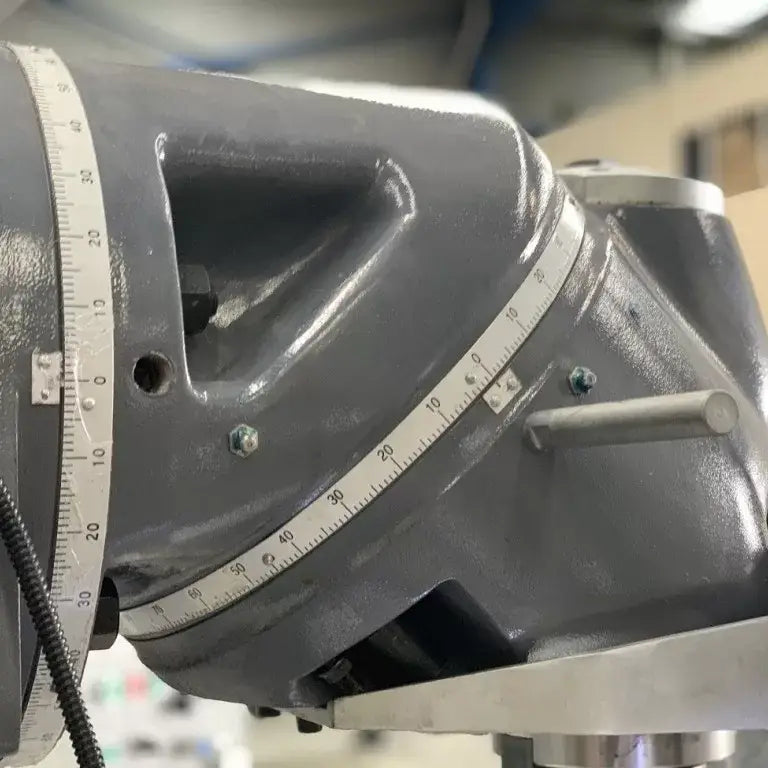

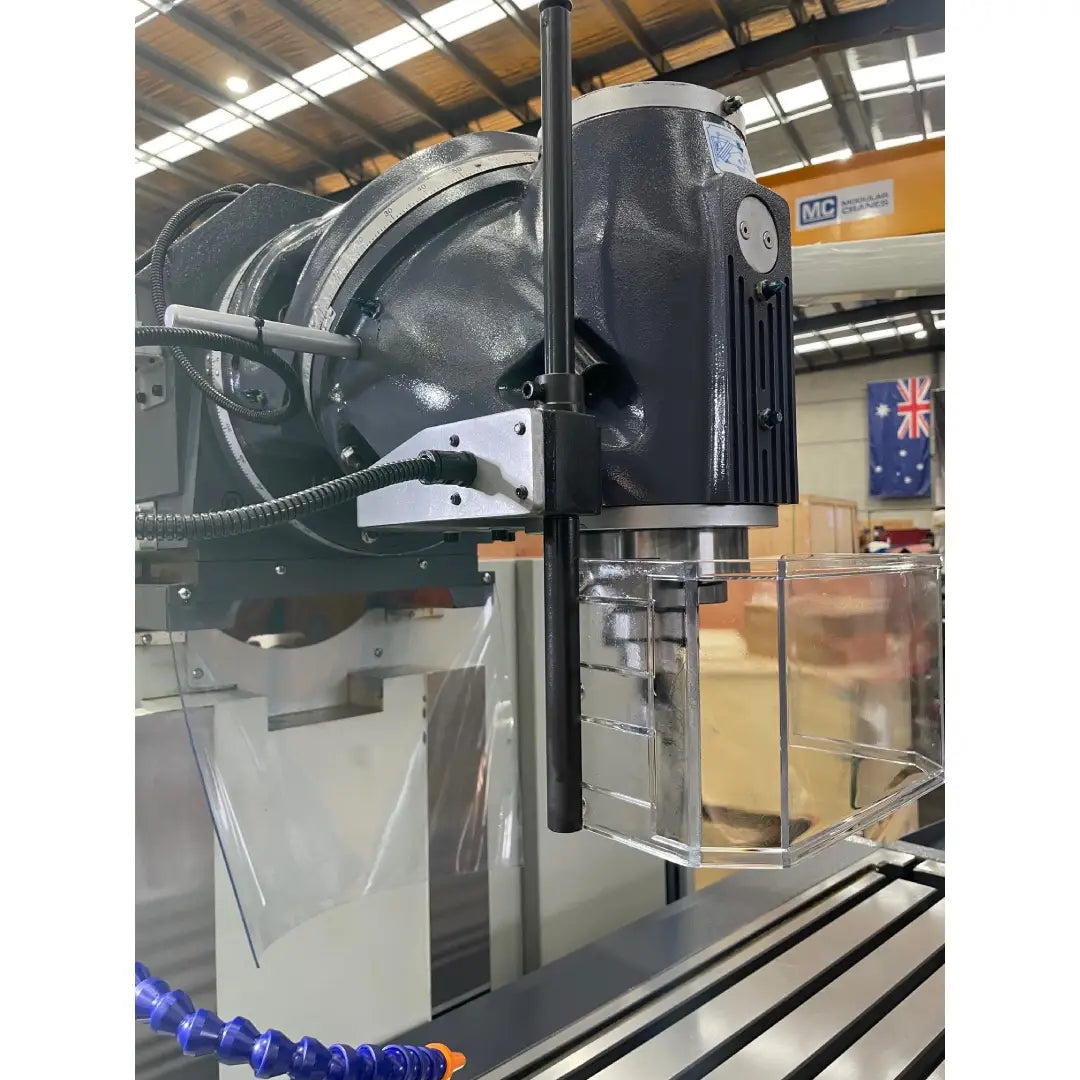

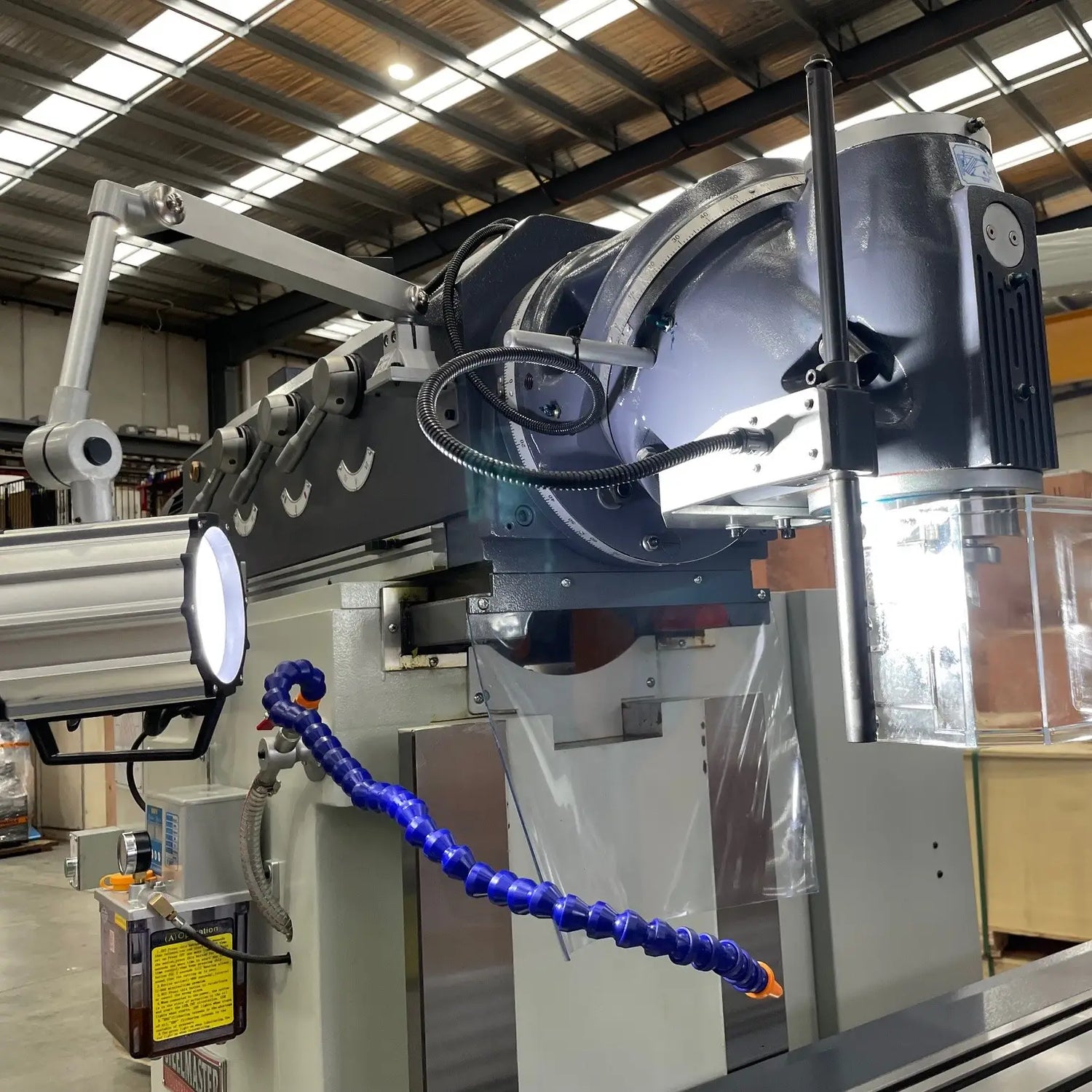

Universal by-rotative milling head
Safety interlocks to prevent simultaneous use of feed and table clamping

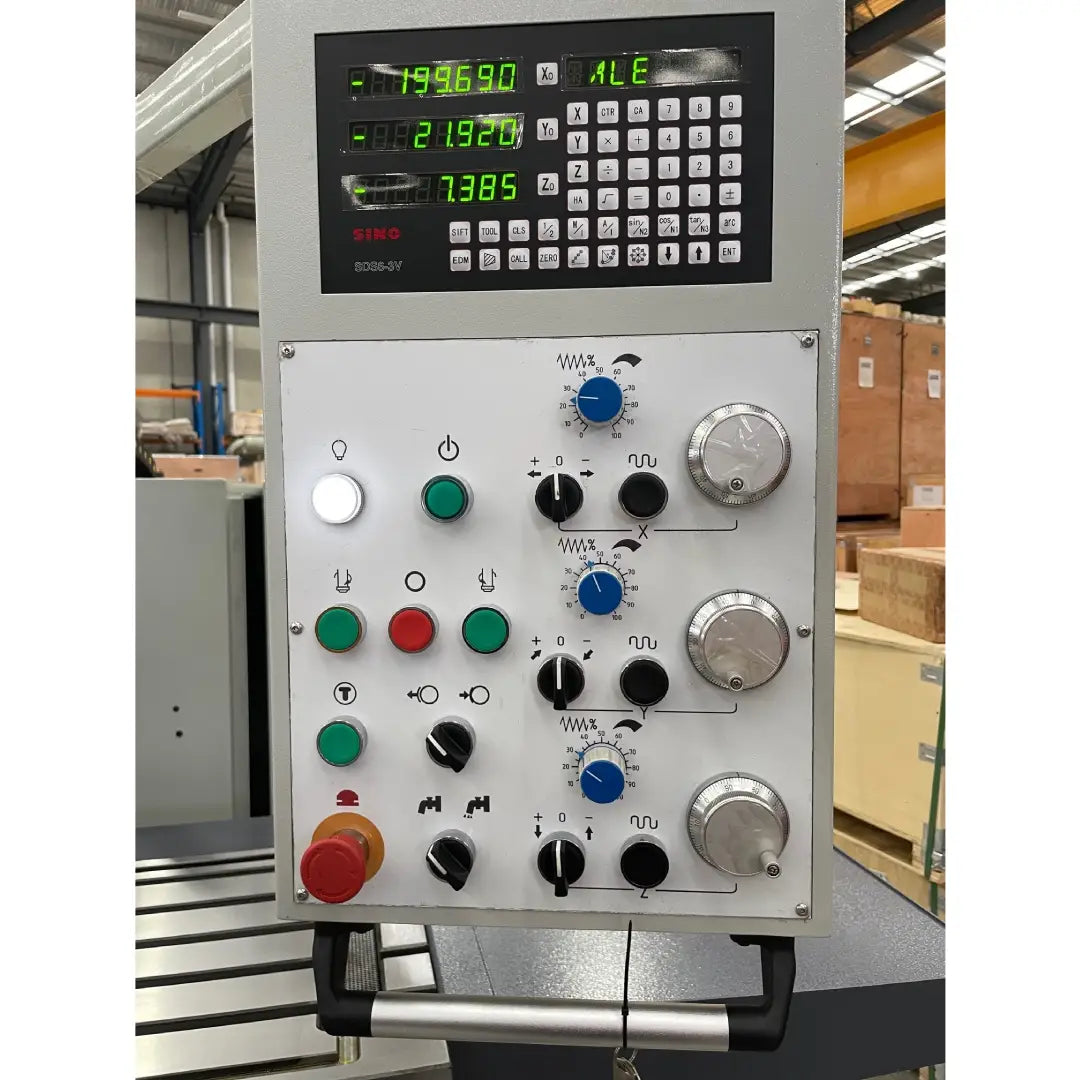

Ergonomic pendant type control console for easy access
Electric spindle brake

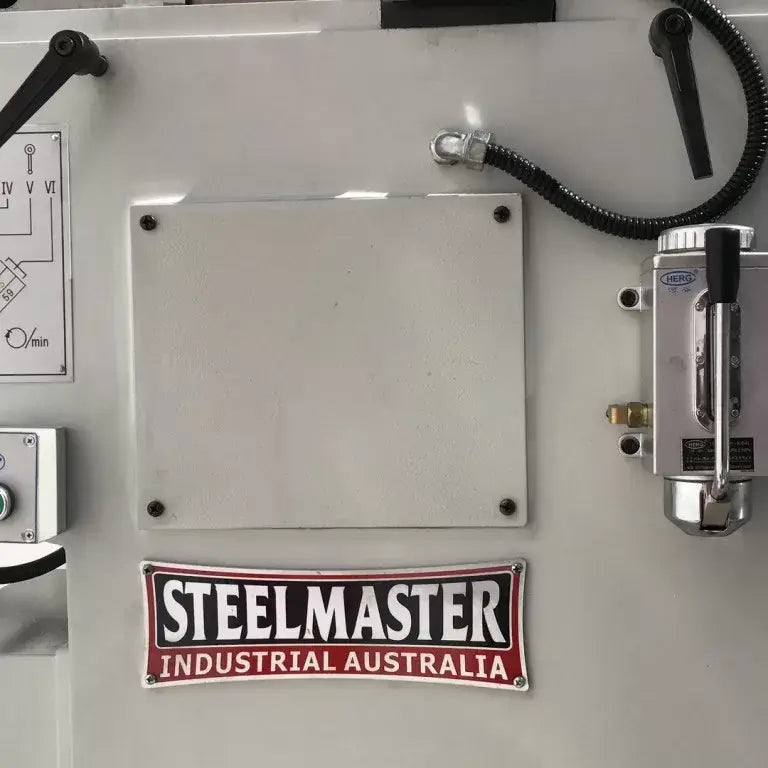

Automatic lubrication system
Suds pump and coolant system

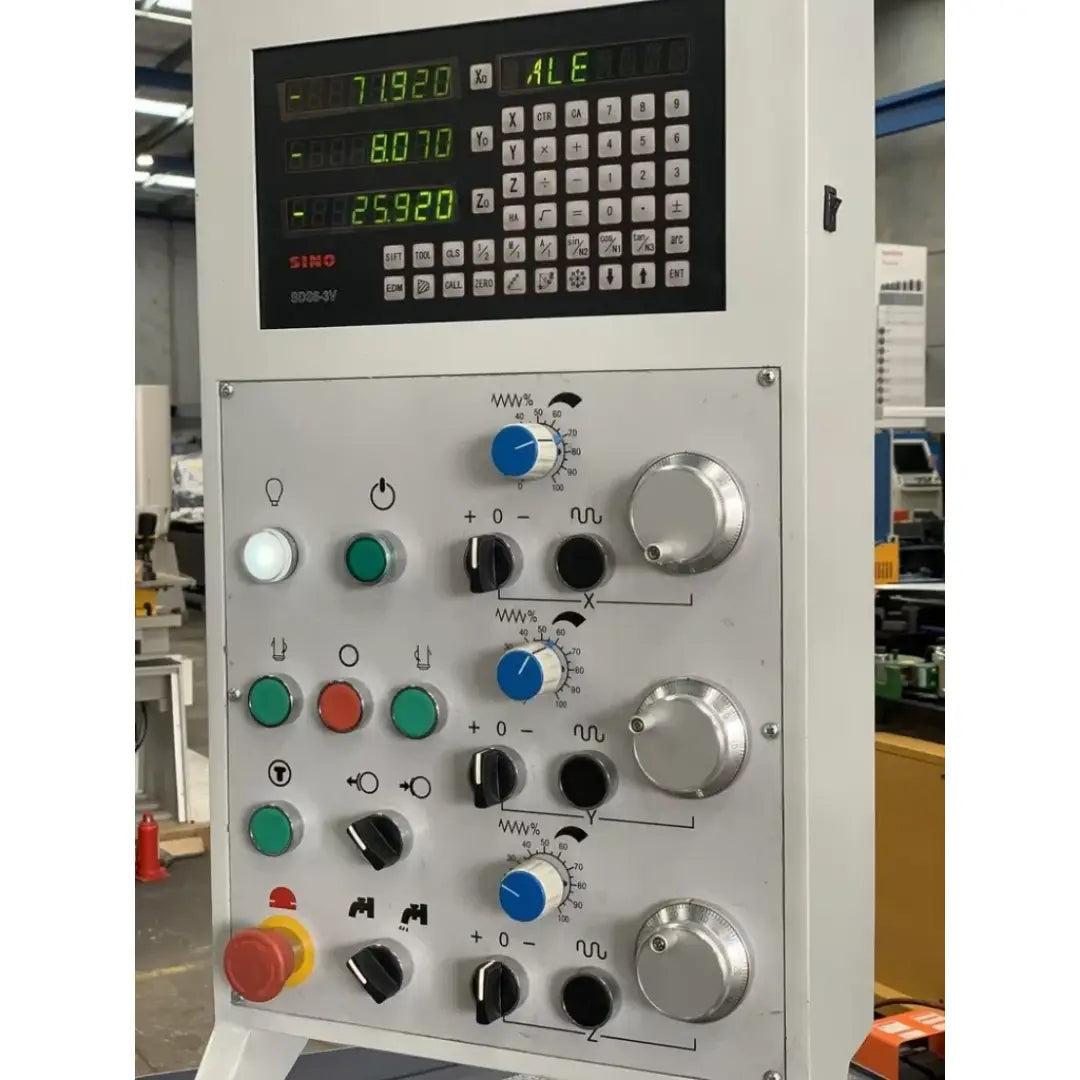

Multifunction 3 axis DRO
Splash guard / chip tray
Tool kit supplied
Operation manual
We also offer these with SIEMENS CNC Controllers

SHIPPING CLASS

P.O.A - 15kg and up

TECHNICAL DATA

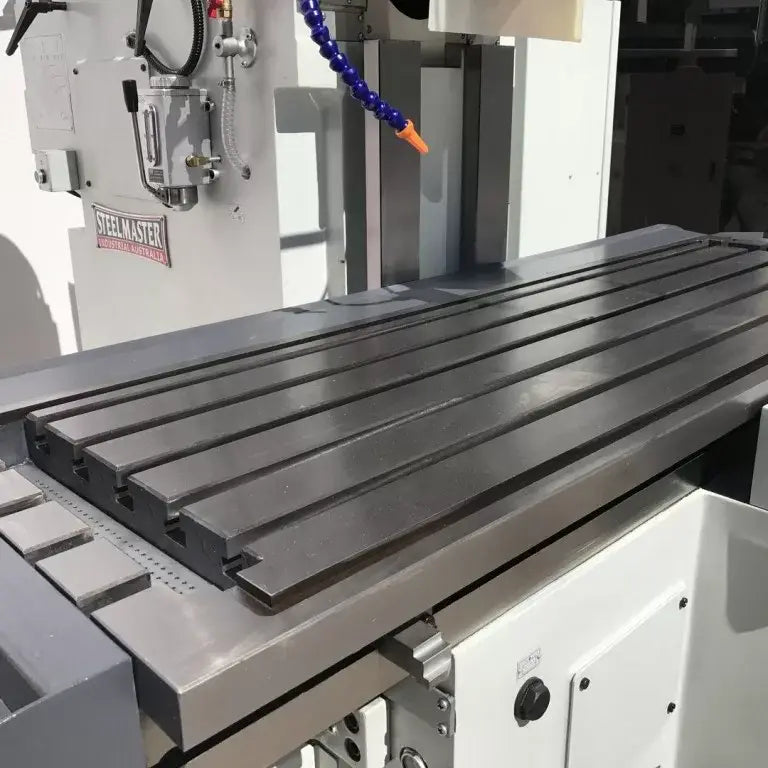

Table size – 2000mm x 500mm
Table travel – 1400mm x 700mm
Distance between T-slot – 80mm
T-slot size – 18mm (5 off)
X / Y / Z travel – 1400mm/ 700mm / 500mm
Head type – universal
Table load – 1800Kg
Universal head spindle fixture – ISO / INT-50
Operating speeds – 30 ~ 2050 (27)
Distance spindle to table –50mm ~ 550mm
Distance spindle to column – 55mm ~ 728mm
Ram traverse travel – 600mm
Motor capacity – 5Kw x 415Volt
Shipping dimensions – 1625mm x 2365mm x 2200mm
Approx weight: 4200kg
