Steelmaster Industrial | SKU: 22-0381

Mandrel Tube Bender, 50mm Capacity, NC PLC Control (Price Upon Request)

Name: Mandrel Tube Bender, 50mm Capacity, NC PLC Control (Price Upon Request)
Brand: Steelmaster Industrial
SKU: 22-0381
Availability: InStock

PRICE EX GST

$0.00

PRICE INC GST

$0.00

MODEL NUMBER: STEELMASTER-SM-KPB-50NC1-MANDREL-TUBE-BENDER

Pickup available at 118 Logis Boulevard

Usually ready in 24 hours

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PICK UP & DELIVERY INFORMATION

PICK UP:
For machineries, pick up is scheduled within 48-72 hours after order confirmation, subject to pre-commissioning.

For tools, parts & accessories, next day pick up is available.

Pick Up location: 118 Logis Boulevard, Dandenong South VIC 3175

DELIVERIES:
For machinery delivery rates, please request a quote or call 1800 511 508.

For Tools, Parts & Accessories, continue to check out.

DESCRIPTION

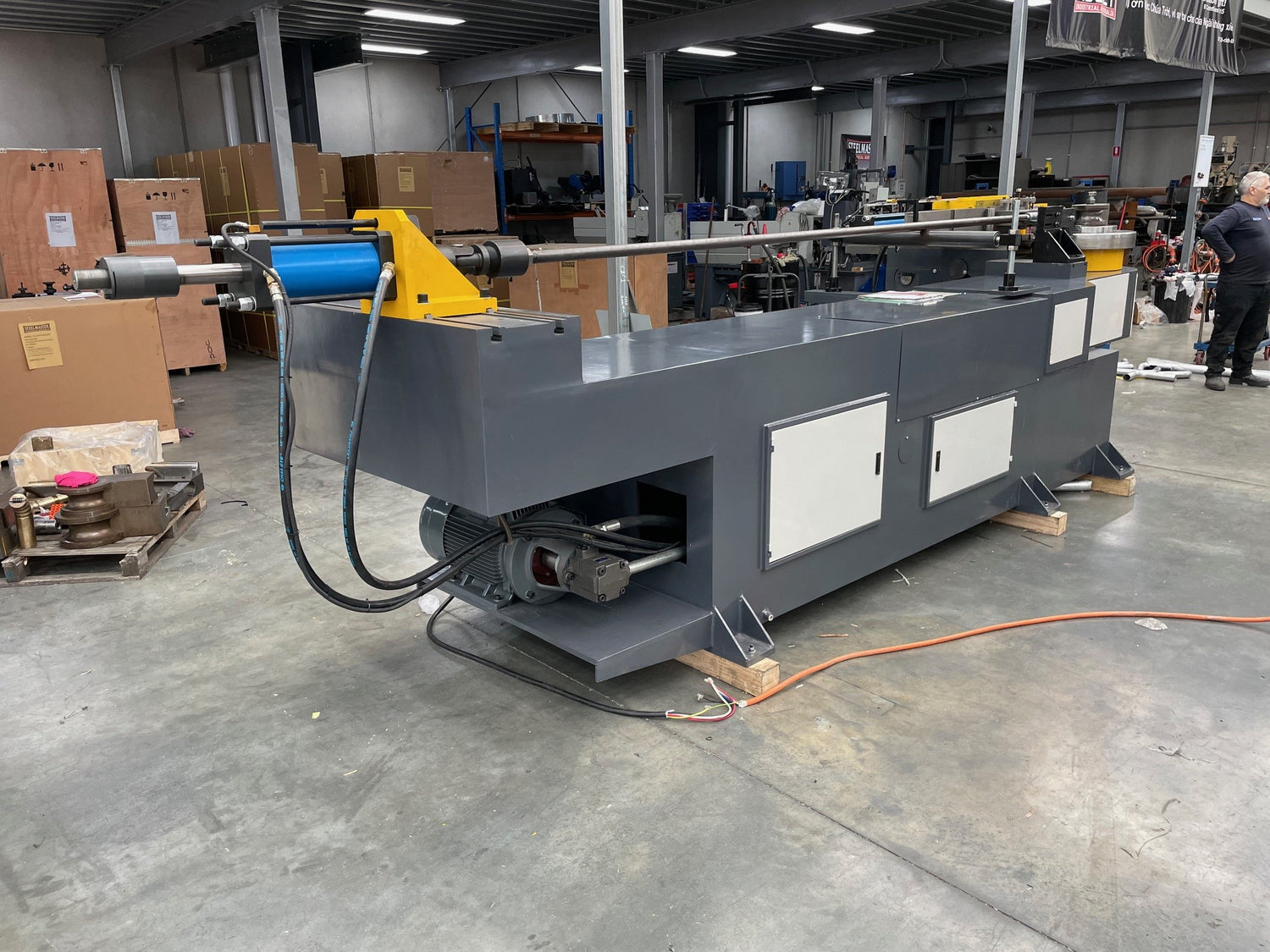

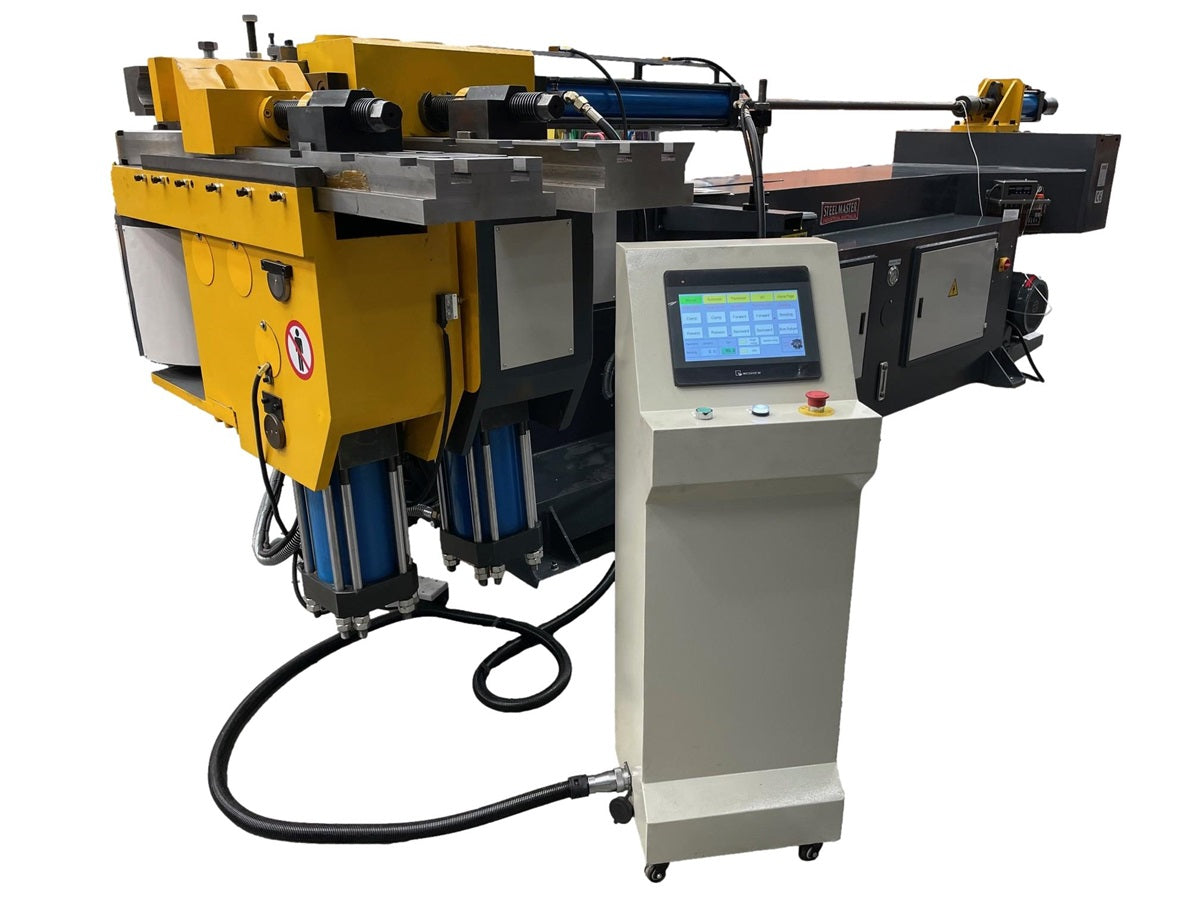

Steelmaster 50mm capacity mandrel tube bender (NC) with a touch screen PLC control.

OPTIONAL ITEMS TO BE ADDED

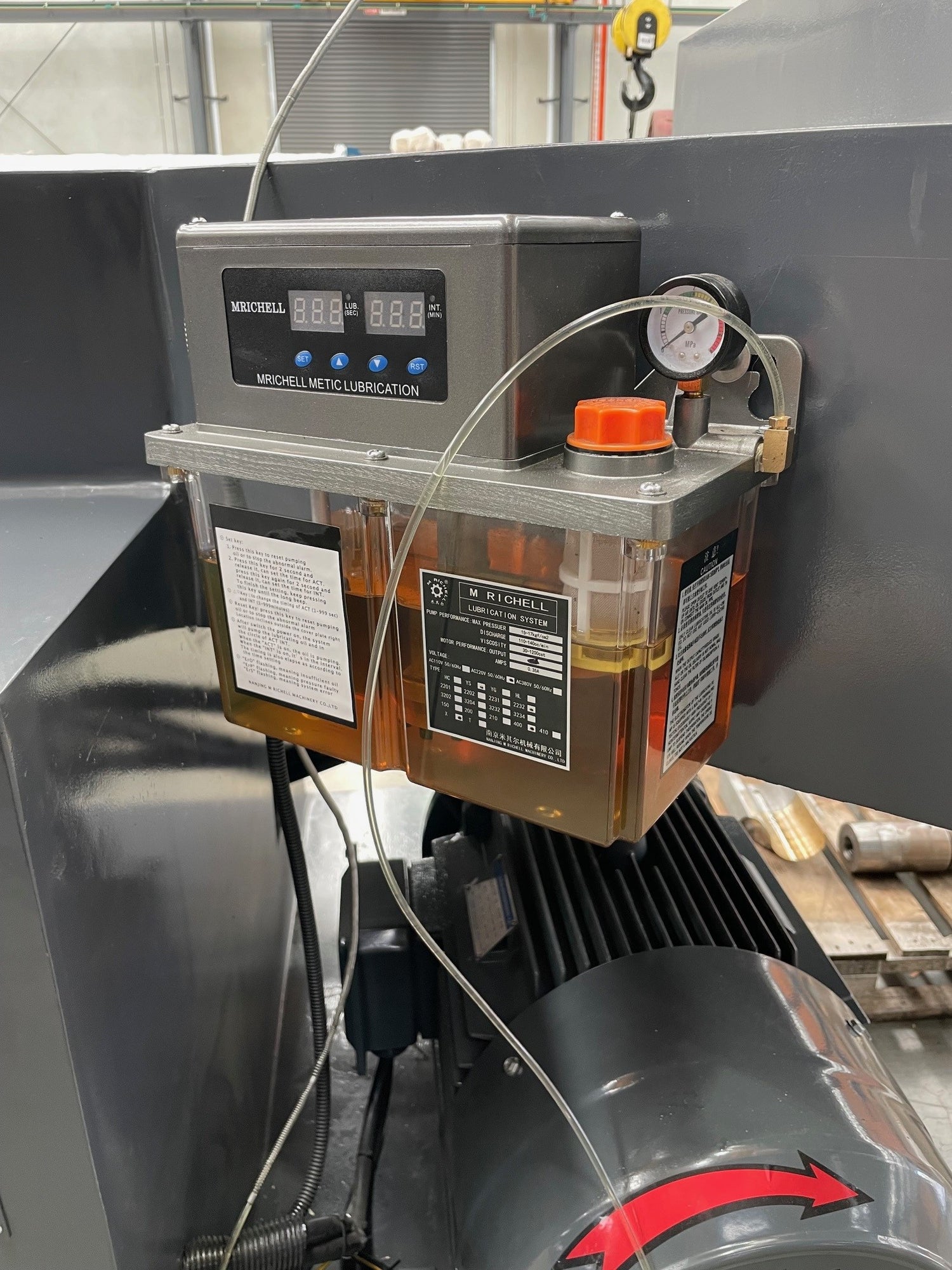

Mandrel tool lubrication system: $2500+GST
22+0565

SHIPPING CLASS

P.O.A - 15kg and up

TECHNICAL DATA

Model: SM-KPB50NC1

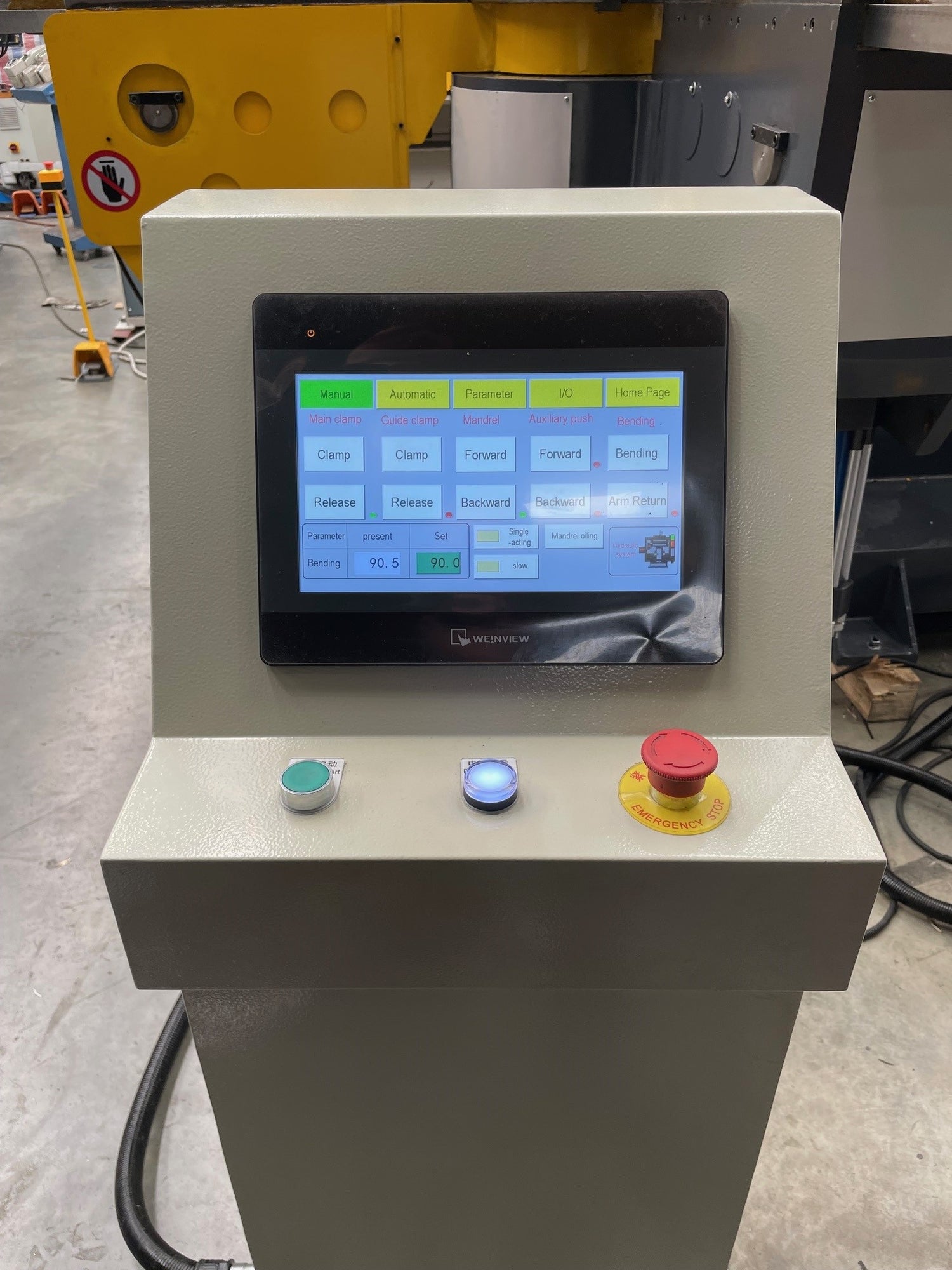

1 Dimensional PLC NC1 Siemens Programmable Controller.
Manual Length & Rotation Setting, NC Angle Bending.
Bending Capacity: 50mm x 3.0mm OD x Wall Thickness (Mild Steel)
Bending Capacity: 50mm x 1.6mm OD x Wall Thickness (Stainless)
Bending Capacity: 40mm x 2.5mm Square Pipe (Mild Steel)
Bending Radius Range: 30mm ~ 280mm
Bending Angle Range: 0 ~ 190 Degrees.

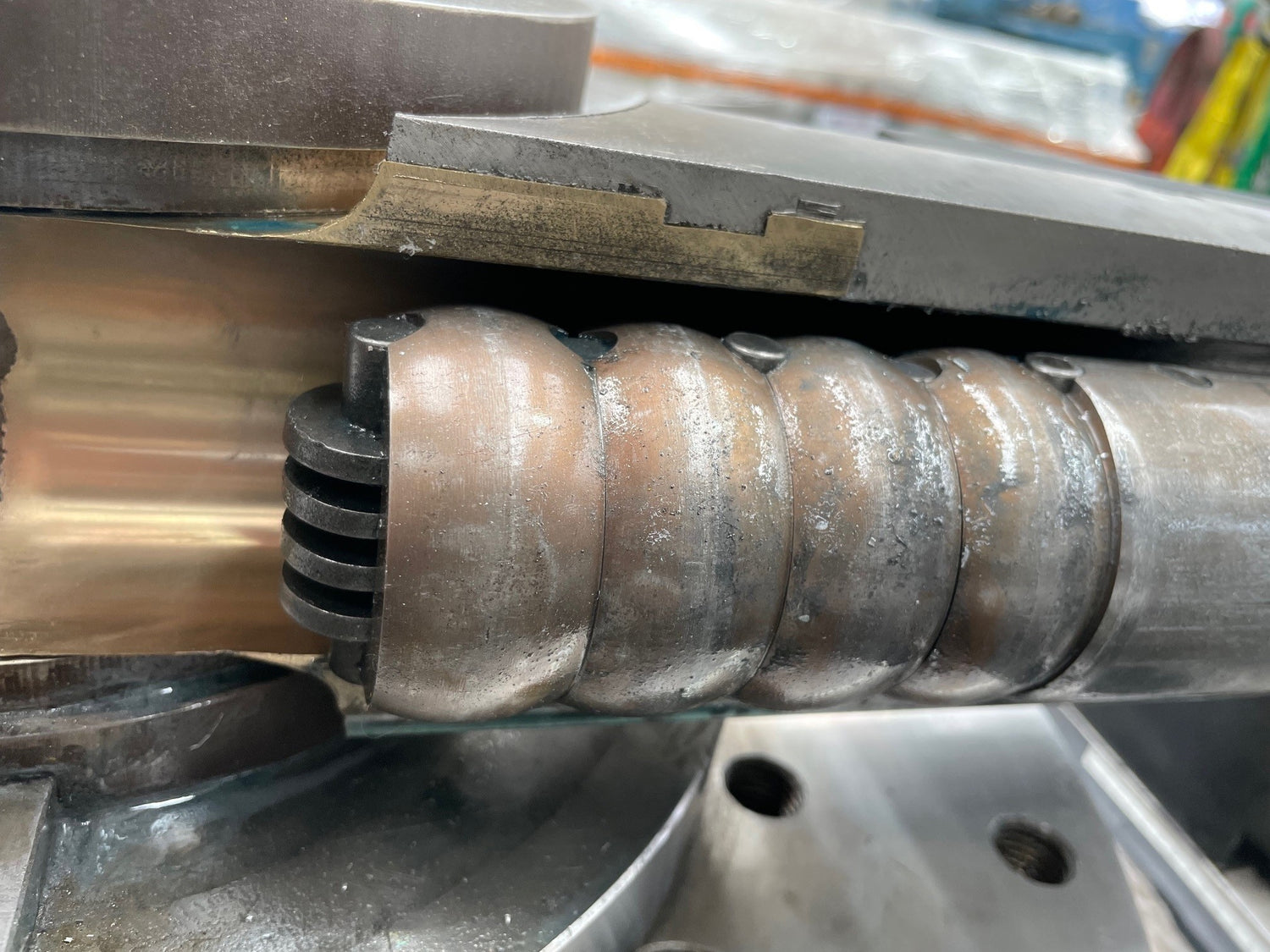

Effective Mandrel Length: 2300mm (Longer On Request)
Bending Speed: 25 degrees / second
Max. Pressure: 17.5 Mpa
Hydraulic Tank Capacity: 190 Litres
Motor capacity: 7.5Kw – 415Volt
Machine Dimensions: 3000mm x 1050mm x 1260mm
Machine Weight: 1500Kg
One Full Set Tooling Supplied With Each Machine
