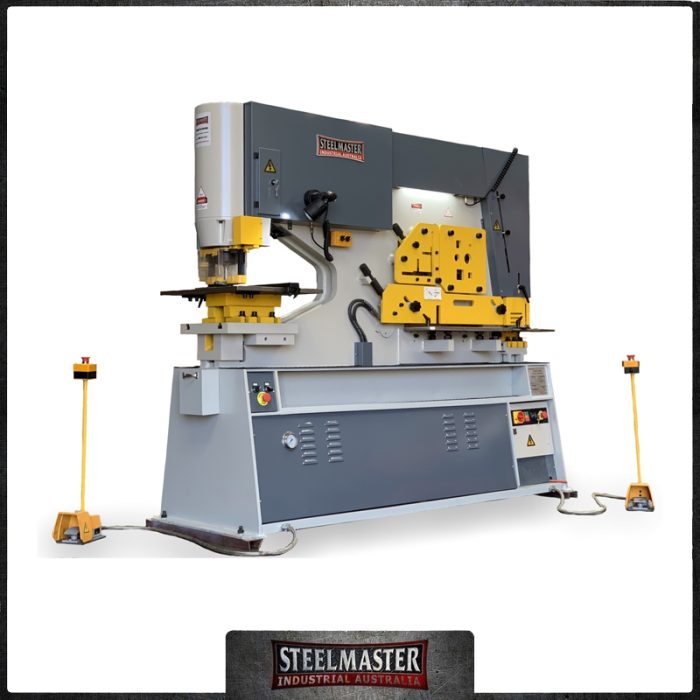

MULTI 60. Punch & Shear. Steelmaster 60Ton Hydraulic Double Cylinder, Punch, Shear. Crop & Notch

Original price was: $18,850.00.Current price is: $17,850.00.




MULTI 60. Punch & Shear. Steelmaster 60Ton Hydraulic Double Cylinder, Punch, Shear. Crop & Notch

This true Industrial strength Ironworker is your perfect partner in metalworking fabrication.
If you fabricate with steel, you’ll want one of these Punch & Shears working for you.
With five independent stations for punching, flat bar shearing, notching, angle cutting and section cutting, you’ll appreciate the convenience and labour savings over traditional methods.

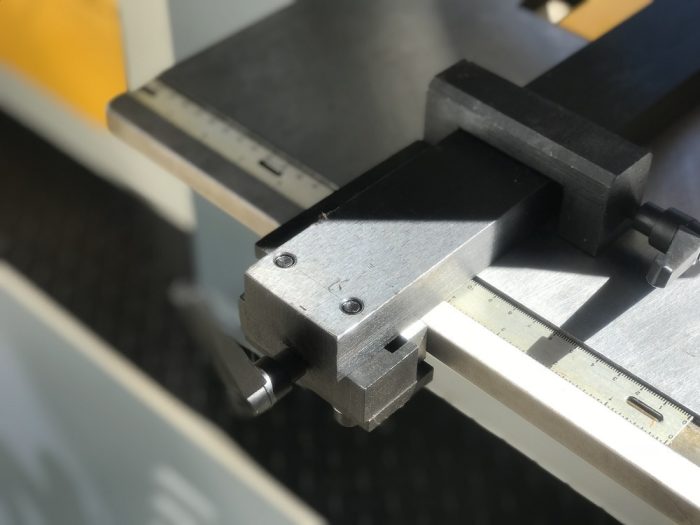

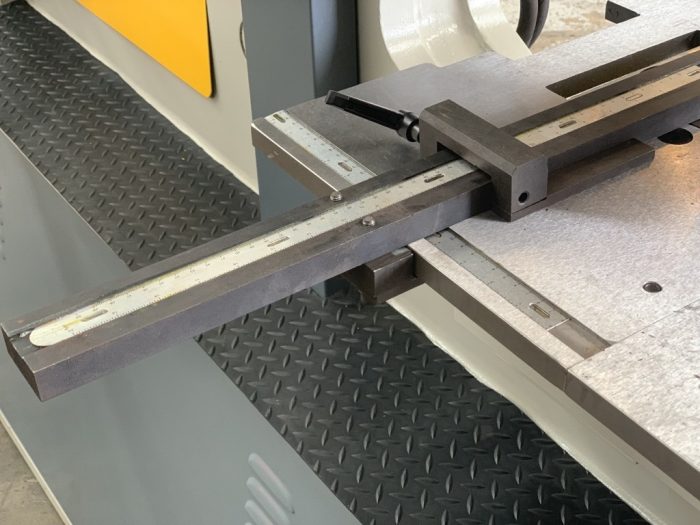

A work auto cut length stop is included for cutting uniform parts to length and a safety foot pedal makes operation extremely easy. Six sets standard Kingsland round punch and dies included.

❚ double cylinder hydraulic punch & shear machine

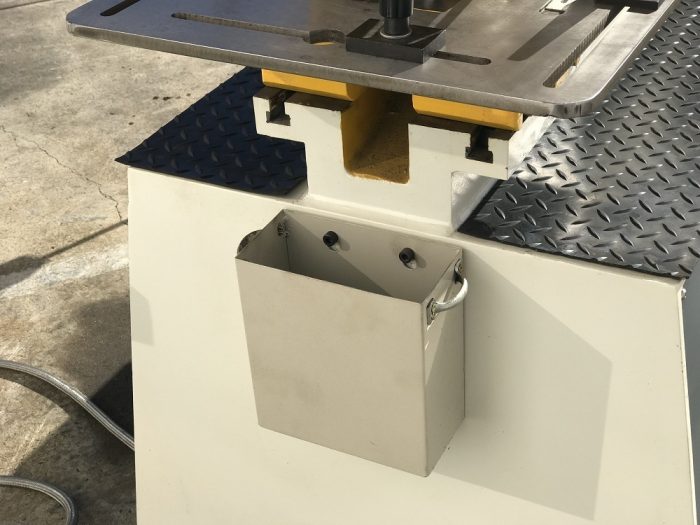

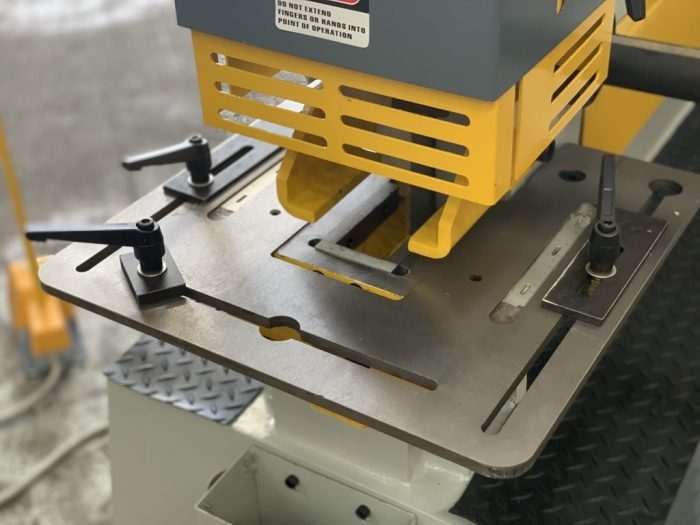

❚ large punch table with multi-purpose bolster, removable table block for overhang channel / joist flange punching applications
❚ quick action tool change system

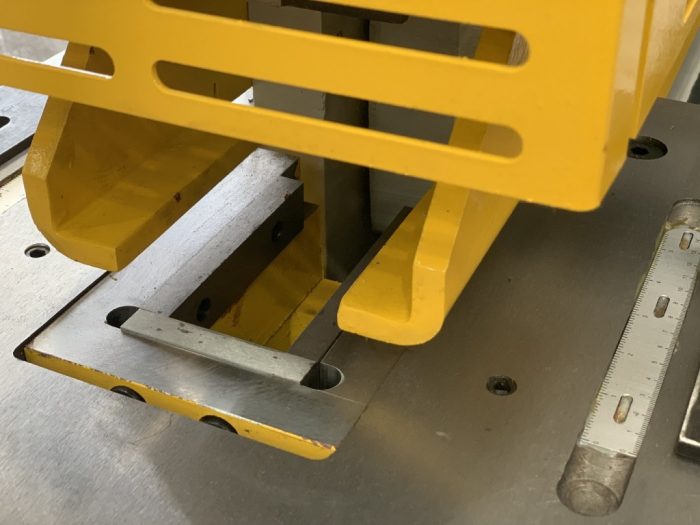

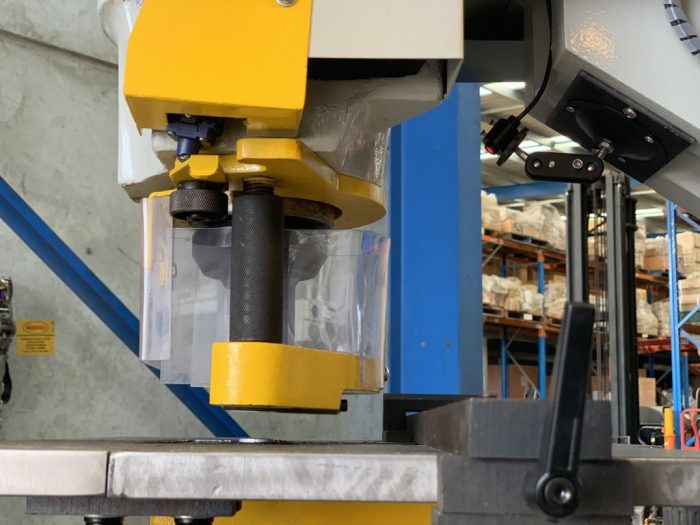

❚ swing-away punch-stripper unit

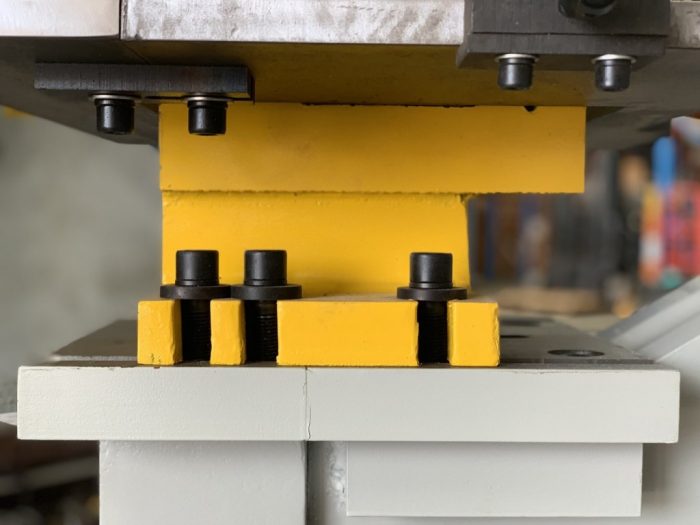

❚ two universal bottom die holders included

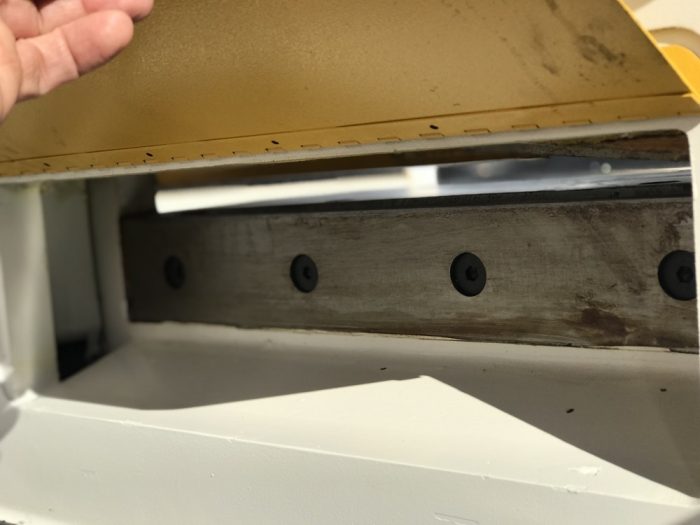

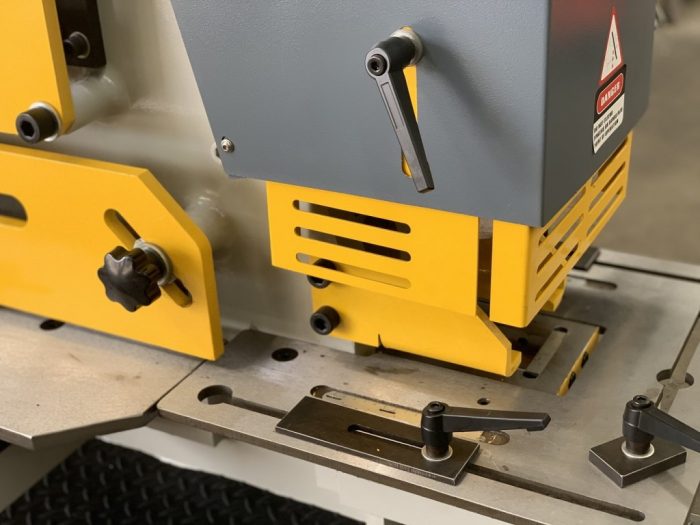

❚ hydraulic clamp assist flat plate shearing station with square & angle guides
❚ angle cropping station
❚ solid round and square cropping station
❚ rear notching station

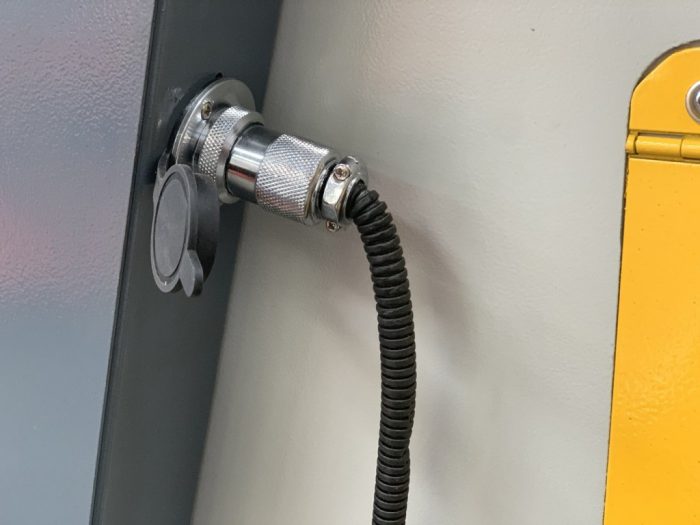

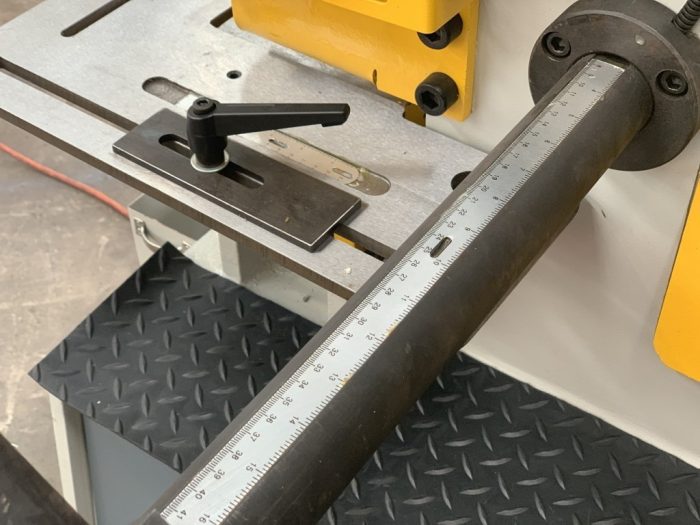

❚ 1000mm electric touch and cut feature
❚ 6 sets of standard Kingsland type punch and die tooling included
❚ low power inching and adjustable stroke at punch station
❚ overload relief on the hydraulic system
❚ roving foot pedal operation
❚ emergency stops
❚ machine manual
❚ service toolkit
❚ hydraulic oil supplied
❚CE compliant

Technical Data Snap-Shot
❚60Ton Dual Cylinder Capacity
❚25mm hole in 16mm plate (optional 52mm x 9mm)
❚80mm stroke length
❚980mm working height
❚295mm deep punch throat depth –
❚250mm x 16mm flat plate shear / also 400mm x 8mm
❚120mm x 120mm x 12mm angle crop also 70mm x 8mm at 45 degrees.
❚45mm Round & 40mm x 40mm Square Cropping Station
❚100mm x 57mm x 10mm rear notch
❚shipping dimensions – 1650mm x 800mm x 1780mm
❚weight – 1800Kg
❚power – 415V 4Kw

Accessories Included

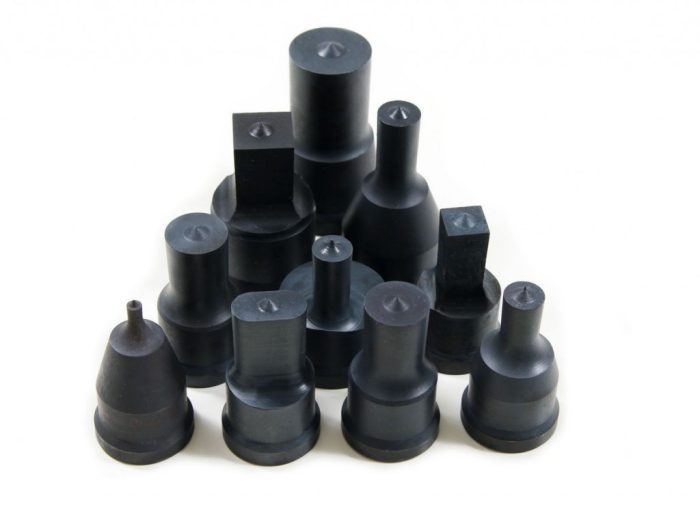

❚6 sets round punch & die / short series punches (9001)
❚9001 Series Top Tooling – 12mm, 14mm, 16nmm, 18mm, 20mm, 22mm
❚9023 Series Bottom Tooling – 12.7mm, 14.7mm, 16.7nmm, 18.7mm, 20.7mm, 22.7mm
❚Quick release punch station with 3 x stripper inserts supplied.
❚We carry these in stock 3mm ~ 34mm in 0.5mm increments
❚electric touch & cut feature
❚toolbox & manual

Recommended Add On Accessories
❚16+0134 – 20 piece Tooling Kit 9001 Punches / 9023 Dies = 8, 10, 12, 14 , 16, 18, 20, 22, 24 & 26m
❚16+0074 – Swan Neck Bolster to Suit 70/90/120 Range
❚16+0079 – Louvre Punch Bolster to Suit 70/90/120 Range
❚15+0290 – Roller Stands.52mm x 400mm Adjustable Height. 650 – 1080 High 200kg load capacity
❚15+0291 – Roller Stands. Heavy Duty 52mm x 125mm V – Type Adjustable Height 580 – 970 high 200kg capacity
❚15+0057 – Gravity Roller Conveyor Kit. 360mm x 3000mm. Complete with Adjustable Height Legs
❚Full Range, Round Punch & Dies in Stock from 3mm ~ 34mm in 0.5mm Increments also Slotted, Square, Offset & Many More
❚15+0183 – XDP 905 Performance Cutting, Punching, Tapping Spray – Improves Tool Life 5 Times
