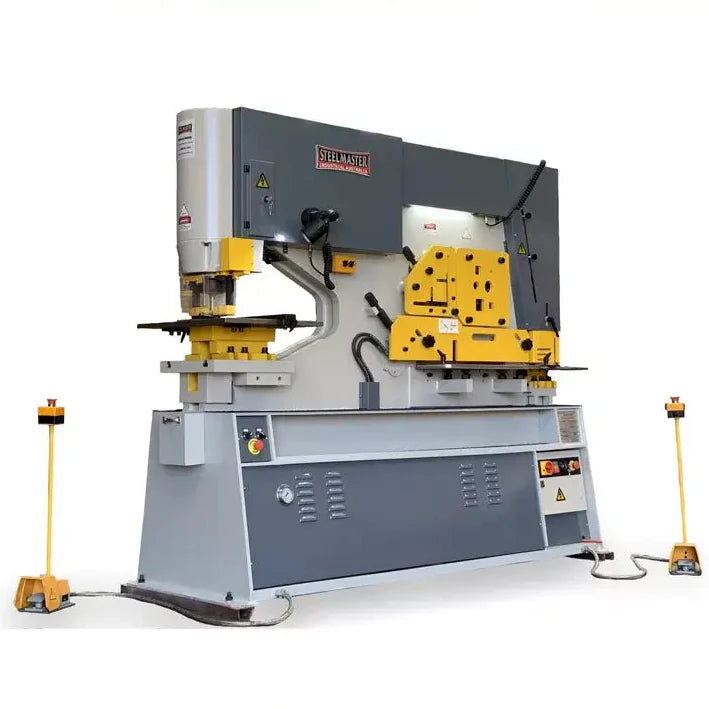

MULTI 60. Punch & Shear. Steelmaster 60Ton Hydraulic Double Cylinder, Punch, Shear. Crop & Notch

6 sets round punch & die / short series punches (9001)
9001 Series Top Tooling – 12mm, 14mm, 16nmm, 18mm, 20mm, 22mm
9023 Series Bottom Tooling – 12.7mm, 14.7mm, 16.7nmm, 18.7mm, 20.7mm, 22.7mm
Quick release punch station with 3 x stripper inserts supplied.
We carry these in stock 3mm ~ 34mm in 0.5mm increments

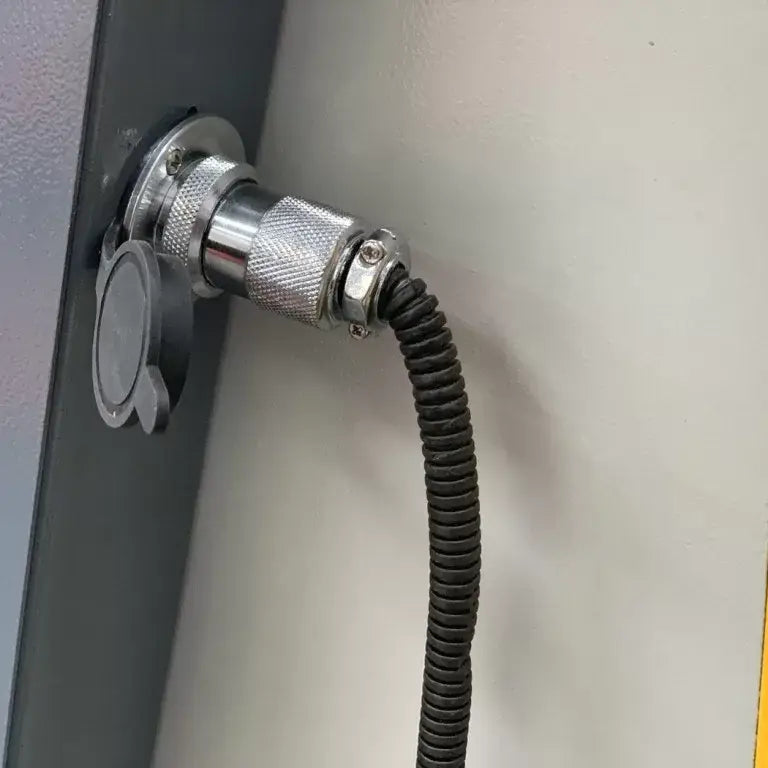

Electric touch & cut feature
Toolbox & manual

N/A

80mm

Double cylinder hydraulic punch & shear machine
Hydraulic flat plate shear clamping now standard

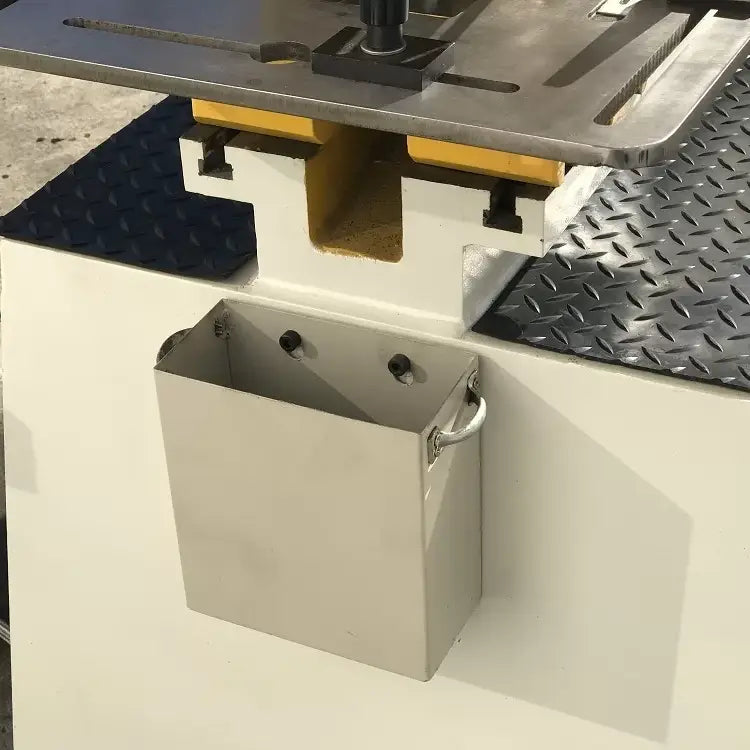

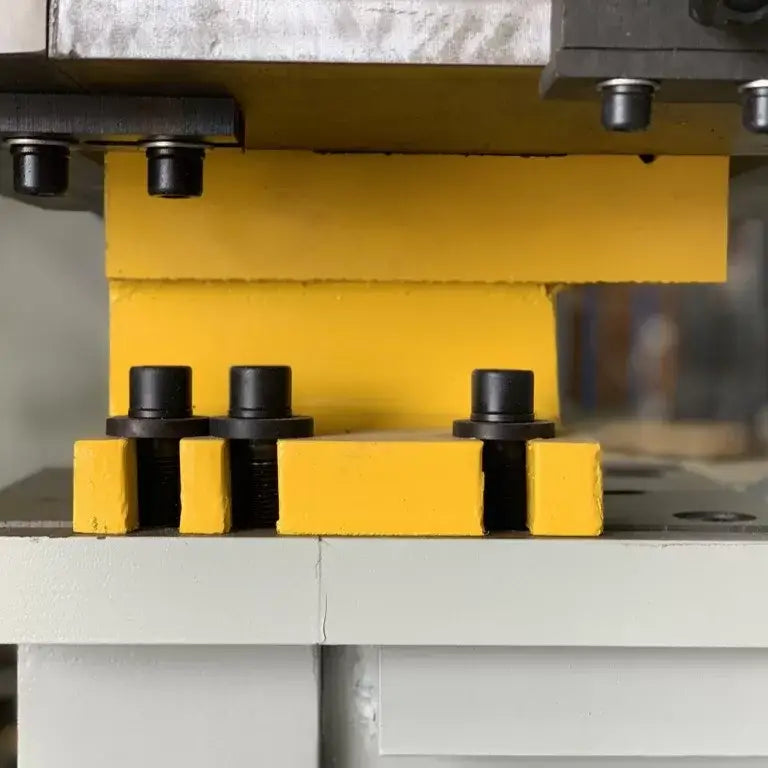

Large punch table with multi-purpose bolster, removable table block for overhang channel / joist flange punching applications

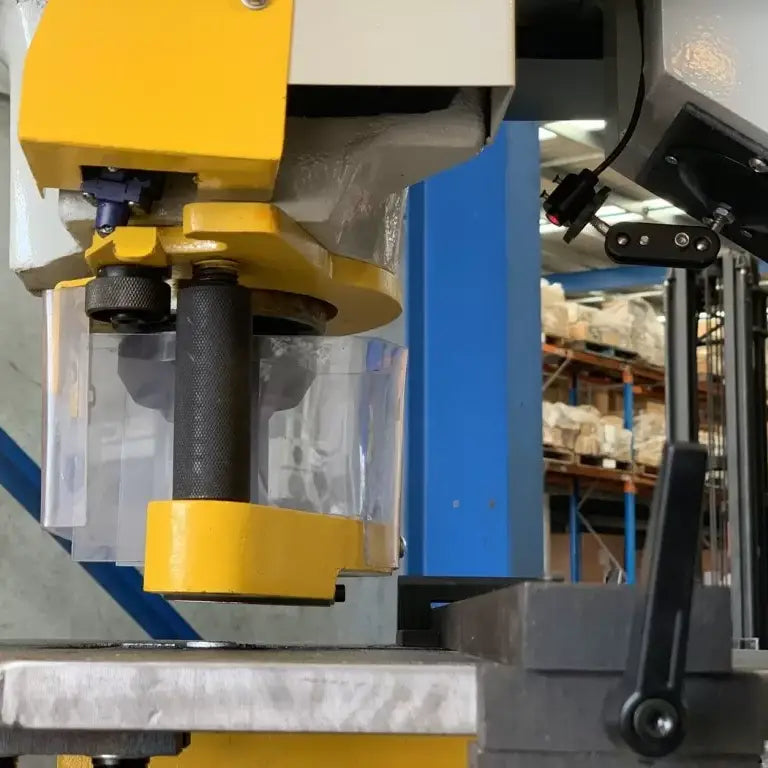

Swing-away punch-stripper unit
Two universal bottom die holders included

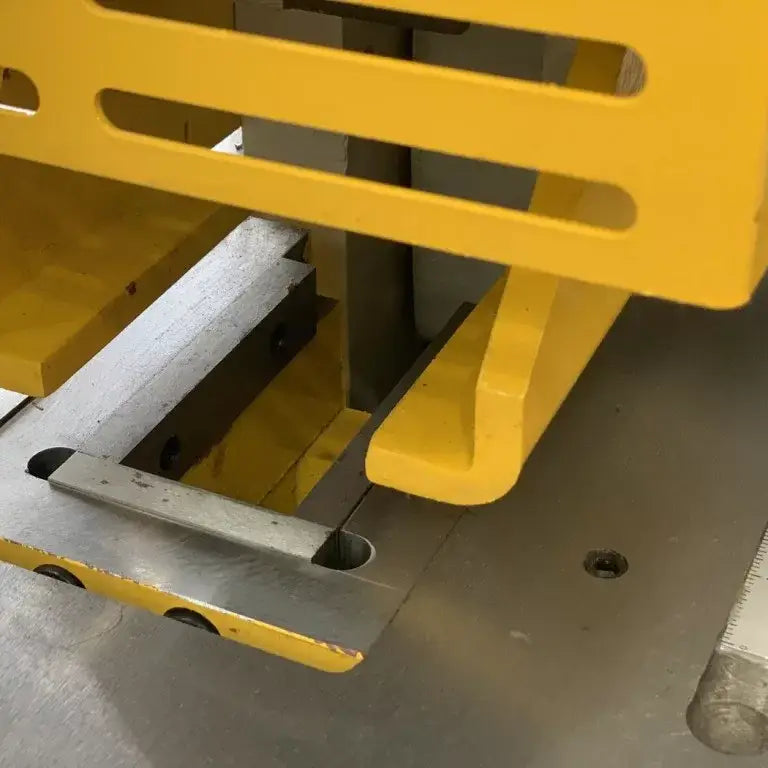

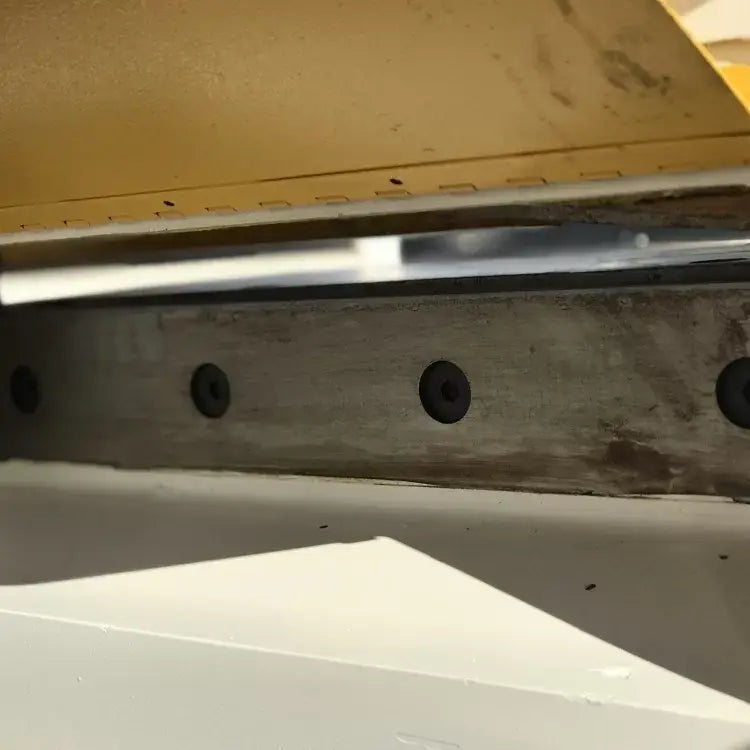

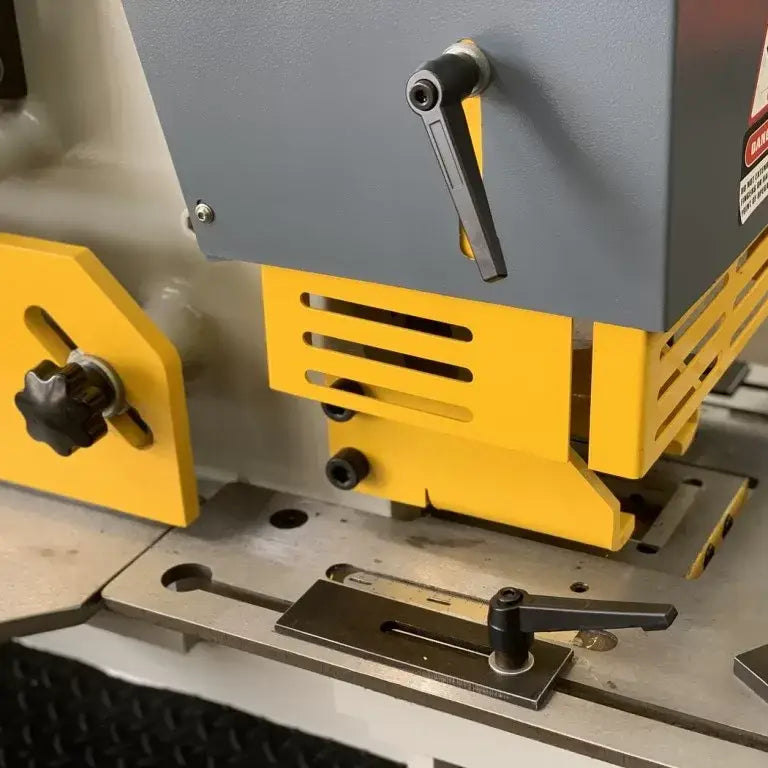

Hydraulic clamp assist flat plate shearing station with square & angle guides
Angle cropping station
Round and square solid cropping station
Rear notching station

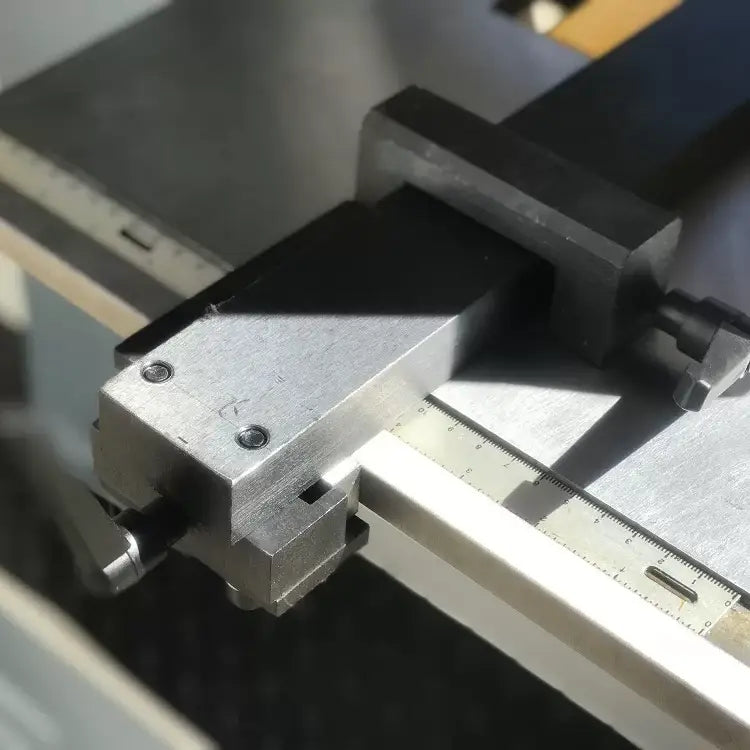

1000mm electric touch and cut feature
Pressbrake bending attachment supplied
10 sets of standard Kingsland type punch and die tooling included
Low power inching and adjustable stroke at punch station
Overload relief on the hydraulic system

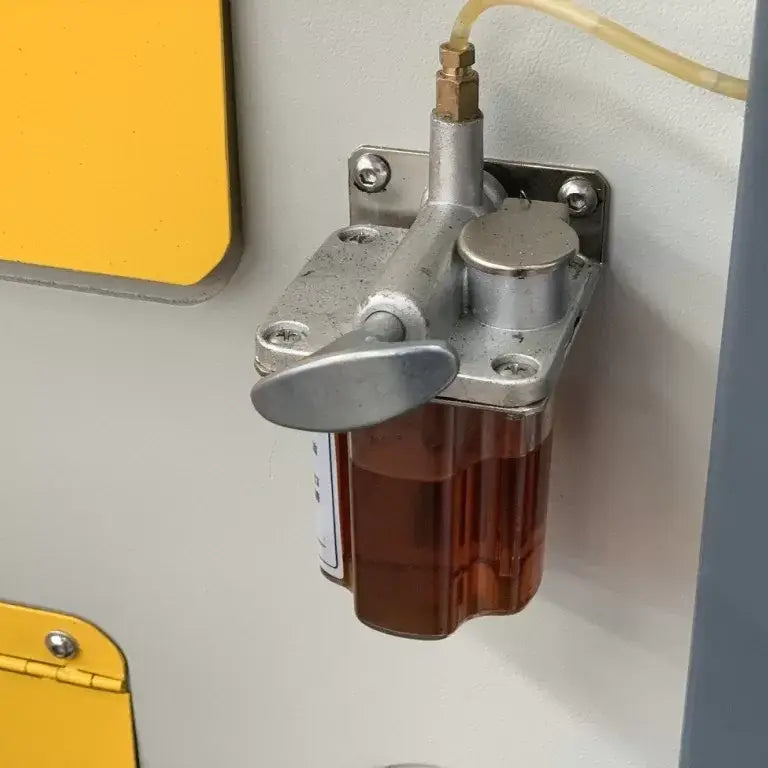

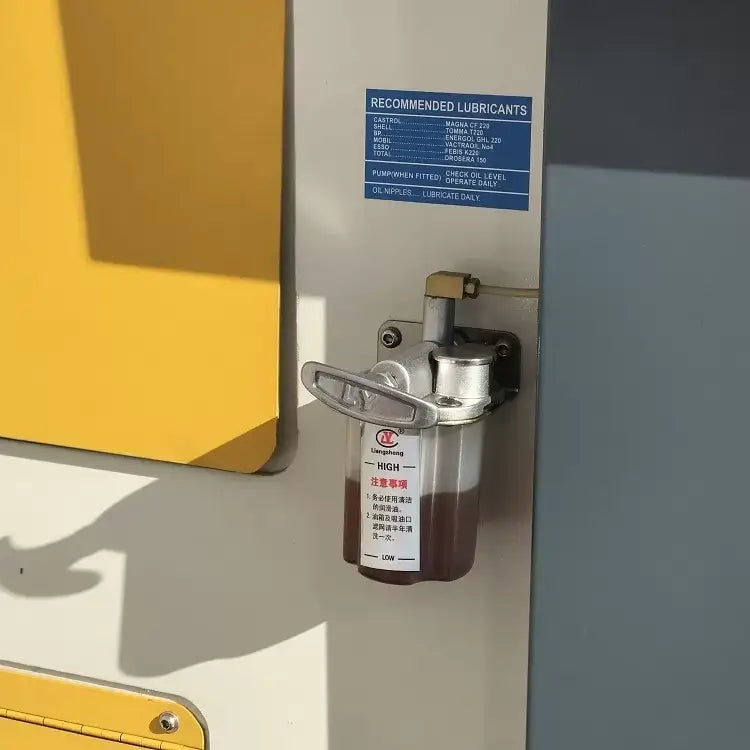

Centralised pressure lubrication system
Roving foot pedal operation
Emergency stops
Machine manual
Service toolkit
Hydraulic oil supplied
CE compliantTechnical Data Snap-Shot"

16+0134 – 20 piece Tooling Kit 9001 Punches / 9023 Dies = 8, 10, 12, 14 , 16, 18, 20, 22, 24 & 26m
16+0074 – Swan Neck Bolster to Suit 70/90/120 Range
16+0079 – Louvre Punch Bolster to Suit 70/90/120 Range
15+0290 – Roller Stands.52mm x 400mm Adjustable Height. 650 – 1080 High 200kg load capacity
15+0291 – Roller Stands. Heavy Duty 52mm x 125mm V – Type Adjustable Height 580 – 970 high 200kg capacity
15+0057 – Gravity Roller Conveyor Kit. 360mm x 3000mm. Complete with Adjustable Height Legs

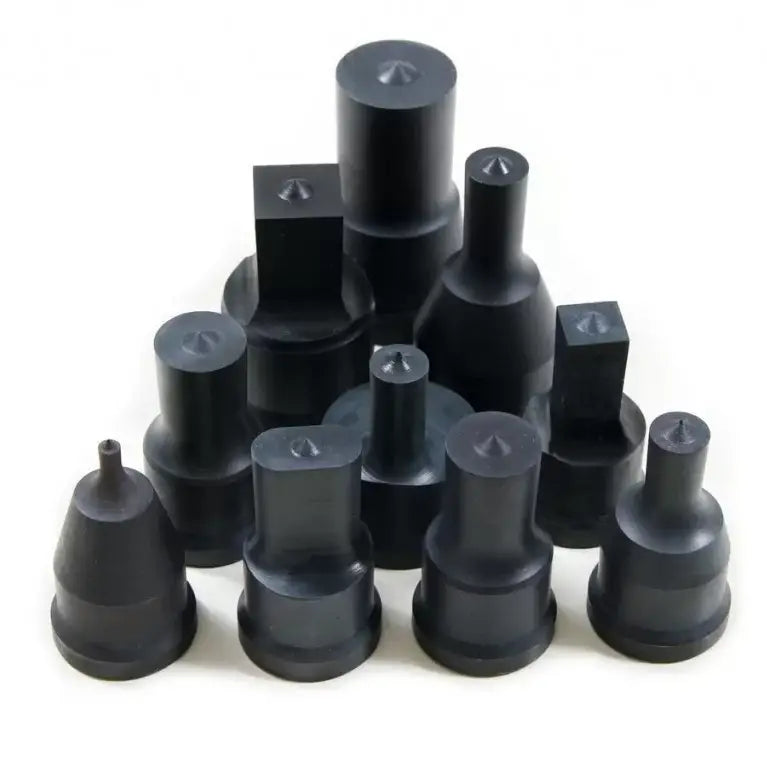

Full Range, Round Punch & Dies in Stock from 3mm ~ 34mm in 0.5mm Increments also Slotted, Square, Offset & Many More
15+0183 – XDP 905 Performance Cutting, Punching, Tapping Spray – Improves Tool Life 5 Times

P.O.A - 15kg and up

60Ton Dual Cylinder Capacity
25mm hole in 16mm plate (optional 52mm x 9mm)
80mm stroke length
980mm working height
295mm deep punch throat depth –
250mm x 16mm flat plate shear / also 400mm x 8mm
120mm x 120mm x 12mm angle crop also 70mm x 8mm at 45 degrees.
45mm Round & 40mm x 40mm Square Cropping Station
100mm x 57mm x 10mm rear notch
Shipping dimensions – 1650mm x 800mm x 1780mm
Weight – 1800Kg
Power – 415V 4Kw
