SM-HDB64D Tube & Pipe Bender. STEELMASTER Industrial. 50.8mm (2”) Pipe Capacity, 64mm Tube Capacity

SM-HDB64D Tube & Pipe Bender. STEELMASTER Industrial. 50.8mm (2”) Pipe Capacity, 64mm Tube Capacity

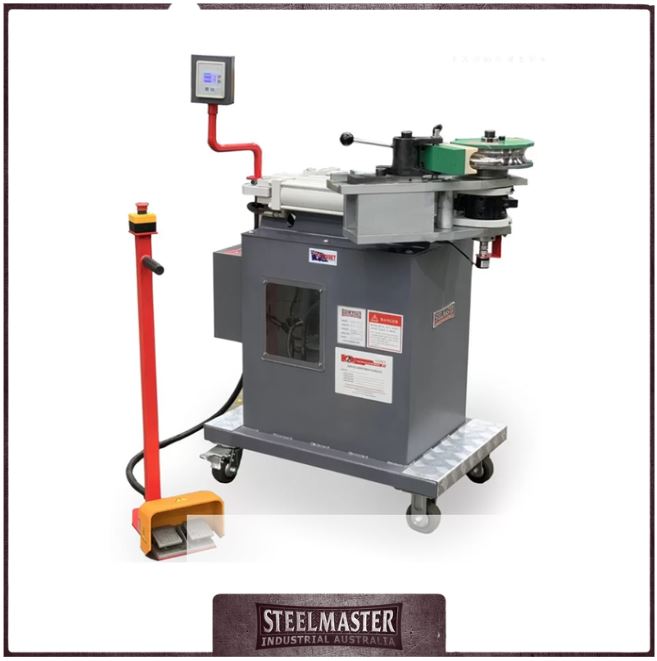

The SM-HDB-64 tube bender from STEELMASTER Industrial marks a breakthrough in bending technology. This easy to use hydraulic tube bender has an incredible capacity of 50.8mm
Schedule 40 pipe and up to 60.3mm tubing with a wall thickness of 3.0mm mild steel. The SM-HDB-64 makes quick work of round tube, pipe, and square tubing.
Easy to read digital degree indicator with auto stop programming is standard on the SM-HDB-64, gone are the days of guessing at the degree of bend.
The SM-HDB-64 uses a foot pedal to control the movements of the bender, leaving the operators hands free to control the material.

Features
❚Auto digital operated stop for bend repeatability included.
❚Ratchet counter die positioned.
❚14 seconds to 180 degrees
❚Foot pedal operation
❚Bends 180 degrees in one shot
❚Uses standard Baileigh drop on die sets for fast tooling changes
❚Replaceable bronze bushings at all pivot points with grease nipples.
❚Digital Angle Display
❚One set standard round tooling upto 50mm Included in price (Square & Over 50mm Round Additional Charges)

Technical Features
❚Mild Steel Round Tube – 60mm x 3mm
❚50NB Pipe – 60.3mm x 2.9mm wall (max)
❚Aluminium Round Tube – 64mm x 4mm
❚Stainless Round Tube – 50.8mm x 3mm
❚Chromalloy Round Tube – 50mm x 3mm
❚Mild Steel Solid Rod – 32mm
❚Mild Steel Square Tube – 50mm x 3mm
❚Maximum Speed To 180 Degrees – 12 seconds
❚Maximum Centre Line Radius – 229mm
❚Minimum Centre Line Radius – 13mm
❚One set standard round tooling upto 50mm Included in price (Square & Over 50mm Round Additional Charges)
❚Power – 240Volt – 1 Phase
❚Weight – 286Kg
❚Dimensions – 1118mm x 711mm x 1067mm (H)
❚Crate Dimensions – 1120mm x 770mm x 1180mm (H) x 300Kg
