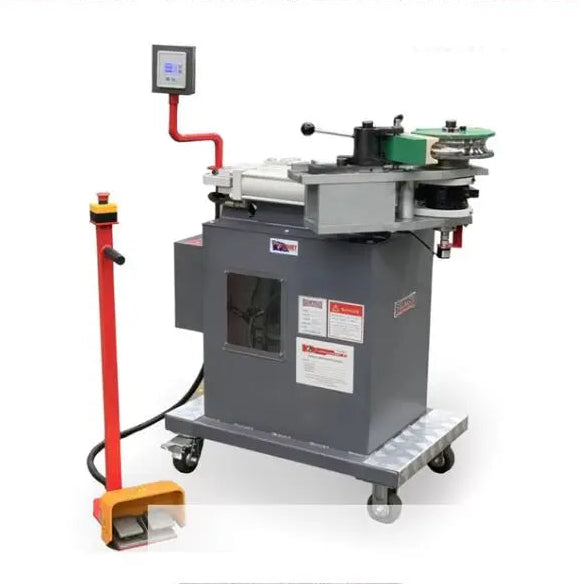

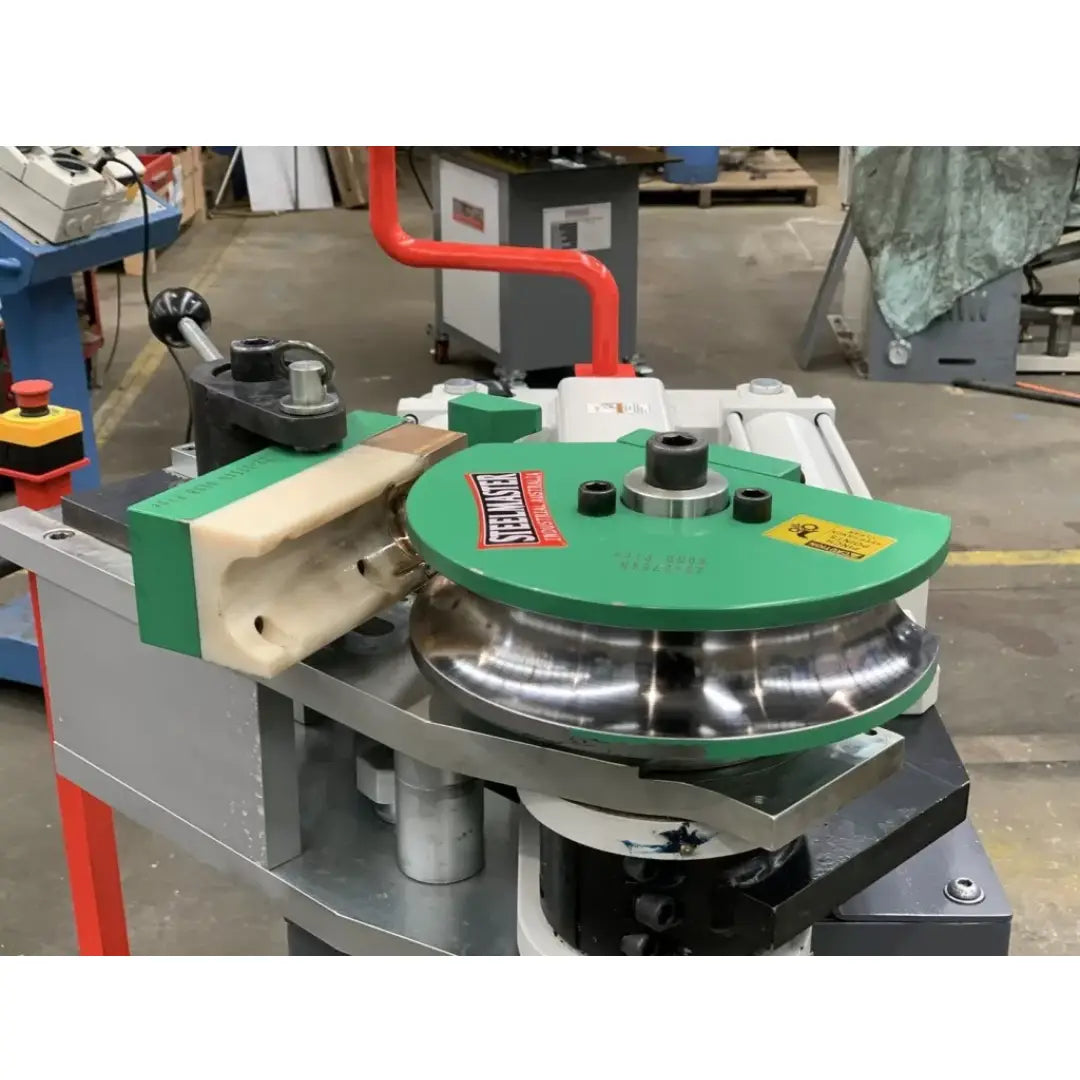

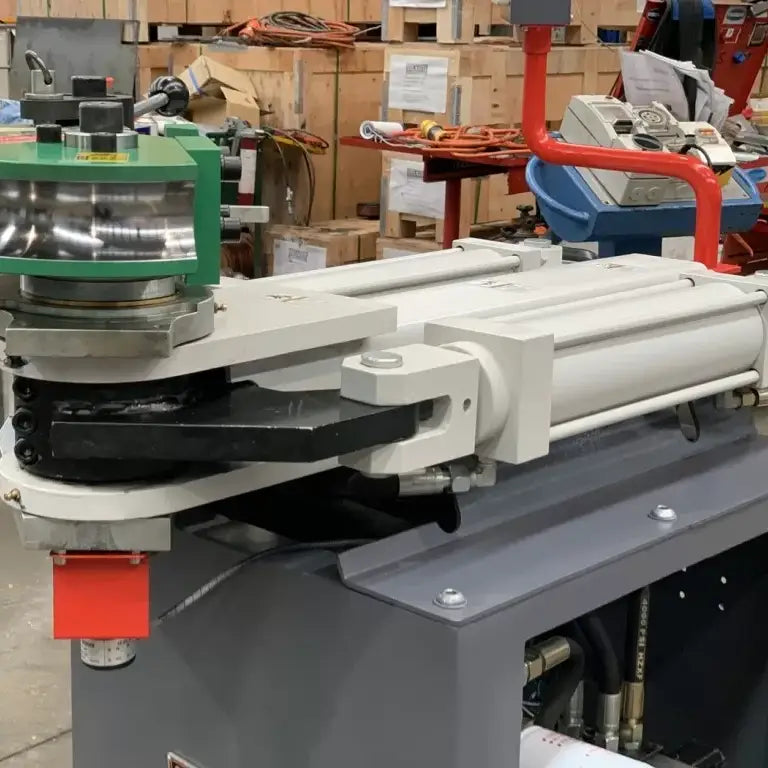

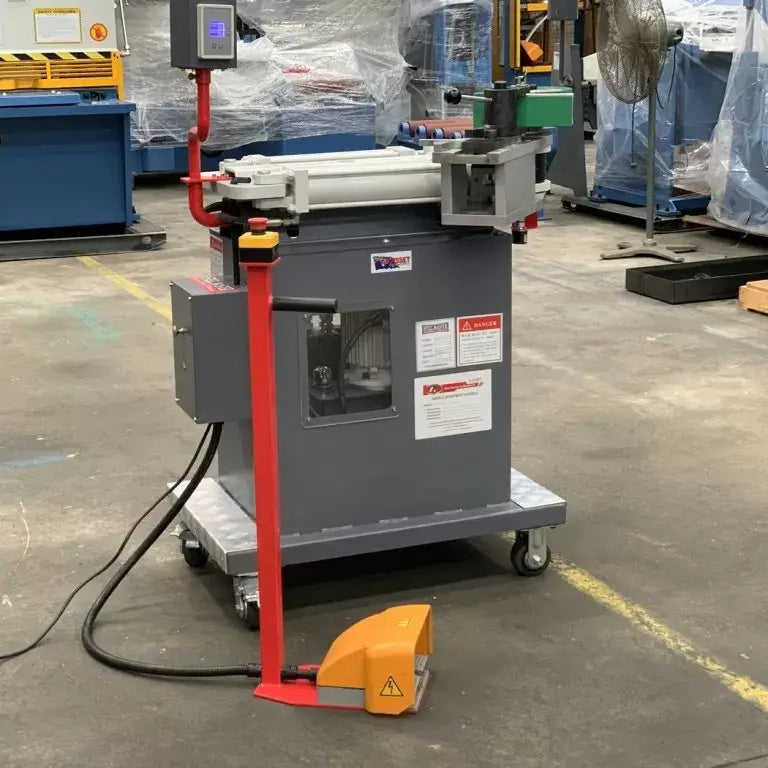

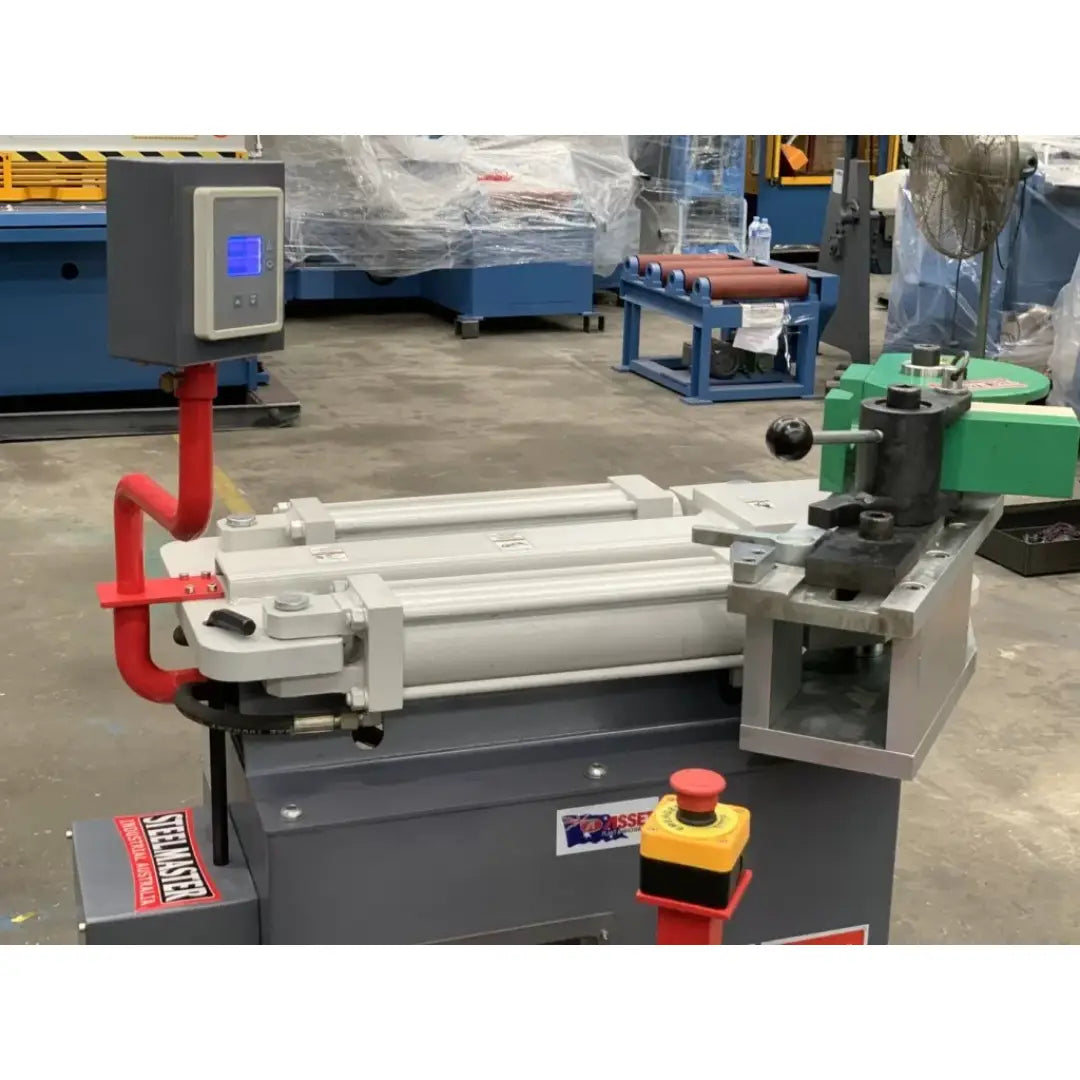

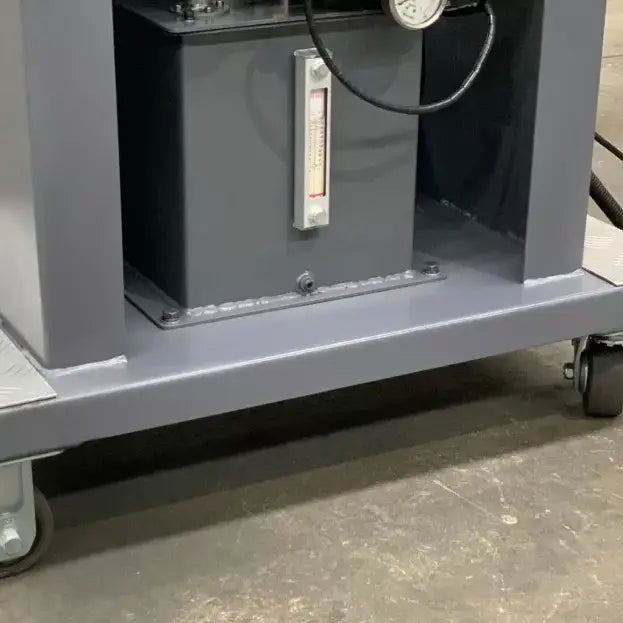

Industrial Tube & Pipe Bender, 50.8mm Pipe / 64mm Tube Capacity

Auto digital operated stop for bend repeatability included.

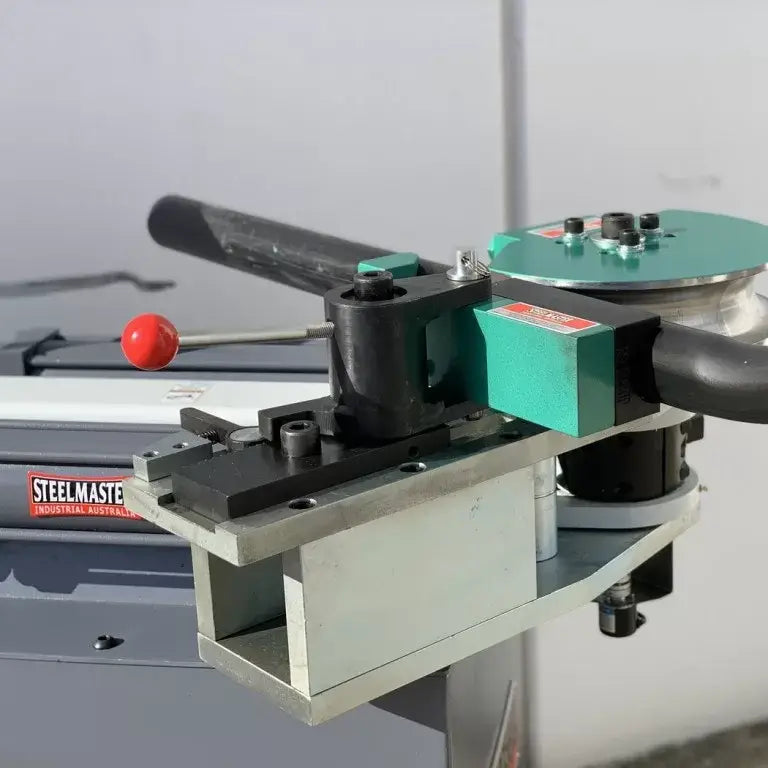

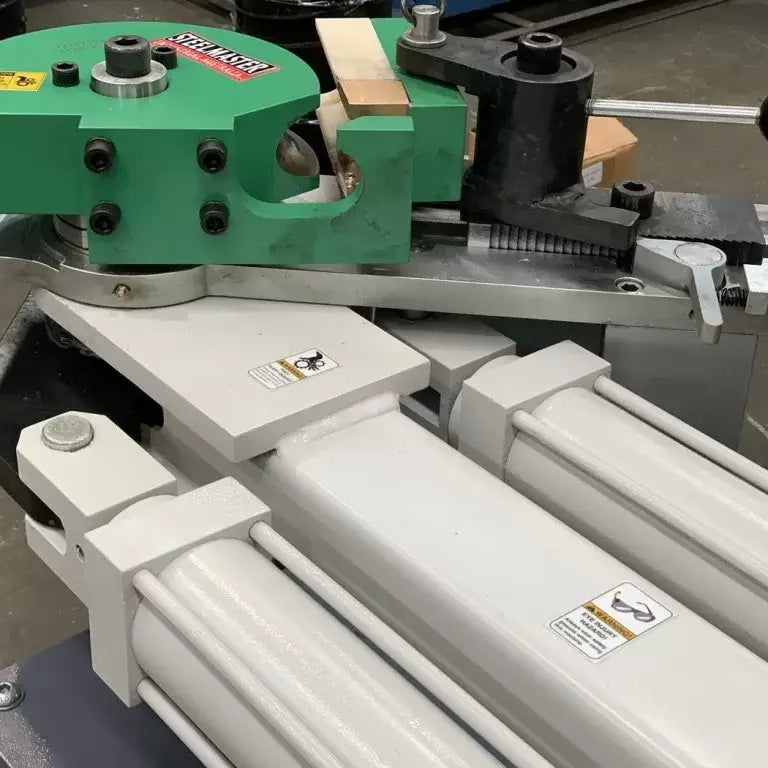

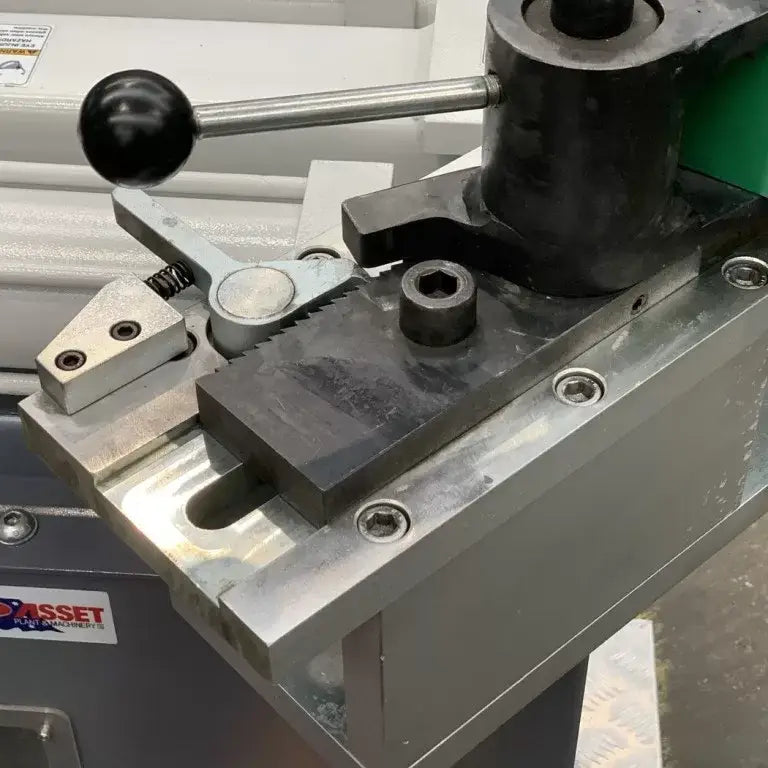

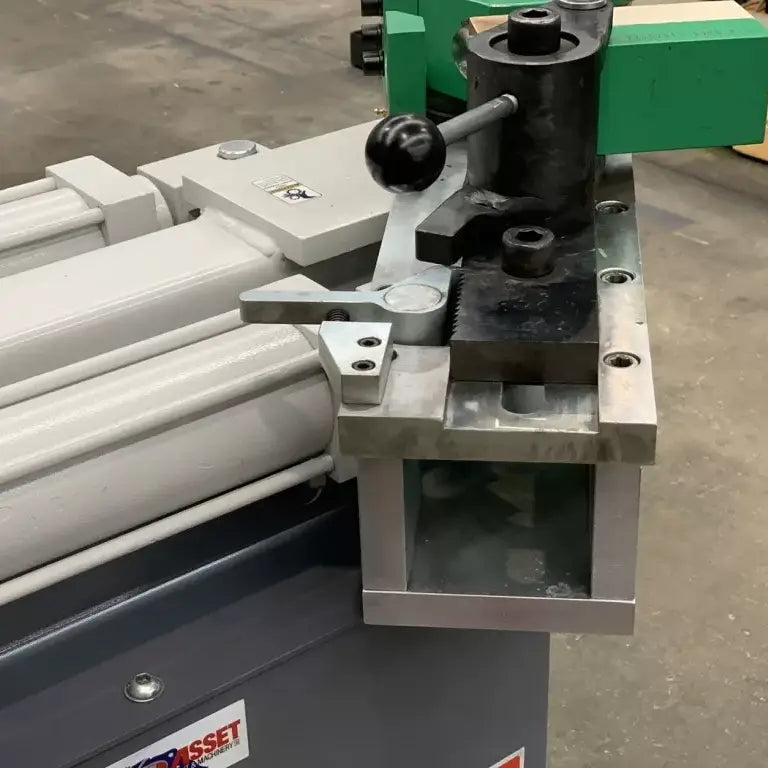

Ratchet counter die positioned.
14 seconds to 180 degrees

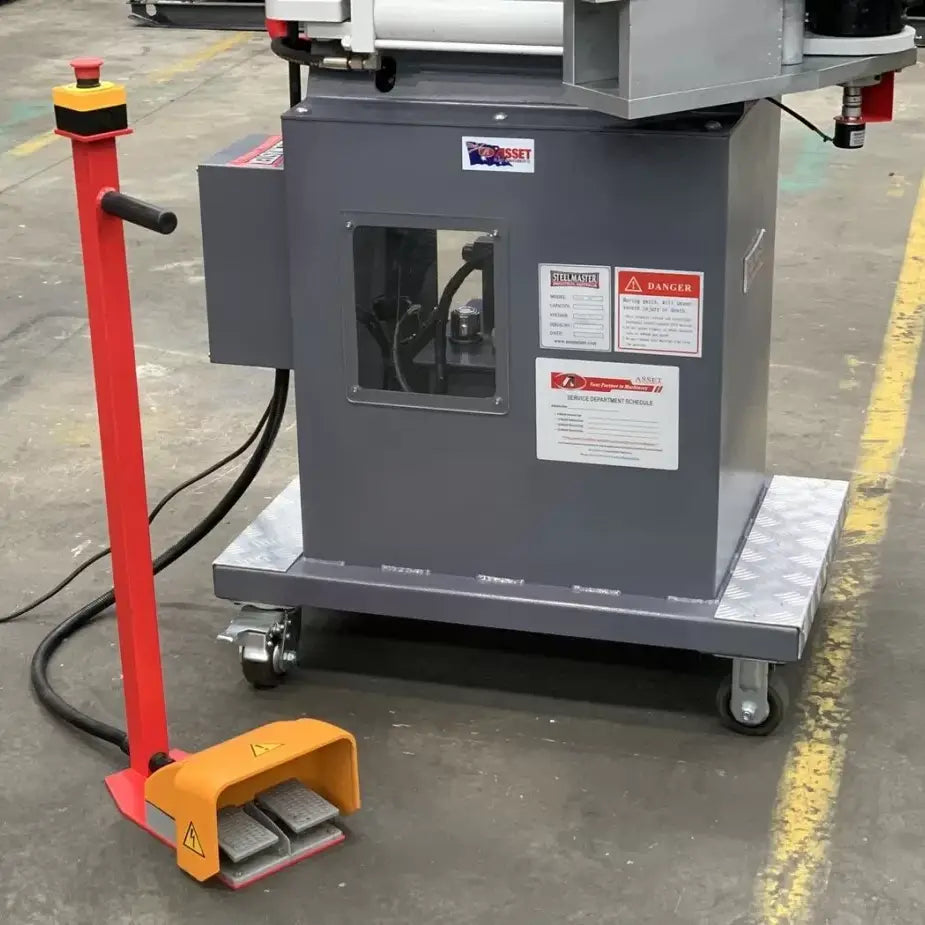

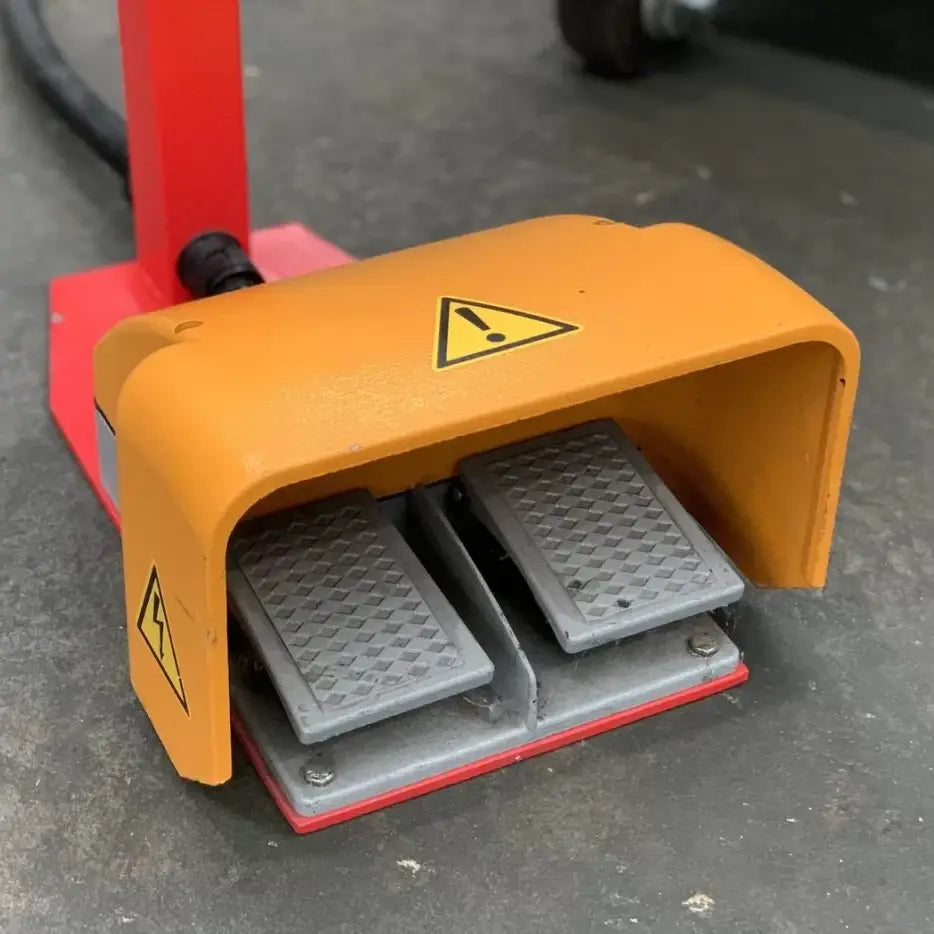

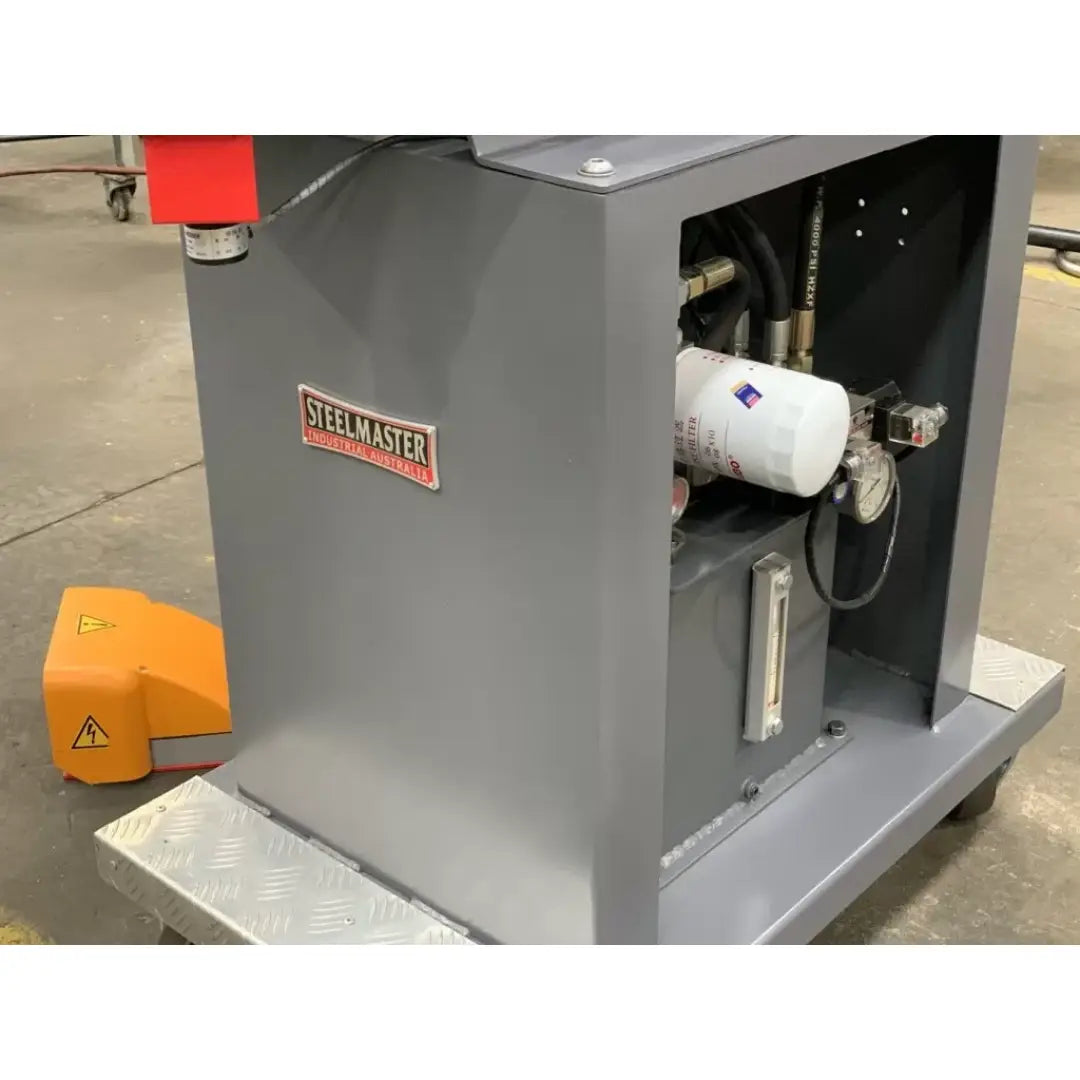

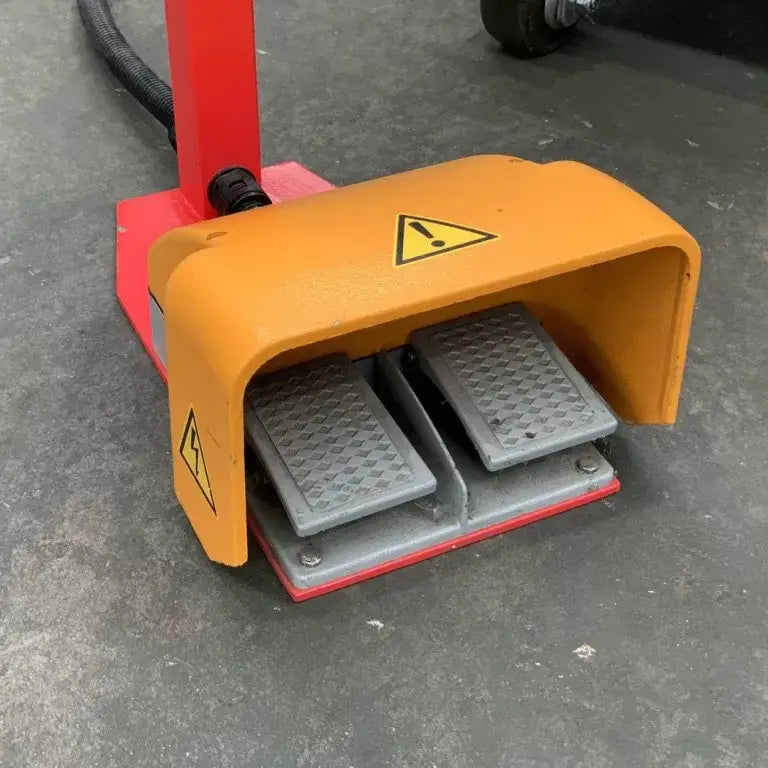

Foot pedal operation
Bends 180 degrees in one shot

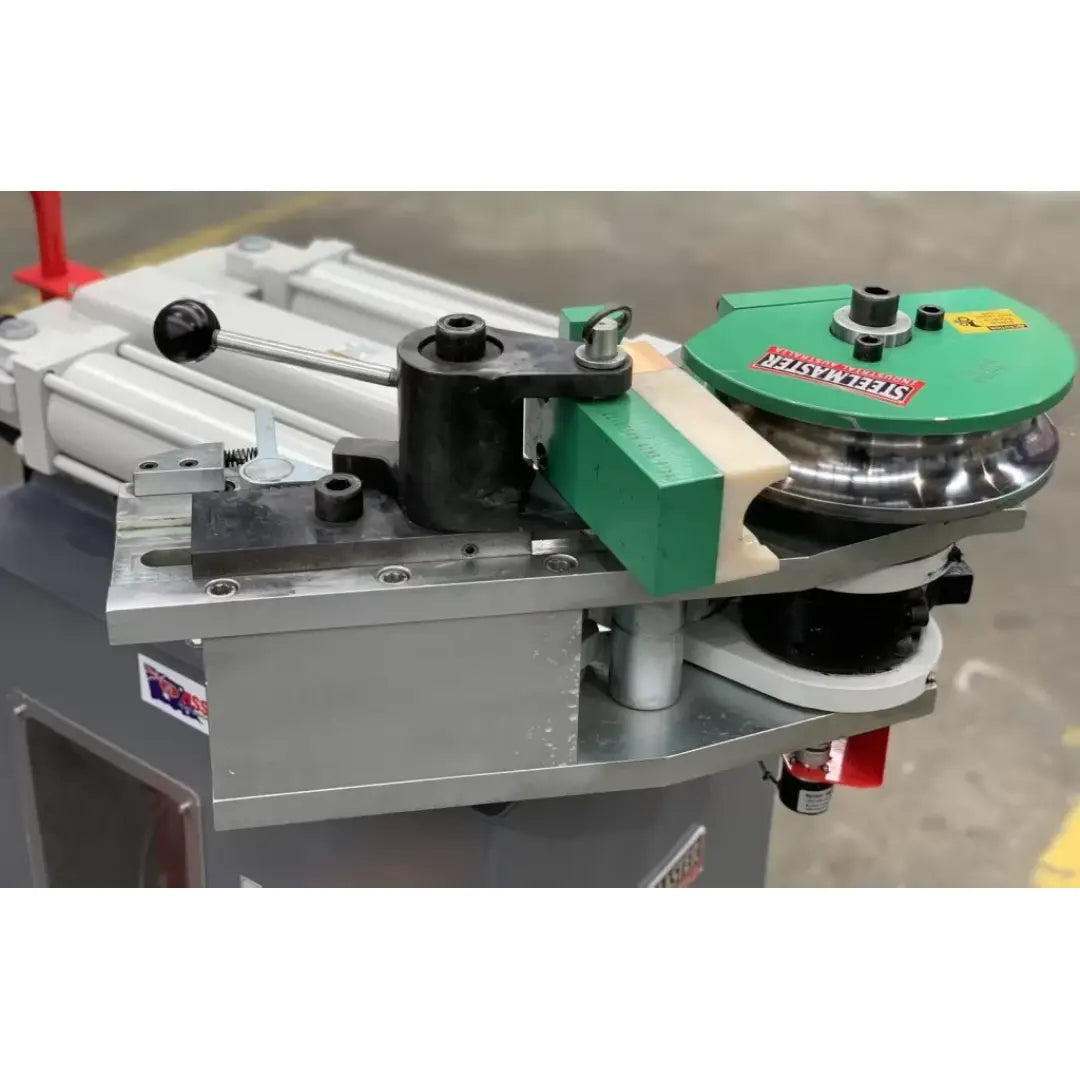

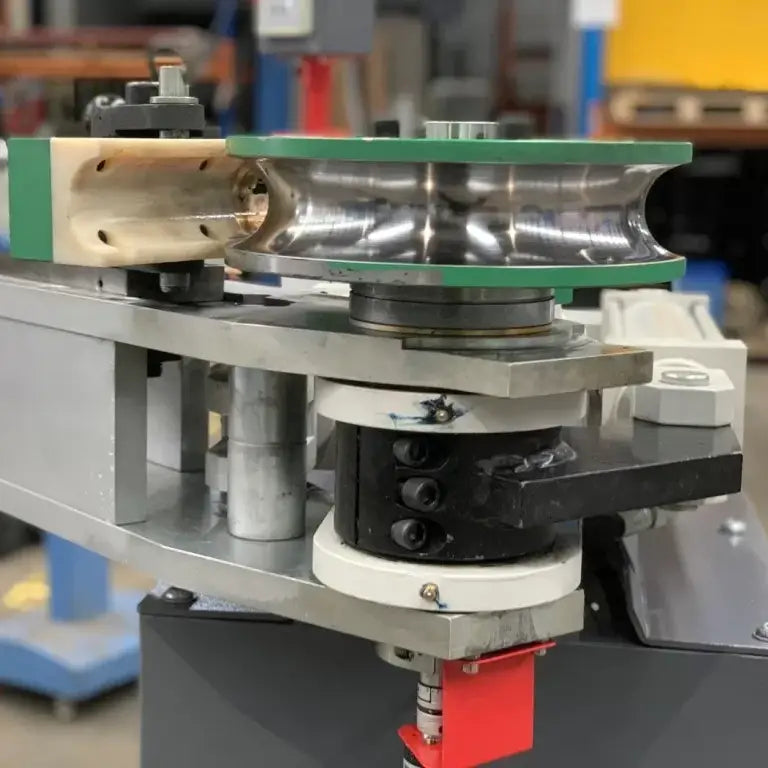

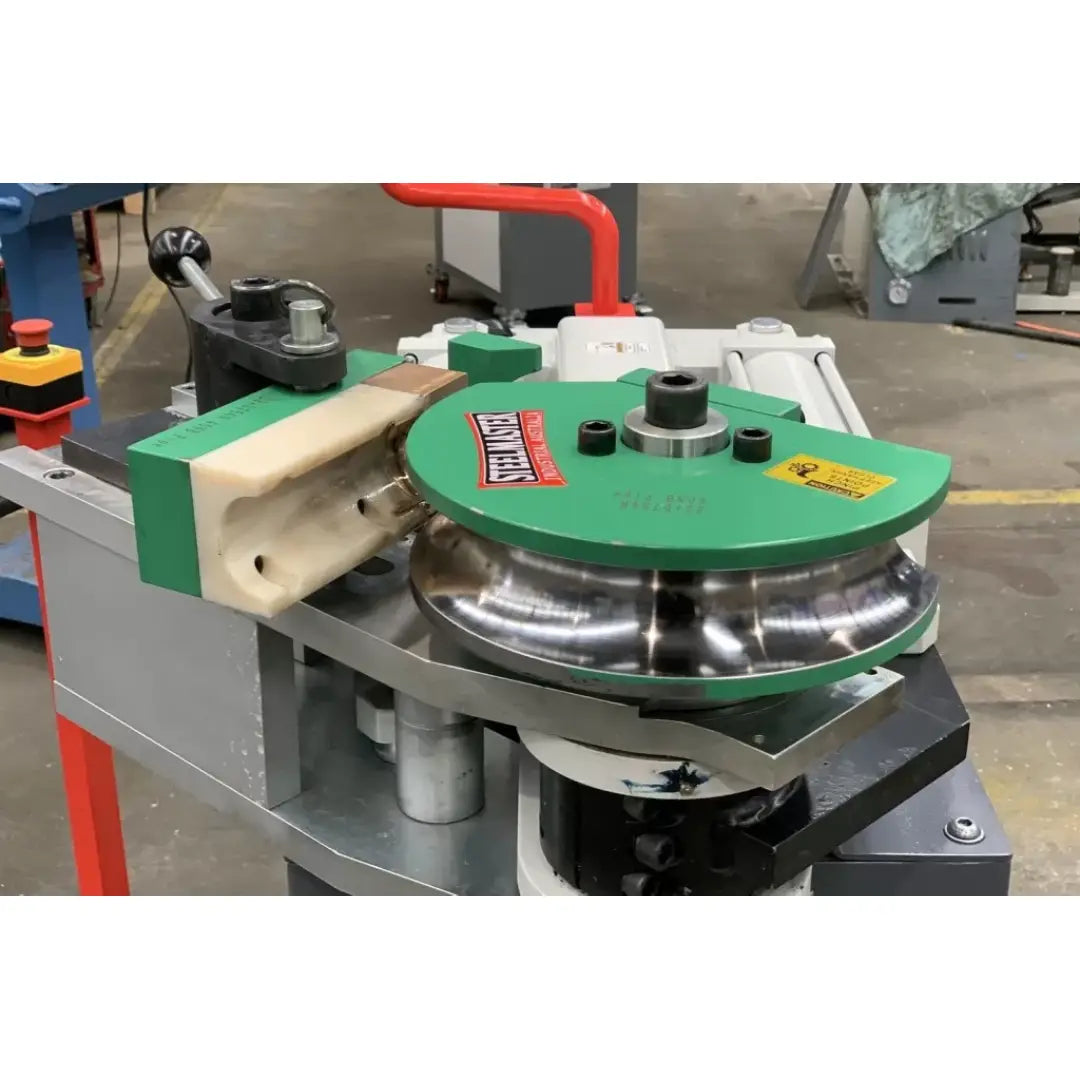

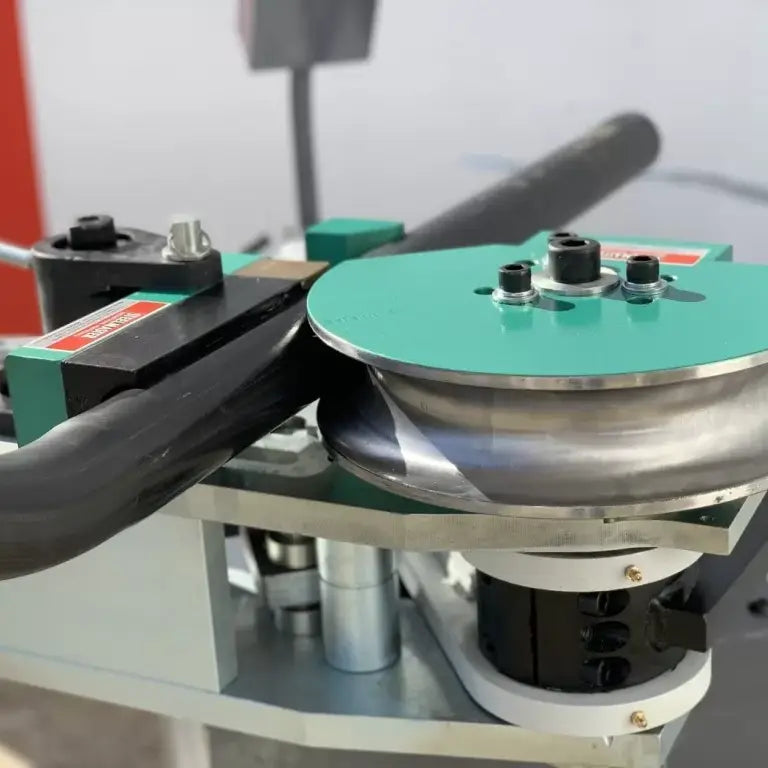

Uses standard Baileigh drop on die sets for fast tooling changes
Replaceable bronze bushings at all pivot points with grease nipples.

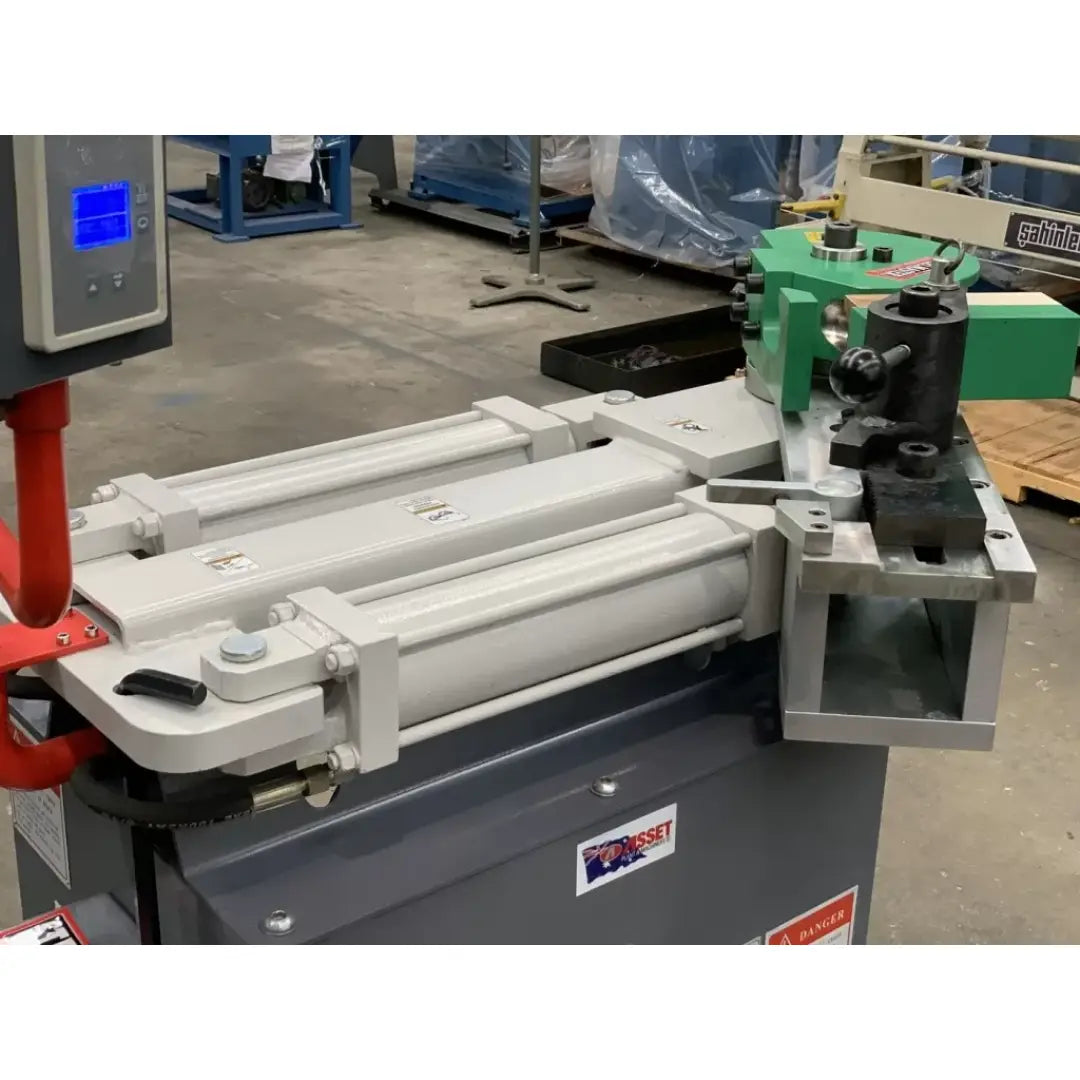

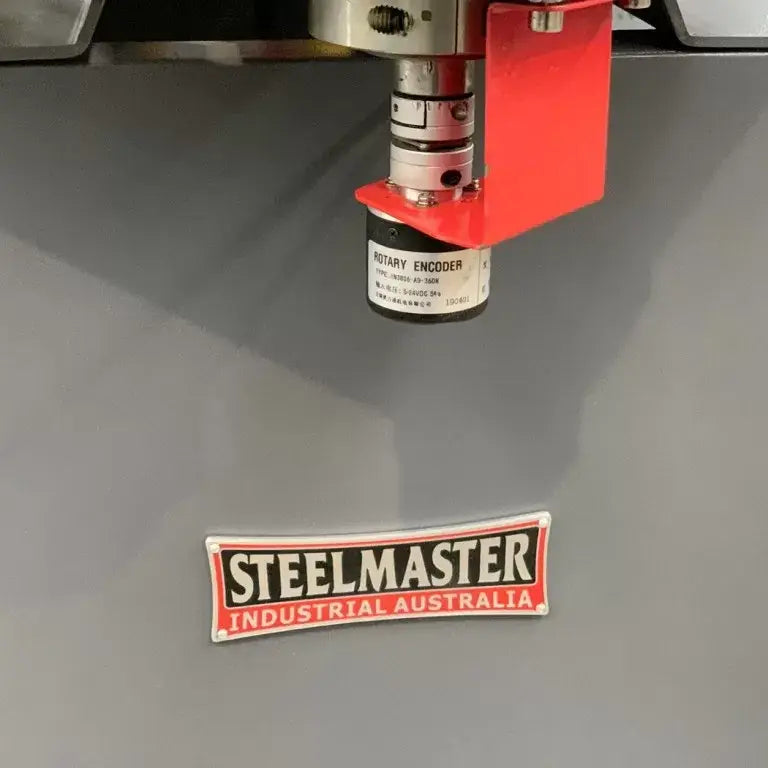

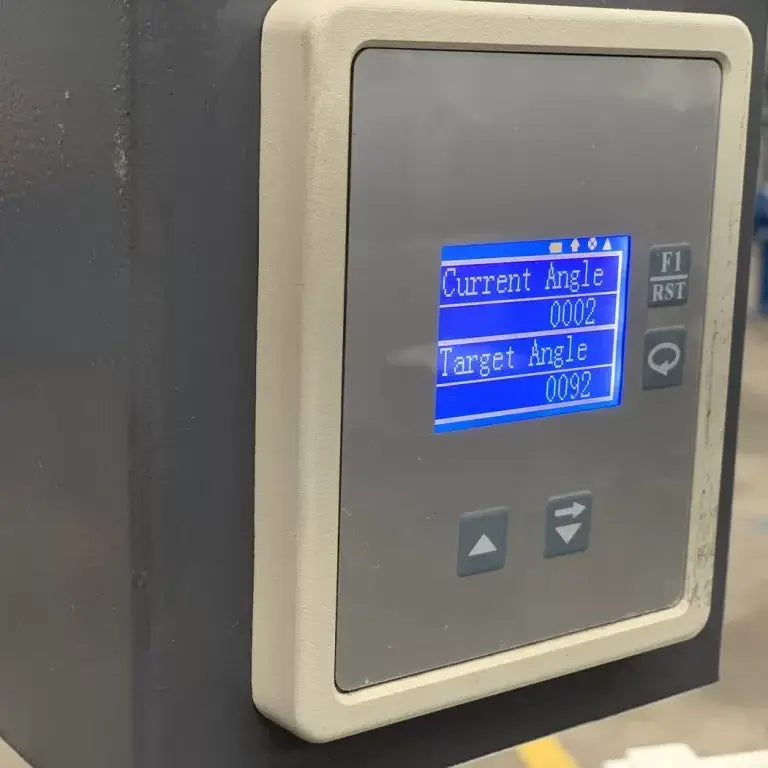

Digital Angle Display
One set standard round tooling upto 50mm Included in price (Square & Over 50mm Round Additional Charges)

P.O.A - 15kg and up

Mild Steel Round Tube – 60mm x 3mm
40NB Pipe – 48.3mm x 4.0mm wall (max)
Aluminium Round Tube – 64mm x 4mm
Stainless Round Tube – 50.8mm x 3mm
Mild Steel Solid Rod – 32mm
Mild Steel Square Tube – 50mm x 1.6mm
Maximum Speed To 180 Degrees – 12 seconds
Maximum Centre Line Radius – 229mm
Minimum Centre Line Radius – 13mm
One set standard round tooling upto 50mm Included in price (Square & Over 50mm Round Additional Charges)

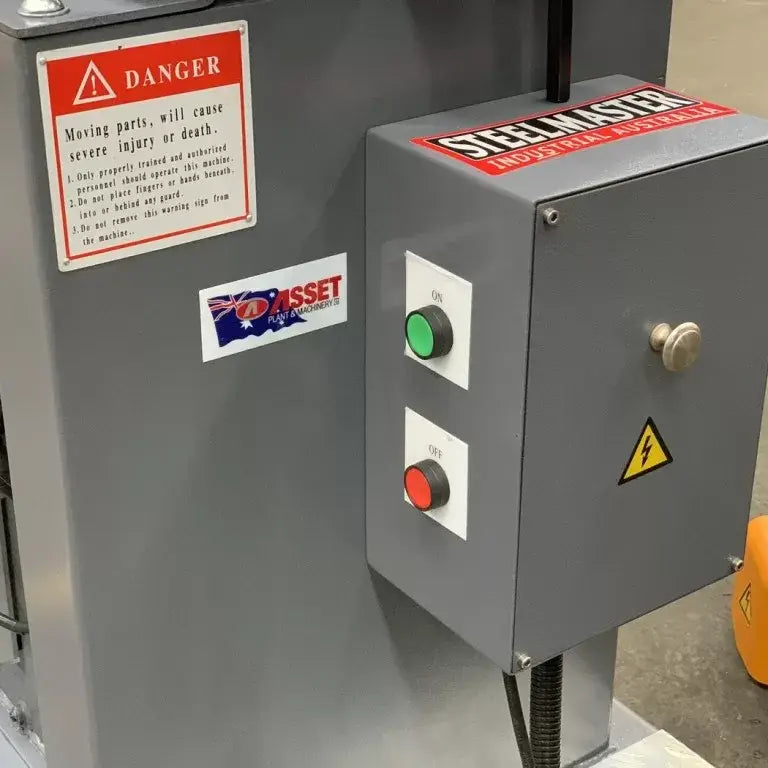

Power – 240Volt – 1 Phase
Weight – 286Kg
Dimensions – 1118mm x 711mm x 1067mm (H)
Crate Dimensions – 1120mm x 770mm x 1180mm (H) x 300Kg
