$12,850.00

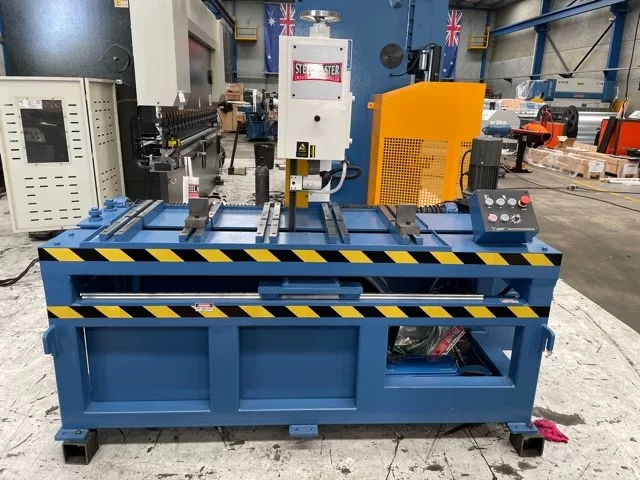

Specifications

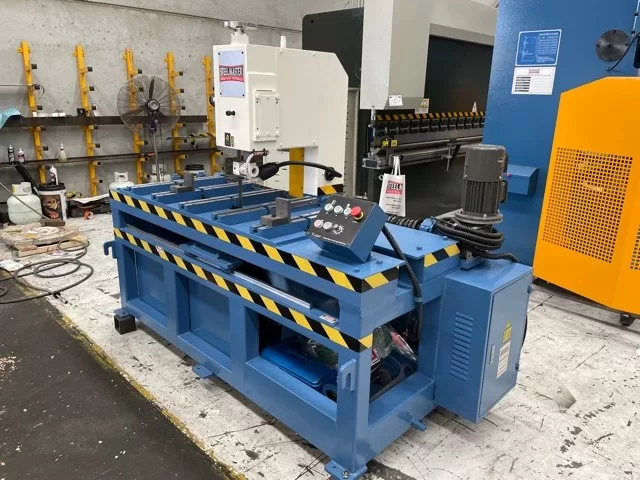

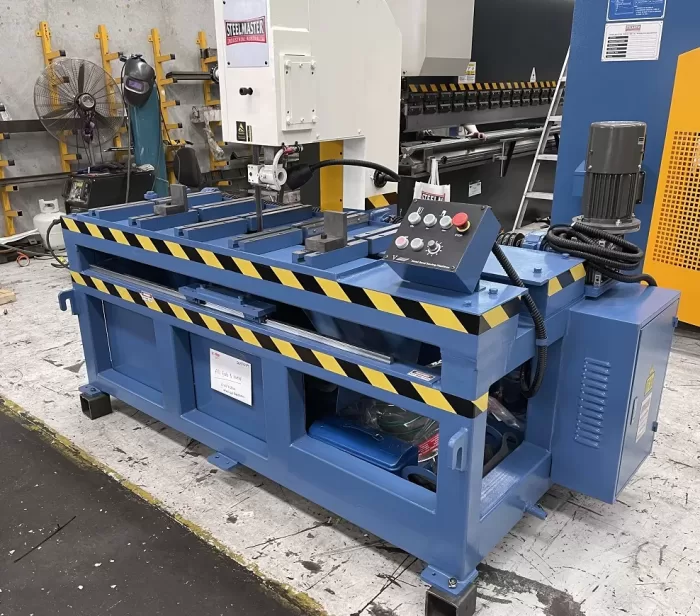

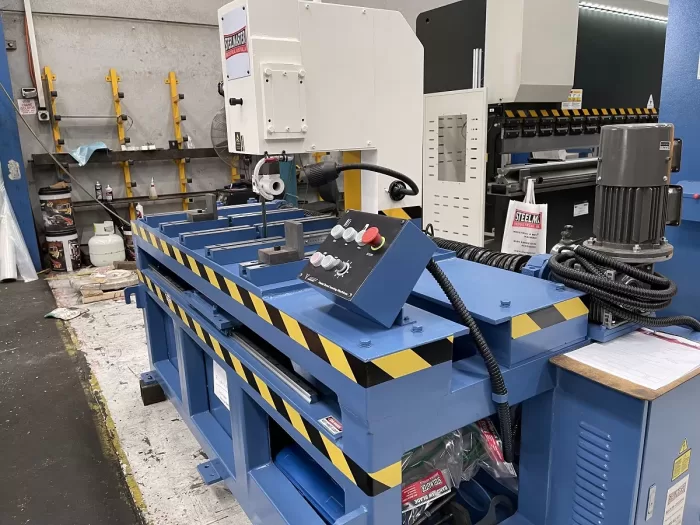

MODEL NUMBER:15-0367
| sku | 15-0367 | |
| cutting height (max) | 250 mm | |
| throat depth | 330 mm | |
| blade size (l x w x t) | 3080 mm x 34 mm x 1.1 mm | |
| speed range | 18 / 40 / 70 m/mm | |
| table size (l x w) | TBC | |
| table tilt | N/A | |
| table working height | TBC | |
| blade welder | N/A | |
| grinder motor power | N/A | |
| motor power | 18.5 / 415 kw/V | |
| dimensions (l x w x h) | 2000 mm x 1000 mm x 1600 mm | |
| weight (nt) | 1270 kg |
Features
❚ hydraulic upper clamp
❚ auto chip conveyor
❚ PLC control
❚ hydraulic blade tensioner

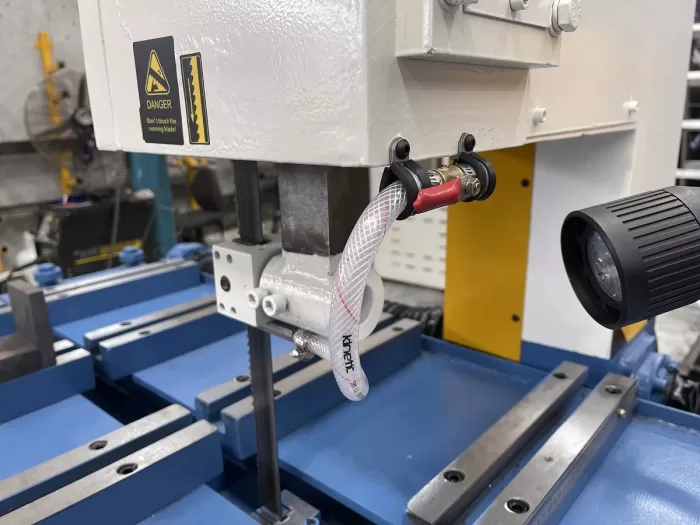

❚ saw guide operation hydraulically operated
❚ V series can be built to customers requirements
Optional Equipment
❚ hydraulic upper clamp
❚ auto chip conveyor
❚ PLC control
❚ hydraulic blade tensioner
❚ saw guide operation hydraulically operated
❚ V series can be built to customers requirements
Technical Data
❚ 250 max. cutting height
❚ 330mm throat depth.

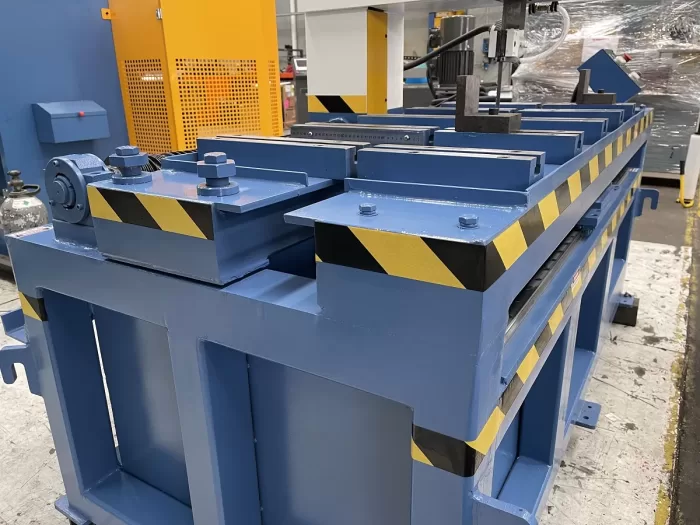

❚ work table (w x l) – 2000mm x 660mm

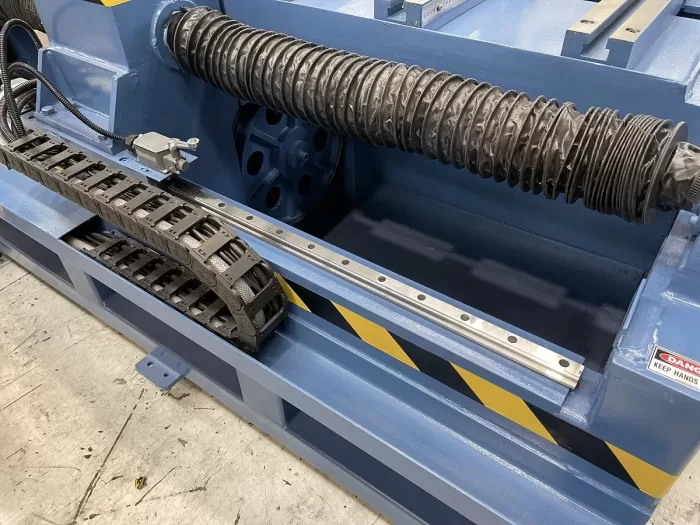

❚ work table feed travel – 1000mm
❚ working height – 980mm
❚ blade speed – 18/40/70 m/min
❚ blade size: 3080mm x 34mm x 1.1.
❚ in feed table: Yes
❚ motor: 3phase / 415V
❚ dimensions: 2000mm x 1000mm x 1600mm
❚ weight: 1270Kg
