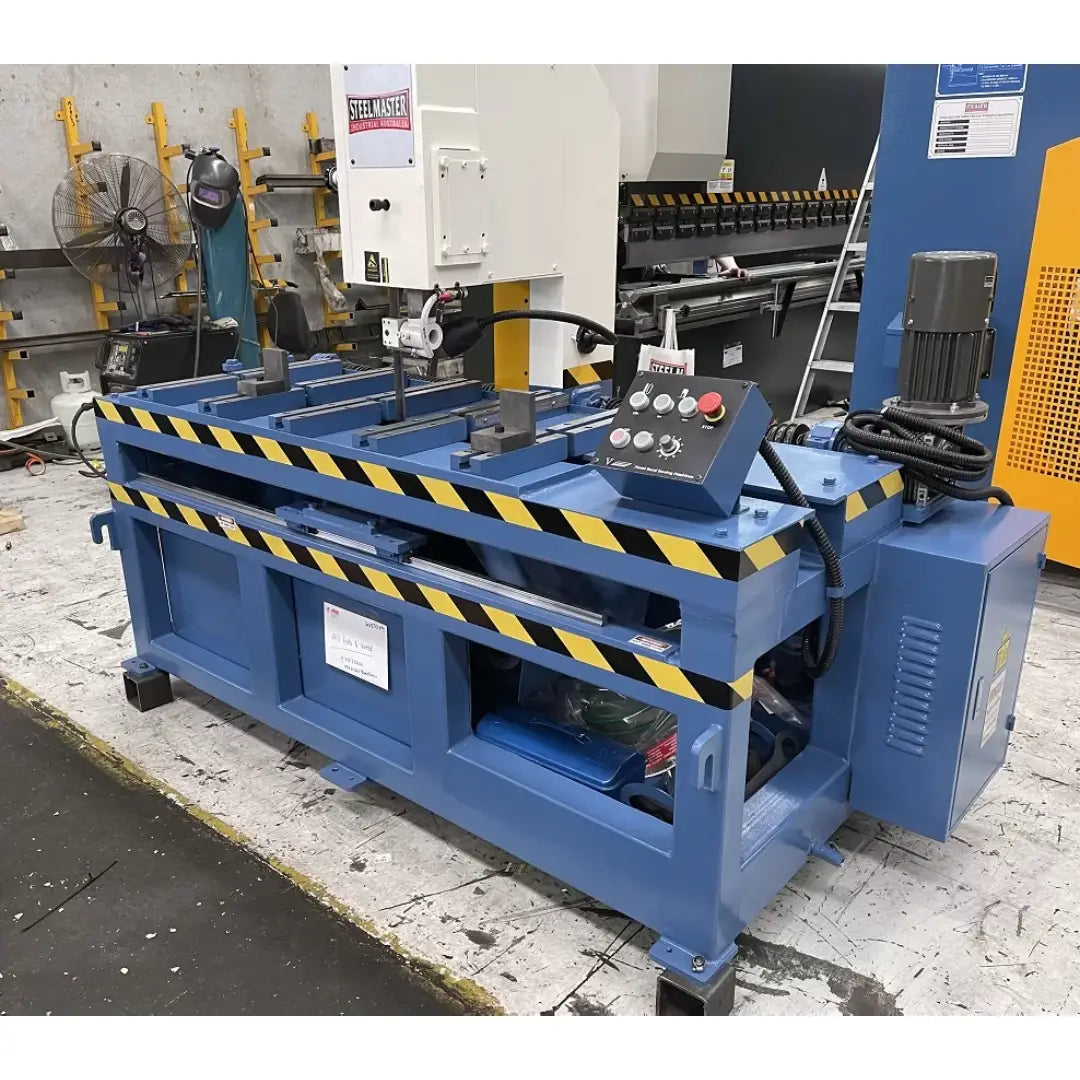

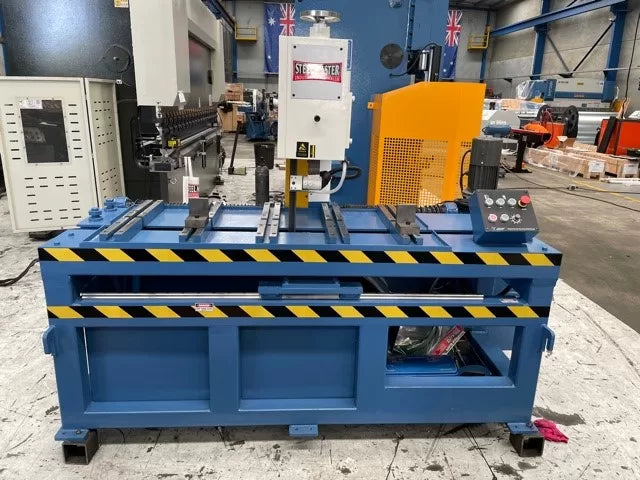

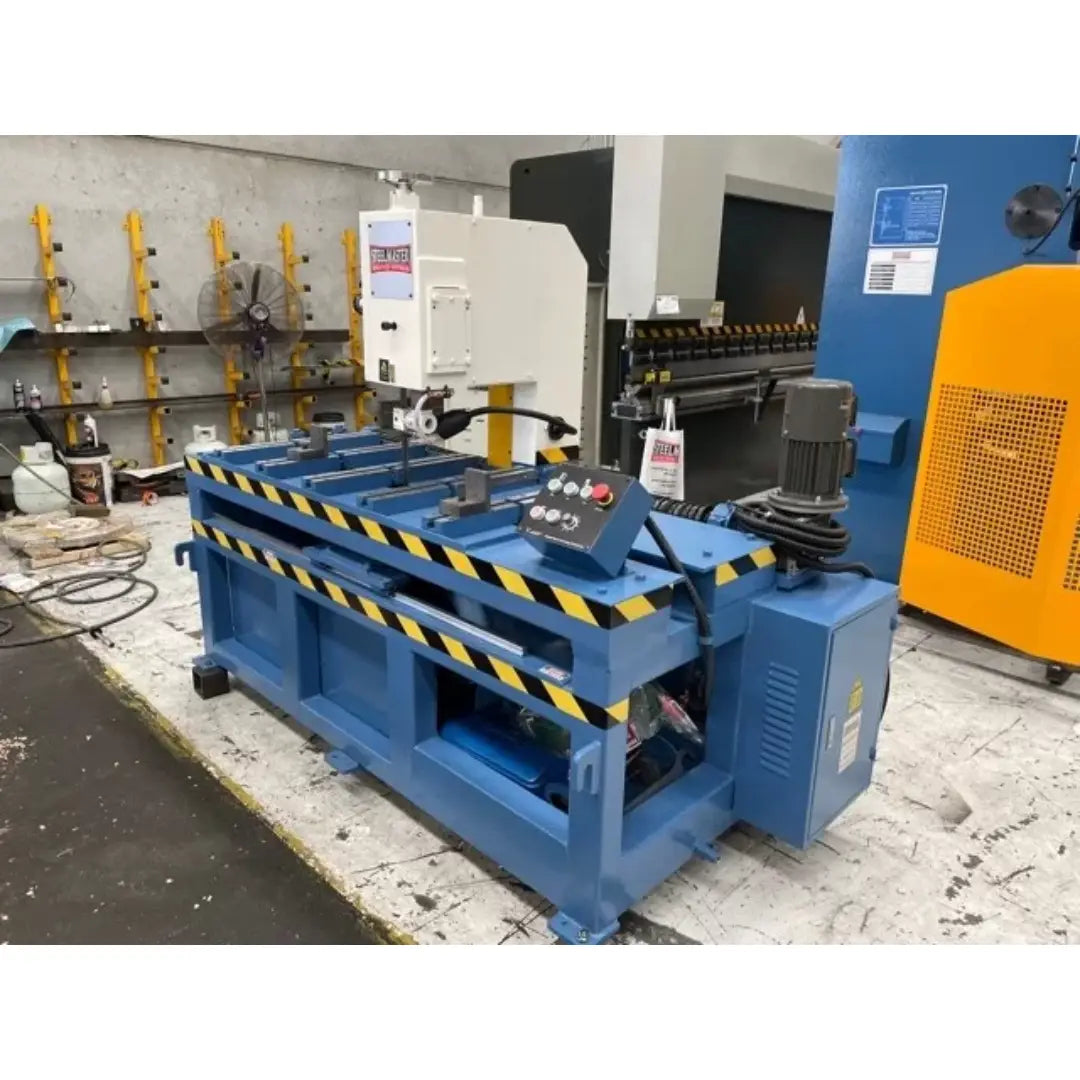

V-Series Vertical Bandsaw with Large Tee Slotted Working Table Area

Name: V-Series Vertical Bandsaw with Large Tee Slotted Working Table Area
Brand: Steelmaster Industrial
SKU: 15-0367
Price: 14250.00 AUD
Availability: InStock

PRICE EX GST

Reg: $14,850.00

Sale: $14,250.00

PRICE INC GST

Reg: $16,335.00

Sale: $15,675.00

MODEL NUMBER: V-25/33/100

Get this for only $ p/w. Request a quote today!

*Subject to Finance Approval. T&Cs apply.

Note: The estimated weekly repayment does not include GST.

PRODUCT OVERVIEW

The Julihuang V-Series Vertical Bandsaw is ideal for complex jobs, featuring a Large Tee Slotted Working Table Area for enhanced versatility.

MODEL NUMBER

V-25/33/100

OPTIONAL EQUIPMENT

Hydraulic upper clamp
Auto chip conveyor
PLC control
Hydraulic blade tensioner
Saw guide operation hydraulically operated
V series can be built to customers requirements

PRODUCT FEATURES

Hydraulic upper clamp
Auto chip conveyor
PLC control
Hydraulic blade tensioner
Saw guide operation hydraulically operated
V series can be built to customers requirements

SHIPPING CLASS

P.O.A - 15kg and up

TECHNICAL DATA

250 max. cutting height
330mm throat depth.

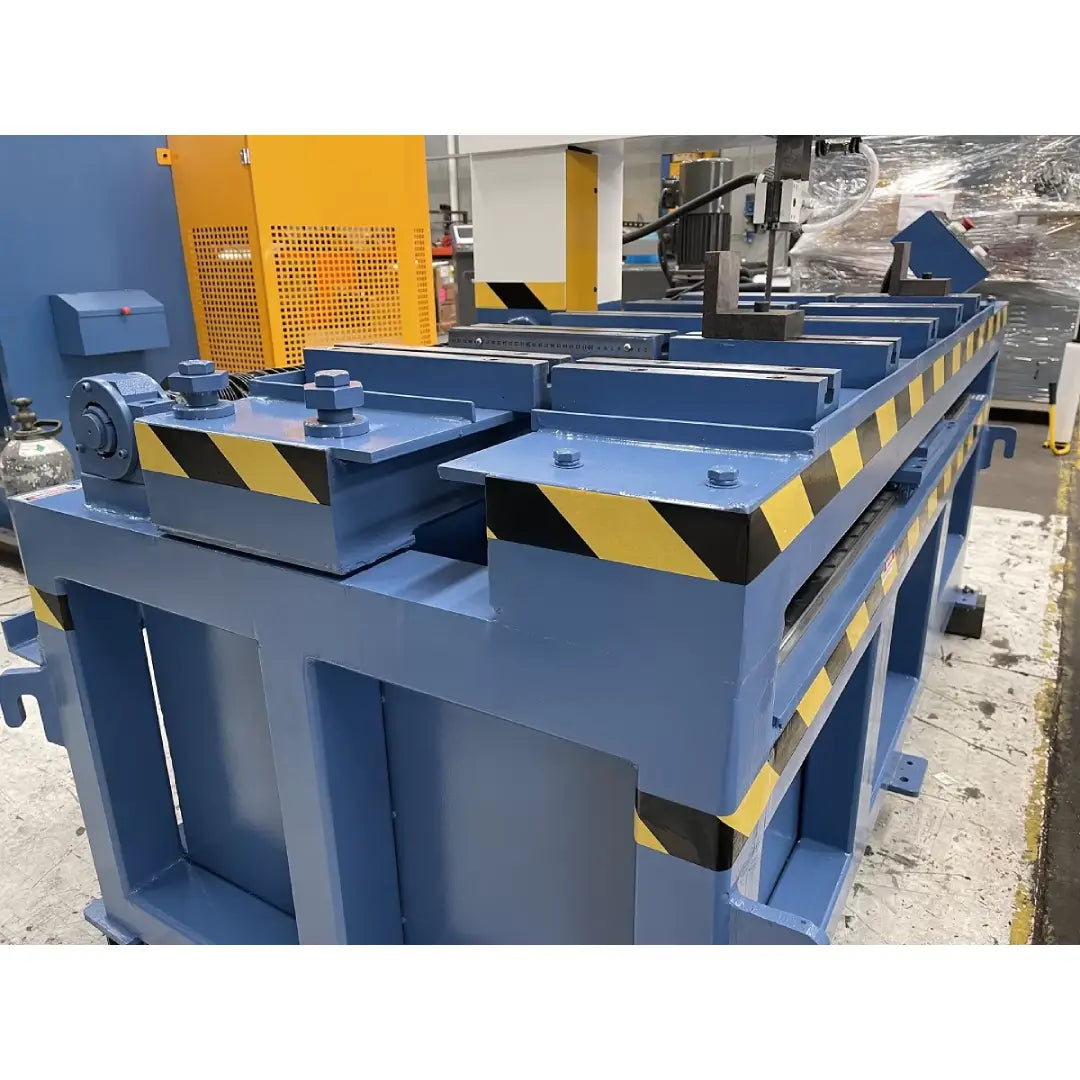

Work table (w x l) – 2000mm x 660mm
Work table feed travel – 1000mm
Working height – 980mm
Blade speed – 18/40/70 m/min
Blade size: 3080mm x 34mm x 1.1.
In feed table: Yes
Motor: 3phase / 415V
Dimensions: 2000mm x 1000mm x 1600mm
Weight: 1270Kg
