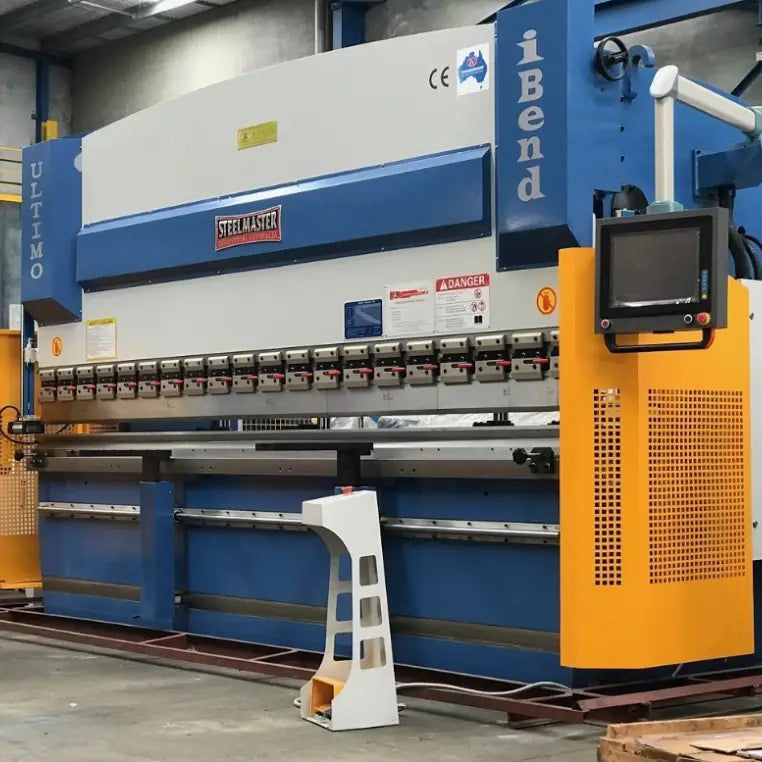

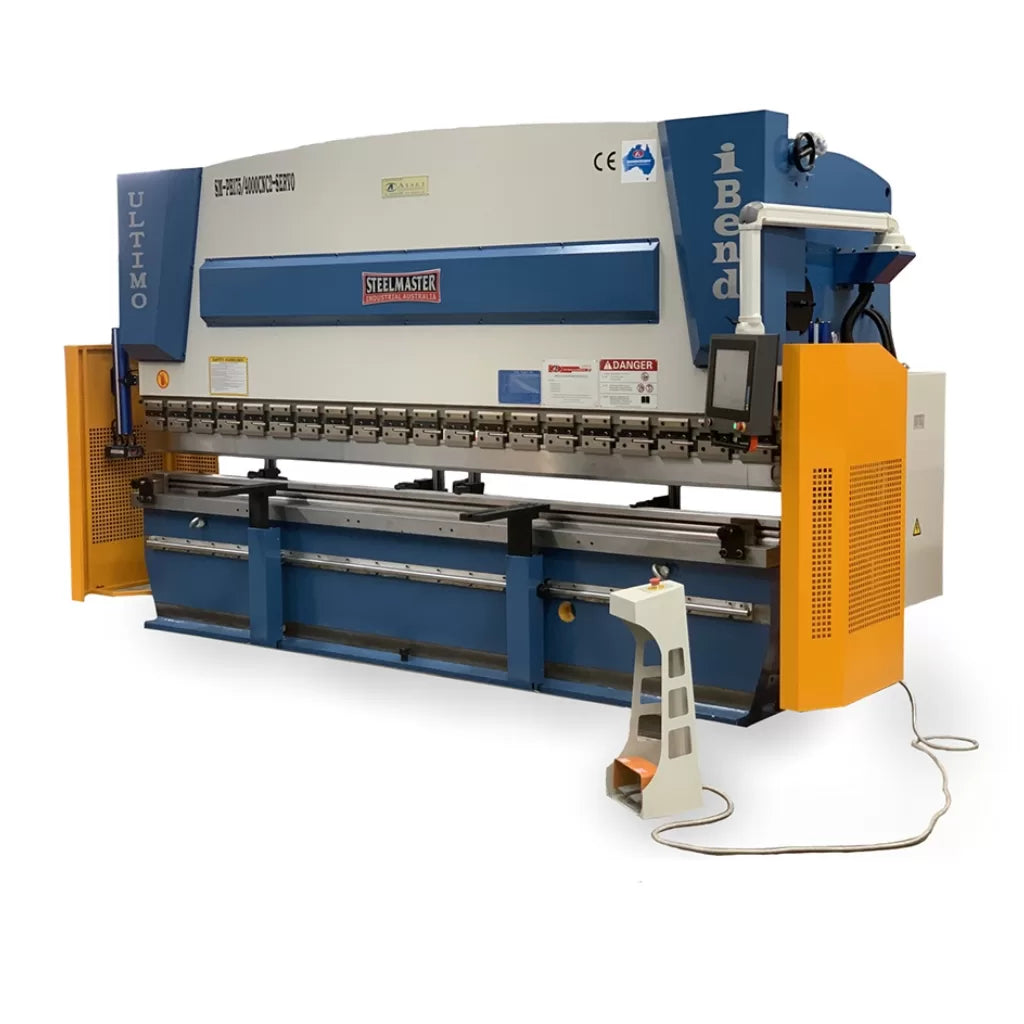

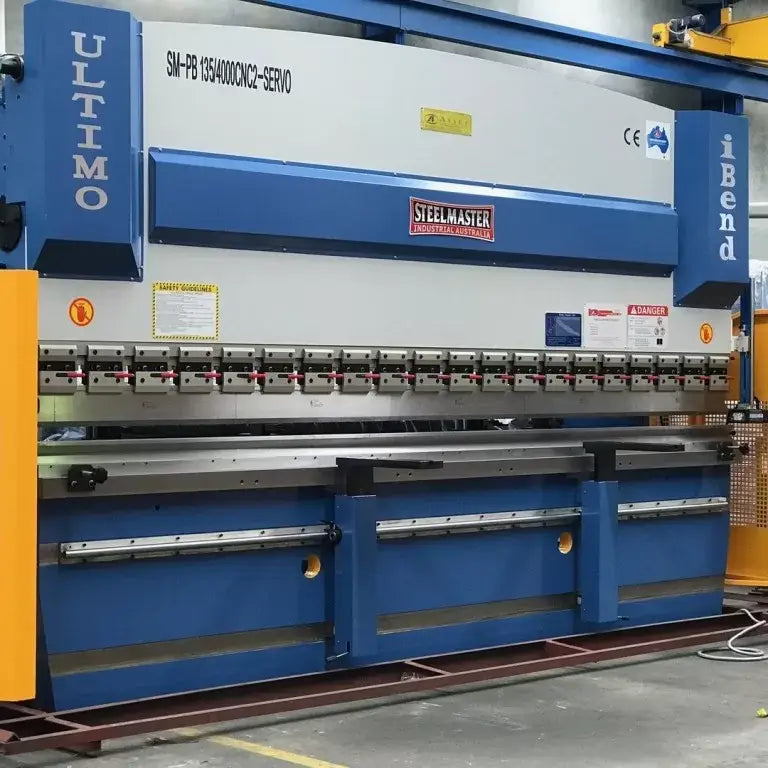

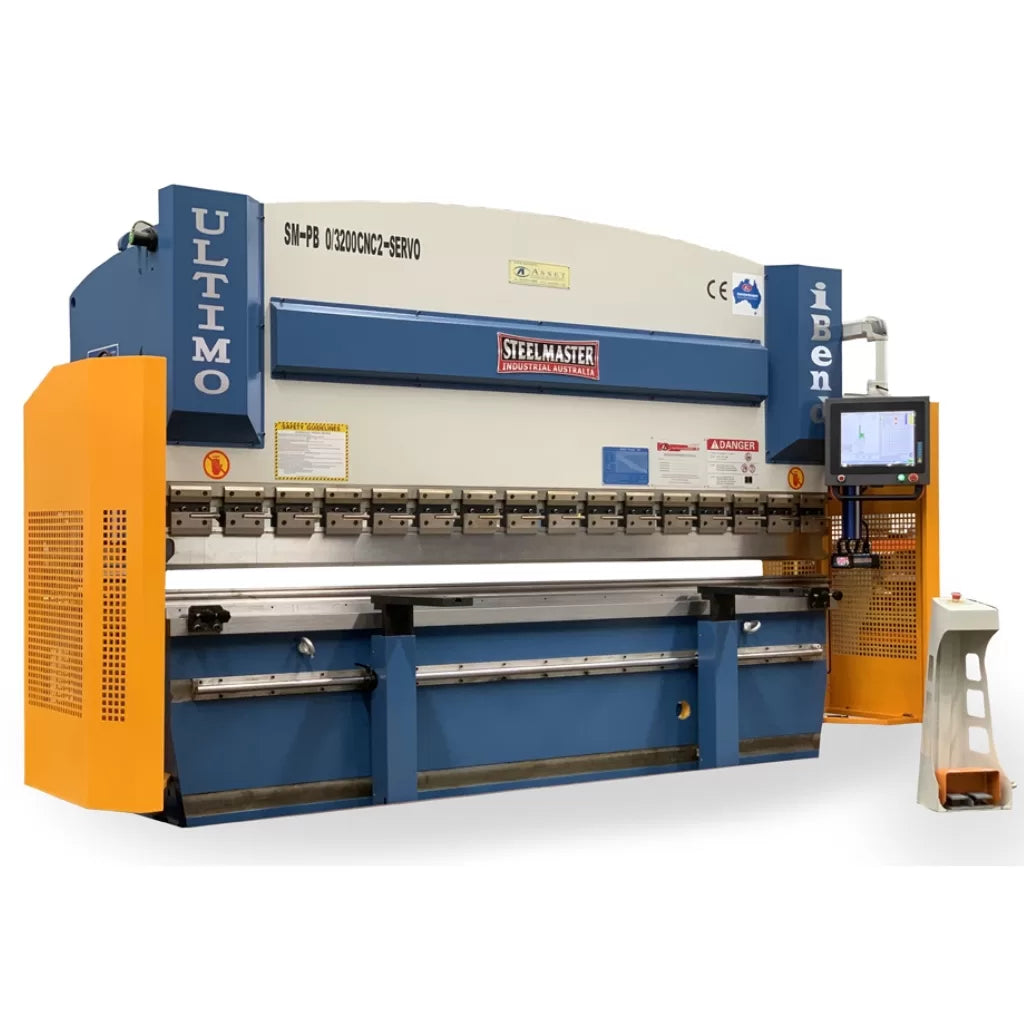

iBend CNC Pressbrake - ULTIMO. 2 Axis Graphical CNC Controller, Precision Servo Drive.

135 ton

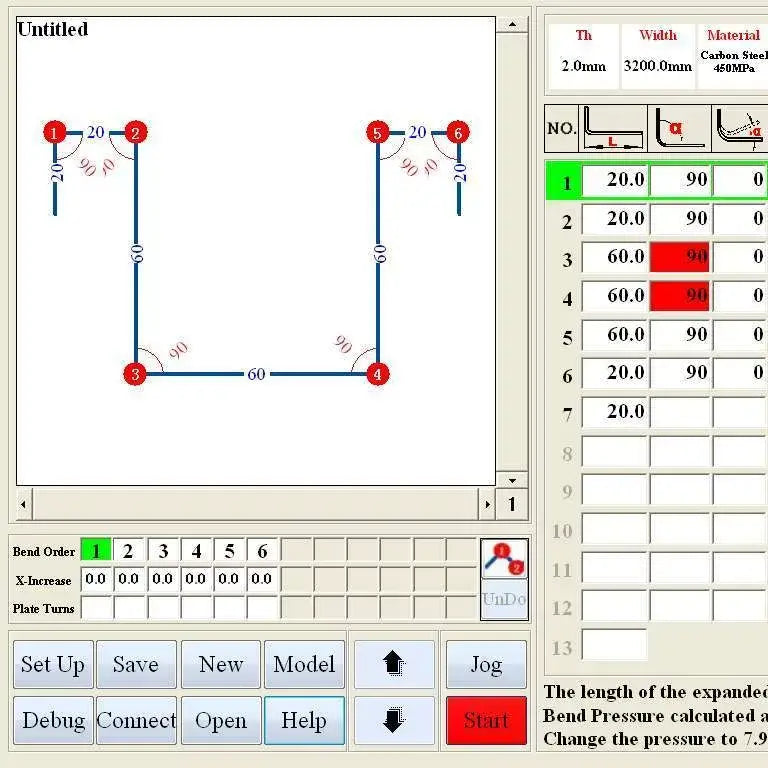

Step 1. FASTDRAW: Simple & Easy!…..

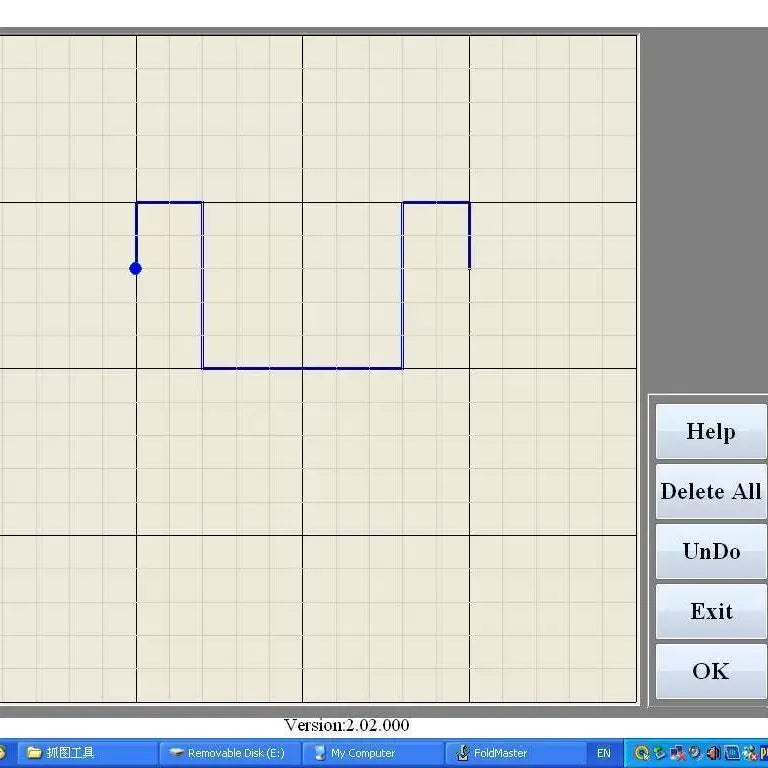

Simply touch the grid to draw the subject profile.
Press OK to return to the main screen.
Step 2. Simply touch on the dimension or angle of the profile on the right to edit the value on the popup keypad.

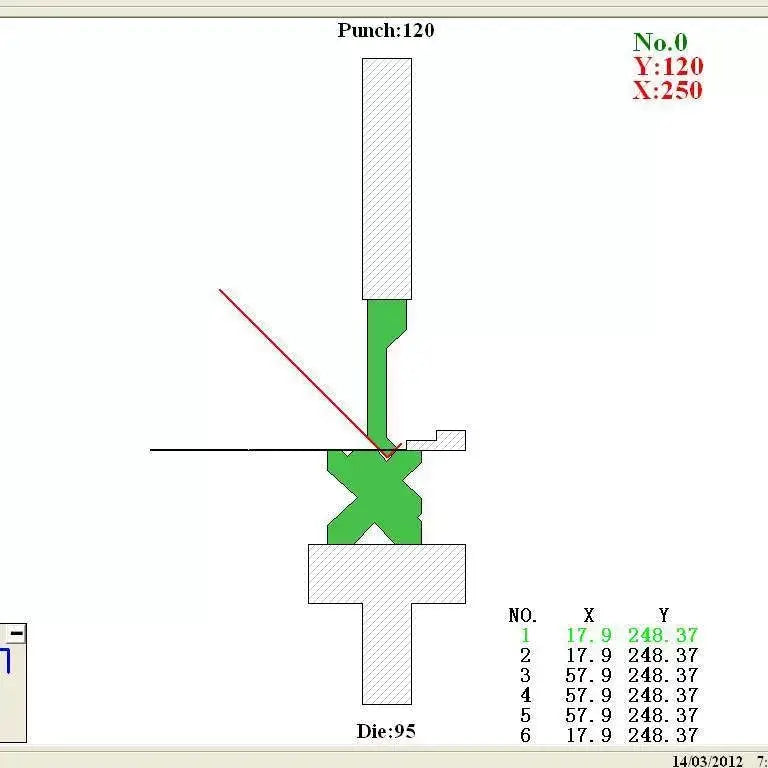

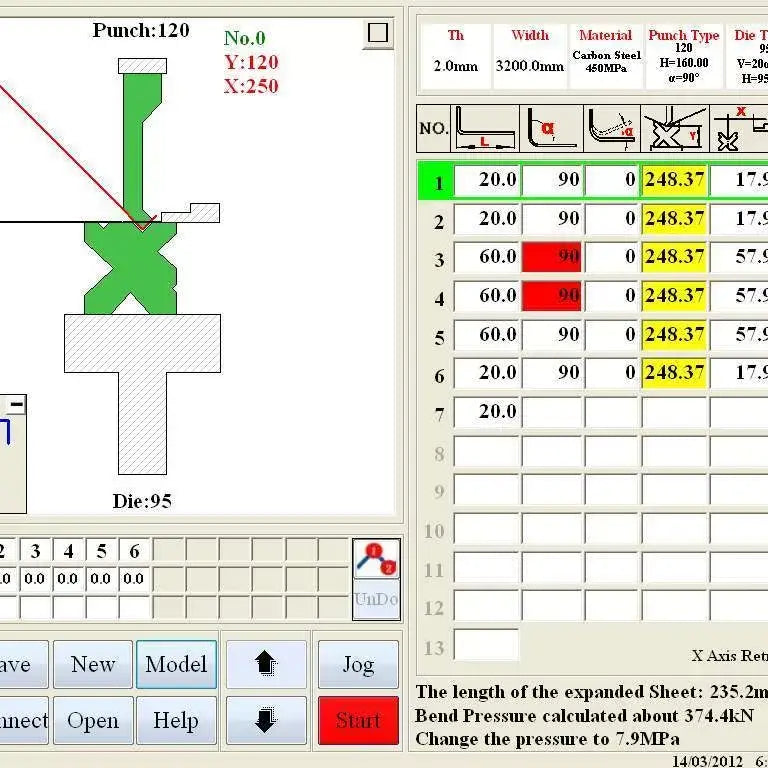

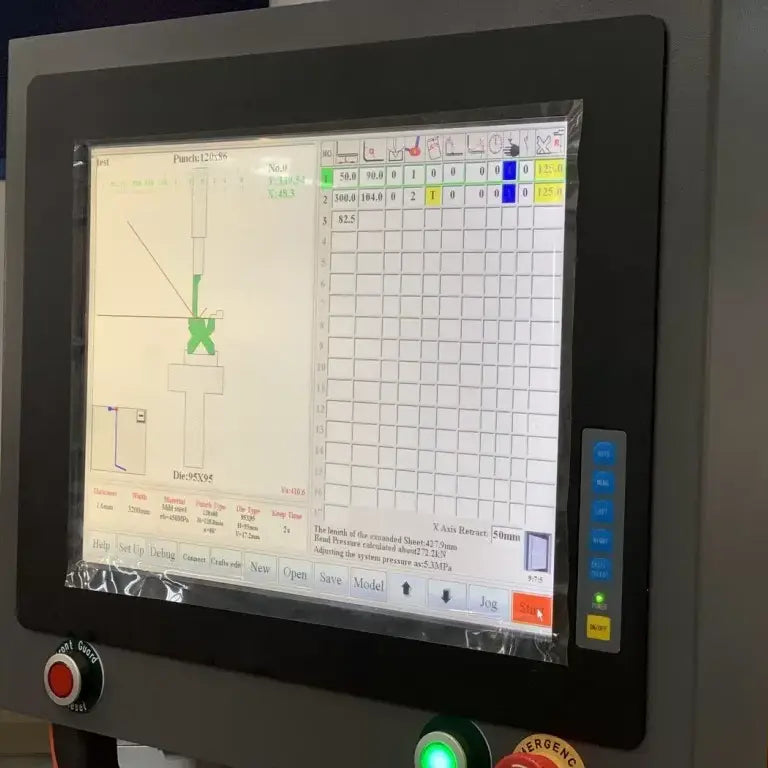

Step 3. So simple!…….. See the profile on one side for easy editing….. and the folding simulation on the other!
• View the actual folding sequence simulation on the graphic of a Press Brake as you fold in real time or screen sequence mode.
• Change folds from front to rear to maximise production.
• Step through the whole sequence without wasting time or material.
• Touch the “Auto fold” button or set the fold sequence manually simply by entering the sequence (1 2 8 7 6 5 3 4 for the example).
Step 4. Enter material thickness and width.

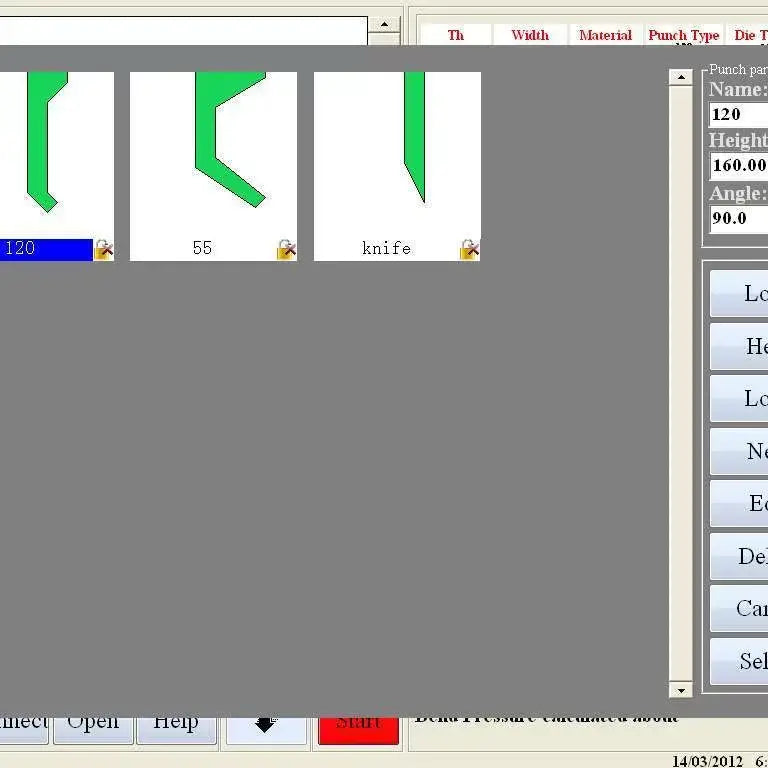

Step 5. Select the right tool and die from the library and start production.

the most user friendly touch screen CNC controller on offer.
backed by the support team at Asset Plant offering direct contact.
large user friendly Touch Screen.
easy Job Selection.
select existing jobs from the library.
jobs can be named and saved for future use. A virtually unlimited number of jobs can be saved.
jobs open with all relevant data like bend sequence, material thickness, right Tool, Die & V, angle corrections, which bends were done from front or rear etc. This saves lots of set-up time.
each operator can have his own password with his own job library.

4000mm

Hydraulic synchronised positive stop design, electronically controlled by CNC iBend Programmable controller assuring accurate repeatability and ease of use..

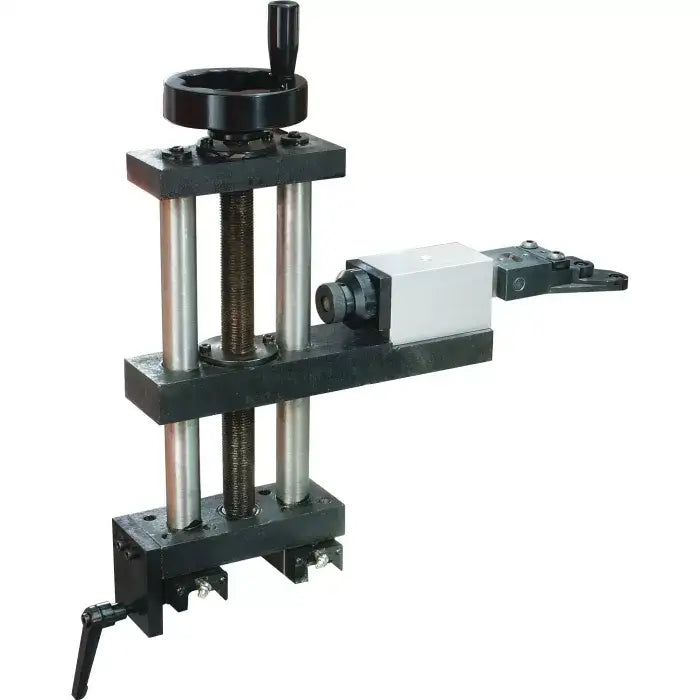

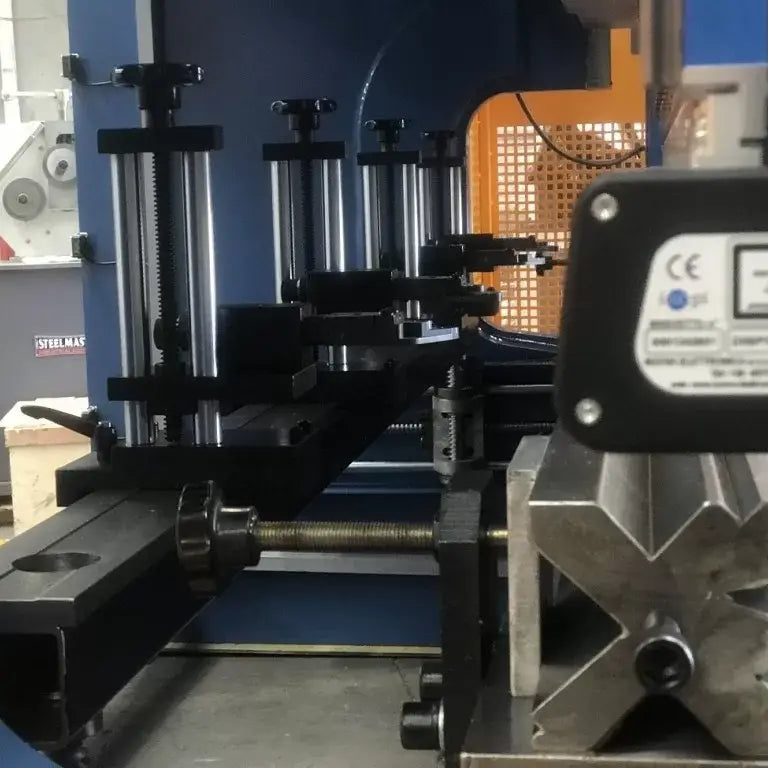

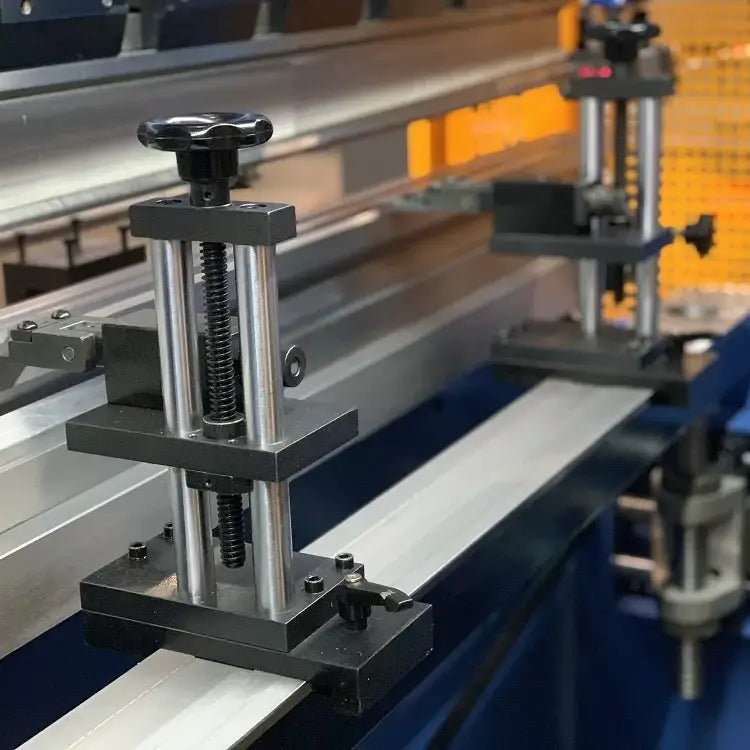

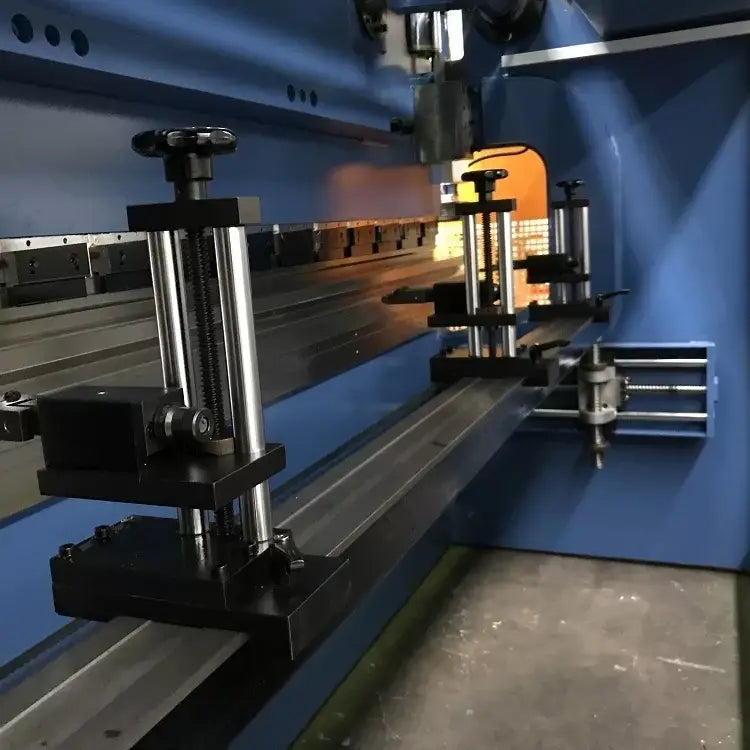

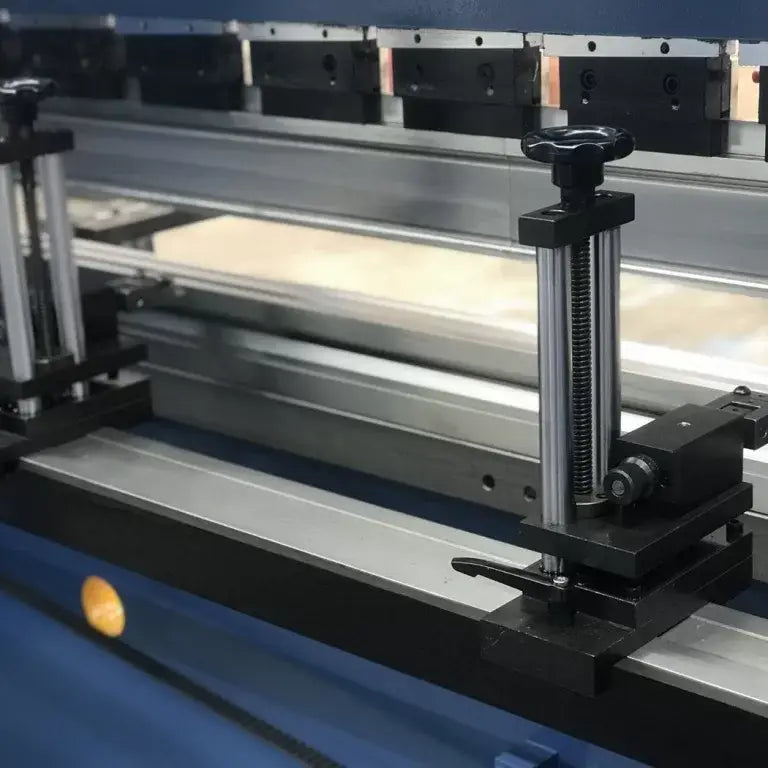

CNC iBend programmable precision ball screw back gauge with adjustable height finger stops.
Segmented heavy duty 86° offset top tool, segmented for return bend clearance, complete with European style quick release tool holders.
Full length Multi Vee bottom block with a smart selection of openings also including safety edge vee (‘V’) for over bending.

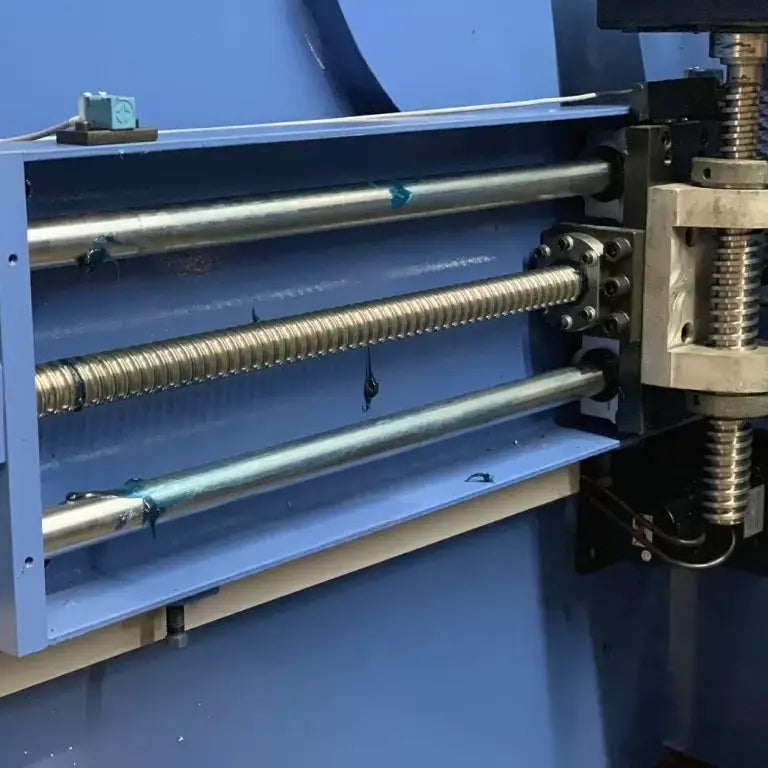

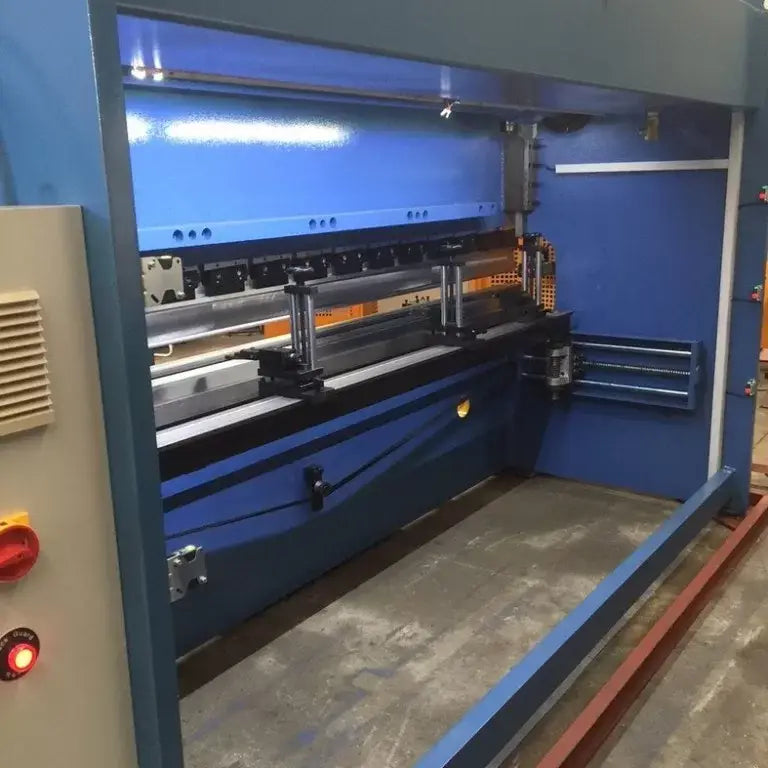

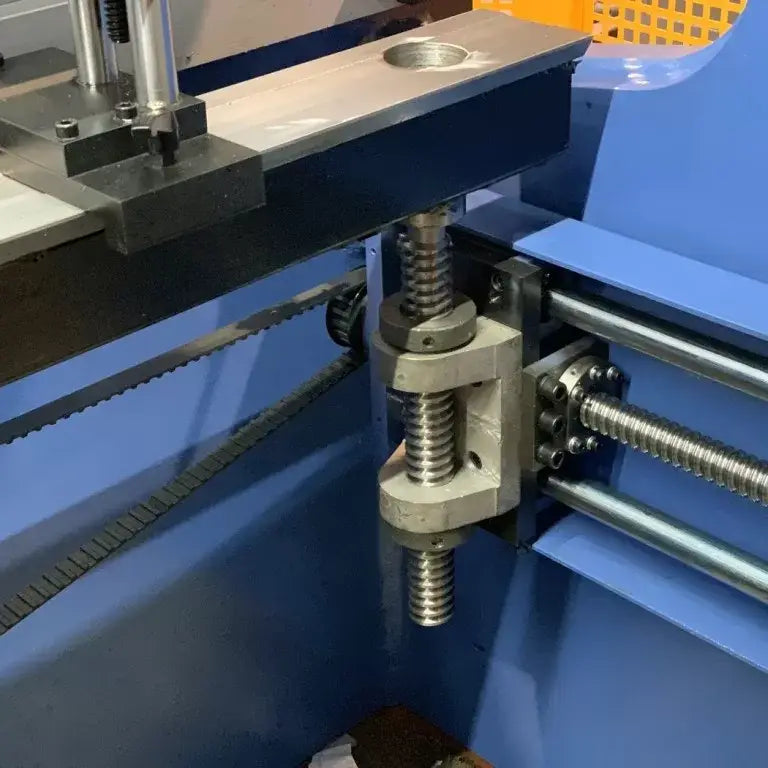

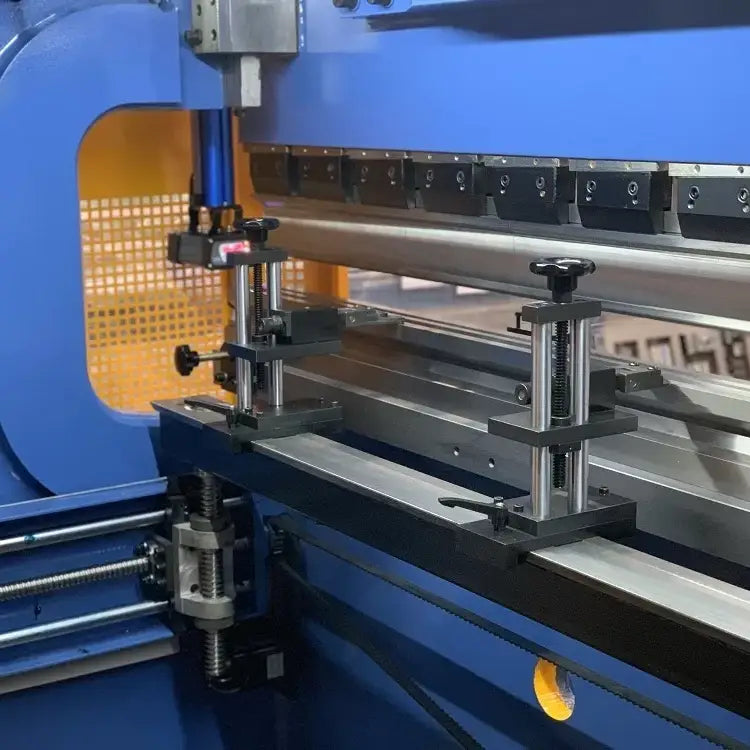

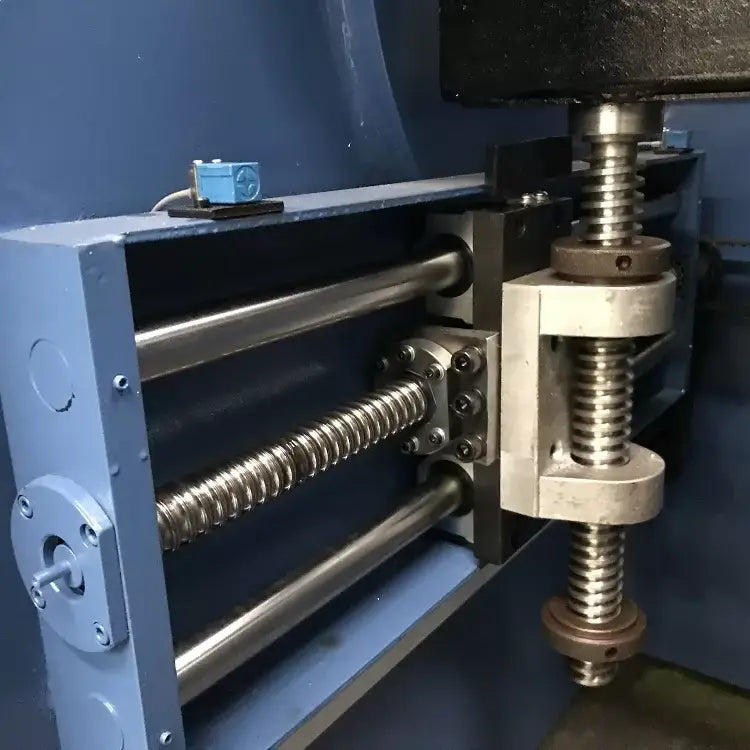

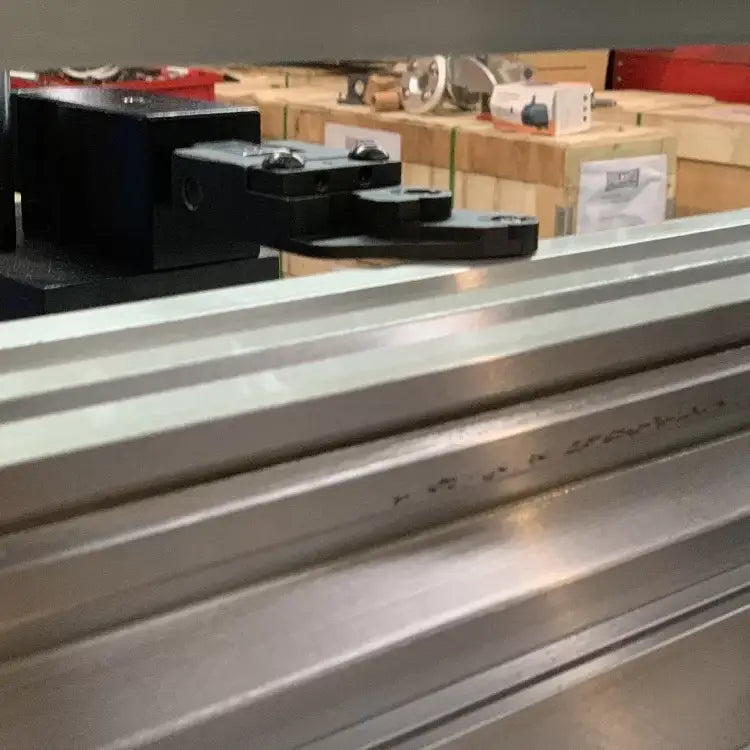

Ball screw drive back gauge with quality support fingers also with vertical adjustment.

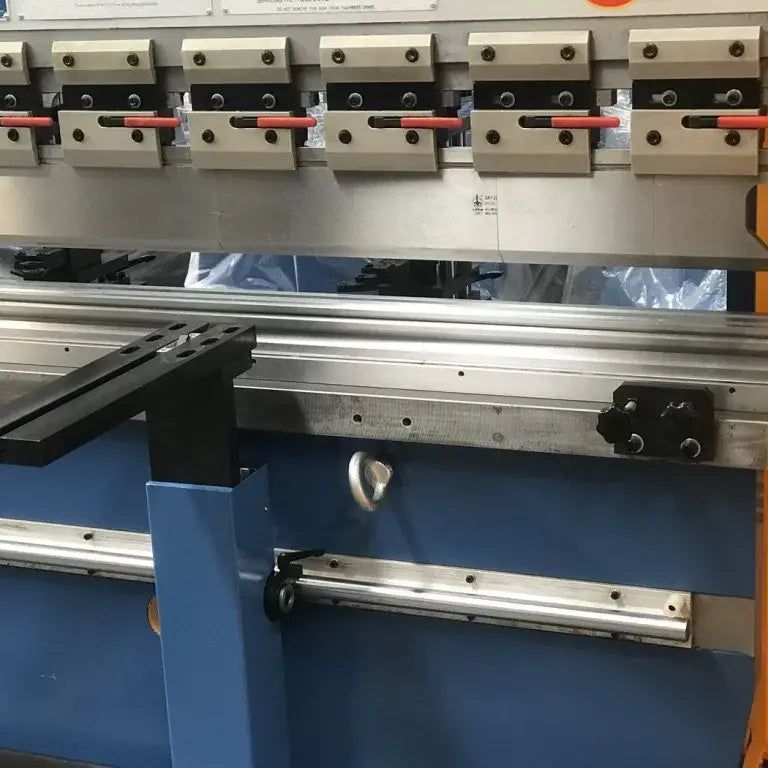

Sliding steel fabricated sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height.
Conveniently mounted control box on pendant for quick swivel and adjustments.
Integrated hydraulic system allowing rapid approach switching automatically to slow bend.
Modern designed pendant foot pedal operation with stainless braided cable.
Variable hydraulic pressure control valving fitted standard.
Safety and material selection bending charts mounted on front beam for easy access.

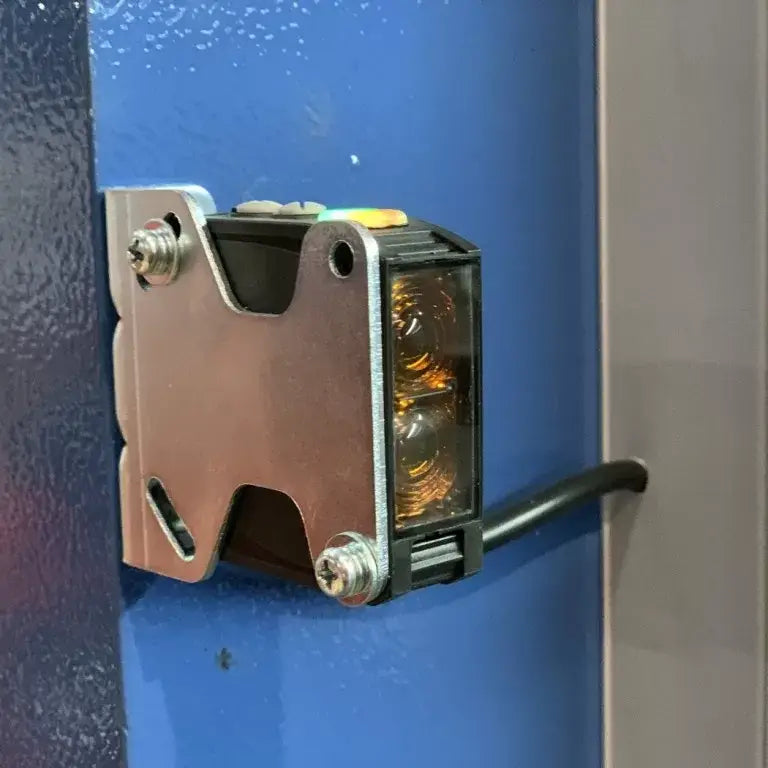

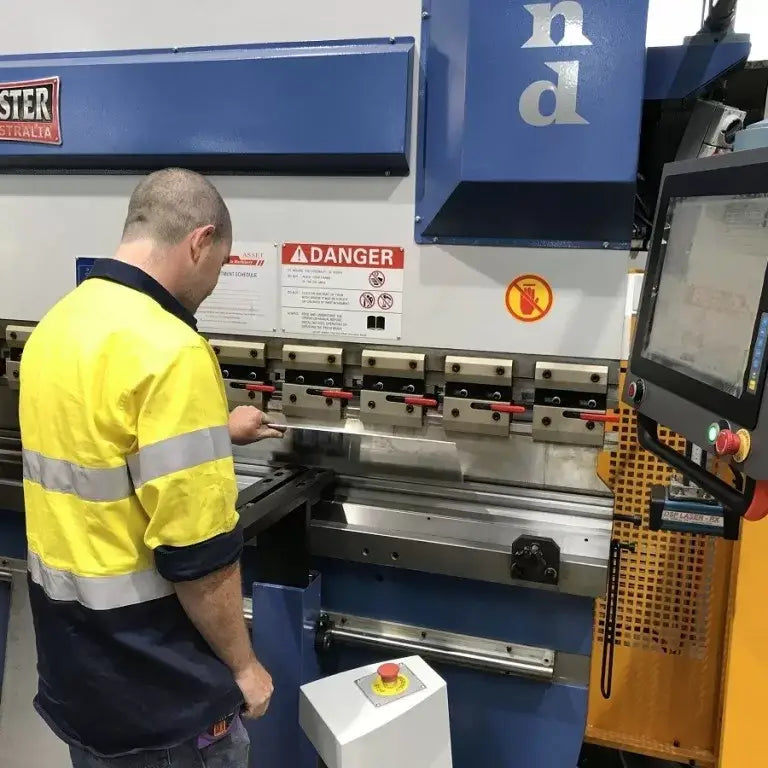

Prices includes front and rear safety Laser Light Guarding to Australian compliance.
In addition, we can also offer 3 ~ 7 axis proessbrakes to suit your requirements.
CE compliant.
iBend Features
The most user friendly touch screen CNC controller on offer.
Backed by the support team at Asset Plant offering direct contact.
Large user friendly Touch Screen.
Easy Job Selection.
Select existing jobs from the library.
Jobs can be named and saved for future use. A virtually unlimited number of jobs can be saved.
Jobs open with all relevant data like bend sequence, material thickness, right Tool, Die & V, angle corrections, which bends were done from front or rear etc. This saves lots of set-up time.
Each operator can have his own password with his own job library.

iBend – Easy steps to put you in production in no time!
Step 1. New: Simple & Easy!…..
Simply touch the grid to draw the subject profile.
Press OK to return to the main screen.
Step 2. Simply touch on the dimension or angle of the profile on the right to edit the value on the popup keypad.
Step 3. So simple!…….. See the profile on one side for easy editing….. and the folding simulation on the other!
• View the actual folding sequence simulation on the graphic of a Press Brake as you fold in real time or screen sequence mode.
• Change folds from front to rear to maximise production.
• Step through the whole sequence without wasting time or material.
• Touch the “Auto fold” button or set the fold sequence manually simply by entering the sequence (1 2 8 7 6 5 3 4 for the example).
Step 4. Enter material thickness and width.
Step 5. Select the right tool and die from the library and start production.

P.O.A - 15kg and up

135 Ton Bending Capacity
4000mm Bending Length
3600mm Distance Between Frames
420mm Side Throat Depth
150mm Ram Stroke
415mm Open Height

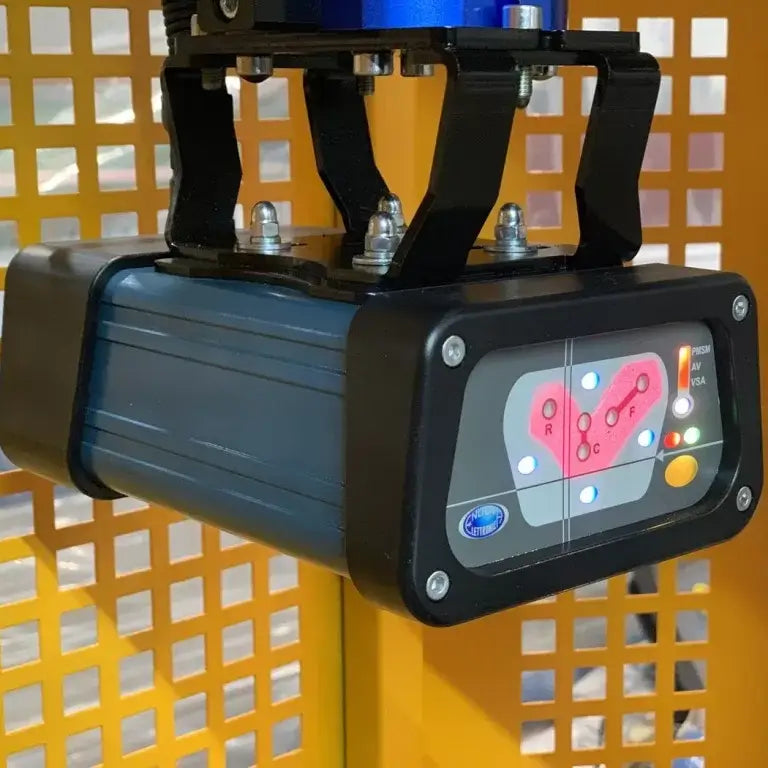

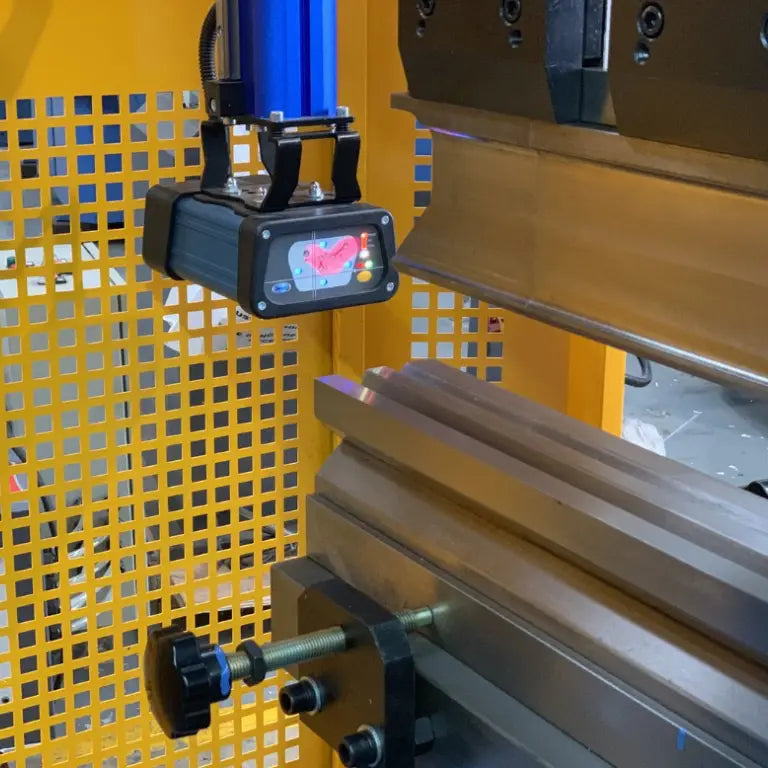

Italian DSP laser guards included
7.5Kw / 415V Motor Power
4400mm x 1850mm x 2800mm Footprint
10200Kg Weight
