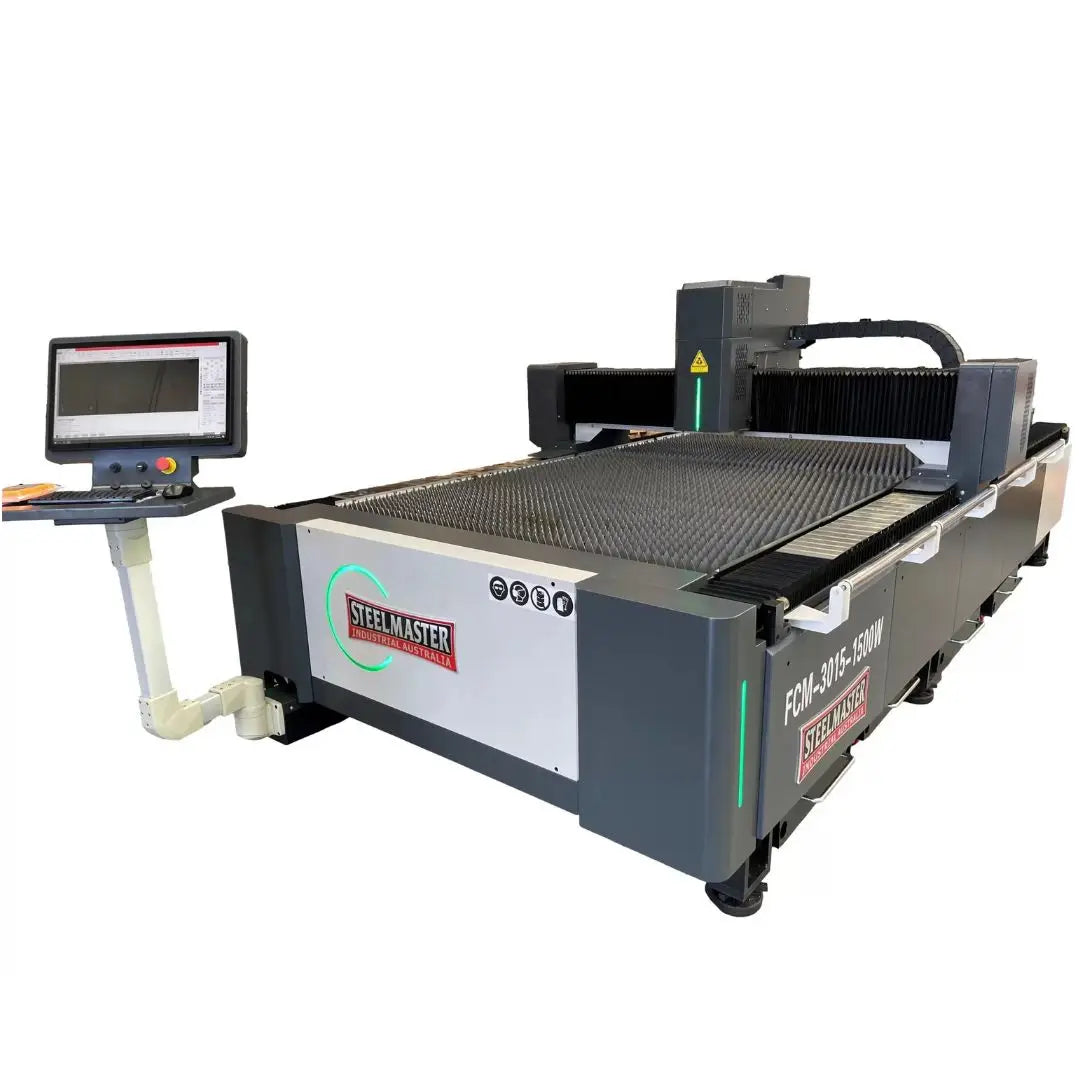

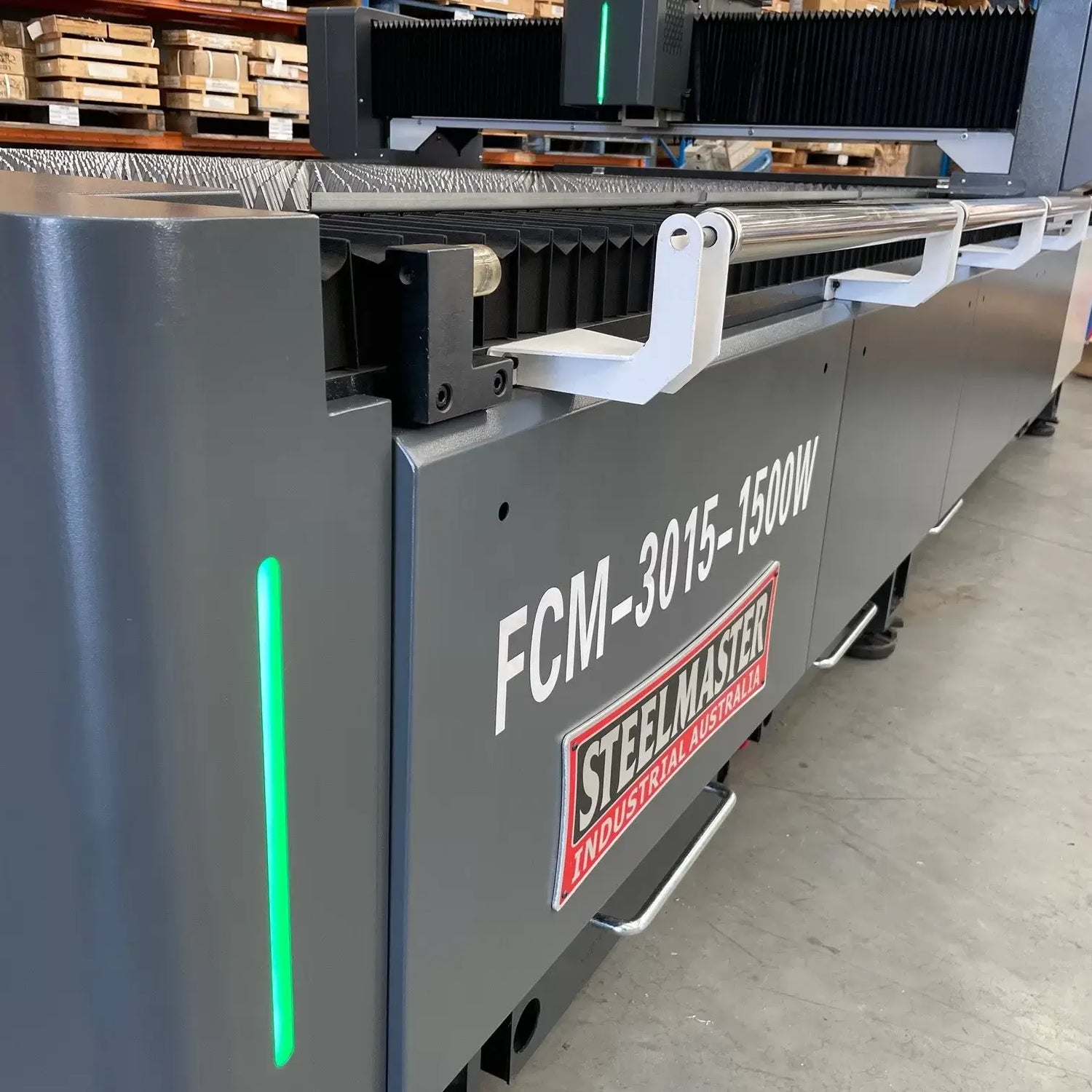

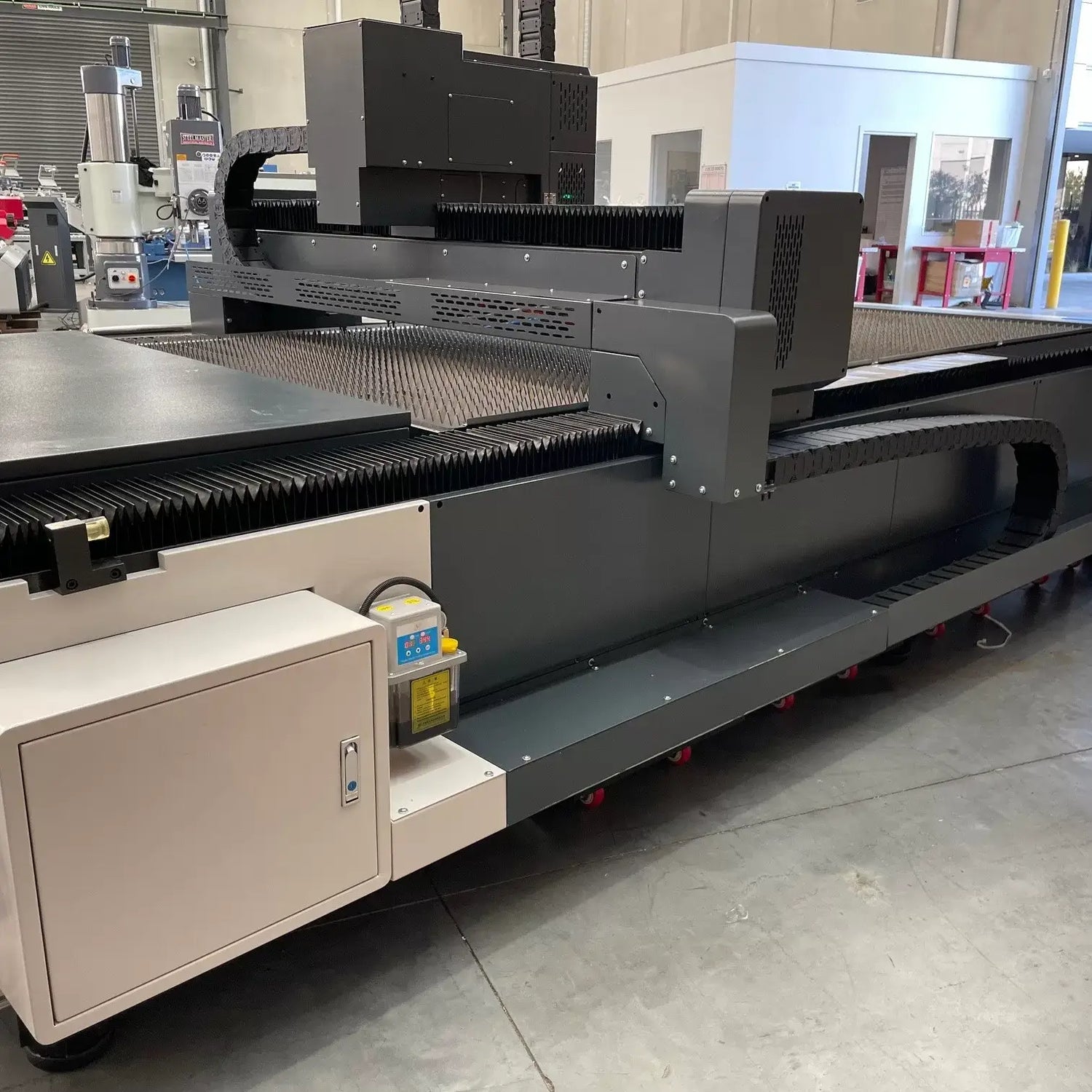

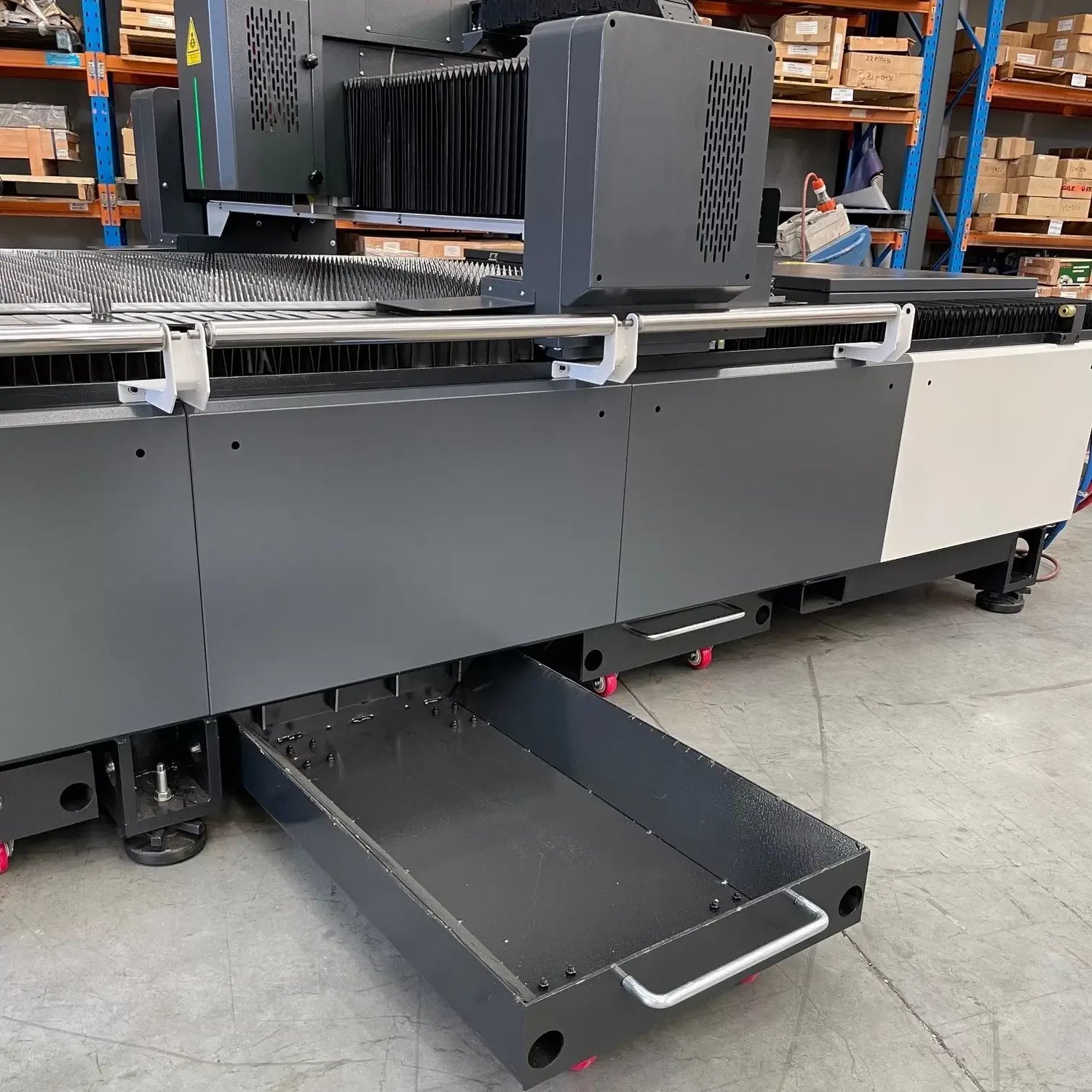

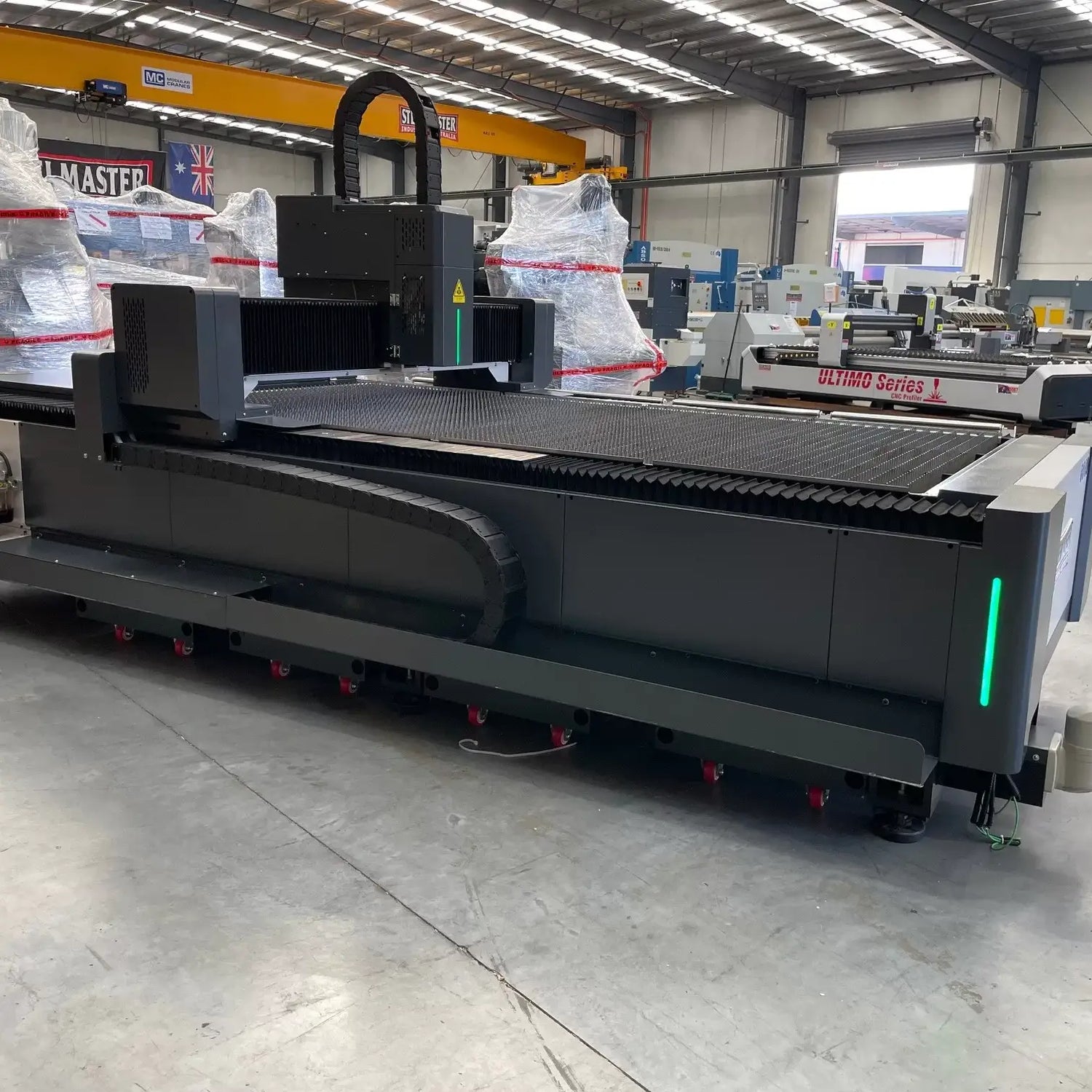

Fibre Laser Gantry Type, 1500W (Model: FCM-3015-1500W)

Our FCM Fibre Laser is controlled with a Cypcut CNC Control unit.
Web based interface Windows XP for easy use.
Easy data entry using ADH interface. The operator can easily and quickly edit and modify the cut quality for varying materials
Look ahead function
40GB program memory
Ethernet connection
19” LCD flat screen
G Code programming language

Advance corner applications with power modulation provides perfect corners

Our FCM Fibre Laser is controlled with a Cypcut CNC Control unit.
Web based interface Windows XP for easy use.
Easy data entry using ADH interface. The operator can easily and quickly edit and modify the cut quality for varying materials
Look ahead function
40GB program memory
Ethernet connection
19” LCD flat screen
G Code programming language
Advance corner applications with power modulation provides perfect corners

Volume: 1m3/min.
Pressure: 7kg/cm
Dew point less than 5 Degrees C.
Air to be filtered.

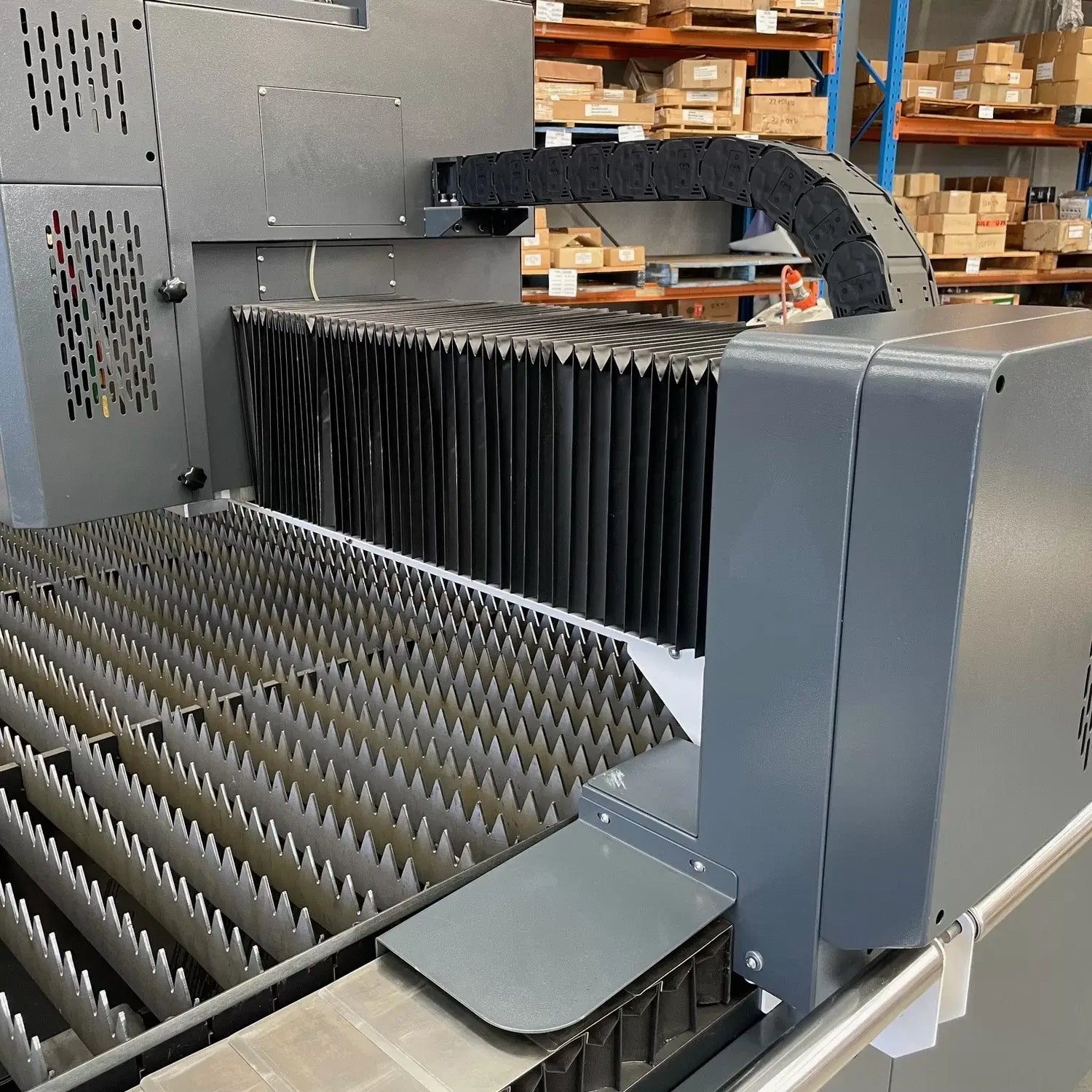

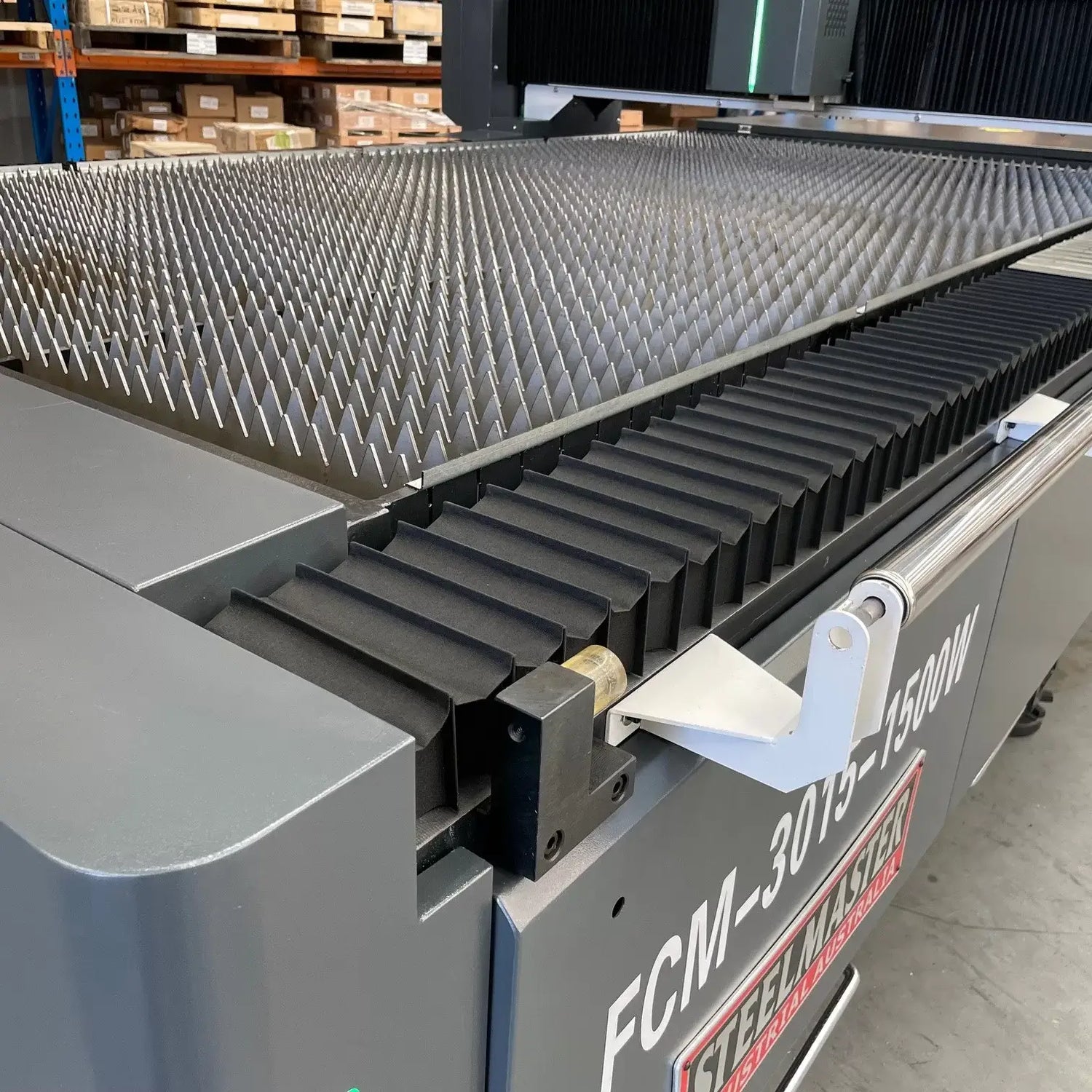

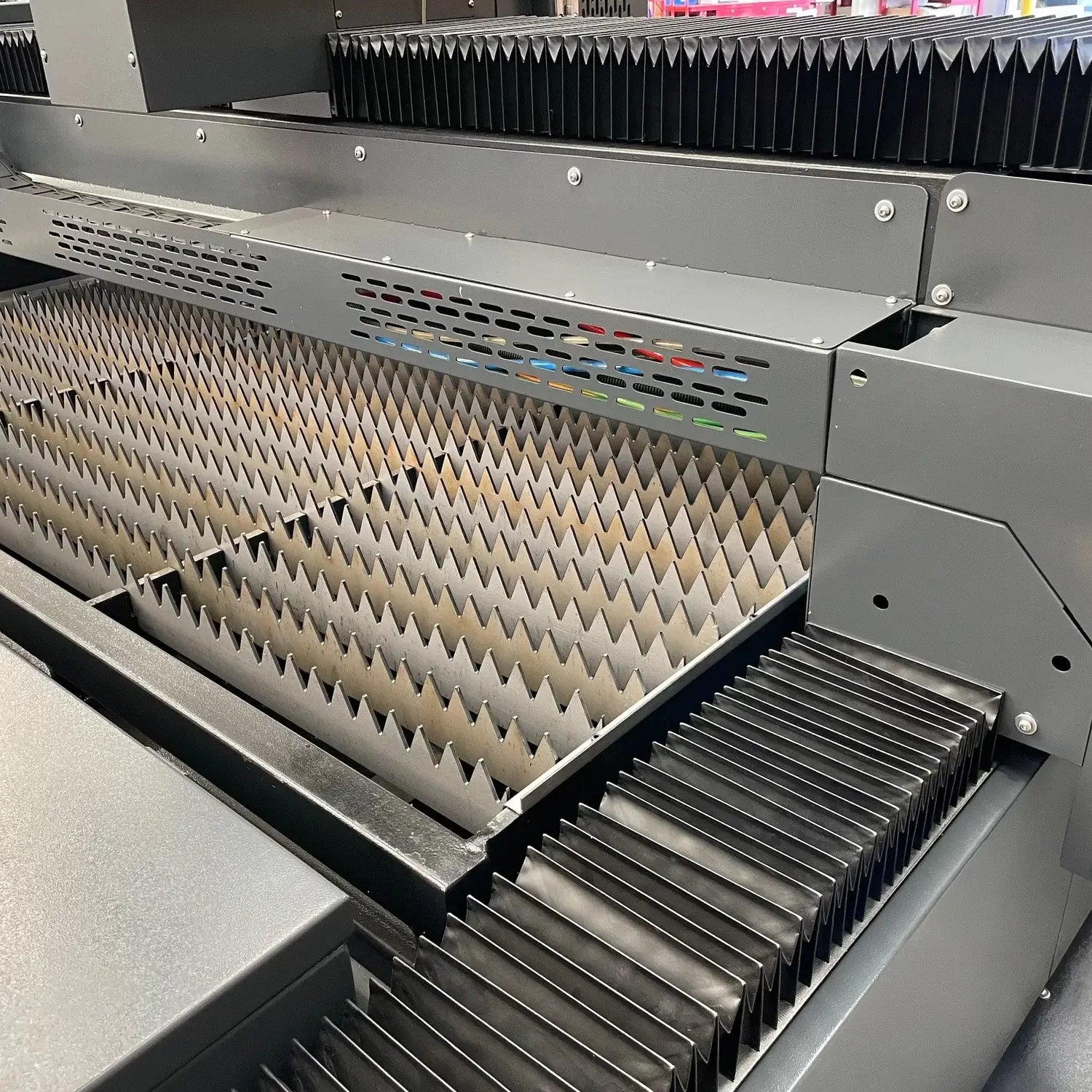

1500mm x 3000mm

Material Max Thickness Cutting Speed
Carbon Steel 14mm. 0.6 ~ 0.7m/min
Stainless Steel 6mm. 0.6 ~ 0.8m/min
Aluminium 4mm. 1.4 ~ 1.6m/min
Copper 4mm. 0.5 ~ 1.0m/min

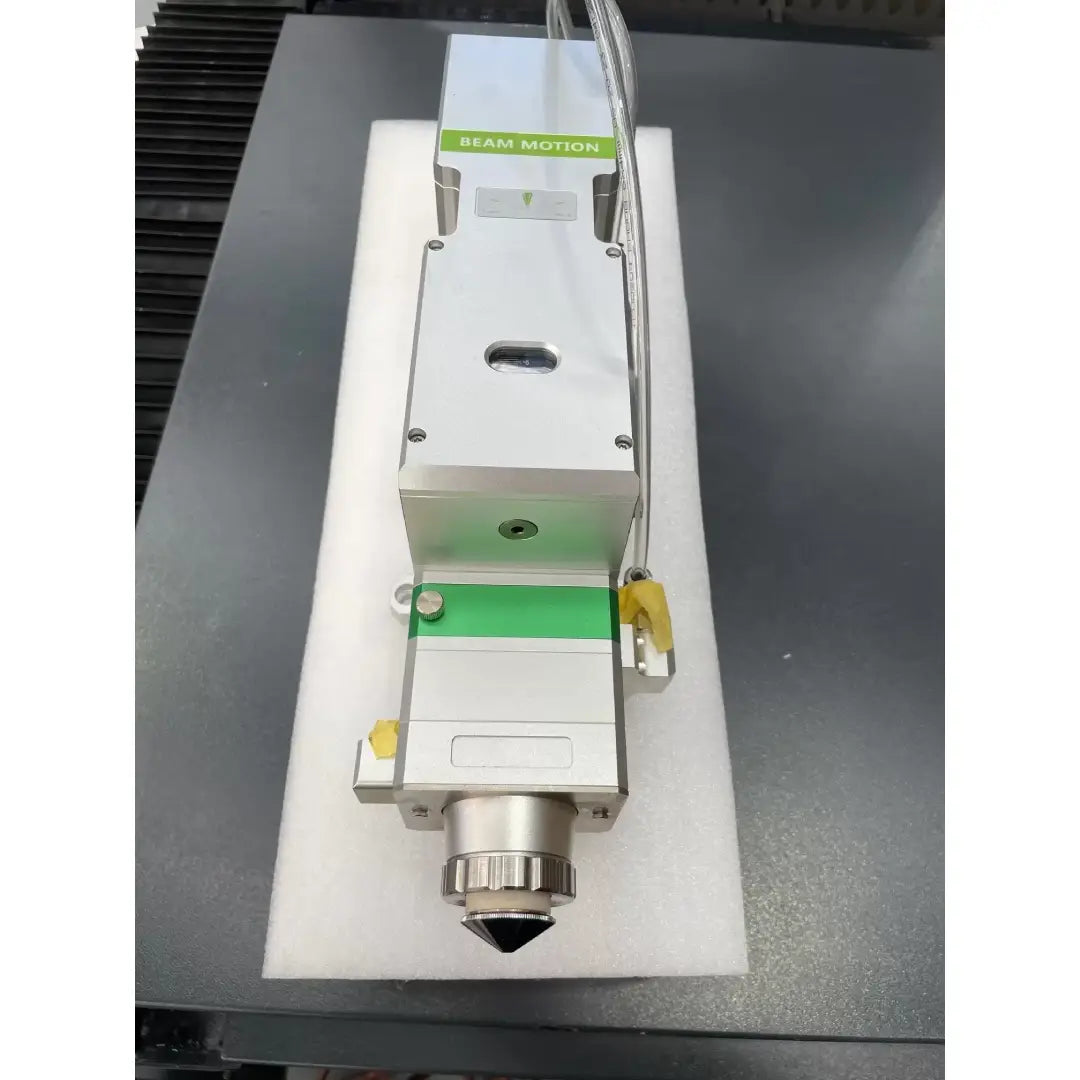

RAYTOOLS AG Laser Cutting Head with builtin amplifier
QCS Connector with absolute high cut quality
Manual focus adjustment
Auto focus adjustment through “Z-collimator module”
Auto adjustment of the focus and depth of the laser beam by “MZ-collimator module”

Program can be completely created off-line using CAD/CAM system Metalix or Lantek
Can be directly drawn or directly imported from other CAD Systems in DXF, DWG
Full auto cutting (Any CAD drawing can be imported to create NC codeswhich are loaded to the controller via network or memory stick)
Full auto nesting allowing optimisation of material
Sprint Cut – chooses the shortest path of head from one to another contour
Fast Head Path Anti-collision protection
Real font styles are supported to cut or mark
Pre-Piercing finishes all piercing prior to contours.

Screw Compressor
Fume Extraction Units
Decoiler, Straightening & Feeder

P.O.A - 15kg and up

Model: FCM3015 / 1500w
Cutting Area 1500mm x 3000mm
CNC Control Unit CypCut CNC Control
Laser Head RAYTOOLS ( Swiss)
Fibre Laser IPG (German)

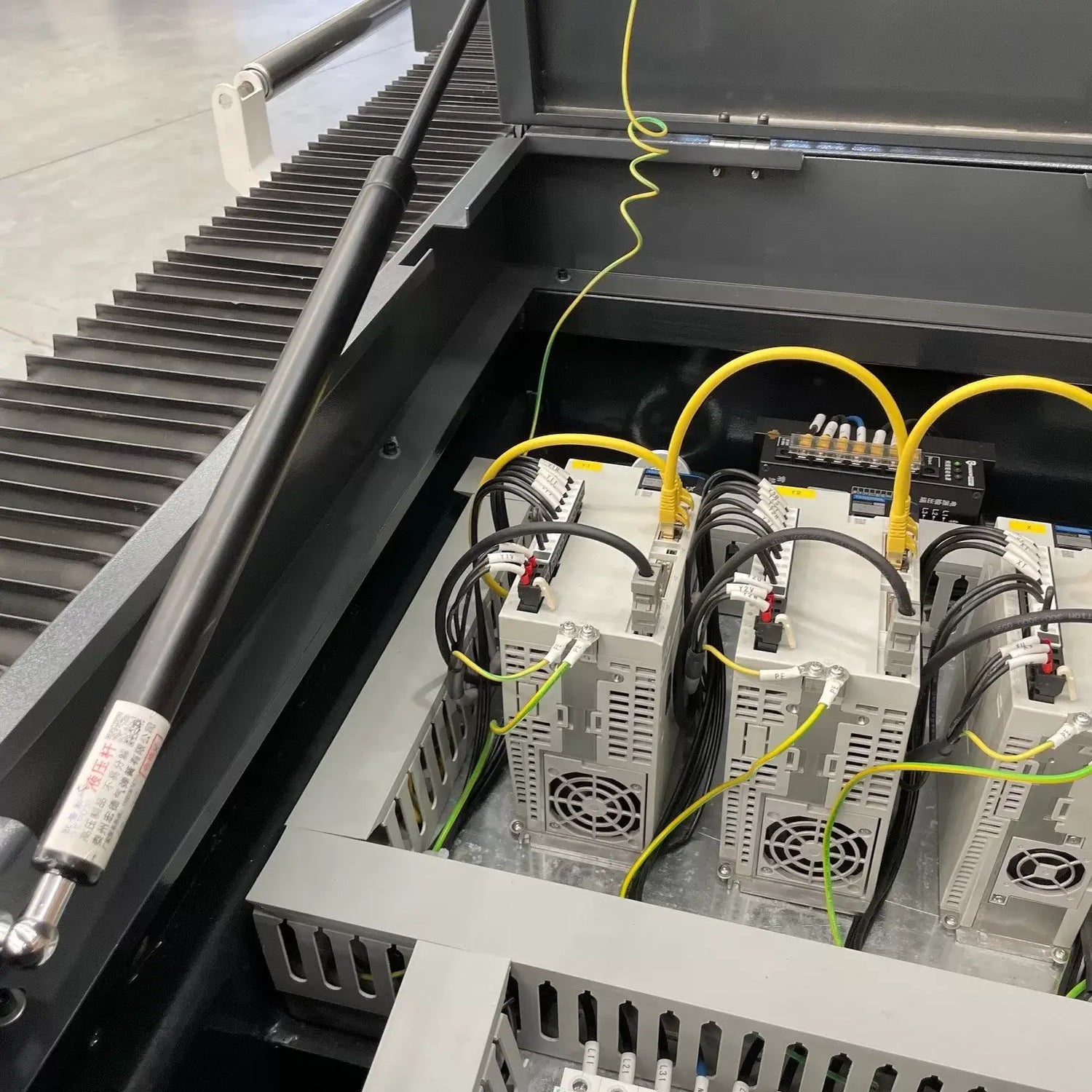

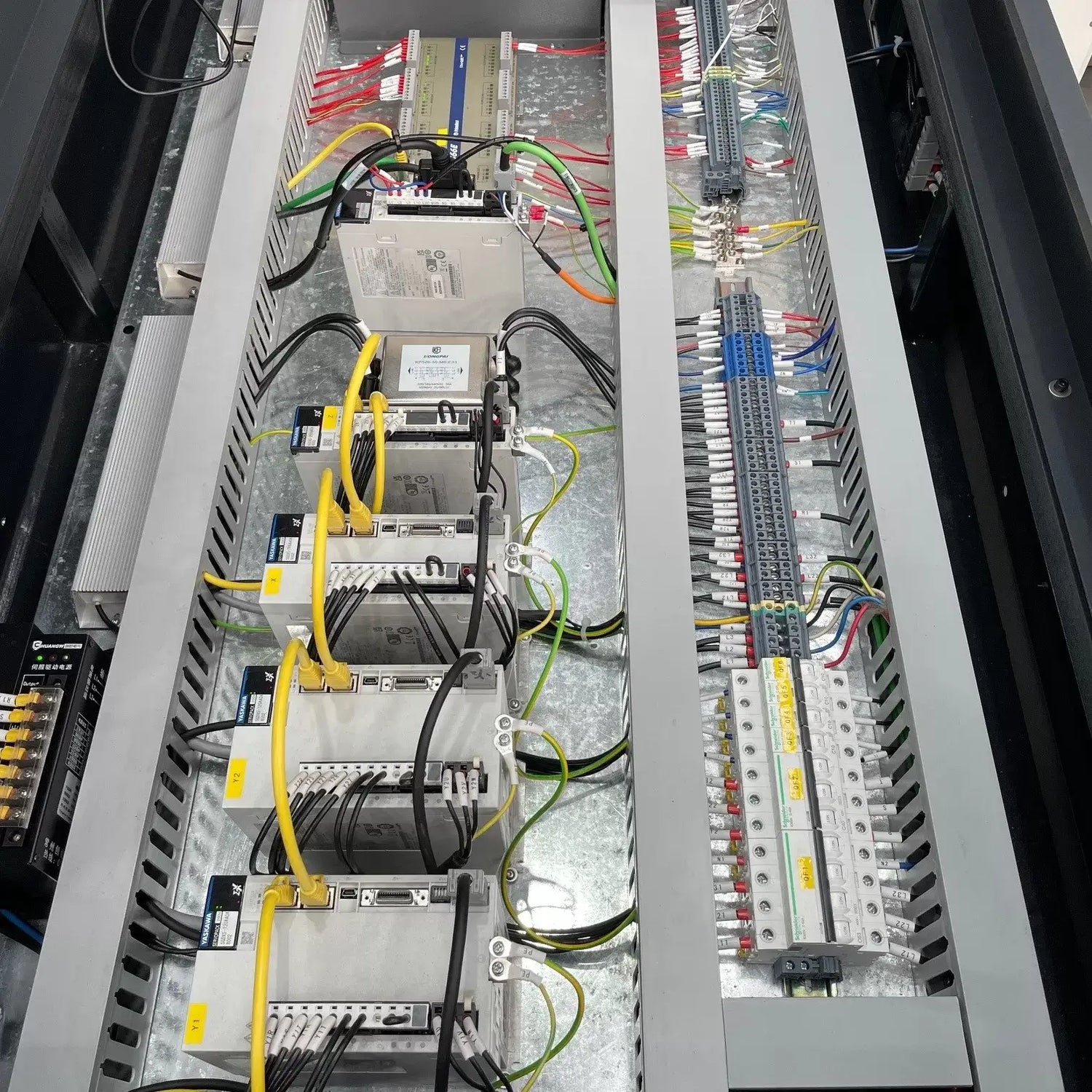

Servo Drives Yaskawa (Japan)
Reduction Gear Drives Delta (Taiwan)
Linear Guide Hiwin (Taiwan)
Pneumatics SMC (Japan)
Rapid Traverse (X&Y) 100m/min
Acceleration 1G
Positioning Accuracy +- 0.03mm
Repeatability +- 0.02mm
Drawing Program Mode DWG, DXF format import directly
Total Power 12Kw 60AMPS

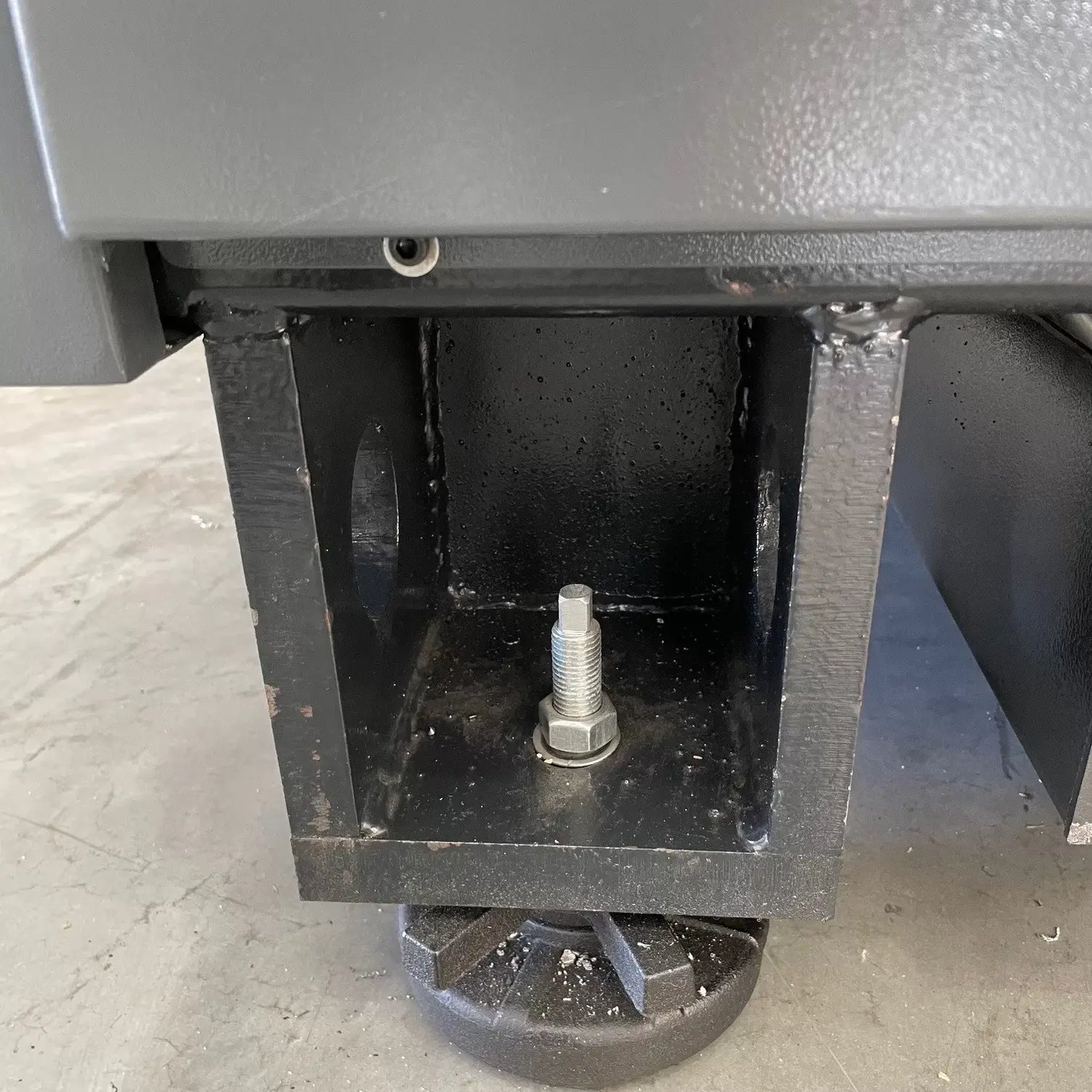

Max. Table Load 900Kg
Dimensions 4420mm x 2213mm x 1800mm – 3500kgs

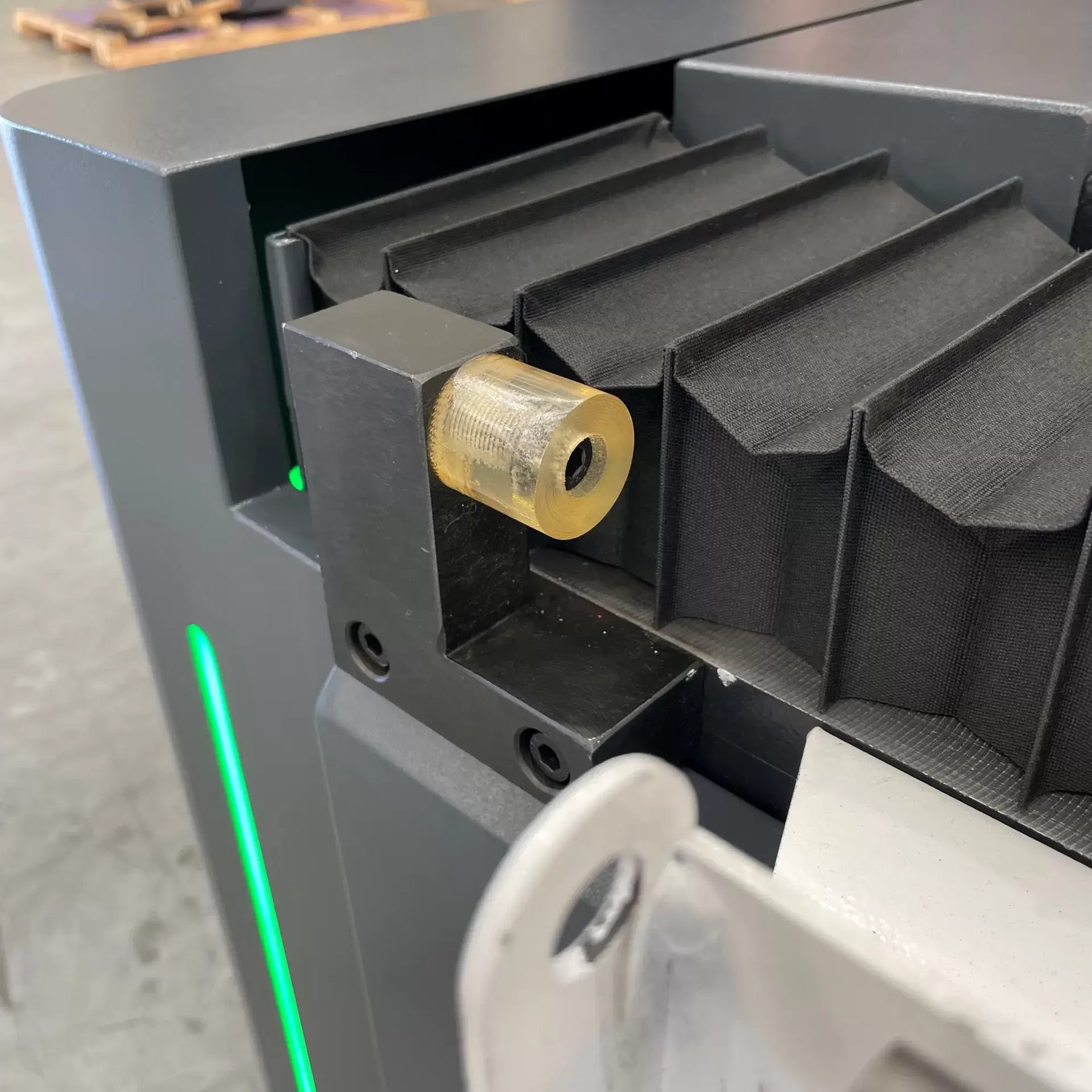

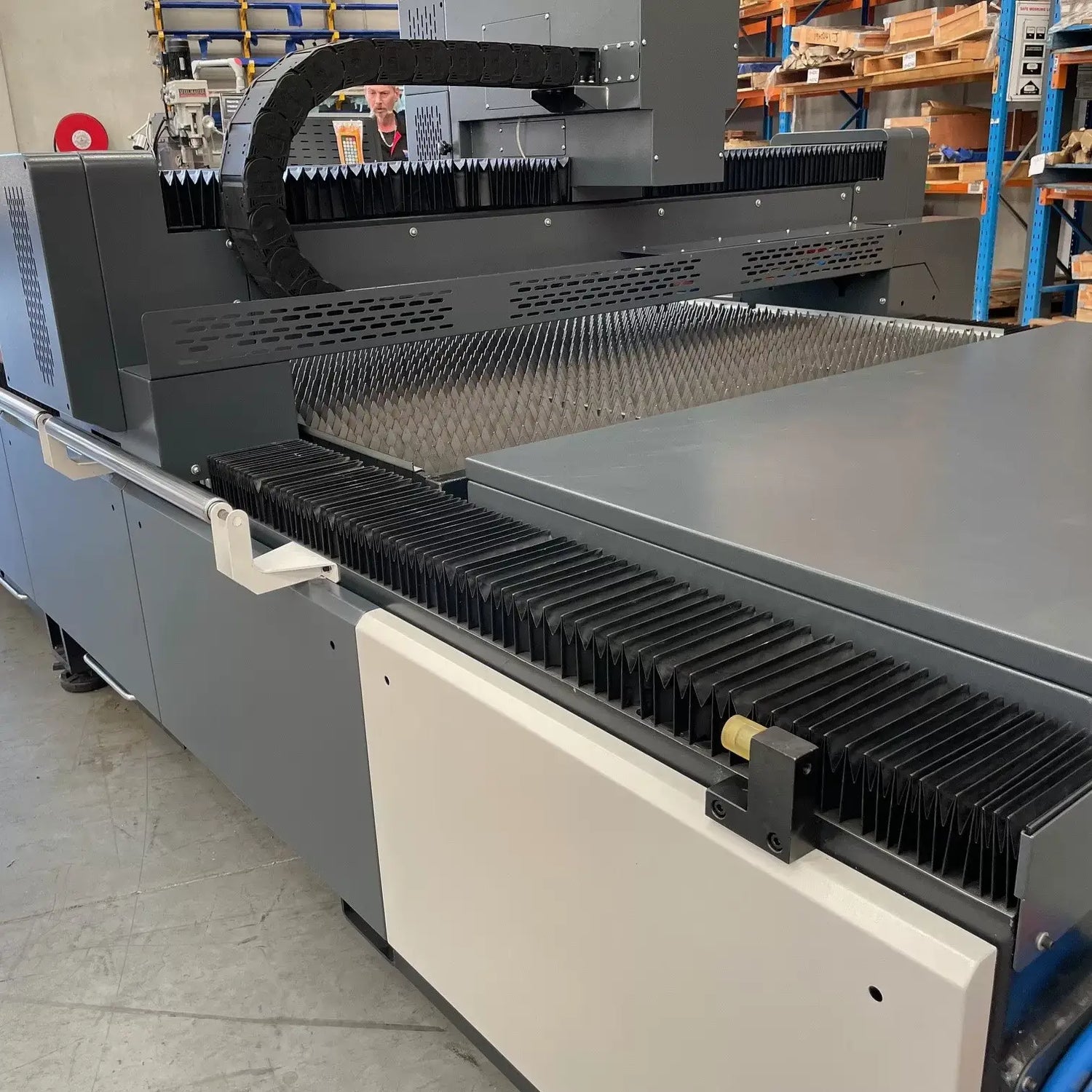

Compact design facilitating a wide variety of applications
CNC with laser control function
Resonator with reflective sensors.
Highly dynamic equipment
Incredibly fast & flexible, the ADH FCM Fibre Laser cutting system is the ideal partner for ultra-high-speed cutting. Our FCM Model has the ability to cut a wide range of ferrous and non-ferrous metals while maintaining low operational costs.
User friendly CypCut CAS/CAM CNC Control Unit
Unique Features
Maximum simultaneous positioning speed: 100m/min
Acceleration speed 1G/ 9.8ms
Precision +/- 0.02mm
IPG Resonator.
Advanced RAYTOOLS cutting head (with air cross blast)
Auto nesting output function
Auto time and unit cost calculation function
No network connection

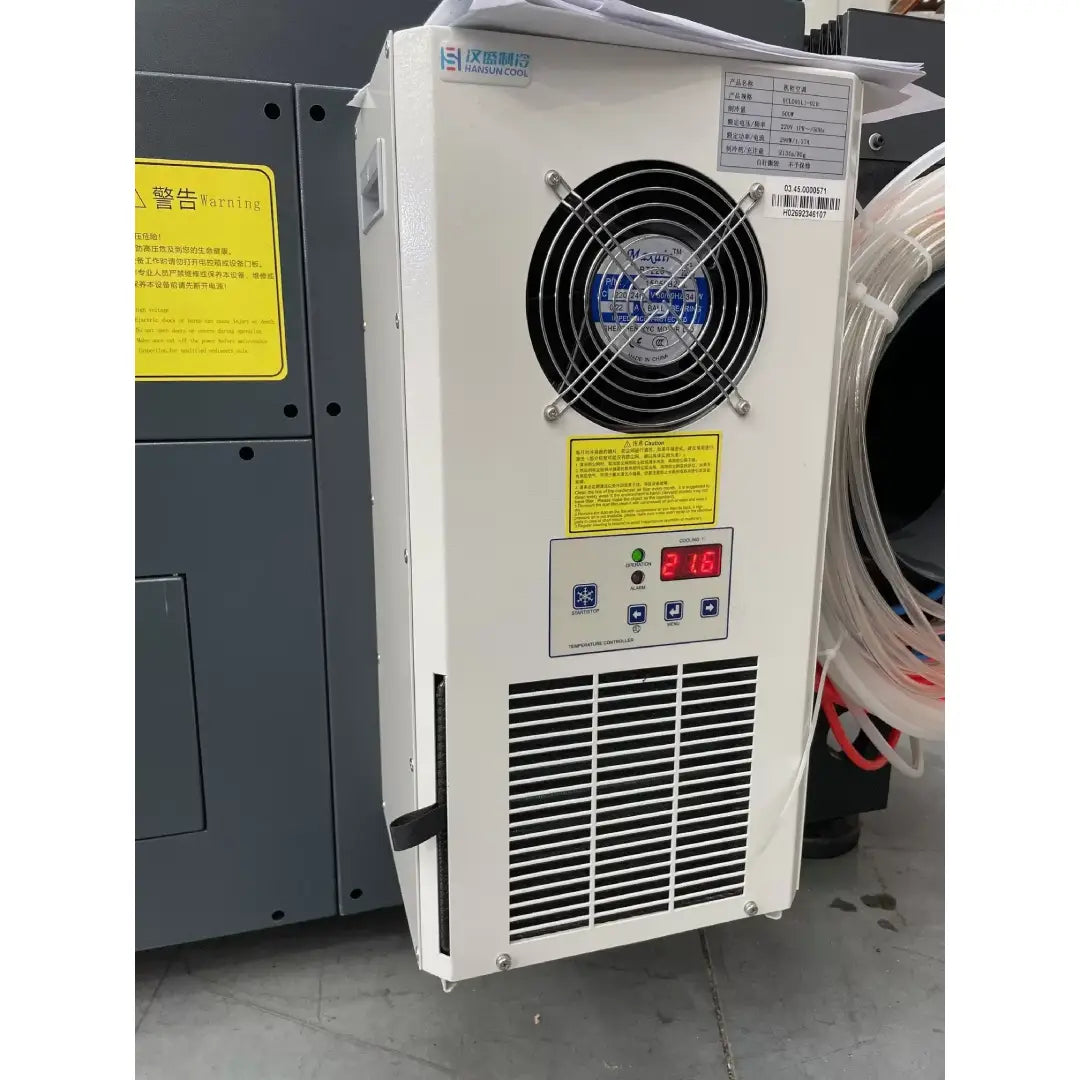

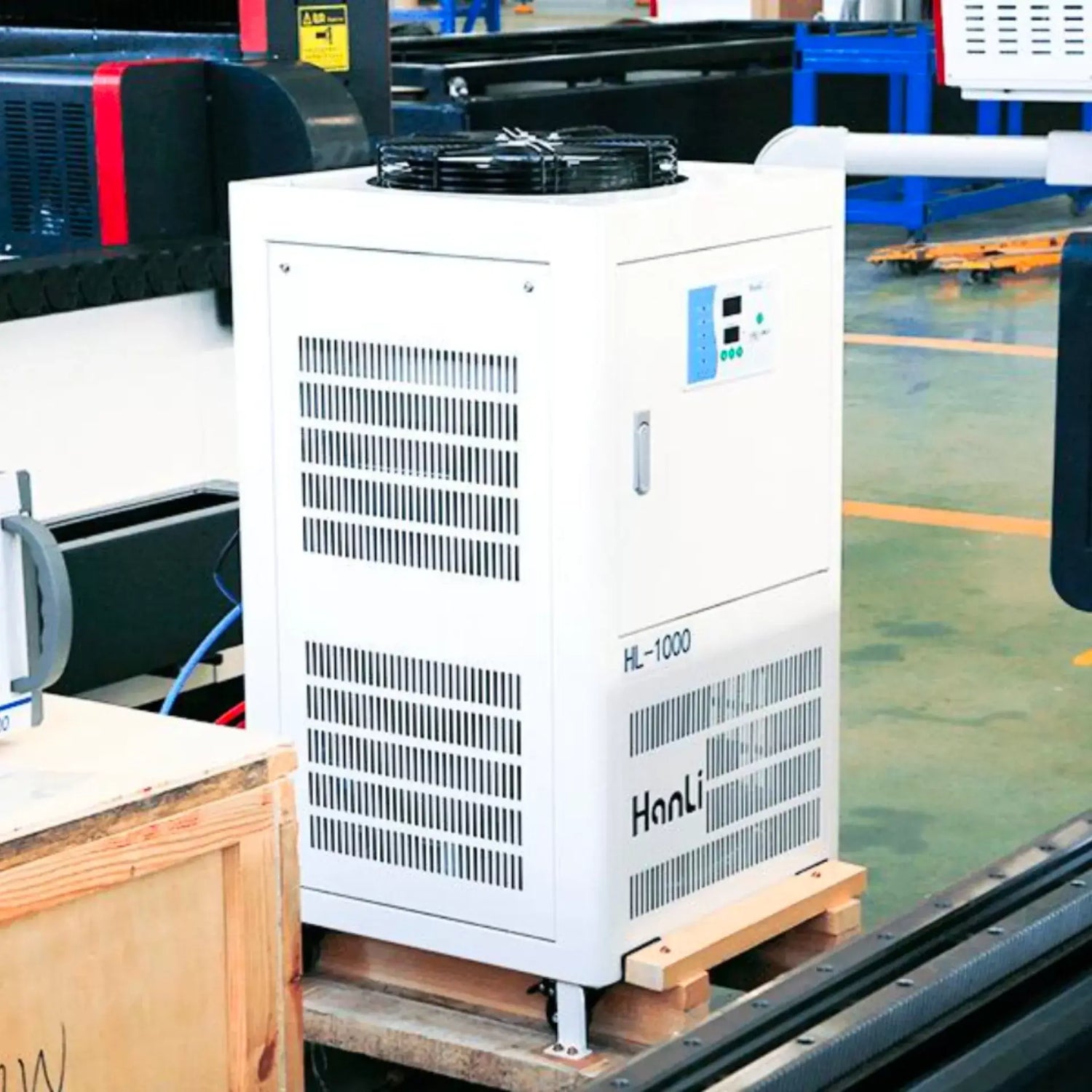

Power Supply:
100KVA
Stability of 3-phase Voltage +-5%
