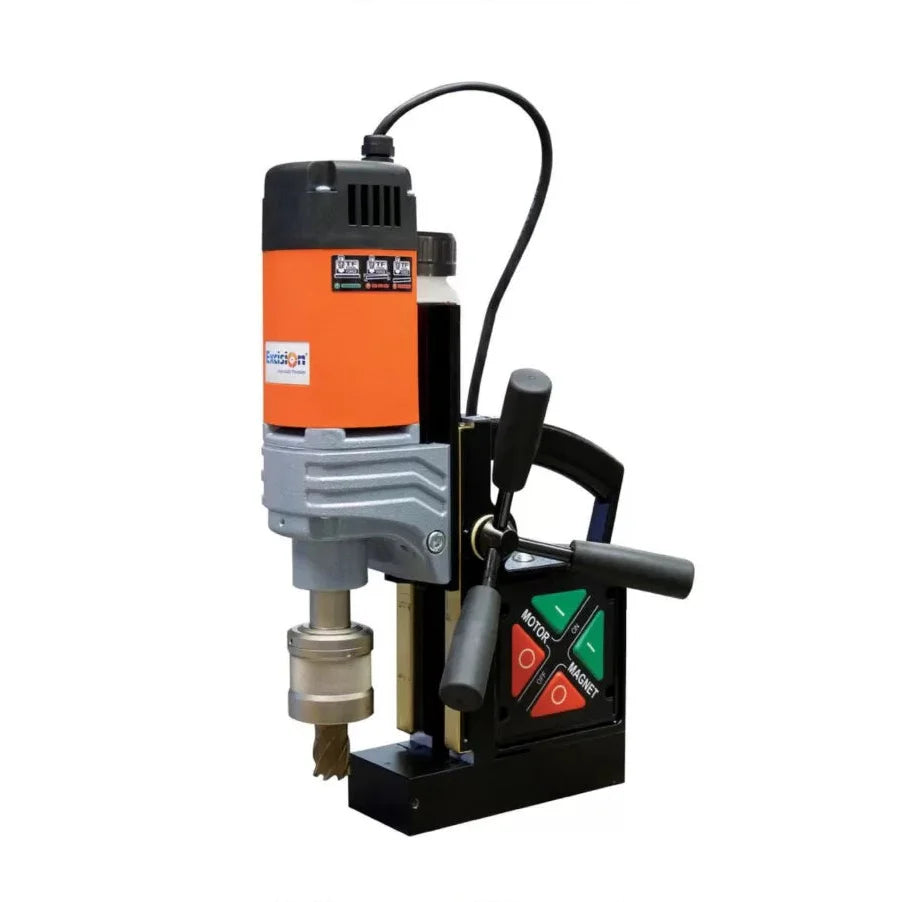

Magnetic Base Drill, 40mm Capacity, Made in Germany

Quality German made drilling machines
Perfect for all onsite work
Powerful motors with high torques and a range from 900 to 1800 W, ergonomic design
New generation control boards for ease of operation and serviceability
Magnet feet with 3 instead of 2 coils and with the new m.p.i. magnet system (magnetic power increase). electronic increase of magnetic adhesion at the start of the drilling operation, when strongest adhesion is required (for an even higher protection of user and tool)
Pressed-in brass rings for an improved protection of the magnet coils
Continuously adjustable motor on the slide for a maximum stroke enlargement, when using twist drills,
drill chucks and tapping attachments.
Durable keyboard with flat cable. panel angled directly in sight of the user. to feel for the on/off-switch has come to an end. easy reachability of keyboard, even in narrow u-beams and h-beams drilling applications
Newly designed gear-housing with integrated motor support. with built-in height adjustment by means of
clamping jaws – there is no better fixing device on the market.
Trouble with ordinary dovetail or pillar guides? solid brass guide rails guarantee an optimum slide guidance.
The heart of our magnetic drilling machines: robust electronic switch units, interchangeable with all types of the new generation. easy to approach for a quick service.
240 Volt operation

P.O.A - 15kg and up

Made from high quality fine grain cast iron with heavy duty ribbing to ensure extremely low vibration
Oil bath lubricated gearbox with hardened, precise ground gears
Quiet operation
Easily accessible front panel to electrical and mechanical controls
Arm height adjustment through elevating screw and elevating motor
Hardened and ground guide ways
Hydraulic operated feed and spindle drive system ensuring long life
Heavy duty tee slotted box table
Up to 3000 mm capacity available
40mm drilling capacity x 50mm depth
1000W magnetic adhesion
129mm spindle travel
Trota quick – fast action cutter changer
Speeds range – 450rpm
Motor capacity – 1050Watt x 240Volt
Shipping dimensions – 450mm x 400mm x 200mm
Approx weight: 10.6kg
Includes transport case, saftey strap & coolant unit
