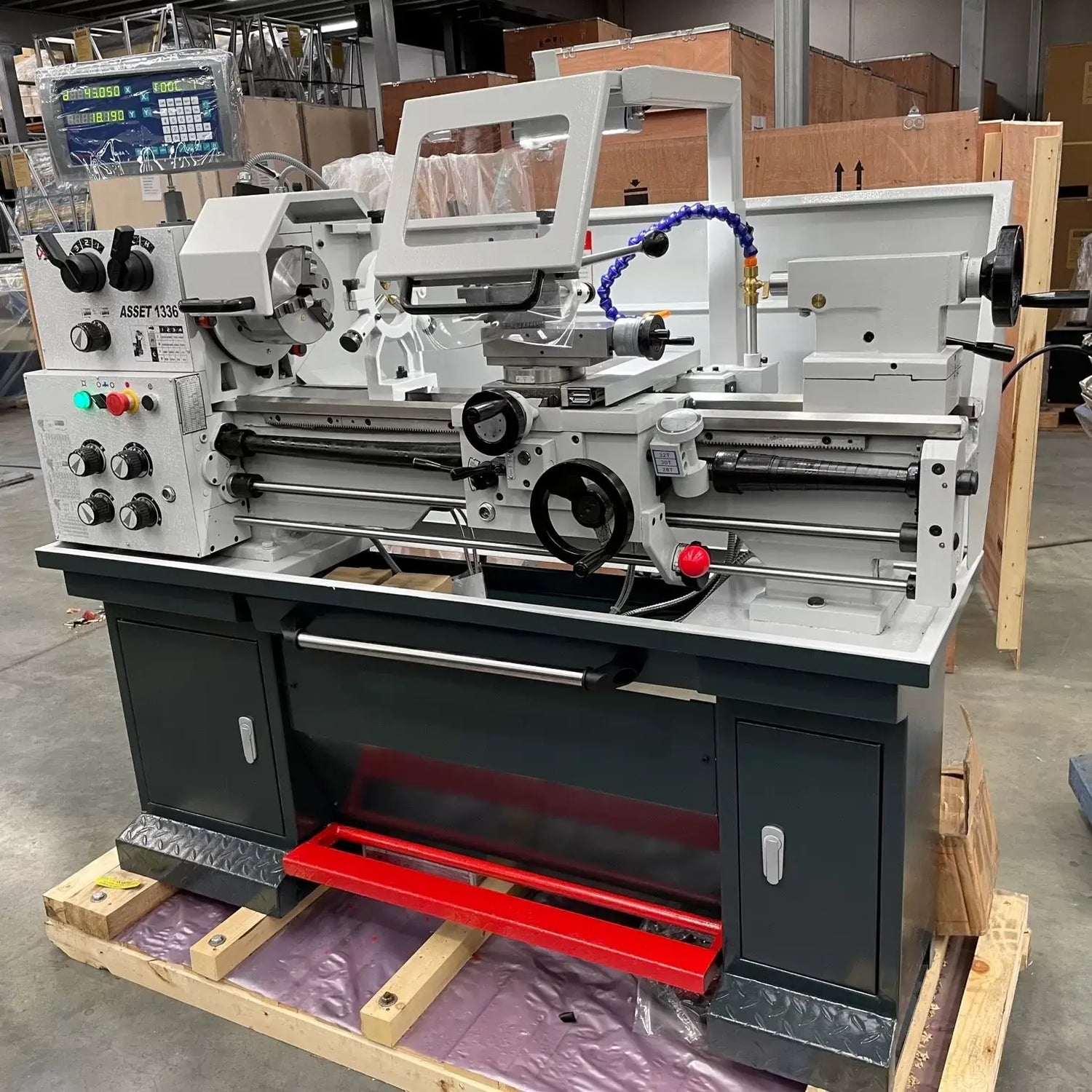

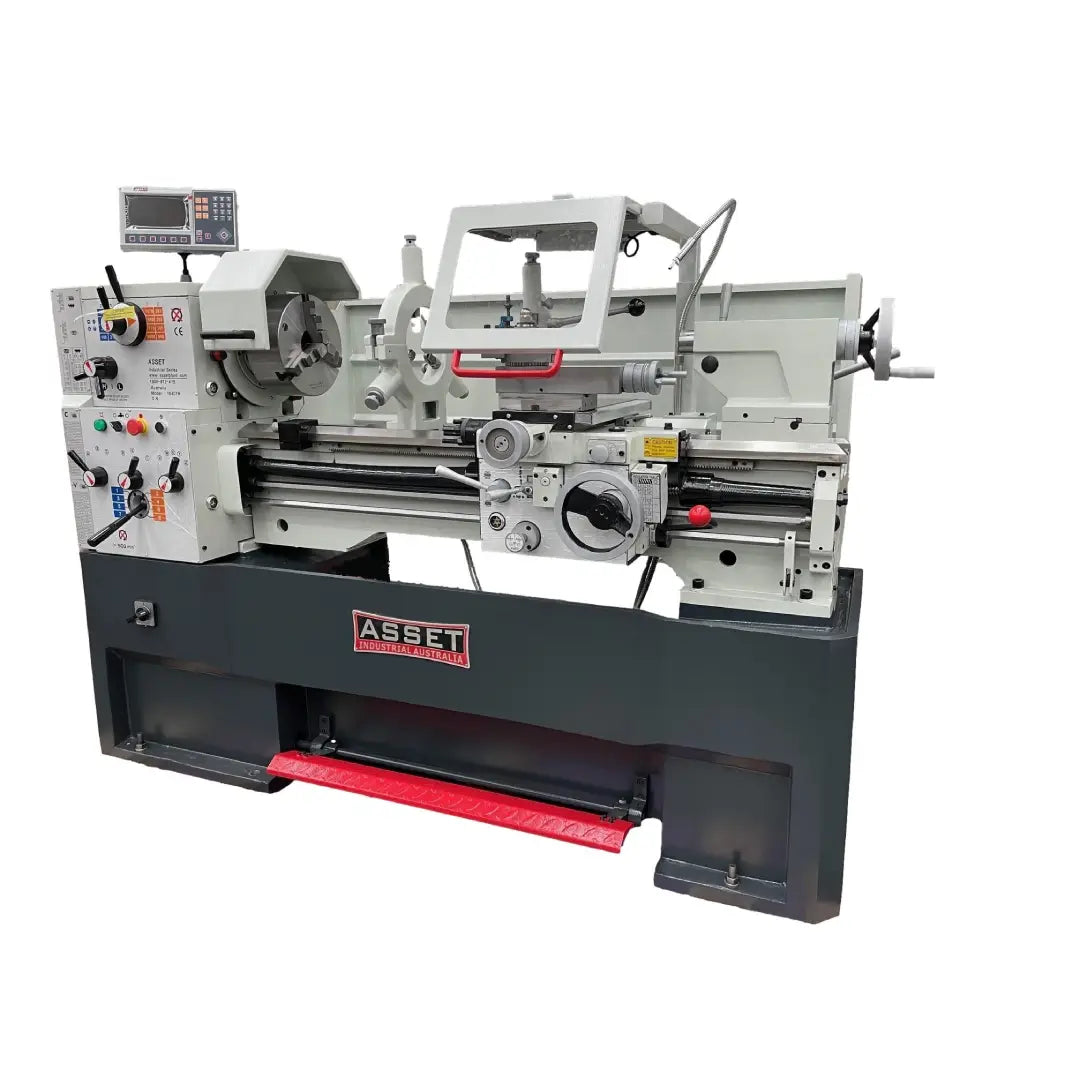

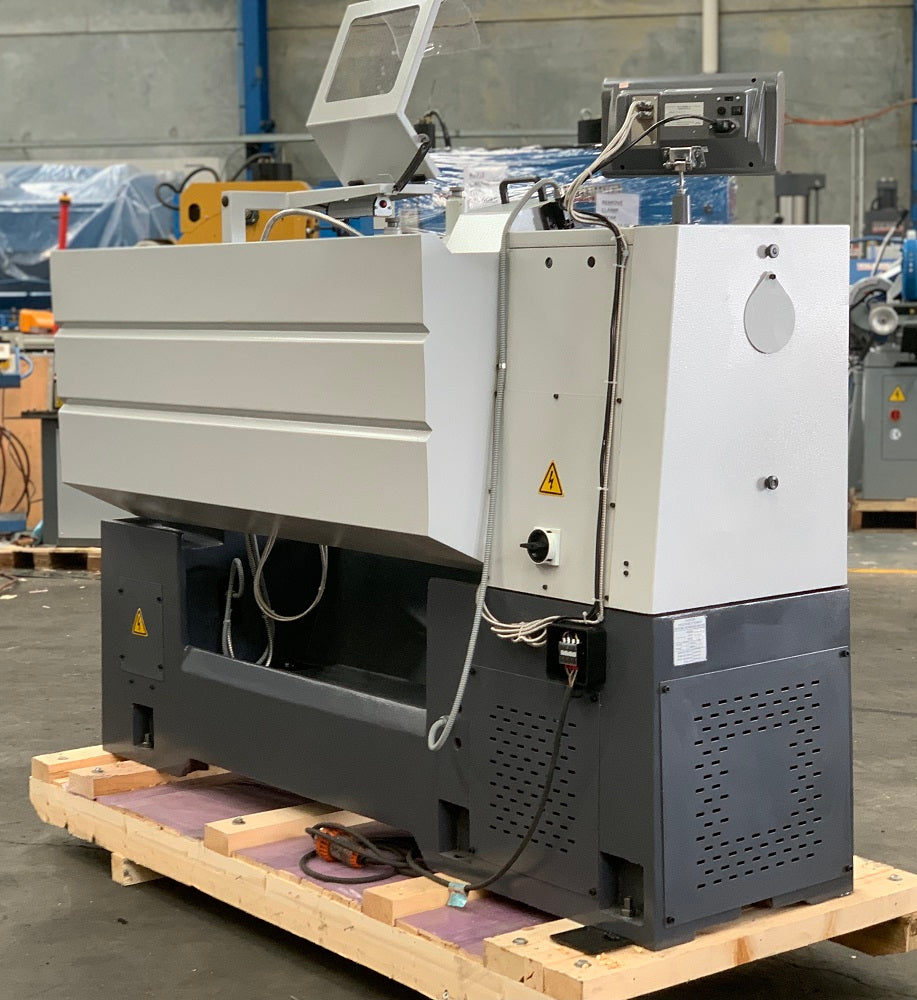

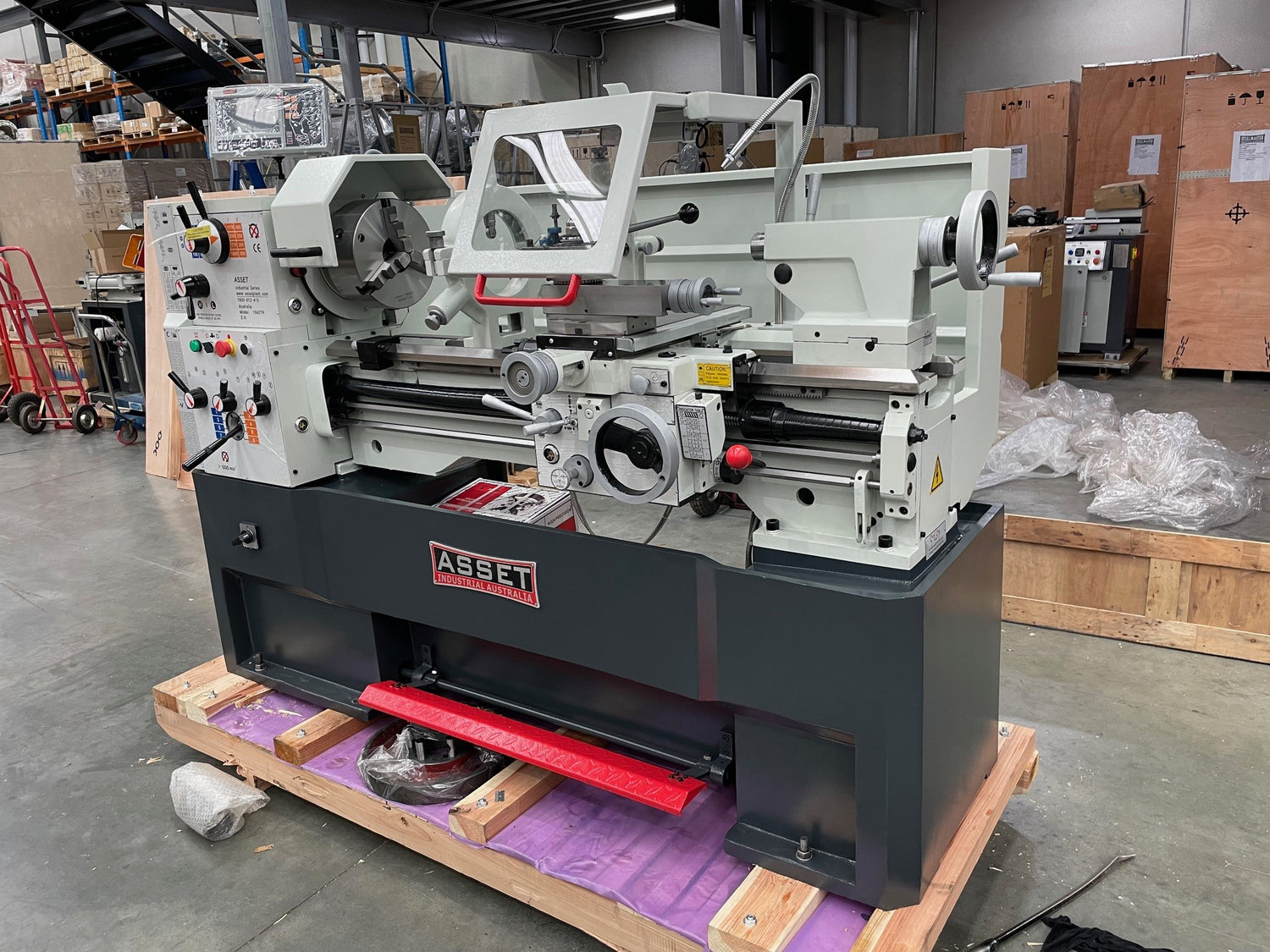

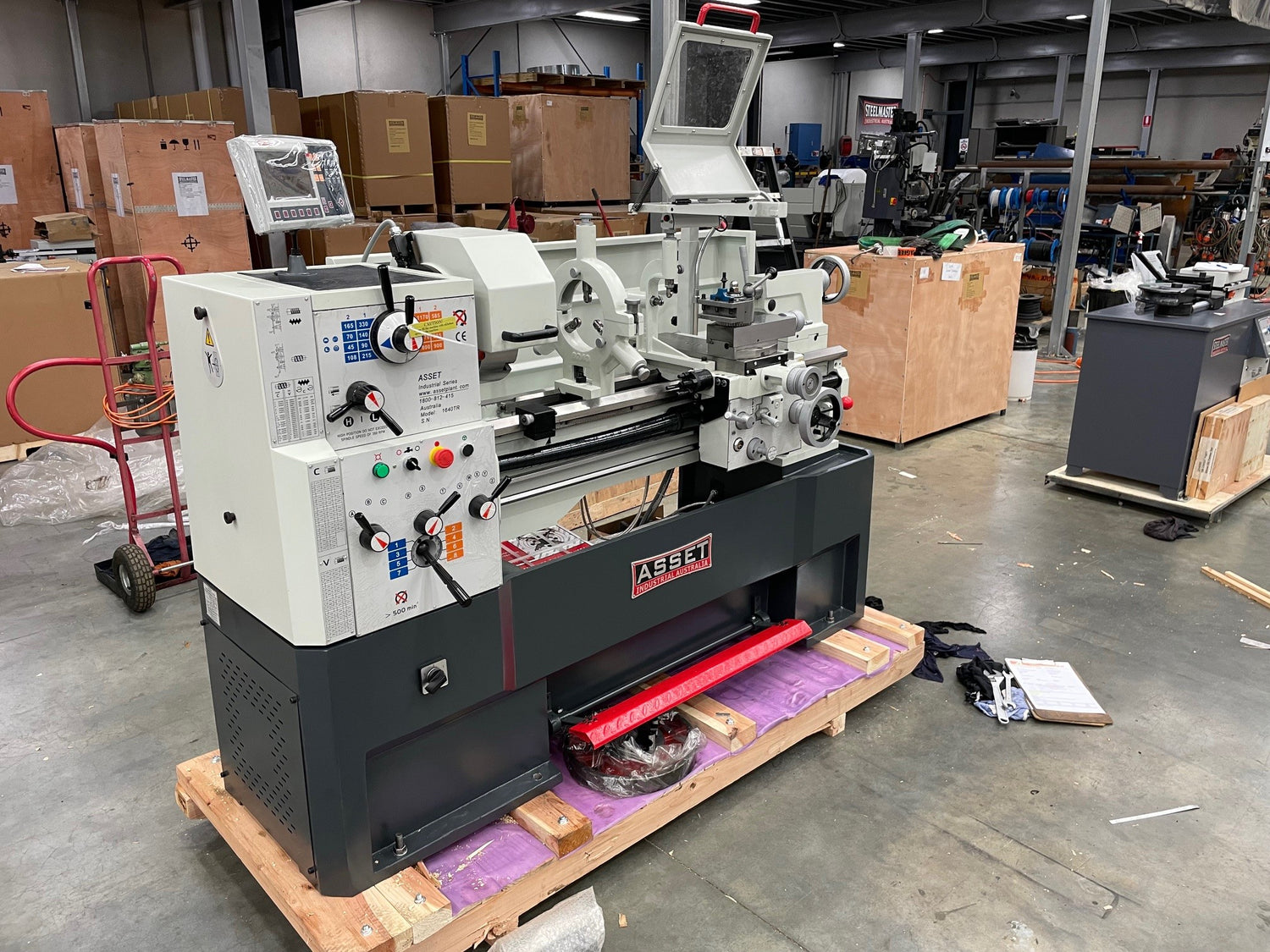

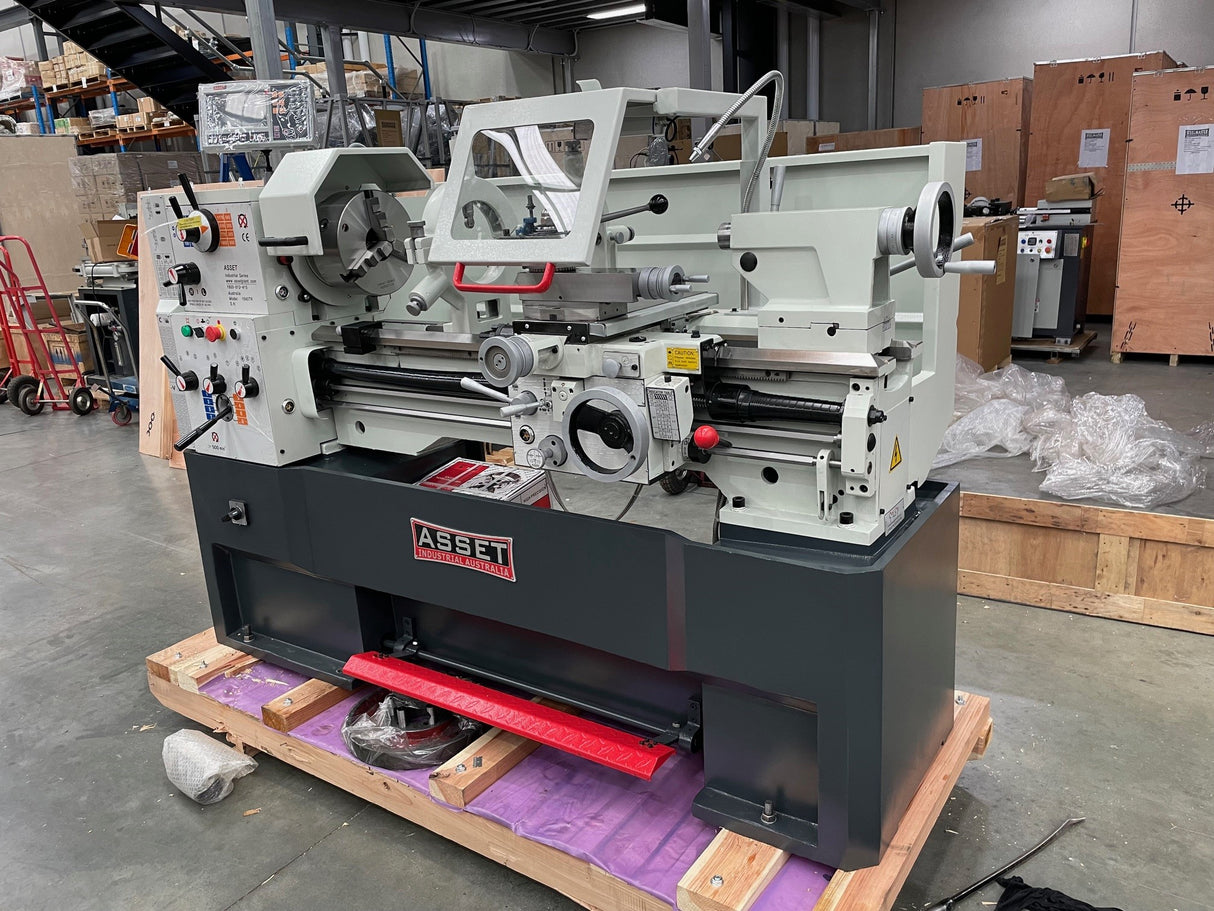

ASSET 1640TR – EURO Toolroom Precision Lathe. 1000mm Centres, 410mm Swing, 52mm Bore, 2 Axis DRO

Name: ASSET 1640TR – EURO Toolroom Precision Lathe. 1000mm Centres, 410mm Swing, 52mm Bore, 2 Axis DRO
Brand: Asset Industrial
SKU: 12-0120N
Price: 12850.00 AUD
Availability: InStock

PRICE EX GST

Reg: $13,850.00

Sale: $12,850.00

PRICE INC GST

Reg: $15,235.00

Sale: $14,135.00

MODEL NUMBER: ASSET-1640TR-TOOLROOM-LATHE

Pickup available at 118 Logis Boulevard

Usually ready in 24 hours

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PICK UP & DELIVERY INFORMATION

PICK UP:
For machineries, pick up is scheduled within 48-72 hours after order confirmation, subject to pre-commissioning.

For tools, parts & accessories, next day pick up is available.

Pick Up location: 118 Logis Boulevard, Dandenong South VIC 3175

DELIVERIES:
For machinery delivery rates, please request a quote or call 1800 511 508.

For Tools, Parts & Accessories, continue to check out.

DESCRIPTION

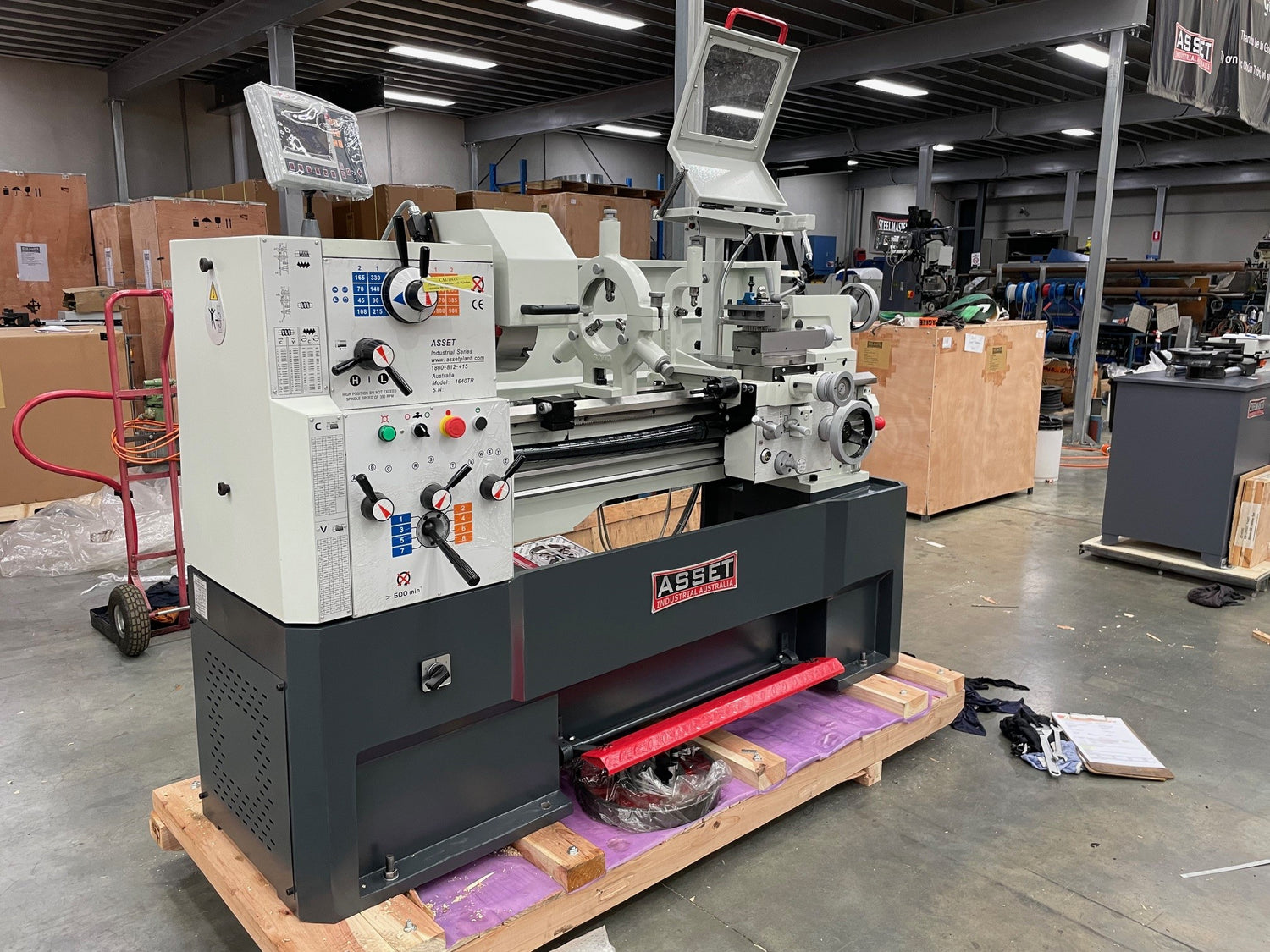

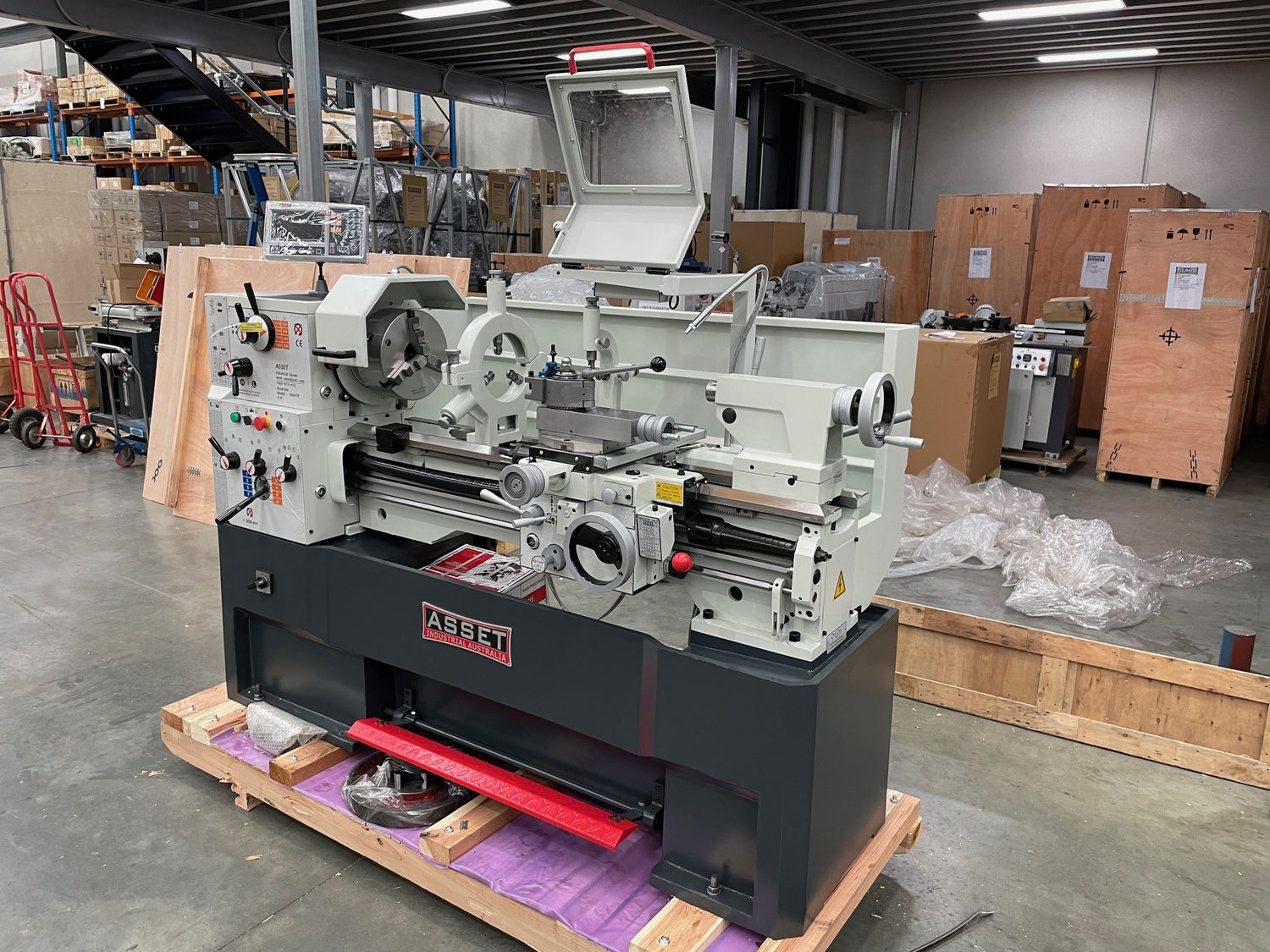

Lathe - ASSET 1640TR – EURO Toolroom Precision Lathe. 1000mm Centres, 410mm Swing, 52mm Bore, 2 Axis DRO,

EQUIPMENT ACCESSORIES SUPPLIED

2 axis DRO, 3 & 4 jaw chuck, quick change tool

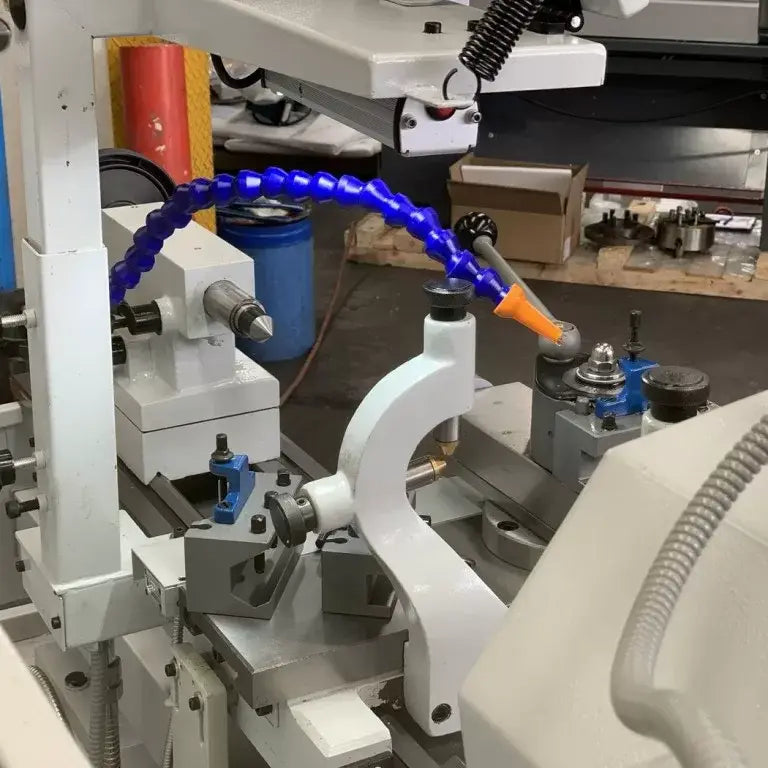

post with 3 holders, face plate & centres, fixed steady &
1 x travelling steady, full length splash guard up to 1000mm,
covered leadscrew, interlocked chuck guard, headstock cover.

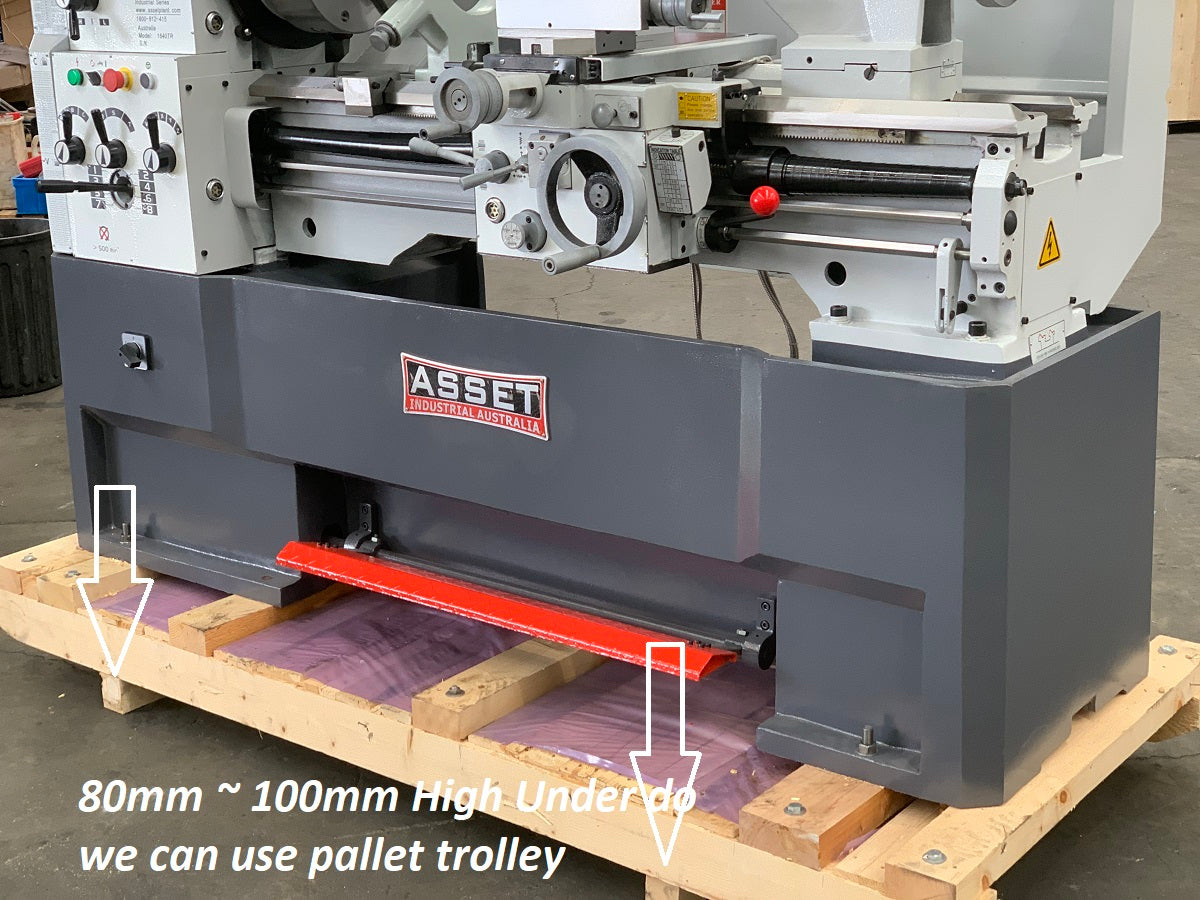

Shipping Dims: 2050mmx 830mm x 1650mm @ 1600kg

PRODUCT FEATURES

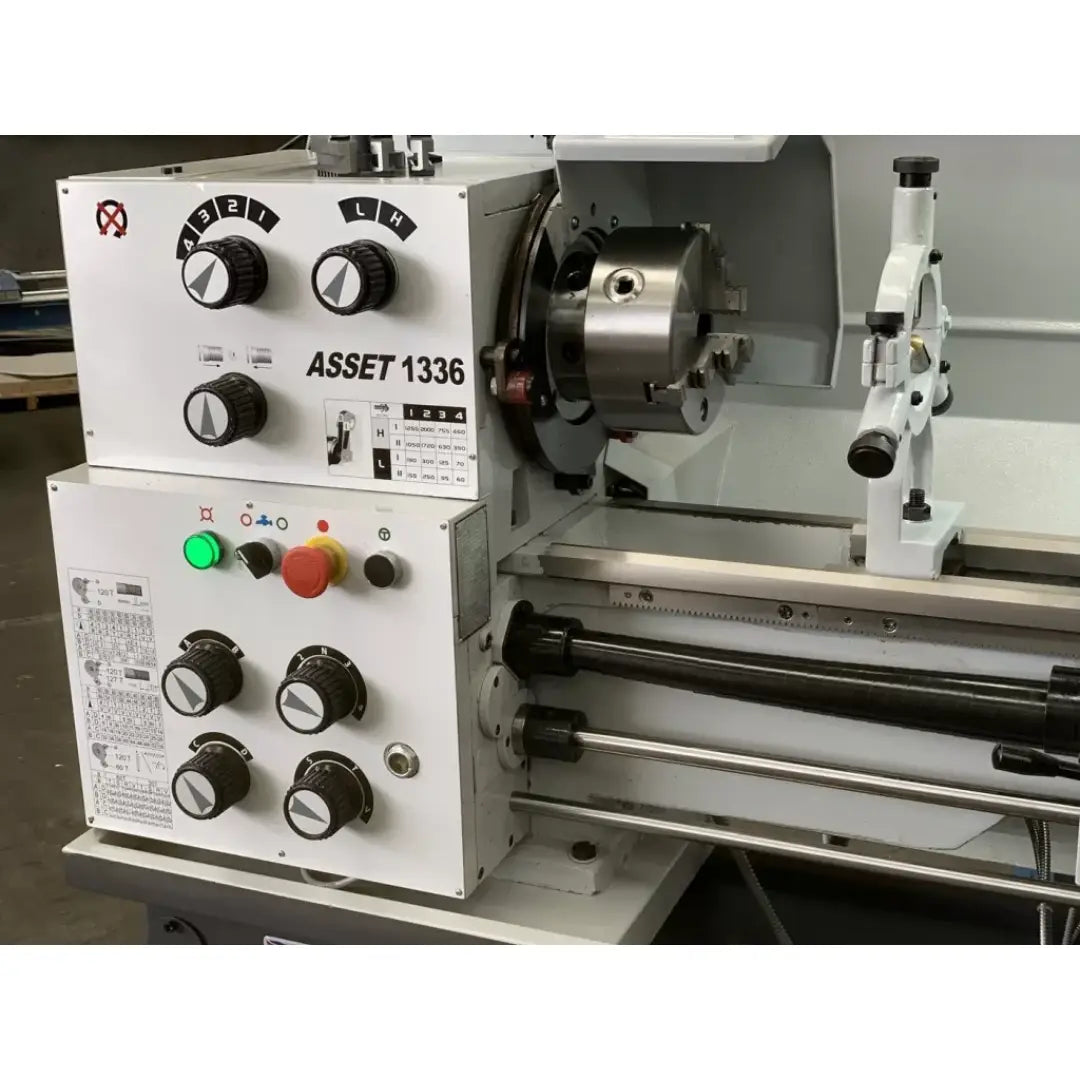

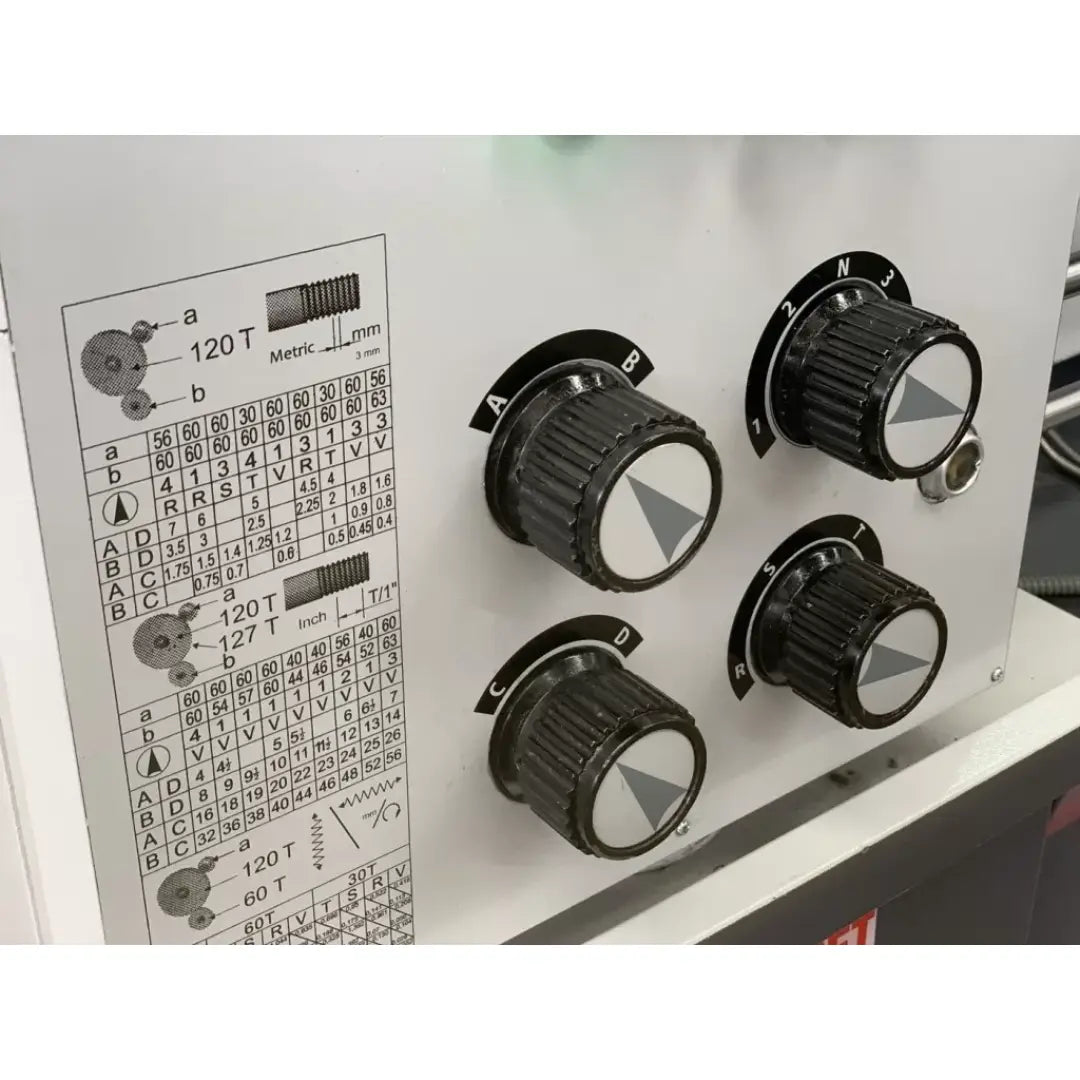

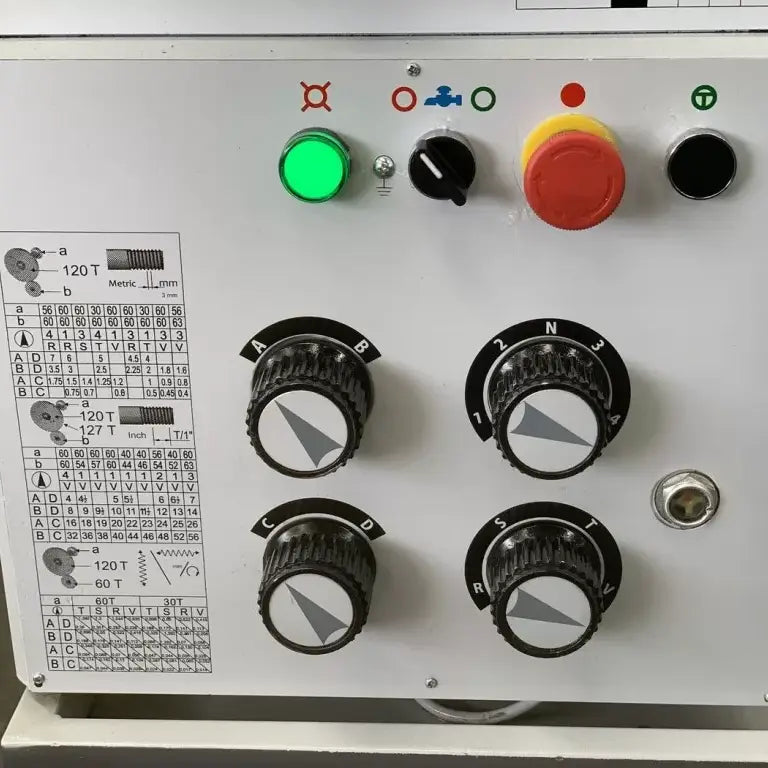

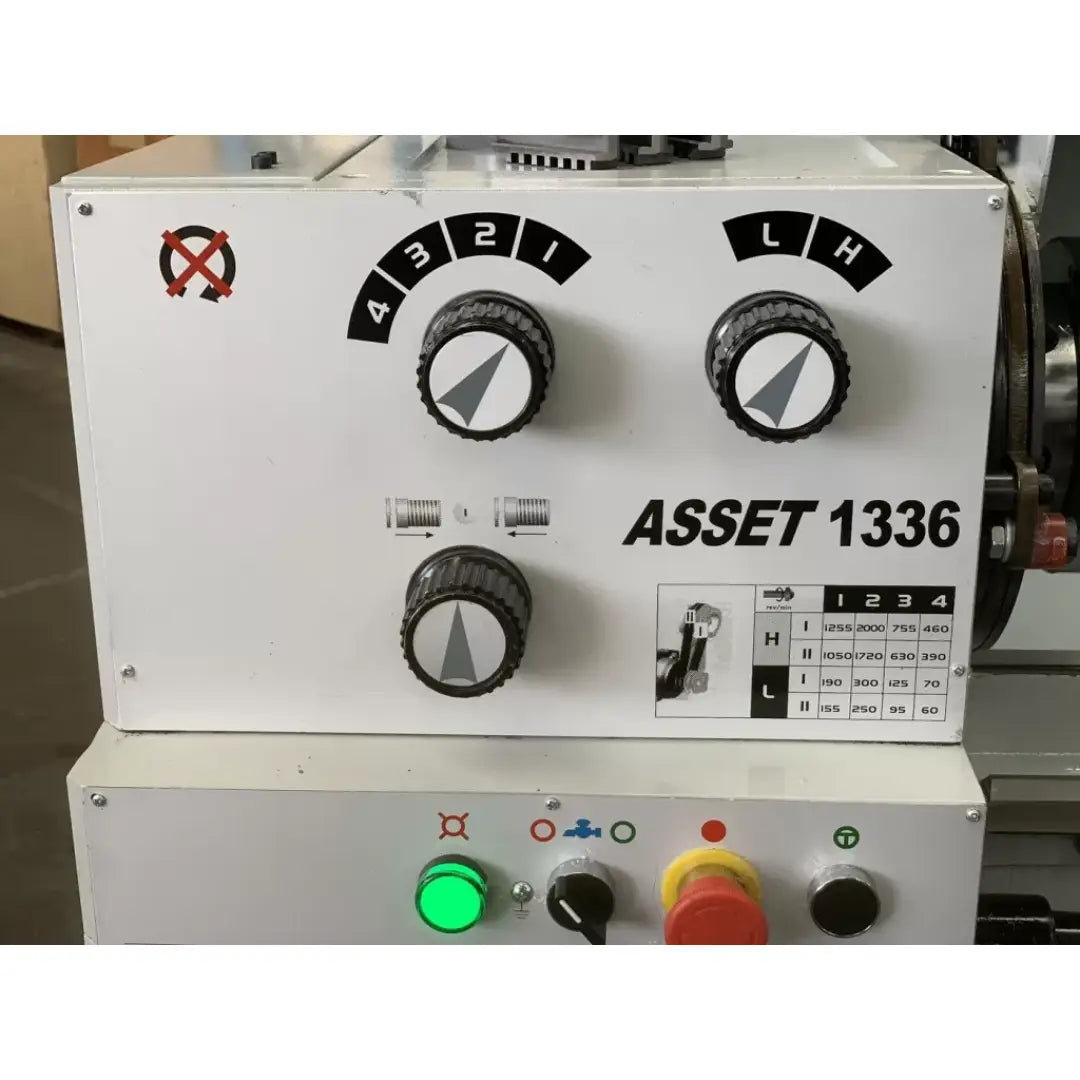

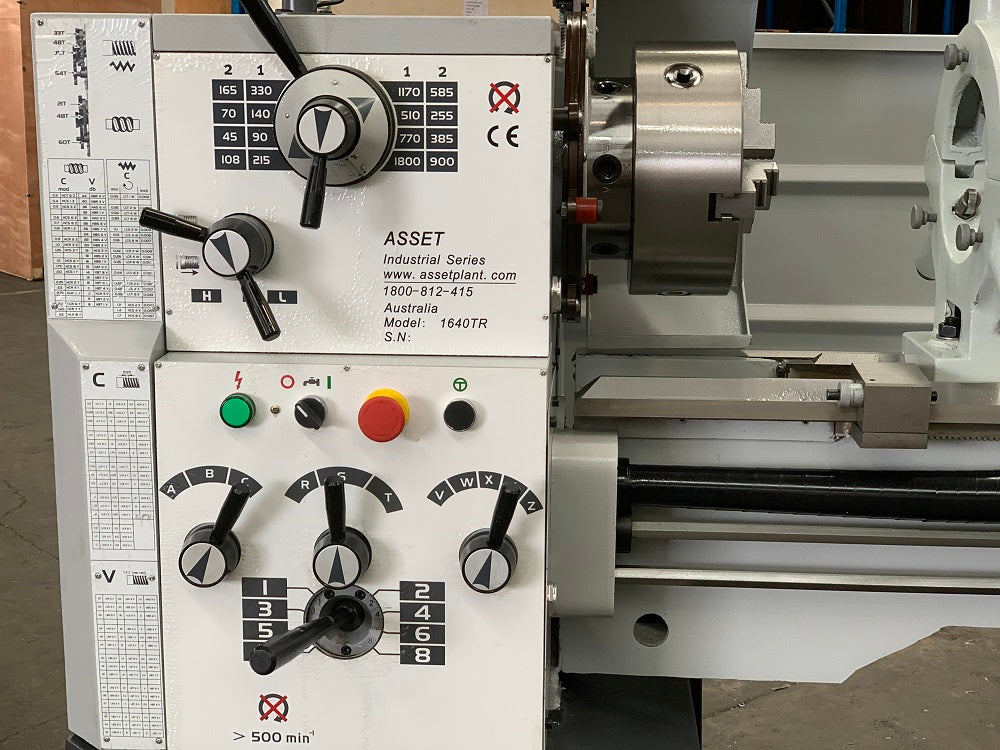

Practical control panel with ergonomic layout of selection levers

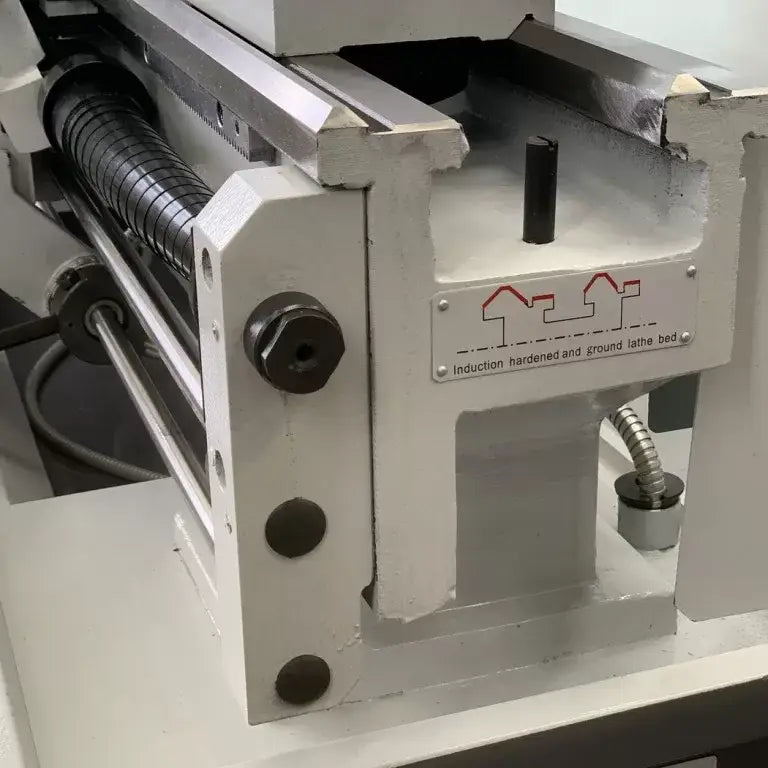

New Euro Designed Induction-hardened and ground cast iron bed and slide ways

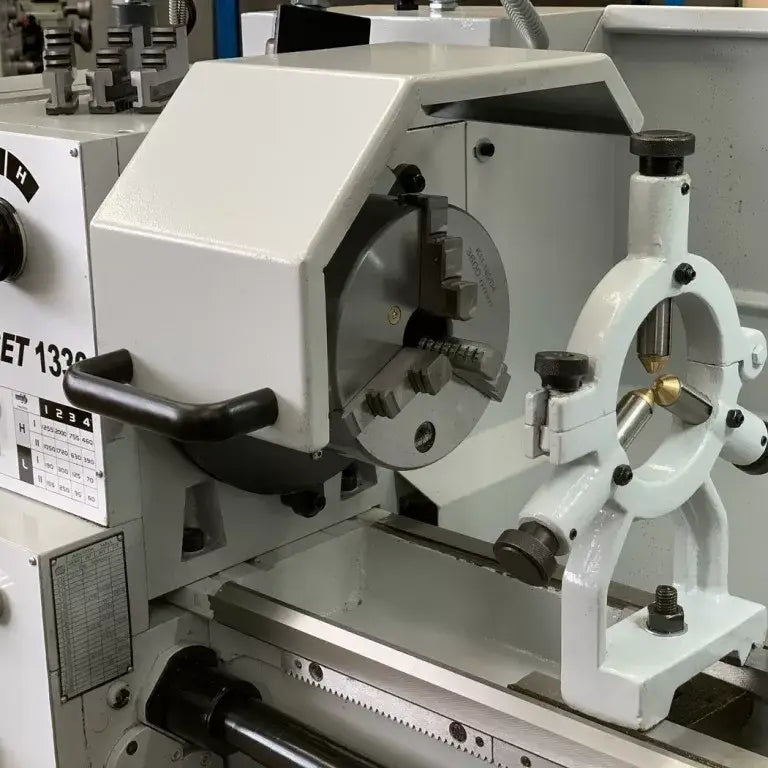

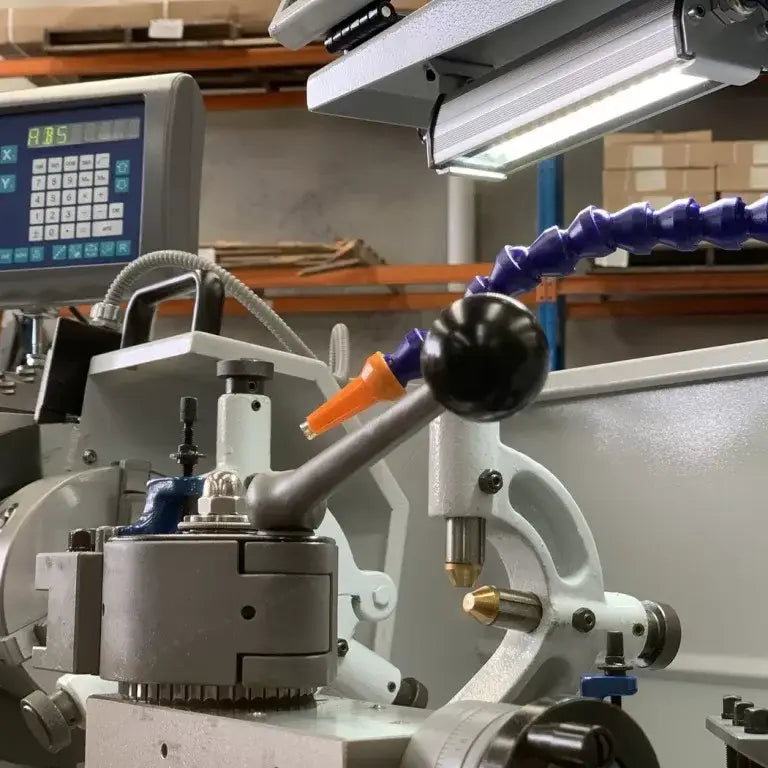

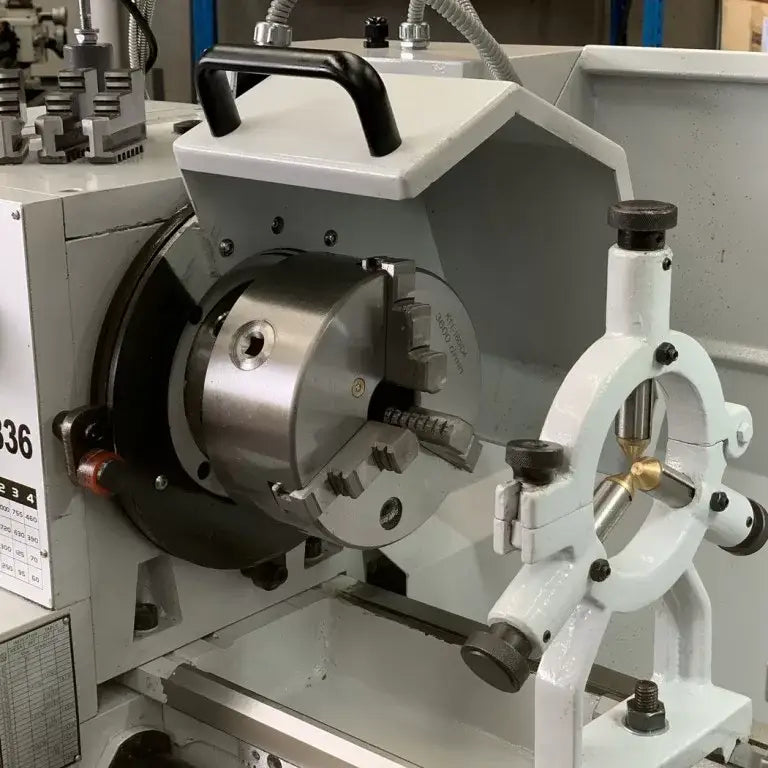

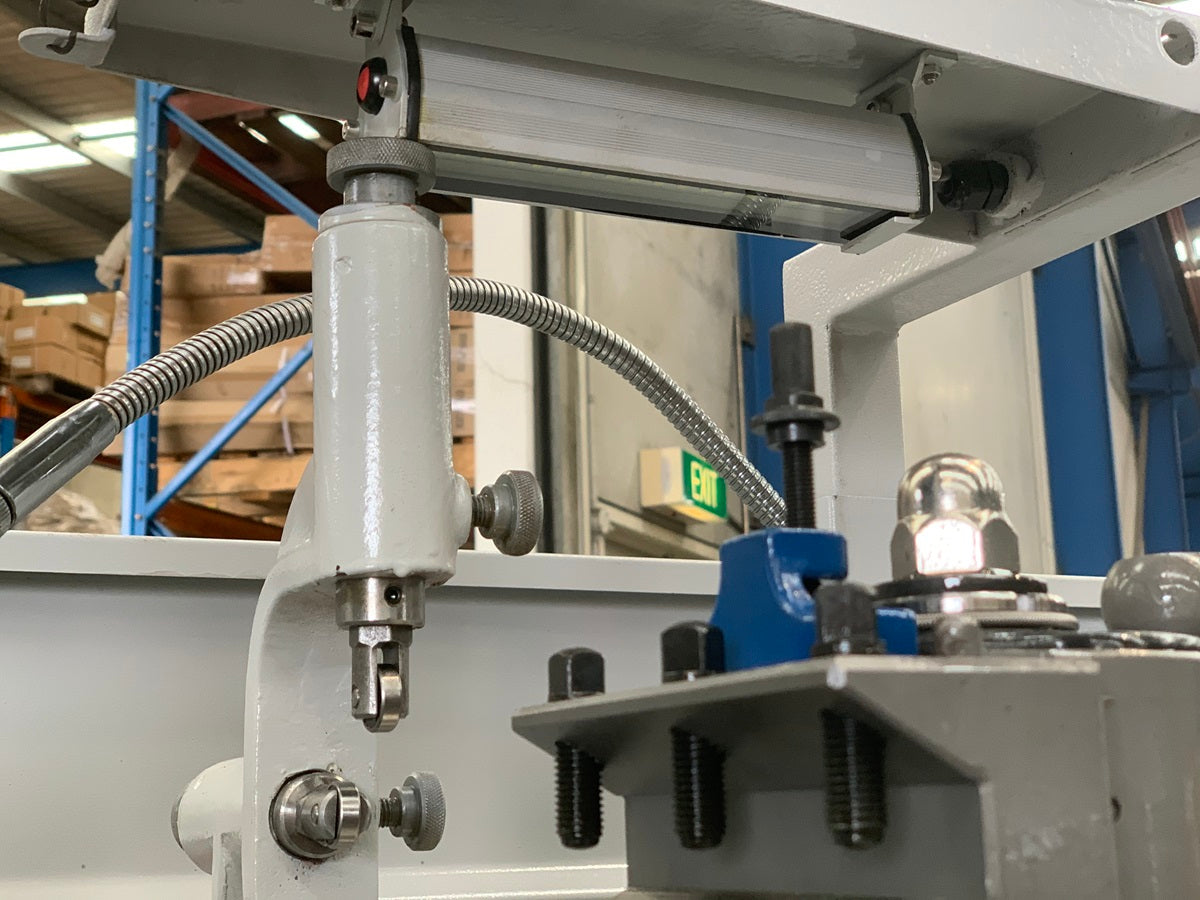

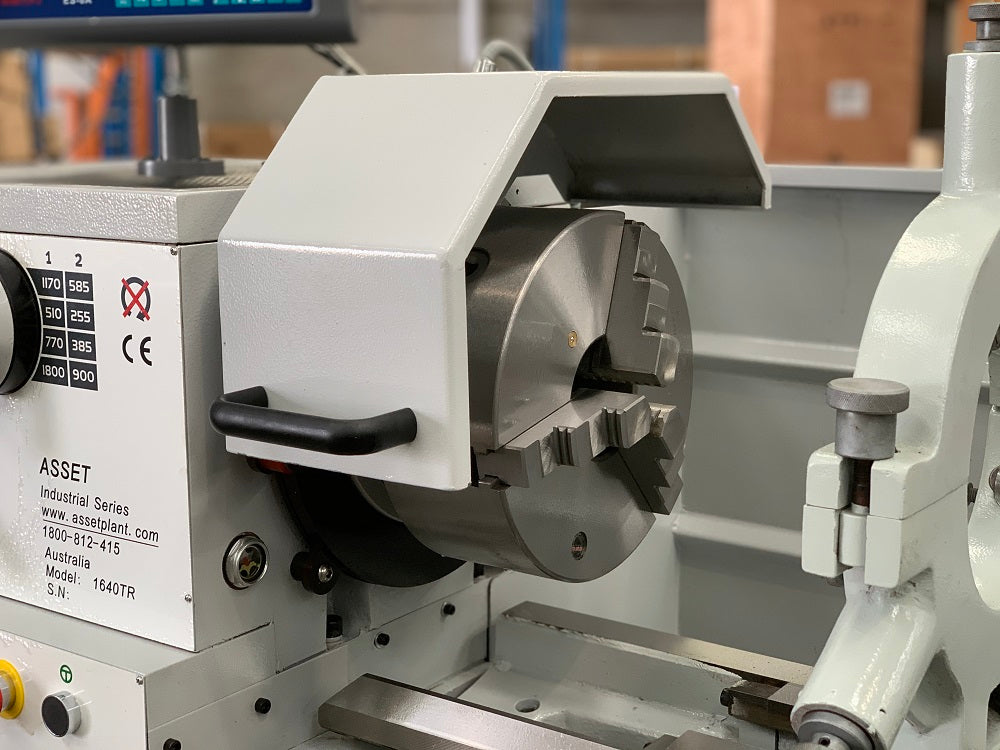

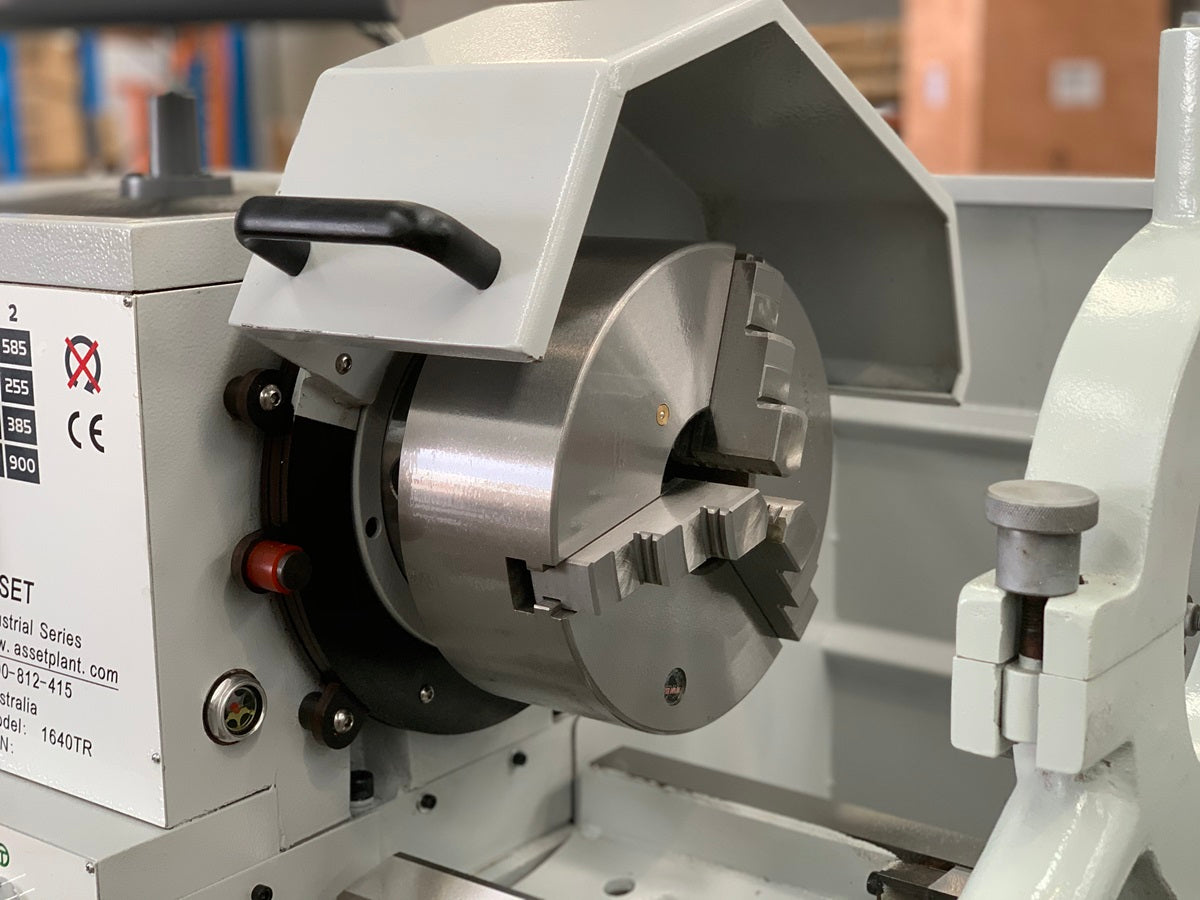

New Euro type retractable chuck guard cover, tool post cover with LED workshop
Spindle holding camlock system
Main spindle running in oil bath, hardened and ground with two adjustable precision taper roller bearings ensures accuracy
Maximum accuracy and quiet operation, even at high speeds

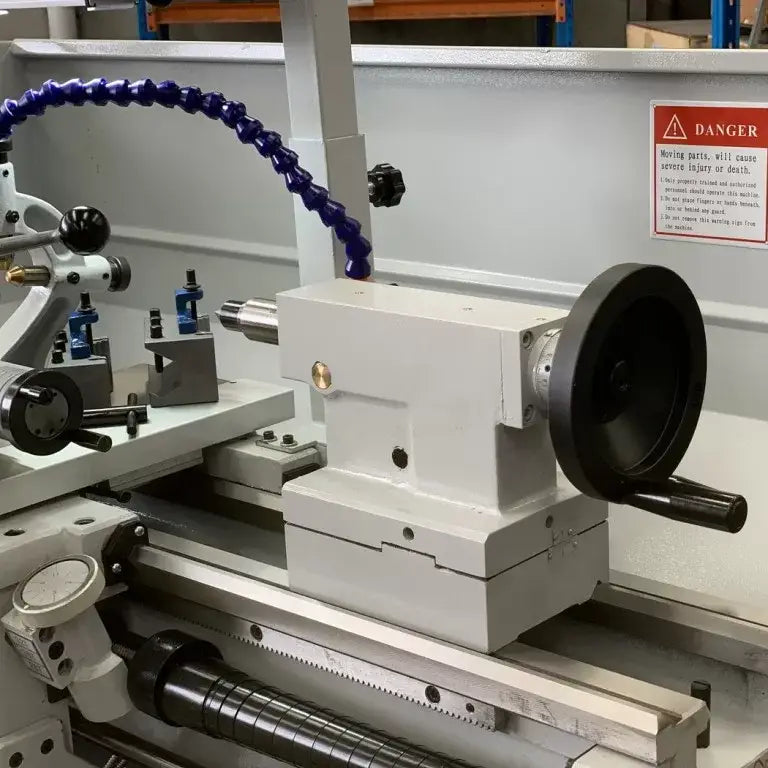

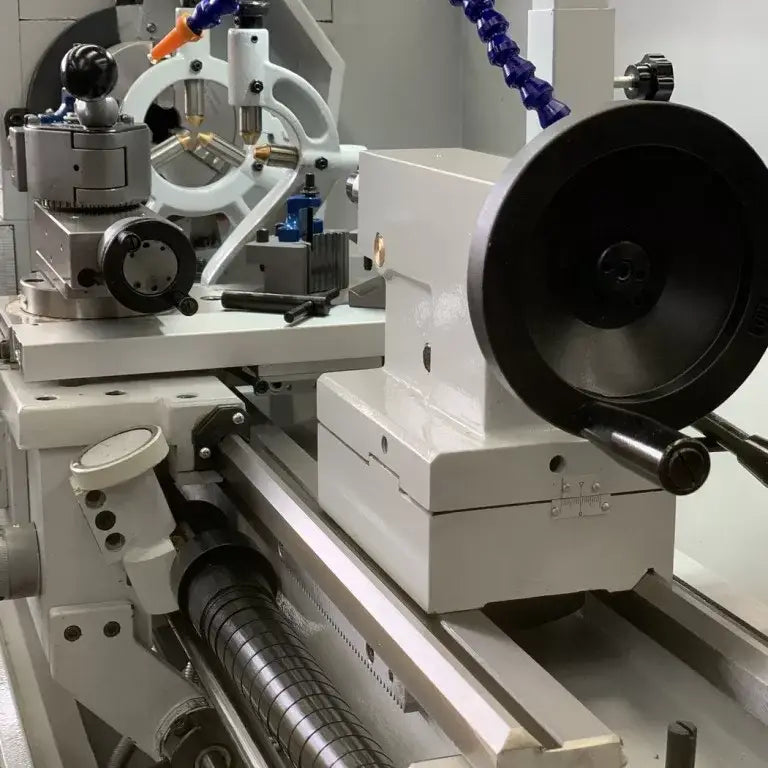

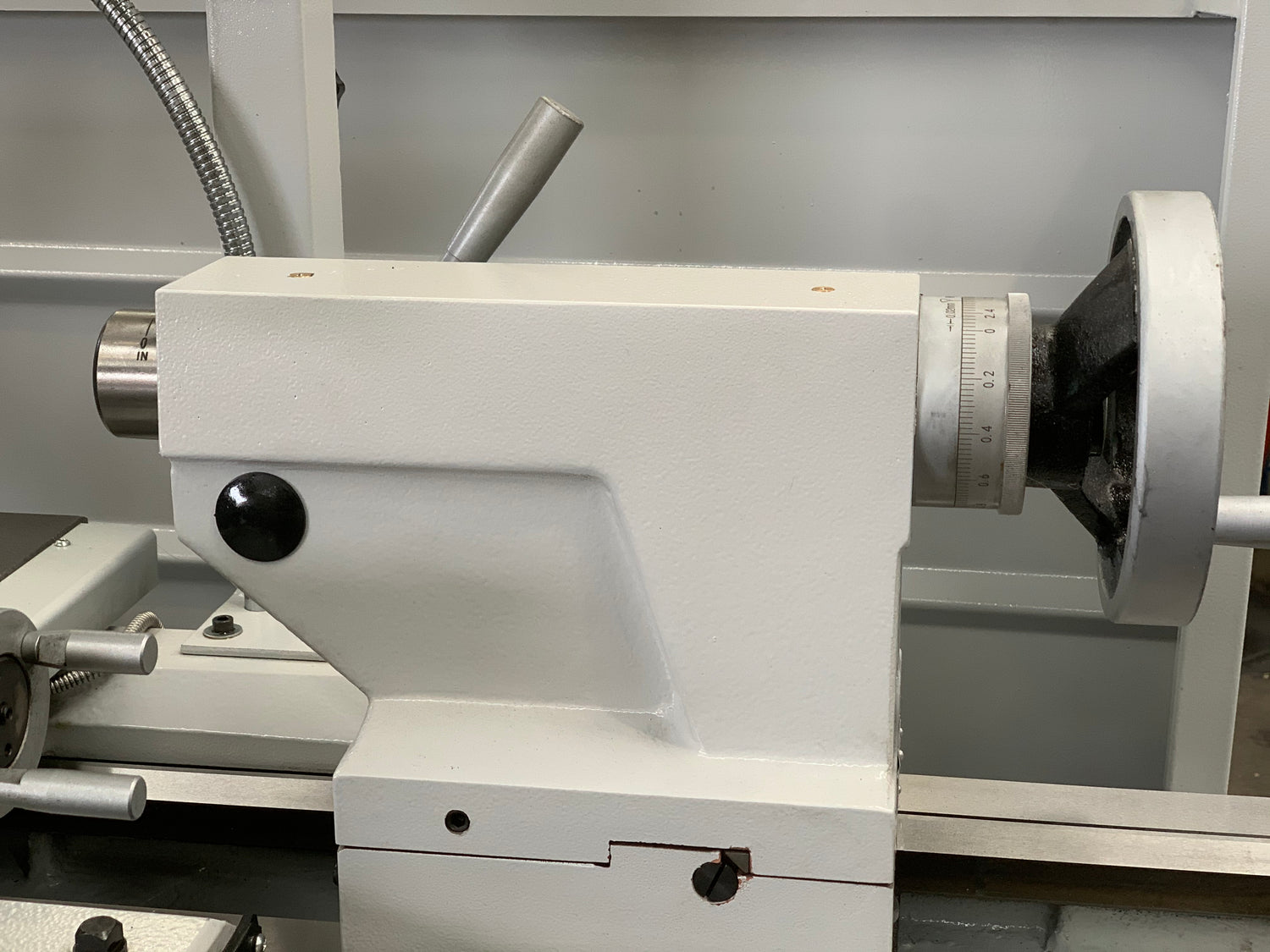

Transversal adjustment of tailstock for taper cutting applications

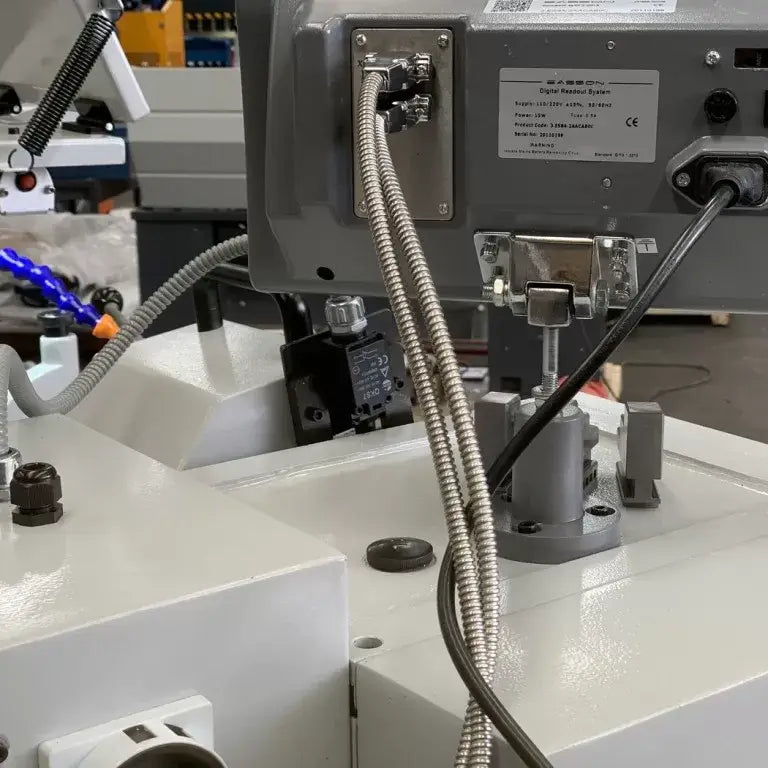

2 axis dro fitted as standard

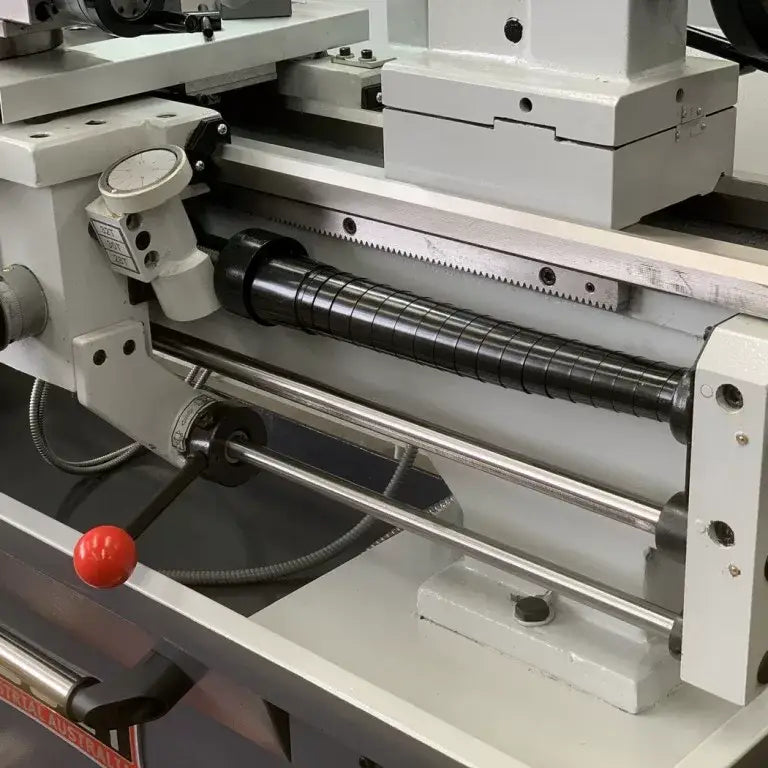

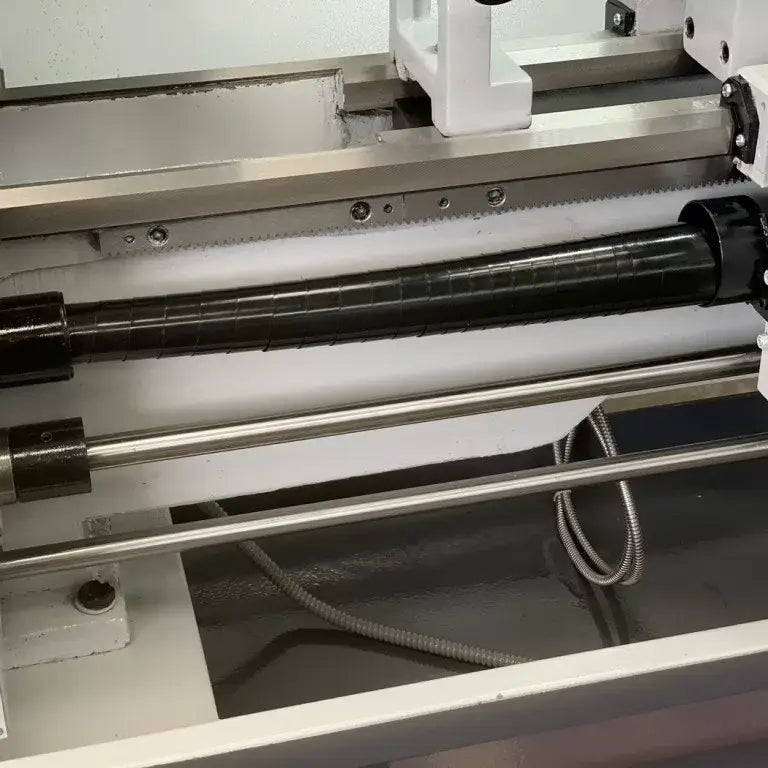

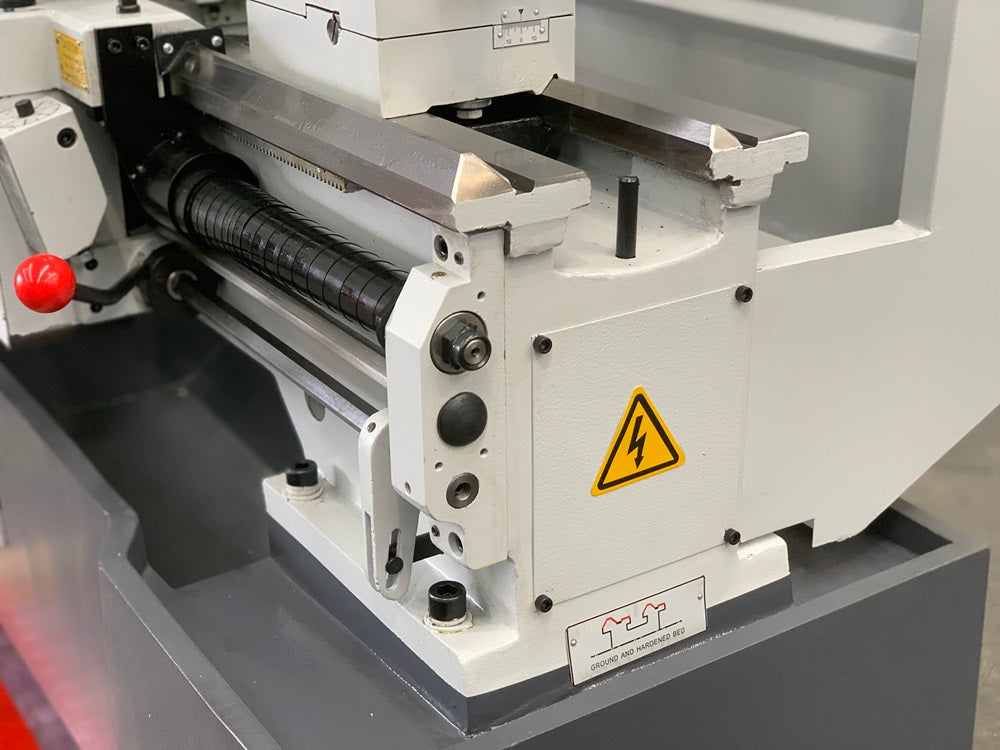

Safety covered lead screw
Safety interlocks on chuck guard, gear box and foot brake

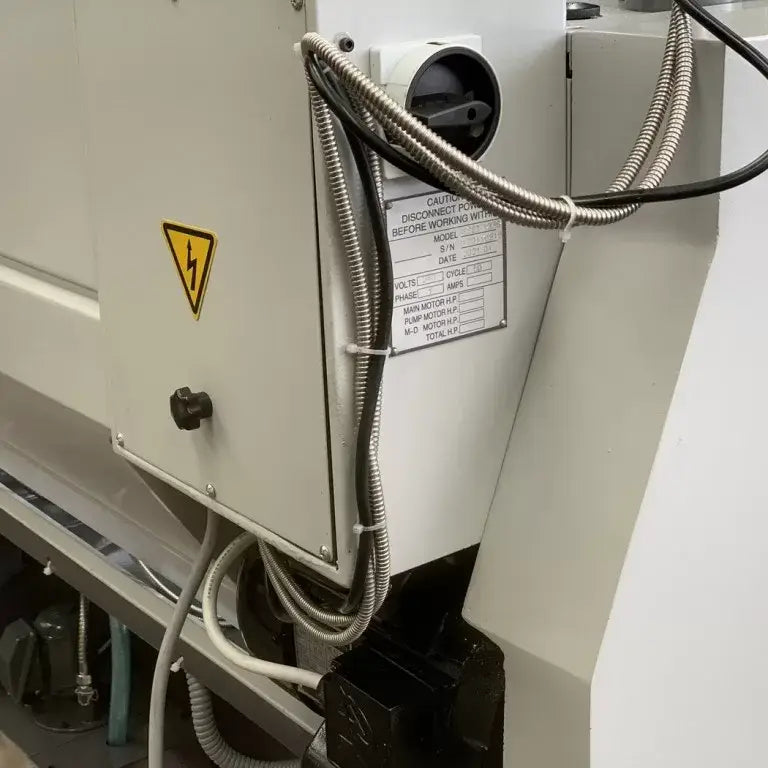

415v 3ph
CE compliant

SHIPPING CLASS

P.O.A - 15kg and up

TECHNICAL DATA

410mm swing over bed
580mm swing in gap
255mm swing over cross-slide
1000mm between centres
52mm spindle bore

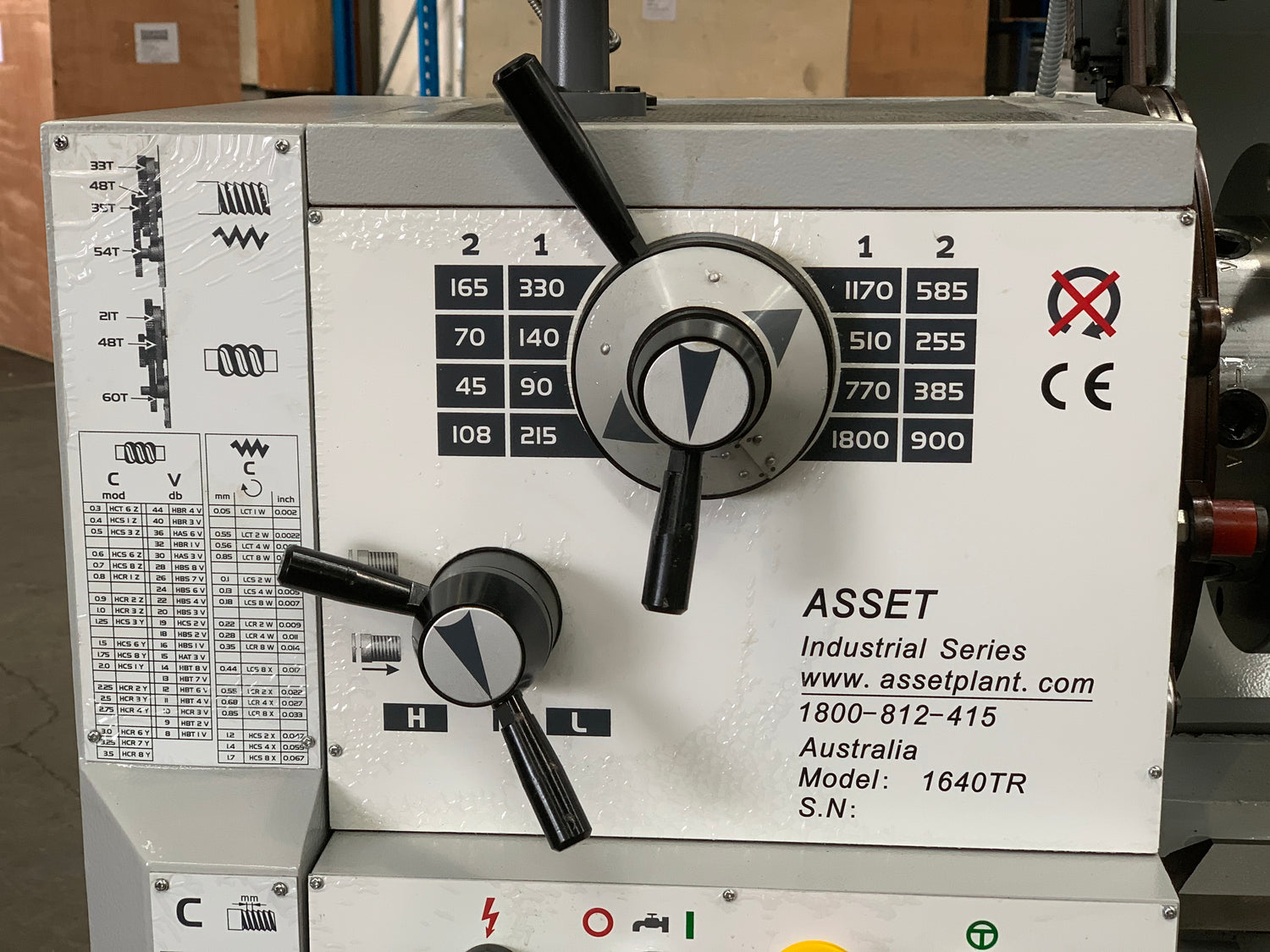

Speeds(16)-45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/1800
210mm – cross slide travel

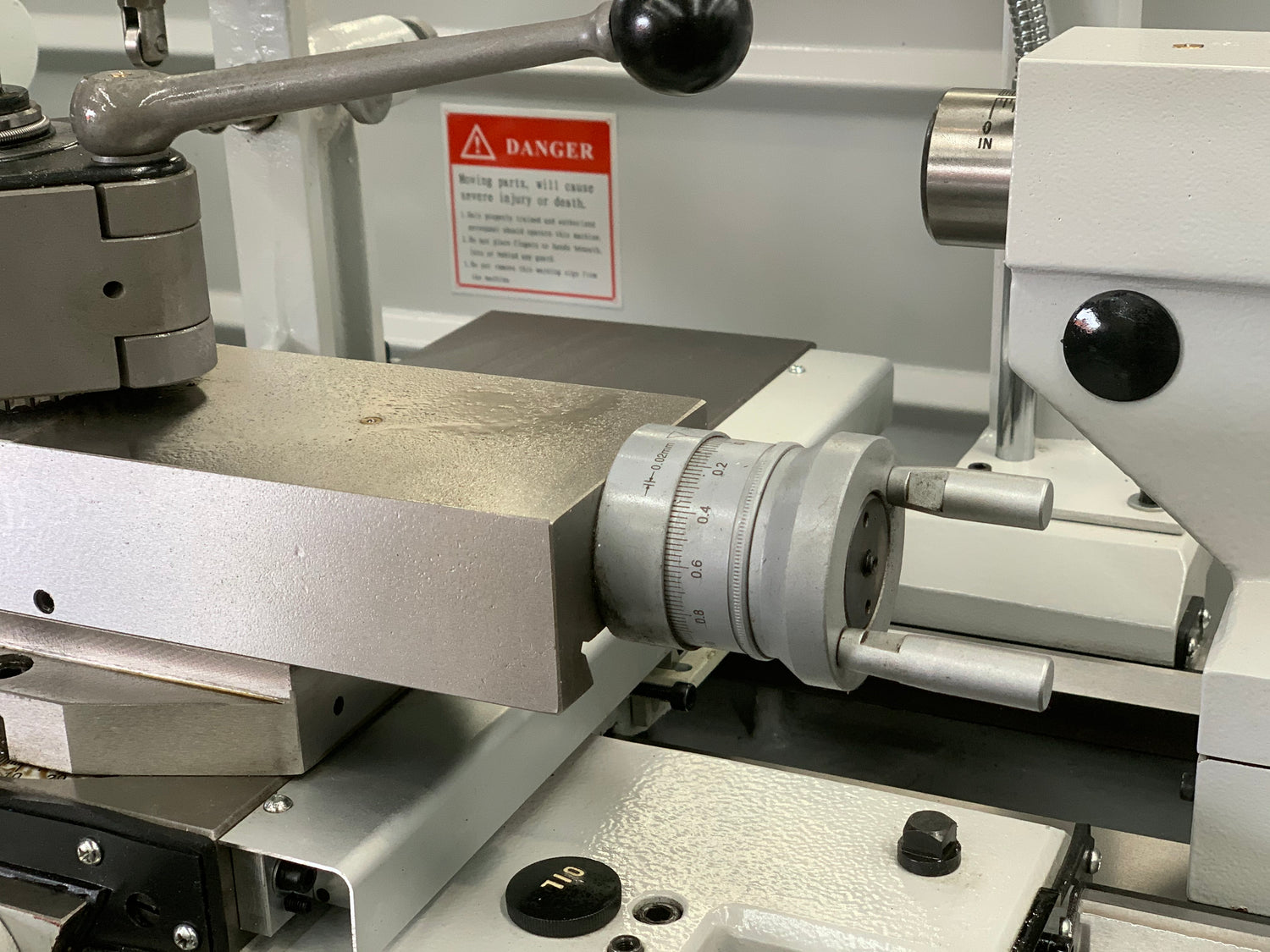

140mm – top slide travel
120mm – tailstock travel
55mm – tailstock diameter
250mm – bed width
250mm 3 jaw chuck
250mm 4 jaw chuck
Suits cutting tools – 20mm & 25mm Shanks
Faceplate supplied

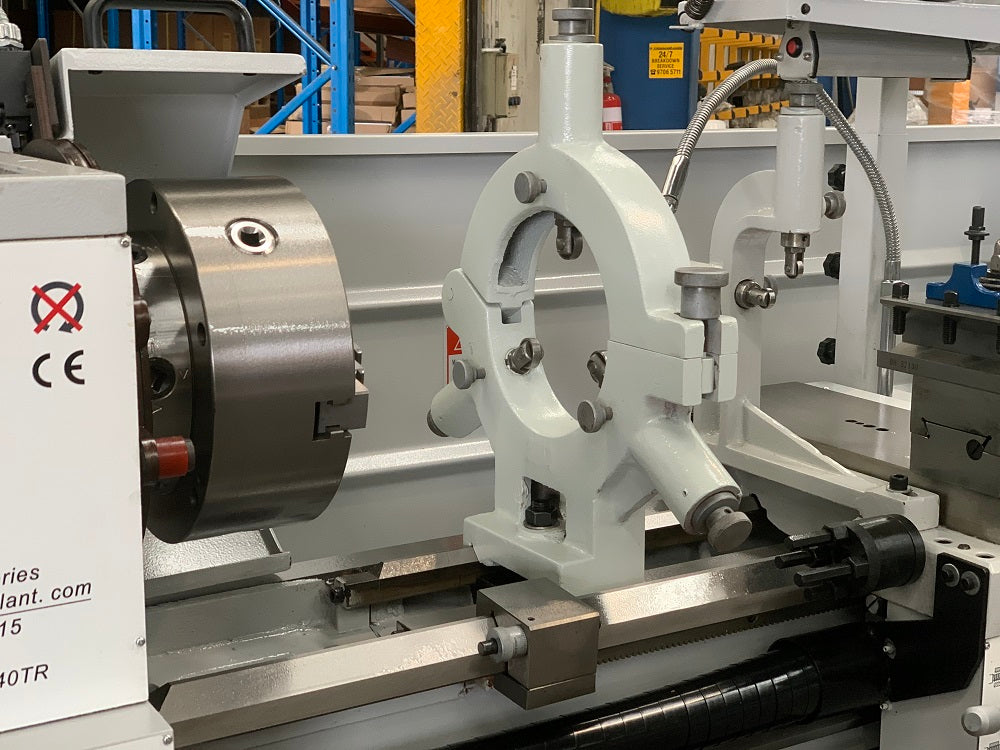

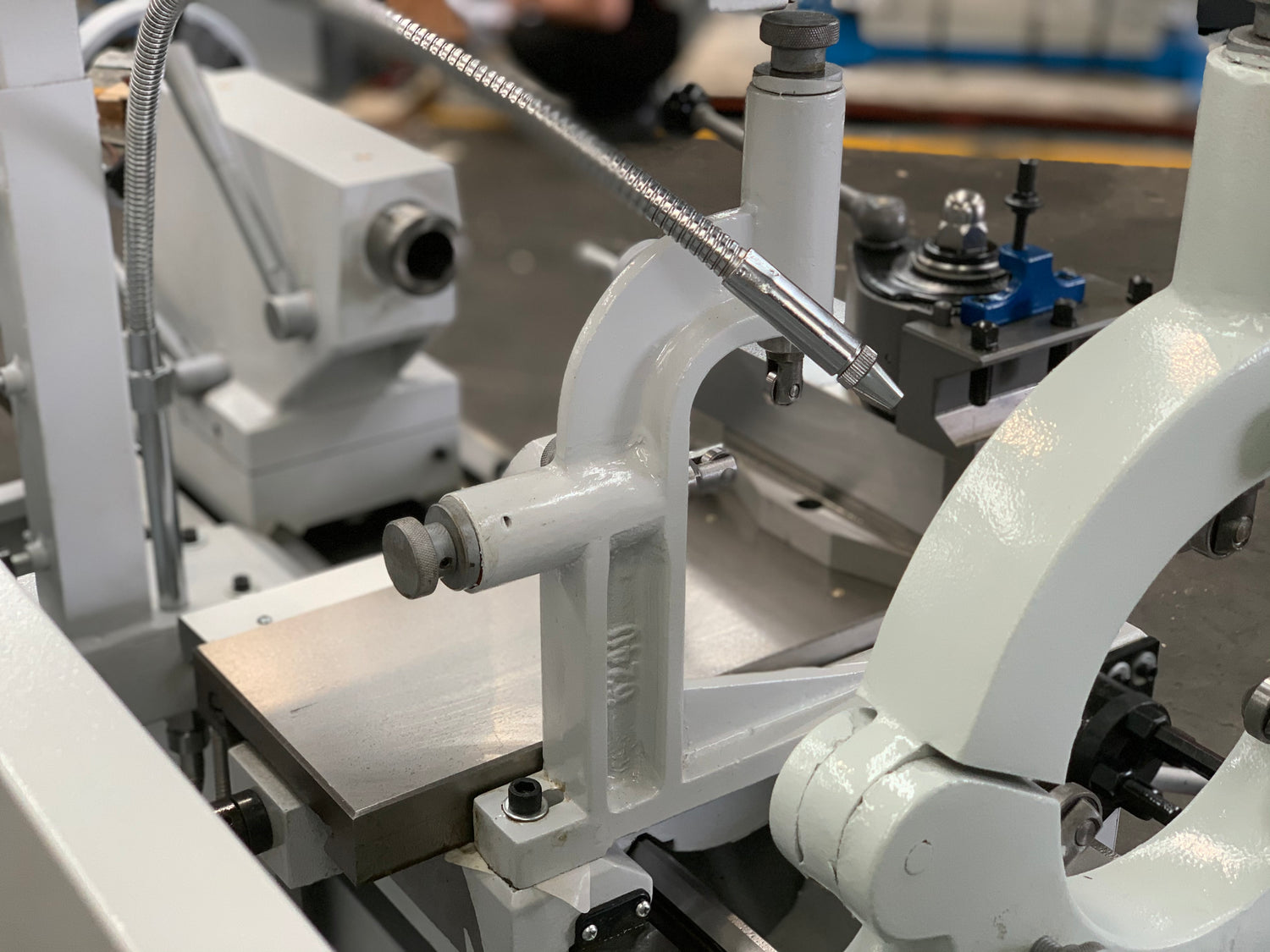

Fxed & travelling steadies

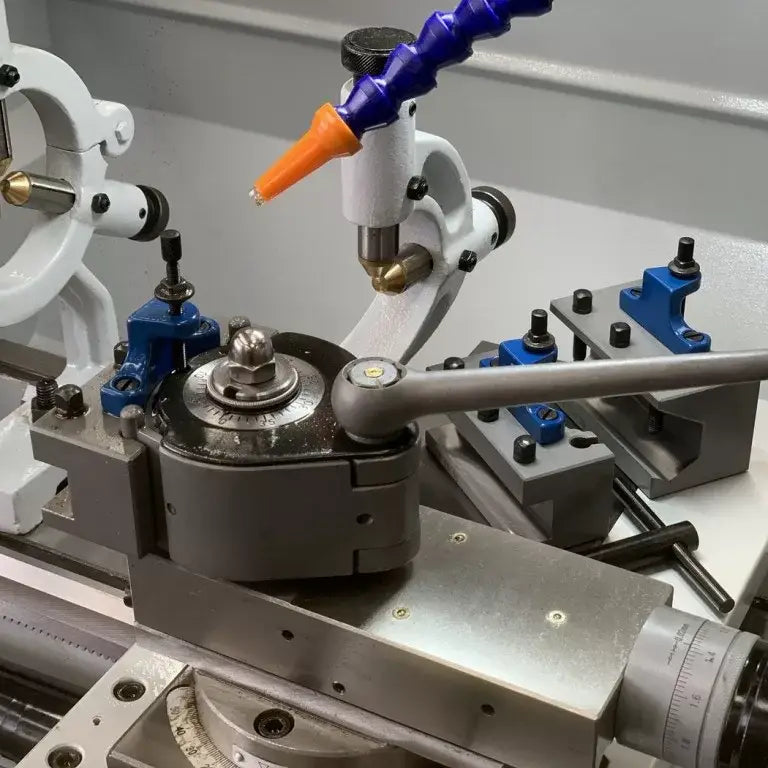

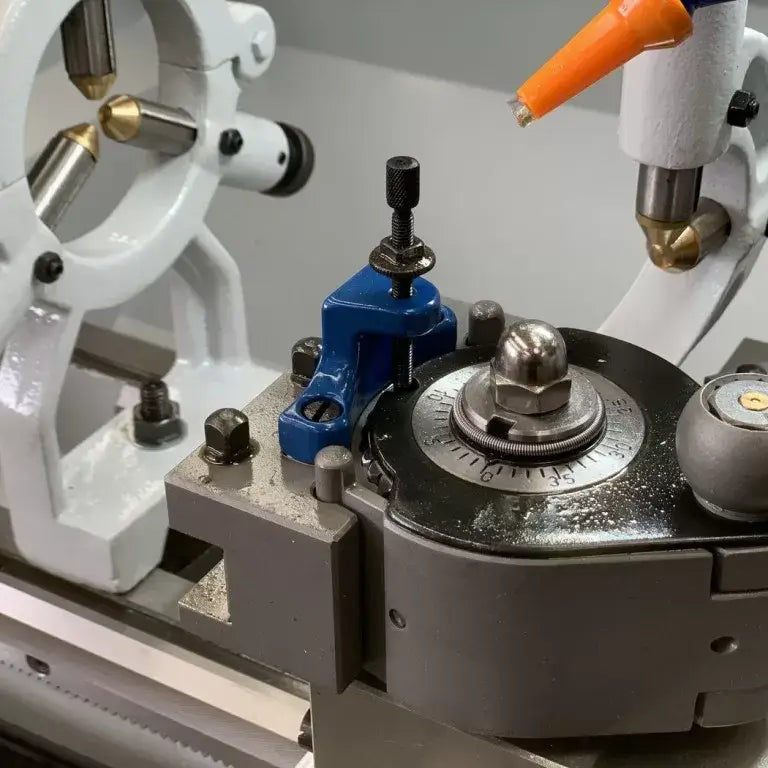

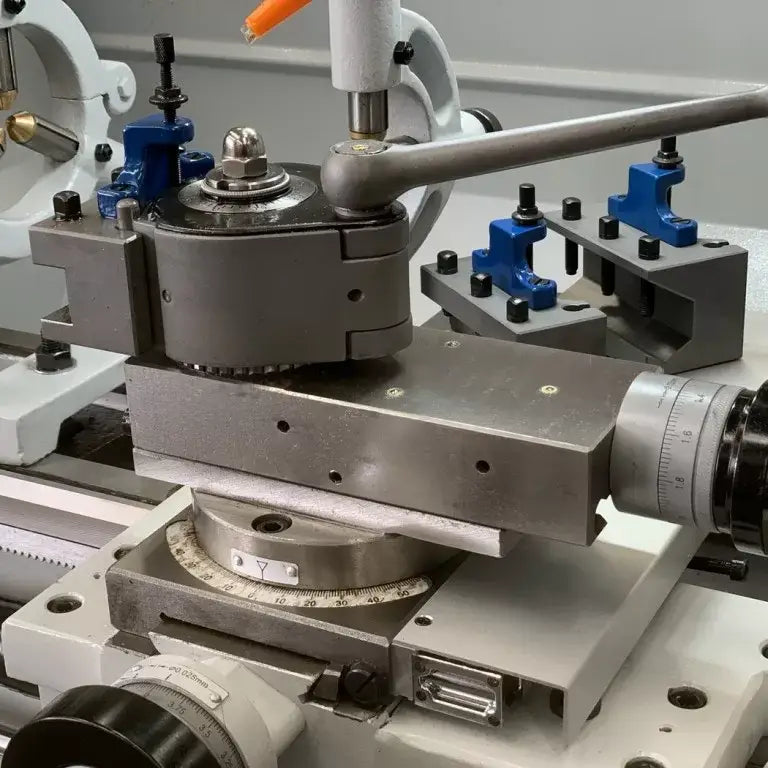

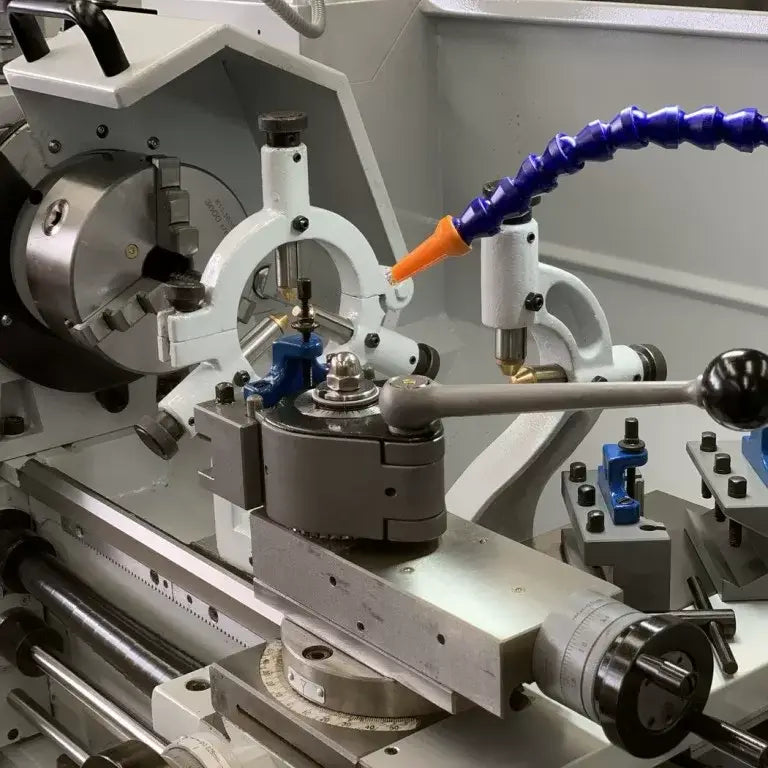

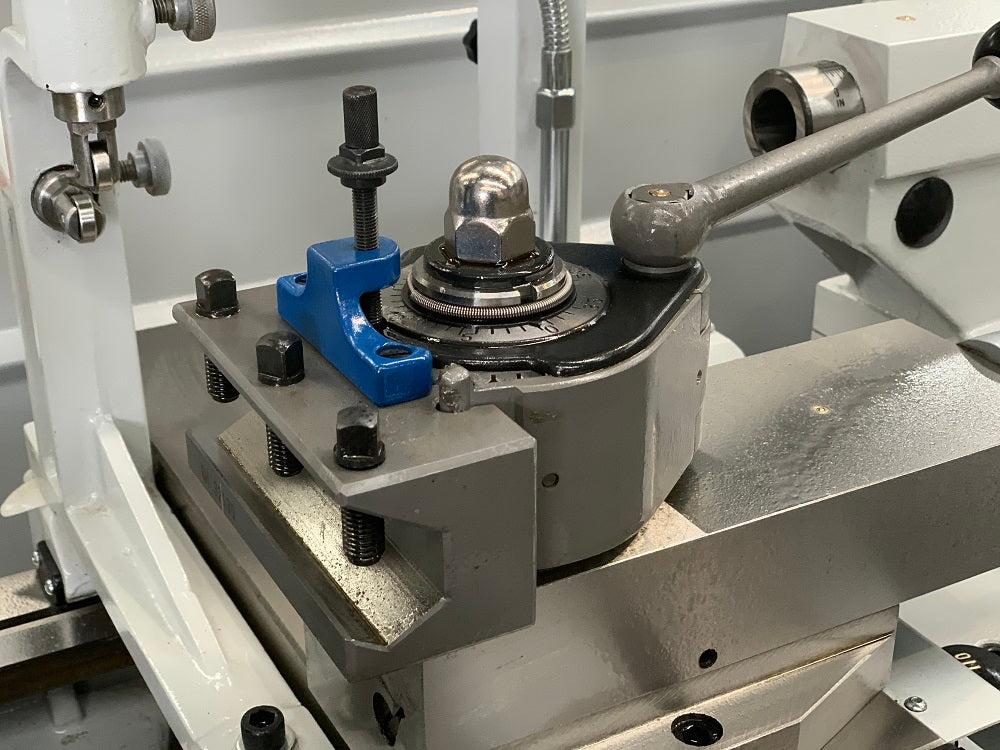

Euro Haas type quick change post with 3 x holders

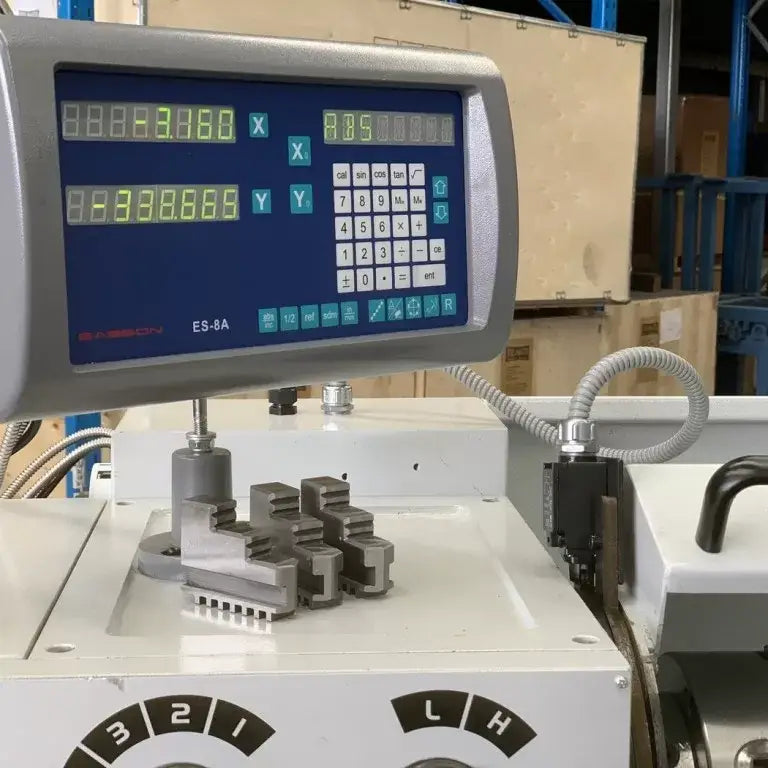

2 axis digital read out fitted
Shipping dimensions – 1950mm x 830mm x 1400mm
Crate dimensions – 2050mm x 830mm x 1650mm
Power – 415V 2 speed motor 2.2kw 735rpm/3.3KW 1470rpm
Approx weight: 1650kg
