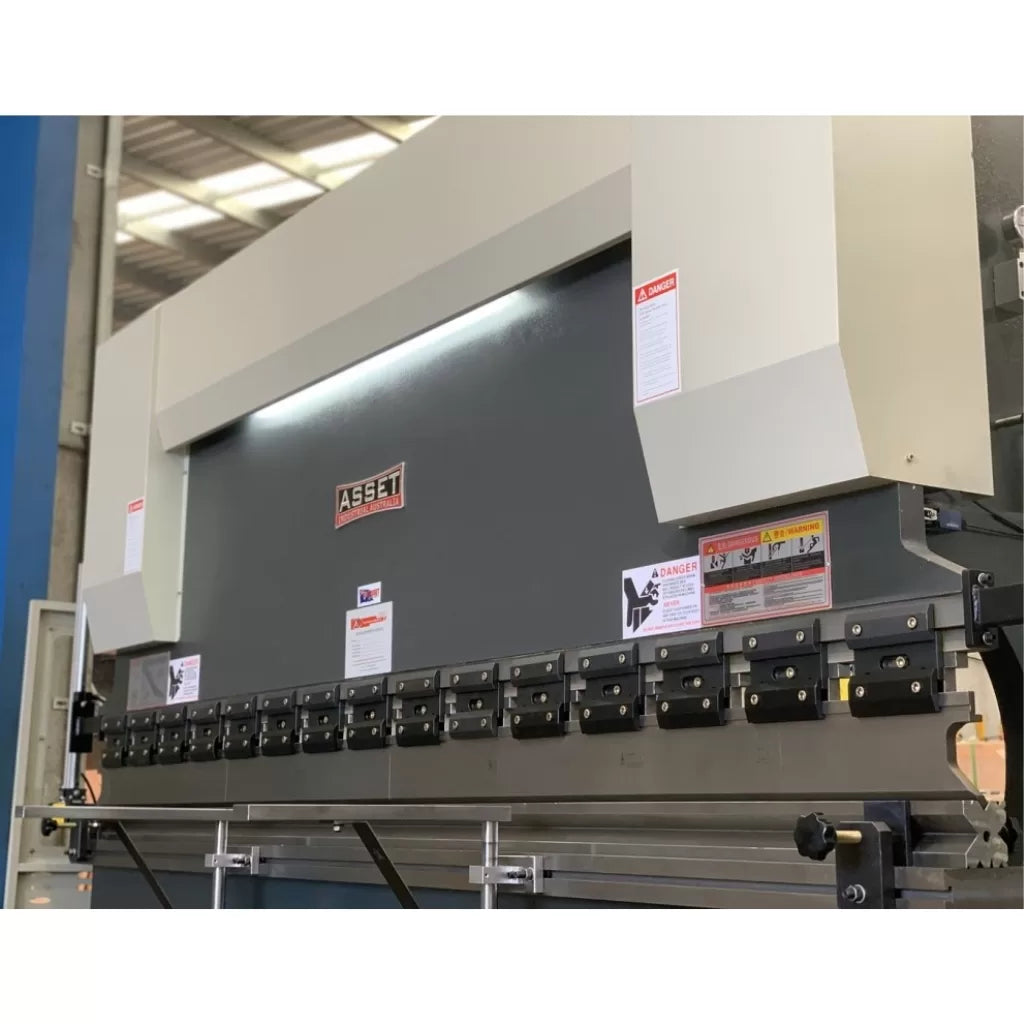

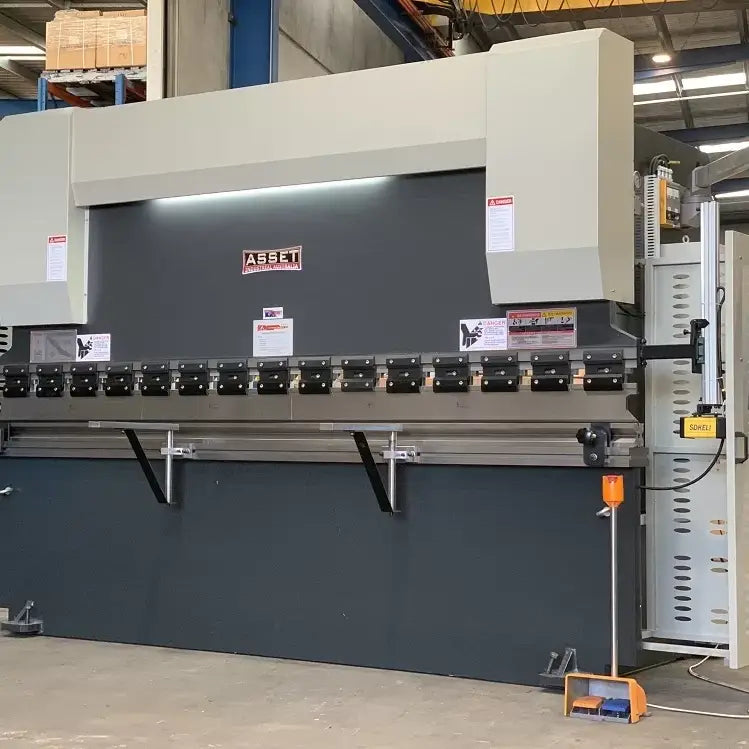

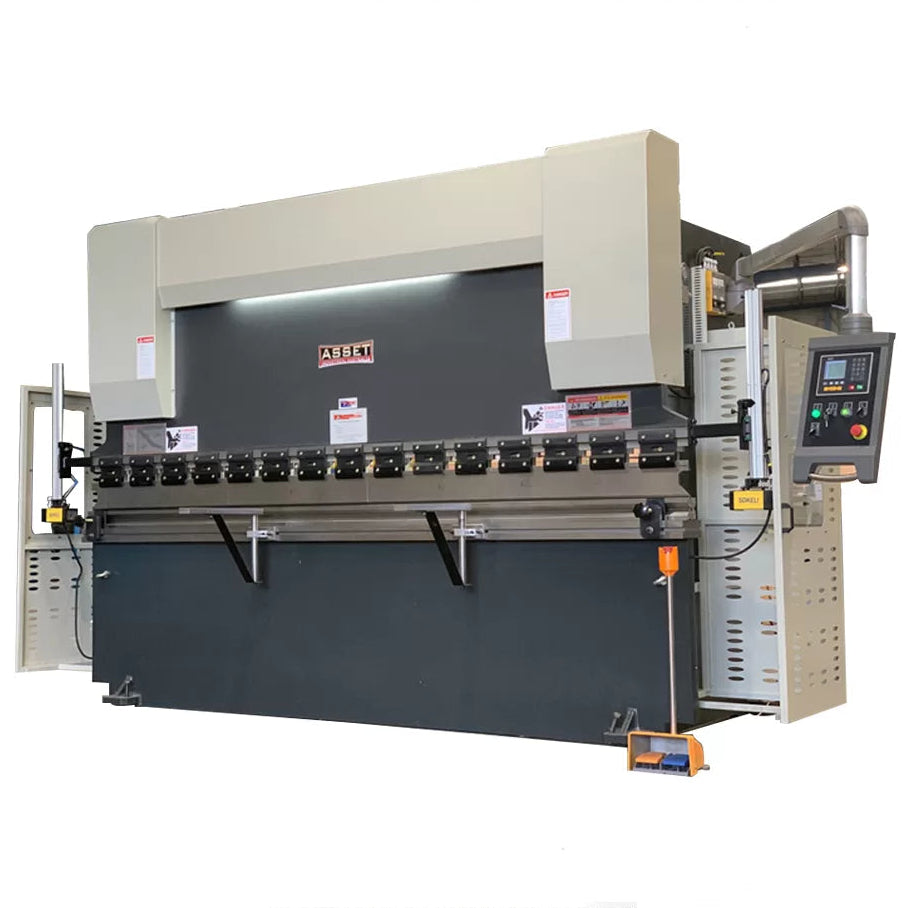

Asset Industrial Hydraulic NC Pressbrake. 4000mm x 175Ton. 2 Axis Controller, Table Crowning

175 ton

4000mm

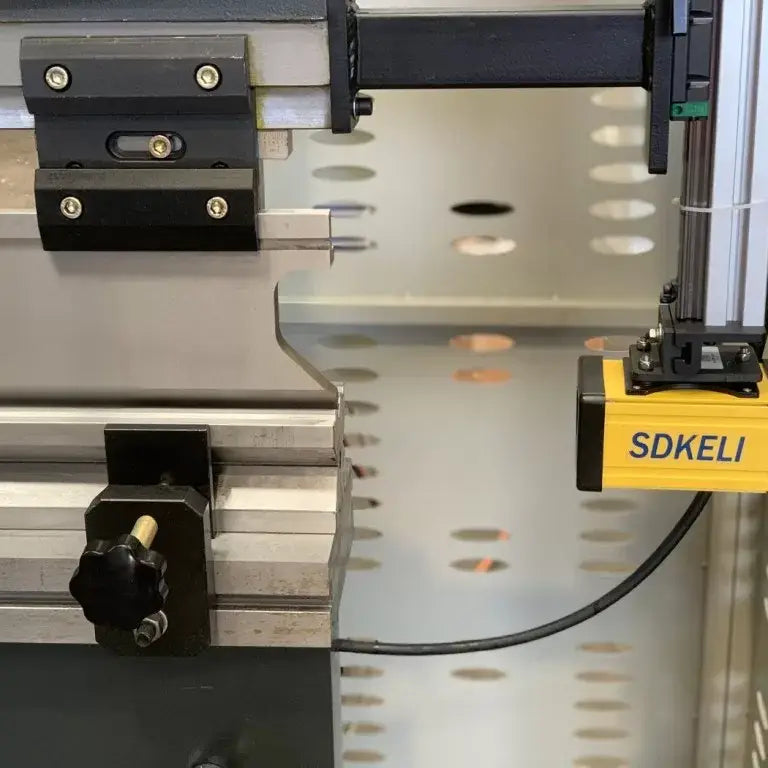

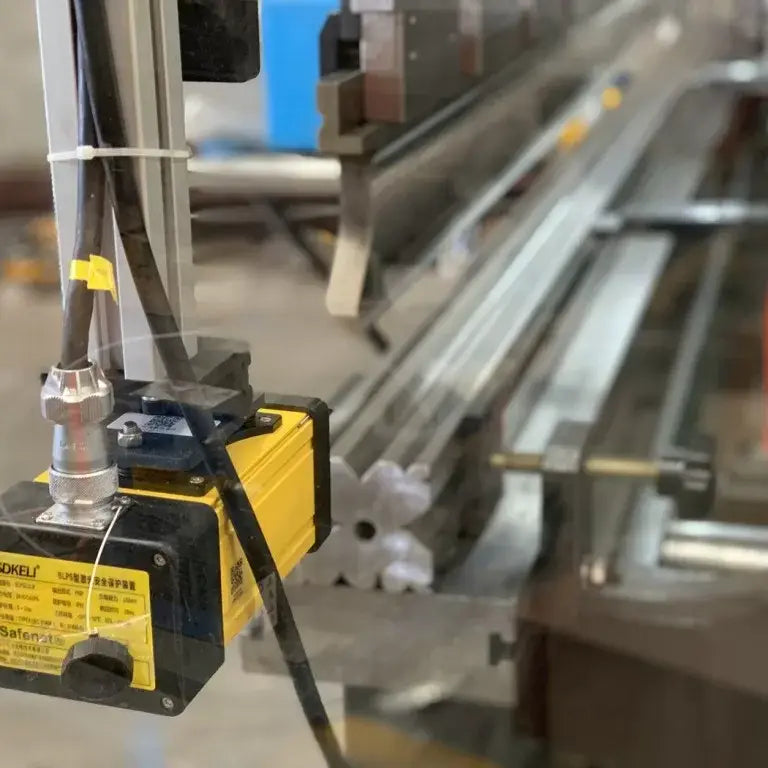

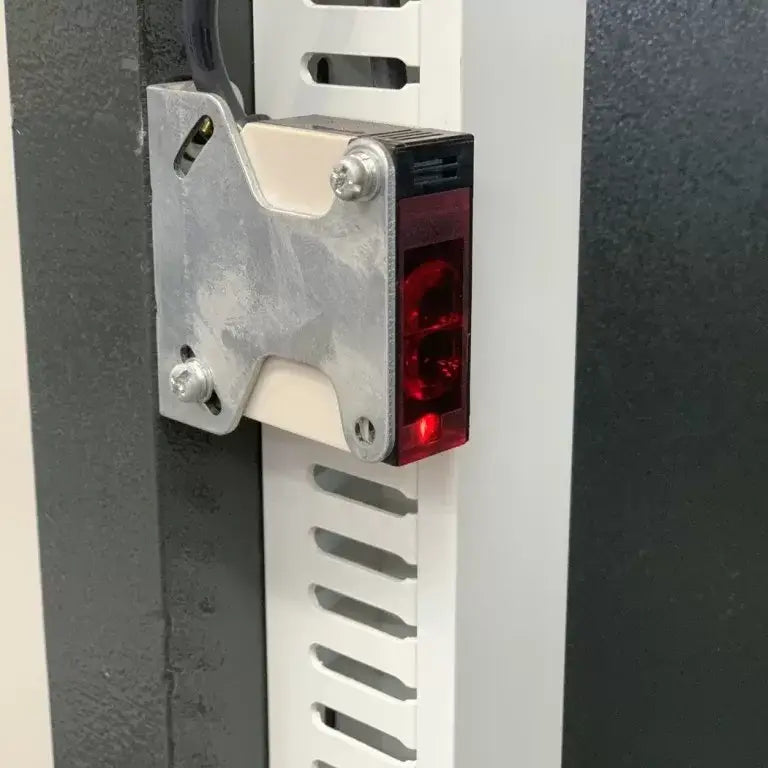

Front OH&S Laser Guards Included in Offer (Included on This Offer)

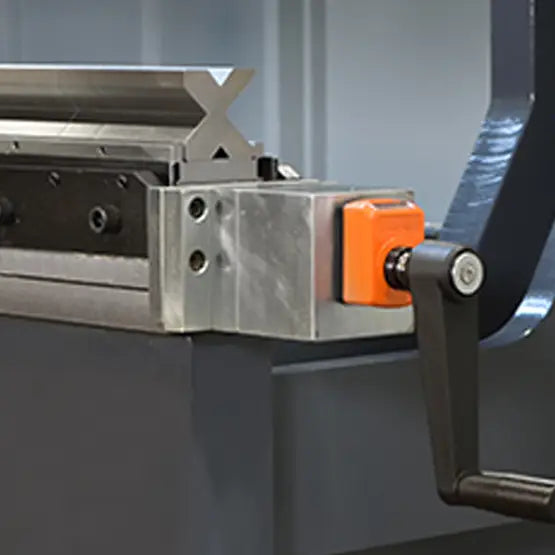

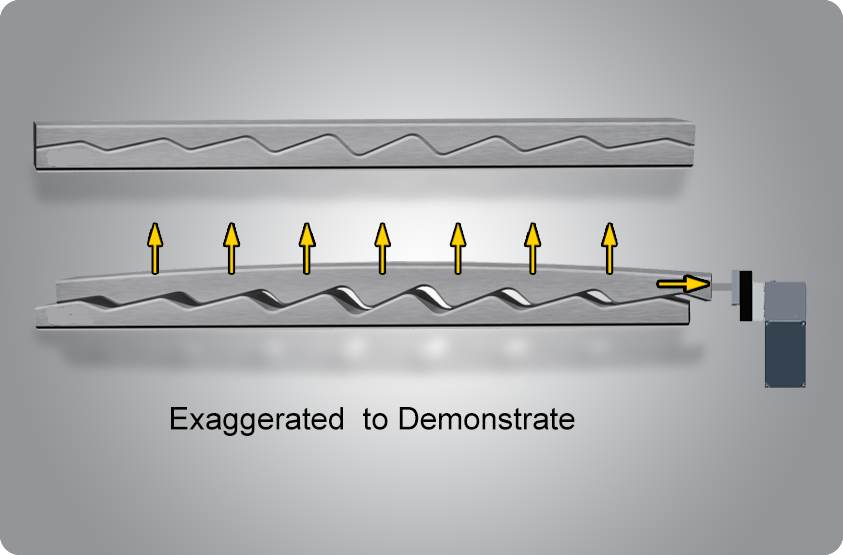

Manual Table Crowning (Included on This Offer)
Quick Release Tool Clamps

Hydraulic synchronised positive stop design, electronically controlled by Estun NC programmable controller assuring accurate repeatability and ease of use.
Deep side throats and wider distances between the vertical frames offering you more application scope.

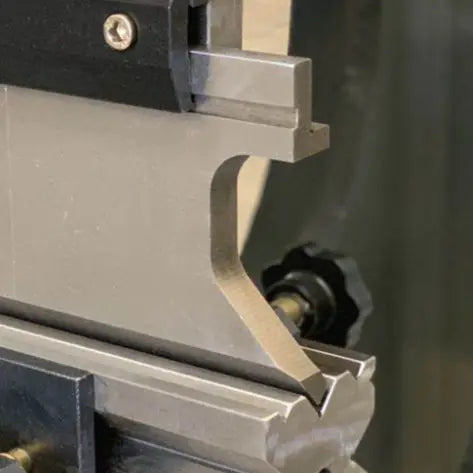

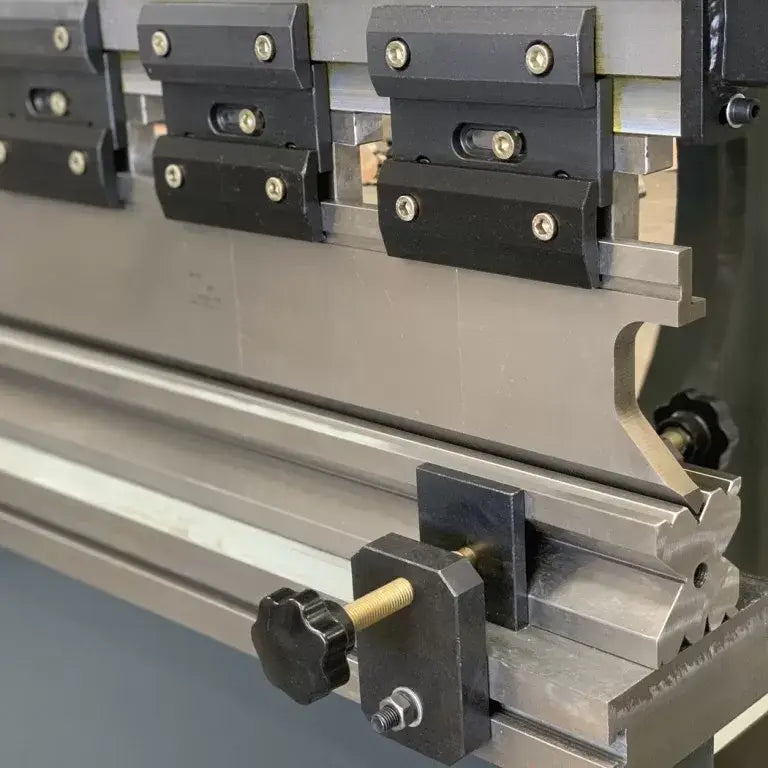

Segmented heavy duty 86° offset top tool, segmented for return bend clearance.
Full length Multi Vee bottom block with a smart selection of openings also including safety edge vee (‘V’) for over bending.
Power operated back gauge with quality support fingers also with vertical adjustment

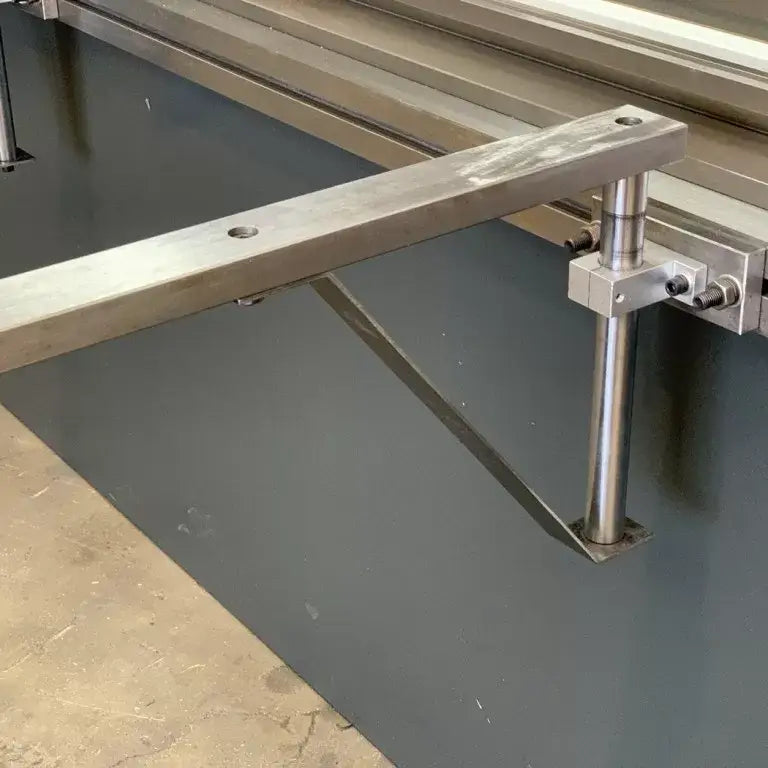

Front sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height.
Conveniently mounted control box on pendant for quick swivel and adjustments.
Integrated hydraulic system allowing rapid approach switching automatically to slow bend.
Modern designed pendant foot pedal operation with stainless braided cable.
Variable hydraulic pressure control valving fitted standard
Safety and material selection bending charts mounted on front beam for easy access.
Supplied pre commissioned prior to delivery
Pre commissioned prior to delivery
CE compliant

19#0660 – STEELMASTER Plastic Die Cover Protective Folding Film – Sold Per Metre – Improves Bend Quality Finish
19+0127 – Pressbrake Bottom Dieblock, Catering Profile 4000mm – Excluding Holder
19+0240 – STEELMASTER Bottom Single 16mm Vee Tooling – US 20.416/35° V=16 R2,0 L.MM.835
19+0268 – STEELMASTER Fold & Crush Dutch Tooling – US 300/26° V=12 R2,0 L.MM.500
19+0114 – Single Edge Knife Top Punch – Pressbrake Tooling – 4000mm Long x 15º Profile – Type 2
19+0139 – Double Edge Knife Top Punch – Pressbrake Tooling – 4000mm Long x 35º Profile – Type 2
19+0238 – STEELMASTER US 152/88 Degree, Radius 0.8mm Press Brake Tooling – 835mm Long
50+0200 – Digital Thickness Gauge – 0mm ~ 15mm
50+0156 – Dial Protractor With Bevelled Blade – Metric Calibrations.
50+0112 – Digital LCD Vernier Calliper – 150mm Length.
50+0159 – Digital Micrometers – 0-25mm Range, Dual Reading, Metric & Imperial.

19#0660 – STEELMASTER Plastic Die Cover Protective Folding Film – Sold Per Metre – Improves Bend Quality Finish
19+0127 – Pressbrake Bottom Dieblock, Catering Profile 4000mm – Excluding Holder
19+0240 – STEELMASTER Bottom Single 16mm Vee Tooling – US 20.416/35° V=16 R2,0 L.MM.835
19+0268 – STEELMASTER Fold & Crush Dutch Tooling – US 300/26° V=12 R2,0 L.MM.500
19+0114 – Single Edge Knife Top Punch – Pressbrake Tooling – 4000mm Long x 15º Profile – Type 2

P.O.A - 15kg and up

135mm x 135mm x 3200mm Multi Vee Bottom Vee Block
Segmented Knife Tooling

Technical Data Snap-Shot

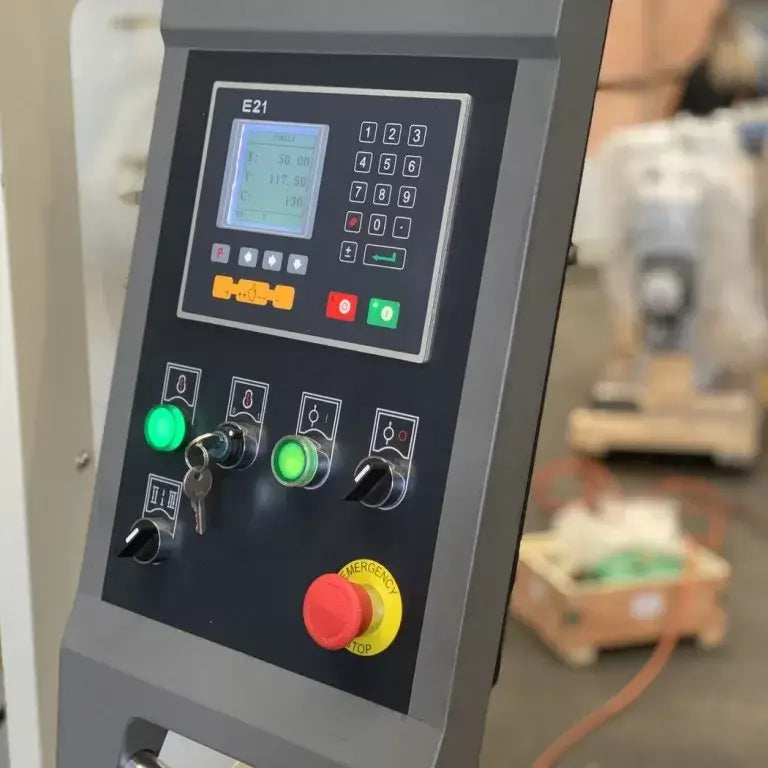

2 x Axis Etsun E21 NC Controller for Depth & Back Gauge
135 Ton Bending Capacity

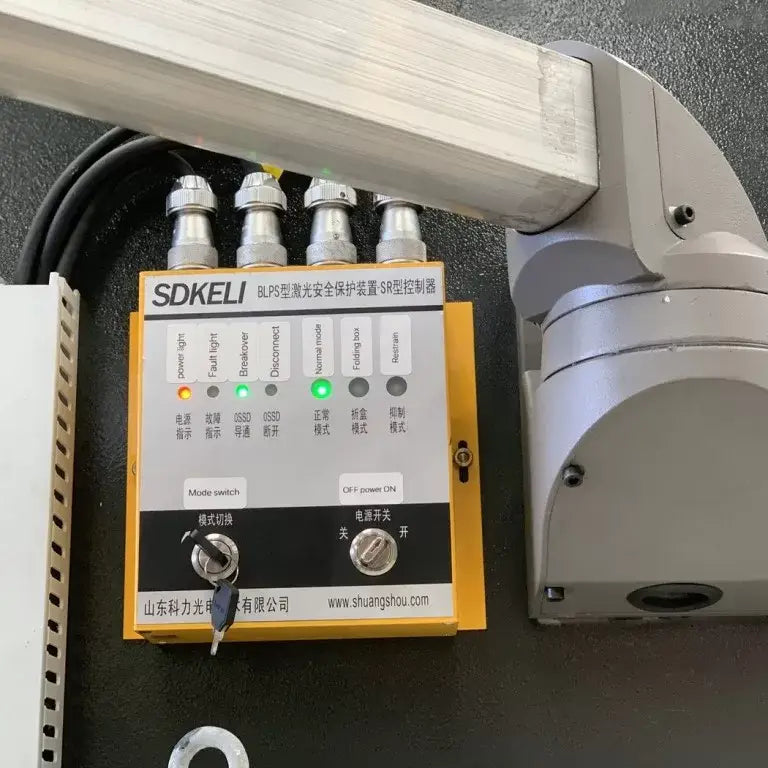

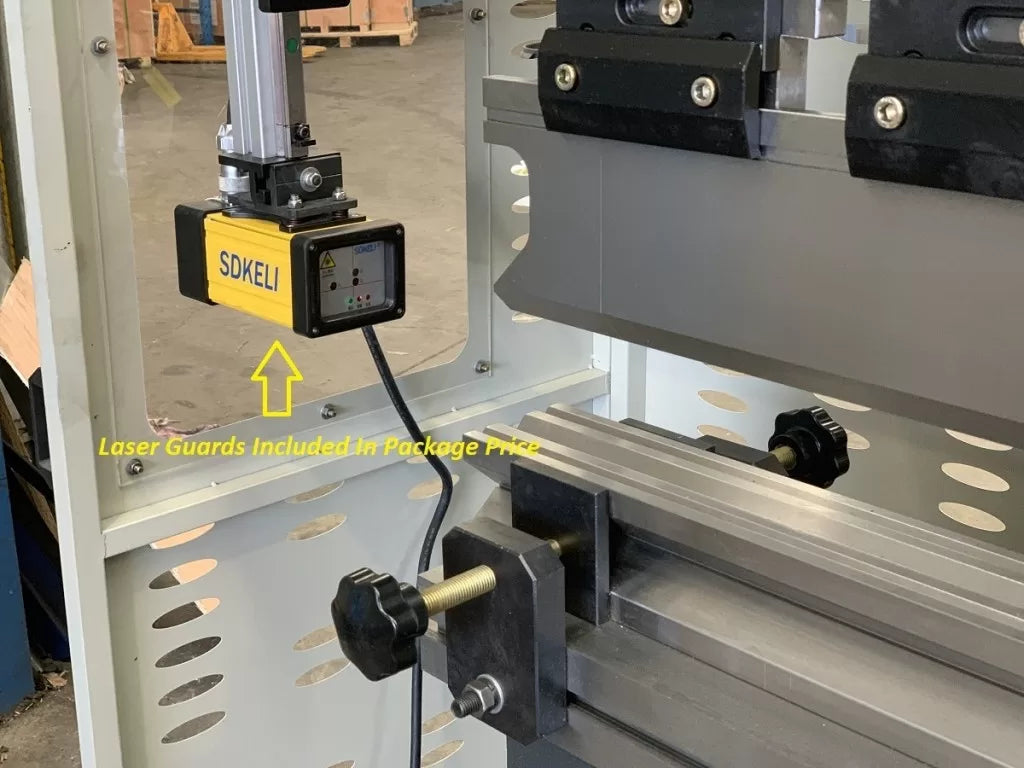

Front OH&S Laser Guards Included in Offer

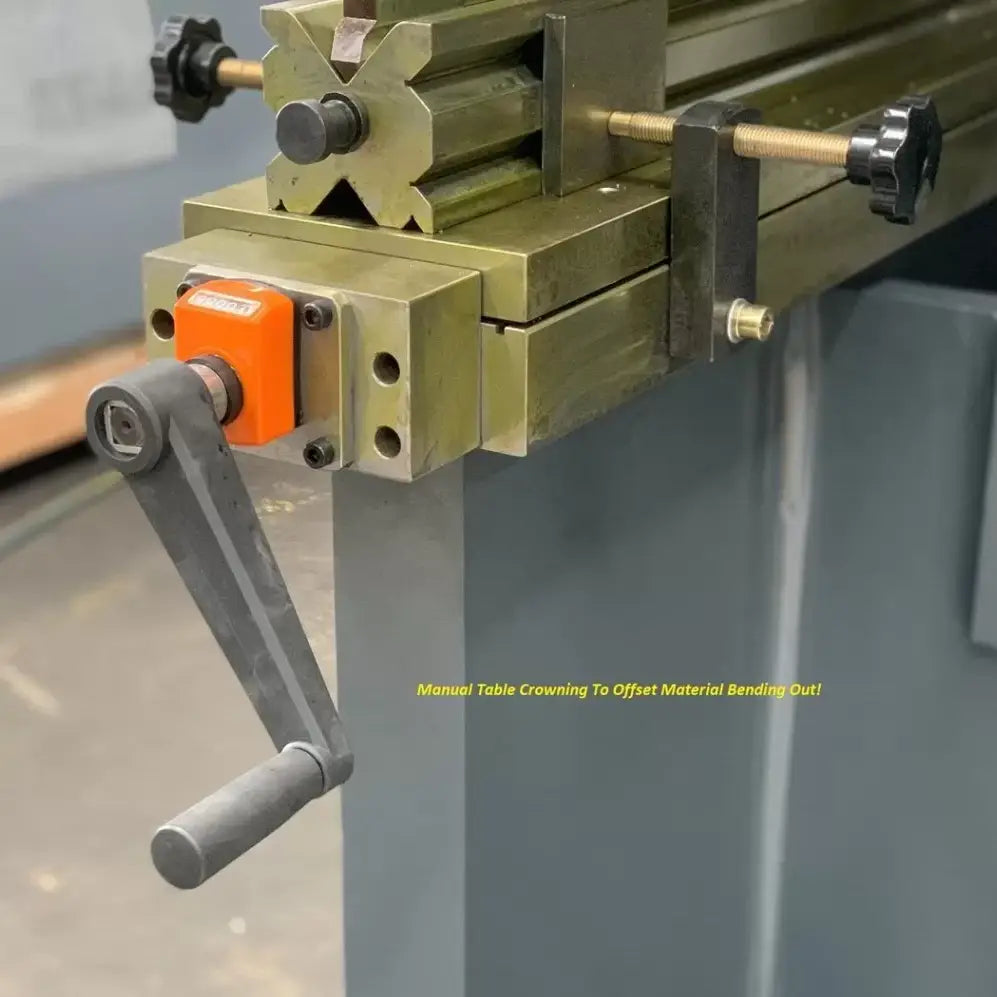

Hand operated table crowning included

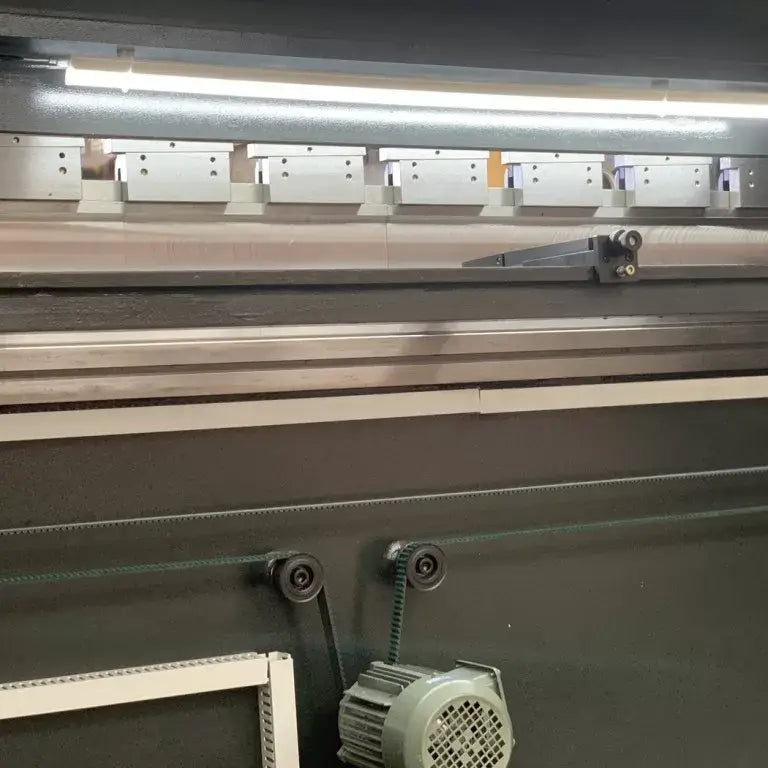

Precision ball screw Backgauge
Tee slotted front beam
4000mm Bending Length
3200mm Distance Between Frames
420mm Side Throat Depth
200mm Ram Stroke
470mm Open Height
600mm Back Gauge Travel

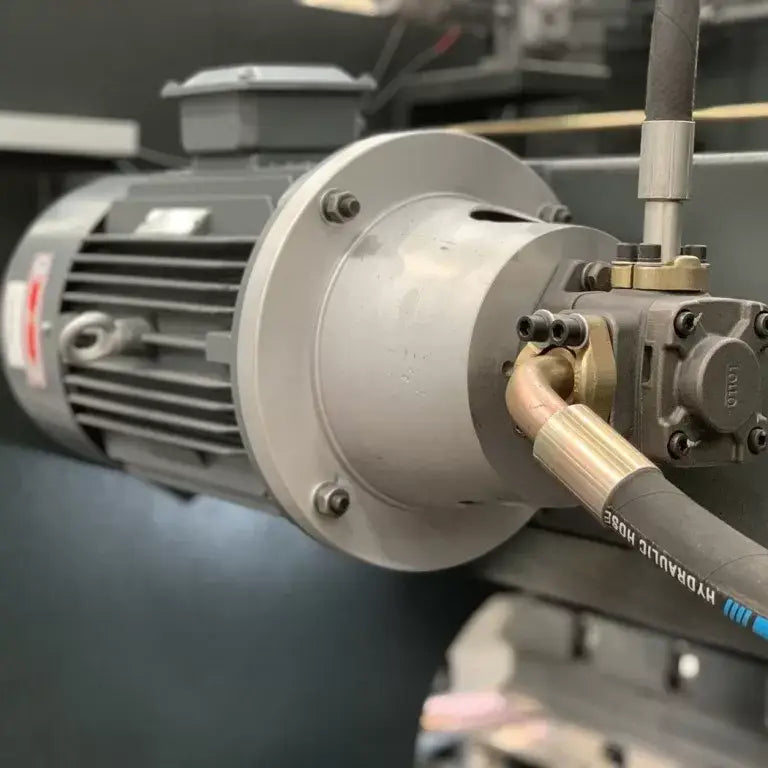

11Kw / 415V Motor Power
4700mm x 2200mm x 2850mm Footprint
14200Kg Weight

Standard Tooling Supplied

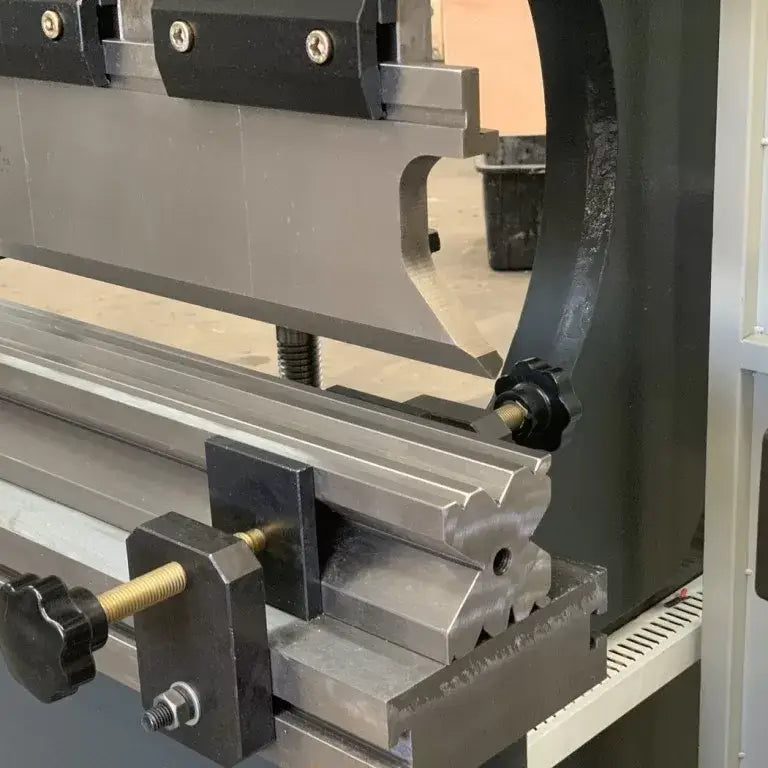

135mm x 135mm x 3200mm Multi Vee Bottom Vee Block
Segmented Knife Tooling

Optional Items To Be Added
Front OH&S Laser Guards Included in Offer (Included on This Offer)
Manual Table Crowning (Included on This Offer)
Quick Release Tool Clamps
