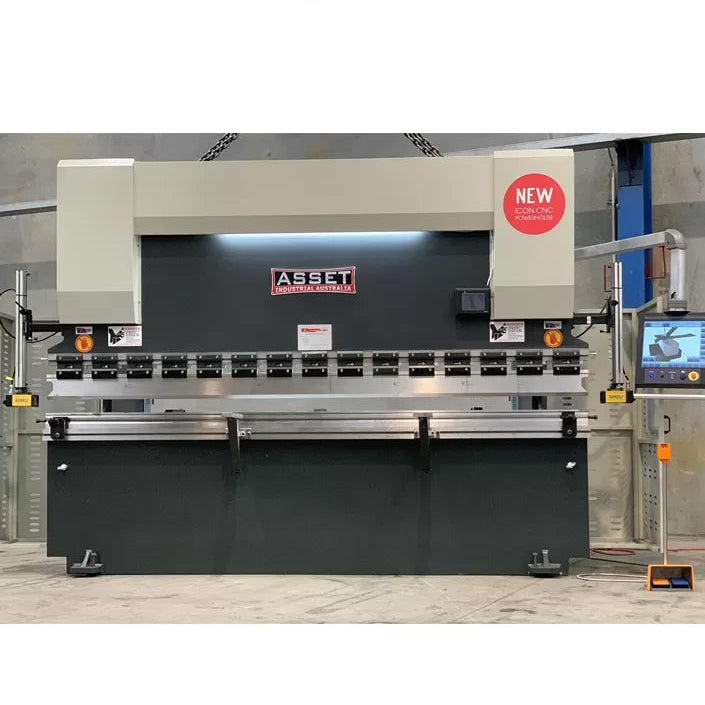

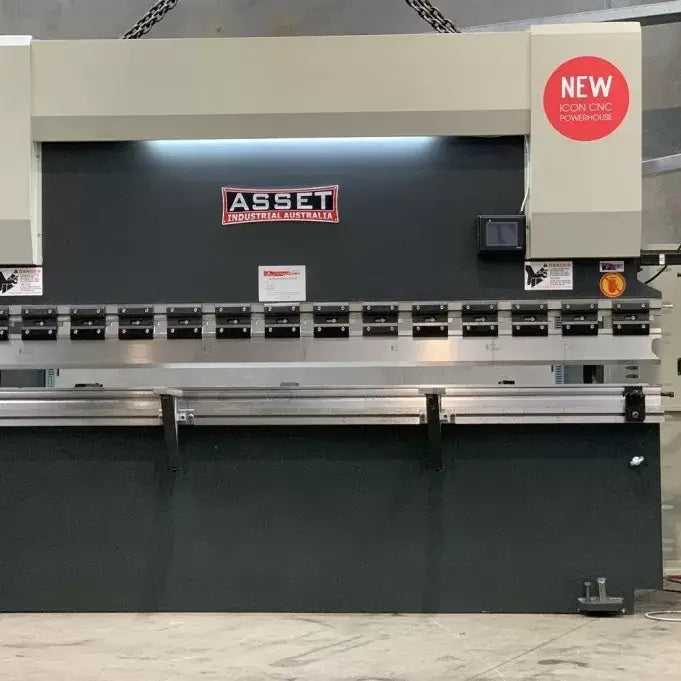

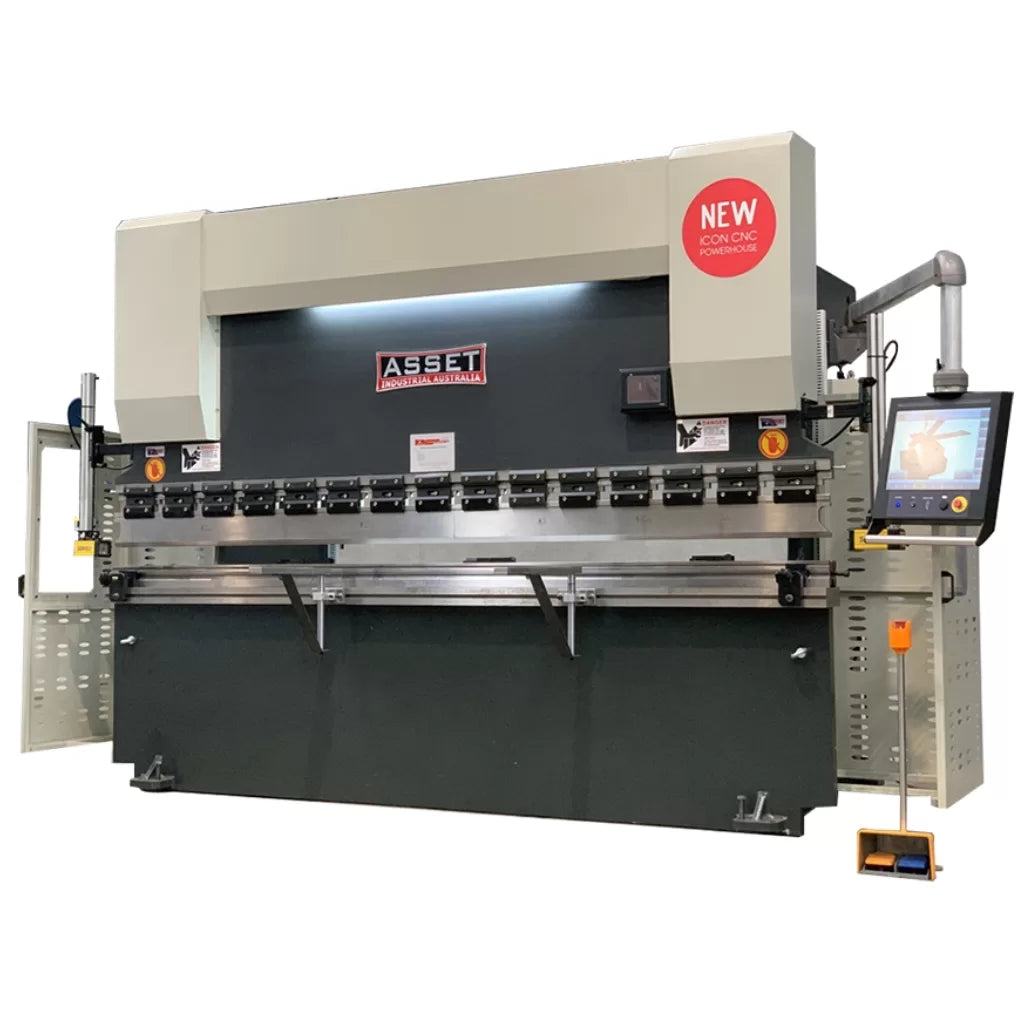

CNC Hydraulic Pressbrake. 3200mm x 90Ton. 2 Axis CNC iCON Graphical

90 ton

3200mm

Quick Release Tool Clamps, Manual Table Crowning
Plastic Die Cover Protective Film (Improves Finish)
Catering Profile Die Block
Various Single Vee, Dutch Fold & Crush, and Knife Edge Tooling
Digital Thickness Gauge, Digital Protractor, Digital Vernier Caliper, Digital Micrometer

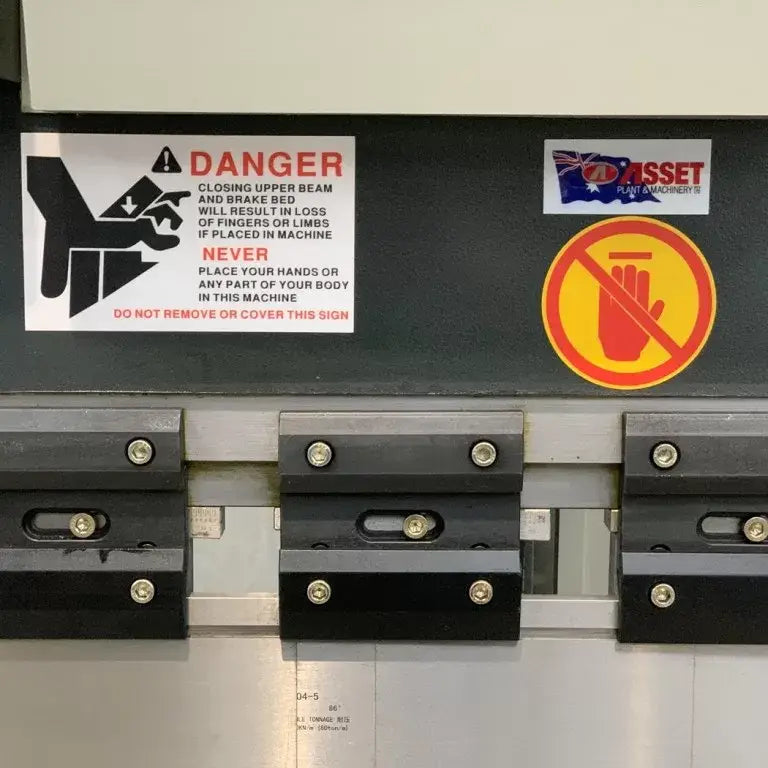

Front OH&S Laser Guards Included in Offer (Included on This Offer)

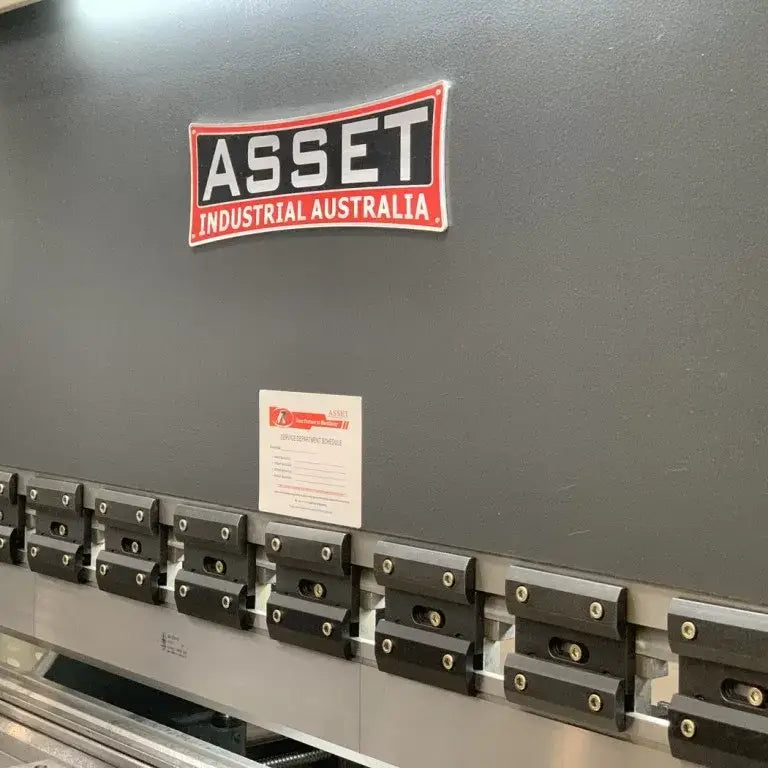

Quick Release Tool Clamps
Manual Table Crowning

iCON CNC Graphical OS - Easy to learn and use with 2D/3D visualisation, reducing operator error.
Automatic Bend Sequencing - Saves significant time and guesswork by calculating the most efficient bend order automatically.
Deep Side Throats & Wide Frame - Offers greater application scope to handle larger and more complex jobs.
iCON Service Assist - Minimises downtime with near-instant remote diagnostics and updates, saving on service costs.
Standard Segmented & Multi-Vee Tooling - You are ready to work on a variety of jobs right away without immediate extra tooling costs.
Pre-Commissioned Delivery - Reduces setup time and ensures the machine is ready for production much faster.
Hydraulic synchronised positive stop design, electronically controlled by iCON CNC Graphical operating system.
2D/3D Part & Tooling Simulation & Modelling.
Automatic Bend Sequencing – Most others on the market do not offer this!
Automatic Y Axis Calibration
Offline Software Included as Standard
Deep side throats and wider distances between the vertical frames offering you more application scope.
Segmented heavy duty 86° offset top tool, segmented for return bend clearance.
Full length Multi Vee bottom block with a smart selection of openings also including safety edge vee (‘V’) for over bending.

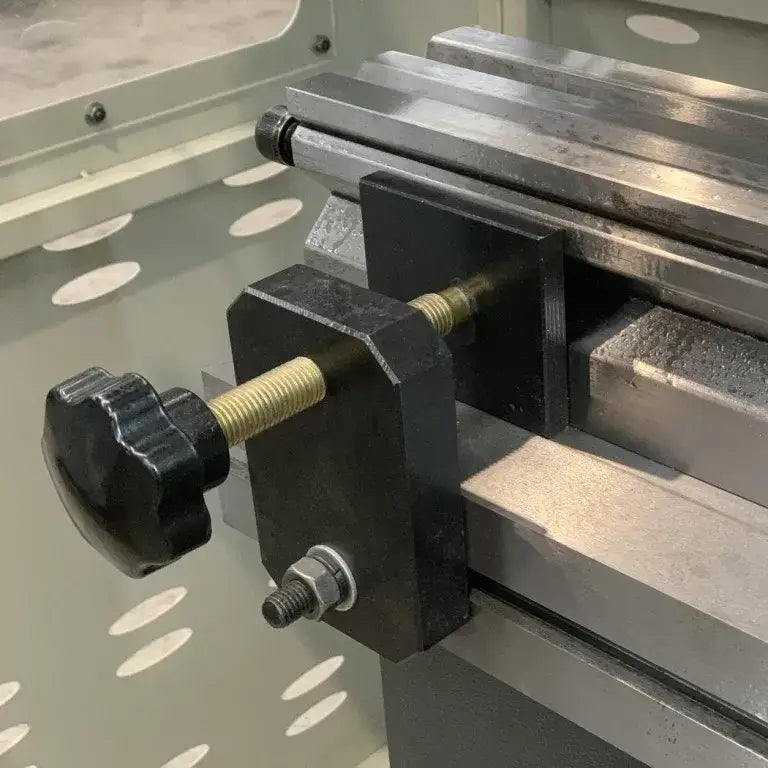

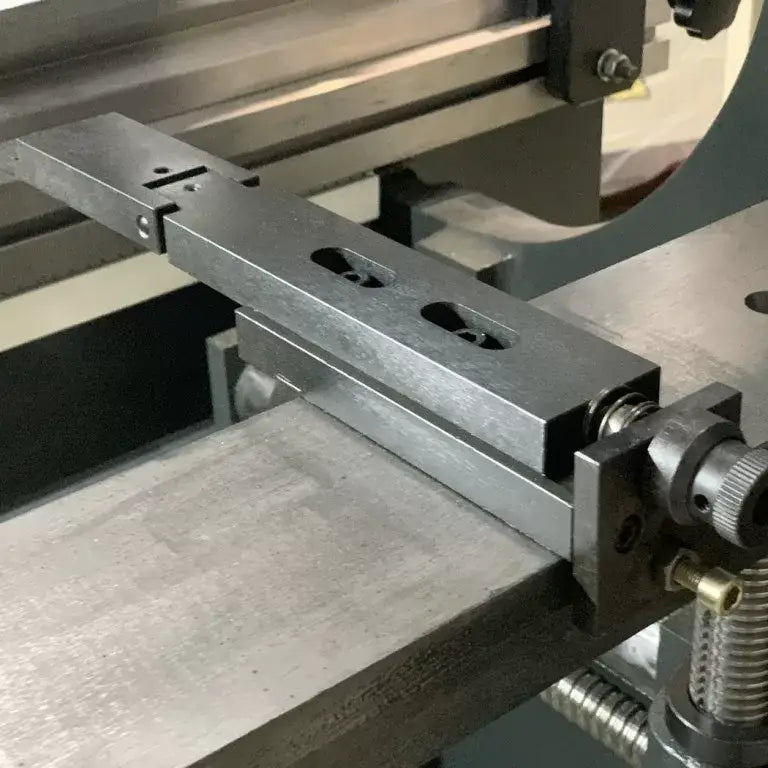

Power operated back gauge with quality support fingers also with vertical adjustment

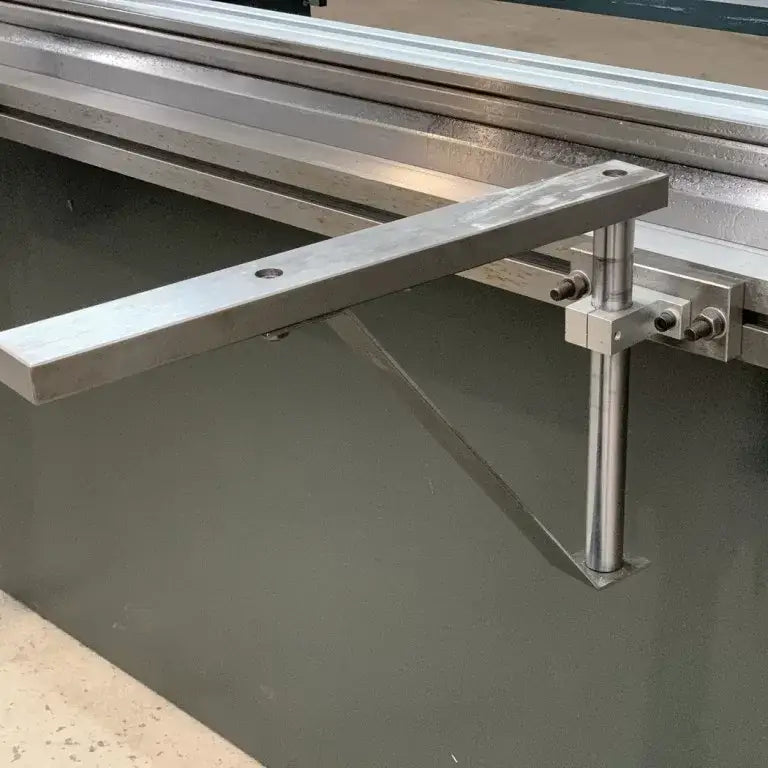

Front sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height.
Conveniently mounted control box on pendant for quick swivel and adjustments.

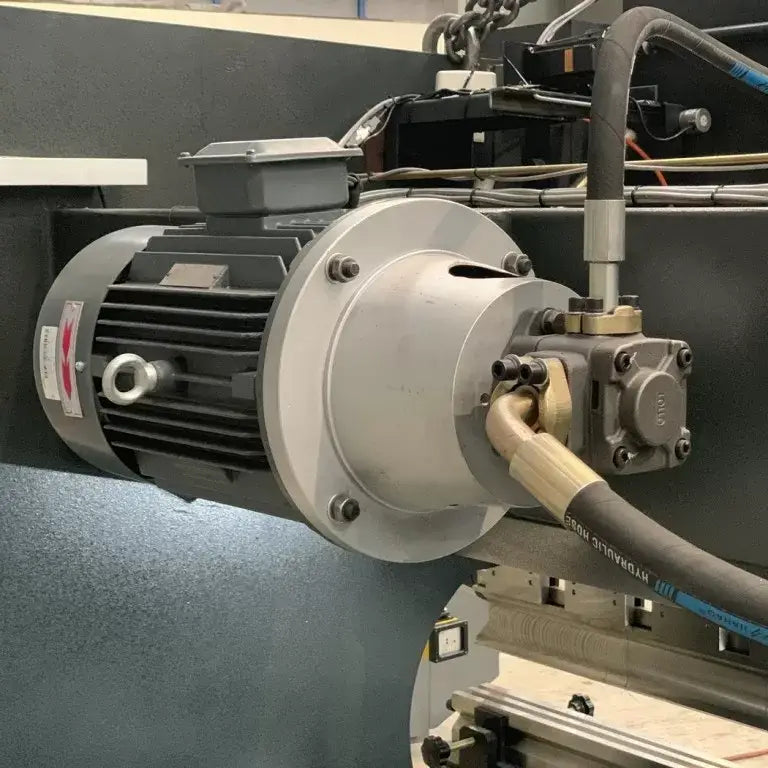

Integrated hydraulic system allowing rapid approach switching automatically to slow bend.
Modern designed pendant foot pedal operation with stainless braided cable.

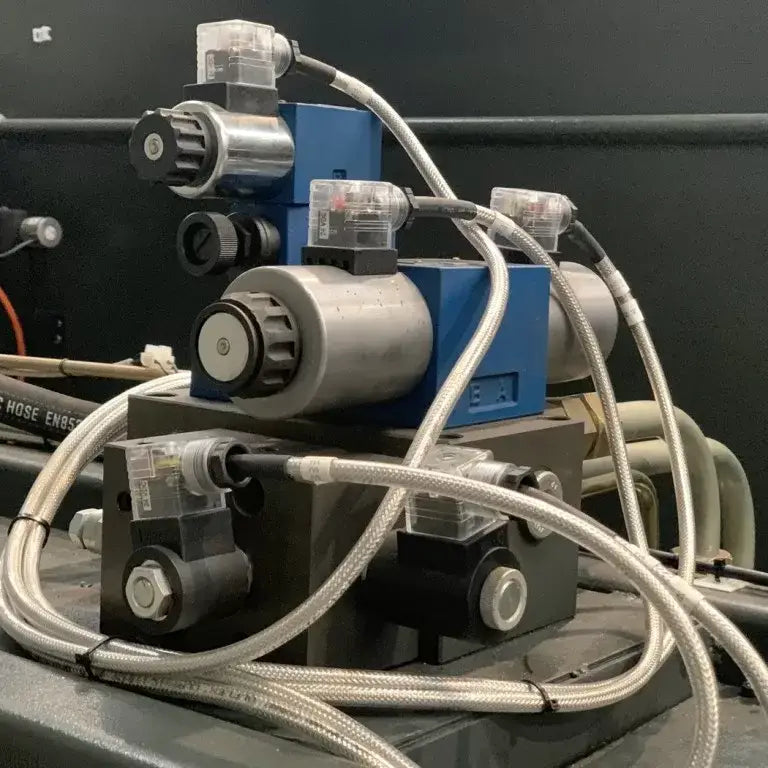

Variable hydraulic pressure control valving fitted standard
Safety and material selection bending charts mounted on front beam for easy access.
Supplied pre commissioned prior to delivery
Pre commissioned prior to delivery
CE compliant

19#0660 – STEELMASTER Plastic Die Cover Protective Folding Film – Sold Per Metre – Improves Bend Quality Finish
19+0126 – Pressbrake Bottom Dieblock, Catering Profile 3200mm – Excluding Holder
19+0240 – STEELMASTER Bottom Single 16mm Vee Tooling – US 20.416/35° V=16 R2,0 L.MM.835
19+0268 – STEELMASTER Fold & Crush Dutch Tooling – US 300/26° V=12 R2,0 L.MM.500
19+0113 – Single Edge Knife Top Punch – Pressbrake Tooling – 3200mm Long x 15º Profile – Type 2
19+0138 – Double Edge Knife Top Punch – Pressbrake Tooling – 3200mm Long x 35º Profile – Type 2
19+0238 – STEELMASTER US 152/88 Degree, Radius 0.8mm Press Brake Tooling – 835mm Long
50+0200 – Digital Thickness Gauge – 0mm ~ 15mm
50+0156 – Dial Protractor With Bevelled Blade – Metric Calibrations.
50+0112 – Digital LCD Vernier Calliper – 150mm Length.
50+0159 – Digital Micrometers – 0-25mm Range, Dual Reading, Metric & Imperial.

P.O.A - 15kg and up

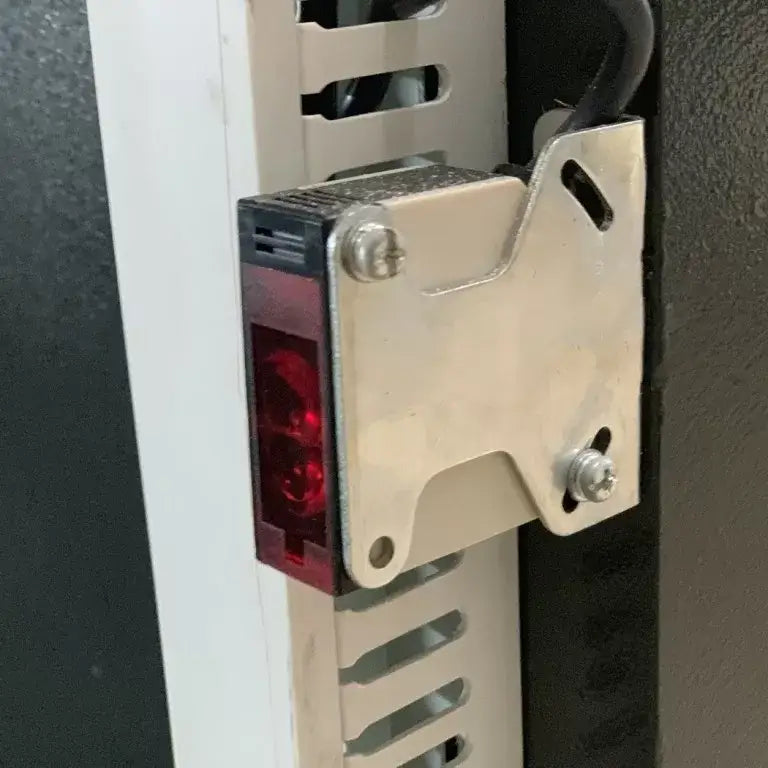

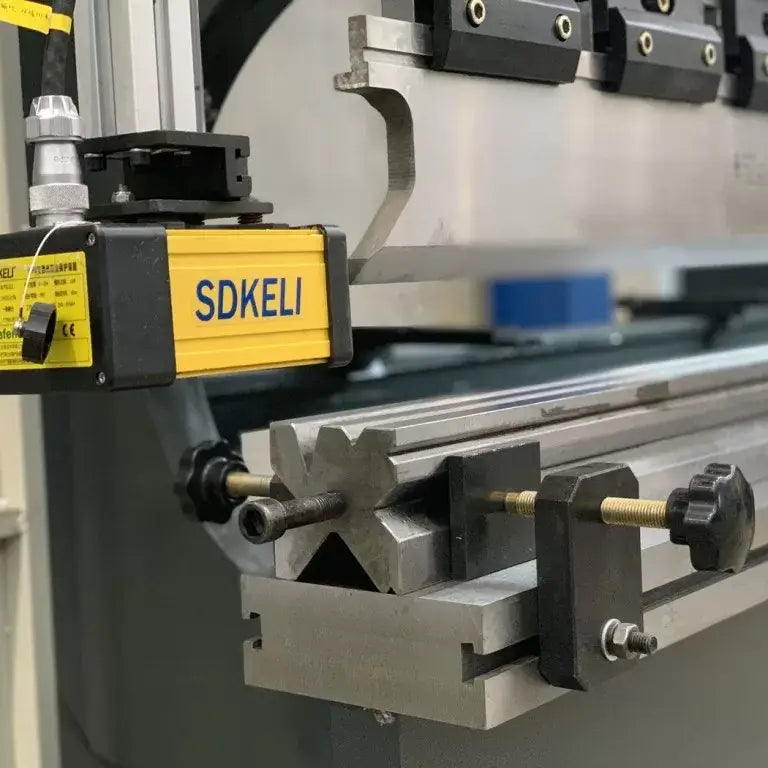

Front OH&S Laser Guards (CE Compliant)
Segmented Heavy Duty 86° Offset Top Tool with End Horns
3200mm Full Length Multi-Vee Bottom Block
Power Operated Back Gauge with Vertical Adjustment
Front Sheet Supports
Pendant Mounted Control Box & Foot Pedal
iCon Service Assist Feature
Pre-Commissioned Prior to Delivery
80mm x 80mm x 3200mm Multi Vee Bottom Vee Block
Segmented Offset Segments Tooling With End Horns

Bending force: 40T
Working length: 1320mm
Stroke: 100mm
Daylight: 320mm
Throat: 200mm
Power: 415V 3PH

Etsun E21 NC Programmable Controller
40 Ton Bending Capacity
1320mm Bending Length

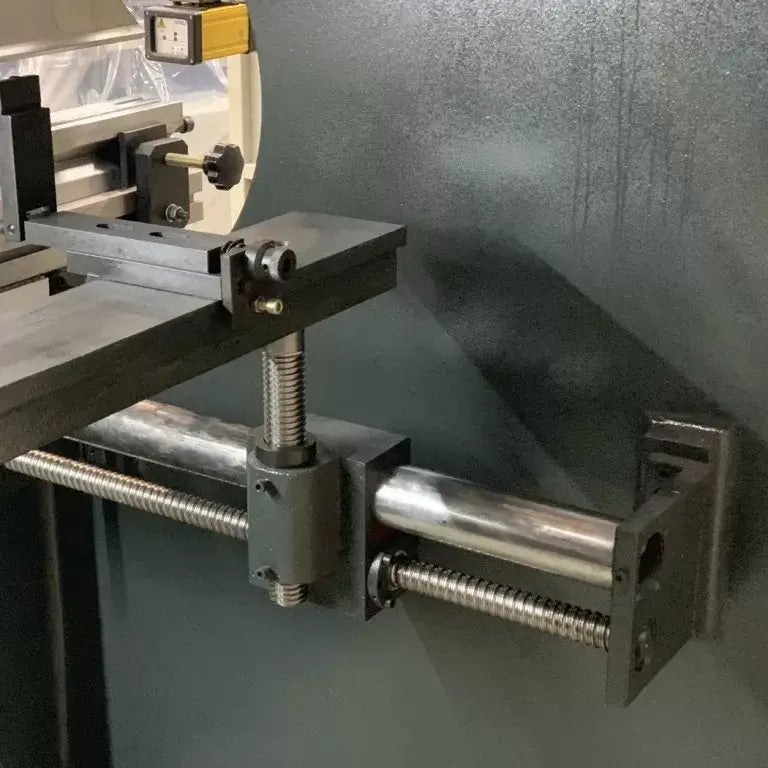

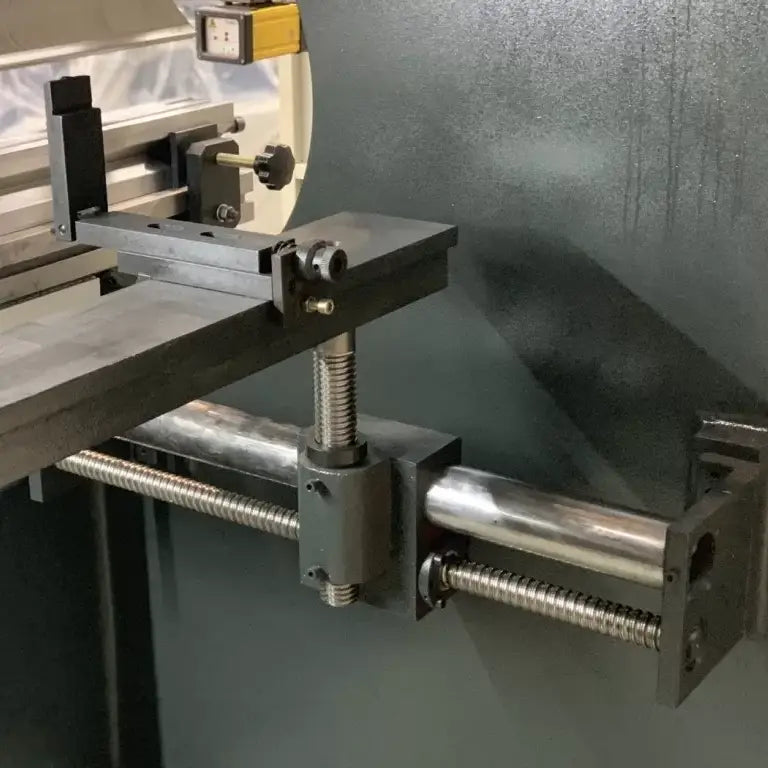

Precision ball screw Backgauge
Tee slotted front beam
1005mm Distance Between Frames
200mm Side Throat Depth
80mm Ram Stroke
245mm Open Height
400mm Back Gauge Travel
4.0Kw / 415V Motor Power
1500mm x 840mm x 1870mm Footprint
2100Kg WeightFront Laser Safety Guards
Laser Guards to be added for OH&S requirements at additional cost
