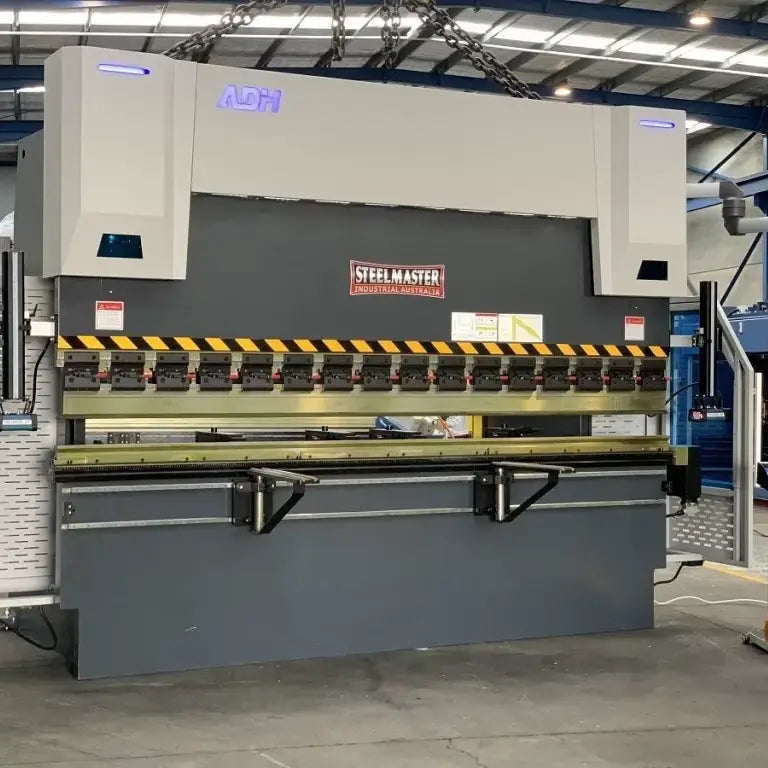

3200mm x 135Ton 5 Axis CNC Pressbrake 3200mm x 135Ton, 5 Axis Delem DA58T Control

135 ton

DELEM DA52s
Y1, Y2, X & Crowning (4 Axis)
DELEM DA58 (2 Dimensional)
Y1, Y2, X & R & Crowning (5 Axis)
DELEM DA66T (3 Dimensional)
Y1, Y2, X, R, Z1, Z2 & Crowning (7 Axis)

3200mm

Delem DA66 Touch Controllers
Delem 69Touch – Please ask
Profile T3D – Offline Software For DA-66-T
Profile T3D – Offline Software For DA-69-T – Free With Controller Upgrade
Z1, Z2 Axis Added

60mm x 60mm x 4 Vee Bottom Block
Segmented Offset (Gooseneck) Tooling

Energy efficient “Stand-By” inverter motor
Precise and accurate 5 axis cnc press brakes.

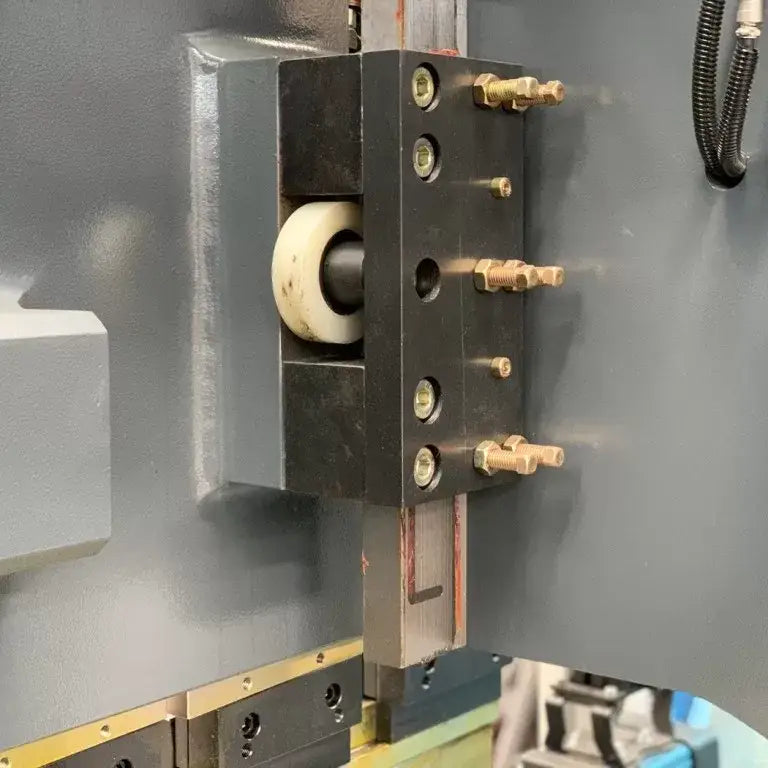

ADH machine frames consist of a monolithic structure with hot rolled high quality steel

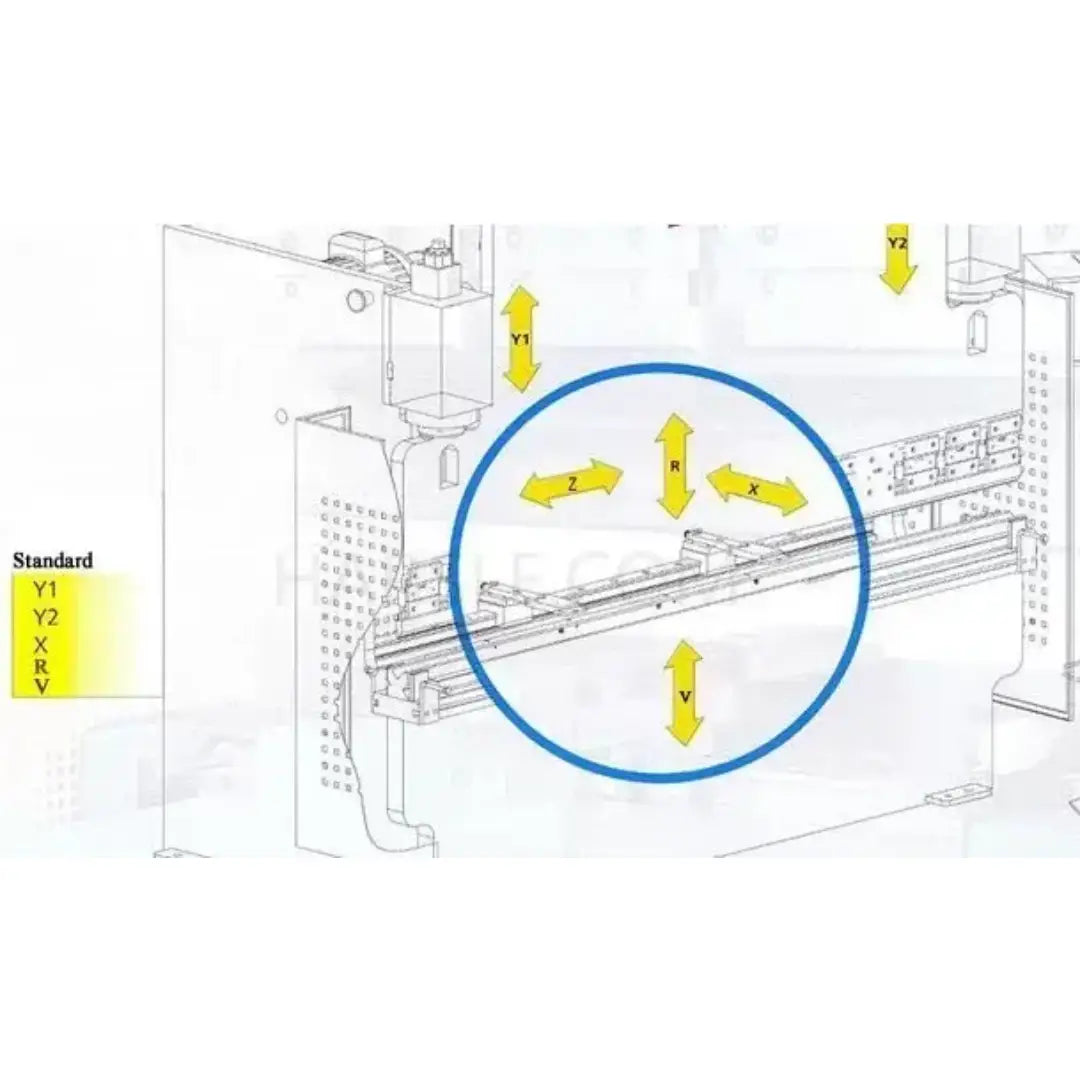

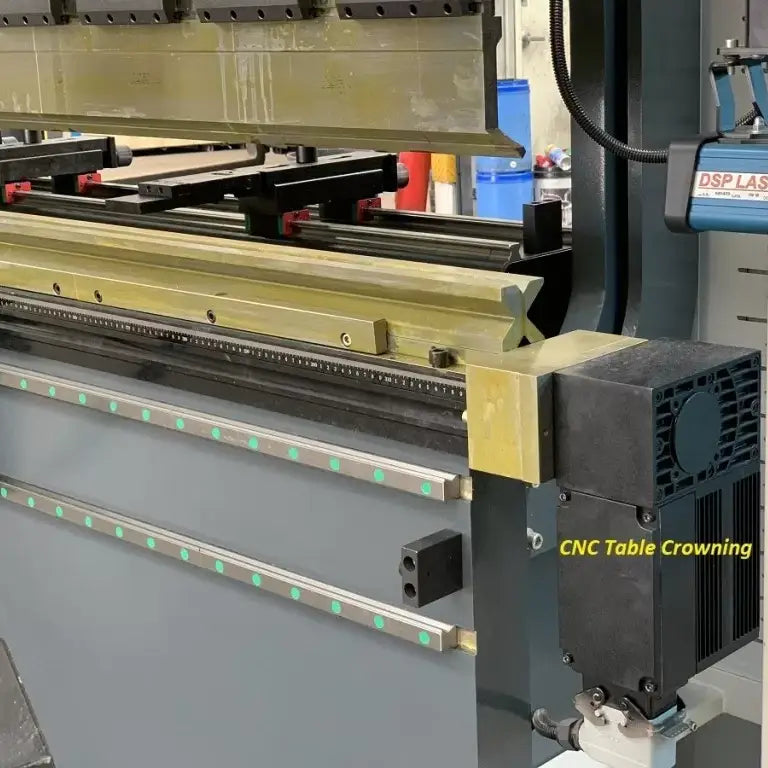

CNC5 Controlled Axis (Y1, Y2, X, R, & Crowning) as standard.
Full electronic Synchronisation with proportional valve technology. Guaranteed beam positioning of +/- 0.01mm (Y1 and Y2 Axis)
German Hoerbiger hydraulic system

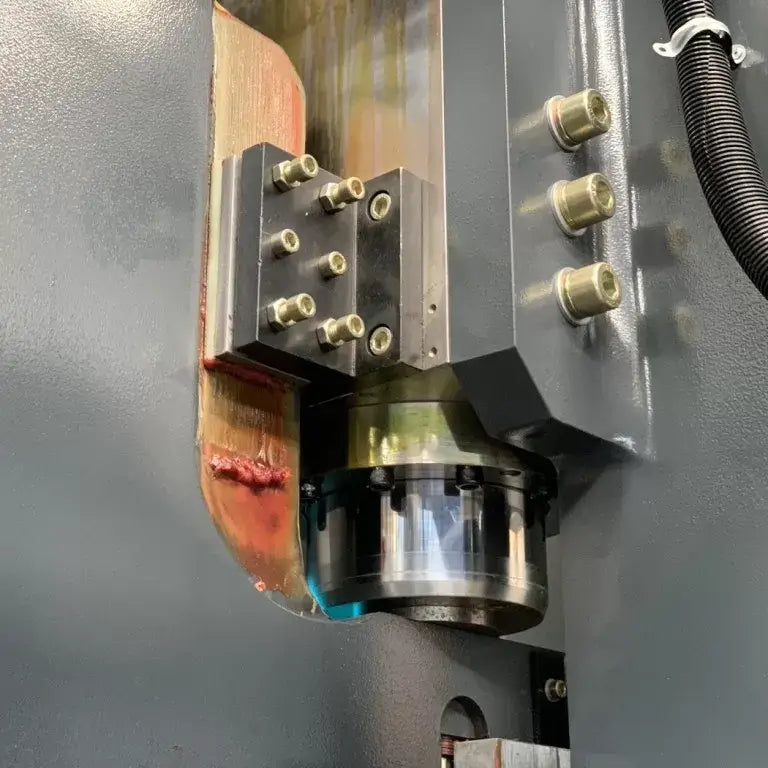

Cylinders made from high quality forged steel, precision honed
Accurate positioning and repeat ability of synchronised cnc press brakes, achieved by synchronising the hydraulic cylinders with advanced CNC control of proportional valves and use of optic linear scales

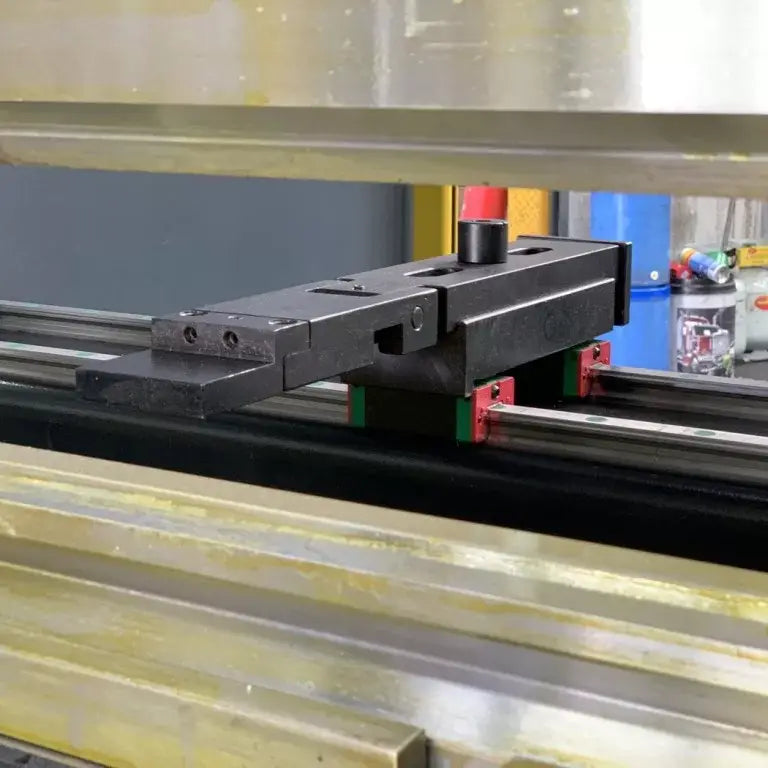

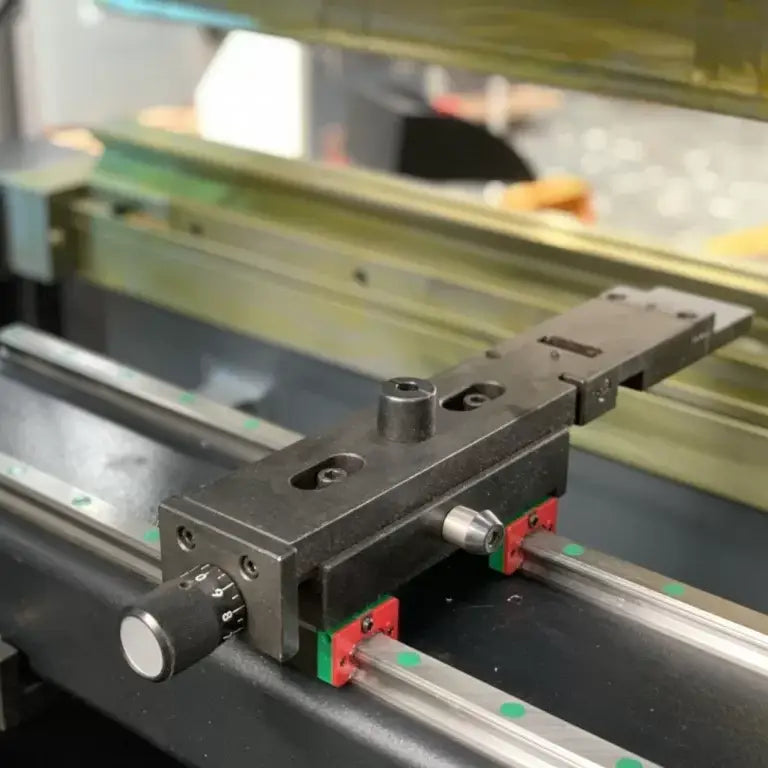

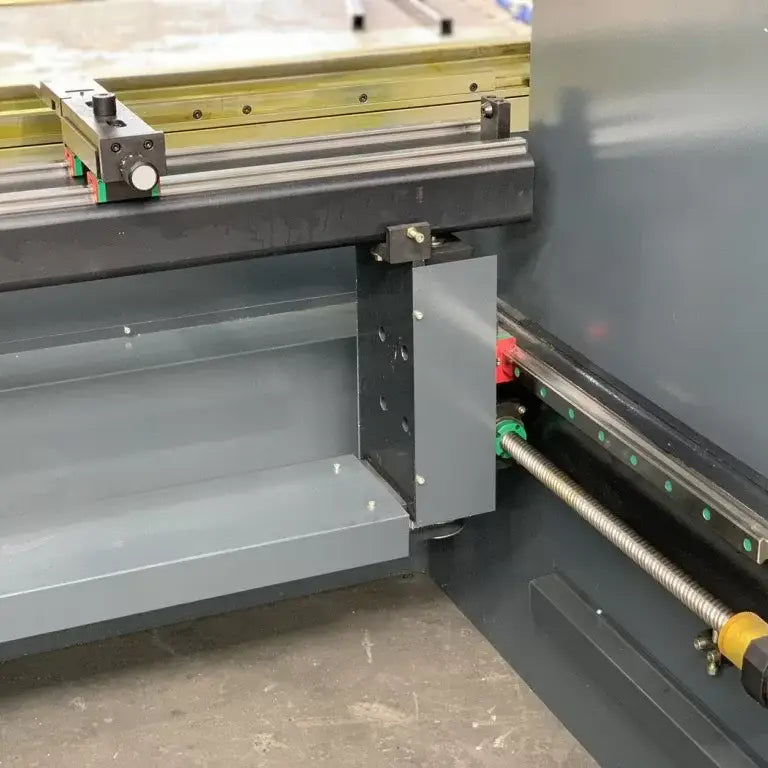

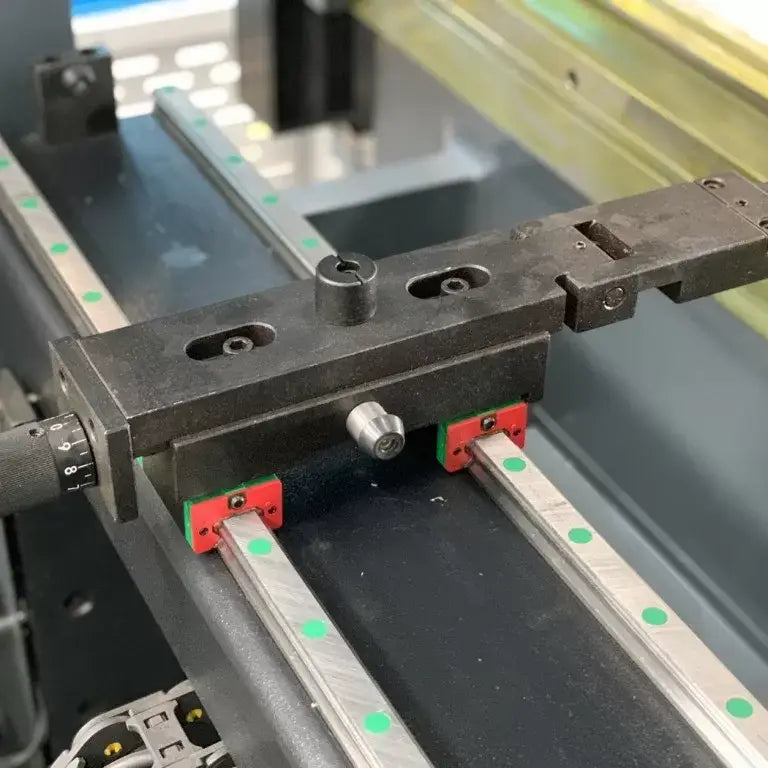

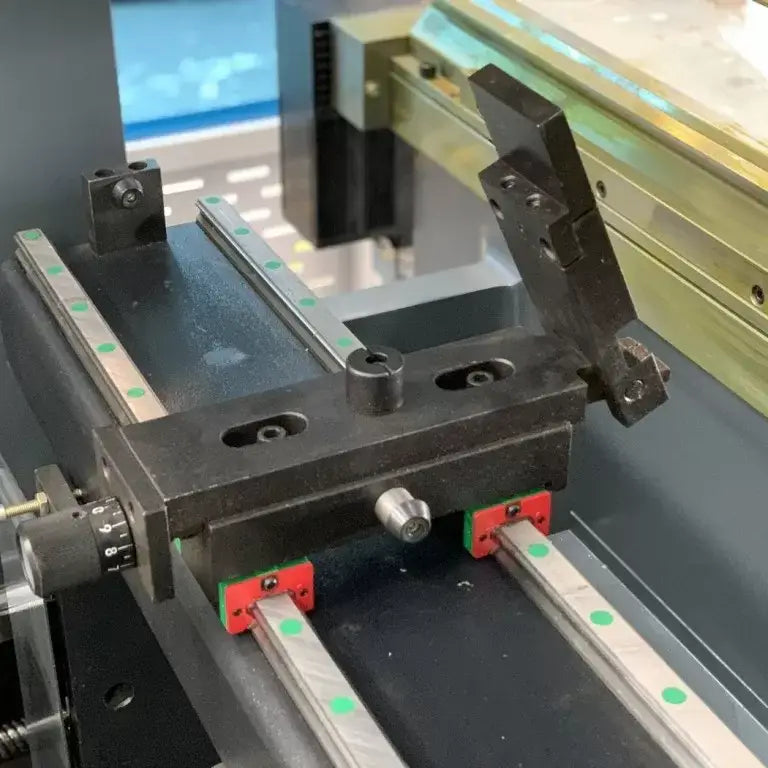

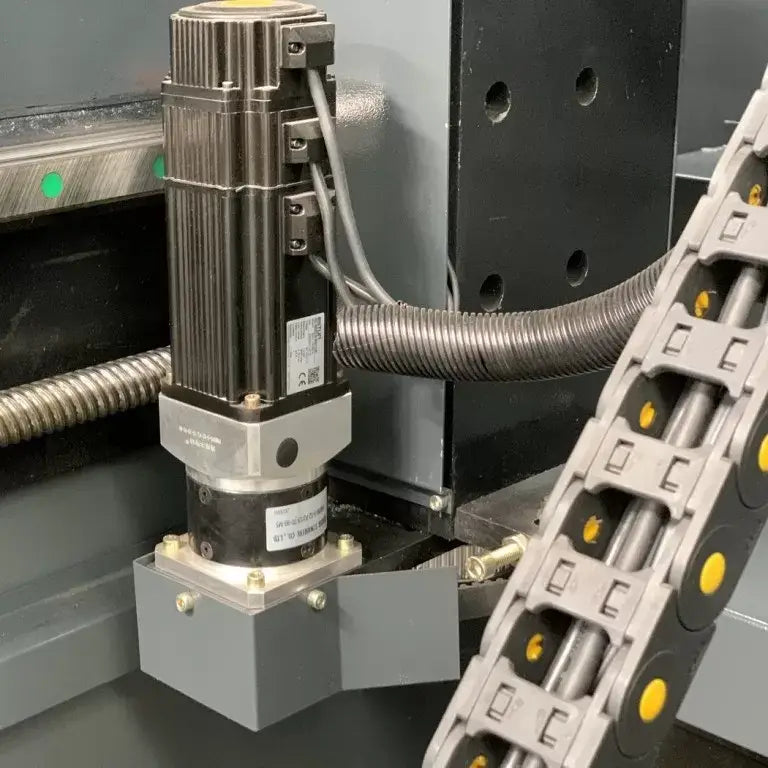

CNC controlled back gauge with ball screw spindles, ball guides and AC or DC servo motors

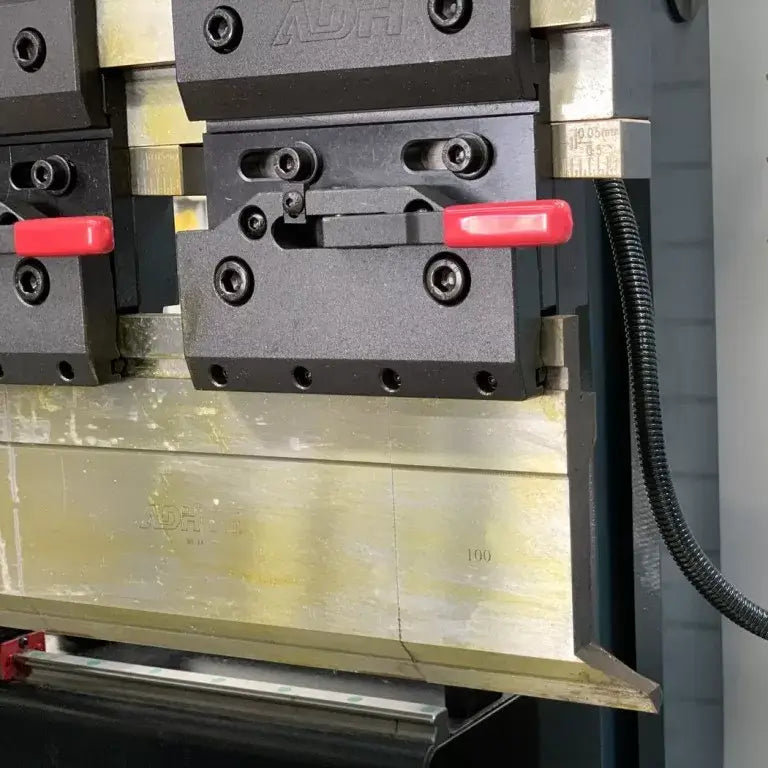

Euro quick action tool holders.

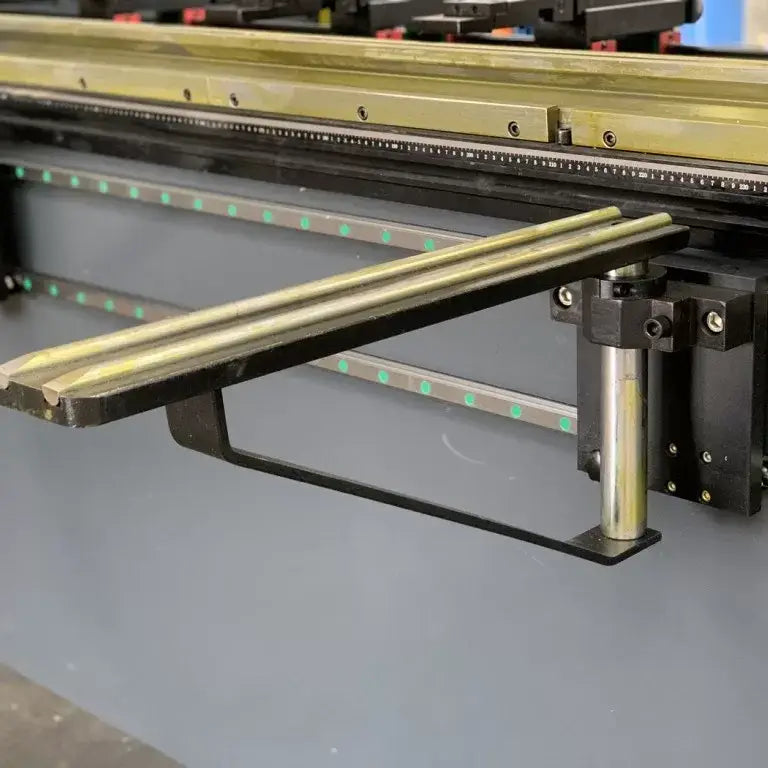

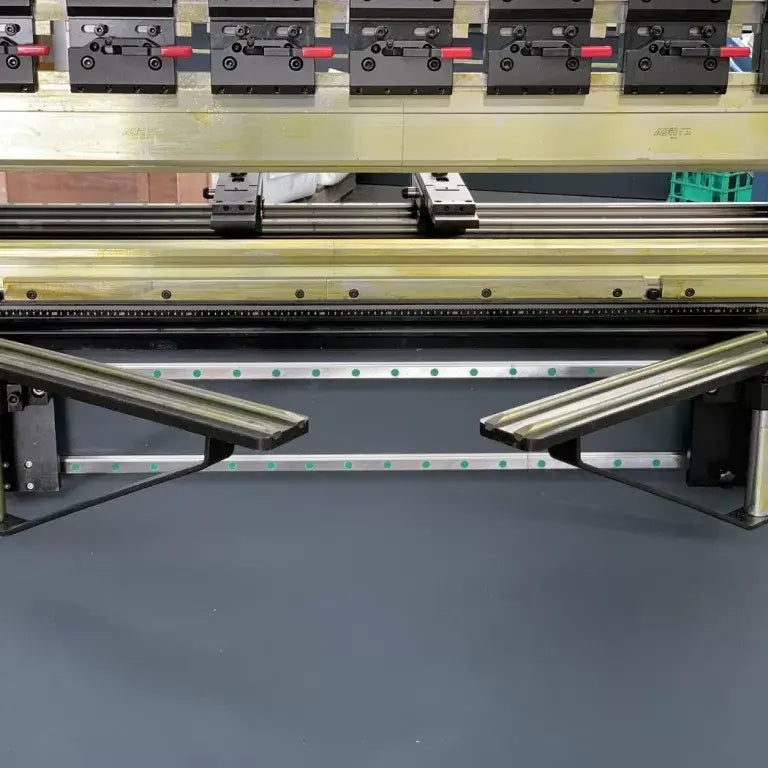

Linear guided sliding front sheet supports.

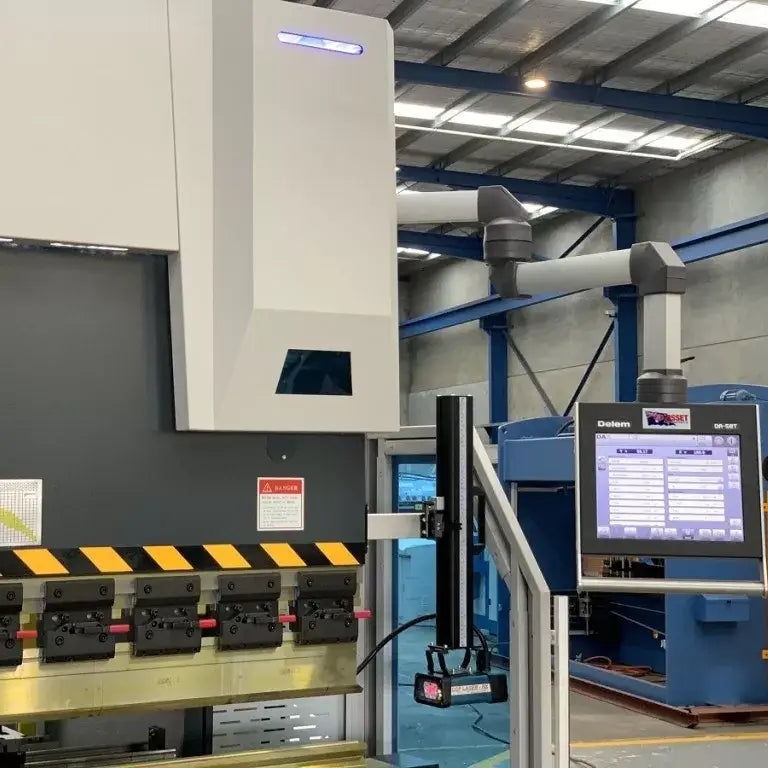

Ergonomic swing-away control panel

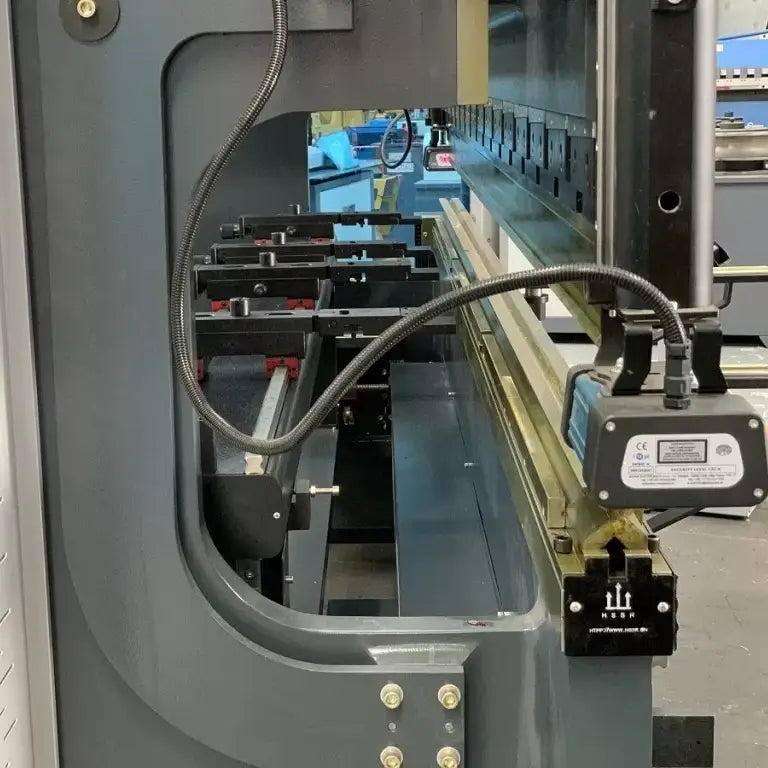

Side and rear safety guards with safety interlocksTechnical Data Snap-Shot
Quality European Engineered Build Quality
135 Ton Bending Capacity
3200mm Bending Length
5 axis cnc control, Y1, Y2, X, R & Crowning

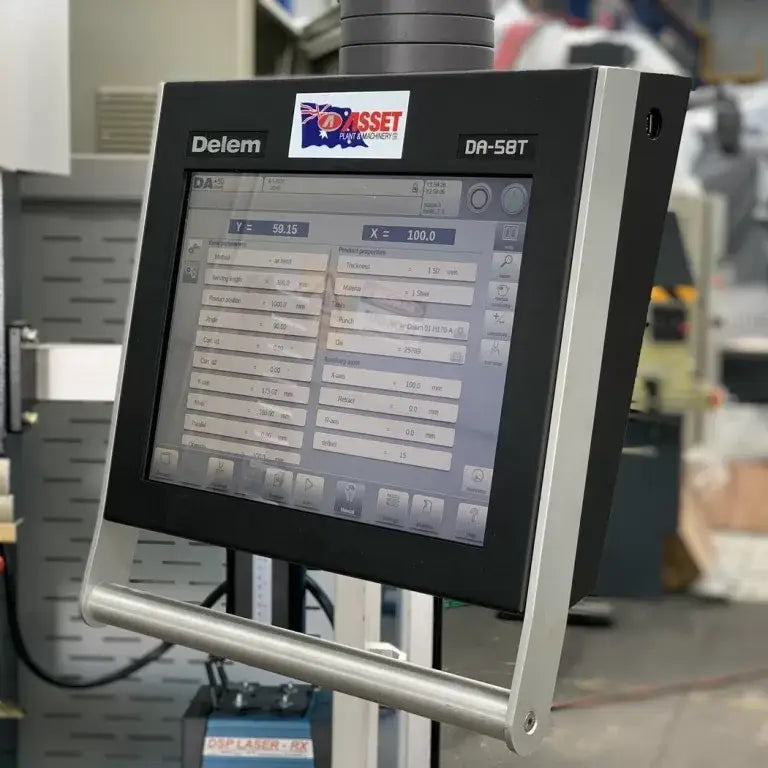

Delem DA58T Controller
High Speed Servo Operation
2700mm Distance Between Frames
400mm Side Throat Depth
880mm Table Height
200mm Ram Stroke
400mm Open Height
200mm / sec approach speed
10mm / sec bending speed
160mm / sec return speed
750mm precision back gauge stroke

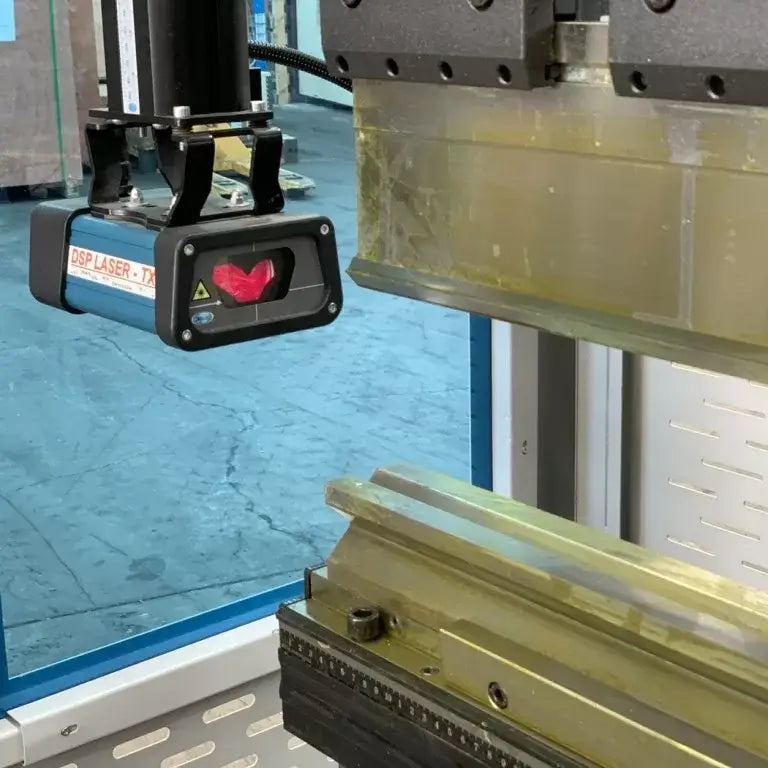

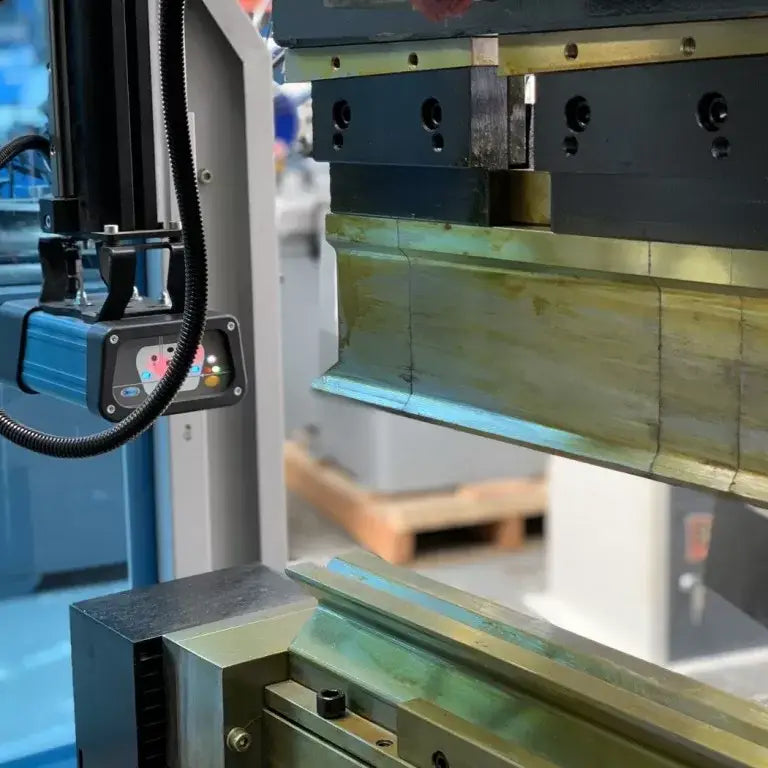

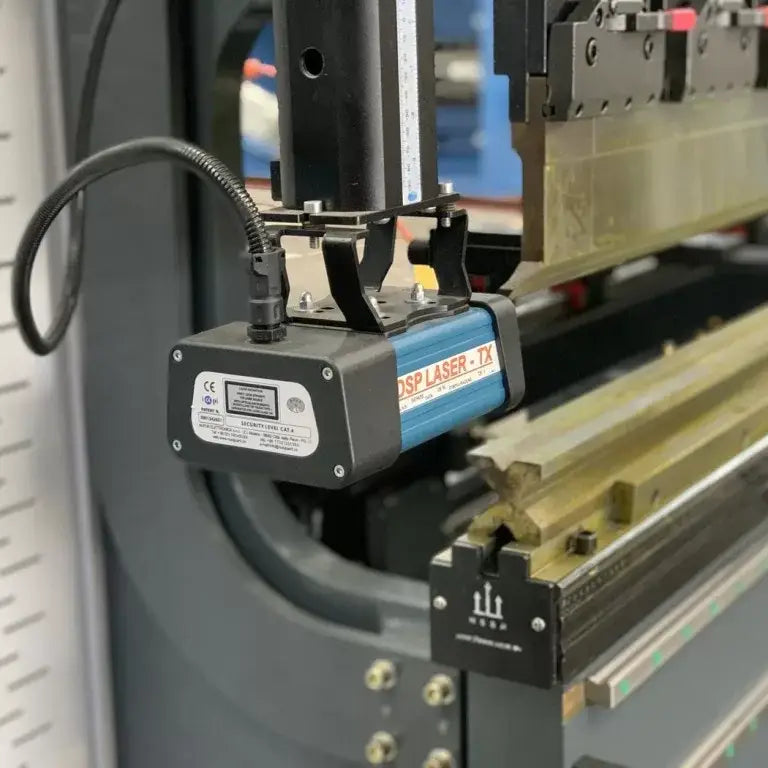

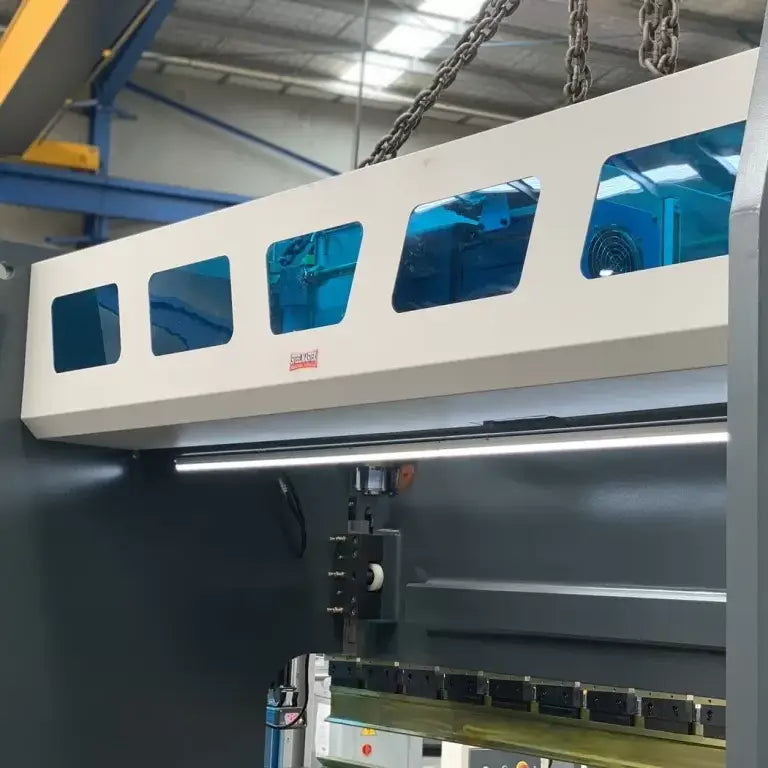

Italian DSP laser guards included
7.5Kw / 415V Motor Power
3500mm x 1650mm x 2450mm Footprint
9500Kg Weight

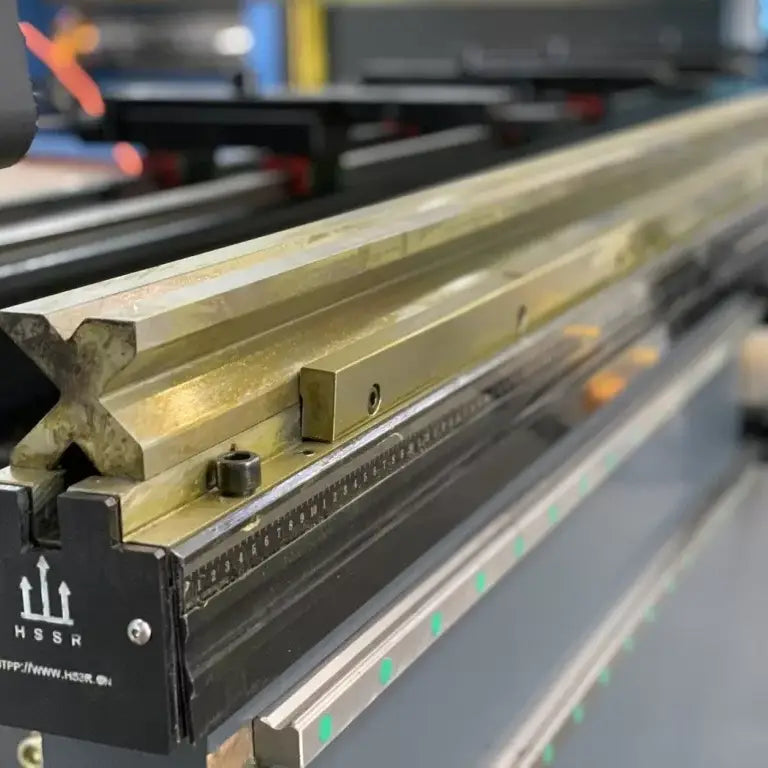

Pressbrake Tooling Supplied
60mm x 60mm x 4 Vee Bottom Block
Segmented Offset (Gooseneck) Tooling

Optional Equipment
Delem DA66 Touch Controllers
Delem 69Touch – Please ask
Profile T3D – Offline Software For DA-66-T
Profile T3D – Offline Software For DA-69-T – Free With Controller Upgrade
Z1, Z2 Axis Added

DELEM offer as follows in CNC

DELEM DA52s
Y1, Y2, X & Crowning (4 Axis)
DELEM DA58 (2 Dimensional)
Y1, Y2, X & R & Crowning (5 Axis)
DELEM DA66T (3 Dimensional)
Y1, Y2, X, R, Z1, Z2 & Crowning (7 Axis)
