Steelmaster Industrial | SKU: 13+0103

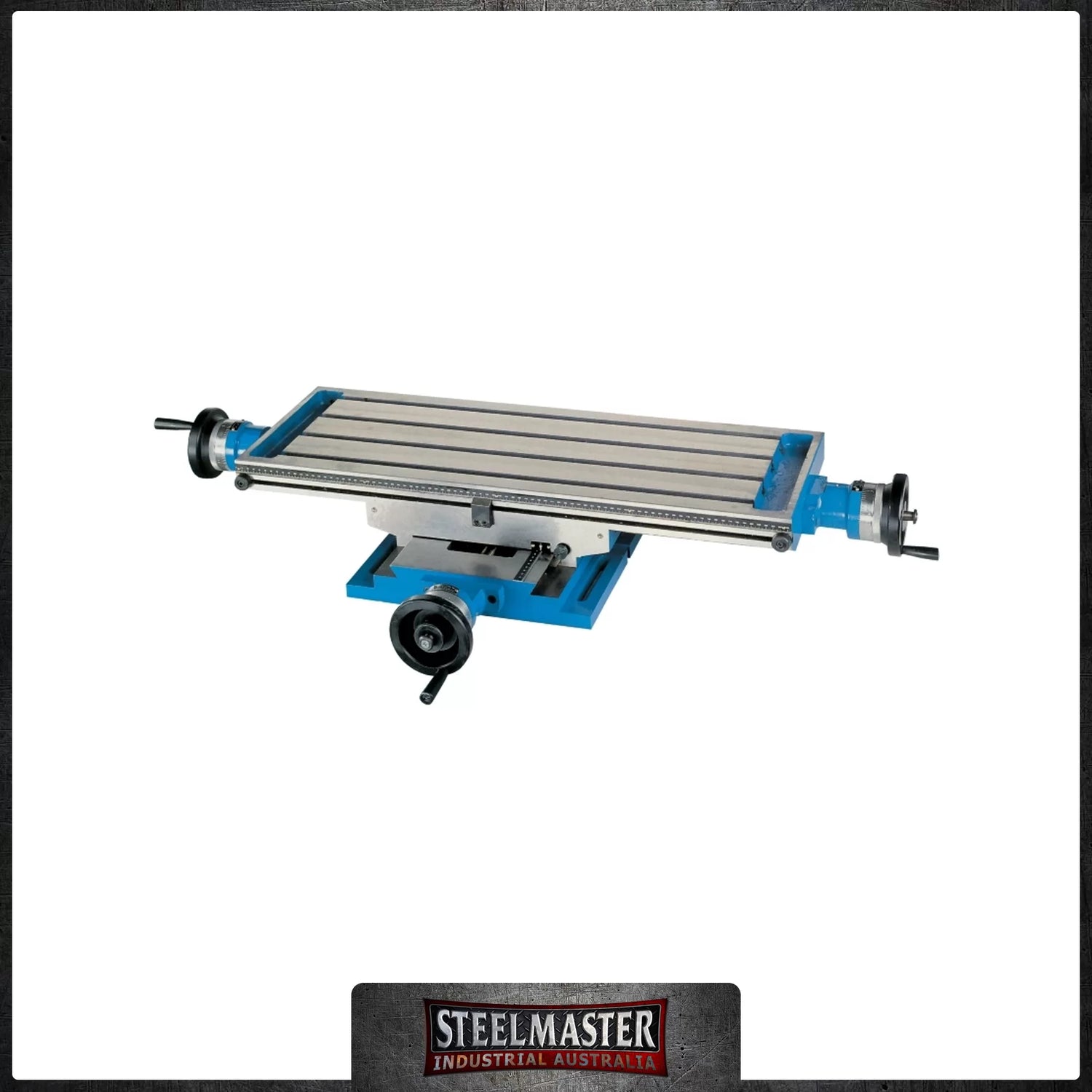

Heavy Duty Compound Slide Table, 460mm x 180mm 58.0 kg

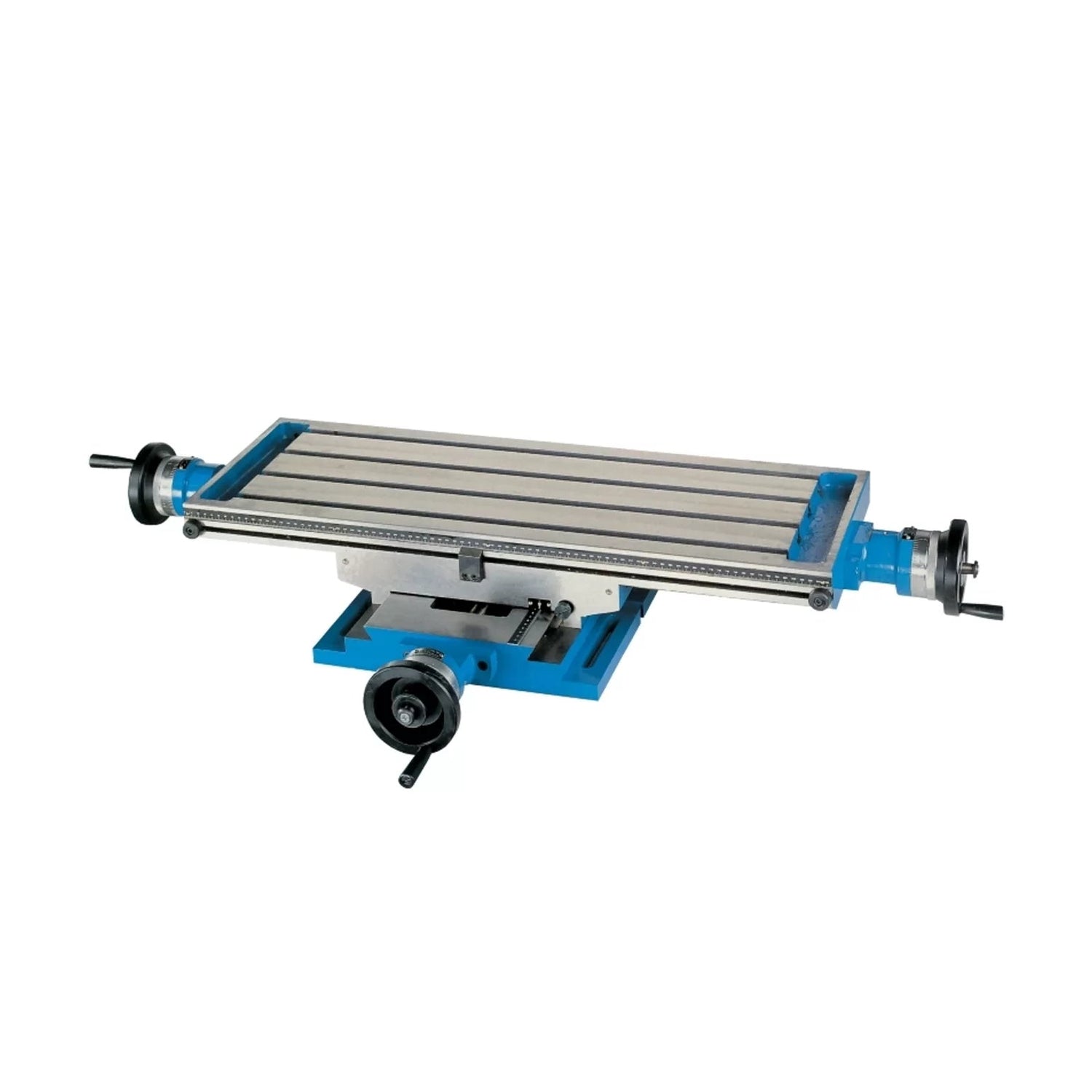

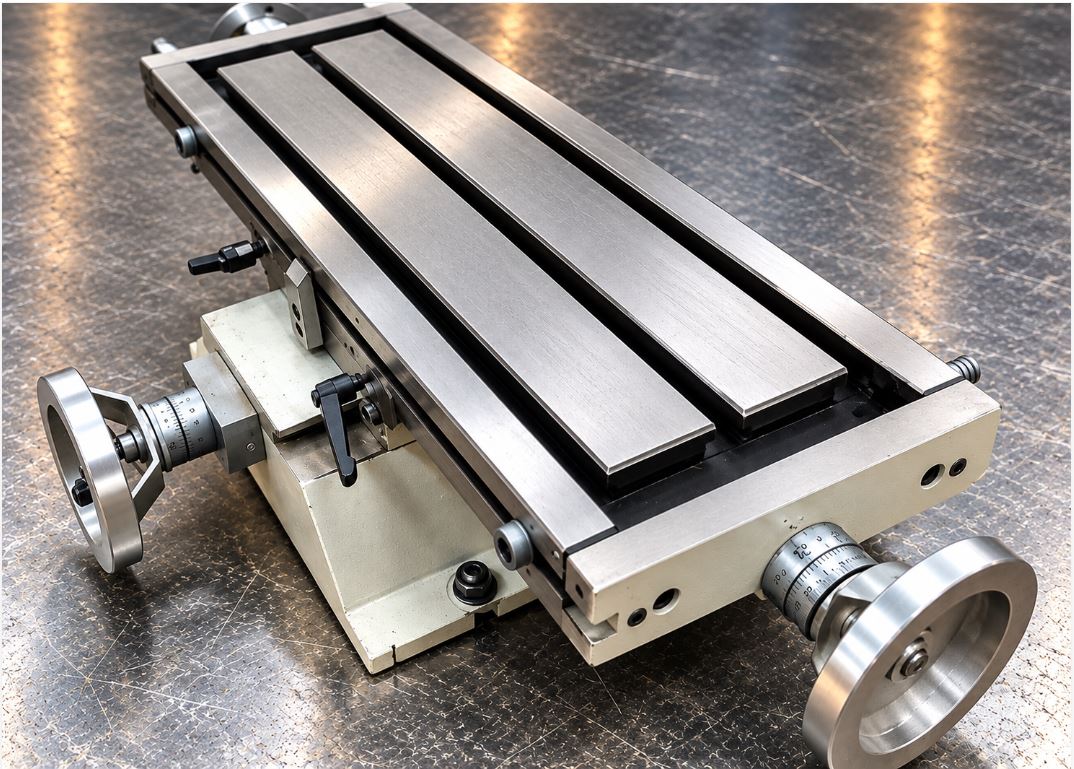

Name: Heavy Duty Compound Slide Table, 460mm x 180mm
Brand: Steelmaster Industrial
SKU: 13+0103
Price: 599.00 AUD
Availability: InStock

PRICE EX GST

$599.00

PRICE INC GST

$658.90

MODEL NUMBER: 13+0103

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PRODUCT OVERVIEW

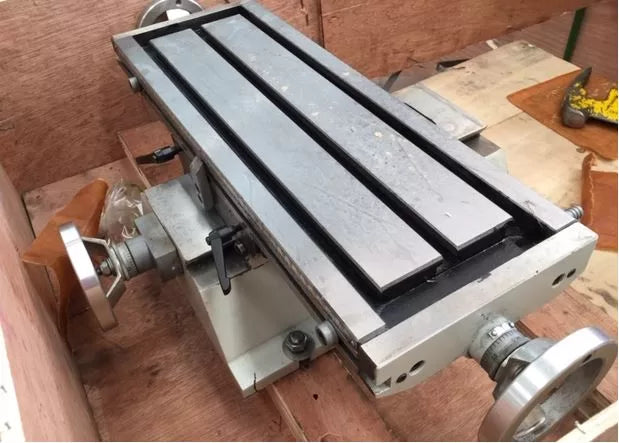

A heavy-duty compound slide table with a 460mm x 180mm work table.

Quality Ground Finish & Adjustable Dove Tail Guides.

PRODUCT FEATURES

Multi-Purpose Accessory For All Drilling And Milling Applications

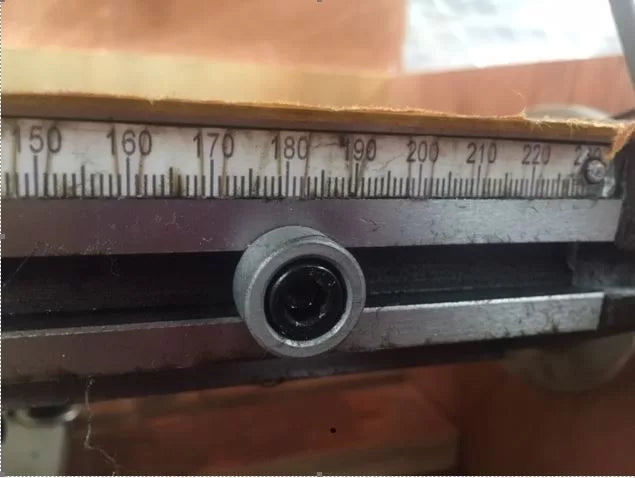

Scaled Rules For Accurate Positioning In X & Y Axis

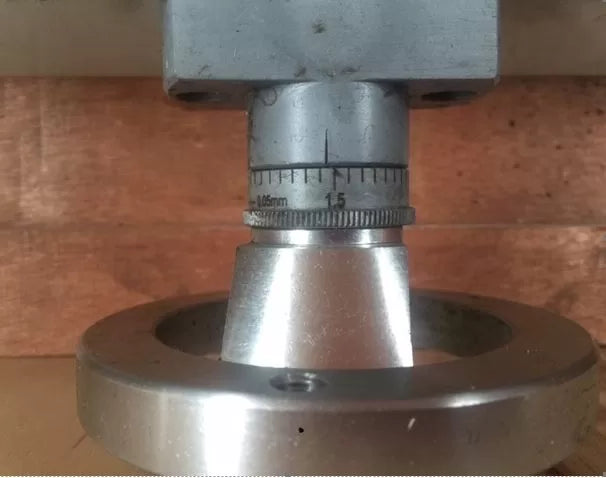

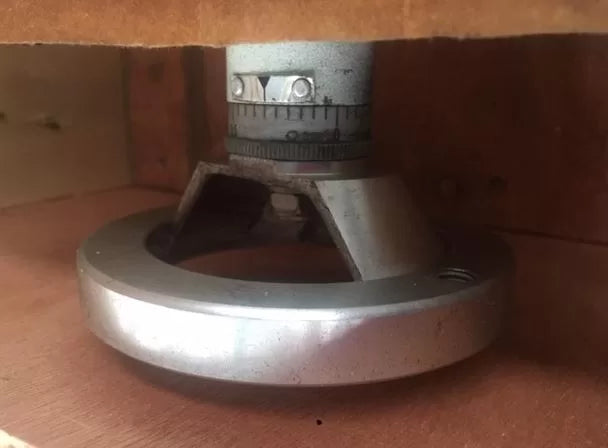

Calibrated Hand Wheels
Cast Iron Construction
Adjustable Dove-Tail Guides
T-Slot / Coolant Grooves

TECHNICAL DATA

480mm X 180mm
Table Height: 180mm
Table Travel (X, Y) 240mm X 170mm
Tee Slots: 3 Off X 12mm
Shipping Dimensions: 645mm X 450mm X 150mm X 58kg

TECHNICAL DIAGRAM INFO

Technical Data
❚ 480mm x 180mm
❚ table height from Base to Top 160mm

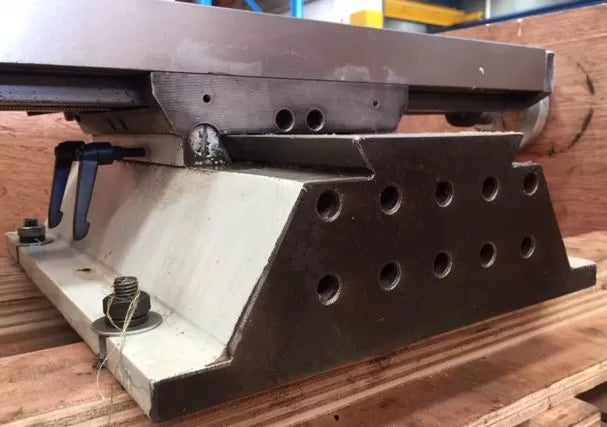

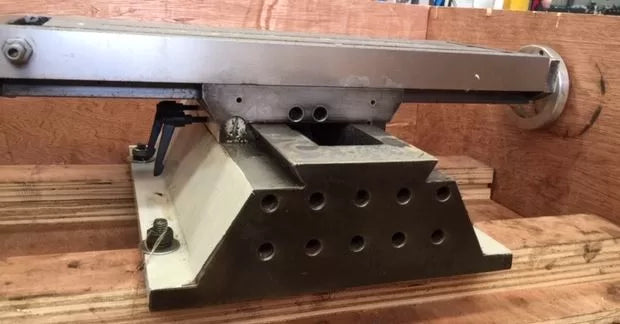

❚ base dimensions are 280 x 340 x 95
❚ Bolt holes are 65mm from end of each side with 2 on each side
❚ table height: 160mm
❚ table travel (X,Y) 240mm x 170mm
❚ tee slots: 3 off x 12mm
❚ shipping dimensions: 645mm x 450mm x 150mm x 58Kg
❚product ordering code: 13+0103
