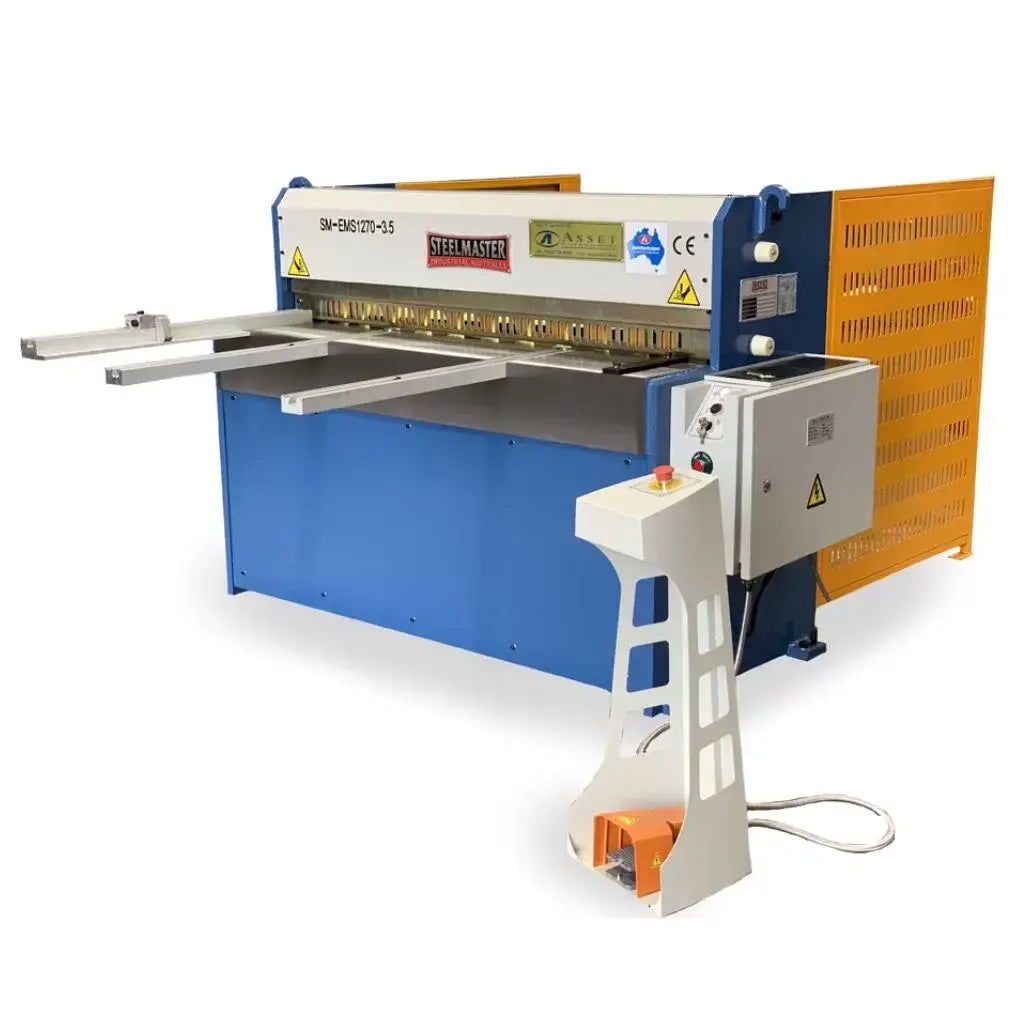

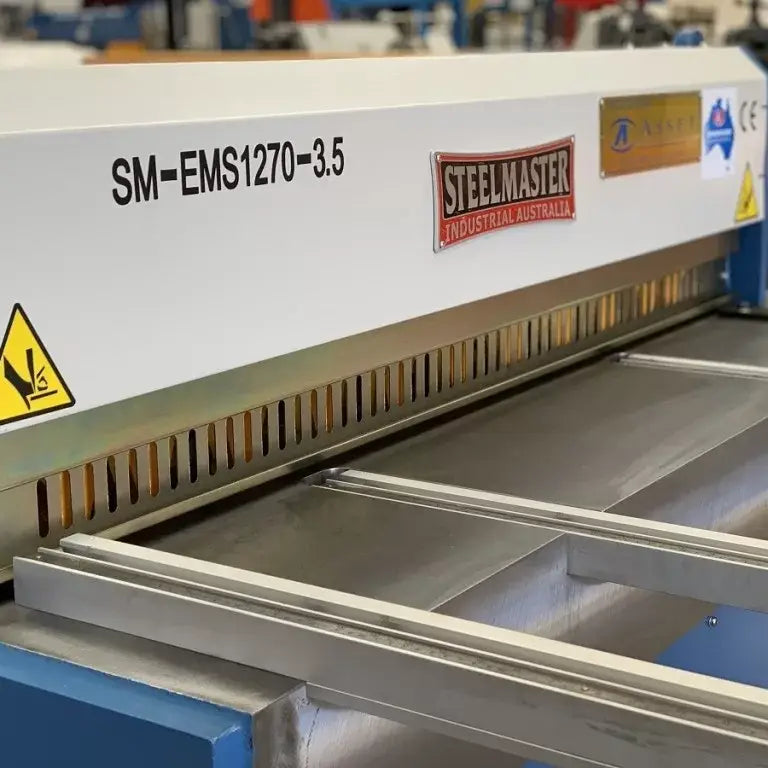

Guillotine Electro-Shear, 1270mm x 3.5mm, Front Sheet Supports
Sale price
$9,650.00
Regular price
$10,850.00
Unit price
Unavailable

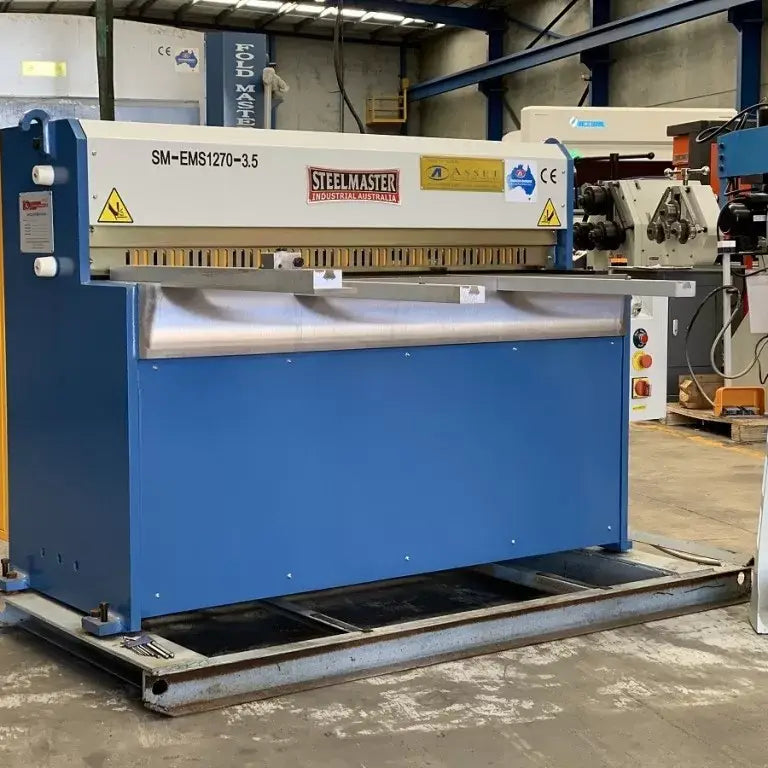

A precise Steelmaster Electro-Shear (1270mm x 3.5mm), a high-performance sheet metal guillotine with front supports.
Technical Data
Technical Snap Shot
1270mm x 3.5mm cutting capacity
0 ~ 650 backgauge range
47 strokes per minute in auto mode
Shipping dimensions – 1860mm x 1100mm x 1180mm
Weight – 1450Kg
Power – 415V 5.5Kw
Options Available
Power operated backgauge
Rear light gauge sheet supports
Product Features
Features
Heavy steel weldment construction for maximum stability
Quiet operation with brake motor, all components run on maintenance free bearings
Parallel blade guides ensure high cutting precision
Hardened and ground high quality HSS blades fitted

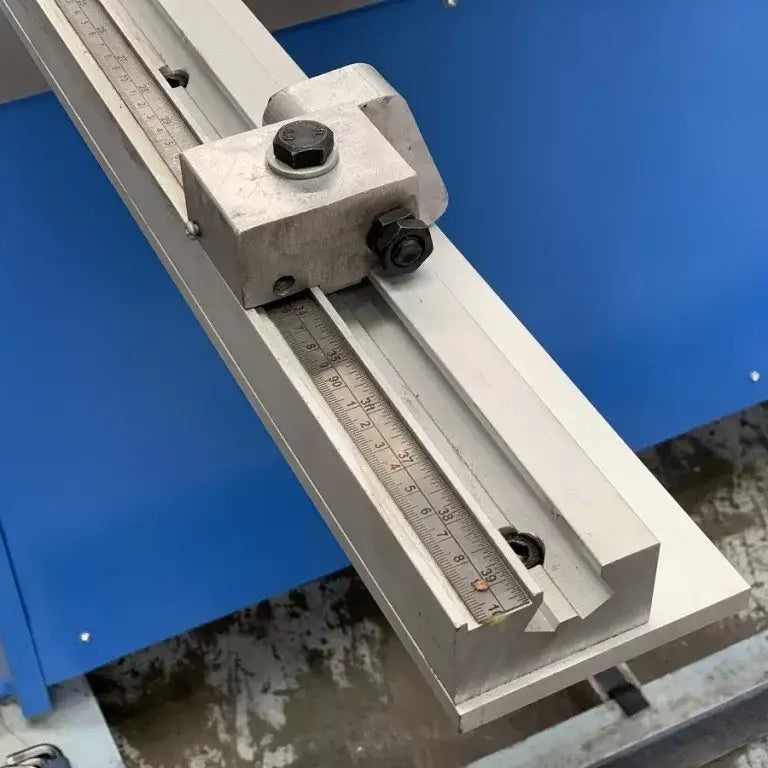

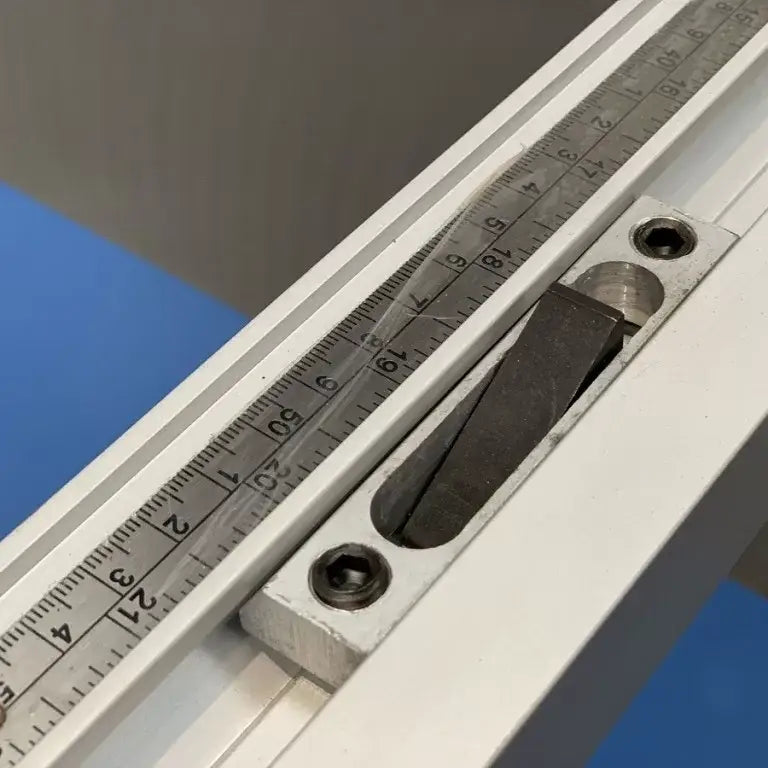

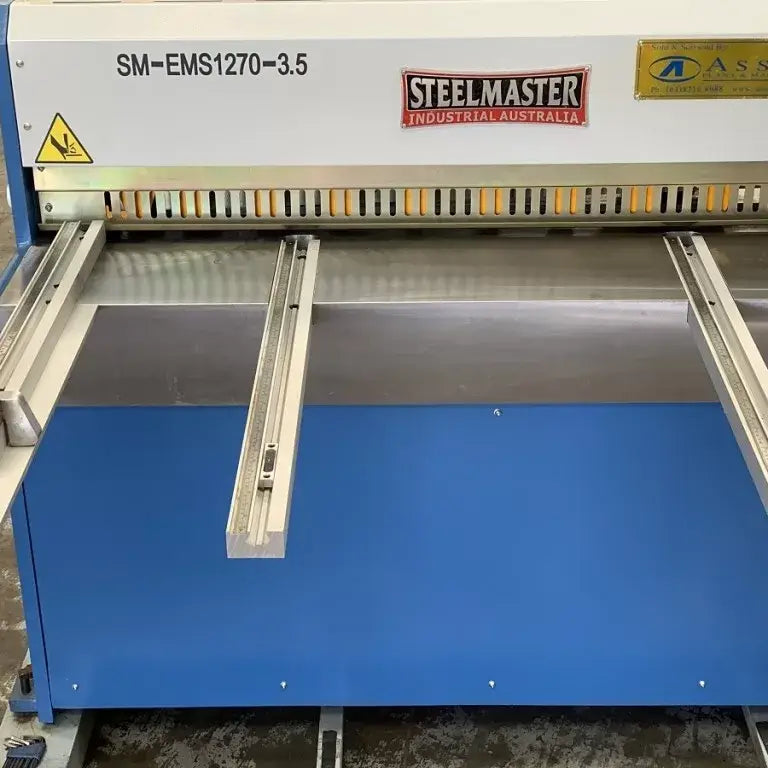

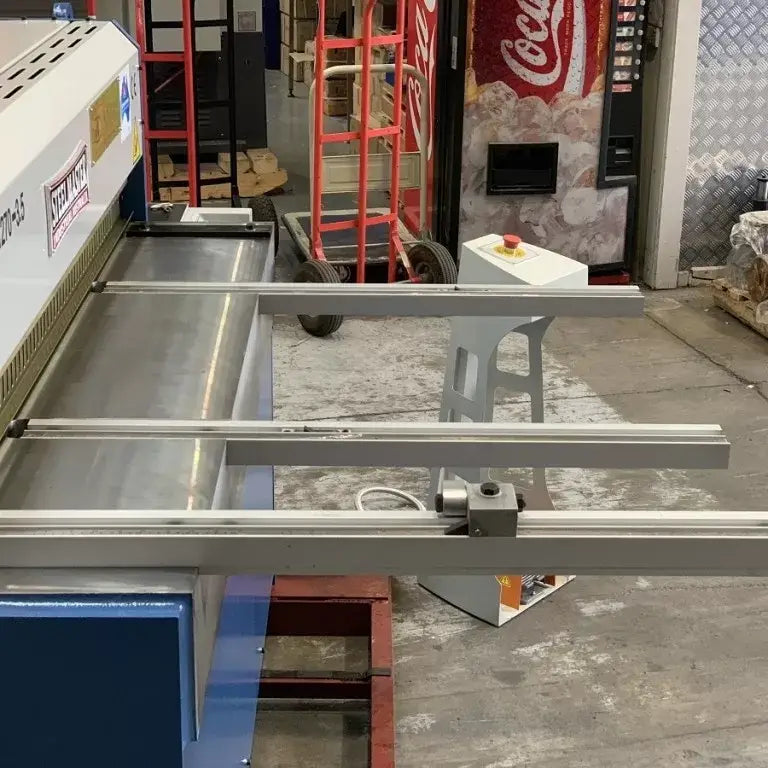

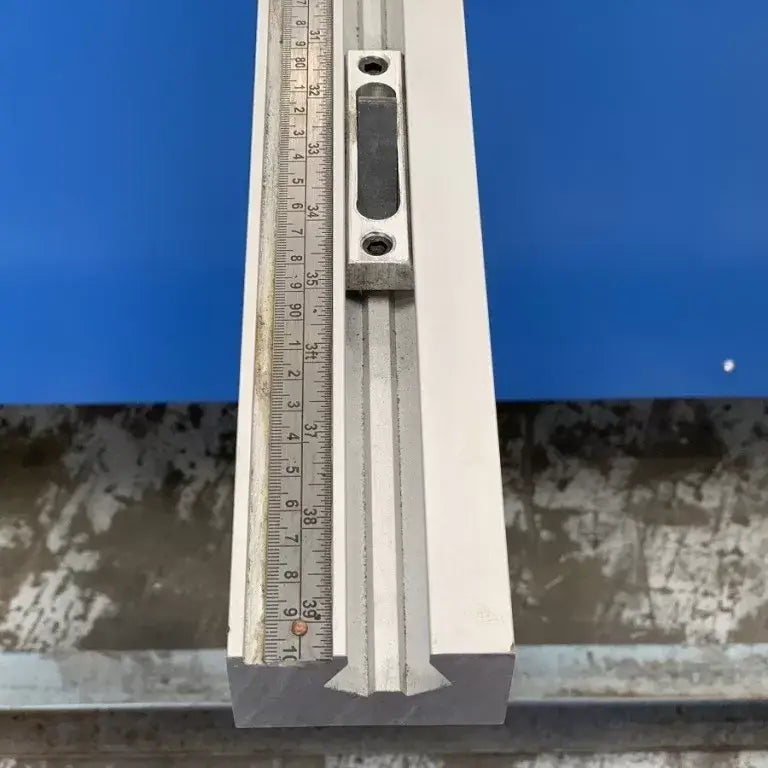

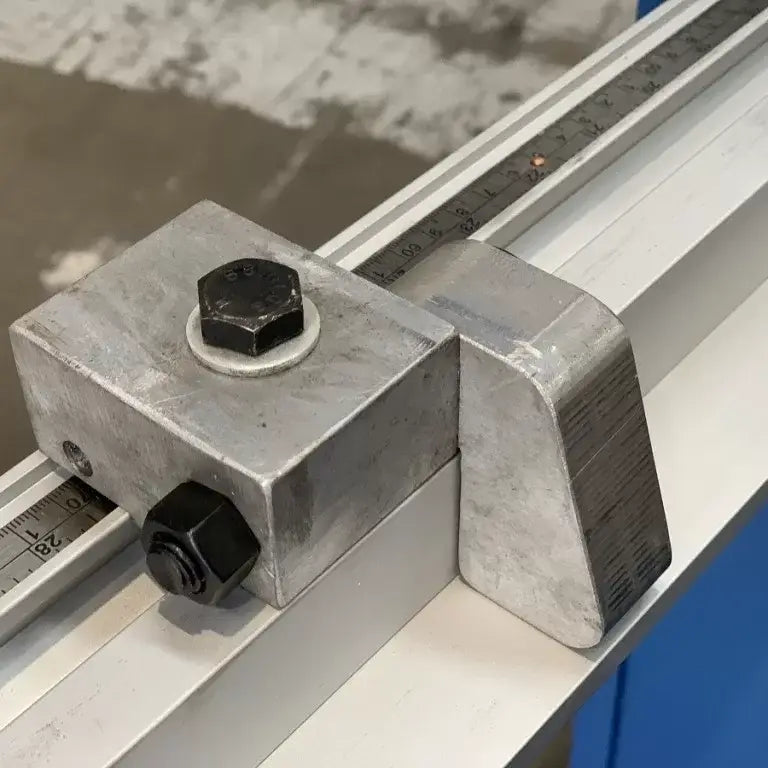

Calibrated squaring arm with front sheet supports

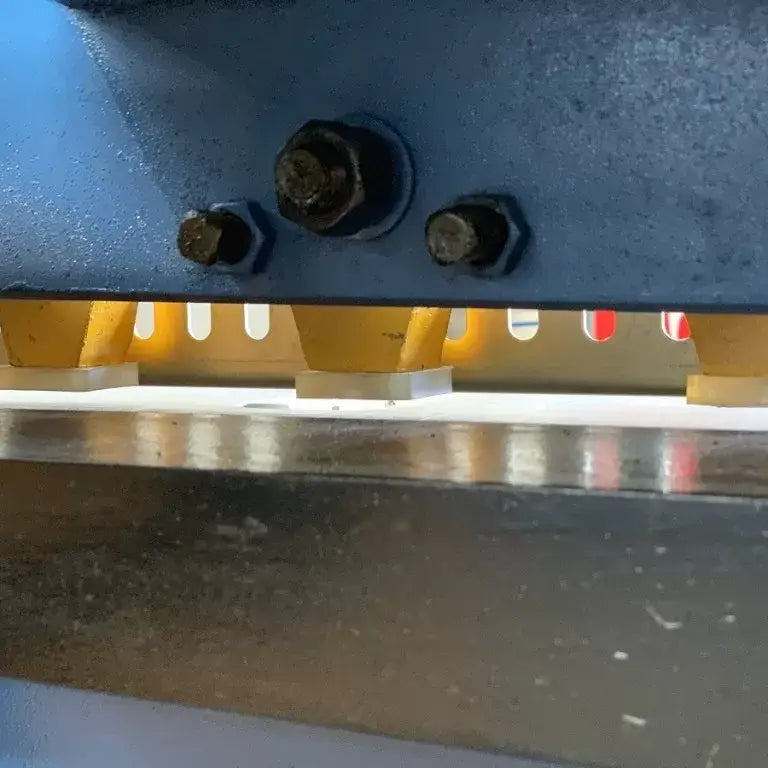

Hold-down system with slip-resistant rubber coating and front safety guard
Quick action blade-gap setting

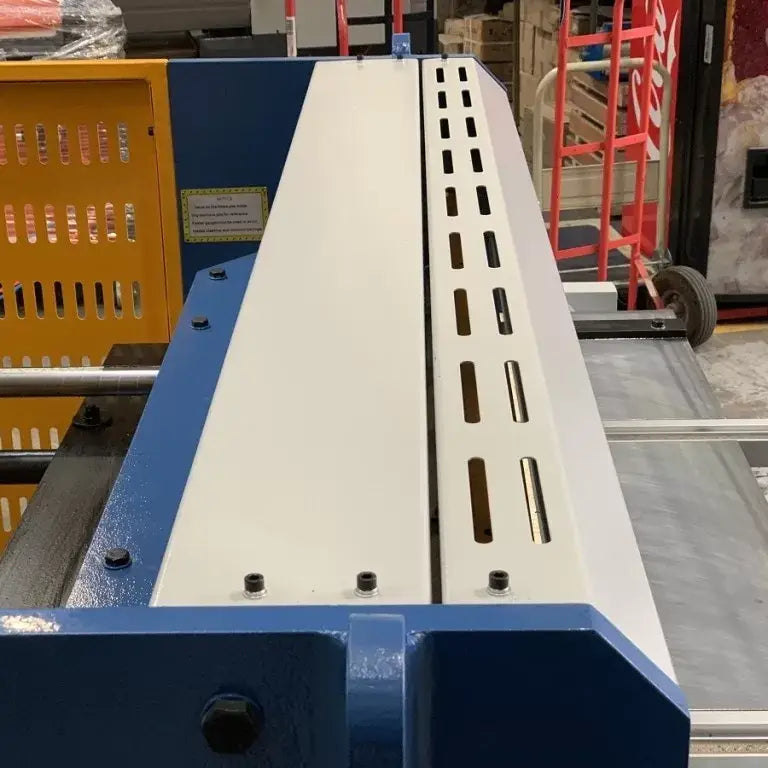

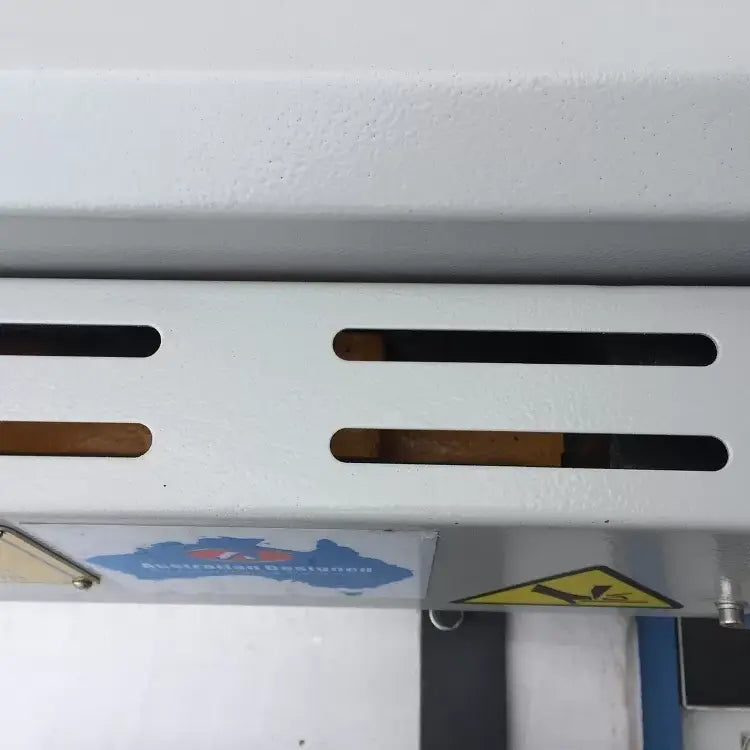

Slotted top cover offering clear visual to cutting area
Roving foot-pedal operation

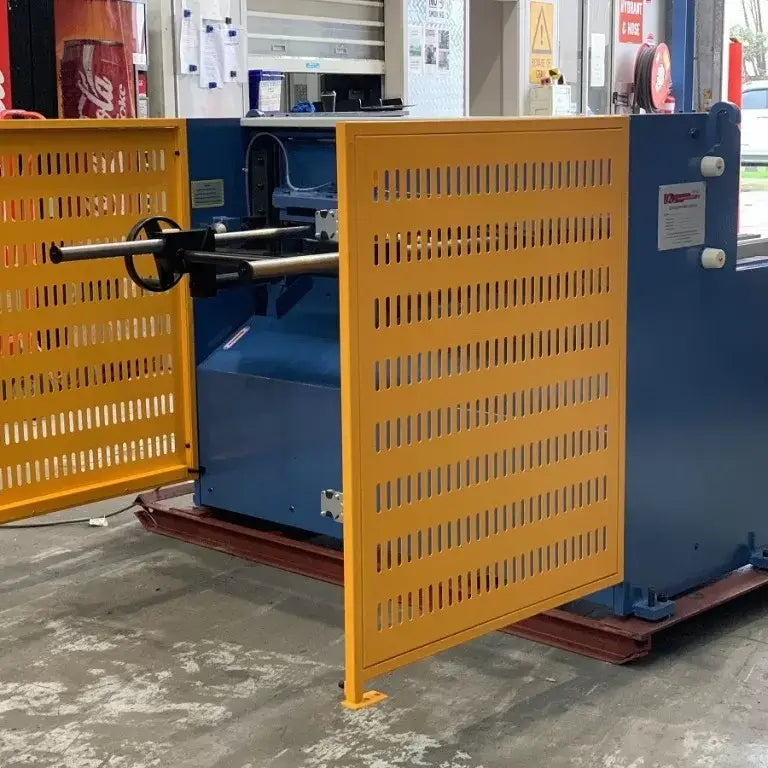

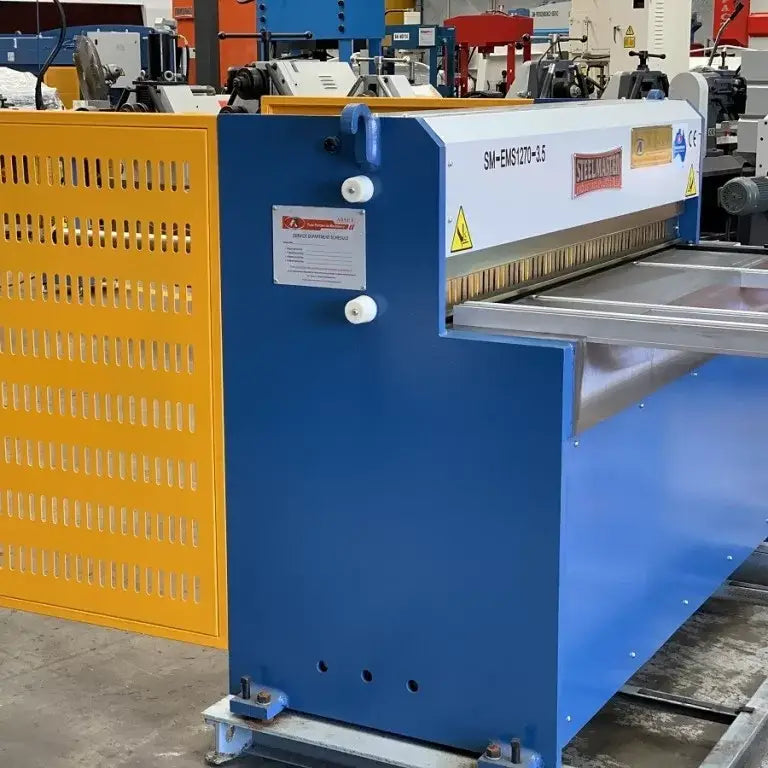

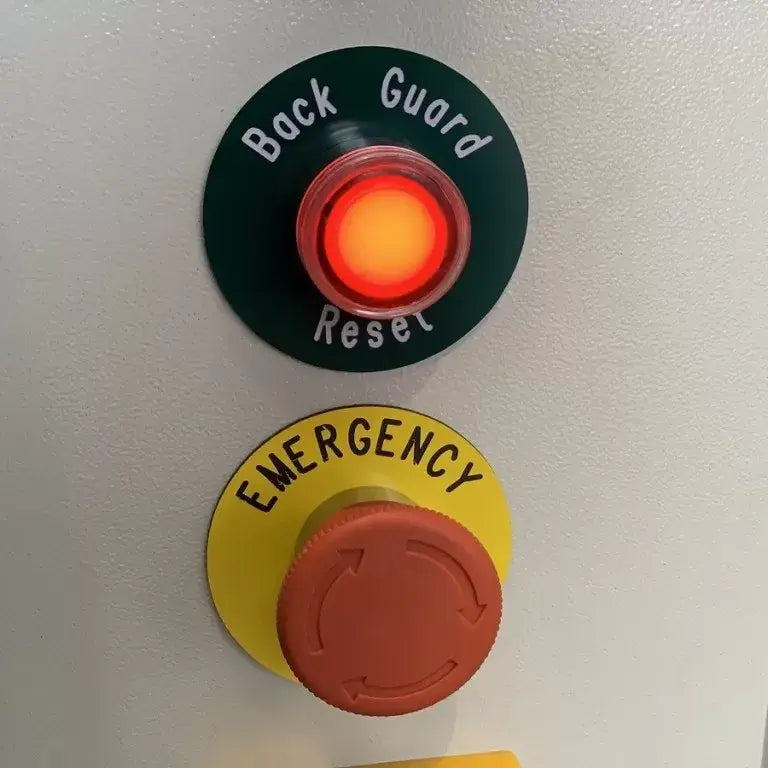

Rear safety light guarding

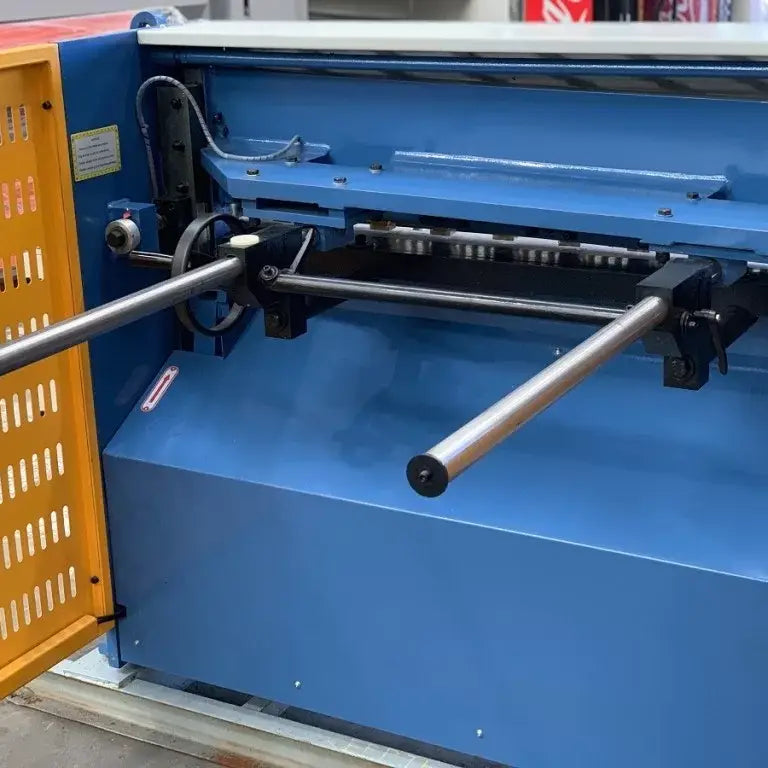

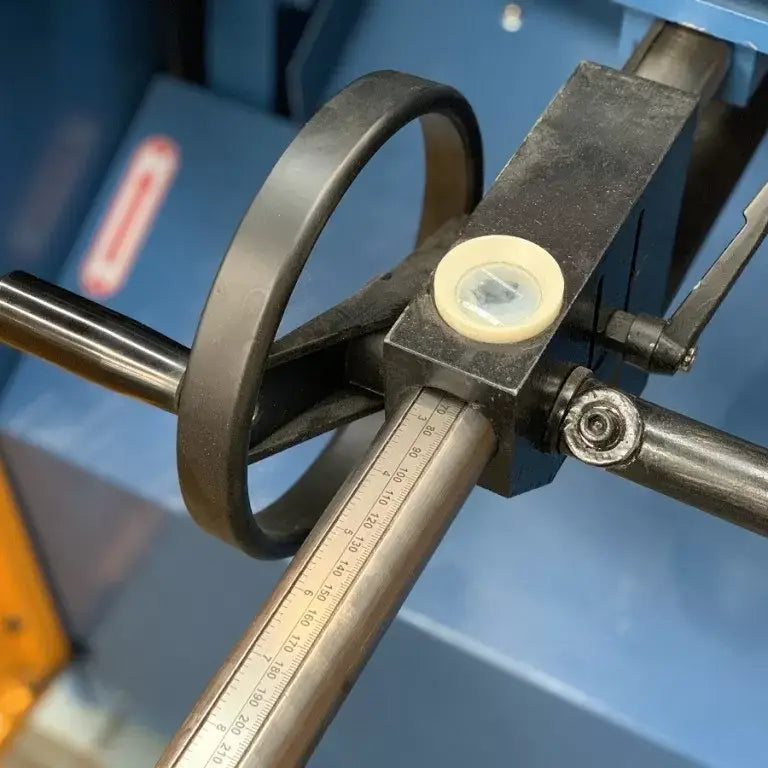

Heavy duty manual backgauge
CE compliant
