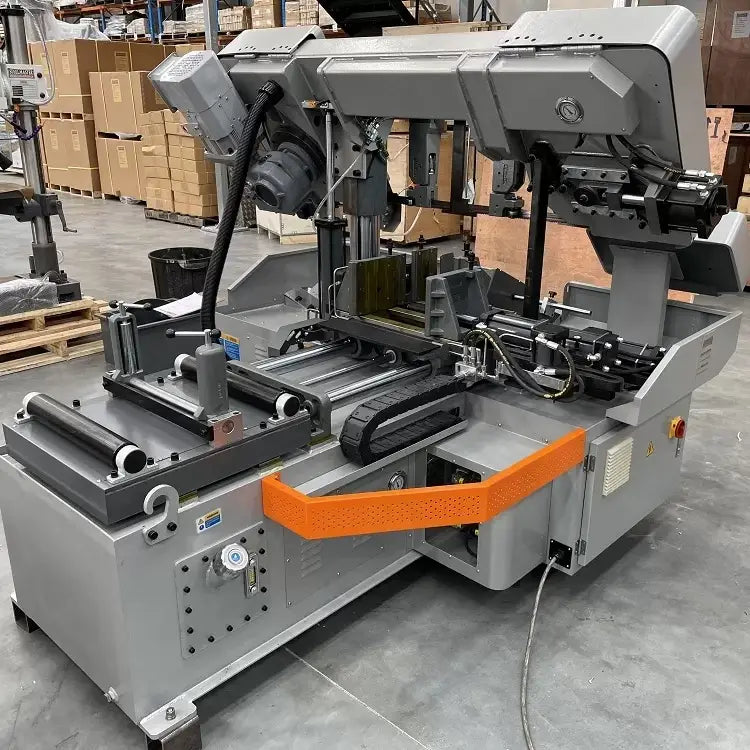

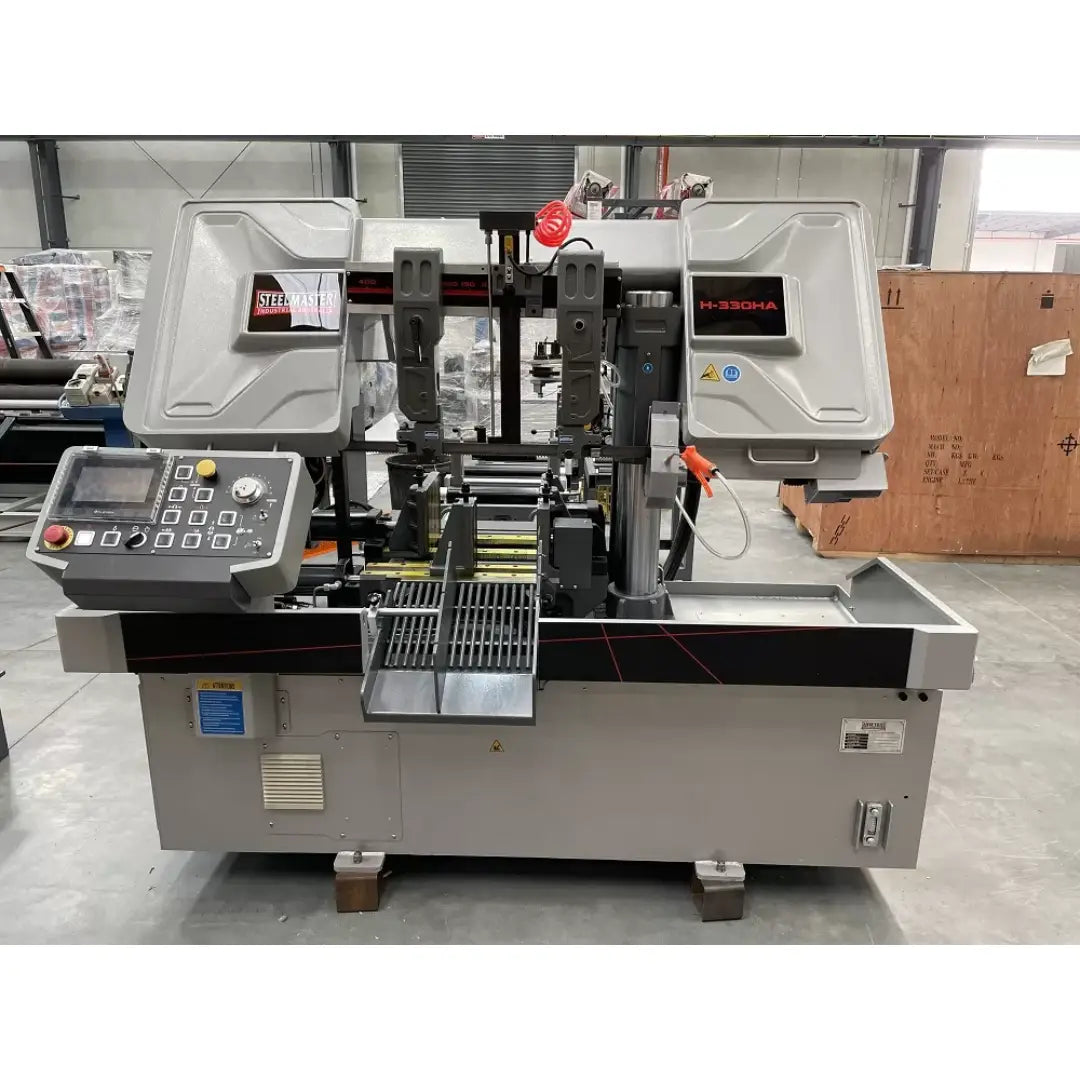

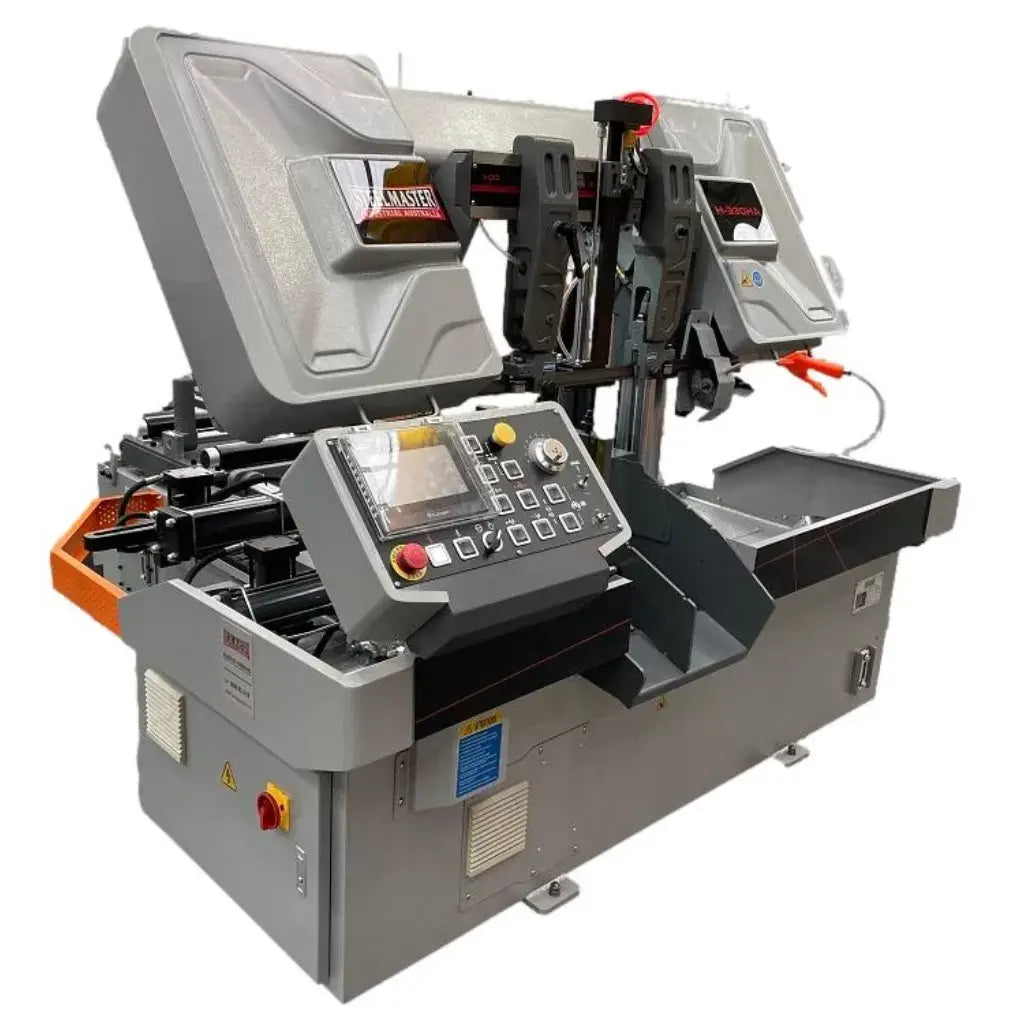

Steelmaster H-330HA Euro Fully Automatic Column Bandsaw 330mm Round & Square Capacity Touchscreen
Sale price
$29,850.00
Regular price
$30,850.00
Unit price
Unavailable
State-of-the-art Steelmaster H-330HA Euro Fully Automatic Column Bandsaw with 330mm capacity and touchscreen control.
Technical Data

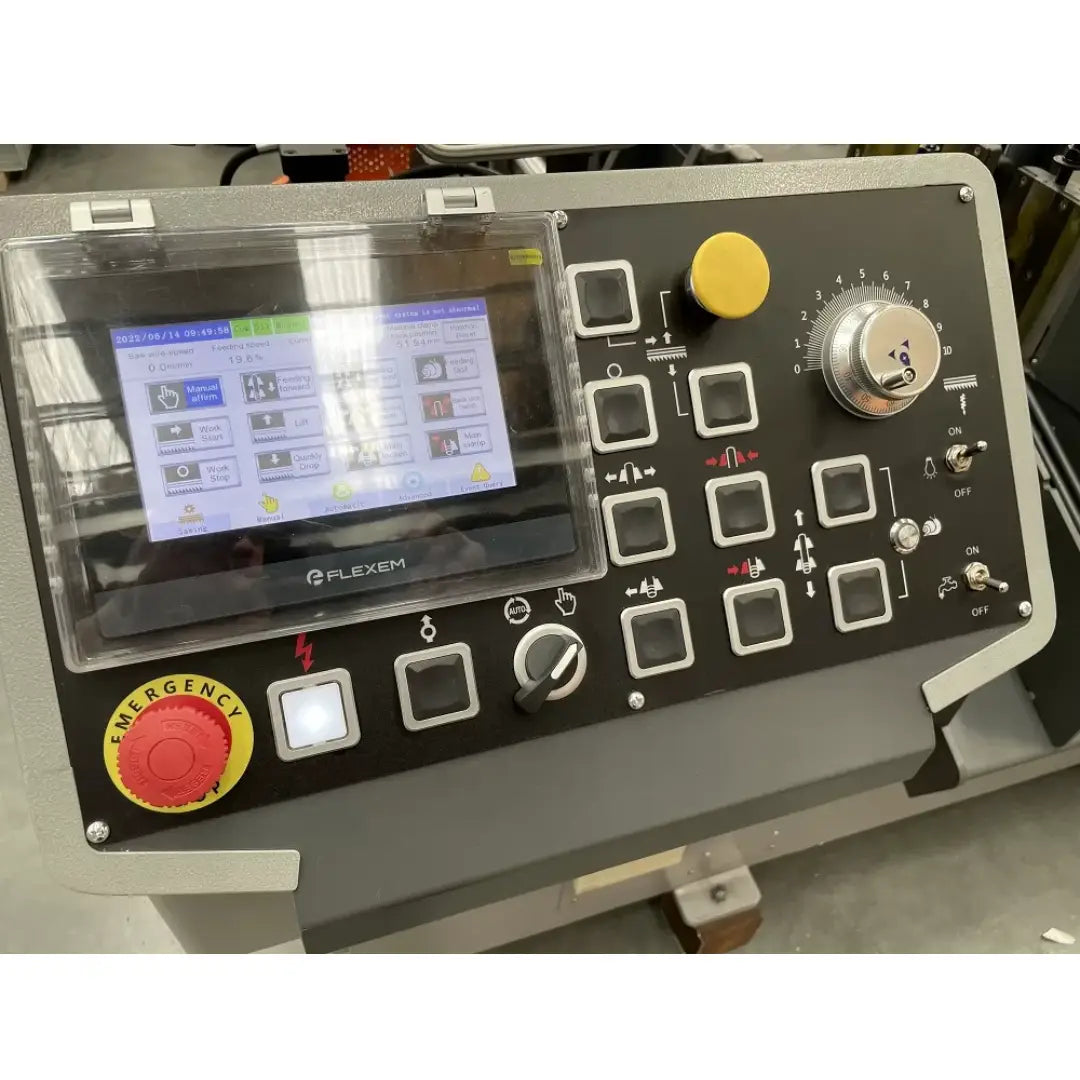

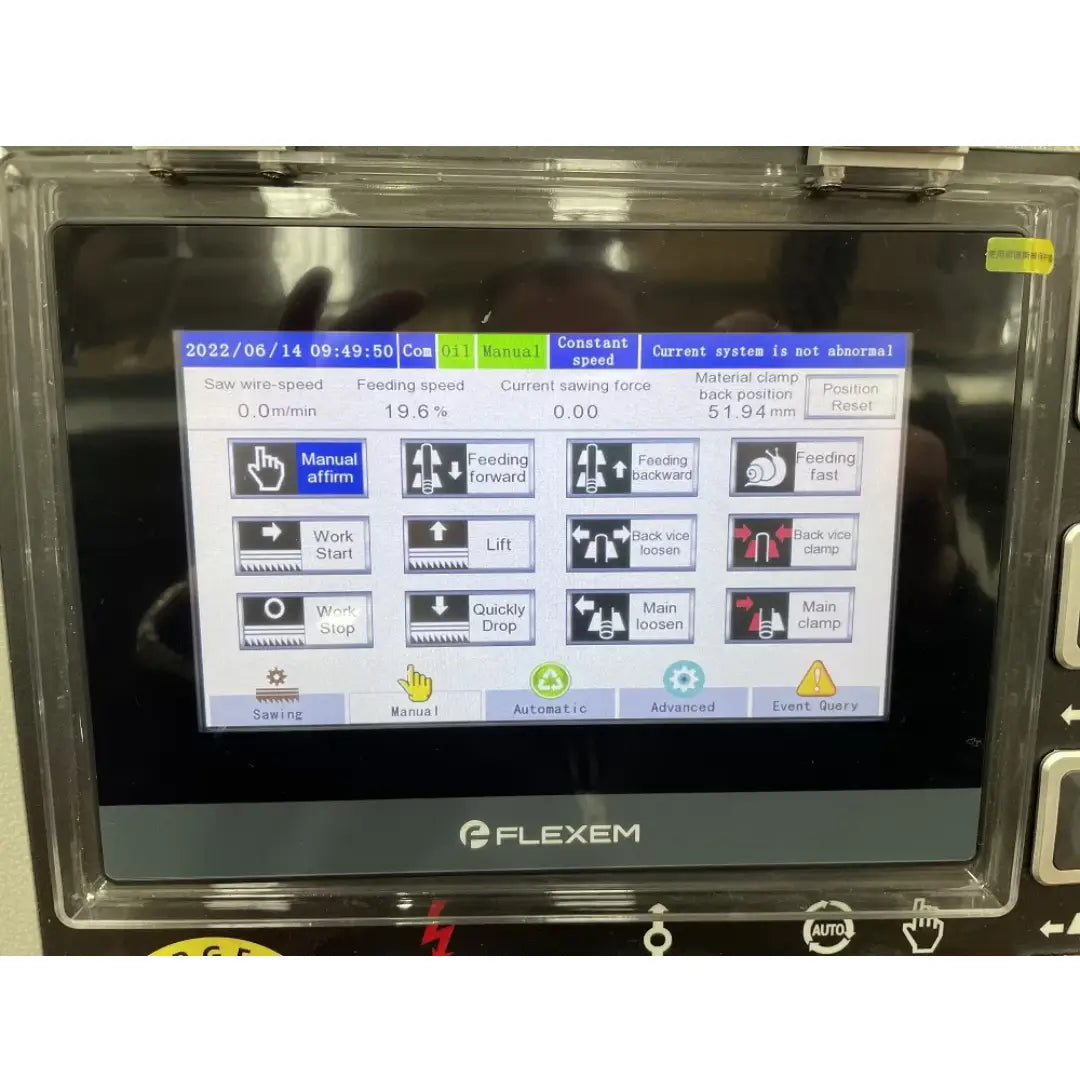

Touch Screen NC programmable control
330mm round cutting capacity
330mm x 330mm square cutting capacity
10 ~ 80 variable speed range
4115mm x 34mm x 1.1mm blade dimensions
500mm x 9 max length one way feeding
Shipping dimensions – 2250mm x 2300mm x 1550mm
Power – 415V 4Kw
Approx weight: 1750kg
Steelmaster H-330HA Euro Fully Automatic Column Bandsaw. 330mm Round & Square Capacity, Touchscreen
Product Features
Auto material feeding and auto beam return.
Heavy duty capacity capable of processing all types of material including packs at full automatic speed

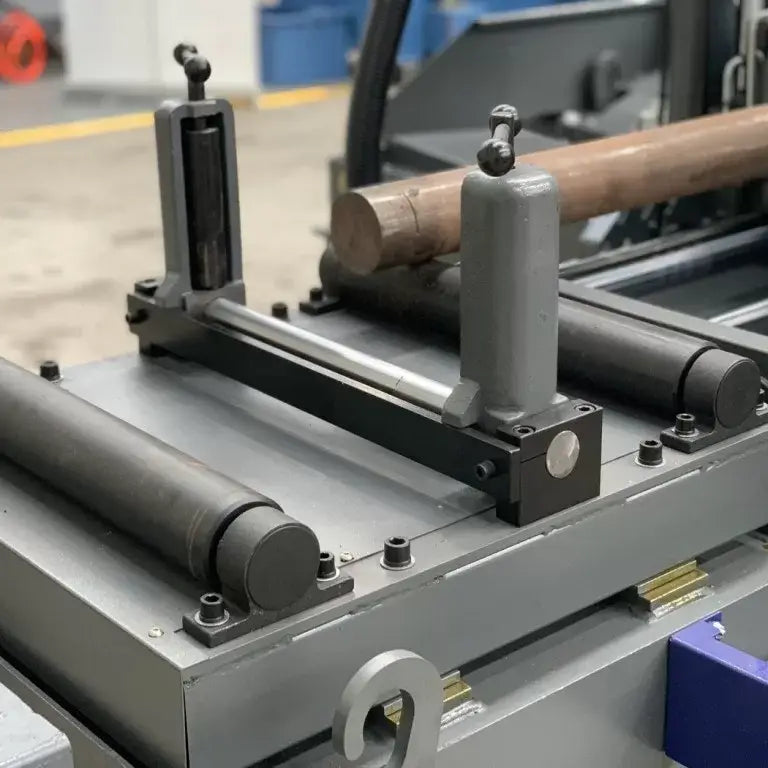

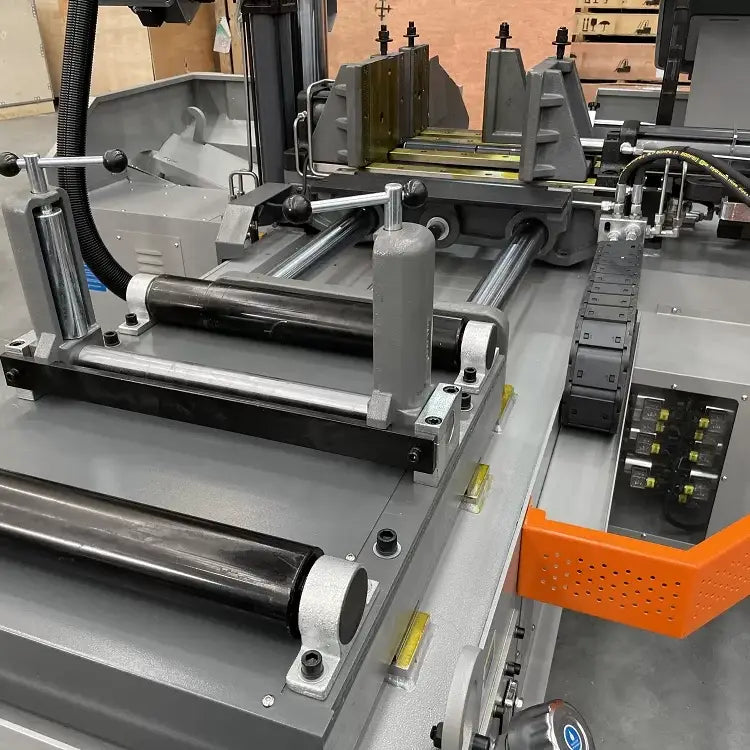

1000mm auto rollerfeed table

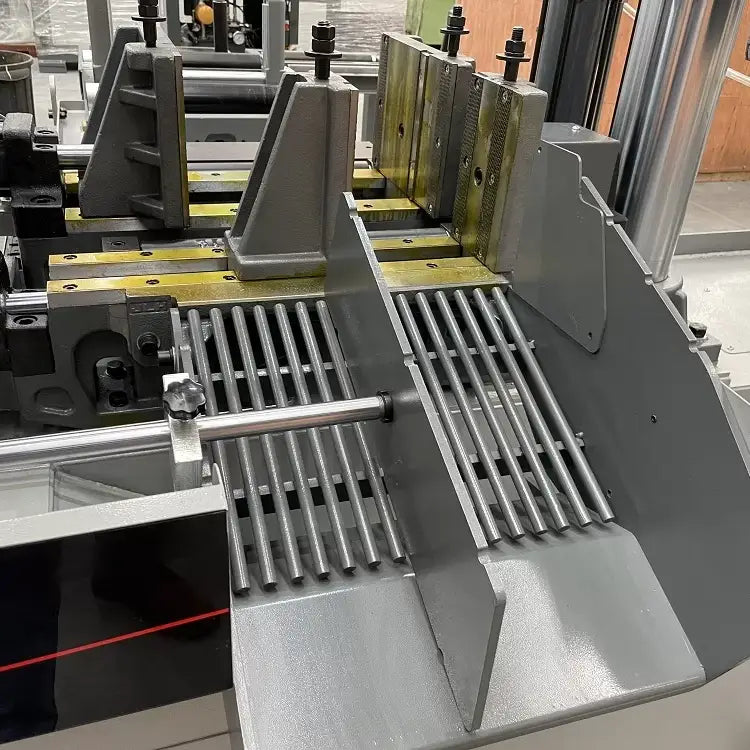

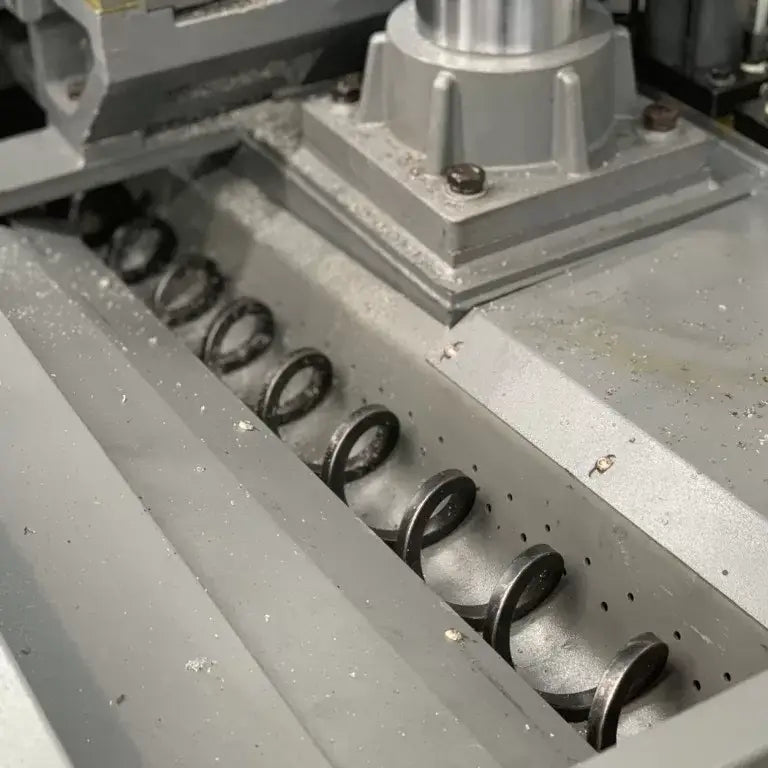

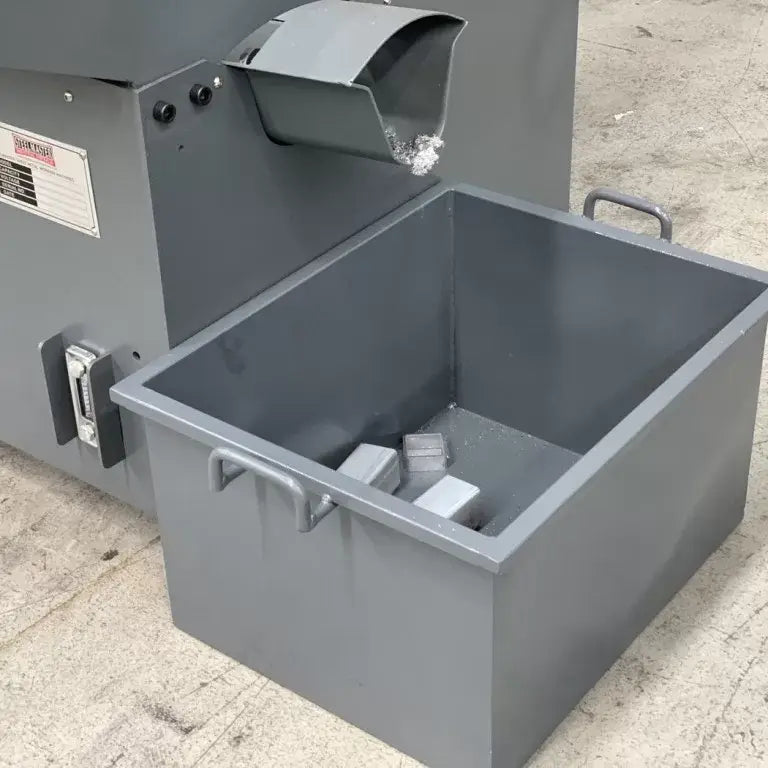

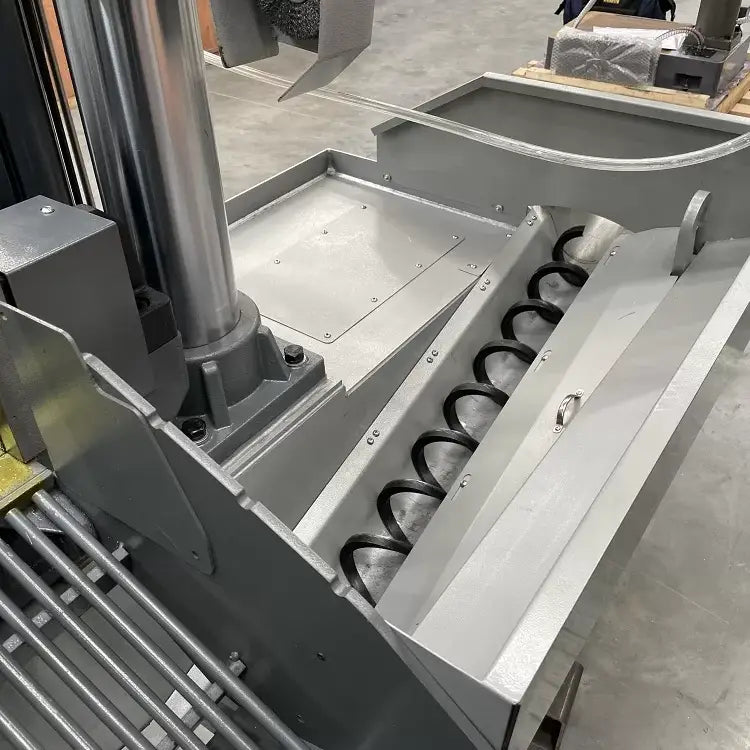

Chip conveyor
Hydraulic blade tension
Vice pressure regulator and variable speed blade control system

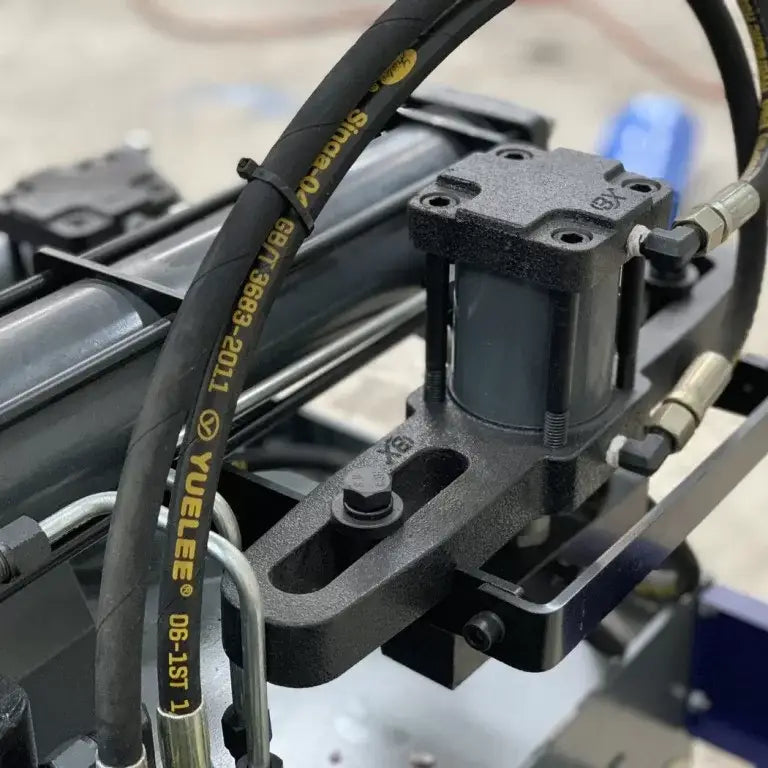

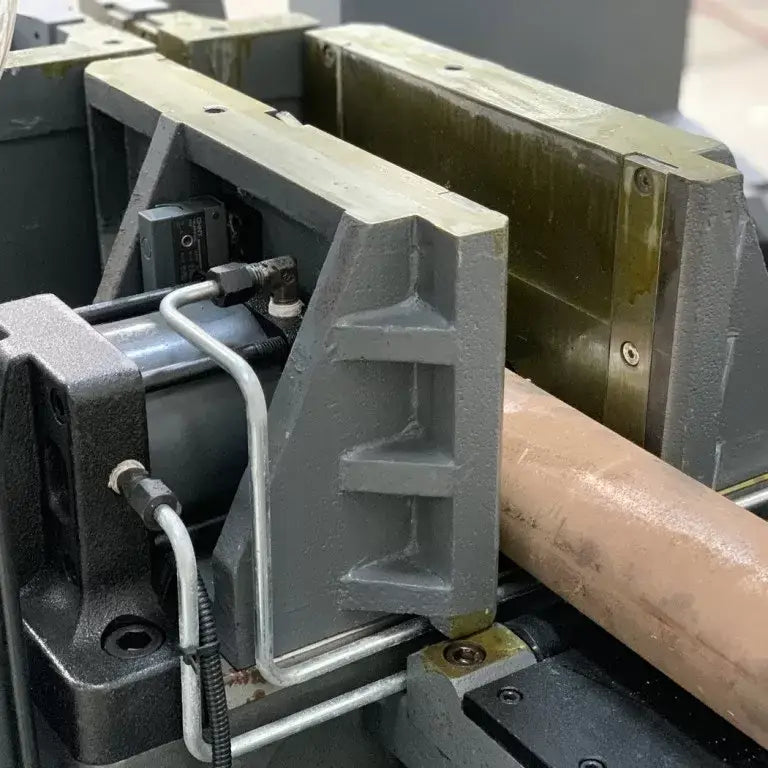

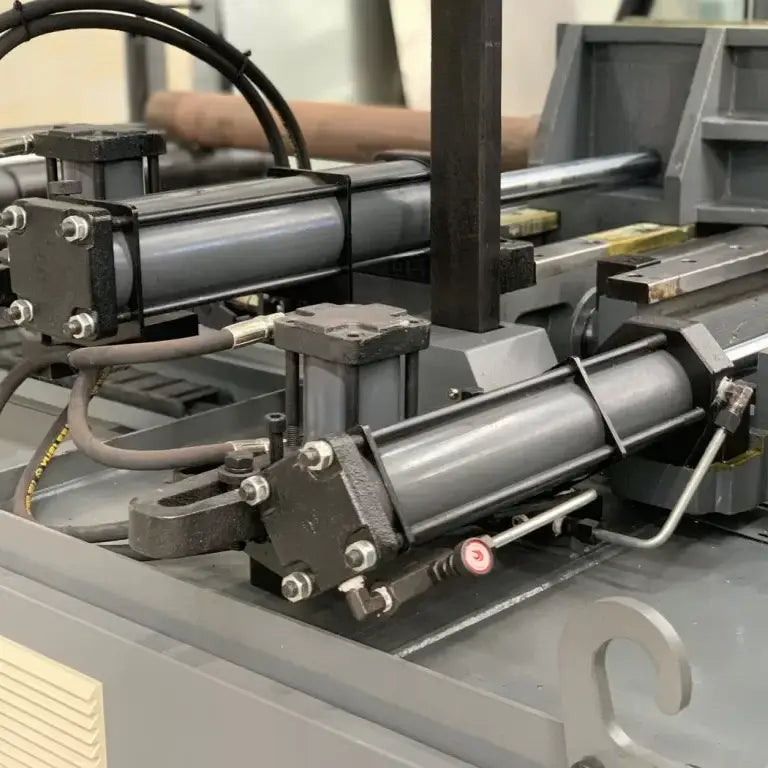

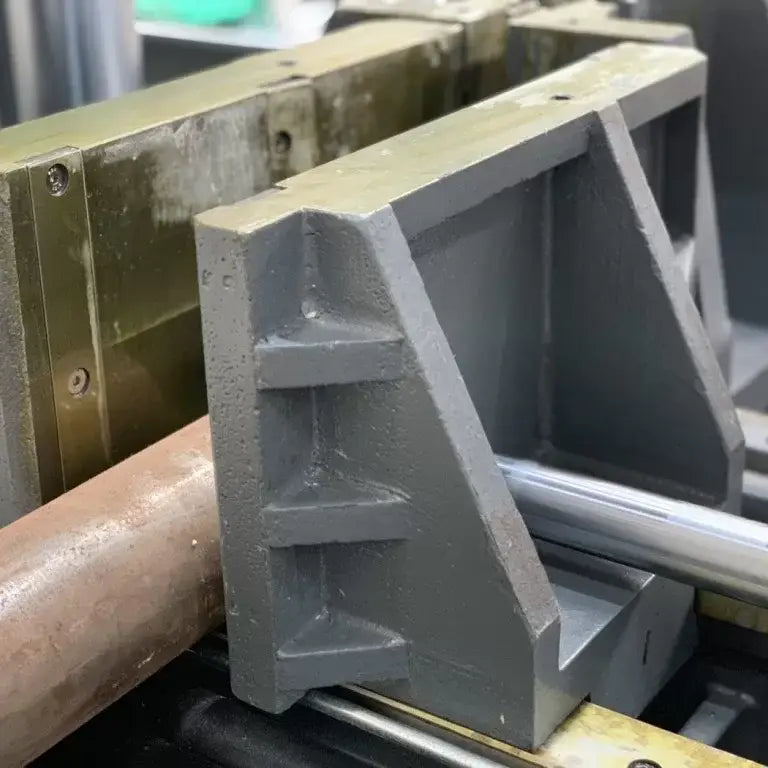

Twin hydraulic vice operation standard
Strong construction design
Heavy duty motors
Tungsten carbide blade guides
Coolant system for increased efficiency
Auto cut-off switch

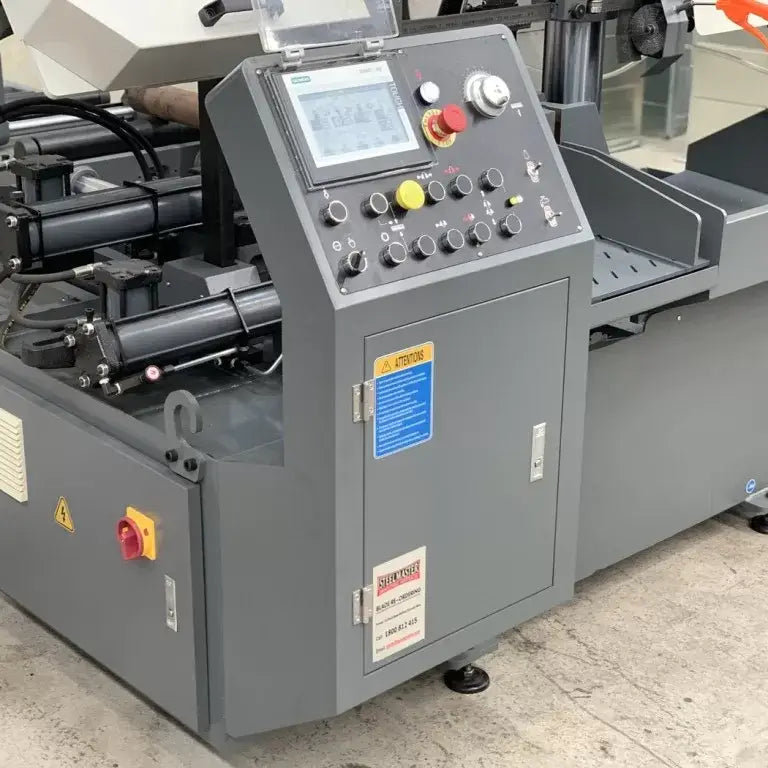

Centralised control panel
CE compliant
