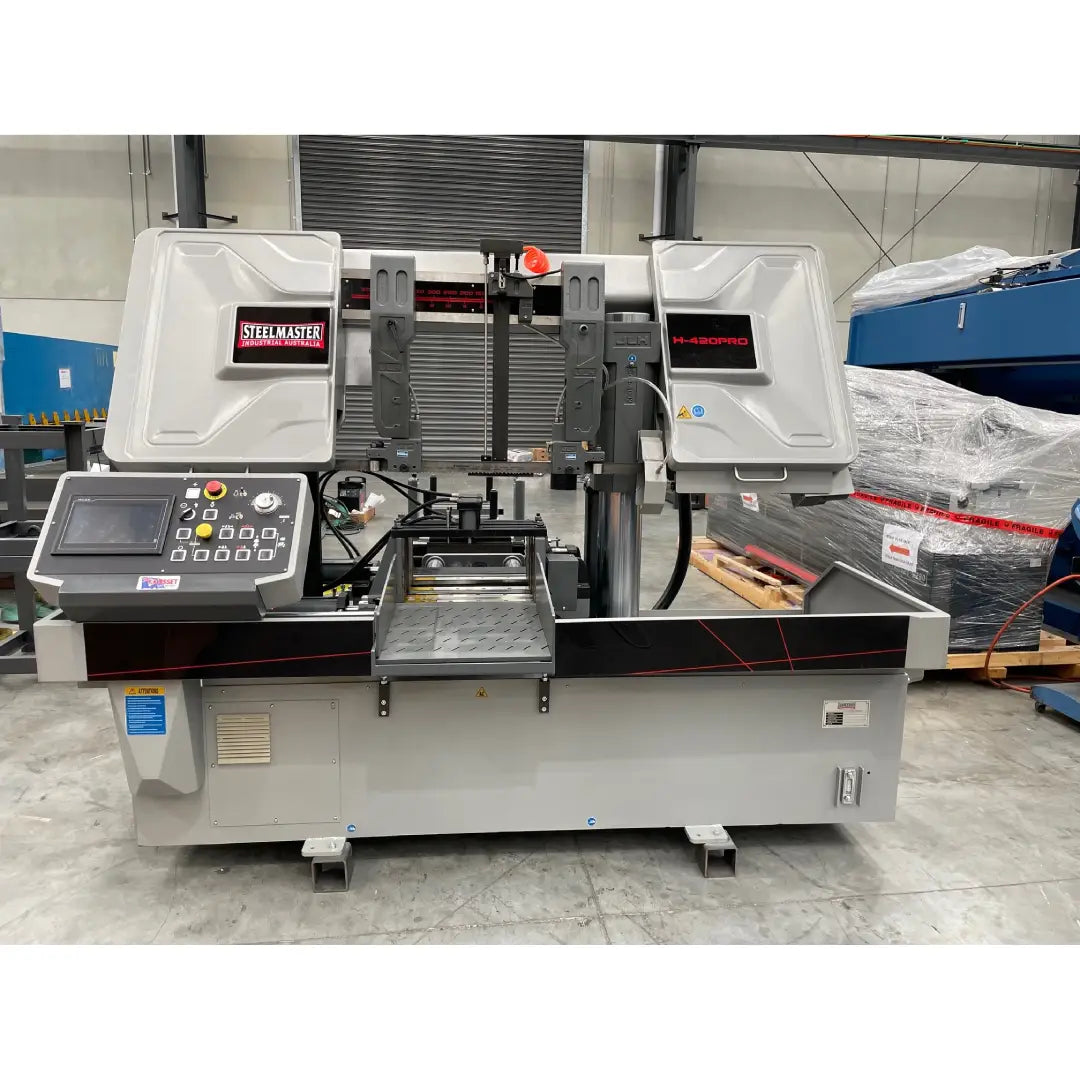

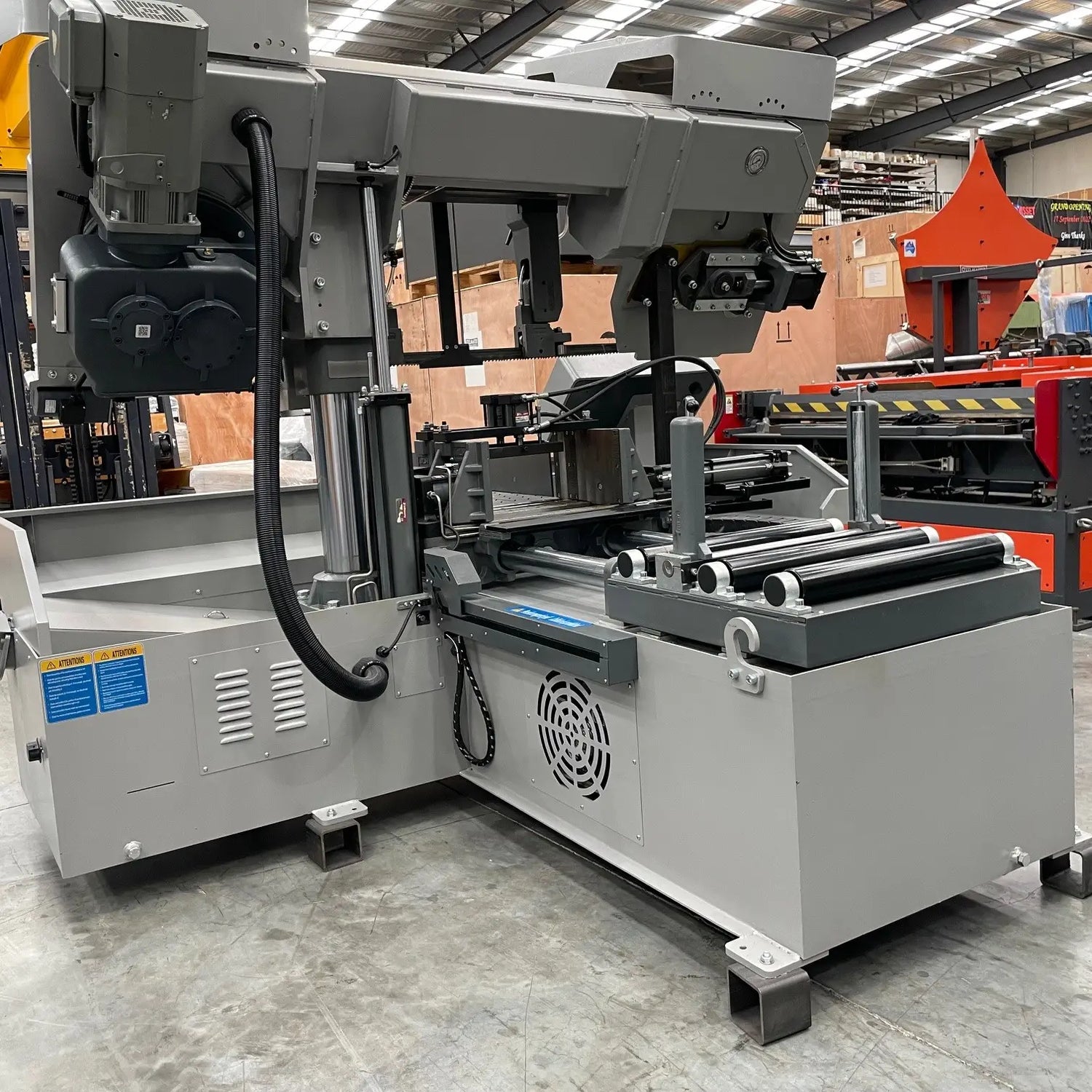

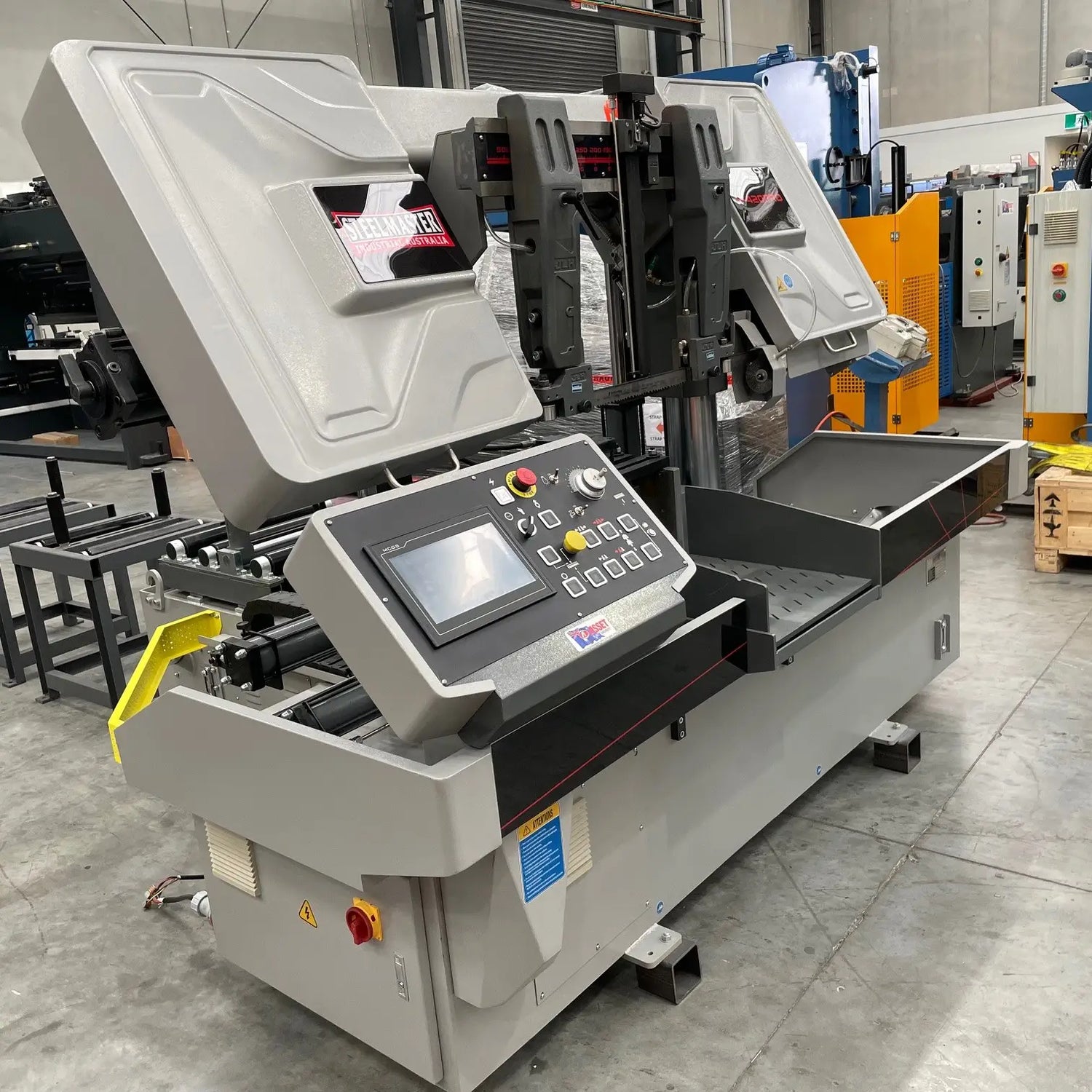

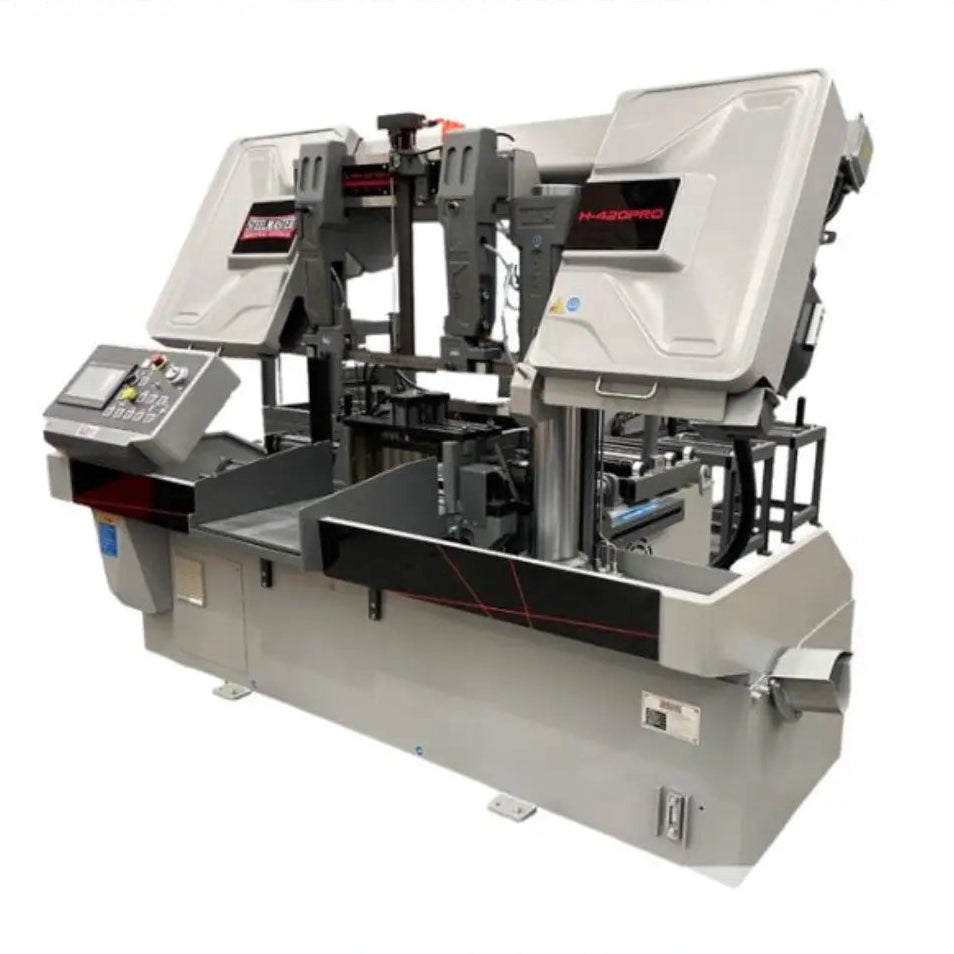

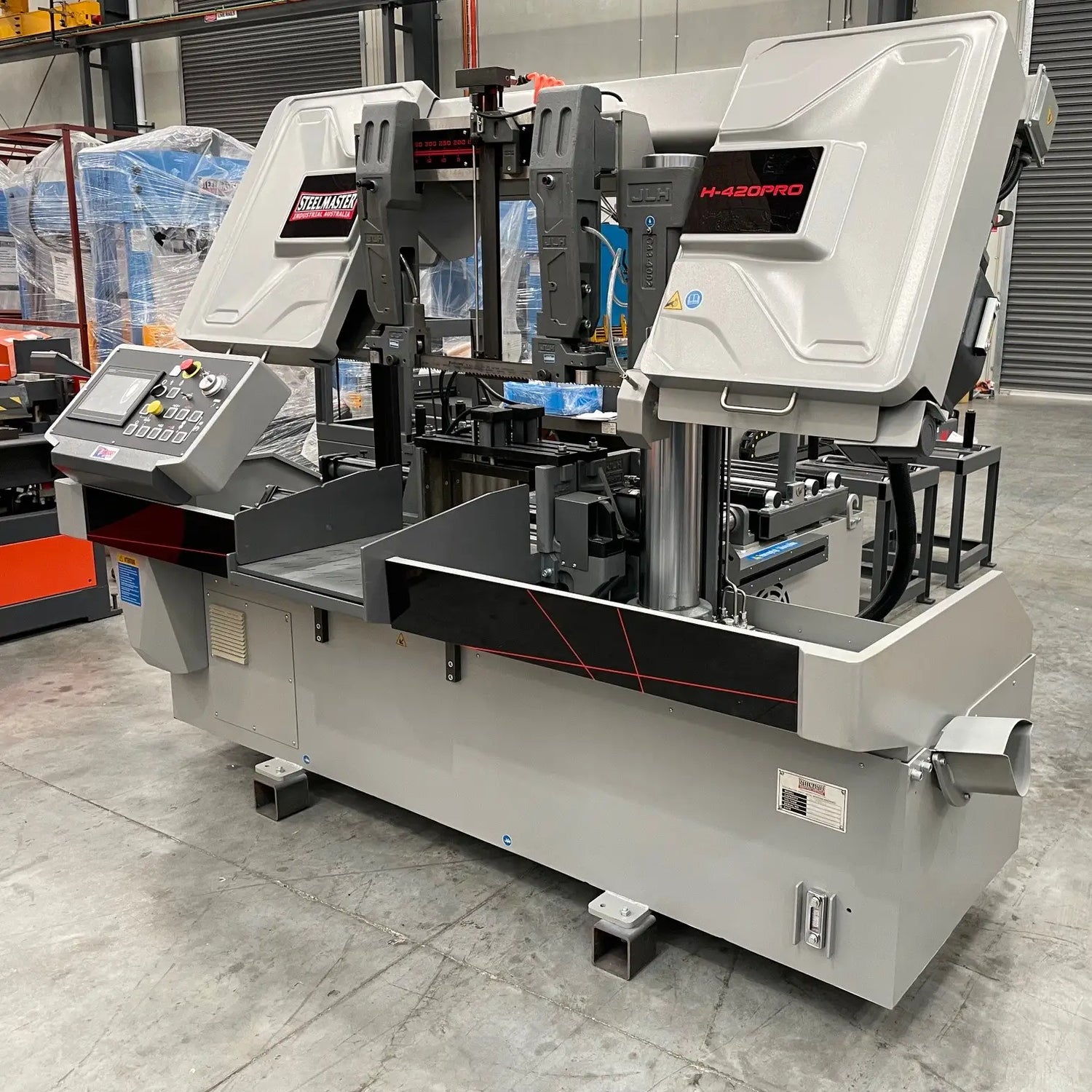

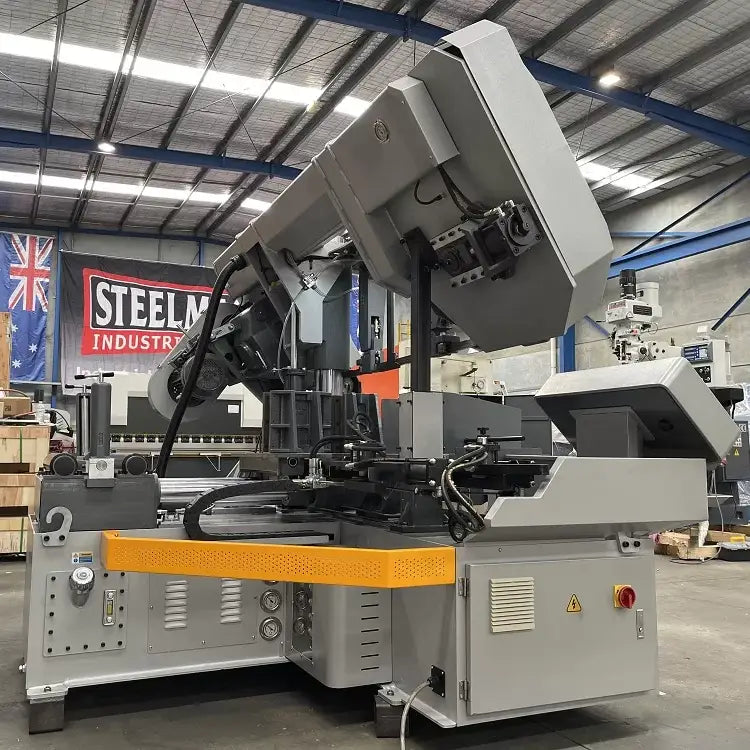

H-420PRO Fully Automatic Column Bandsaw, 420mm Round & Square Capacity, Euro Model
Regular price
$38,850.00
Unit price
Unavailable
The H-420PRO Fully Automatic Column Bandsaw, a robust Euro Model offering 420mm Round & Square cutting capacity for high-precision, automated industrial use.
Technical Data

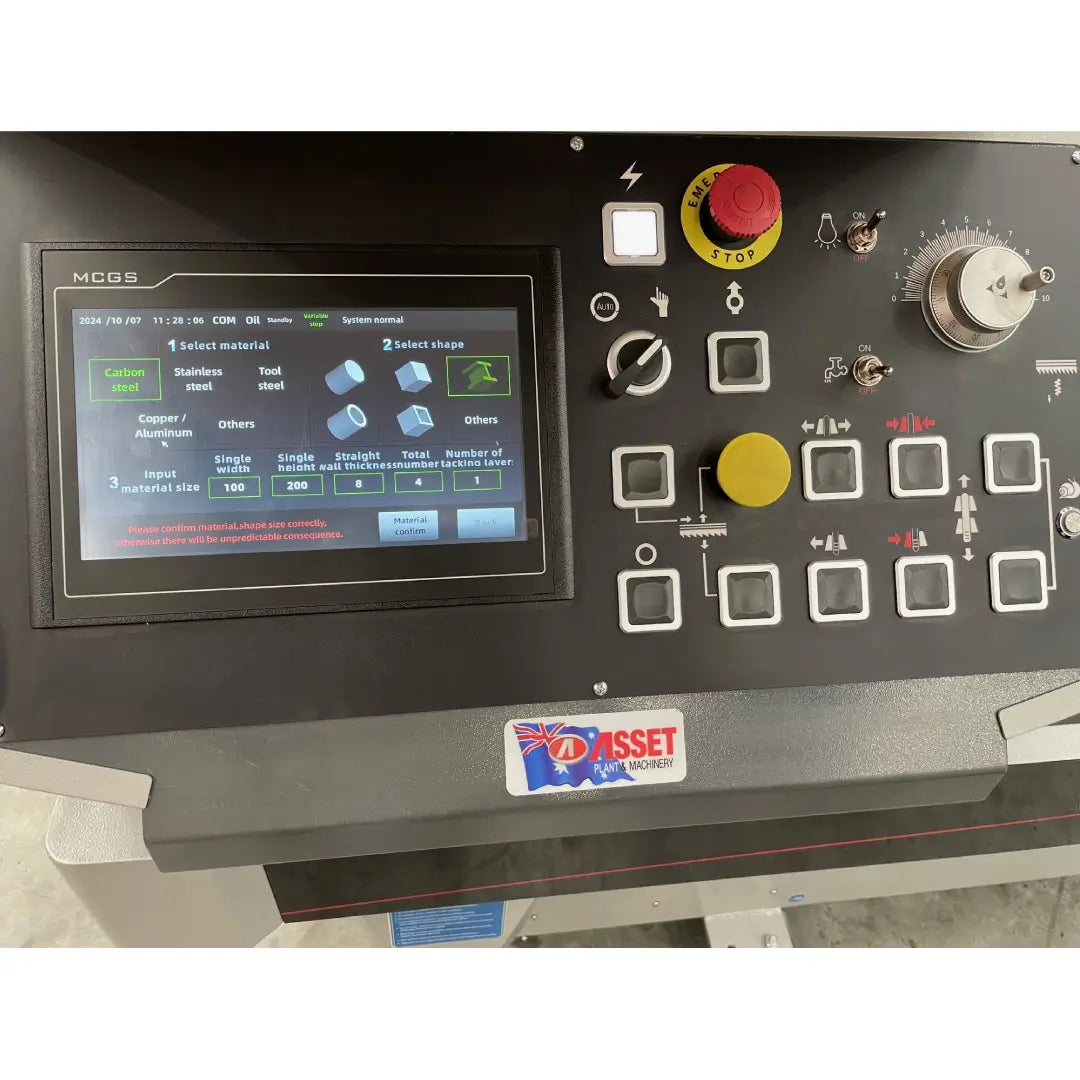

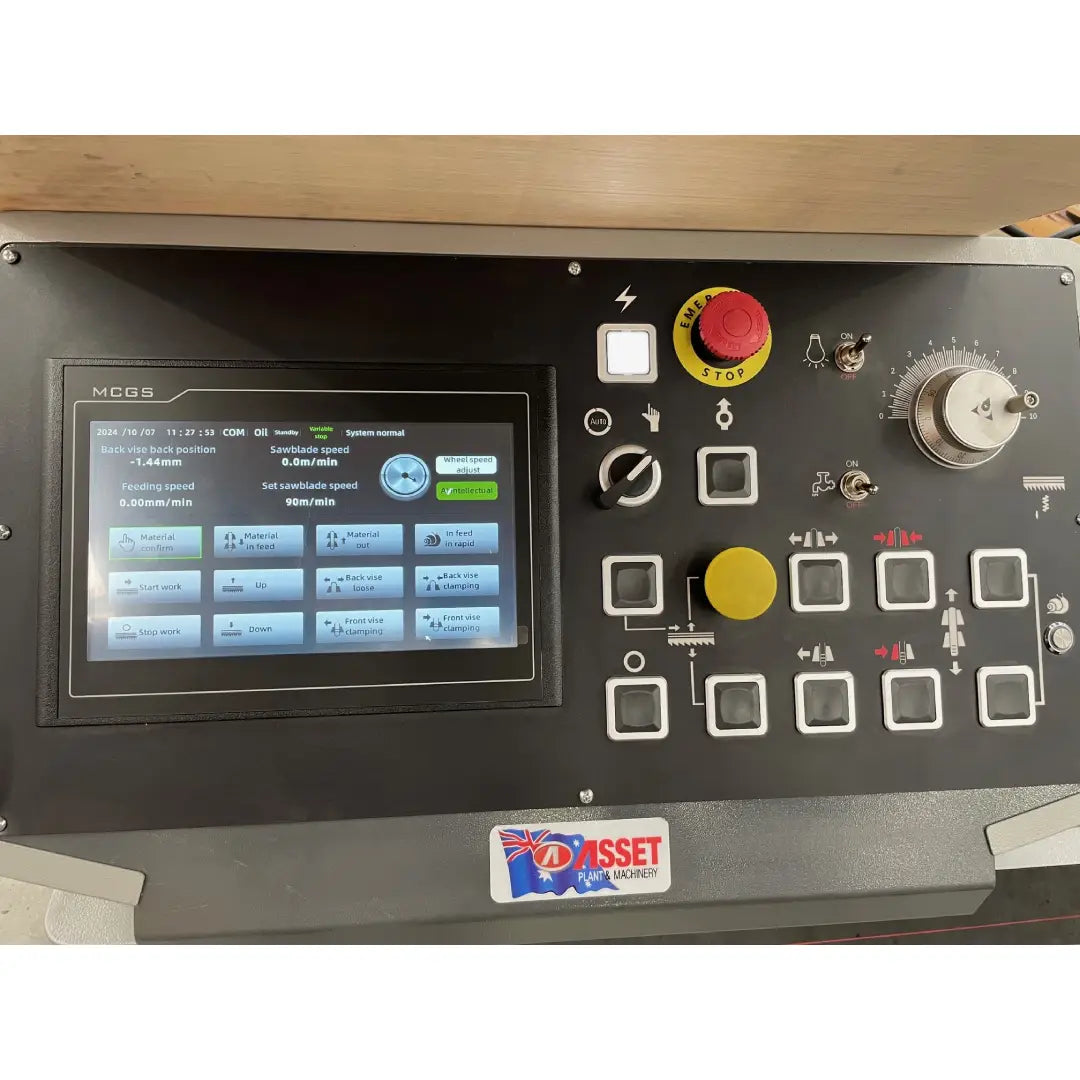

Touch Screen NC programmable control
Hydraulic bundle clamping fitted
420mm x 400mm cutting capacity
420mm round cutting capacity
10 ~ 80 variable speed range
0.25 ~ 0.5mm positioning accuracy
5150mm x 41mm x 1.3mm blade dimensions
500mm x 9 max length one way feeding
Hydraulic Oil Capacity – 70 Litres
Cutting Oil Capacity – 120 Litres
Shipping dimensions – 2630mm x 2250mm x 1900mm
Power – 415V 4Kw
Approx weight: 2500 kg
Product Features
Large precision ground column for additional support
NC programmable control
Precision feed length measuring system.
Power assisted in feed table
Hydraulic blade tensioner

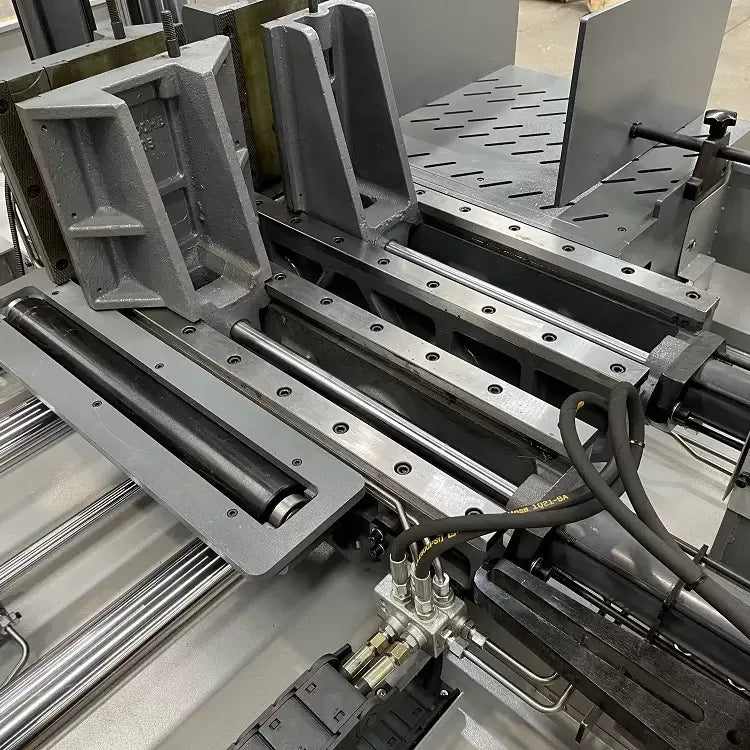

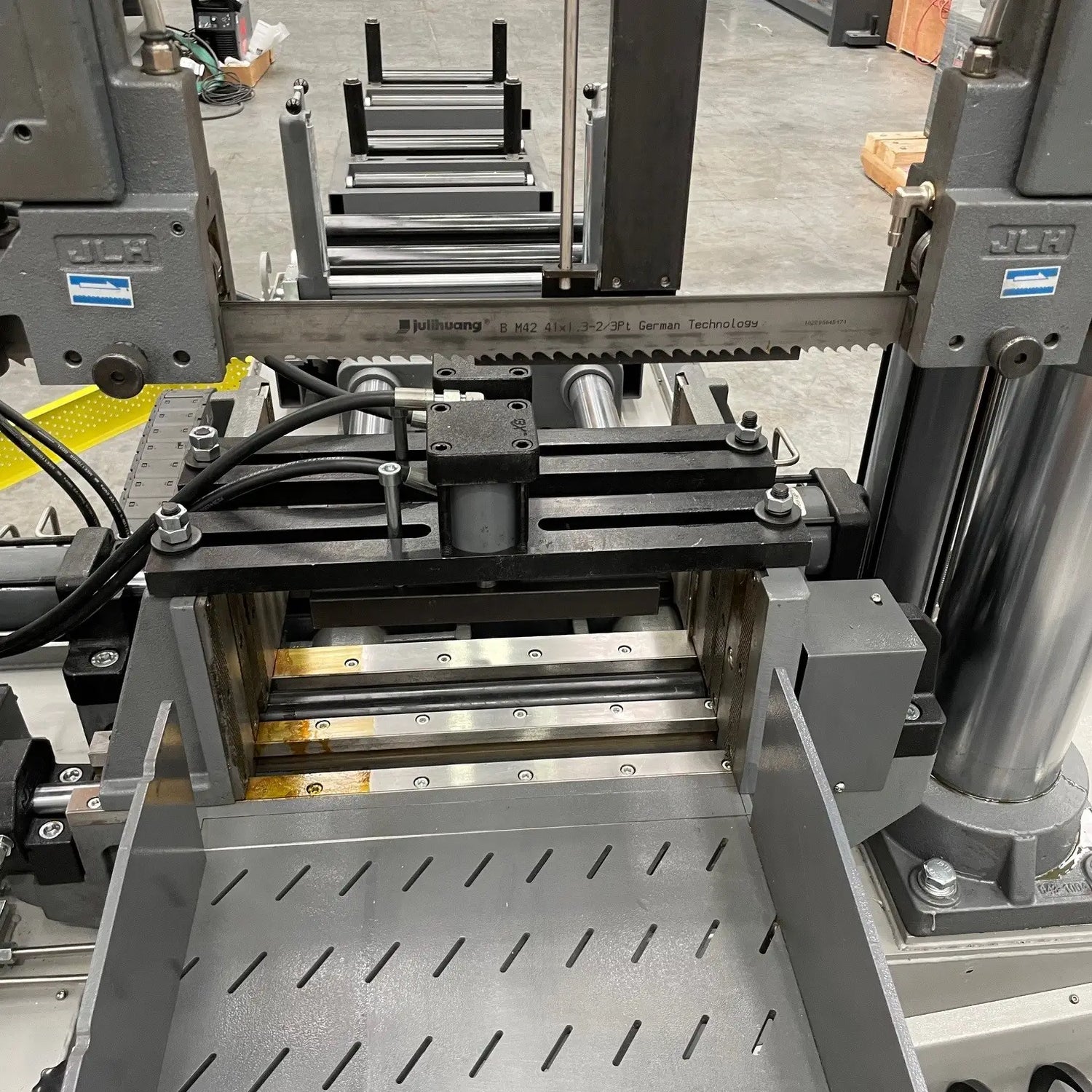

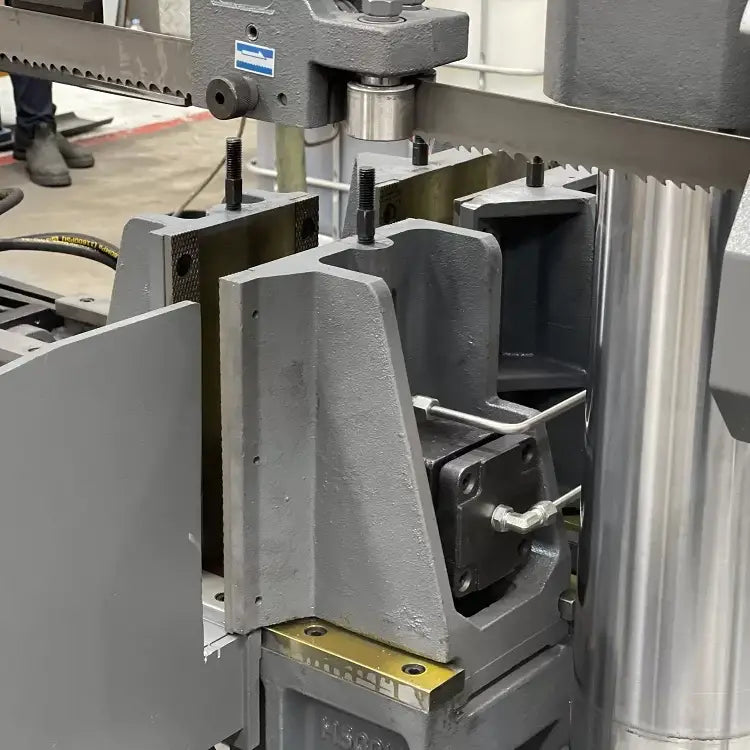

Hydraulic vice clamping
Variable hydraulic down feed & auto return

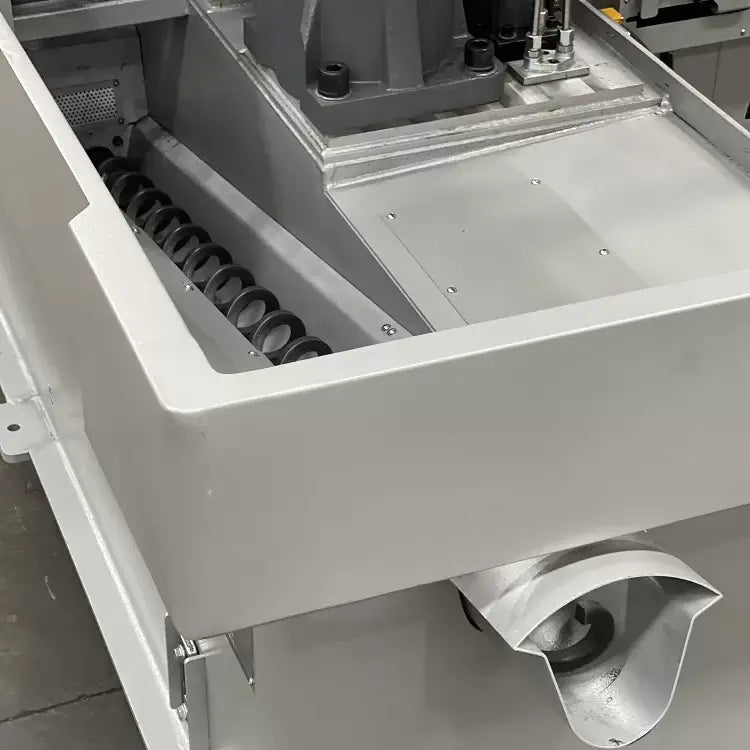

Automatic chip conveyor

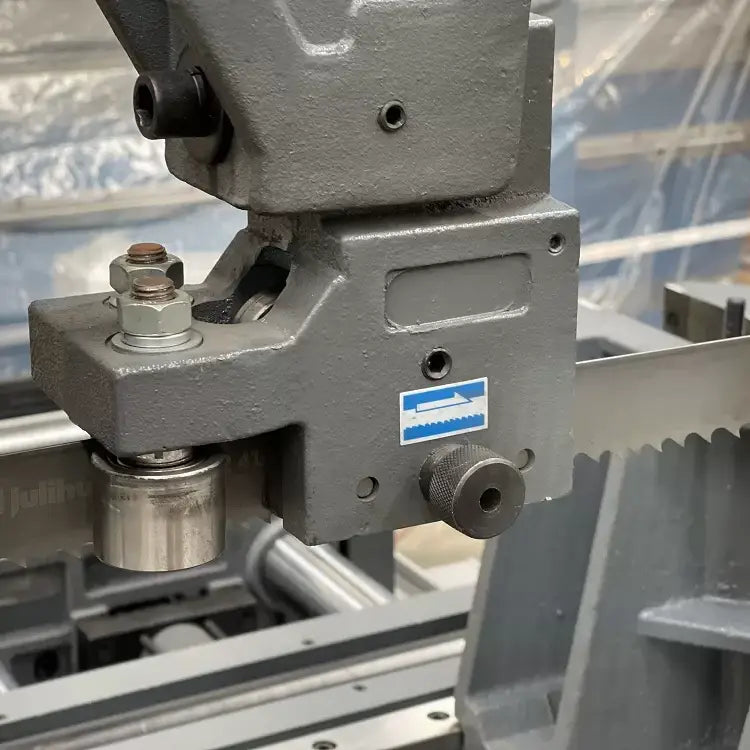

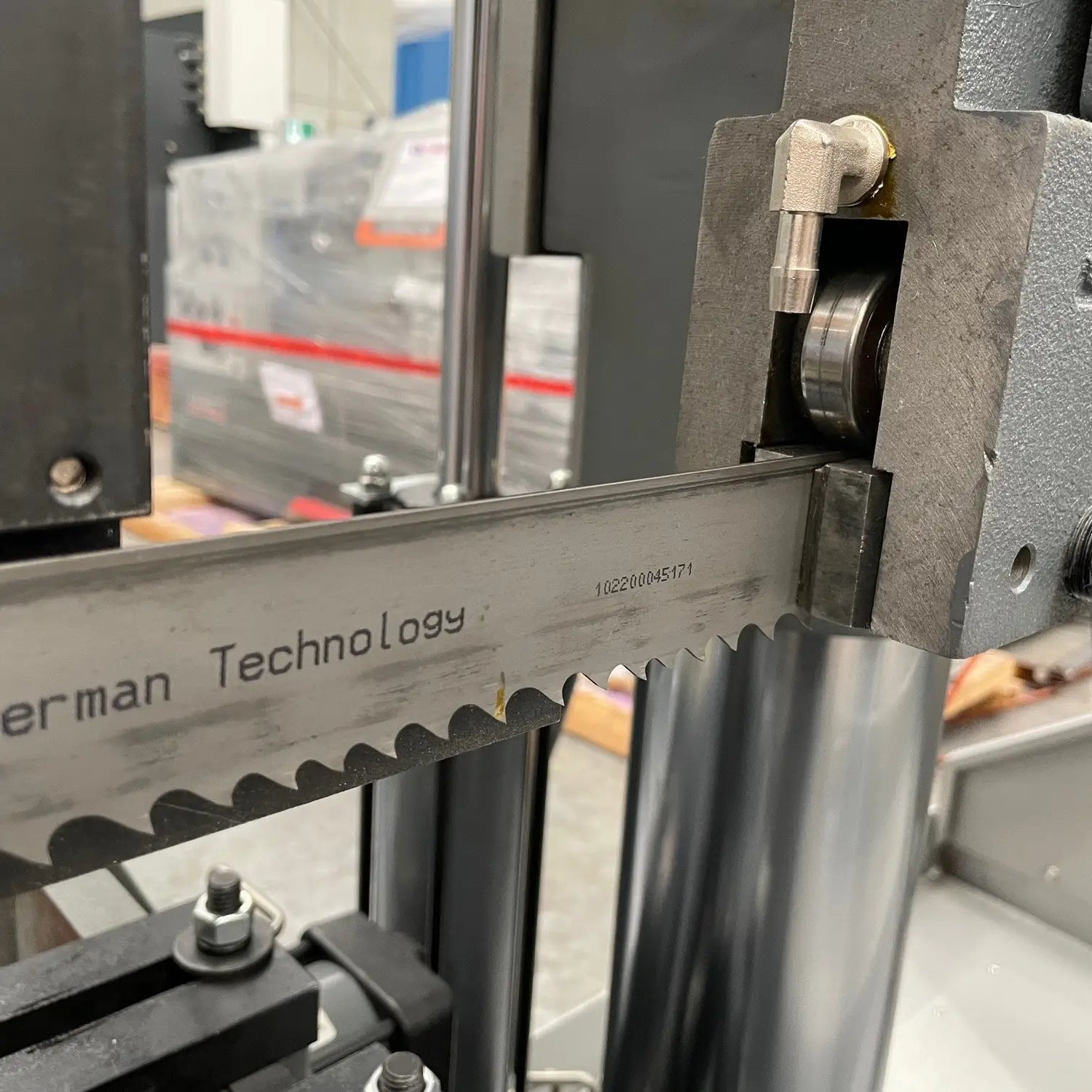

Carbide & bearing blade guides
Breakage sensor

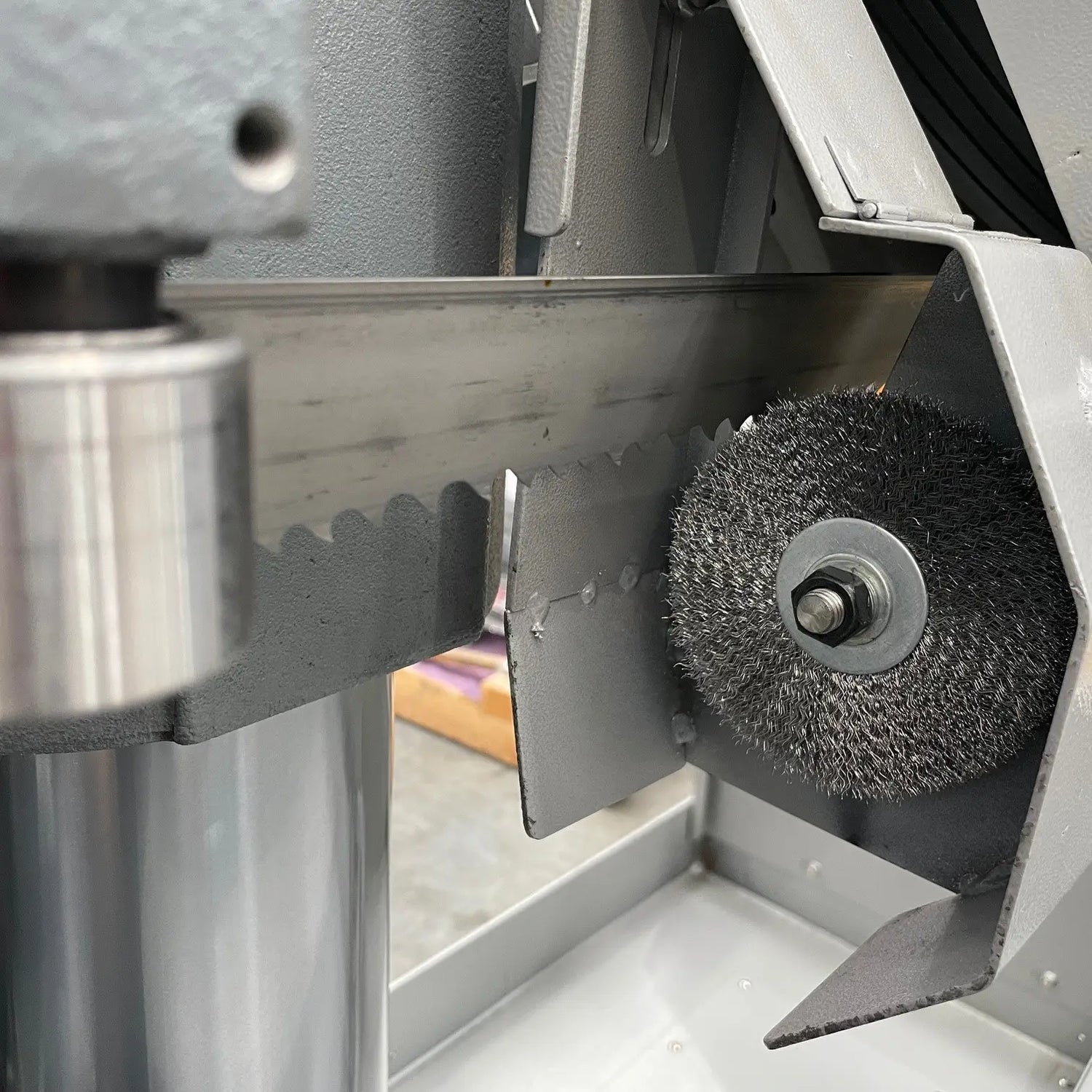

Powered brush cleaner

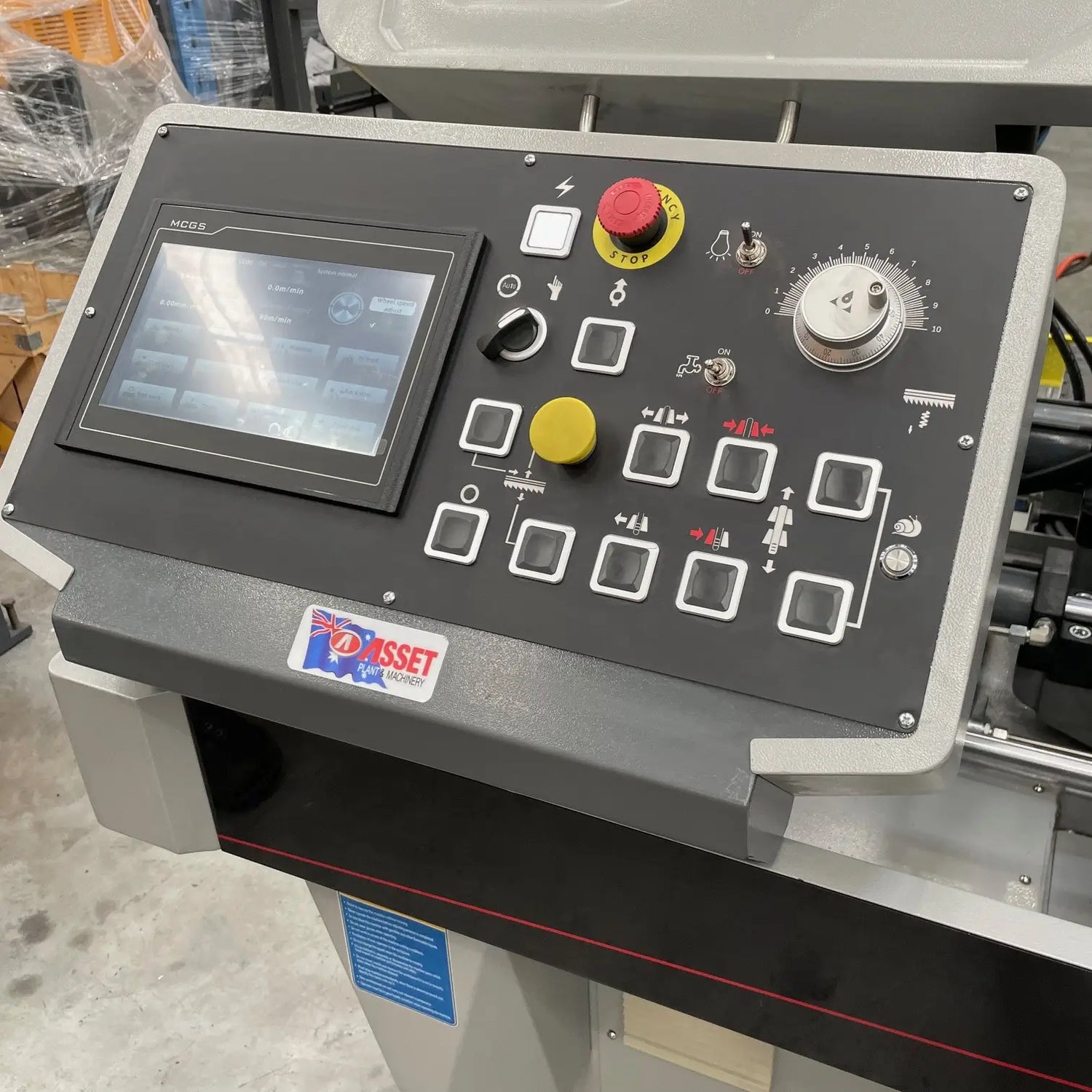

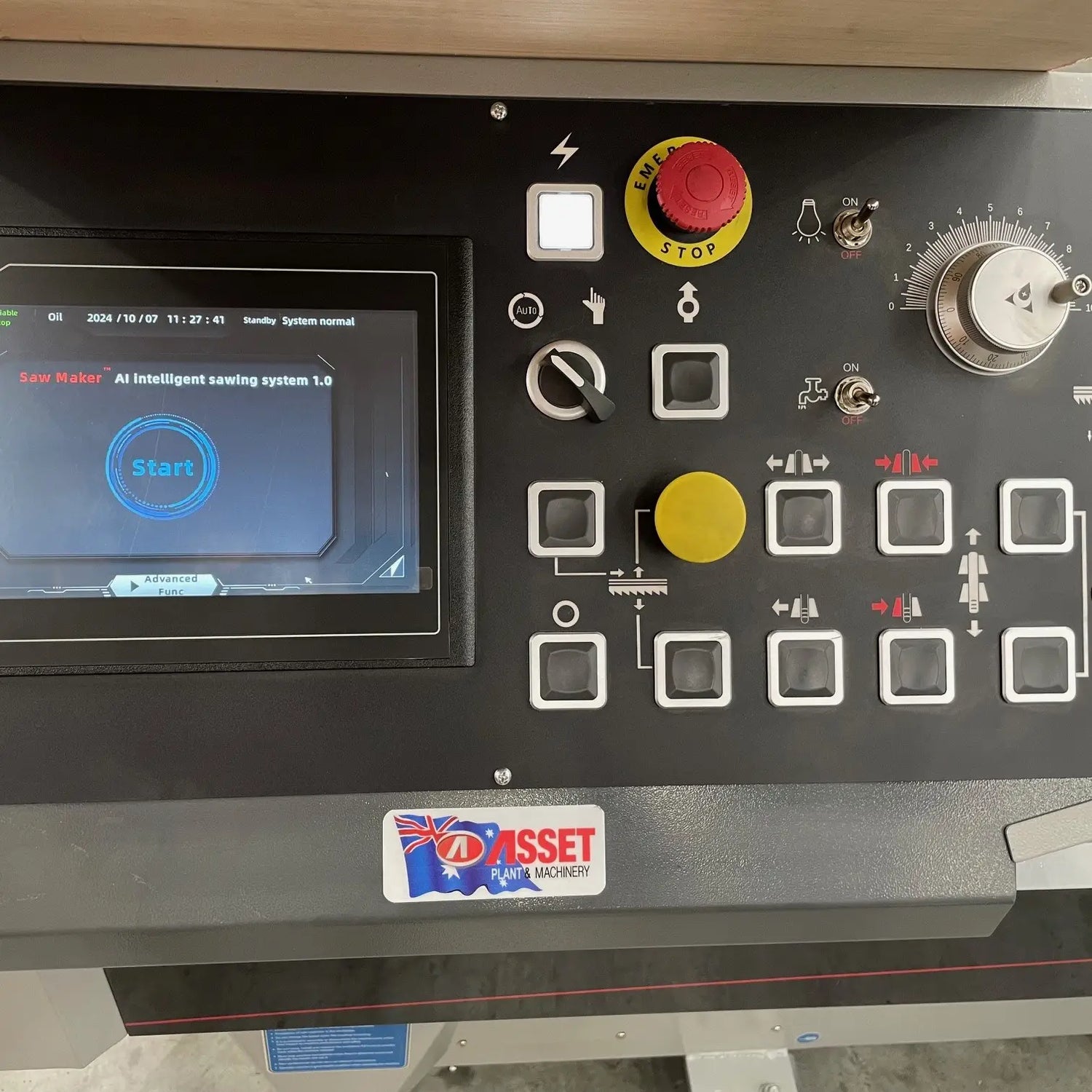

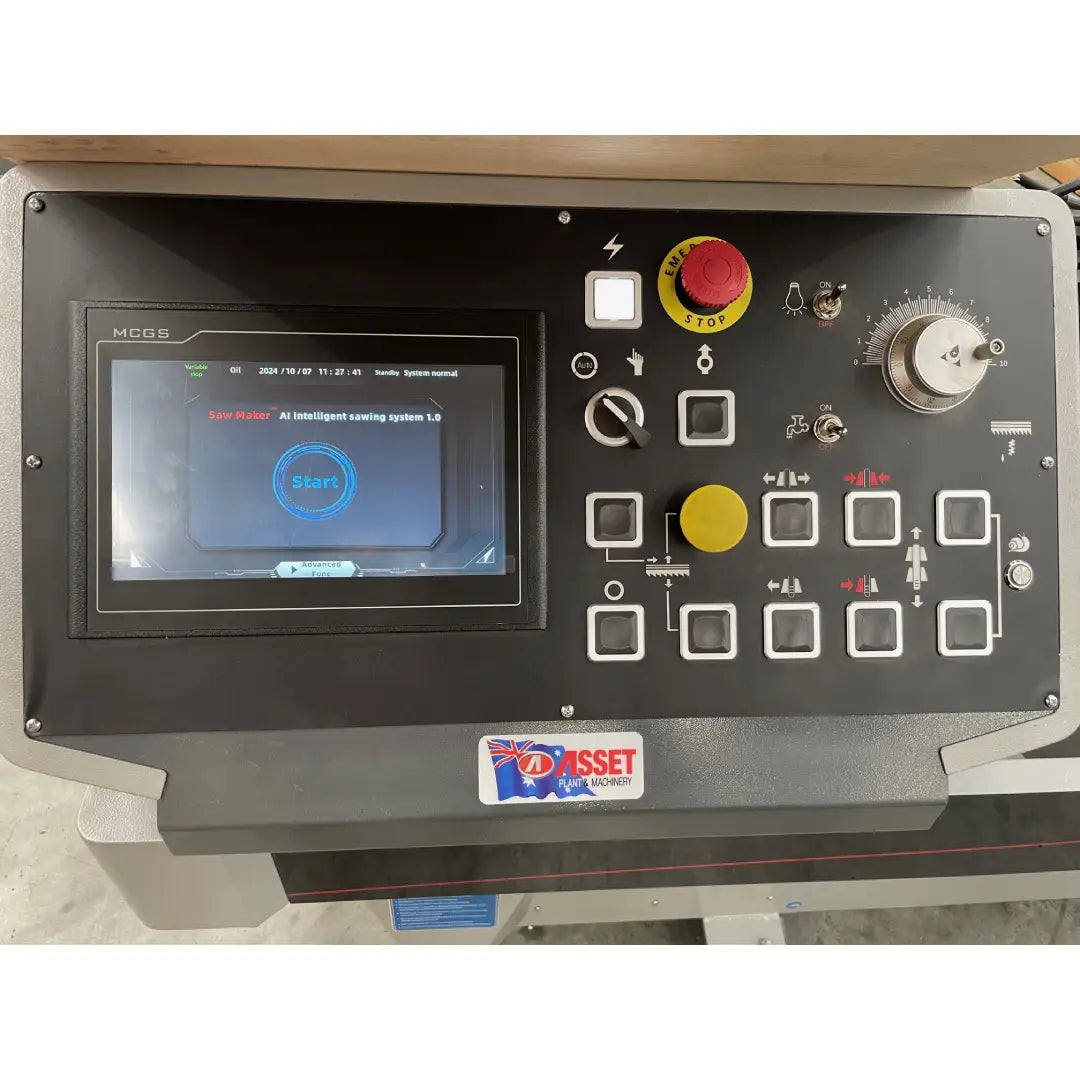

Centralized control panel

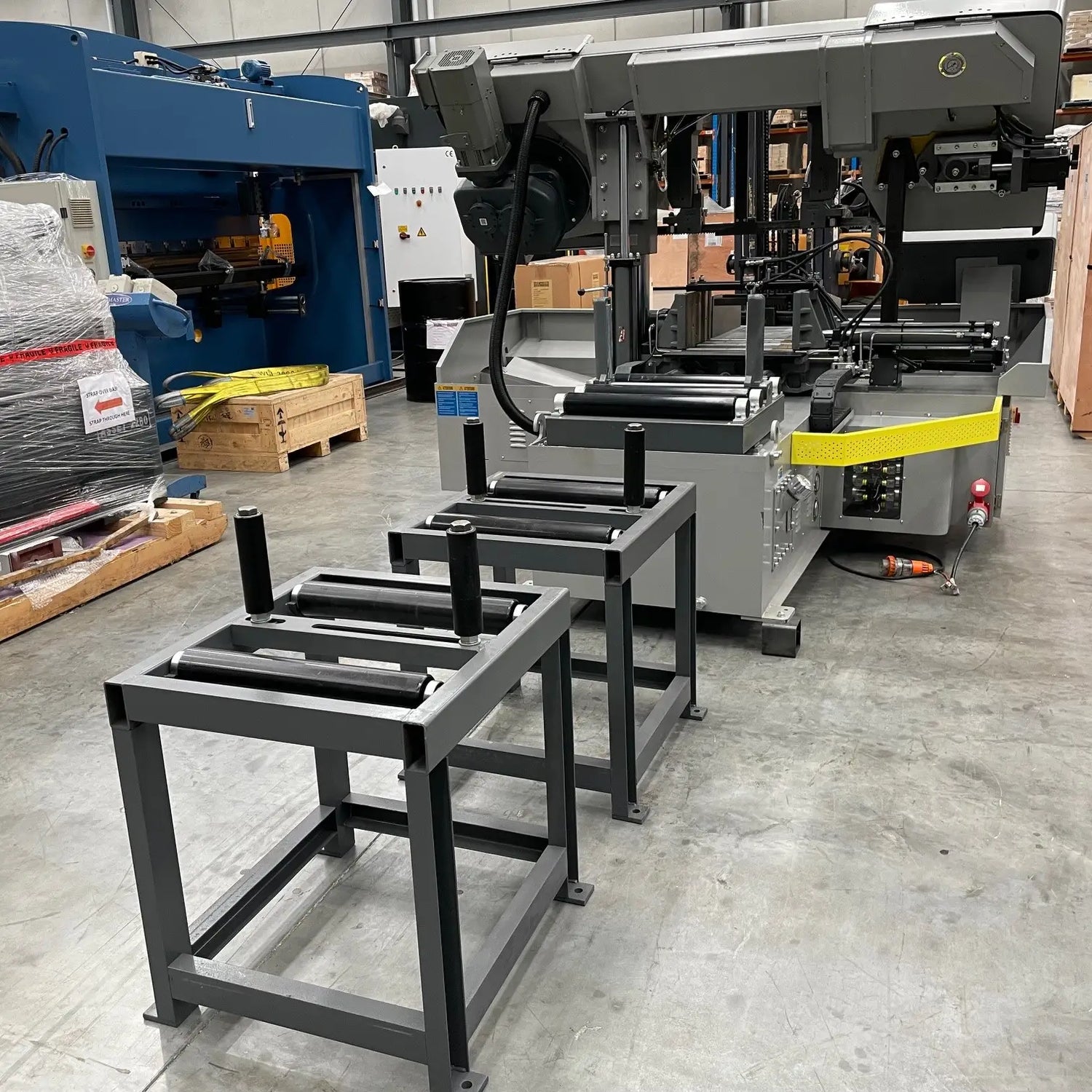

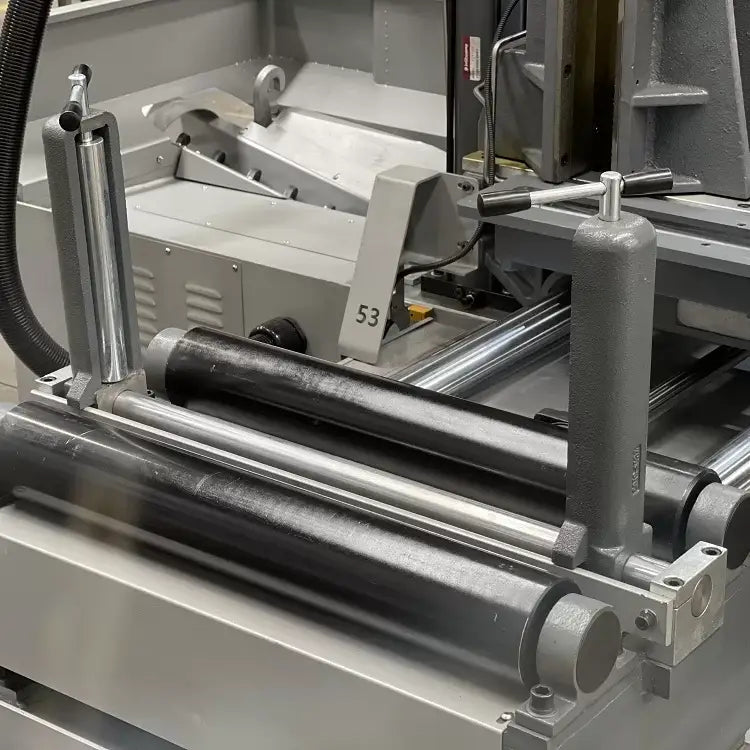

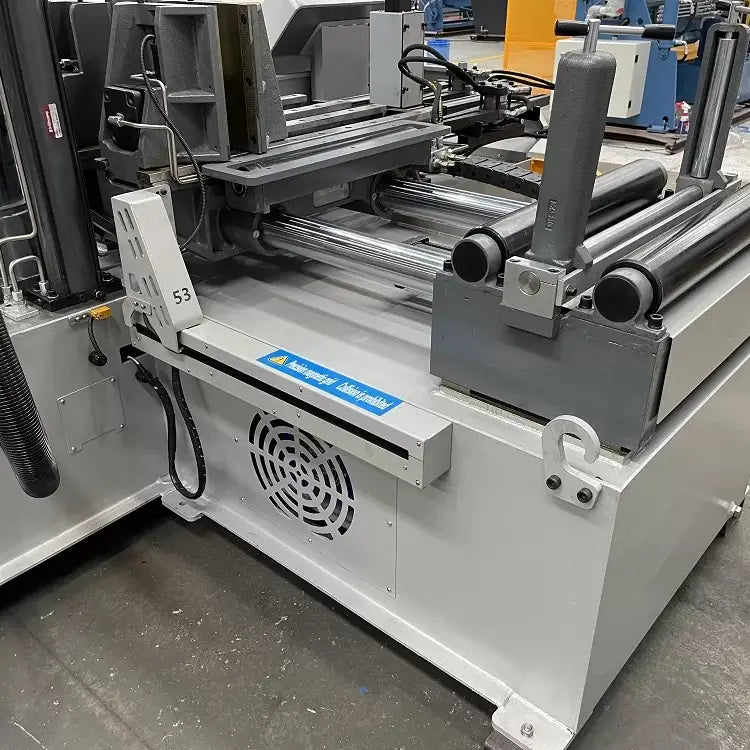

Powered in feed roller table with additional 1200mm roller conveyor
Coolant
Halogen work light
One piece bi metal blade fitted
CE compliance
Tool kit
Services required to be provided by customer
Equipment & Accessories Supplied
Recommended Add On Accessories
15+1081 – 5150 x 41 x 1.3 x 3/4 Vari -Tooth Rontgen German Quality Bandsaw Blade.
15+1080 – 5150 x 41 x 1.3 x 4/6 Vari -Tooth Rontgen German Quality Bandsaw Blade.
15+1082 – 5150 x 41 x 1.3 x 5/8 Vari -Tooth Rontgen German Quality Bandsaw Blade.
15+1083 – 5150 x 41 x 1.3 x 6/10 Vari -Tooth Rontgen German Quality Bandsaw Blade..
15+0274 – Heavy Duty Roller Conveyor & Stands, 620mm Wide x 500mm Long.
15+0287 – Heavy Duty Roller Assembly 520mm Wide Complete with Bearing and Housing Assemblies – Sold Each
11+0707 – Alfra Rotabest – Magnetic Swarf Remover
15+0187 – Coolant Mineral Based XDP-1000 5Lt Drum Metalium – Soluble – 20:1 Mix
