Steelmaster Industrial

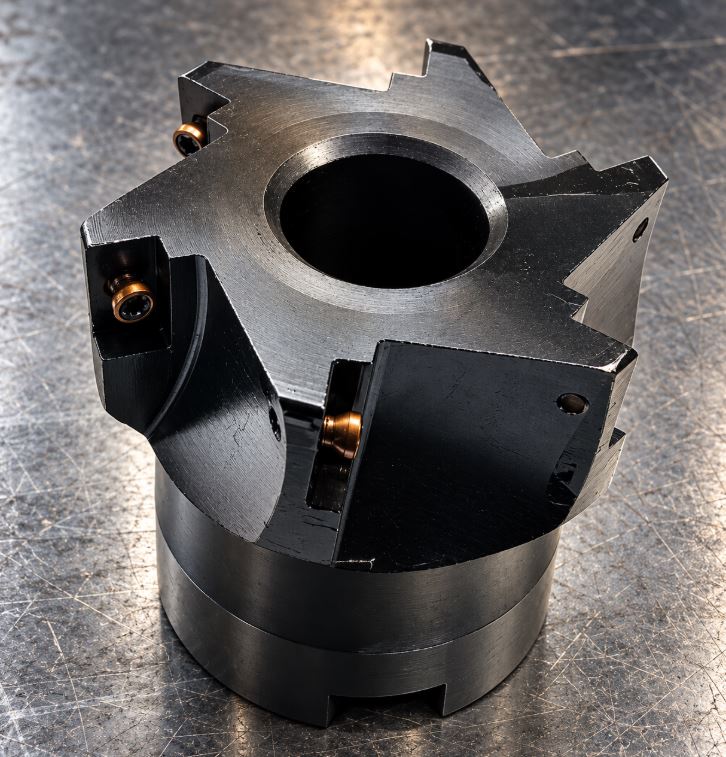

Indexable Square Shoulder Mill - Positive Approach - 50mm
Regular price
$119.00
Unit price
Unavailable
A 50mm indexable square shoulder mill with a positive approach. A precision milling cutter.
Technical Data
Features
50mm Diameter. 22mm Bore. Tips Requires: 6.
Cutter for general purpose slotting, contouring and ramping
Positive 90° approach.
ISO Code: EMP02 050 A22 AP11 06
Used in conjunction with fixing arbor
Recommended Arbors to Suit:
13+0557 - Face mill Arbor - ISO30-22MM
13+0560 - Face mill Arbor - ISO40-22MM
13+0553 - Face mill Arbor - MT4-22MM
13+0555 - Face mill Arbor - R8-22MM
13+0552 - Face mill Arbor - MT3-22MM
Tips to suit : 13+0541 (pkt 10)
Replacement Screws: 13#0564
Product Features
Description
Made in the same factory as our top quality turning tool holders and boring bars, these indexable square shoulder milling cutters are some of the finest we have ever seen. Every insert drops in precisely at angles calculated to give maximum cutting efficiency. Try one – you’ll come back for more!
Each insert enhances the cutting action and chip evacuation for a superb finish at fast speeds.
These top-quality cutters are suitable for production and tool rooms!
