Asset Plant & Machinery Australia-NZ Pty Ltd | SKU: 12+0554

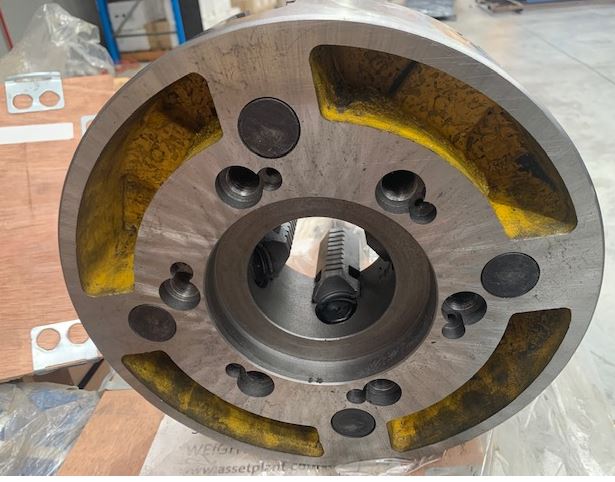

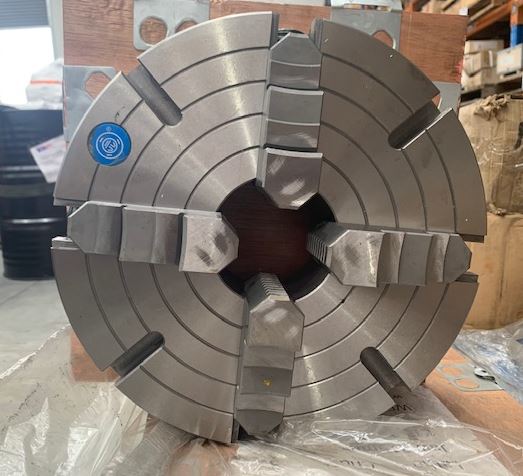

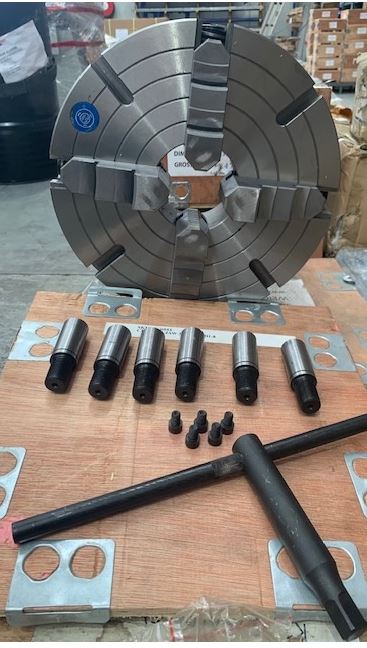

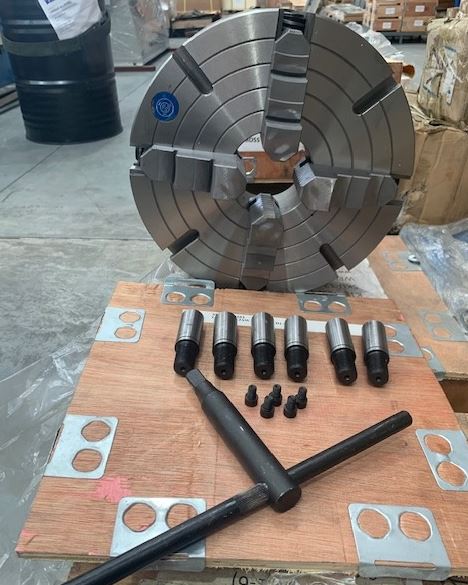

Lathe Chuck 4 Jaw - 320mm D1-8 Camlock, 110mm Spindle Bore

Name: Lathe Chuck 4 Jaw - 320mm D1-8 Camlock, 110mm Spindle Bore
Brand: Asset Plant & Machinery Australia-NZ Pty Ltd
SKU: 12+0554
Price: 495.00 AUD
Availability: InStock

PRICE EX GST

$495.00

PRICE INC GST

$544.50

MODEL NUMBER: LATHE-CHUCK-4-JAW-320MM-D1-8-CAMLOCK-110MM-SPINDLE-BORE

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PRODUCT OVERVIEW

Lathe Chuck 4 Jaw - 320mm D1-8 Camlock, 110mm Spindle Bore

PRODUCT FEATURES

Description:

We are proud to offer our independant 4 jaw chucks - camlock Lathe chucks.
Our well respected brand of chucks have been the long accepted standard for high quality work holding technology.
Check out the great selection and excellent prices .

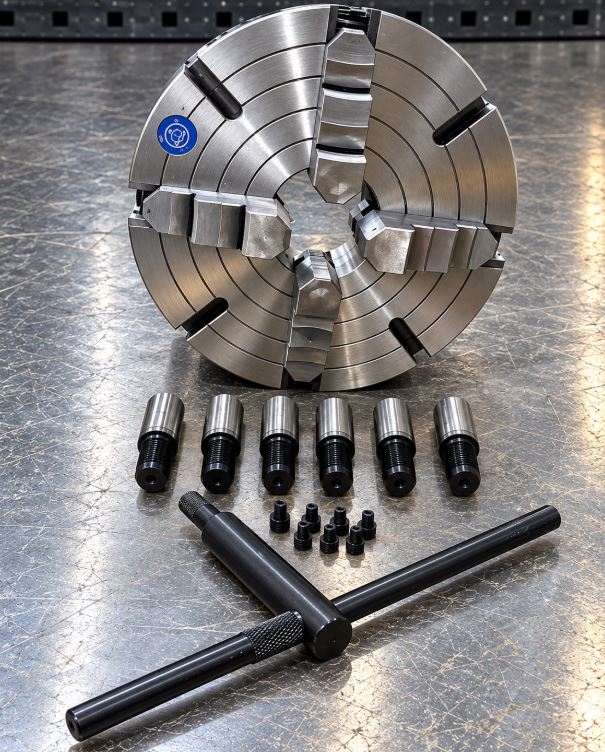

These camlock 4-jaw chucks are made with semi-steel bodies, hardened jaws and come complete with chuck key, screws and tools.

TECHNICAL DATA

❚ 320mm chuck diameter, D1-8 Camlock - Type, 110mm spindle bore.
❚ quality chucks with independently moving jaws and plain backs
❚ semi steel bodies & hardened reversible jaws
❚ 6 cam lock pins 25.4mm OD
❚ packaged securely for shipping
❚ product ordering code: 12+0554

TECHNICAL DIAGRAM INFO

PCD DIA
D1-3 70.6mm 14.3mm
D1-4 82.6mm 15.88mm
D1-5 104.8mm 19.05mm
D1-6 133.4mm 22.23mm
D1-8 171.4mm 25.4mm
D1-11 235mm 30.15mm
