Steelmaster Industrial | SKU: 13+0183

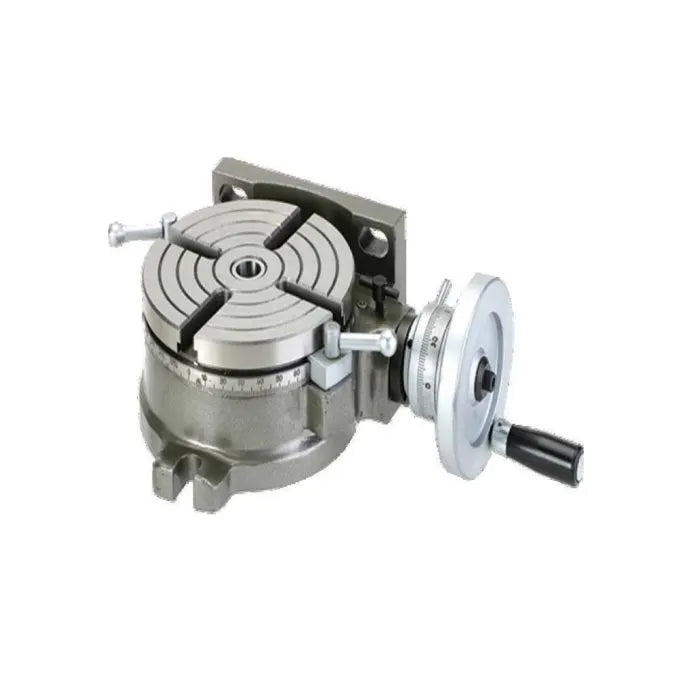

Rotary Table 203mm (8"), 3MT, Vertical & Horizontal Set Up

Name: Rotary Table 203mm (8"), 3MT, Vertical & Horizontal Set Up
Brand: Steelmaster Industrial
SKU: 13+0183
Price: 549.00 AUD
Availability: InStock

$549.00

MODEL NUMBER: ROTARY-TABLE-203MM-3MT-VERTICAL-HORIZONTAL

Pickup available at 118 Logis Boulevard

Usually ready in 24 hours

Estimated Weekly Repayments

Disclaimer: This weekly repayment estimate is provided by Corporate Finance (Aust) Pty Ltd and is an estimate only based on the price shown. This payment estimate is not an offer of finance and should be used for information purposes only.
Credit is to approved applicants only and final pricing may vary from estimate shown.

PICK UP & DELIVERY INFORMATION

PICK UP:
For machineries, pick up is scheduled within 48-72 hours after order confirmation, subject to pre-commissioning.

For tools, parts & accessories, next day pick up is available.

Pick Up location: 118 Logis Boulevard, Dandenong South VIC 3175

DELIVERIES:
For machinery delivery rates, please request a quote or call 1800 511 508.

For Tools, Parts & Accessories, continue to check out.

DESCRIPTION

A 203mm (approx 8") diameter rotary table with a 3MT (Morse Taper) centre. Suitable for vertical and horizontal setup.

PRODUCT FEATURES

200mm Table Diameter, 4 T Slots, MT3 Centre Hole
full horizontal & vertical set up (except 13+0182)
universal rotary table with full 360 degree rotation
setup table rotates on a large, ring shaped, oil-bath lubricated, roughened flat guide way
the robust, very effective fixture pulls the setup table down straight vertical without any change of position or radial pressure and presses it against the guide way
for quick manual turning, the worm can be disengaged from the worm gear by pushing down the hand-lever
the zero-back lash of worm and worm gear is adjustableTechnical Data
table dia: 200mm
MT: 3
Ratio: 1:90
No. tee slots: 4
tee slot size: 16mm
degrees per revolution: 4
Vertical & Horizontal
weight: 30.5Kg
